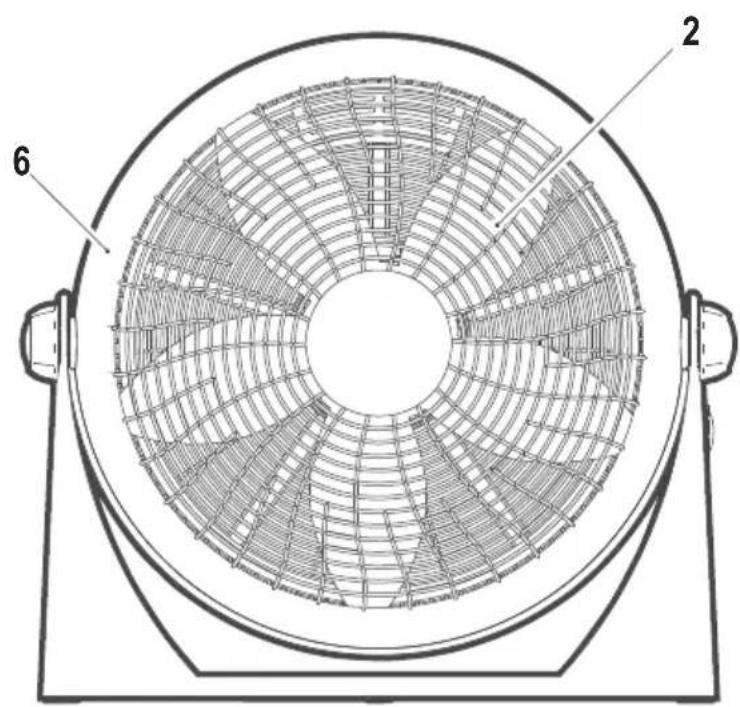

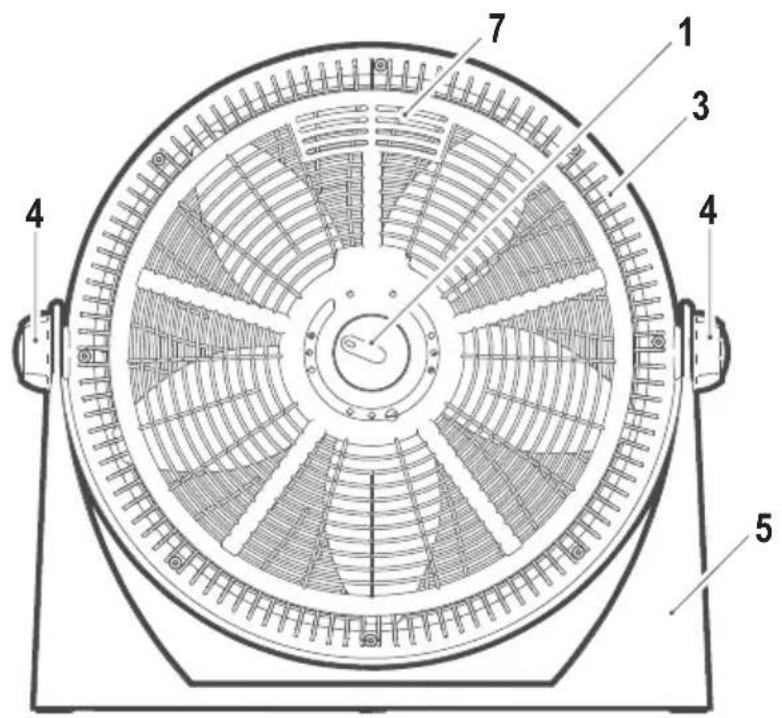

Parts Identification

1. On/off control knob (Found on the back of the fan body)
2. Fan blade
3. Rear guard
4. Tilt adjustment knobs
5. Base
6. Front guard
7. Carry handle

Intended use

Your Black & Decker fan has been designed for circulating air. This product is intended for household use only. Remove all the parts from the packaging material and keep them safe. Ensure that you have all the parts as identified in the part identification list, if anything is missing get in touch with your nearest Black & Decker service agent for assistance.

Read this entire manual carefully before using the appliance.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.

Using your appliance

• Make sure that the appliance is switched off before connecting to or disconnecting from the power supply.
  Always take care when using the appliance.
• Never pull the power supply cord to disconnect the plug from the socket.

• Keep the power supply cord away from heat, oil and sharp edges.

• When using an extension cord with your appliance, make sure the extension cord is correctly wire & rated for its use.

• Do not allow the cord set to hang over bench tops.
• Do not use the appliance outdoors.
• Do not operate the appliance if your hands are wet. Do not operate the appliance if you are barefoot.
• Guide the power supply cord neatly so it does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.
• The product must not be immersed in liquid.
  Always route the cord carefully to avoid a tripping hazard.

Warning! Do not cover the back of the fan with curtains or other obstructions.

Warning! Keep loose clothing, hair, jewellery etc. away from moving parts.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children or any person unfamiliar with these instructions to use the appliance.
• Do not allow children or animals to come near the work area or to touch the appliance or power supply cord. Close supervision is necessary when the appliance is used near children.

ENGLISH

Children should not be left unattended while the fan is in use.
- It is not recommended that this product is used by children.
- Never leave the appliance unattended when in use.

After use

• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Switch off the appliance before cleaning, changing accessories or approaching parts which move in use.
  Always allow the motor to stop turning before removing any cover or accessory
• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Before use, check the power supply cord for signs of damage, ageing and wear.

• Do not use the appliance if the power supply cord or mains plug is damaged or defective.

• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.

• Never attempt to remove or replace any parts other than those specified in this manual.
• Do not attempt to repair the appliance. Take it to your nearest Black & Decker owned or authorised Service Centre for repair.
• Ensure that he fan is switched off and disconnected from the mains supply before removing the guard.

Electrical safety

Before use check that the mains voltage corresponds to the voltage on the rating plate.

This appliance is double insulated in accordance with EN 60335; therefore no earth wire is required.

• To avoid the risk of electric shock, do not immerse the cord, plug or motor unit in water or other liquid.
• Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.

Mains plug replacement

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal of the new plug.

• Connect the blue lead to the neutral terminal.

• If the product is class I (earthed), connect the green / yellow lead to the earth terminal.

Warning! If your product is class II double insulated (only 2 wires in the cord set), no connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs

Any replacement fuse must be of the same rating as the original fuse supplied with the product.

Assembly

Your Box fan comes already assembled therefore no assembly is required.

Ensure that the voltage rating on the base plate corresponds to the main voltage at your home.

Remove all packaging from the parts of the fan.

Use

Warning! Never use the fan without the guards in place or if the guards are damaged.

Switching on and off

Your Fan has a three speed control to keep the desired air flow through your room.

0-Off

1 - Low

2 - Medium

3-High

• To switch on, turn the On/off control knob (1) to the desired speed. The fan will start.

• To switch off, turn the On/off Control knob (1) to the off position.

Adjusting the angle of the fan

The angle of the fan can be adjusted up and down.

• Loosen the tilt adjustment knobs (4) on each side of the fan.
• Tilt the body of the fan to the desired angle.
• Re-tighten the tilt adjustment knobs (4) on each side of the fan.

Maintenance

Your Black & Decker fan has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.

Warning! Before performing any maintenance or cleaning of the fan, disconnect the appliance from the power supply.

Cleaning

The main housing should be cleaned with a clean damp cloth only.

Note: Do not use abrasives or chemical cleaners on any part of this appliance.

Do not wash any part of this appliance in a dishwasher.

Ventilation slots at the rear of the fan should be cleaned occasionally with a clean, dry paint brush.

Technical data

Voltage 220 – 240 Volts

Supply 50 Hz

Power input 55 W

Weight 3.4 kg

ENGLISH

Protecting the environment

arate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

• Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

• You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee.

This guarantee statement is in addition to and in no way prejudices your statutory rights.

The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

product has been used for trade, professional or hire purposes;

product has been subjected to misuse or neglect;

product has sustained damage through foreign objects, substances or accidents;

airs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual.

Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
