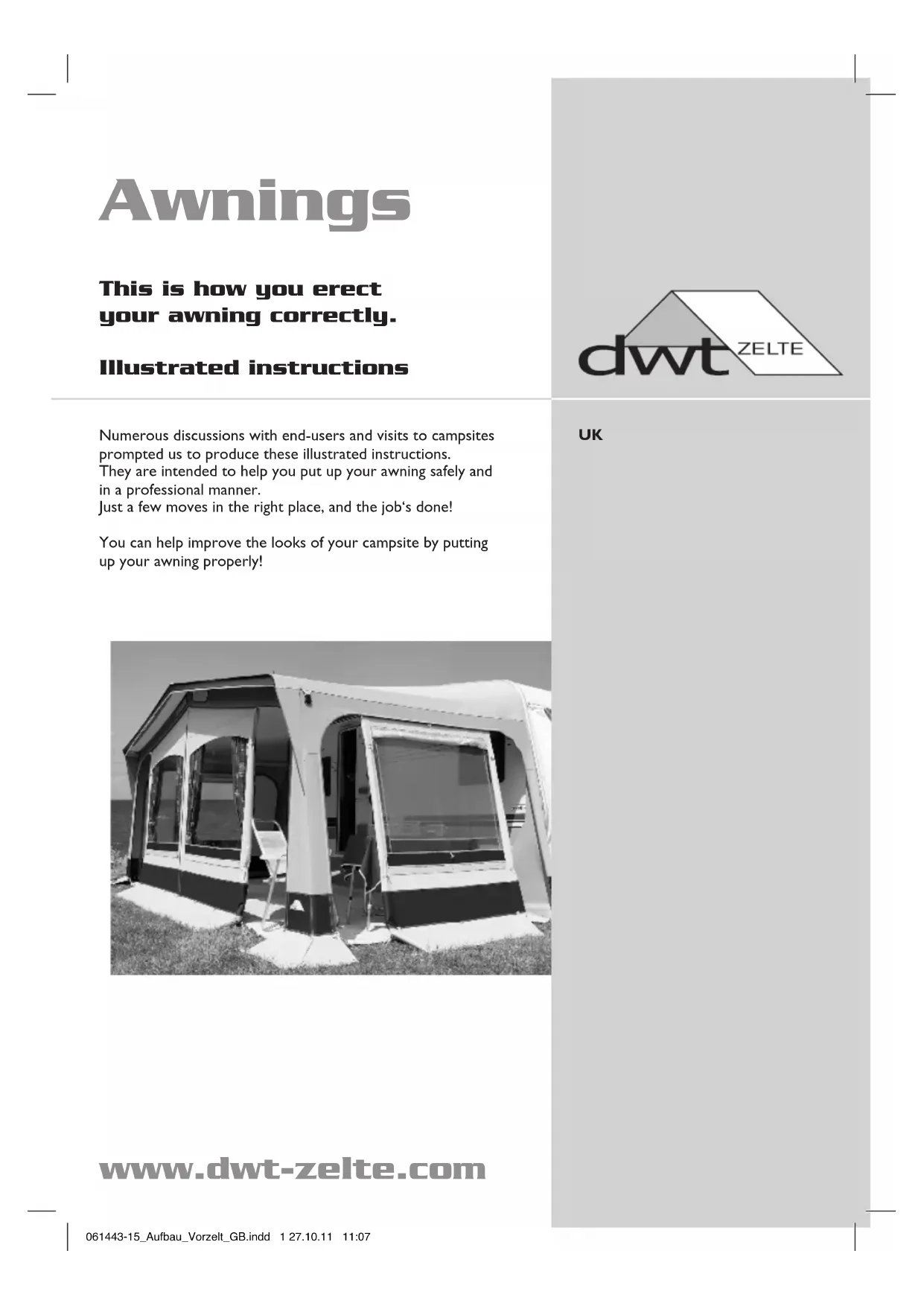

Awnings

This is how you erect your awning correctly.

Illustrated instructions

Numerous discussions with end-users and visits to campsites prompted us to produce these illustrated instructions.

They are intended to help you put up your awning safely and in a professional manner.

Just a few moves in the right place, and the job's done!

You can help improve the looks of your campsite by putting up your awning properly!

Exterior view of a modern camping tent with open windows and a small chair, set in an open grassy area (no signage or text visible)

www.dwt-zelte.com

dwt ZELTE

UK

Awnings

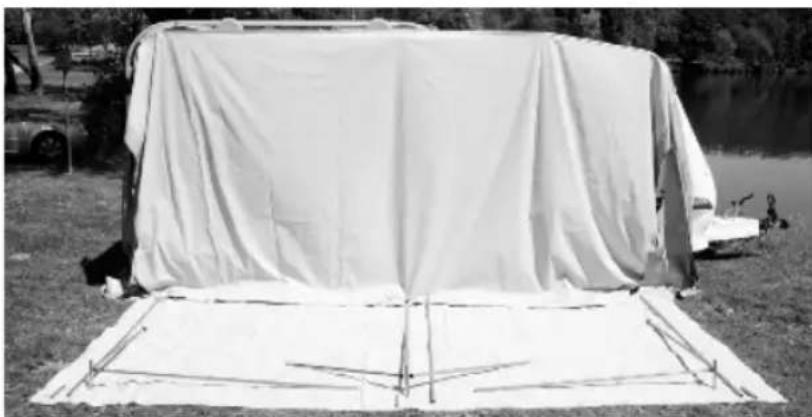

Off we go!

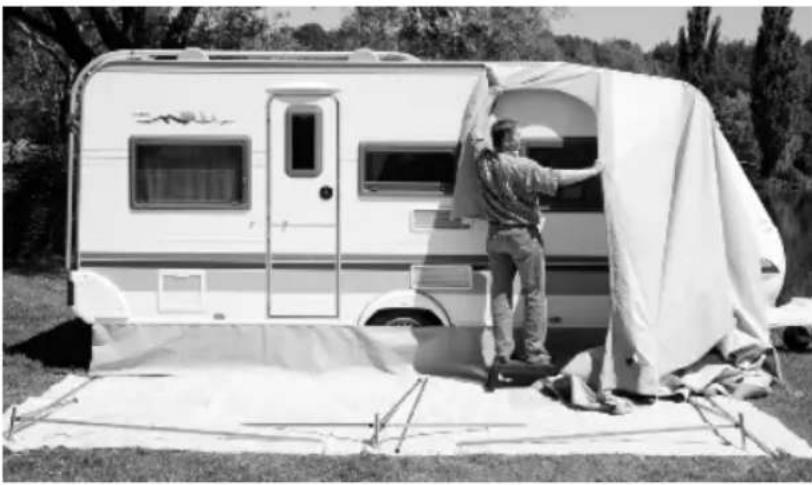

Please read the instructions through carefully before you start putting up the awning.

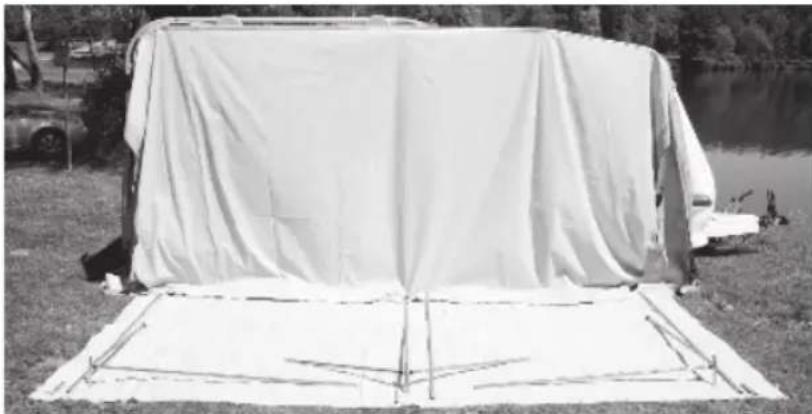

Lay out protective sheeting or tent carpet in front of the caravan. Fit the frame together, fit the screws or clamps.

Lay out the corners poles, roof poles and ridge poles on the ground in front of the caravan according to the pole diagram. Do not connect these individual parts yet. You can put additional poles such as extra roof poles, verandah poles or canopy tensioners to one side for the moment. These will be needed later.

Clean the caravan's awning rail, making sure there are no sharp edges, and feed the roof of the awning in.

For caravans with a sloping front, please use the double wind flap on the right side wall which is stitched on. With the help of the wind flap you can still tighten the sidewall vertically, and attach an annex, according to level of equipment.

Black-and-white photo of a person installing or adjusting a white tent on a flatbed trailer in a park setting (no visible text or symbols)

Black-and-white photo of a white tent on grassy ground near a lake, with no visible text or symbols.

Exterior view of a two-story white tent with arched windows and a curved roof, set in a grassy outdoor area (no signage or text visible)

Caution

(Refers to all steps of setting up)

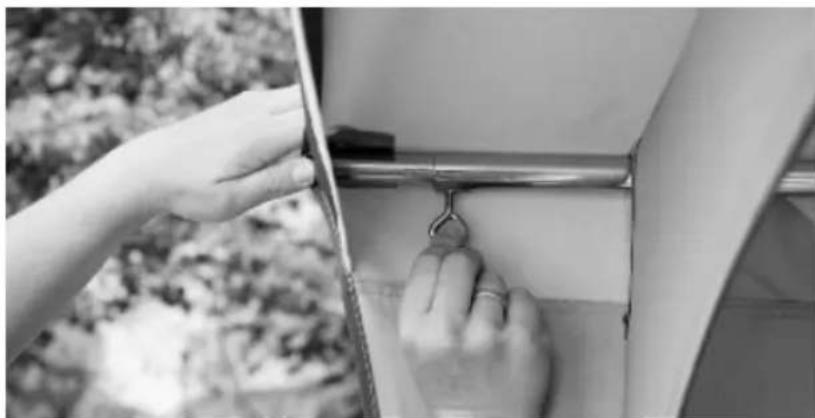

- Please always tighten the fastening screws or fastening devices so that the individual poles cannot close up again or come away from one another. You will avoid any chance of injury and will stop the caravan being damaged by falling poles.

Important

To avoid any damage occurring to your caravan

- the screws or other fastening devices for the roof poles should be so adjusted that if they do come loose and fall, the side wall of the caravan is not going to be damaged.

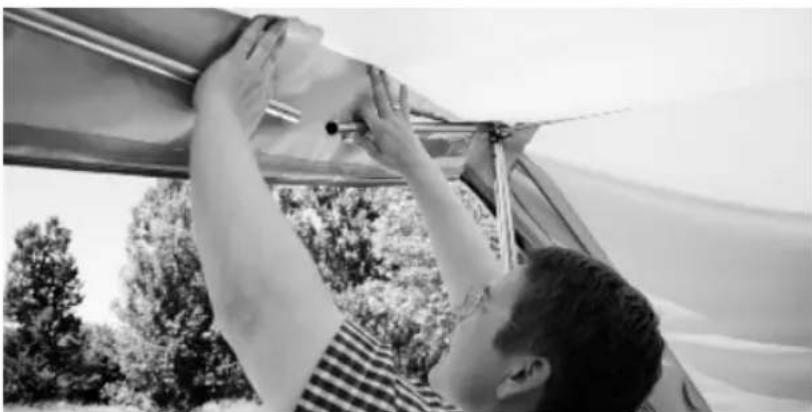

- connect the roof poles with the brackets by making sure they engage properly over both poles pushed in, and only then, telescope them. In this way you will avoid pulling the front pole out and the rest of the pole falling back and hitting the caravan.

www.dwt-zelte.com

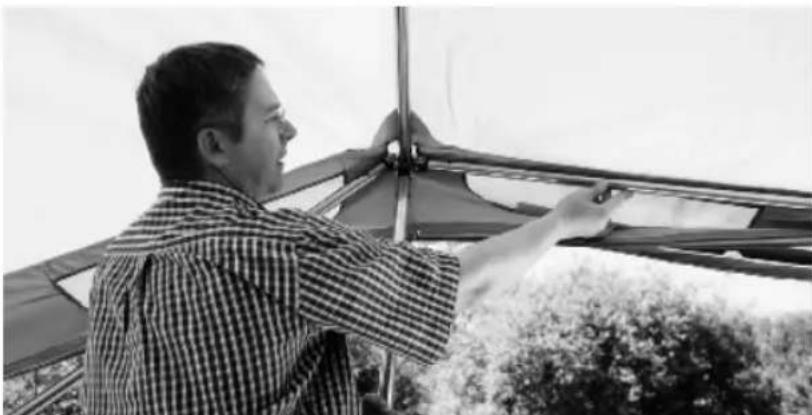

Man in checkered shirt installing or adjusting a roof structure outdoors (no visible text or symbols)

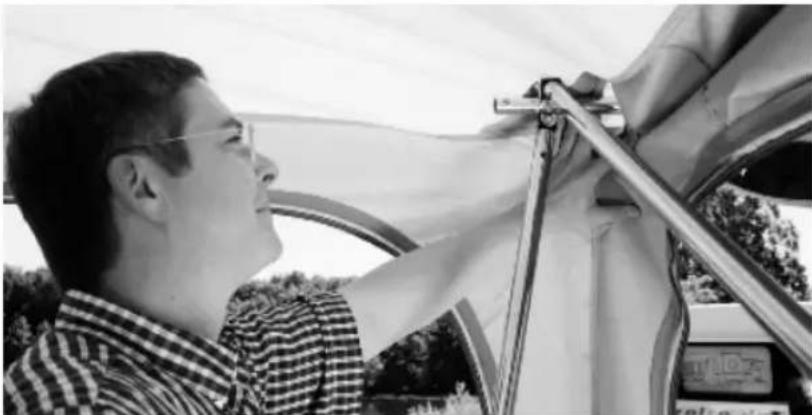

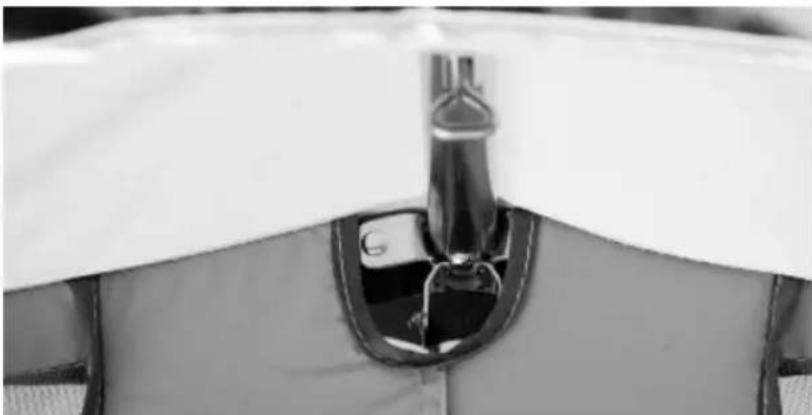

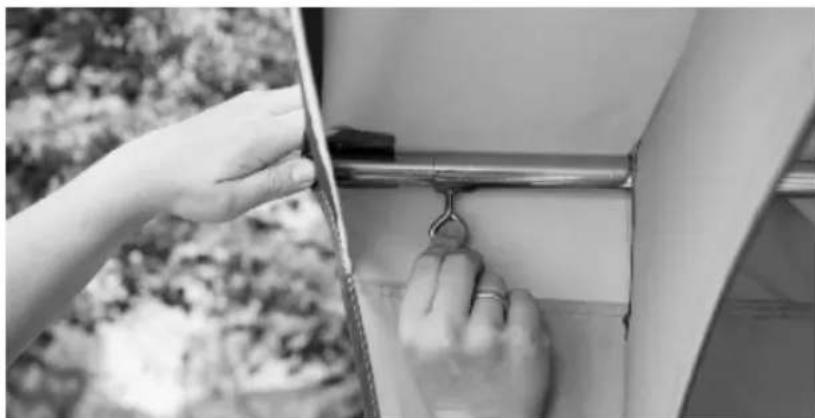

Hang the middle roof pole in the threaded fixing eye or Vario Clip on the caravan and connect this to the centre bracket. Put up the centre bracket and determine the centre height.

Man adjusting a car window outdoors, wearing glasses and a checkered shirt (no visible text or symbols)

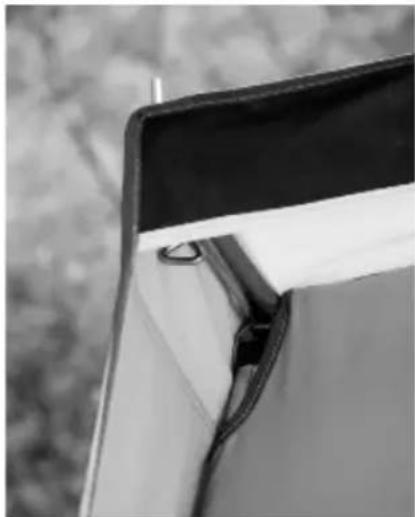

While setting up, we recommend that all brackets are secured with a guy-rope to avoid gusts of wind picking up the roof of the awning with its frame.

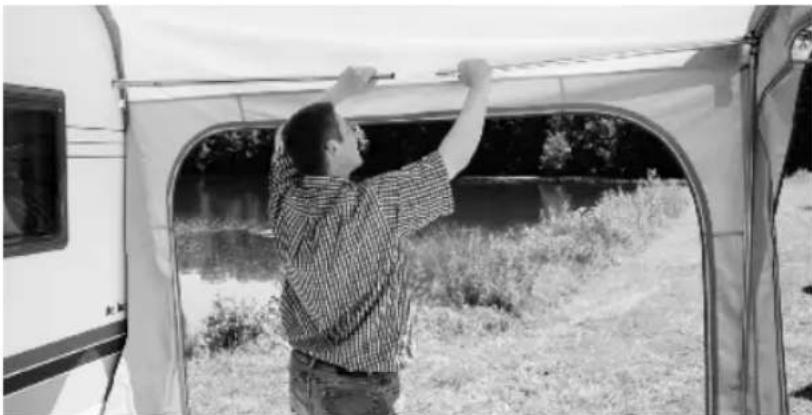

Man installing or adjusting a vehicle door frame outdoors near a river (no visible text or symbols)

Put up one side bracket.

Man installing or adjusting a roof structure outdoors, no visible text or symbols

Hang the side roof pole in the threaded fixing eye or Vario Clip on the caravan and connect it to the side bracket. Spread the pole slightly and then tighten the screws completely.

Connect this side bracket with the centre bracket, spread the poles apart slightly and then tighten the screws completely.

www.dwt-zelte.com

Awnings

Repeat the previous three steps with the opposite end of the awning.

Now push the small canopy supports in place, taking care at this point that the side- and centre-brackets are clearly seen through the pole cut-out and that the brackets are not over-tensioned forwards.

Note:

- If canopy tensioner poles are also supplied, they are fitted at this point. In the canopy, these poles connect the side supports with those in the centre.

- Before taking the next steps, arrange the roof of the awning so that all horizontal seams in the front and side walls are running horizontally.

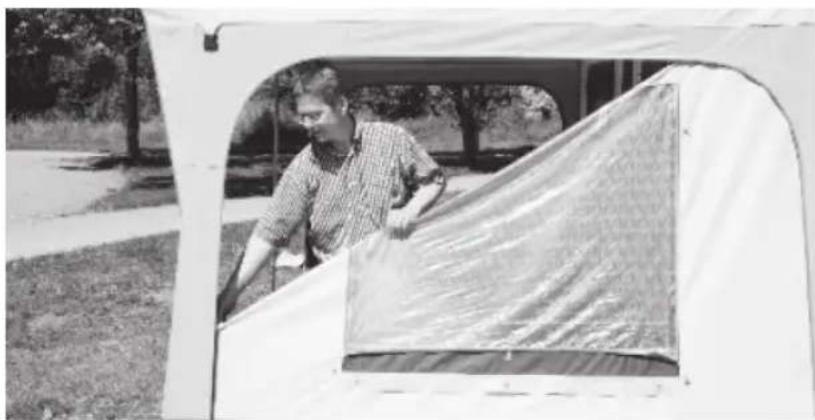

Set the side walls in place.

Set the front wall in place.

Person opening a tent outdoors, adjusting the canopy (no visible text or symbols)

Close-up of hands installing or adjusting a metal bracket on a wall, no visible text or symbols

Man installing a large white tent outdoors, no visible text or symbols

Black-and-white photo of a person installing or painting a large mural on a flatbed tent near a lakeside (no visible text or symbols)

www.dwt-zelte.com

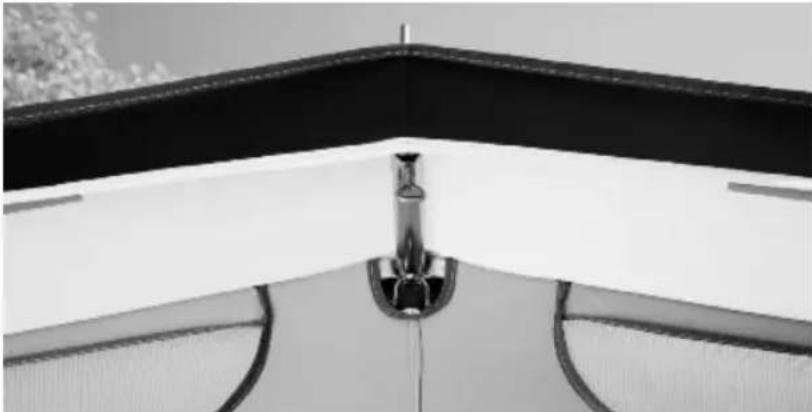

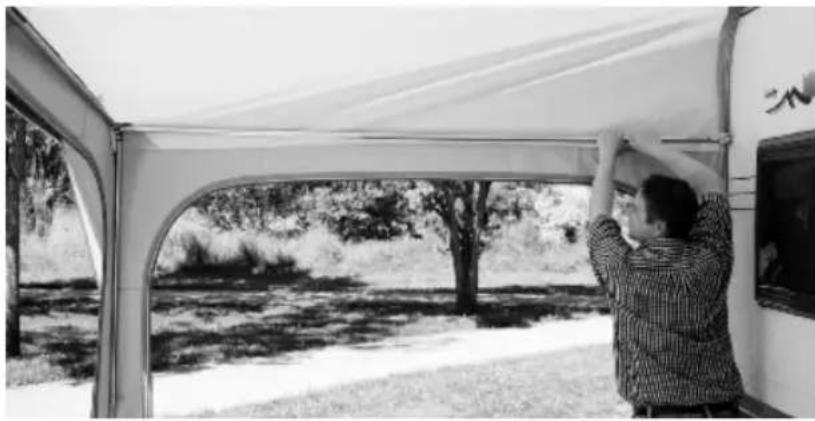

Note:

• Correct tensioning of the frame is important to make the tent look right. Please take a little more time over this, and compare the following pictures with the way you have erected your tent.
• Do not tension the roof and ridge poles the first time you telescope them with all your might, but evenly, possibly even several times. The decisive factor is a good seat of the brackets in the corners and in the middle

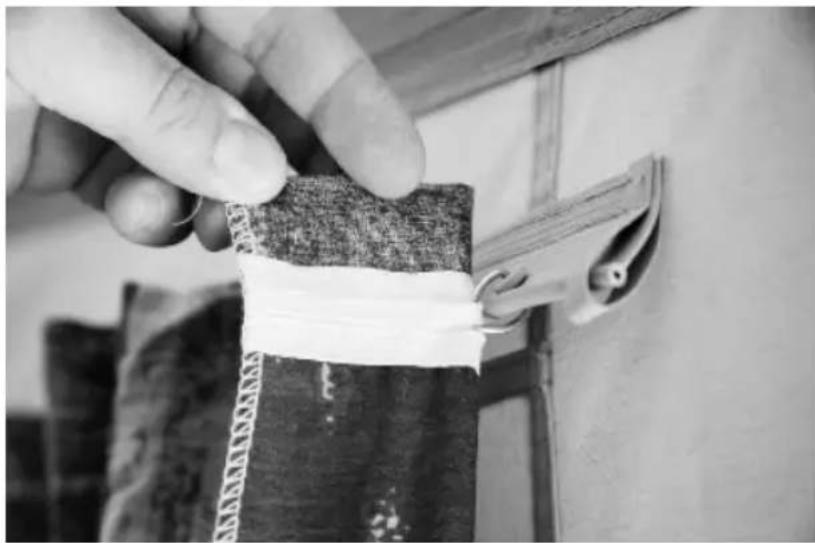

Close-up of a metal anchor or fixture mounted on a white panel, with no visible text or symbols.

Close-up of a garment zipper with a metal buckle and zipper mechanism (no text or symbols visible)

Correct:

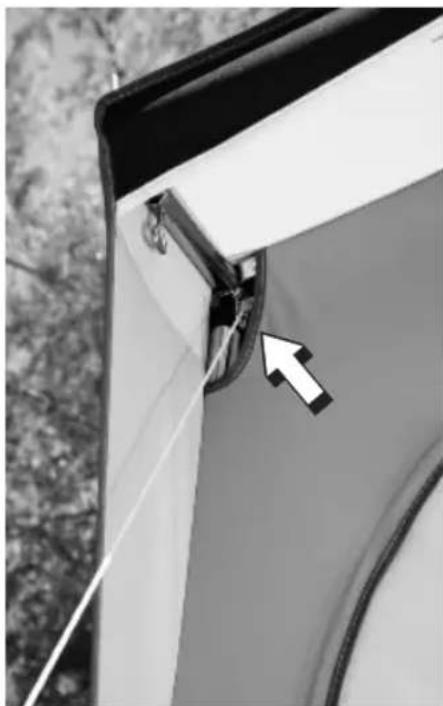

The side bracket is correctly seated in the corner, directly behind the roof seam.

Ridge pole and side roof pole are correctly tensioned.

The canopy support must be telescoped to the correct length.

Close-up of a metal hook attached to a white panel, with no visible text or symbols

www.dwt-zelte.com

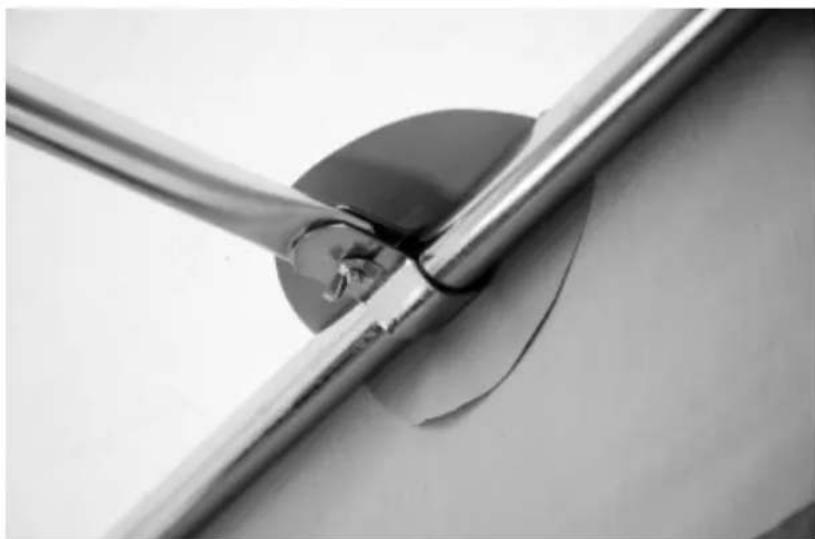

Correct

The centre bracket fits properly in the middle of the pole cut-out!

Wrong!

The centre bracket is off-centre in the pole cut-out, it will never be possible to spread the canopy shade properly.

Wrong!

The roof pole is overstrained, or the canopy support must be pulled out further. The roof-seam runs behind the ridge pole. It will never be possible to spread the canopy shade properly.

Close-up of a black and white fabric panel with a black clip attached, against a blurred natural background (no text or symbols visible)

Awnings

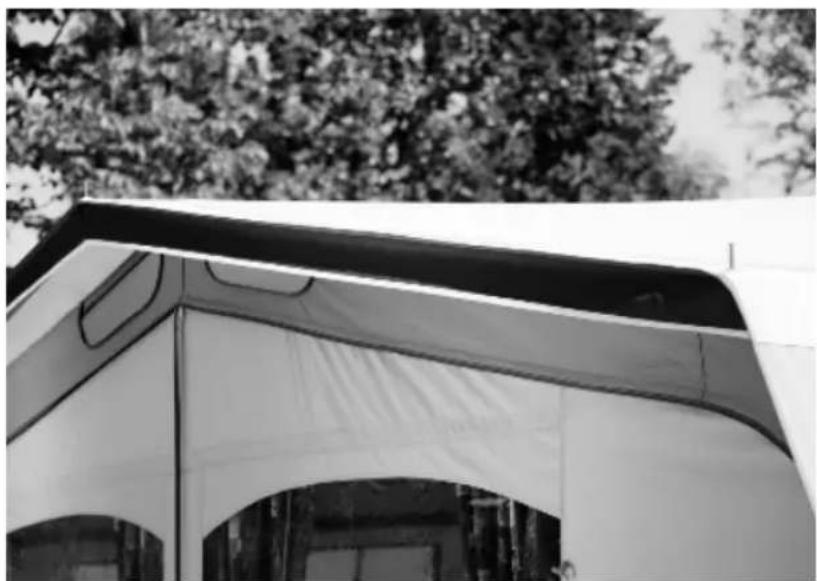

Correct

The side roof poles must run parallel to the side wall seam, so that the roof can be spread cleanly.

Black-and-white photo of a tent with arched windows and a central rectangular opening (no text or symbols visible)

Wrong!

The side roof pole does not run parallel to the side wall seam, and it will not be possible to tension the small wind-flap sewn on to the front wall very tightly like this

Black-and-white photo of a tent with arched openings and a white canopy covering the interior (no text or symbols visible)

Exterior view of a modern camping tent with a white roof and gray back cover, parked on grass under trees (no signage or text visible)

Black-and-white photo of a tent with 'dwt' and 'ZELTE' branding, partially covered by grass and a small ladder on the ground (no readable text or symbols)

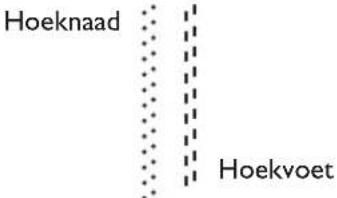

Corner seam

Frame leg

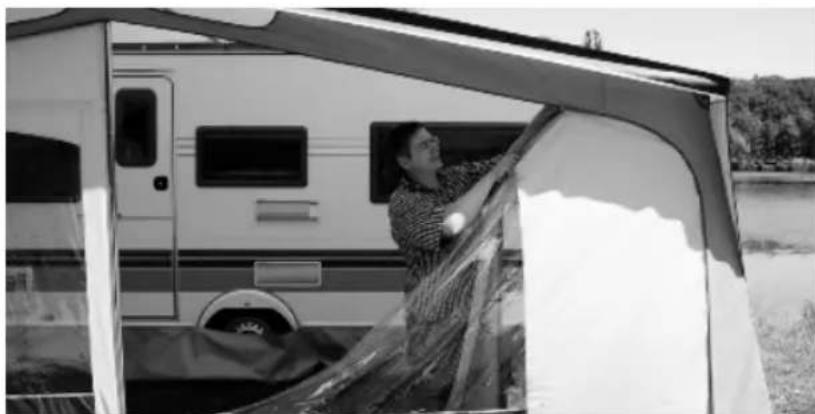

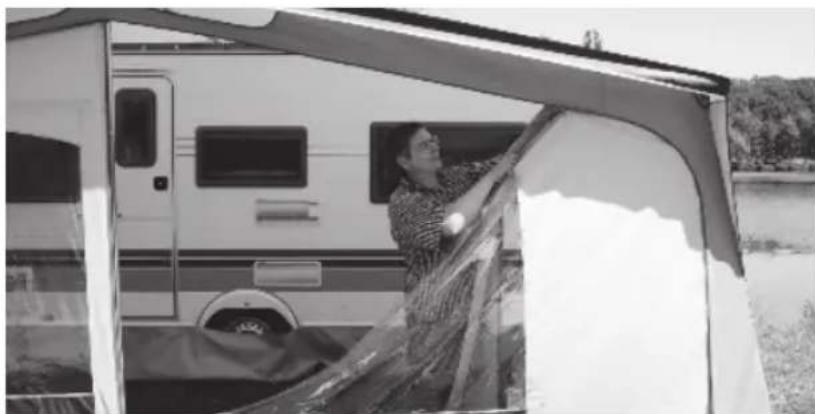

Caution

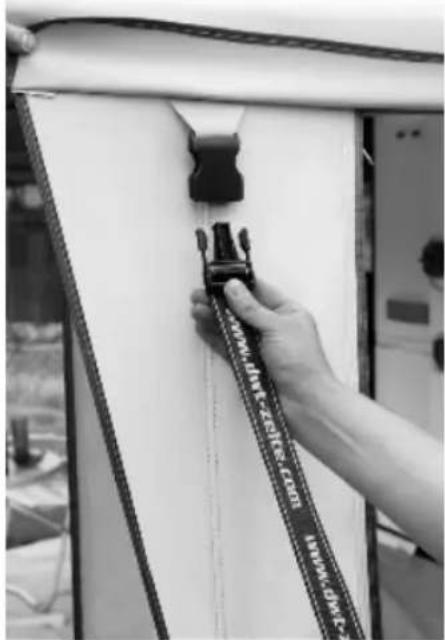

• Should the ladder tensioners or similar systems not be firmly stitched on, now hang these on the hooks in the mud-wall.
• Shut all zip-fasteners before starting to spread the floor.
• Begin spreading the floor at the rear corners of the tent by the caravan.

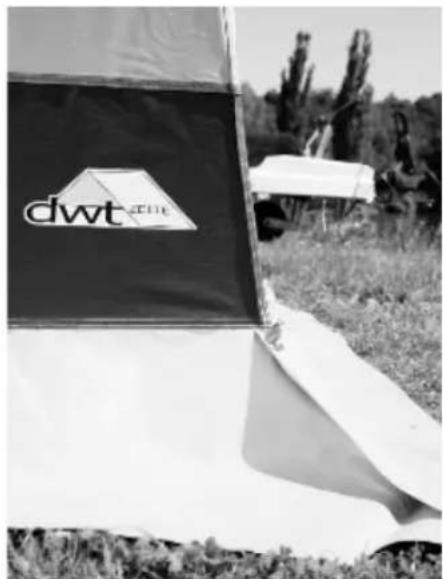

Pull the foot at the corner as shown by the arrow in the picture.

This allows equal tensioning of the front- and side-walls. Repeat the procedure with the corner foot on the other side. Fix this corner with ladder tensioner and tent peg.

Caution

Knock the peg into the ground BEFORE you fit the tensioner over it. This will avoid the possibility of the force of the blows tearing the seam or the loop.

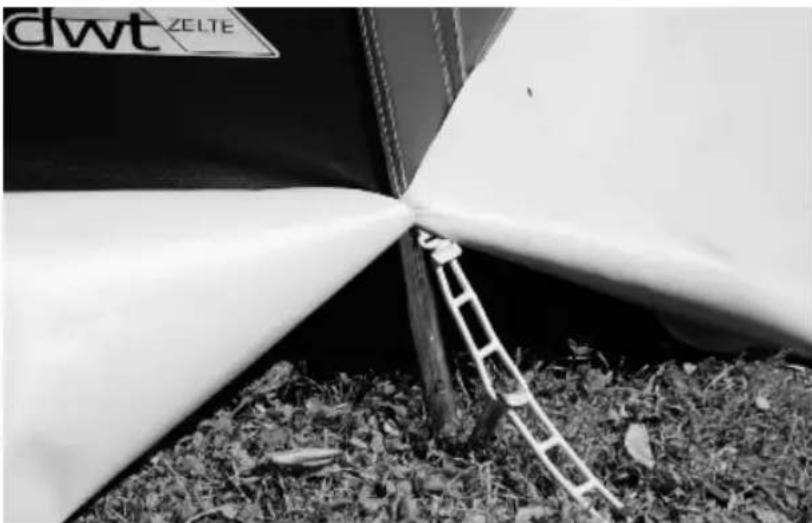

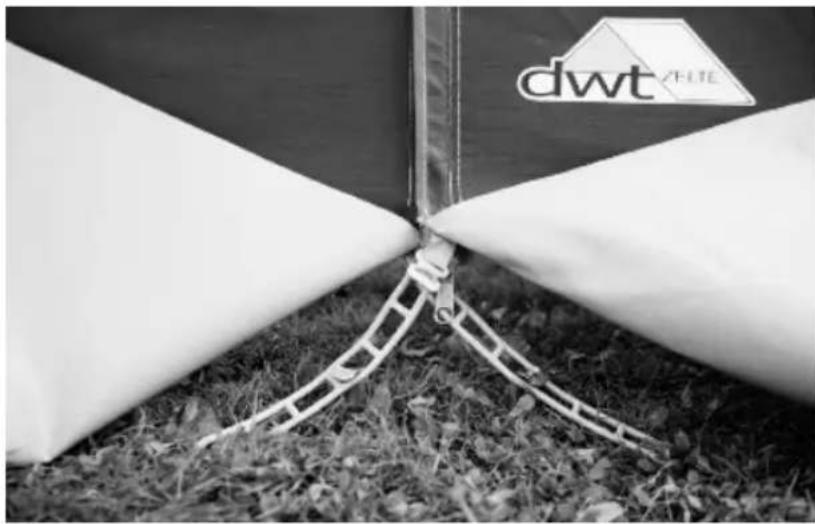

Correct

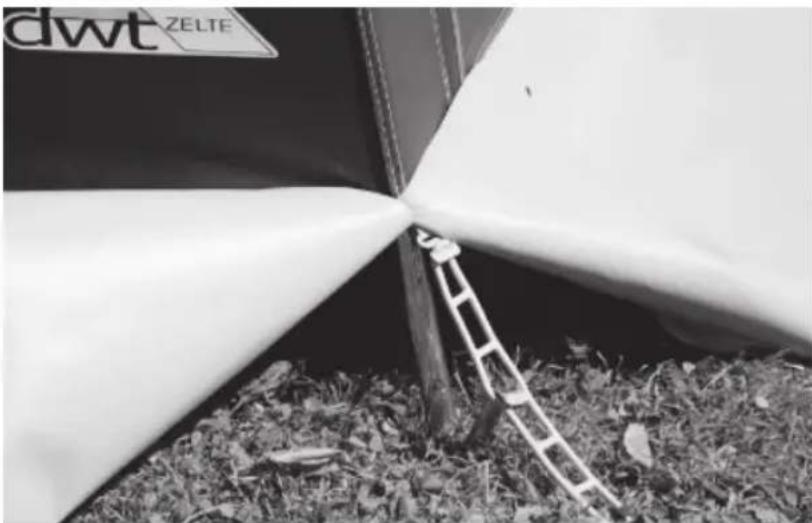

The corner seam is directly above the frame leg. Only like this can the tent be spread almost without wrinkles.

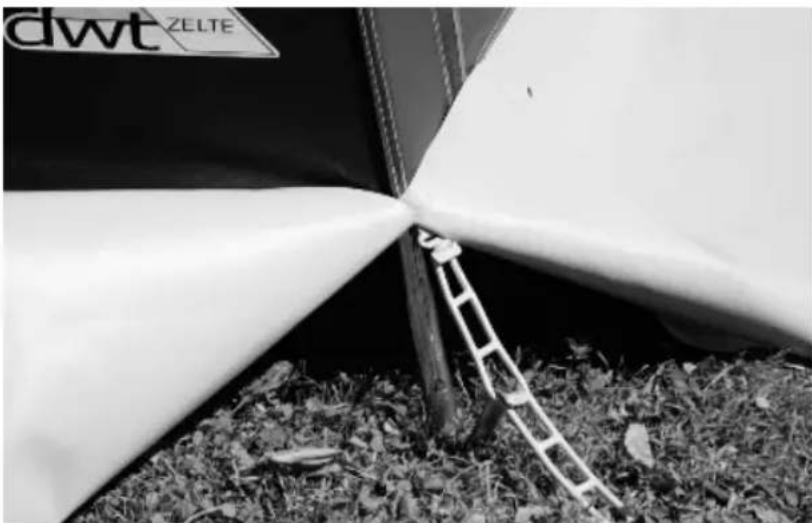

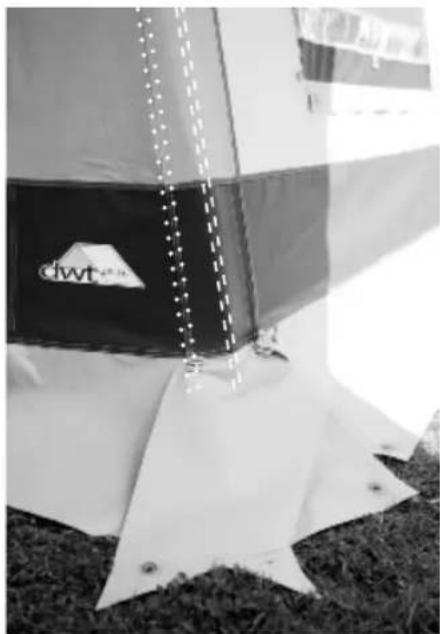

Wrong!

The vertical corner seam is not directly above the frame leg. This makes it impossible to spread the tent smoothly.

Black and white photo of a small aircraft fuselage with a logo, set on grass (no visible text or symbols)

www.dwt-zelte.com

Awnings

The ends of the zip-fasteners are anchored in crossover form to reduce strain.

The remaining tensioning elements are tightened straight downwards.

Black-and-white photo of a dwt/FLTE tent with white panels and ladder structure on grass (no text or symbols visible)

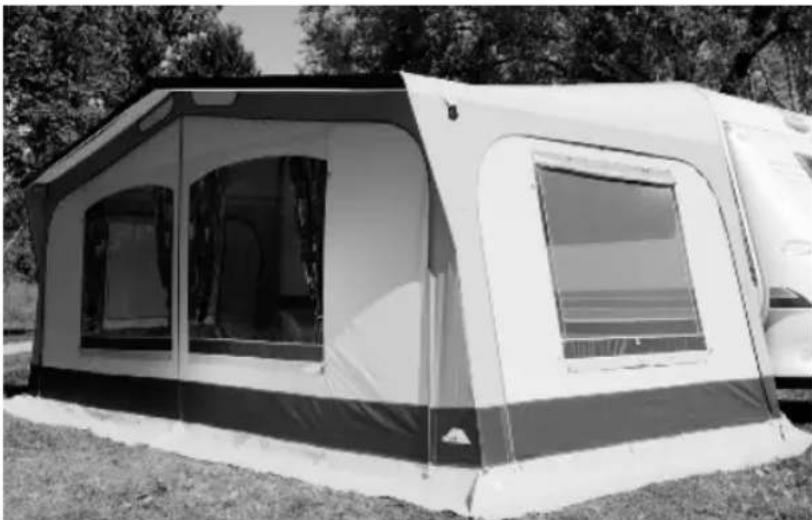

Correct

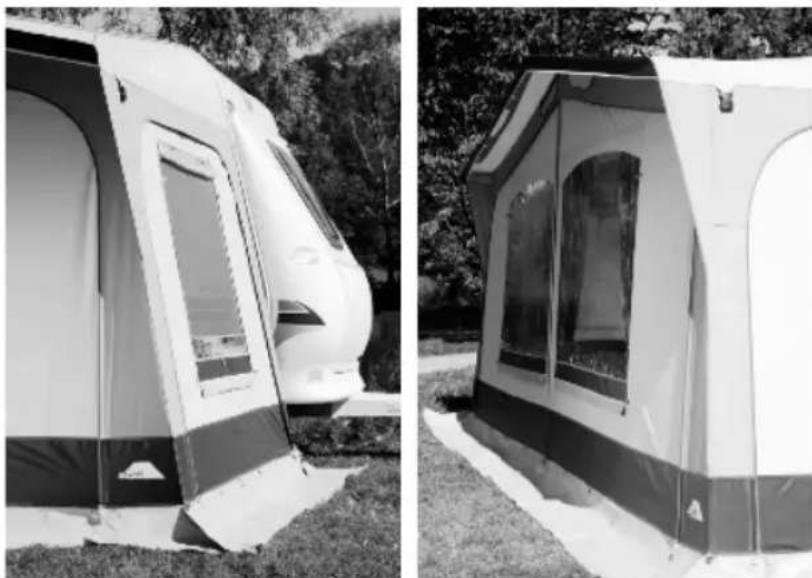

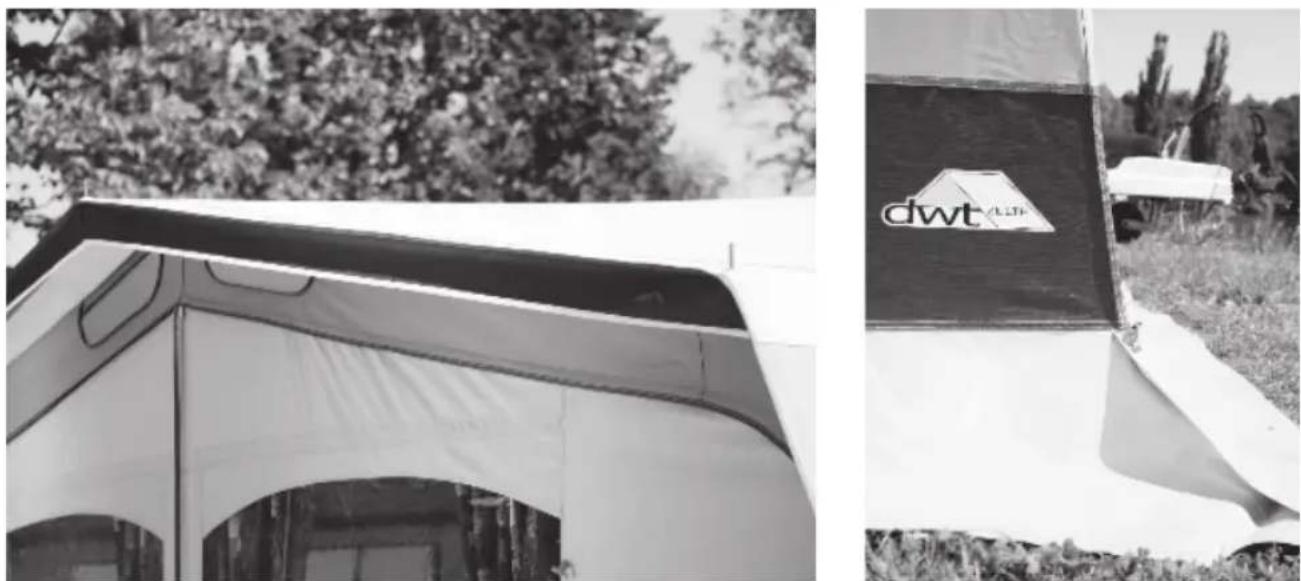

The front wall: corner to corner in a straight line.

The side walls from front corner to caravan in a straight line, the canopy shade tight.

Two black-and-white photos of a camping tent outdoors, showing front and side views with no visible text or symbols.

Black-and-white photo of a camping tent with a dwt booth logo, set against a backdrop of trees and cacti (no readable text or symbols)

www.dwt-zelte.com

Exterior view of a modern camping tent with a large arched roof and open windows, set in a grassy outdoor setting (no signage or text visible)

Exterior view of a white camping tent with a gray roof and large windows, set in a grassy outdoor setting (no signage or text visible)

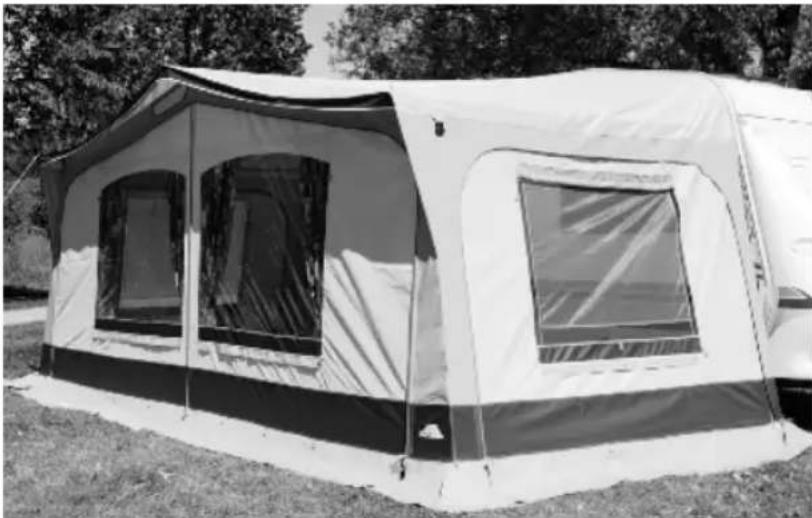

Correct

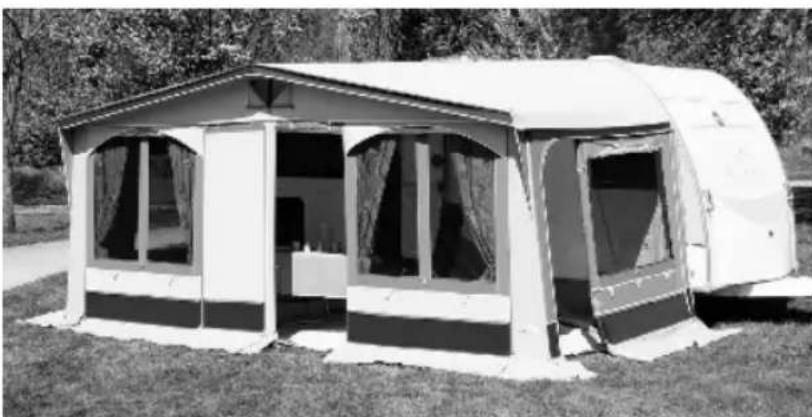

This is how your tent should look if you have followed these instructions. The better and more tightly your tent is erected, the less likely it is to be affected by wind and rain.

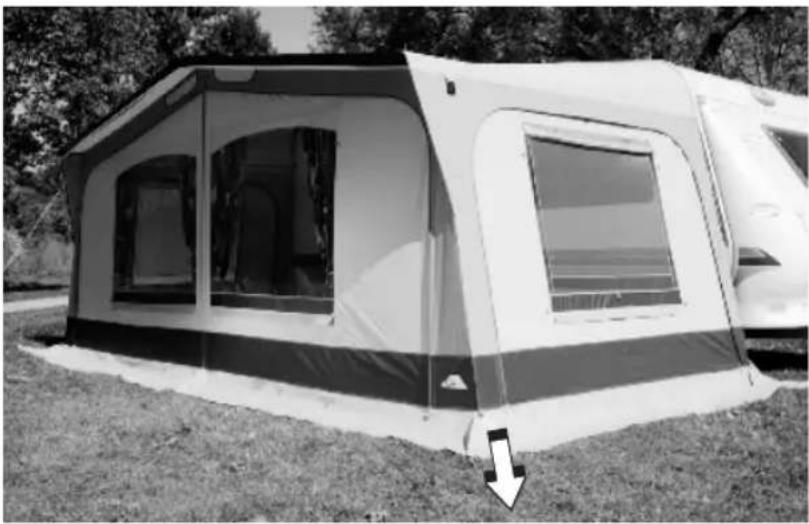

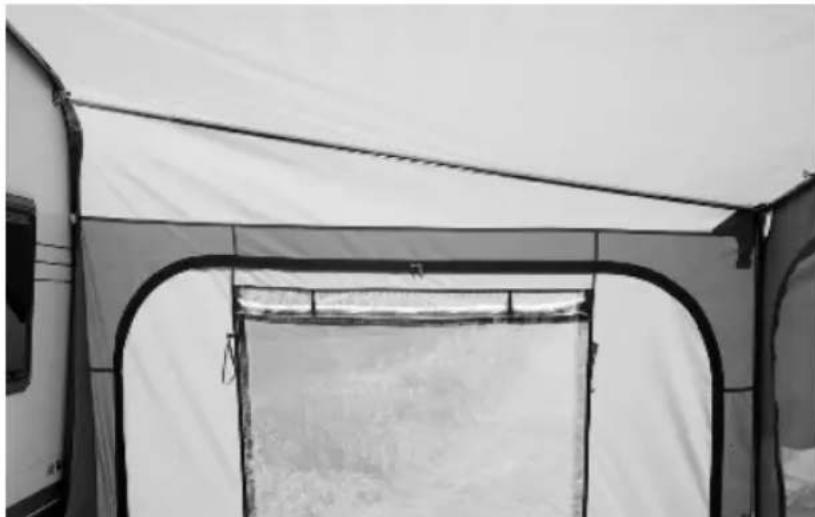

Wrong!

Judge for yourself. In this condition, a single gust of wind would be enough to tear seams or if it rains, pools of water will collect on the roof. Once the roofing material is stretched out of shape, it will never go back into shape, and afterwards extra poles won't help either. Don't let it come to that!

www.dwt-zelte.com

Awnings

The curtain rolls are pulled through the loops at a spacing of about 10 cm and fixed to the curtain strip.

de lu

Correct

Fit the additional roof poles where there are already wear protectors sewn in.

Close-up of a hand adjusting fabric with a white tape, no visible text or symbols

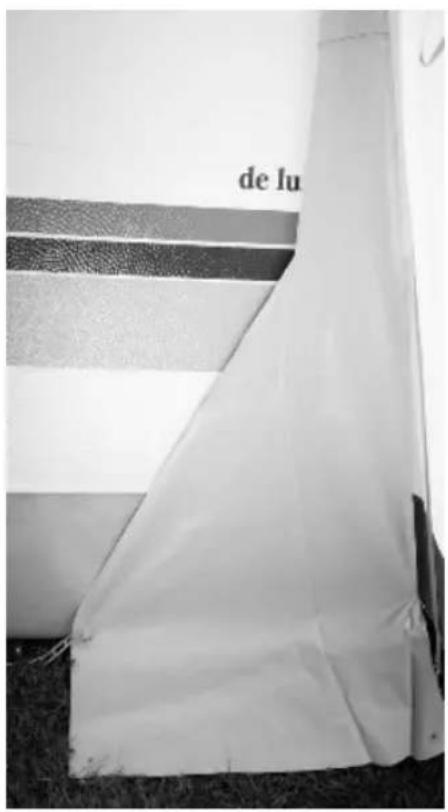

The wind flaps at bow and stern are anchored into the ground.

Close-up of a metallic pipe joint with a circular component inserted, no visible text or symbols

www.dwt-zelte.com

Close-up of a metallic tool handle with a rounded tip and metal lever, no visible text or symbols

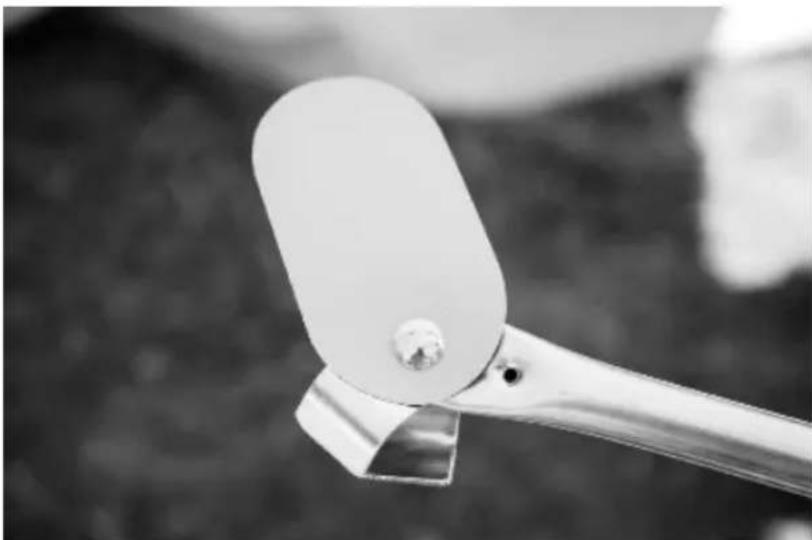

Correct

The wear protector supplied is placed around the pole and the clamp fitted under it. This is to protect the material of the front and side walls from abrasion. Check these fixings on a regular basis and replace the wear protectors as and when necessary.

Close-up of a white vehicle door corner with a black clip and an arrow pointing to the side panel (no text or symbols visible)

Correct

The guy-ropes lend the tent additional stability. Fix the rope to the frame bracket.

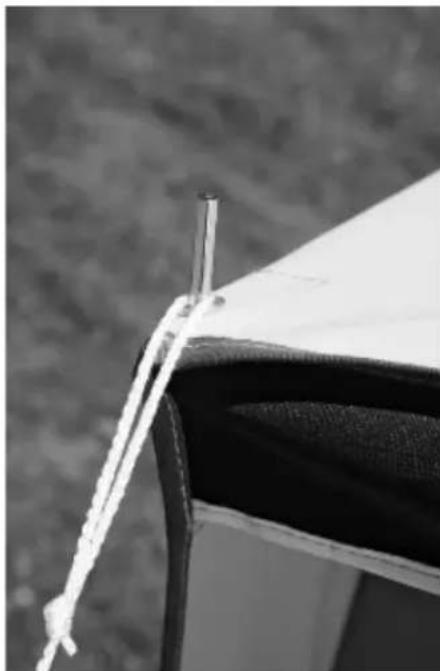

Wrong!

The rope will damage the roof material, and will bend the bracket.

Close-up of a tent corner with a metal screw and rope tied at the junction (no text or symbols visible)

www.dwt-zelte.com

Awnings

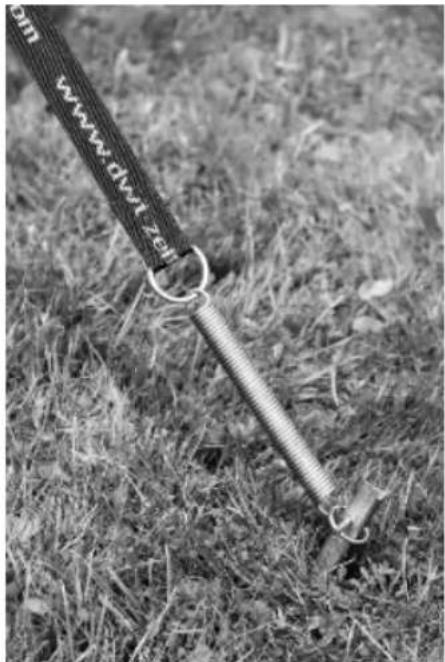

Alternatively check whether your model is also equipped to fit the „Sicherheitsgurt plus“ safety strap.

This by no means replaces the regular ground anchorage, but should be used additionally.

Close-up of a hand adjusting a whiteboard with a black plastic clip, no visible text or symbols

Close-up of a metal spring with attached string and loop, resting on dry grass (no text or symbols visible)

Auvents

Exterior view of a modern camping tent with open windows and a small chair, set in an open grassy area (no signage or text visible)

www.dwt-zelte.com

dwt ZELTE

F

Auvents

On commence!

Black-and-white photo of a person installing or adjusting a white tent on a grassy field beside a two-wheeled vehicle (no visible text or symbols)

Black-and-white photo of a white tent on grassy ground near a lake, with no visible text or symbols.

Exterior view of a two-story white tent with arched windows and a curved roof, set in a grassy outdoor area (no signage or text visible)

Attention!

Man in checkered shirt installing or adjusting a roof structure outdoors (no visible text or symbols)

Man adjusting a car window outdoors, wearing glasses and a checkered shirt (no visible text or symbols)

Man installing or adjusting a vehicle door frame outdoors near a river (no visible text or symbols)

Man installing or adjusting a roof structure outdoors, no visible text or symbols

Person opening a tent outdoors, adjusting the canopy (no visible text or symbols)

Close-up of hands installing or adjusting a metal bracket on a wall, no visible text or symbols

Man installing a large white tent outdoors, no visible text or symbols

Black-and-white photo of a person installing or painting a large white object near a vehicle, with hills in the background (no visible text or symbols)

www.dwt-zelte.com

Attention :

Close-up of a tent corner with white and gray panels, showing a metal anchor and a close-up of the interior (no text or symbols visible)

Close-up of a metal hook attached to a white panel, with no visible text or symbols

www.dwt-zelte.com

Close-up of a black and white fabric or net with a zipper, showing texture and stitching details (no text or symbols visible)

Auvents

Black-and-white photo of a tent with arched windows and a central rectangular opening, no visible text or symbols.

Black-and-white photo of a tent with arched openings and a white canopy covering the interior (no text or symbols visible)

Exterior view of a white camping tent with a gray and black design, parked on grassy ground (no signage or text visible)

Black-and-white photo of a tent corner with white panels and a ladder, placed on grass (no visible text or symbols)

coutures

pied de l'armature

Close-up of a white aircraft fuselage with a black triangular patch and 'cwt' logo, set on grass (no visible text or symbols)

www.dwt-zelte.com

Auvents

Black-and-white photo of a dwt tent with white panels and a ladder attachment, placed on grass (no text or symbols visible)

Two black-and-white photos of a modern camping tent with open doors, placed outdoors near trees (no visible text or symbols)

Black and white photo of a modern tent with arched awning, set against a leafy background (no text or symbols visible)

Black-and-white photo of a dwt booth with a logo, set in an open grassy field with cacti and another person visible in the background (no readable text or symbols)

www.dwt-zelte.com

Exterior view of a modern camping tent with a large arched roof and open windows, set in a grassy outdoor setting (no signage or text visible)

Exterior view of a white camping tent with a gray roof and large windows, set in a grassy outdoor setting (no signage or text visible)

Close-up of a hand adjusting fabric with a white tape, no visible text or symbols

Close-up of a metallic pipe joint with a circular component inserted, no visible text or symbols

www.dwt-zelte.com

Close-up of a metallic tool handle with a rounded tip and metal lever, set against a blurred background (no text or symbols visible)

Close-up of a white vehicle's side panel corner with a black clip and arrow pointing to a detail (no text or symbols visible)

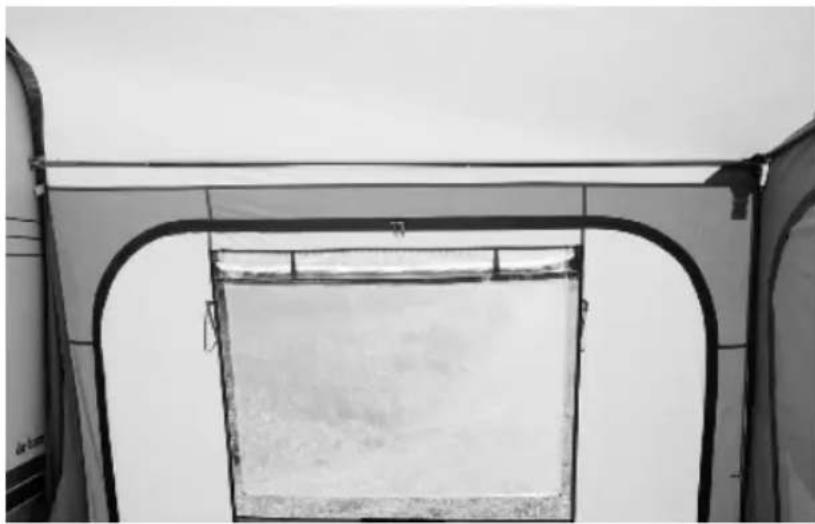

Correct :

Close-up of a tent corner with a metal clip and rope tied, no visible text or symbols

www.dwt-zelte.com

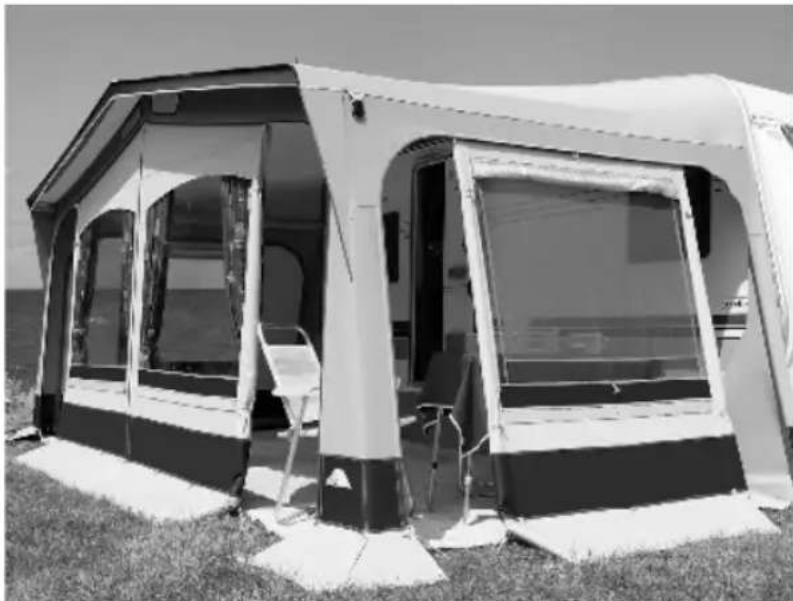

Auvents

Close-up of a hand adjusting a whiteboard with a tape measure, no visible text or symbols

Close-up of a metal spring with attached string and loop, resting on dry grass (no text or symbols visible)

Voortent

dwt ZELTE

Exterior view of a modern camping tent with open doors and chairs, set on grassy ground (no signage or text visible)

NL

www.dwt-zelte.com

Voortent

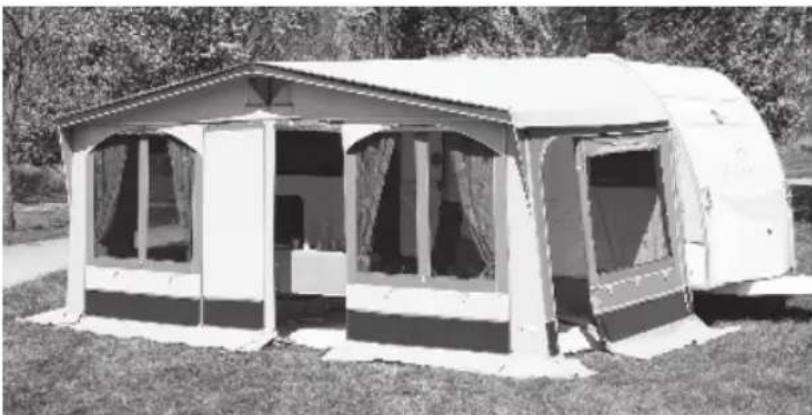

En ... Start!

Person installing a large white tent on a grassy field beside a two-wheeled vehicle (no visible text or symbols)

Outdoor scene with a large white tent covered in cloth placed on grass near a lake, no visible text or symbols.

Exterior view of a simple white camping tent with arched windows and a curved roof, set in a grassy outdoor area (no signage or text visible)

Let top!

Man in checkered shirt installing or adjusting a roof structure outdoors (no visible text or symbols)

Man adjusting a car window outdoors, wearing glasses and a checkered shirt (no visible text or symbols)

Black-and-white photo of a person installing or adjusting a vehicle window outdoors, with no visible text or symbols.

Person installing or adjusting a roof structure outdoors, no visible text or symbols

Person adjusting a canopy on a tent outdoors, viewed through a window with trees and grass in the background (no visible text or symbols)

Close-up of hands installing or adjusting a metal bracket on a wall, no visible text or symbols

Person installing a large white tent outdoors, no visible text or symbols

Black-and-white photo of a person standing beside a vehicle with a covered canopy, no visible text or symbols

www.dwt-zelte.com

Let op!

Close-up of a metallic fixture mounted on a wall, showing a central handle and mesh pattern (no text or symbols visible)

Close-up of a garment collar with a zipper and zipper mechanism (no text or symbols visible)

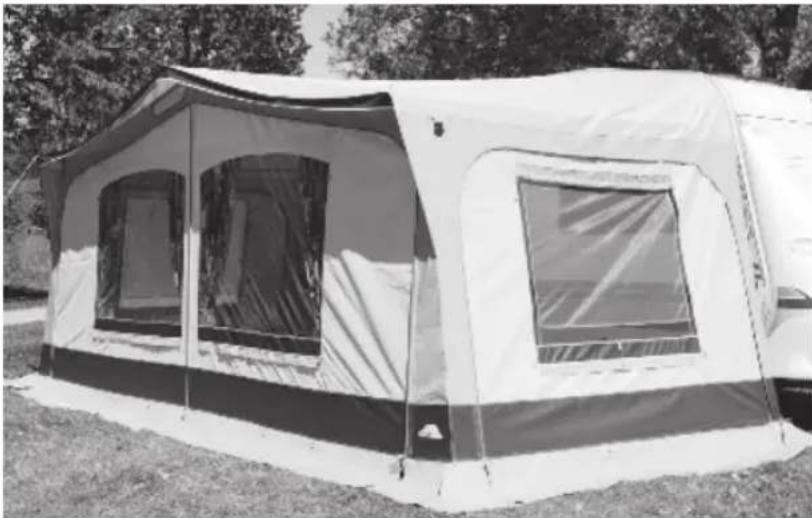

Juist :

Close-up of a metal hook attached to a curved metal bracket (no text or symbols visible)

www.dwt-zelte.com

Juist :

Close-up of a tent corner with black and white panels, showing a clip and a small object (no text or symbols visible)

Voortent

Juist :

Black-and-white photo of a tent with arched windows and a central opening, no visible text or symbols

Black-and-white photo of a tent with arched windows and a back cover, no visible text or symbols

Exterior view of a camping tent with a white roof and gray accents, parked outdoors on grass (no signage or text visible)

Black-and-white photo of a tent with a ladder leaning against the front and grassy ground, no visible text or symbols.

Close-up of a white and black tent with a 'clwt' logo on the back, placed on grass (no readable text or symbols)

www.dwt-zelte.com

Voortent

Close-up of a dwt tent with white treads and a logo, set on grass (no readable text or symbols)

Juist :

Two side-by-side photos of a white camping tent with arched windows, placed outdoors on grass, surrounded by trees (no visible text or symbols)

Black-and-white photo of a camping tent with a dwt logo, set against trees and a desert background (no readable text or symbols)

www.dwt-zelte.com

Exterior view of a camping tent with visible windows and back cover, set in a grassy outdoor setting (no signage or text)

Exterior view of a white camping tent with a gray and white roof, set in a grassy outdoor setting (no signage or text visible)

Juist :

Close-up of a hand holding a textured fabric sample with a white band, next to a wooden bracket (no visible text or symbols)

Close-up of a metallic metal rod with a circular component inserted, mounted on a wall (no text or symbols visible)

www.dwt-zelte.com

Close-up of a metallic tool handle with a rounded square top, against a blurred background (no text or symbols visible)

Juist :

Close-up of a white vehicle door corner with a metal clip and an arrow pointing to the side panel (no text or symbols visible)

Juist :

Close-up of a tent corner with visible stitching and a metal clip (no text or symbols)

www.dwt-zelte.com

Voortent

Close-up of a hand measuring a whiteboard with a tape measure (no visible text or symbols)

Close-up of a metal spring attached to a textured wooden bar on grass (no text or symbols visible)
