USER MANUAL Loris NGM

Diagram of a mobile phone showing a blue screen with a red arrow pointing to a button, no text or symbols present.

Illustration of a gray remote control device with a red arrow indicating left-side motion (no text or symbols)

Copyright © 2013 NGM Italia

Welcome to the NGM world. Thank you for purchasing NGM Loris. With this Dual SIM device you can easily make phone calls, send and receive SMS with a potentially wider network coverage than a mono SIM mobile phone.

Thanks to the SOS button, in case of emergency you can start the automatic call procedure to previously set numbers. By visiting the official website www.ngm.eu you can appreciate the whole range of NGM mobile phones, ask for assistance, access the forum for technical assistance and download software updates.

22ENGLISH

loris

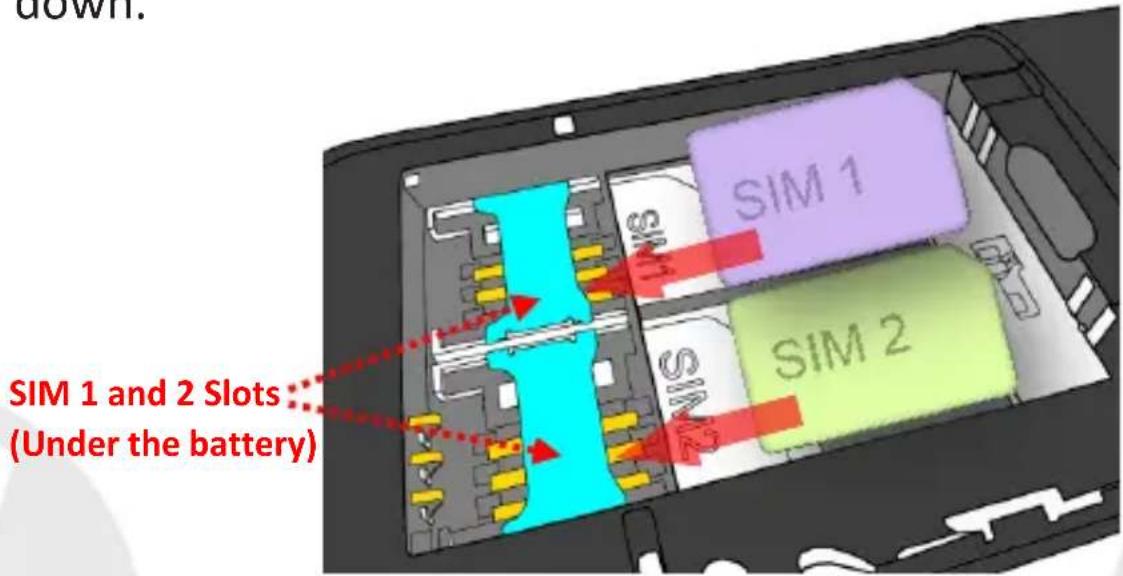

Insert the SIM cards: The SIM cards contain your phone numbers, PIN codes, links to operator services, contacts and SMS. To access the compartment containing the SIM slots, turn off the phone and slide down the phone cover. Remove the battery. Insert the SIM cards into the slot with its gold contacts facing down.

down. SIM 1 and 2 Slots (Under the battery)

loris

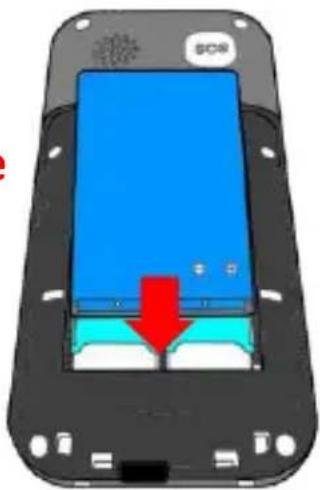

Inserting the Battery: Your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. The battery must be inserted into the backside of the phone. Insert the battery into the battery compartment with the contacts matching with those of the phone. When done, put the hind cover back into position as shown in the following illustrations.

Inserting the battery

SCB

Diagram of a device with a red arrow pointing to a component, no text or symbols present

Placement of the cover

24ENGLISH

loris

Charging the battery: Charge the battery before starting to use the device. Connect the charger to a wall outlet and then plug the supplied USB cable - Micro USB in the charging base, then put the phone inside of it or directly enter the cable into the micro USB connector on the bottom of the phone. When the battery is charging, an animated icon on the screen shows the charging progress. Once the battery icon is filled, it is fully charged and the phone can be disconnected from the grid or from the charging base.

Warning: To preserve the functionality of the product and the integrity of the guarantee, we recommend the use of NGM original chargers. Please charge the battery indoors, in a dry and favorable environment. It's normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.

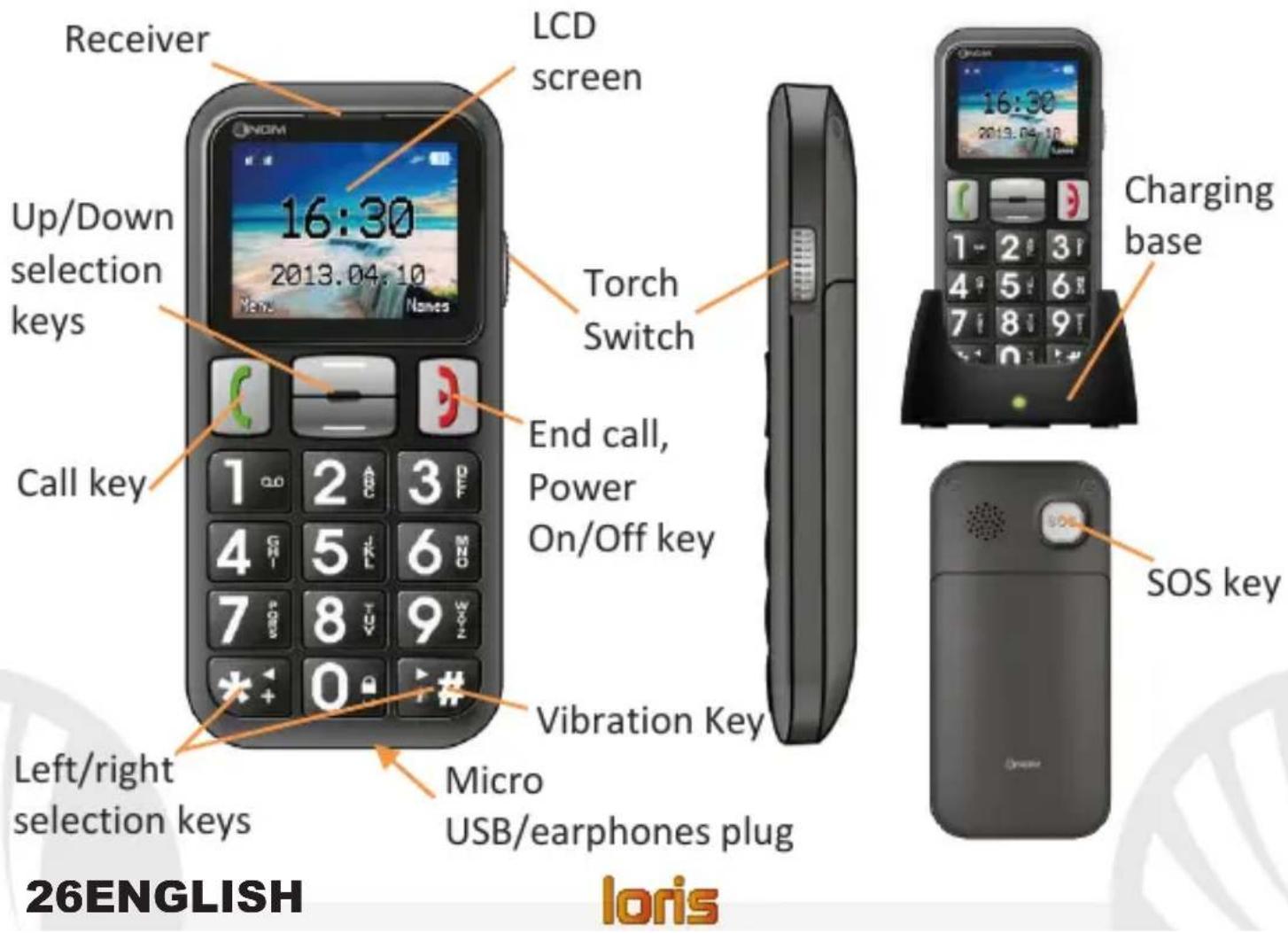

Receiver LCD screen Up/Down selection keys Call key 1 2 3 4 5 6 7 8 9 Vibration Key Left/right selection keys Micro USB/earphones plug Torch Switch End call, Power On/Off key Charging base 16:30 2013.04.10 SOS key 26ENGLISH loris

Turn ON, Turn OFF, and key lock

To turn on and turn off the phone, press and hold the red end call key. To avoid pressing phone keys when not in use (e.g. in your pocket), long press "0", the key with the lock symbol. To unlock the keypad, press the call key and then press "*".

To set the automatic key lock, select Settings > Security settings > Auto keypad lock; you can set the time of activation of the automatic lock, that is the length of time after which the keyboard will be automatically locked if the phone is not being used.

Speech

NGM Loris can be set to pronounce each pressed key in Menu > Settings > User Profiles > General > Options > Customize > Keypad > Options > Change > Human Voice Tone. Confirm with Save.

FM Radio

First, insert the headset plug into the input on the bottom of the phone and then select Menu > FM Radio. Pressing OK > Options with the green call button, you can access the following functions:

• On/Off: for switch on and off the radio
• Quick Search: to quick search for radio stations
• Channel list: to manually browse saved channels
• Tuner: for manually search radio channels
• Auto search: to automatically search channels
• Settings: to enable/disable background playing

Torch: to turn on and off the torch, use the torch key on the right side of the phone. The torch works even if the phone is off.

28ENGLISH

loris

Main Menu

To access the phone Main Menu, press the UP key from the main screen.

• Messaging: To read and write SMS
• Call center: To access the call log
• Settings: To customize your phone
• Organizer: Calendar, Calculator, Alarm
• FM radio: To access FM Radio
• Phonebook: To manage and save contacts
• SOS: To enable and customize SOS function

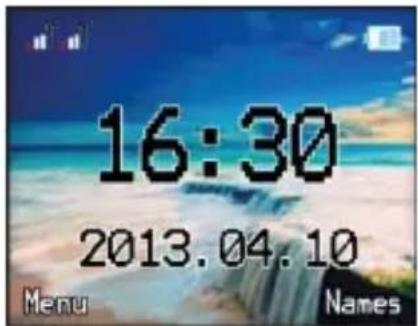

16:30 2013.04.10 Menu Names

Home Screen

Manage two SIM: From the Home screen choose Settings > Dual SIM. This allows you to choose whether to selectively activate one or both inserted SIM. The default setting is Dual SIM.

Making a call

To make a call from the Home screen, type in the desired number with the keypad and then press (Call > SIM1/SIM2. To end the call, press the red end call key)

Call a number from the phonebook

From the main screen, press the red end call key, this will automatically open the Phonebook. Scroll through contacts with the UP and DOWN keys and press (, then Options > Call > SIM1/SIM2 to call the contact.

Call a number from the call log

From the main screen, press (so the missed, received and outgoing calls will be automatically displayed. Scroll them with UP and DOWN keys and press again (then Options > Call > SIM1/SIM2 when you have found the number you want to call.

30ENGLISH

loris

Add contacts in phonebook

Select Menu > Contacts > Add new Contact. Press Options > Select > SIM1/SIM2 or Phone, enter the name and the number to be saved and then press OK > Options > Save.

Speed dial

In Menu > Phonebook > Options > Phonebook > Settings > Speed dial > Set numbers you can assign to phone keys 2-9 some phone numbers which will be automatically called if you press and hold the related key. You can add to speed dial only phonebook numbers. This feature can be turned on/off under Status.

Memory status

This feature allows you to see how much free storage locations you have in phone and SIM cards

Send and read SMS

Sending SMS

From the main screen, choose Menu > Messaging > Write message and write your message. Press Options > Send > Enter number and enter the number using the numeric keypad or Add from PhoneBook to select the contact to which send the message. Reading SMS

When you receive a text message, an icon is displayed (until the message is read) and a notification appears on the main screen. Press (to enter the Inbox or access it from the main screen by selecting Menu > Messages > Inbox.

In SMS settings you have access to several period features such as Validity period, Delivery Report, Message Type, Voicemail.

32ENGLISH

loris

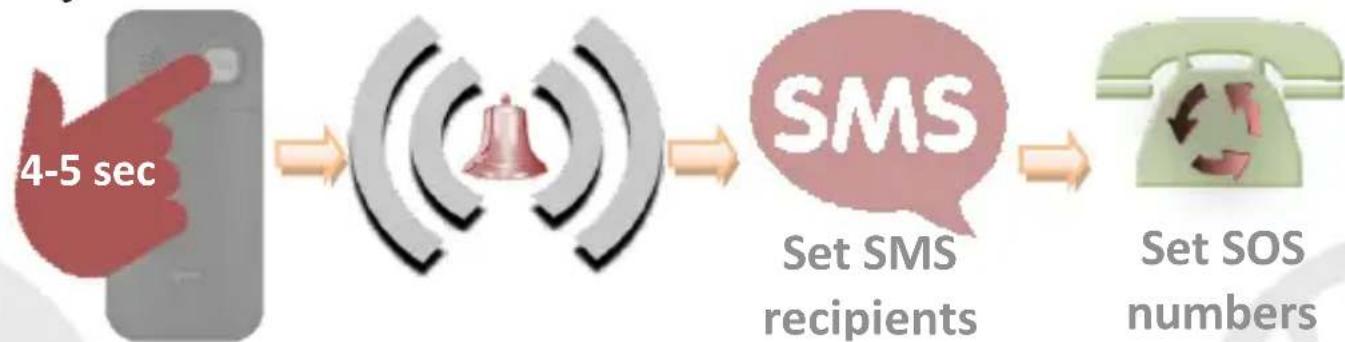

SOS Function

NGM Loris is equipped with a dedicated key for a fast sending of emergency calls (*) that can be activated / deactivated in Menu > SOS > Status.

The SOS key is located at the back side of the phone and is activated when pressing and holding it for 4-5 seconds, even if the keys lock is enabled.

This function is used to ask for help to a maximum of 5 phone numbers that must be previously set in Menu > SOS > SOS

Numbers (You can only set phonebook numbers).

As soon as SOS is activated, the phone will produce a loud alarm, and it will send an SMS (with a text that can be customized in SOS > SOS Message) with a help request to the SOS numbers (chosen in Menu > SOS > SOS Numbers).

The phone will call the 5 SOS numbers for 20 seconds each. If, at the end of the cycle there was no response, the phone will wait for about 30 seconds and then will launch a second cycle of calls. This procedure will be repeated for 4 times. If one of the called SOS numbers answers, the cycle will be interrupted and the call switch on “speaker” (handsfree).

The SOS calls cycle will be interrupted if the answering machine of one of the called SOS numbers turns it ON.

Warning: SOS does not work if the phone is in airplane mode.

34ENGLISH

loris

Set Ringtones: from Menu > Settings > User Profiles > General > Options > Customize. Choose your Incoming call ringtone among those available and customize the volume with the Up/Down selecting keys. You can also customize: Alert and Ringtone type, Keypad and Message Tone, Keyboard Volume.

Quickly turn on/off vibration mode

To turn off all the phone tones and activate the vibration mode for calls and messages, press and hold the “#” key. Pressing again “#” key, the phone will enter into General mode.

Phone Settings: from Settings > Phone you can access to Date/Time, Display, Language, Airplane mode, Various settings. To change the options for each function use "#" or "*". From general settings you access the following options: Dual SIM, User Profiles, Phone settings, Network settings, Security settings. The last point is for Loris's factory data reset, using the 1122 code.

\* Limitation of Liability:

this is not a life-saving device but a mobile phone.

NGM will not be liable for any indirect, special, incidental or consequential damage arising from, or in connection with the use of this product.

Warning: The manufacturer assumes no responsibility for any failure of the policies set out above, or for any misuse of the phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In such case, the latter shall govern.

Copyright © 2013 NGM Italia

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia.
