USER MANUAL Flip NGM
Copyright © 2013 NGM Italia
Welcome to the NGM world. Thank you for purchasing NGM Flip. With this device you can easily make phone calls, send and receive SMS. Thanks to the SOS button you can start an automatic call procedure to some previously set numbers in case of emergency.
By visiting the official website www.ngm.eu you can browse through the whole range of NGM mobile phones, ask for assistance, access the forum for technical assistance and download software updates.
22ENGLISH

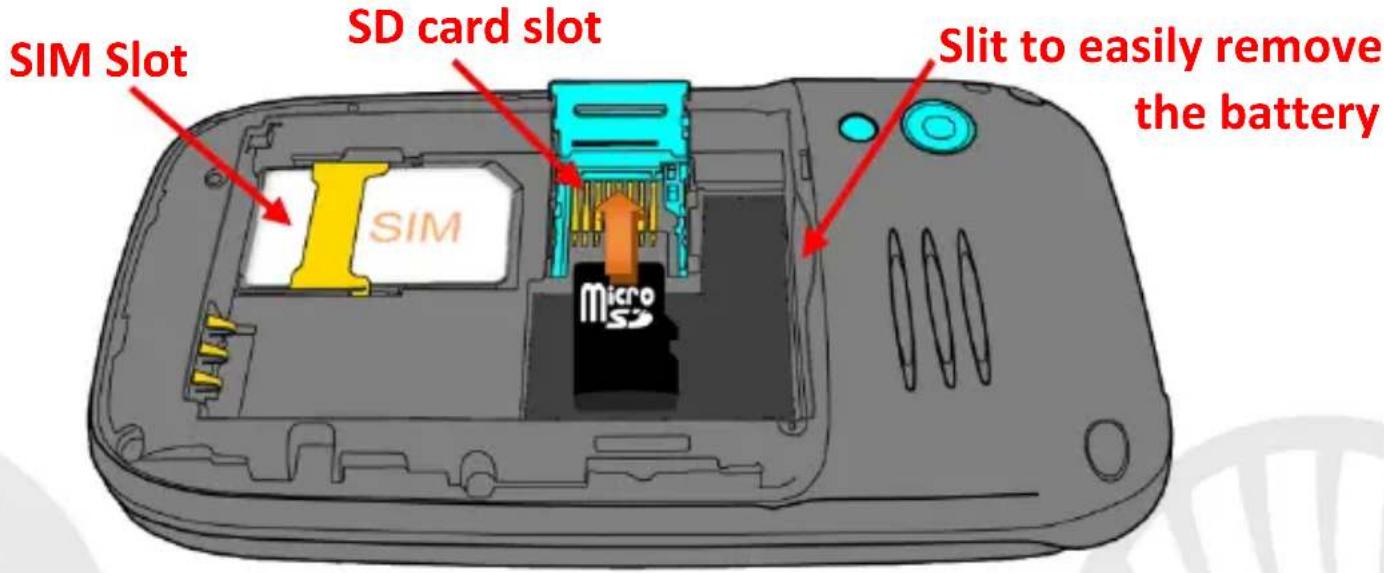

Insert SIM card: The SIM card contains your phone number, PIN code, links to operator services, contacts and SMS messages. To access the compartment containing the SIM slot, turn off the phone and slide down the cover. Remove the battery. Insert the SIM card into the slot with its gold contacts facing downwards.
Insert memory card: in order to use camera and media player functions of NGM Flip, a SD card is necessary (maximum 8 GB, not included in the package): the card must be placed onto the backside of the phone, over the SIM slot. Slide in SD card, as shown below, with the gold contacts facing downwards. Lock/Unlock the metallic grid by sliding it horizontally sideways.
Camera: to activate the camera, from the main menu press the key. Take a photo pressing the Camera key again. By using Options you can access to various camera settings and you can switch to Camcorder.
Connecting to a PC: use the USB cable to connect NGM Flip to a computer. Select USB Storage on your phone. You can save songs to play with the music player in the "My Music" folder, on the SD card.
24ENGLISH
Inserting the Battery: your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. The battery must be inserted into the backside of the phone. Insert the battery into the battery compartment with the contacts facing down, matching with those of the phone. When done, put the hind cover back into position as shown in the following illustrations.

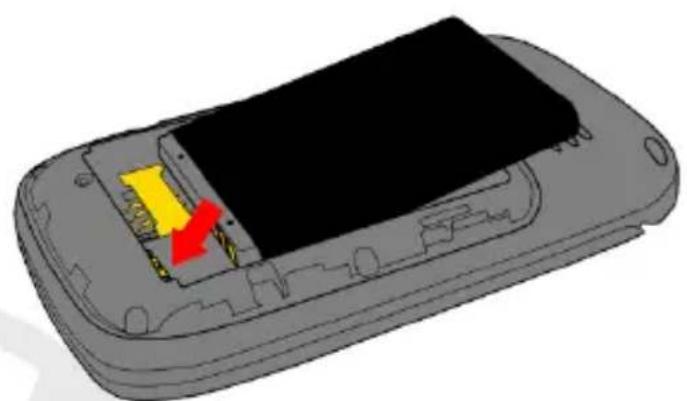

Inserting the battery

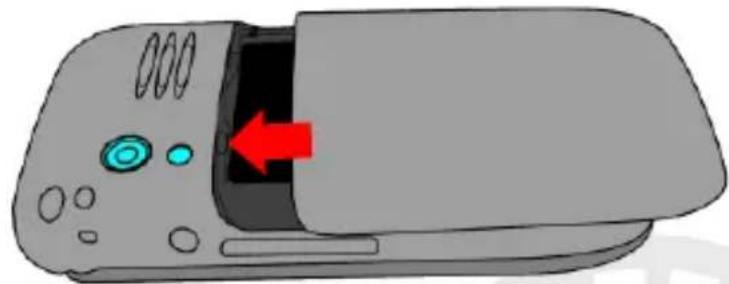

Placement of the cover
Charging the battery: Charge the battery before starting to use the device. Connect the charger to a wall socket and then plug the jack into the charging base (wait a few moments until the red charging led on the base lights up before inserting the phone) or plug it directly into the micro USB port on the bottom part of the phone. Wait a few seconds for the notification led on the phone to start blinking in blue; when the charging base notification led becomes green, the charging process is completed and the phone can be disconnected from the base.
Warning: To preserve the functionality of the product and the integrity of the warranty, we recommend the use of original NGM chargers. Please charge the battery indoors, in a dry and favorable environment. It is normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.
26ENGLISH
Turn ON, Turn OFF and keypad lock: To turn on and off the phone, press and hold the red end call key. The keyboard locks by closing the phone, but you can still choose a period of time after which the keyboard locks itself automatically when the phone is open in Menu > Settings > Security > Auto keyboard lock. To unlock the keyboard press the Unlock key (above the call key) and #.
FM radio: NGM Flip has an internal radio antenna so you don't need to plug in earphones in order to listen to the radio. To turn on and turn off the radio, press the FM button Fy selecting
Options you have access to the following functions:
- Channel list to manually browse through saved channels
- Manual input for manually search radio channels
- Auto search for the automatic search of radio stations.
28 ENGLISH
Use 2 and 8 keys for the manual search, 6 and 4 for automatic search and 5 to pause and resume.
Torch: to turn on and off the torch, from the main screen press and hold the key.
Main Menu
To access the Main Menu on your phone, press the selection key on the top left.
- Messaging: write and read SMS
- Phonebook: manage and save contacts
- Calls: call settings
- Multimedia: camera, radio, gallery...
-User profiles: set and change audio profiles - Settings: customize your phone
- Extra: with Calendar, To Do, Alarm and Calculator
- SOS: to enable and customize the SOS function
Home Screen
Making a call: to make a call from the Home screen, select the desired number by using the keypad and then press the green call button. To end the call, press the red end call key.
Call a number from phonebook: from the main screen, press the upper right selection key; this will automatically open the Phonebook. Scroll through the contacts with the UP and DOWN keys and press the green button to call the desired contact (with the volume keys you can scroll through the tabs showing: All Contacts, Phone only and SIM only contacts).
Call a number from the call log: from the main screen, press the green call key to view the missed, received, and outgoing calls. Scroll them through with the UP and DOWN keys and press twice the green call button when you found the number you want to call.
30ENGLISH
Add contacts to Phonebook
Select Menu > Phonebook > Add new contact, choosing to save the number on the SIM or Phone. Press Options > Edit to enter the name and the new number, then press Options > Save.
Speed dial: in Menu > Phonebook > Options > Phonebook settings > Speed Dial > Set Number, you can assign to the 2-9 keys phone numbers that will be called automatically if you press and hold the related button. This feature can be turned on and off under Status.
Memory status: This feature allows you to view how much free storage locations there is left in phone and SIM card.
Voice dialer: NGM Flip speaks out each key you press. To disable this feature, select Menu > Settings > Phone settings > Voice dialer and select on/off.
Send and read SMS. Send SMS: From the main screen, choose Menu> Messaging > Write message and write your message. Press Options > Send to > Enter number and enter the number using the numeric keypad or Add from phonebook to select from Phonebook the contact to which send the message.
Read SMS: when you receive a new text message, it displays an envelope icon in the top bar (as long as the message hasn't been read) and a notification pop up appears on the main screen. Press the upper left selection key to enter the Inbox or access it from the main screen by selecting Menu > Messages > Inbox. In the messaging menu you can access additional features such as SMS Templates, short preset messages, and Memory status, within SMS Settings you can control how many messages there are saved on the phone and on the SIM card.
32ENGLISH

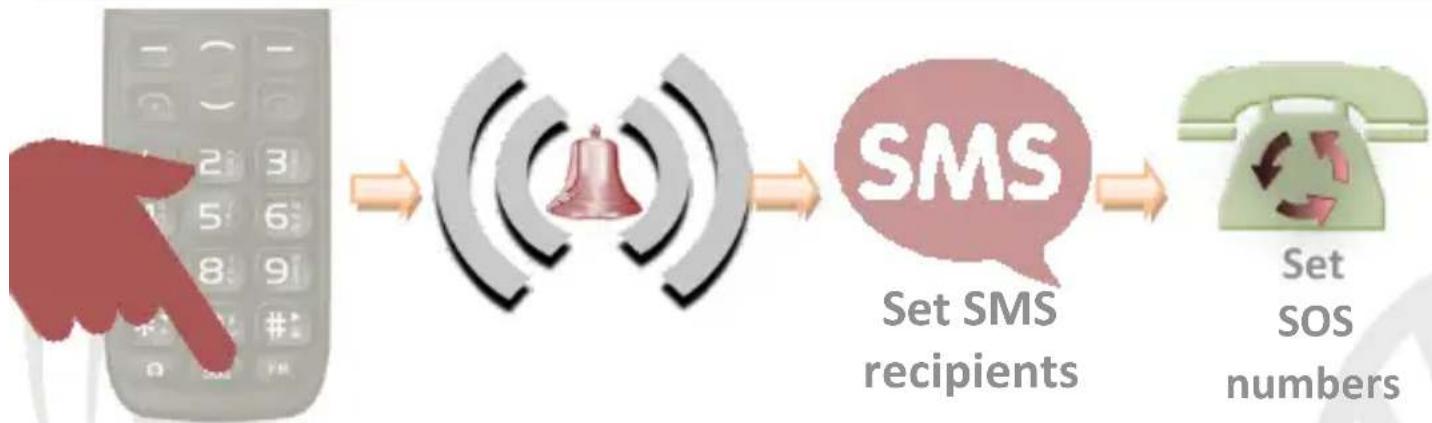

SOS function: NGM Flip is equipped with a dedicated SOS key for automatically making emergency calls (^*) . This feature can be turned on and off by selecting Menu > SOS > Activating. The SOS key is located in the keypad, below the 0 Key.
In Menu > SOS > Call waiting time, you can decide if activating the SOS Function immediately, or after long pressing the key for 5 or 10 seconds.
In case of emergency, the user can use this function to ask for help up to five phone numbers that have been previously set in Menu > SOS > SOS numbers.
As soon as the SOS function has been activated, the phone will send out a high volume alarm. So, it will send an SOS message to the SOS numbers set in Menu > SOS > SMS Recipients.
Then, the phone will call the five SOS numbers, for about 20 seconds for each. If at the end of the cycle there was no response, the phone will wait for about 30 seconds and then launch a second cycle of calls. This procedure will be repeated for 5 times. If one of the called numbers answers, the cycle will be interrupted and the call will automatically switch to speakerphone.
Warning: The SOS calls cycle will be interrupted if the answering machine of one of the called SOS numbers takes the call.
34ENGLISH
Set Ringtones Select Menu > User Profiles > General > Options> Customize. Select Ringtone and set the desired tone from those available.
Notification Led: will flash blue when the phone is charging, if there is a missed call or an unread SMS.
- will alternately flash red and blue if there is an incoming call.
Quickly turn on/off vibration mode: to quickly turn off the calls and messages ringtones, and activate vibration, press and hold#. By pressing again#, the phone will enter in General mode.
Phone Settings: from Menu > Settings > Phone, you will access to various settings such as Date and Time, Language, and Display. Select Restore factory settings to reset the factory settings of NGM Flip: enter the phone password 1122 to confirm the reset.
* Limitation of Liability:
this is not a life-saving device but a mobile phone.
NGM will not be liable for any indirect, special, incidental or consequential damage arising from, or in connection with the use of this product.
Warning: The manufacturer assumes no responsibility for any failure of the policies set out above, or for any misuse of the phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In such case, the latter shall govern.
Copyright © 2013 NGM Italia
No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia.
