USER MANUAL KOB10301XB ZANKER

Safety information	14
Safety instructions	15
Product description	17
Before first use	17
Daily use	17
Using the accessories	18
Additional functions	18

Helpful hints and tips	18
Care and cleaning	21
What to do if...	23
Technical data	23

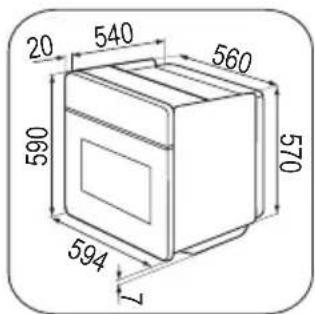

Installation	23
Environment concerns	24

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.

• Do not use a steam cleaner to clean the appliance.

• Before maintenance cut the power supply.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other appliances and units.
• Make sure that the appliance is installed below and adjacent safe structures.
• The sides of the appliance must stay adjacent to appliances or to units with the same height.

Electrical connection

Warning! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.

• Do not let mains cables to come in touch with the appliance door, specially when the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

Warning! Risk of injury, burns or electric shock or explosion.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
  Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful, when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.

• Always keep the appliance door closed when the appliance is in operation.

• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.

• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel: - do not put ovenware or other objects in the appliance directly on the bottom.
• do not put aluminium foil directly on the bottom of the appliance.
• do not put water directly into the hot appliance.
• do not keep moist dishes and food in the appliance after you finish the cooking.
• be careful when you remove or install the accessories.
• Discoloration of the enamel has no effect on the performance of the appliance. It is not a defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

Care and Cleaning

Warning! Risk of injury, fire or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.

• Replace immediately the door glass panels when they are damaged. Contact the Service.

• Be careful when you remove the door from the appliance. The door is heavy!

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Remaining fat or food in the appliance can cause fire.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.

Internal light

• The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting.

Warning! Risk of electrical shock.

• Before replacing the lamp, disconnect the appliance from the power supply.
• Only use lamps with the same specifications.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

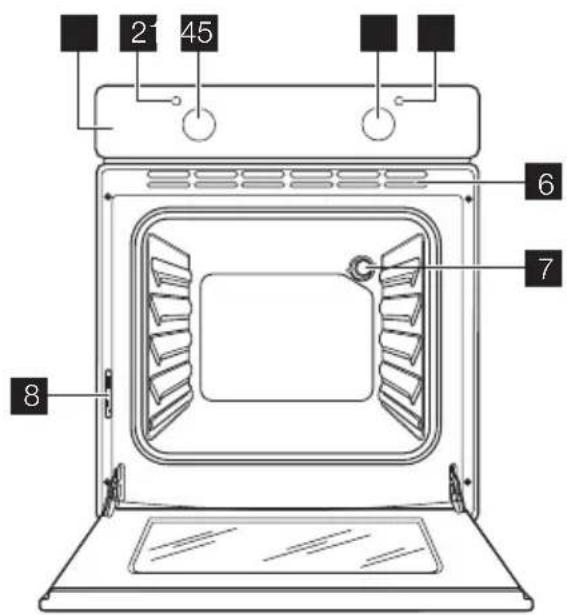

General overview

Oven accessories

Wire shelf

For cookware, cake tins, roasts.

Before first use

1 Control panel
2 Temperature indicator
Knob for the temperature
4 Knob for the oven functions
5 Power indicator
6 Ventilation openings
7 Oven lamp
8 Rating plate

• Flat baking tray

For cakes and biscuits.

Warning! Refer to the Safety chapters.

Initial Cleaning

• Remove all parts from the appliance.
• Clean the appliance before first use.

Important! Refer to chapter "Care and Cleaning".

Daily use

Preheating

This is to burn off any residue from the cavity surface. Accessories can become more hot than in normal use. During this period an odour and smoke can be emitted. This is normal. Make sure the airflow is sufficient. Set the function for 1 hour.

Warning! Refer to the Safety chapters.

Activating and deactivating the appliance

1. Turn the knob for the oven functions to an oven function.

The power indicator comes on while the appliance operates.

1. Turn the knob for the temperature to a temperature.

The temperature indicator comes on while the temperature in the appliance increases.

1. To deactivate the appliance, turn the knob for the oven functions and the knob for the temperature to the Off position.

Oven function Application
OFF position The appliance is off.
Conventional cooking	Heats both from the top and bottom element. To bake and roast on one oven level.
Top heating element Heats only from the top of the oven. To finish cooked dishes.
Bottom heating ele-ment	Heats only from the bottom of the oven. To bake cakes with crispy or crusty bases.

Using the accessories

Warning! Refer to the Safety chapters.

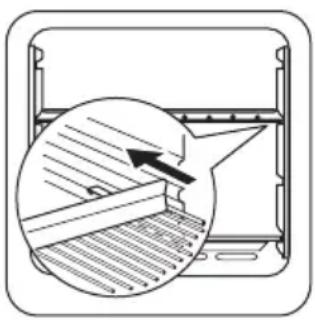

Installing the oven accessories

Put the slide-in accessories between the guide bars of one of the oven levels.

Additional functions

Cooling fan

When the appliance operates, the cooling fan switches on automatically to keep the surfaces of the appliance cool. If you switch off the appliance, the cooling fan stops.

Safety thermostat

The safety thermostat is a thermal cut-out in an operating thermostat.

To prevent damage to the oven thermostat caused by dangerous overheating, the oven has a safety thermo

Helpful hints and tips

• The appliance has four shelf levels. Count the shelf levels from the bottom of the appliance floor.
• The appliance has a special system which circulates the air and constantly recycles the steam. With this system you can to cook in a steamy environment and keep the food soft inside and crusty outside. It

stat that interrupts the power supply. The oven switches back on again automatically, when the temperature drops.

Warning! The safety thermostat works only if the oven thermostat does not operate correctly. When it occurs, the oven temperature is very high and can all the dishes. You must call the Service immediately to replace the oven thermostat.

decreases the cooking time and energy consumption to a minimum.

• Moisture can condense in the appliance or on the glass doors. This is normal. Always stand back from the appliance when you open the appliance door while cooking. To decrease the condensation, run the appliance for 10 minutes before cooking.

• Wipe away moisture after every use of the appliance.

• Do not put the objects directly on the appliance floor and do not cover the components with aluminium foil when you cook. This can change the baking results and damage the enamel coating.

Baking cakes

The best temperature for baking cakes is between 150^ and 200^ .
- Preheat the oven for approximately 10 minutes before baking.
- Do not open the oven door before 3/4 of the set cooking time is up.
- If you use two baking trays at the same time, keep one level empty between them.

Cooking meat and fish

• Do not cook meat with weight below 1kg . Cooking too small quantities makes the meat too dry.
  To keep the red meat well-cooked outside and juicy inside set the temperature between 200^ - 250^

• For white meat, poultry and fish, set the temperature between 150^ - 175^ .

• Use a dripping pan for very fatty food to prevent the oven from stains that can be permanent.
• Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.
• To prevent too much smoke in the oven during roasting, add some water into the dripping pan. To prevent smoke condensation, add water each time after it dries up.

Cooking times

Cooking times depend on the type of food, its consistency, and volume.

Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

Baking and roasting table

CAKES

TYPE OF DISH	Conventional cooking		Cooking time [min]	Notes
	Level	Temp [°C]
Whisked recipes	2	170	45-60	In cake mould
Shortbread dough	2	170	24-34	In cake mould
Butter-milk cheese cake	1 170 60-80 In cake mould 26 cm
Apple cake (Apple pie)	1	170	100-120	2 cake moulds of 20 cm on the wire shelf
Strudel	2	175	60-80	On baking tray
Jam-tart	2	170	30-40	In cake mould 26 cm
Fruit cake	2	170	60-70	In cake mould 26 cm
Sponge cake (Fatless sponge cake)	2 170 35-45 In cake mould 26 cm
Christmas cake/Rich fruit cake	2 170 50-60 In cake mould 20 cm
Plum cake 2 170 50-60				In bread tin 1)
Small cakes	3	170	20-30	On flat baking tray
Biscuits 3 150 20-30				On flat baking tray1)
Meringues	3	100	90-120	On flat baking tray
Buns 3 190 15-20				On flat baking tray1)
Choux 3 190 25-35				On flat baking tray1)
Plate tarts	3	180	45-70	In cake mould 20 cm
Victoria sandwich	1 or 2	180	40-55	Left + right in cake mould 20 cm

1) Preheat for 10 minutes.

BREAD AND PIZZA

TYPE OF DISH	Conventional cooking		Cooking time [min]	Notes
	Level	Temp [°C]
White bread	1	190	60-70	1-2 pieces, 500 gr one piece¹)
Rye bread	1	190	30-45	In bread tin
Bread rolls	2	190	25-40	6-8 rolls on flat baking tray¹)
Pizza	1	190	20-30	On deep roasting pan¹)
Scones	3	200	10-20	On flat baking tray¹)

1) Preheat for 10 minutes.

FLANS

TYPE OF DISH	Conventional cooking		Cooking time [min]	Notes
	Level	Temp [°C]
Pasta flan	2	180	40-50	In mould
Vegetable flan	2	200	45-60	In mould
Quiches	1	190	40-50	In mould
Lasagne	2	200	25-40	In mould
Cannelloni	2	200	25-40	In mould
Yorkshire pudding	2	220	20-30	6 pudding mould 1)

1) Preheat for 10 minutes.

MEAT

TYPE OF DISH	Conventional cooking		Cooking time [min]	Notes
	Level	Temp [°C]
Beef	2	200	50-70	On wire shelf and deep roasting pan
Pork	2	180	90-120	On wire shelf and deep roasting pan
Veal	2	190	90-120	On wire shelf and deep roasting pan
English roast beef rare	2	210	44-50	On wire shelf and deep roasting pan
English roast beef me-dium	2	210	51-55	On wire shelf and deep roasting pan
English roast beef well done	2	210	55-60	On wire shelf and deep roasting pan
Shoulder of pork	2	180	120-150	On deep roasting pan
Shin of pork	2	180	100-120	2 pieces on deep roasting pan
Lamb 2 190 110-130 Leg
Chicken	2	200	70-85	Whole on deep roasting pan
Turkey	1	180	210-240	Whole on deep roasting pan
Duck	2	175	120-150	Whole on deep roasting pan
Goose	1	175	150-200	Whole on deep roasting pan
Rabbit	2	190	60-80	Cut in pieces
Hare	2	190	150-200	Cut in pieces
Pheasant	2	190	90-120	Whole on deep roasting pan

FISH

TYPE OF DISH	Conventional cooking		Cooking time [min]	Notes
	Level	Temp [°C]
Trout/Sea bream	2	190	40-55	3-4 fishes
Tuna fish/Salmon	2	190	35-60	4-6 fillets

Care and cleaning

Warning! Refer to the Safety chapters.

• Clean the front of the appliance with a soft cloth with warm water and cleaning agent.
• To clean metal surfaces use a usual cleaning agent
• Clean the oven interior after each use. Thus you can remove dirt more easily and it does not burn on.
• Clean stubborn dirt with a special oven cleaner.

• Clean all oven accessories (with a soft cloth with warm water and cleaning agent) after each use and let them dry.

• If you have nonstick accessories, do not clean them using an aggressive agents, sharp edged objects or dishwasher. It can destroy nonstick coating!

Stainless steel or aluminium appliances:

Clean the oven door with a wet sponge only. Dry it with a soft cloth.

Do not use steel wool, acids or abrasive materials as they can damage the oven surface. Clean the oven control panel with the same precautions

Cleaning the door gasket

• Regularly do a check of the door gasket. The door gasket is around the frame of the oven cavity. Do not use the appliance if the door gasket is damaged. Contact the Service Centre.
  To clean the door gasket refer to the general information about the cleaning.

Oven lamp

Warning! Be careful when you change the oven lamp. Always switch off the appliance before you start to replace the lamp. There is a risk of electric shock.
Warning! Bulb lamps used in this appliance are special lamps for use only in household appliances. Do not use them to illuminate household rooms or parts of rooms. If you need to replace a lamp, the replacement lamp must have the same power and be for use only in household appliances.

Before you change the oven lamp:

• Deactivate the appliance.
• Remove the fuses in the fuse box or deactivate the circuit breaker.
• Put a cloth on the bottom of the oven. This prevents from damage to the oven light and glass cover.

Replacing the oven lamp:

1. Find the lamp glass cover at the back of the cavity.
   Turn the lamp glass cover counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with an applicable 300^ heat-resistant oven lamp. Use only the same oven lamp type as the replacement lamp. It must have the same power and be for use only in household appliances.
4. Install the glass cover.

Cleaning the oven door

The oven door has two panels of glass. You can remove the oven door and the internal panel of glass to clean it.

The oven door can close if you try to remove the internal panel of glass before you remove the oven door.

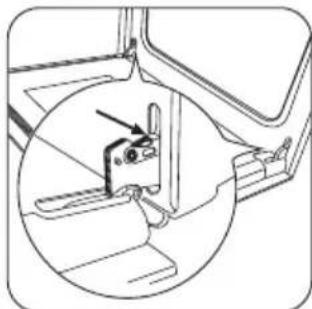

1 Open the door fully and hold the two door hinges.

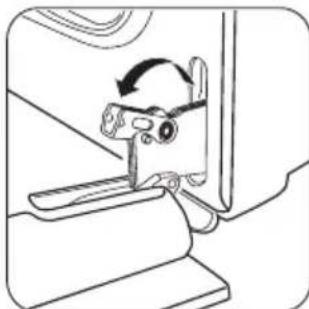

Lift and turn the levers on the two hinges.

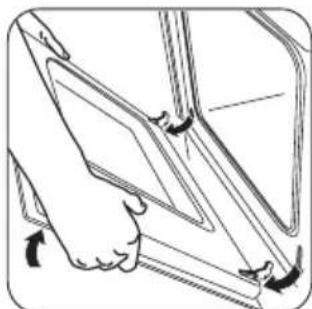

3 Close the oven door to the first opening position (halfway). Then pull forward and remove the door from its seat.

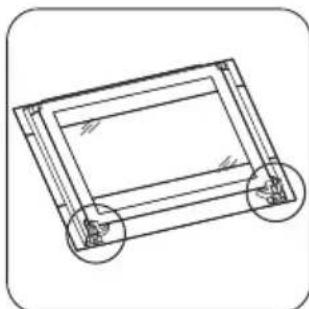

Put the door on a soft cloth on a stable surface.

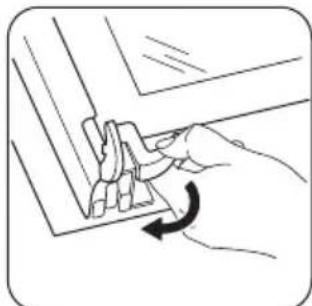

Release the locking system to remove the internal panel of glass.

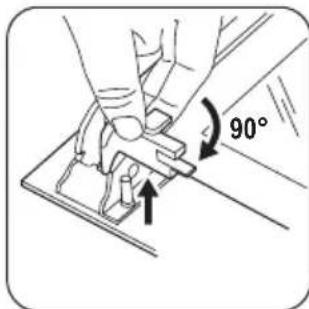

Turn the two fasteners by 90^ and remove them from their seats.

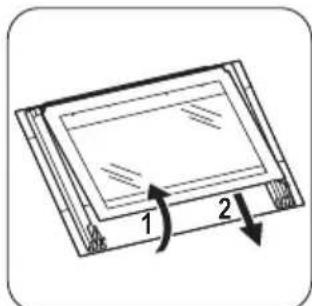

Carefully lift (step 1) and remove (step 2) the panel of glass.

Clean the glass panel with water and soap. Dry the glass panel carefully.

Installing the door and the glass panel

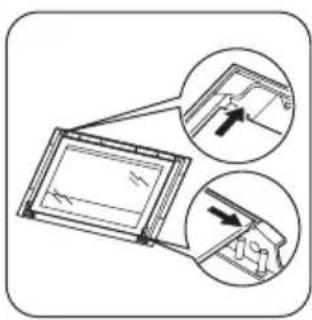

When you install the panel with a decorative frame, make sure that the screen-printing zone looks to the inner side of the door. Make sure that after the installation the surface of the glass panel frame on the screening zones is not rough when you touch it. Make sure that you install the internal panel of glass in the seats correctly (refer to the illustration).

What to do if...

Warning! Refer to the Safety chapters.

Problem Possible cause Remedy
The appliance does not heat up.	The appliance is deactivated.	Activate the appliance. Refer to "Daily use".
The appliance does not heat up. The fuse in the fuse box is released.		Do a check of the fuse. If the fuse is released more than one time, contact a qualified electrician.
The oven lamp does not operate.	The oven lamp is defective.	Replace the oven lamp.
Steam and condensation settle on the food and in the appliance.	You left the dish in the appliance for too long.	Do not let the dishes stay in the appliance for more than 15-20 minutes after the cooking ends.

If you cannot find a solution to the problem yourself, contact your dealer or the service centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity.

We recommend that you write the data here:

Model (MOD.)

Product number (PNC)

Serial number (S.N.)

Technical data

Voltage 230 V

Frequency 50 Hz

Installation

Warning! Refer to the Safety chapters.

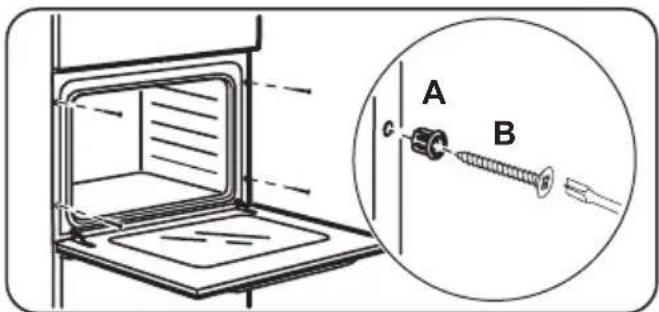

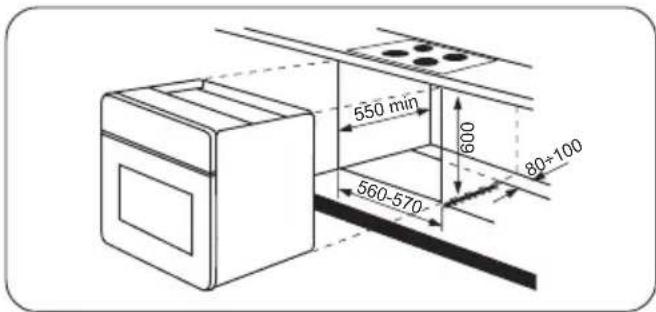

Building In

Electrical installation

Warning! Only a qualified and competent person must do the electrical installation.

The manufacturer is not responsible if you do not follow safety precautions from chapter "Safety initiation".

This appliance is supplied with a main plug and a main cable.

The cable

Cable types applicable for installation or replacement: H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F.

For the section of the cable refer to the total power (on the rating plate) and to the table:

Total power Section of the cable

maximum 1380 W 3 x 0,75 mm²

maximum 2300 W 3 × 1 ~mm^2

maximum 3680 W 3 x 1,5 mm²

The hearth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

Environment concerns

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more

detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging material is environmentally-friendly and recyclable. Plastic parts are marked with international abbreviations such as PE, PS, etc. Dispose of the packaging material in the containers provided for this purpose at your local waste management facility.

Sommaire

• Plateau multi-usages
