USER MANUAL Go 15 TUNTURI

It's easy to feel good!

Contents

SAFETY INSTRUCTIONS ...... 3

ASSEMBLY 4

Power cord and grounding instructions 5

Safety tether key.... 5

CONSOLE 5

Major function keys: 6

Displays & operating ranges...... 6

WORKOUTS 7

About your health 7

About the exercise environment ..... 7

About using the equipment 7

Beginning an exercise session ...... 7

Finishing an exercise session.... 7

How to motivate yourself to continue.... 8

Heart rate....8

OPERATION & PROGRAMS ...... 8

MAINTENANCE 9

Cleaning and lubricating the treadmill .. 9

Aligning the running belt 9

Adjusting the belt tension 10

Malfunctions 10

Error codes ......11

Protective circuit ....11

MOVING AND STORAGE 12

TECHNICAL DATA 13

Profiles 56

Parts list 57

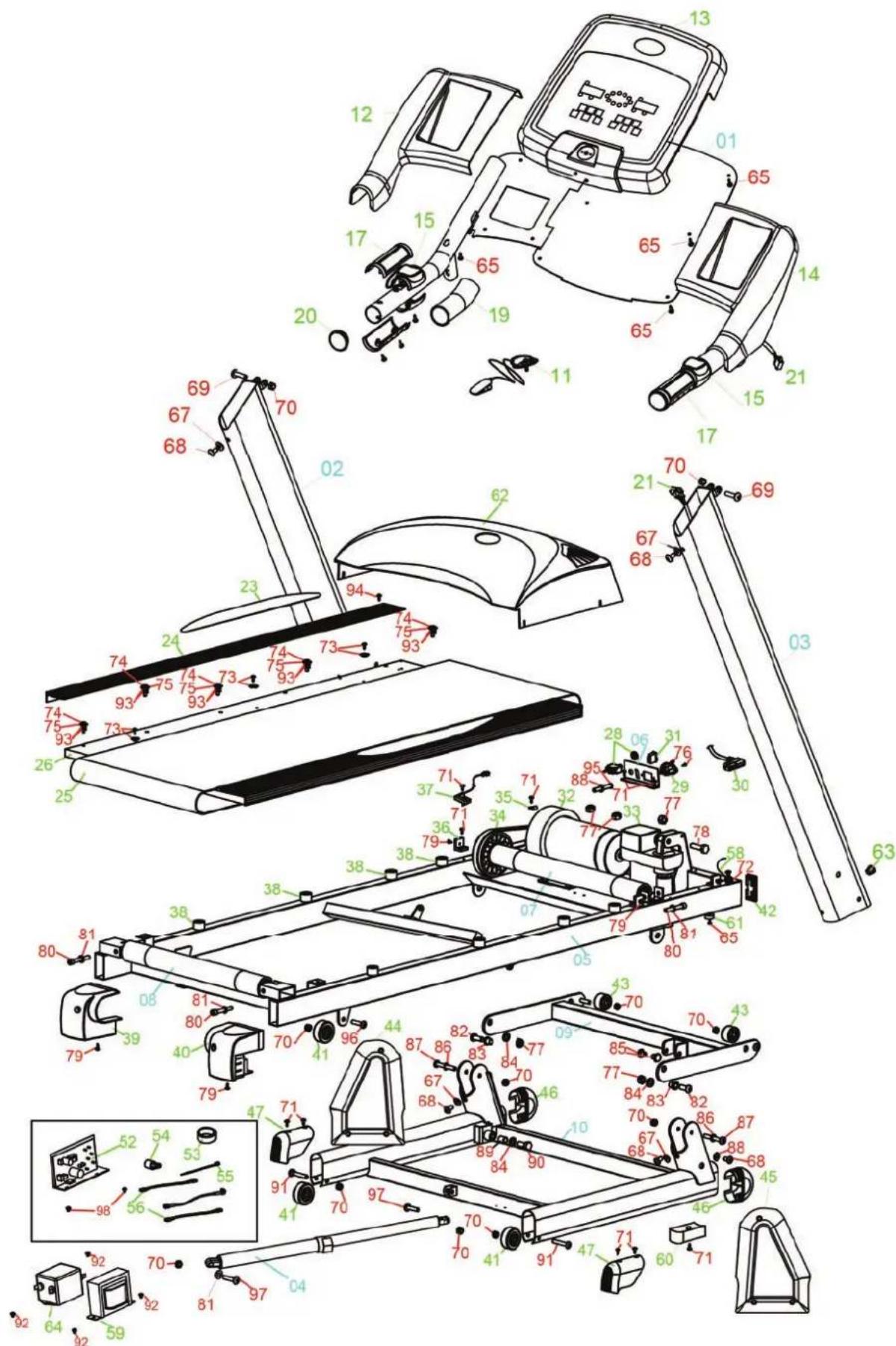

Exploded view 58

Safety instructions

This Owner's Manual is an essential part of your training equipment: read all instructions in this manual before you start using this appliance. The following precautions must always be followed:

WARNING

Never use extension cords between the treadmill and your wall outlet. The device's maximum power consumption is 10 A. Outlets with fluctuating voltage of more than 10% may result in erratic performance or cause damage to treadmill electronics. Using electrical power other than that, which has been specified in this manual will ultimately void any warranty, implied or otherwise.

WARNING

TO REDUCE ANY RISK TO PERSONS:

Keep hands clear of any moving parts. Never place hands, feet or any other objects into any opening or under the treadmill.

Never leave the treadmill unattended when plugged in. Unplug from outlet when not in use, before putting on or taking off parts. To disconnect, turn all controls to the off position, then remove plug from outlet.

Close supervision is necessary when the treadmill used by, on, or near children, invalids, or disabled persons.

Use the treadmill only for its intended use as described in this manual. Do not use attachments not recommended by Tunturi.

Before you start using the treadmill, make sure that it functions correctly in every way. Do not use a faulty device.

Keep the cord away from heated surfaces.

Treadmill must not be used outdoors. Treadmill tolerates an environment measuring +10°C to +35°C. Air humidity must never exceed 90%. Do not attempt any servicing or adjustment other than those described in this manual. The given instructions must be followed carefully.

Never operate this treadmill if it has a damaged cord or plug, if it has been dropped or damaged, or dropped into water. Return the treadmill to a service centre for repair.

Never operate the appliance with the air opening blocked. Keep the air openings free of lint, hair, and the like.

Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

The device must not be used by persons weighing over 135 kg (300 lbs).

The equipment has been designed for home use. Tunturi warranty applies only to defects and malfunctions in home use. Further information on warranty terms can be obtained from your national Tunturi distributor. Please note that the warranty terms may vary from one country to another.

SAVE THESE INSTRUCTIONS!

Assembly

As for the assembly of the device, we recommend two grown-up persons. Do not take the treadmill out of the box: use the packing material to cover the floor on the assembly site.

Before assembling the device, insure all parts are present:

Frame

Power cord

Assembly kit: keep the assembly tools, as you may need them e.g. for adjusting the equipment

In case of problems contact your Tunturi dealer. The directions left, right, front and back are defined as seen from the exercising position. To avoid injury, you must fold up the deck prior to lifting the treadmill out of the box.

Locate the hardware bag and parts that are listed in the chart below.

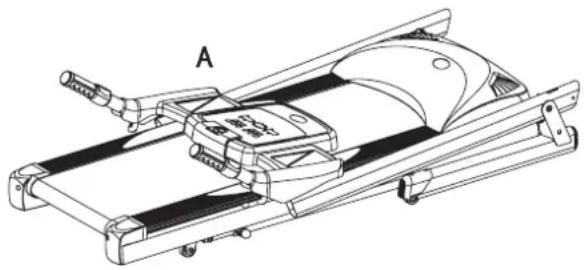

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Part #	Description Q'ty
A Main	frame and console 1
B Side	cap 2
C Screw	6
D Washer	4
E Washer	2
F Screw	6
G Allen	key 1
H Screw	driver 1
I Safety	key 1

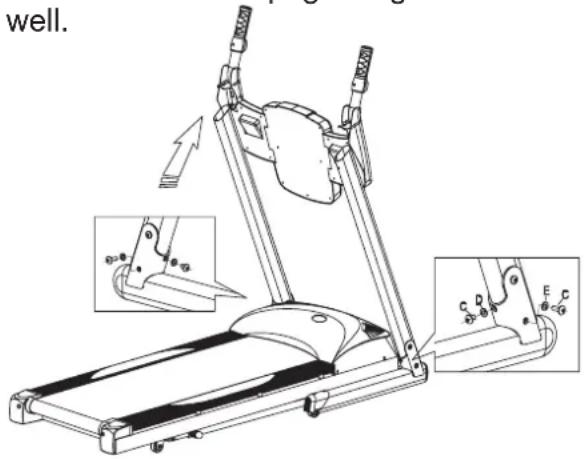

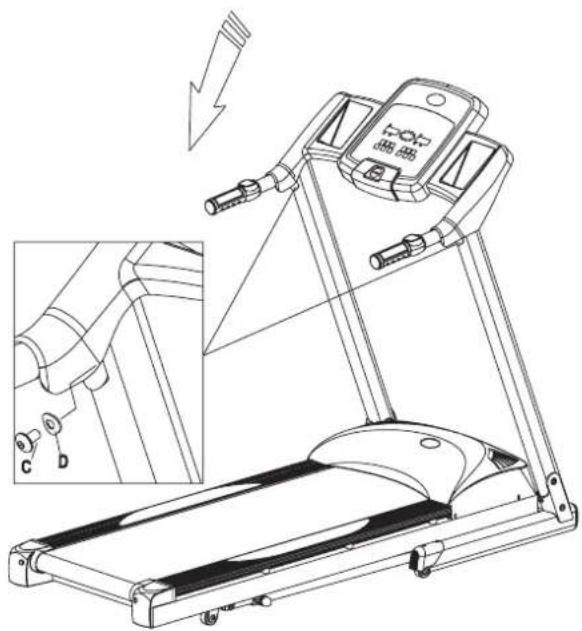

Lift up the upright, then place the screws (C) and washers (D, E) inside holes at the bottom of the upright. Tighten them well.

well.

Attach the side caps (B) with screws (F) at the bottom of the upright, and tighten them well.

Line drawing of a treadmill with an inset showing the side view of the device (no text or symbols present)

POWER CORD AND GROUNDING INSTRUCTIONS

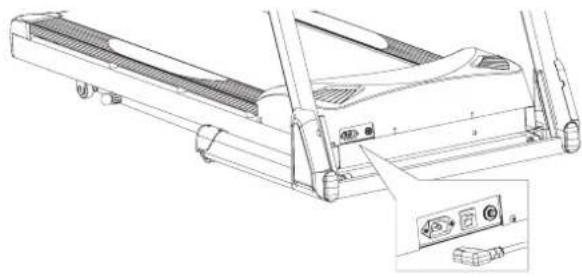

Plug the socket end of the power cord into the treadmill at the left front corner. Before connecting the device to a power source, make sure that local voltage matches that indicated on the type plate. The treadmill operates at 110 V or 230 V. This treadmill must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock.

This product is equipped with a cord having an equipment-grounded conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not use extension cables when connecting the equipment to the power source.

DANGER!

Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman, if you are in doubt as to whether the product is properly grounded.

Do not modify the plug provided with the product - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Line drawing of a treadmill with control panel and buttons, no text or symbols present

SAFETY TETHER KEY

The treadmill cannot be used if the tether key is not properly installed on the console; if the key is removed from its place, the treadmill will immediately stop. Place the safety tether key in its place on the console. Ensure that the clip of the safety tether key is properly attached to your clothing; as the cord tightens, make sure the clip does not detach itself from your clothing before the safety tether key disconnects from the console.

Console

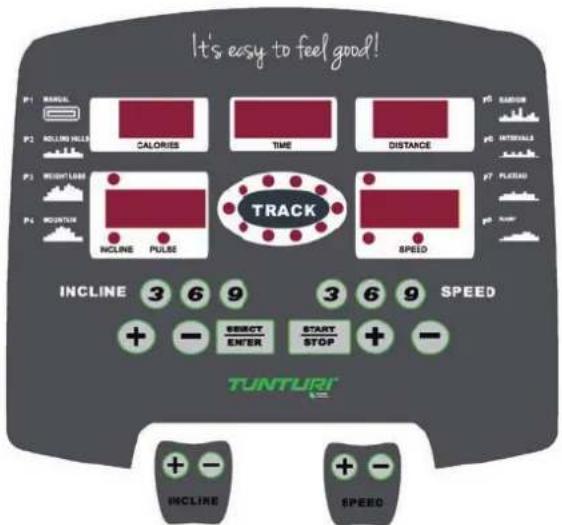

It's easy to feel good! P1 MASCAL P2 ROLLING HILLS P3 WEIGHTLOSS P4 MOUNTAIN INCLINE PULSE CALORIES TIME DISTANCE TRACK SPEED P5 SABOR P6 INTENSIVE P7 FLUSHED P8 RUNN INCLINE 3 6 9 SELECT ENTER START STOP + - + - TUNTURI + - + - INCLINE SPEED

SAFETY KEY:

The monitor and the treadmill can be operated only with the key attached on the SAFETY KEY button and both of the monitor and the treadmill stop as soon as the key is removed.

MAJOR FUNCTION KEYS:

INCLINE +:

Increases the incline level in the range from 0 % to 10 % shown in the Pulse / Incline Display. Pressing once increases 1 %, speed up the increment by pressing and holding it for 2 seconds.

Press this button to choose the program.

INCLINE -:

Decreases the incline level in the range from 0 % to 10 % shown in the Pulse / Incline Display. Pressing once decreases 1 % and to speed up the decrement by pressing and holding it for 2 seconds.

Press this button to choose the program.

START/STOP:

Starts or stops the program.

Re-Start :

If the Treadmill is stopped during use, the machine turns in pause mode. When the START button is pressed again, the treadmill will ramp-up the speed to where it was stopped. If the treadmill is stopped for 5 minutes or more, Power is lost and the treadmill will have to be re-started.

ENTER / SELECT:

Press this button to confirm your desired program or setting value. Press to display time, incline, pulse, distance, calories, speed.

SPEED +:

Increases the speed level in the range from 0.8 to 16.0 KPH (0.5 to 10 MPH). Pressing once increases 0.2KPH (0.1 MPH) and to speed up the increment by pressing and holding it for 2 seconds.

Press this button to choose the program.

SPEED -:

Decreases the speed level in the range from 0.8 to 16.0 KPH (0.5 to 10 MPH). Pressing once decreases 0.2 KPH (0.1 MPH) and to speed up the decrement by pressing and holding it for 2 seconds.

Press this button to choose the program.

C. SPEED HOT KEYS:

3 Speed Hot Keys are set as 3, 6, 9 KPH / 3, 6, 9 MPH. For example, the speed changes from any speed to 9 KPH by pressing the Speed Hot Key 9.

D. INCLINE HOT KEYS:

3 Incline Hot Keys are set as 3, 6, 9 %. For example, the incline level changes from any level to 6 % by pressing the Incline Hot Key 6.

E. SPEED QUICK-ACCESS KEYS:

+: Same as Speed +.
- : Same as Speed -.

F. INCLINE QUICK-ACCESS KEYS:

• : Same as Incline +.
• : Same as Incline -.

DISPLAYS & OPERATING RANGES

TIME:

Shows the exercising time with counting up or down. While the treadmill is not running and the safety key is on, it can be chosen by pressing ENTER / SELECT then adjusted by pressing + / - keys. The range of counting up is from 00:00 to 99:59 and 10:00 to 99:00 with counting down. While counting down to 00:00, the monitor will beep 12 times then the treadmill will stop.

SPEED:

Shows the speed that the treadmill is providing. It can be adjusted by pressing SPEED+ or SPEED- keys from 0.5 to 10 MPH or 0.8 to 16 KPH.

DISTANCE:

Shows the distance. The range is from 0.00 to 999 KM/ML.

CALORIES:

Shows the kcal. The range is from 0.00 to 9999 kcal.

PULSE:

Shows the pulse rate

INCLINE:

Shows the incline %

LED TRACK:

10 LED = 0.4 km / 0.25 miles.

Workouts

ABOUT YOUR HEALTH

Before you start any training, consult a physician to check your state of health.

If you experience nausea, dizziness or other abnormal symptoms while exercising, stop your workout at once and consult a physician.

To avoid muscular pain and strain, begin and end each workout by stretching.

ABOUT THE EXERCISE ENVIRONMENT

Make sure the exercise environment has adequate ventilation. To avoid catching cold, do not exercise in a draughty place.

Place the treadmill on a firm, level surface. Allow 120 cm or 4 feet of clearance behind the treadmill and 60 cm or 2 feet on either side and in front of the treadmill.

We recommend that the equipment is placed on a protective base.

ABOUT USING THE EQUIPMENT

Always unplug the treadmill from the electrical outlet after each training session.

Only one person may use the equipment at a time.

Keep hands clear of any moving parts. Never place hands, feet or any other objects under the treadmill.

Wear appropriate clothing and shoes when exercising. Make sure your shoelaces are properly tied. To avoid injury and unnecessary wear on your treadmill, be sure your shoes are free of any debris such as gravel and small pebbles.

BEGINNING AN EXERCISE SESSION

To avoid muscular pain and strain, begin and end each workout by stretching.

Stand on the landing rails to the left and right of the running belt. Do not stand on the running belt.

Always hold the handrail for support when getting on or off the treadmill and when changing the speed during exercise. Do not jump off the running belt while it is moving!

If you experience nausea, dizziness or other abnormal symptoms while exercising, stop your workout at once and consult a physician.

FINISHING AN EXERCISE SESSION

Never leave the safety tether key in the treadmill.

Use the main power switch to turn the unit off.

Unplug the electrical cord from the wall outlet and from the treadmill.

If necessary clean the treadmill from sweat with a damp cloth. Do not use solvents.

Store the electrical cord where it is clear from all pathways and out of childrens' reach.

HOW TO MOTIVATE YOURSELF TO CONTINUE

In order to reach the goals you have set, you'll need to keep finding the motivation to continue so you achieve your ultimate goal: life-long health and a new quality of living.

Set yourself realistic targets.

Progress step-by-step according to your schedule.

Keep a fitness diary and write down your progress.

Change your way of exercising from time to time.

Use your imagination.

Learn self-discipline.

One important aspect of your training is versatility. Varying your training uses different muscle groups and helps maintain motivation.

HEART RATE

No matter what your goal, you'll get the best results by training at the right level of effort, and the best measure is your own heart rate. First find your maximum heart rate i.e. where the rate doesn't increase with added effort. If you don't know your maximum heart rate, please use the following formula as a guide:

220 - age

The maximum varies from person to person. The maximum heart rate diminishes on average by one point per year. If you belong to one of thez risk groups mentioned earlier, ask a doctor to measure your maximum heart rate for you. We have defined three different heart-rate zones to help you with targeted training.

BEGINNER:

50-60 % of maximum heart rate Also suitable for weight-watchers, convalescents and those who haven't exercised for a long time. Three sessions a week of at least a half-hour each is recommended. Regular exercise considerably improves beginners' respiratory and circulatory performance and you will quickly feel your improvement.

TRAINER:

60-70 % of maximum heart rate Perfect for improving and maintaining fitness. Even reasonable effort develops the heart and lungs effectively, training for a minimum of 30 minutes at least three times a week. To improve your condition still further, increase either frequency or effort, but not both at the same time!

ACTIVE TRAINER:

70-80 % of maximum heart rate Exercise at this level suits only the fittest and presupposes long-endurance workouts.

To measure your heart rate: please use both hands to gently hold the Hand Pulse Sensors. There are 2 sensors and 2 pieces of metal part each sensor. Each hand must gently hold both metal pieces to trigger the measuring. The pulse rate will show in the “PULSE / Incline” Display.

Operation & programs

Insert the Safety key.

Press the POWER button. The monitor will turn on.

Select program with the SELECT button.

In the program PRO1 (Manual program), the program window will display a track view. In the program PRO2-8 (preset profile program), the program window will display a profile view. Press ENTER / SELECT to confirm your desired program.

In the programs PRO1 & PRO2-8, press + / - buttons to set up your desired time to do the exercise.

Press ENTER / SELECT to confirm your setting value.

Press START to begin.

In the PRO1 program, set the incline and speed manually.

In PRO2-8, the incline and speed changes are automatic.

You can set the speed and incline of each profile bar also manually during training.

Maintenance

The equipment is safe to use only when periodically maintained and inspected for faults and wear.

CAUTION!

Do not attempt any servicing or adjustment other than those described in this manual. Any other servicing must be performed by an authorized service representative. Check the tightness of all fixing screws once a year. Do not overtighten.

CLEANING AND LUBRICATING THE TREADMILL

FAILURE TO LUBRICATE YOUR TREADMILL MAY INVALIDATE THE PRODUCT'S WARRANTY!

Wipe the treadmill surfaces, especially the handlebars and console from dust with a damp cloth or towel. Do not use solvents. Use a small vacuum nozzle to carefully vacuum around all visible components (belt, running deck, side rails etc.). Also keep the area near the treadmill clean. While in use, the treadmill gathers dust that may cause problems in the operation of the equipment. In average domestic use (a maximum of 60 minutes a day), you should check the lubrication once a month

However, lubricate the belt only if needed. In more demanding use, the lubrication needs be checked at shorter intervals. This is best done before you begin a training session. Check the lubrication as follows:

Ensure the treadmill is powered off! Step on the treadmill belt .and stand steadily where you normally run on the belt.

1. Take hold of the horizontal handlebar and push the belt with your feet so that it slides back and forth. The belt should move softly and evenly, without a sound.

2. If you notice jerky movement or if the belt will not slide check for lubrication by sliding your hand under the belt.

Lubricate the running deck according to the following instructions:

Attach the nozzle of the lubrication tube to the T-Lube S container.

Lift the running deck and lock it.

Position the nozzle between the belt and the board. Try to reach the spray as far into the center of the running deck as possible.

Spray the lubricant for 2-3 seconds.

Lower the running deck into its normal position. Use treadmill for your training session. Or allow the treadmill to run for at least 5 minutes.

NOTE!

Lubricate your treadmill only with T-Lube S silicon lubricant. Contact your local Tunturi distributor for further supplies of T-Lube or further information on lubrication and maintenance.

ALIGNING THE RUNNING BELT

Monitor belt tracking during exercise and make adjustments as needed. The belt should run in the center of the treadmill. Alignment is not usually needed, provided

The treadmill is placed on an even, solid and horizontal surface and the belt is correctly tensioned

The alignment of the belt is correct

It is, however, possible for the belt to be pushed to one side due to the user's running style (e.g. more weight on one foot). The alignment of the belt is adjusted by turning the two bolts at the back of the treadmill.

Align the belt according to the following instructions

Turn the power switch on and increase the treadmill's speed to 5 km/h (3 mph). If the belt drifts to the left, turn the left adjustment bolt 1/4 turn clockwise and the right adjustment bolt 1/8 turn anti-clockwise. If the belt drifts to the right, turn the right adjustment bolt 1/4 turn clockwise and the left adjustment bolt 14 turn anti-clockwise. If the belt remains centered the adjustment is correct. If not, continue to make small adjustments as above until the belt is correctly aligned. If the belt is allowed run across to one side for long periods of time the edges of the belt may be damaged and the treadmill may not continue to operate correctly. Any damage to the belt caused by the lack of necessary adjustment will not be covered by the warranty.

ADJUSTING THE BELT TENSION

The belt must be tensioned if it begins to slip on the rollers. In normal use, however, keep the belt as loose as possible! The belt tension is adjusted by turning the same screws as used for aligning the running belt. If turning the screws will not effect the belt tension, please contact your local Tunturi dealer.

Increase the treadmill's speed to 5 km/h (3 mph).

Turn both adjustment screws an equal amount, 14 turn clockwise. Try to slow the belt down by holding onto the handrails and braking as you walk (as if you were walking downhill).

If the belt slips, turn another 1/4 turn and repeat the test. When braking heavily the belt may slip. If the belt keeps slipping despite repeated adjustments, please contact your local Tunturi dealer.

MALFUNCTIONS

NOTE!

Despite continuous quality control, defects and malfunctions caused by individual components may occur in the equipment. In most cases it's unnecessary to take the whole device in for repair, as it's usually sufficient to replace the defective part. Always give the model, serial number of your equipment and in case of malfunctions also conditions of use, nature of malfunction and any error code.

When you encounter unusual behavior from the treadmill, simply turn the power switch off, wait 1 minute and turn the power switch on to reset the treadmill. This should clear incidental errors and ready the treadmill for normal operation again. If after you have reset the treadmill by turning the power switch off and on again, and the treadmill is still not operational, contact your local Tunturi dealer for service.

If you require spare parts, always give the model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list.

ERROR CODES

The user interface will display information about operational faults.

E1: Speed sensor error.

Unplug the electrical cord from the wall outlet and from the treadmill, wait 1 minute and turn the power switch on again. If treadmill recovers to normal operation, you may continue to use the treadmill. Otherwise, call the dealer for service.

E6, E7: Lift motor error.

Unplug the electrical cord from the wall outlet and from the treadmill, wait 1 minute and turn the power switch on again. If treadmill recovers to normal operation, you may continue to use the treadmill.

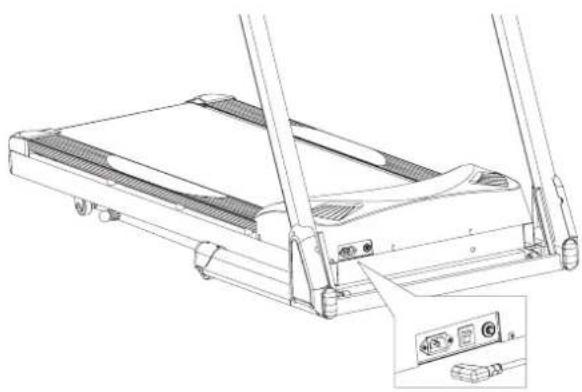

PROTECTIVE CIRCUIT

The machine will shut off when the electricity load is above the machine's capacity. To restart the machine, please follow the procedure below:

Unplug the power cord from the machine's socket.

Push in the safety switch.

Replug the power cord into the machine's socket.

Line drawing of a treadmill with control panel and buttons, no text or symbols present

NOTE!

DON'T PUSH IN THE SAFETY SWITCH BEFORE UNPLUGGING THE MACHINE'S POWER CORD.

If you leave the treadmill plugged in after turning off the console, there will still be current running to the console. This treadmill is equipped with a safety control program that will automatically shut down the machine after six hours of no use. In the event of an automatic shut down, please follow the procedure below to restart the treadmill: A. Unplug the power cord form the machine's socket. Replug the power cord cord into the machine's socket to restart the machine.

Technical line drawing of a mechanical device with no visible text or symbols

Moving and storage

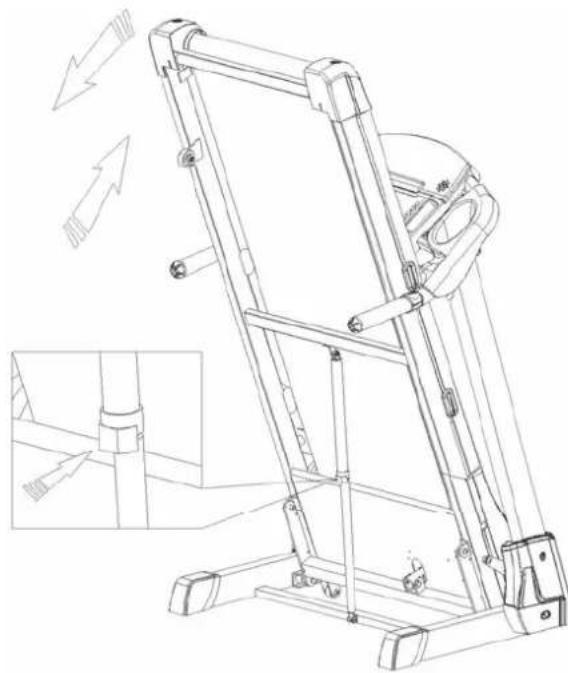

Folding

After assembly is complete, you may fold the machine into the upright position for storage. To hold the machine, raise the desk until it locks into position.

NOTE!

Make sure you hear the click sound of the deck locking into position. This is to ensure the deck is locked in place and will not drop back down.

NOTE!

Make sure the treadmill's elevation is at 0% before folding the deck. If the elevation is not at 0% , folding will damage the mechanism.

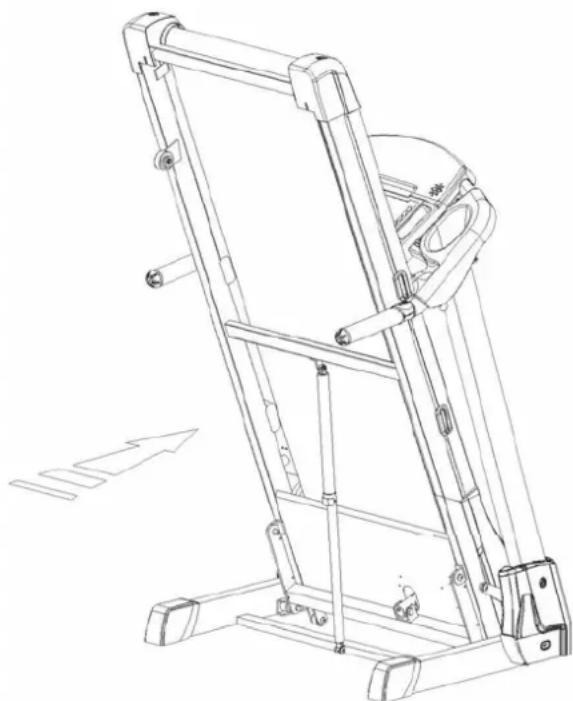

Unfolding

Lightly kick the switch indicated in the middle of the shock absorb rod to fold down the frame deck.

NOTICE!

This vertical rod (shock) has a built-in safety unfolding feature to help lower the deck slowly.

Please make sure there are no children or other things under the deck when you lower it.

Technical line drawing of a mechanical device with no visible text or symbols

TO MOVE THE TREADMILL

Before moving the treadmill, be sure the power cord is unplugged from the wall and the treadmill. Fold up the running deck until it is locked and push the equipment on the transportation wheels.

NOTE!

Transport the treadmill with extreme caution over uneven surfaces, for example over a step. The treadmill should never be transported upstairs using the wheels over the steps, instead it must be carried. We recommend that you use a protective base when transporting the equipment.

NOTE!

The running belt needs to be realigned and centred after moving.

To prevent malfunctioning of the treadmill, store it in a dry place with as little temperature variation as possible, protected against dust. Always unplug the treadmill from the electrical outlet when not in use.

Technical data

PRODUCT

Motor 1.50-2.5 HP DC

Speed 0.8-16 km/h

Incline 0-10%

Running Surface ( Lxw) ..... 129x43 mm

Power Supply 220-240V AC

Power Supply 220-240V AC

Foldable Yes

Shock Absorbing System ....Yes

Length / Folded 175cm / 94cm

Width / Folded 78cm / 78cm

Max User Weight ......135kg / 300lbs

MONITOR

Program Display ...... No

Feedback Display ..5 LED/ 400Mtr Track

Programs Total 8

Pre-Set Programs 7

Quick Start/ Manual 1

ERGONOMICS

Running Belt (Lxw) .. 2745x435x1,75mm

Running Deck Thickness .....18mm

Handgrip Speed Control Yes

Handgrip Incline Control .... Yes

Contact Heart Rate ....Yes

Telemetric Hr Receiver Yes

Chest Strap Option ....5,4kHz

Bottle Holder ....Yes

Storage Pocket ....Yes

Transport Wheels ....Yes

EXTRA

Operating Environment ...... Home

Speed Quick Buttons ....Yes

Incline Quick Buttons ....Yes

En-957 Class ......HC

The Tunturi Run 15 treadmill meets the requirements of the EU's EMC Directives on electromagnetic compatibility (89/336/EEC) and electrical equipment designed for use within certain voltage limits (73/23/EEC). This product therefore carries the CE label.

The Tunturi Run 15 treadmill meets EN precision and safety standards (EN-957). Due to our continuous policy of product development, Tunturi New Fitness reserves the right to change specifications without notice.

CAUTION!

The instructions must be followed carefully in the assembly, use and maintenance of your equipment. The warranty does not cover damage due to negligence of the assembly, adjustment and maintenance instructions described herein. Changes or modifications not expressly approved by Tunturi will void the user's authority to operate the equipment!

WE WISH YOU MANY ENJOYABLE TRAININGS WITH YOUR NEW TUNTURI TRAINING PARTNER!

DEUTCH

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Technical diagram of a treadmill with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a treadmill with an inset showing a close-up of the mechanism (no text or symbols present)

NETZKABEL

Technical line drawing of a treadmill with control panel and buttons (no text or symbols)

SPEED – (GESCHWINDIGKEIT –):

SPEED (GESCHWINDIGKEIT):

Line drawing of a treadmill with control panel and buttons, no text or symbols present

Technical line drawing of a mechanical device with ladder and frame structure (no text or symbols)

CONSERVEZ CES INSTRUCTIONS!

Assemblage

Technical line drawing of a stationary exercise machine with labeled component A (no text or symbols beyond label)

Technical line drawing of a treadmill with mechanical components and mounting brackets (no text or symbols)

Line drawing of a treadmill with an inset showing a close-up of the tread and a lightning bolt indicating compression (no text or symbols present)

CORDON D'ALIMENTATION

Line drawing of a treadmill with attached control panel and buttons, no text or symbols present

CLÉ DE SÉCURITÉ

Line drawing of a treadmill with control panel and buttons, no text or symbols present

ATTENTION

NE PAS APPUYER SUR L'INTERRUPTEUR DE SECURITE AVANT D'AVOIR DEBRANCHE LE CORDON D'ALIMENTATION DE LA MACHINE.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical ladder assembly with no visible text or symbols

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Technical diagram of a treadmill with labeled parts and directional arrows indicating motion or assembly steps

Line drawing of a treadmill with an inset showing the side view of the device (no text or symbols present)

ELEKTRICITEITSSNOER

Line drawing of a treadmill with control panel and buttons, no text or symbols present

VEILIGHEIDSSLEUTEL

SNELTOETSEN VOOR SNELHEID:

Line drawing of a treadmill with control panel and buttons, no text or symbols present

BELANGRIJK!

TREK EERST HET NETSNOER UIT DE MACHINE EN DRUK PAS DAARNA DE VEILIGHEIDSSCHAKELAAR IN

Technical line drawing of a mechanical device with no visible text or symbols

Transport en opslag

OPVOUWEN VAN DE LOOPBAND

Technical line drawing of a mechanical device with no visible text or symbols

Technische gegevens

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Technical diagram of a treadmill with labeled parts and directional arrows indicating motion or assembly steps

Line drawing of a treadmill with an inset showing a close-up of the tread and a lightning bolt indicating compression (no text or symbols present)

VERKKOJOHTO

Technical line drawing of a treadmill with control panel and buttons (no text or symbols)

TURVA-AVAIN

B. PÄÄTOIMINTOPAINIKKEET

1. INCLINE +

Line drawing of a treadmill with attached control panel (no text or symbols)

TÄRKEÄÄ!

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows indicating motion or force (no text or symbols present)

Avaaminen

Technical line drawing of a mechanical device with ladder and frame structure (no text or symbols)

Tekniset tiedot

Buble Description Qty
1 Console base 1
2 Handlebar, LH 1
3 Handlebar, RH 1
4 Shock 1
5 Frame 1
6 Switch bracket 1
7 Front roller 1
8 Rear roller 1
9 Incline structure frame 1
10 Front support frame 1
11 Safety Key 1
12 Console left	1
13 User interface	1
14 Console right	1
15 Toggle switch LH (Elevation)	1
16 Toggle switch RH (Speed)	1
17 Hand pulse set	1
19 Handle grip	2
20 End cap	2
21 Main wire set	1
23 Anti-slip mat	2
24 Side landing	2
25 Running belt,	1
26 Running deck,	1
28 Overcurrent protector, 6A	1
29 Power socket	1
30 Power cable	1
31 ON/OFF switch	1
32 Motor, 1.25 HP DC/ 180V	1
33 Lift motor	1
34 Drive belt	1
35 Wire holder	2
36 Motor cover bracket	6
37 Speed sensor 1000MM	1
38 Rubber bumper, 22*17*6mm	8
39 Rear end cap, LH	1
40 Rear end cap, RH	1
41 Wheel, rubber 50	4
42 Frame end cap, front	2
43 Wheel, plastic 38	2
44 Front support cover, LH	1
45 Front support cover, RH	1
46 Front support end cap	2
47 Wheel cover	2

52 Power board	1
53 Ferrite 2
54 Wire holder	2
55 Plastic fixer	5
56 Power Wire Set	1
59 Transformer, EUR	1
60 Rubber rectangular mat	2
61 Rubber round mat	2
62 Motor cover	1
63 Through-leading rubber	1
64 Filter EUR 1
65 Screw 19
66 Screw 6
67 Washer	4
68 Haxagon Screw	6
69 Hexagon Screw	2
70 Nylon Nut M8 10
71 Screw 24
72 Star washer	3
73 Fixing guide set	6
74 Screw 10
75 Plastic washer	10
76 Screw 2
77 Nyloc nut M10 7
78 Hexagon Screw	1
79 Screw 8
80 Hexagon Screw	3
81 Washer	5
82 Hexagon Screw	2
83 Fixing tube	2
84 Washer	4
85 Hexagon Screw	2
86 Star washer	2
87 Hexagon Screw	2
88 Washer	3
89 Fixing tube	2
90 Hexagon Screw	2
91 Hexagon Screw	2
92 Screw 9
93 Plastic washer	20
94 Screw 2
95 Hexagon Screw	1
96 Hexagon Screw	2
97 Hexagon Screw	2
98 Screw 2

OWNER'S MANUAL GO RUN!5

Technical diagram of a mechanical assembly with numbered components and exploded view annotations

TUNTURI®

Tunturi New Fitness B.V.

P.O. Box 60001

1320 AA

The Netherlands

www.tunturi.com

20150519
