USER MANUAL WTW5000DW - INSTALLATION GUIDE WHIRLPOOL

WASHER INSTALLATION INSTRUCTIONS INSTRUCTIONS POUR L'INSTALLATION DE LA LAVEUSE

Table of Contents

WASHER SAFETY....1

INSTALLATION REQUIREMENTS......2

Tools and Parts....2

Location Requirements 2

Drain System 3

Electrical Requirements 4

INSTALLATION INSTRUCTIONS......4

Before you start: remove shipping materials ....4

Connect Drain Hose....5

Connect Inlet Hoses....6

Level Washer 7

Complete Installation Checklist....8

Table des matières

SÉCURITÉ DE LA LAVEUSE ......9

EXIGENCES D'INSTALLATION ......9

INSTRUCTIONS D'INSTALLATION....12

Date of purchase: ____

Date of installation: ____

Installer:

Model number: ____

Serial number: ____

NOTES SUR L'INSTALLATION

Date d'achat : ____

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

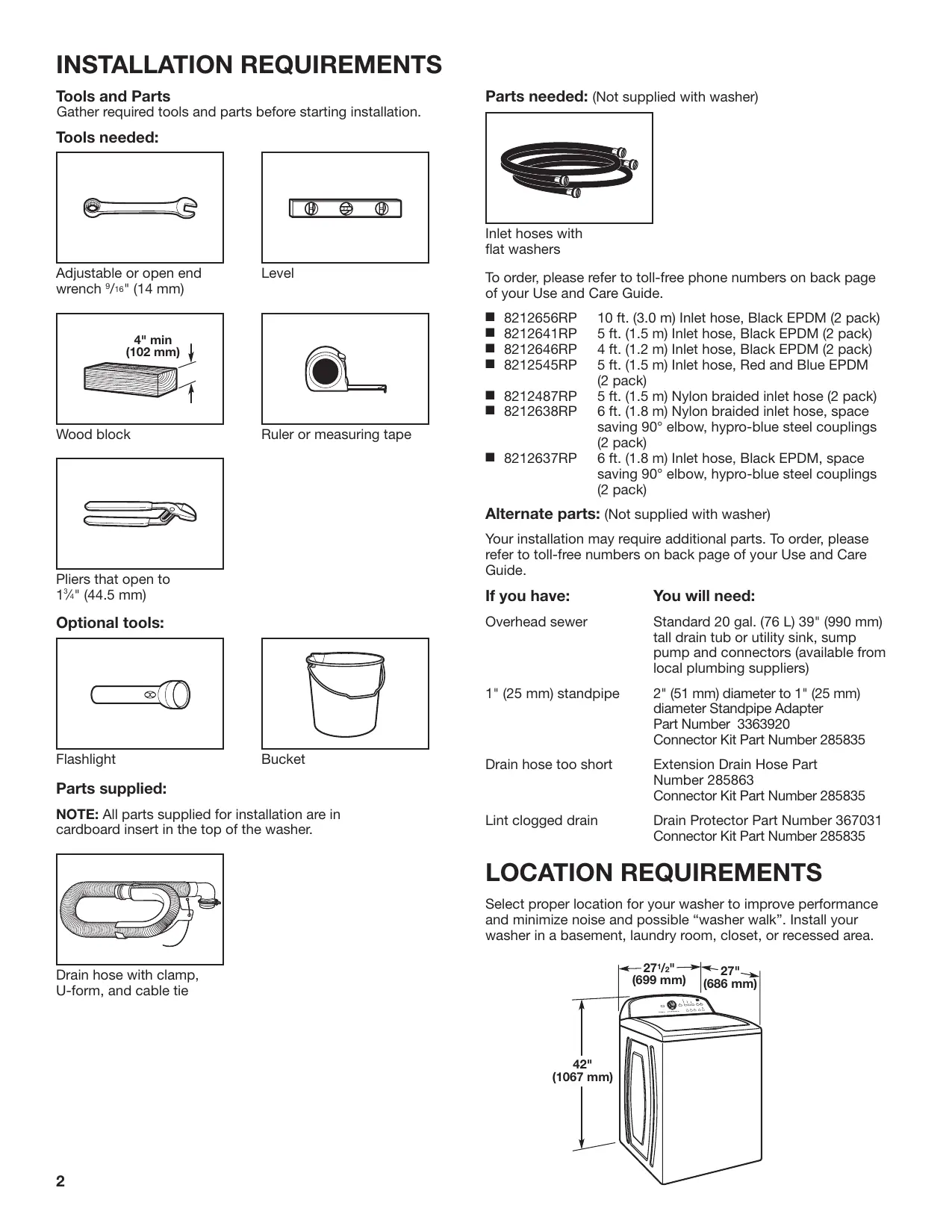

INSTALLATION REQUIREMENTS

Tools and Parts

Gather required tools and parts before starting installation.

Tools needed:

Line drawing of a standard mechanical wrench (no text or symbols)

Adjustable or open end wrench ^9/16 " (14 mm)

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

Level

Wood block

Simple line drawing of a tape measure (no text or symbols)

Ruler or measuring tape

Line drawing of a pair of pliers (no text or symbols)

Pliers that open to 1^3/_4 " (44.5 mm)

Optional tools:

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Flashlight

Simple line drawing of a bucket with handle (no text or symbols)

Bucket

Parts supplied:

NOTE: All parts supplied for installation are in cardboard insert in the top of the washer.

Line drawing of a U-shaped tube with coiled tubing and a small connector (no text or symbols)

Drain hose with clamp, U-form, and cable tie

Parts needed: (Not supplied with washer)

Coiled black hoses with metallic connectors, no text or symbols visible

Inlet hoses with flat washers

To order, please refer to toll-free phone numbers on back page of your Use and Care Guide.

■ 8212656RP 10 ft. (3.0 m) Inlet hose, Black EPDM (2 pack)
■ 8212641RP 5 ft. (1.5 m) Inlet hose, Black EPDM (2 pack)
■ 8212646RP 4 ft. (1.2 m) Inlet hose, Black EPDM (2 pack)
■ 8212545RP 5 ft. (1.5 m) Inlet hose, Red and Blue EPDM (2 pack)
■ 8212487RP 5 ft. (1.5 m) Nylon braided inlet hose (2 pack)
■ 8212638RP 6 ft. (1.8 m) Nylon braided inlet hose, space saving 90° elbow, hypro-blue steel couplings (2 pack)
■ 8212637RP 6 ft. (1.8 m) Inlet hose, Black EPDM, space saving 90° elbow, hypro-blue steel couplings (2 pack)

Alternate parts: (Not supplied with washer)

Your installation may require additional parts. To order, please refer to toll-free numbers on back page of your Use and Care Guide.

If you have:

Overhead sewer	Standard 20 gal. (76 L) 39" (990 mm)tall drain tub or utility sink, sump pump and connectors (available from local plumbing suppliers)
1" (25 mm) standpipe	2" (51 mm) diameter to 1" (25 mm)diameter Standpipe AdapterPart Number 3363920Connector Kit Part Number 285835
Drain hose too short	Extension Drain Hose PartNumber 285863Connector Kit Part Number 285835
Lint clogged drain	Drain Protector Part Number 367031Connector Kit Part Number 285835

LOCATION REQUIREMENTS

Select proper location for your washer to improve performance and minimize noise and possible “washer walk”. Install your washer in a basement, laundry room, closet, or recessed area.

You will need:

■ A water heater set to 120^ F ( 49^ C).
■ A grounded electrical outlet located within 4 ft (1.2 m) of power cord on back of washer.
■ Hot and cold water faucets located within 3 ft (0.9 m) of hot and cold water fill valves on washer, and water pressure of 20-100 psi (138-690 kPa).
A level floor with maximum slope of 1" (25 mm) under entire washer. Installing on carpet is not recommended.
- Floor must support washer's total weight (with water and load) of 315 lbs (143 kgs).

IMPORTANT: Do not install, store, or operate washer where it will be exposed to weather or in temperatures below 32^ F ( 0^ C). Water remaining in washer after use may cause damage in low temperatures. See “Washer Care” in your Use and Care Guide for winterizing information.

Proper installation is your responsibility.

Recessed area or closet installation

Dimensions show recommended spacing allowed, except for closet door ventilation openings which are minimum required. This washer has been tested for installation with spacing of 0" (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and floor moldings. Add spacing of 1" (25 mm) on all sides of washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required.

DRAIN SYSTEM

Drain system can be installed using a floor drain, wall standpipe, floor standpipe, or laundry tub. Select method you need.

Floor standpipe drain system

Minimum diameter for a standpipe drain: 2" (51 mm). Minimum carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe must be at least 39" (990 mm) high; install no higher than 96" (2.44 m) from bottom of washer. If you must install higher than 96" (2.44 m), you will need a sump pump system.

Wall standpipe drain system

See requirements for floor standpipe drain system.

Floor drain system

Line drawing of a washing machine next to an open refrigerator, showing wiring and mounting bracket (no text or symbols)

Floor drain system requires a Siphon Break Kit (Part Number 285834), 2 Connector Kits (Part Number 285835), and an Extension Drain Hose (Part Number 285863) that may be purchased separately. To order, please see toll-free phone numbers in your Use and Care Guide. Minimum siphon break: 28" (710 mm) from bottom of washer. (Additional hoses may be needed.)

Laundry tub drain system

Minimum capacity: 20 gal. (76 L). Top of laundry tub must be at least 39" (990 mm) above floor; install no higher than 96" (2.44 m) from bottom of washer.

IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm) of drain hose should be inside standpipe or below the top of wash tub. Secure drain hose with cable tie.

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit breaker serving only this appliance be provided.
■ This washer is equipped with a power supply cord having a 3 prong grounding plug.
■ To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
■ Do not ground to a gas pipe.
■ Check with a qualified electrician if you are not sure the washer is properly grounded.
■ Do not have a fuse in the neutral or ground circuit.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electric current. This washer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected washer:

This washer must be connected to a grounded metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

INSTALLATION INSTRUCTIONS

WARNING

Excessive Weight Hazard

Use two or more people to move and install washer.

Failure to do so can result in back or other injury.

Before you start: remove shipping materials

It is necessary to remove all shipping materials for proper operation and to avoid excessive noise from washer.

1. Move washer


Move washer to within 4 ft (1.2 m) of its final location; it must be in a fully upright position.

NOTE: To avoid floor damage, set washer onto cardboard before moving it and make sure lid is taped shut.

1. Remove shipping base


To avoid damaging floor, place cardboard supports from shipping carton on floor behind washer. Tip washer back and place on cardboard supports. Remove shipping base by rotating base 90° to the right. Set washer upright.

IMPORTANT: Removing shipping base is necessary for proper operation. If your washer includes a sound shield, please refer to the instructions included with the sound shield to install it at this time.

1. Remove packing tray from tub


Line drawing of a printer with an open lid and an upward arrow indicating upload or upload (no text or symbols)

Remove tape from washer lid, open lid and remove cardboard packing tray from tub. Be sure to remove all parts from tray.

NOTE: Keep tray in case you need to move washer later.

1. Free power cord


Firmly grasp power cord plug and pull to free from rear panel. Gently place power cord over console to allow free access to back of washer.

CONNECT DRAIN HOSE

1. Attach drain hose to drain port


Diagram showing two mechanical components with coiled hoses and a tool, no text or symbols present

If clamp is not already in place on elbow end of drain hose, slide it over end as shown. Squeeze clamp with pliers and slide black elbow end of drain hose onto black drain port and secure with clamp.

For a laundry tub or standpipe drain, go to step 6.

For a floor drain, remove the preinstalled drain hose form as shown in Step 7. You may need additional parts with separate directions. See “Tools and Parts”.

1. Place drain hose in standpipe


Place hose into standpipe (shown in picture) or over side of laundry tub.

IMPORTANT: 4.5" (114 mm) of drain hose should be inside standpipe; do not force excess hose into standpipe or lay on bottom of laundry tub. Drain hose form must be used.

1. Remove drain hose form (floor drain installations only)


Three-panel diagram showing a pipe fitting with arrows indicating direction of movement, no text or symbols present.

For floor drain installations, you will need to remove the drain hose form from the end of the drain hose. You may need additional parts with separate directions. See “Tools and Parts”.

CONNECT INLET HOSES

Washer must be connected to water faucets with new inlet hoses with flat washers (not provided). Do not use old hoses.

NOTE: Both hoses must be attached and have water flowing to inlet valves. If you are only connecting to a cold water faucet, you must use a Y-adapter (not provided).

1. Connect inlet hoses to water faucets


Illustration showing two different manual pipe installation techniques: one with valve fittings and the other with crimping tools (no text or symbols present)

Attach hose to hot water faucet. Screw on coupling by hand until it is seated on washer. Use pliers to tighten couplings an additional two-thirds turn. Repeat this step with second hose for cold water faucet.

IMPORTANT: Do not overtighten or use tape or sealants on valve when attaching to faucets or washer. Damage can result.

1. Clear water lines


Line drawing of a bucket with two hoses attached to one side (no text or symbols)

Run water for a few seconds through hoses into a laundry tub, drainpipe, or bucket to avoid clogs. Water should run until clear.

Make note of which hose is connected to hot water to help in attaching hoses to washer correctly.

1. Connect inlet hoses to washer


Attach hot water hose to hot water inlet valve marked with a red ring. Screw coupling by hand until it is snug. Use pliers to tighten couplings an additional two-thirds turn. Repeat with cold water inlet valve.

IMPORTANT: To reduce risk of hose failure, replace the hoses every 5 years. Record hose installation or replacement dates for future reference.

■ Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

1. Check for leaks


Two illustrations of a faucet with liquid drops, one showing the valve and the other the hose (no text or symbols)

Turn on water faucets to check for leaks. A small amount of water may enter washer. It will drain later.

1. Secure drain hose


Secure drain hose to laundry tub leg, drain standpipe, or inlet hoses for wall standpipe with cable tie.

LEVEL WASHER

IMPORTANT: Level washer properly to reduce excess noise and vibration.

1. Check levelness of washer


Move the washer to its final location. Place a level on top edges of washer. Use side seam as a guide to check levelness of sides. Check levelness of front using lid, as shown. Rock washer back and forth to make sure all four feet make solid contact with floor. If washer is level, skip to step 15, (on models with metal feet) or step 16 (on models with plastic feet).

Simple geometric diagram with a circle, horizontal bars, and a central oval (no text or symbols)

Not Level

Simple geometric diagram with a circle, three shaded rectangles, and a small semicircle inside (no text or symbols)

LEVEL

Simple geometric diagram with a circle, horizontal bars, and a vertical line inside (no text or symbols)

Not Level

1. Adjust leveling feet


If washer is not level:

On models with metal feet, use a 9/16" or 14 mm open-end or adjustable wrench to turn jam nuts clockwise on feet until they are about 1/2" (13 mm) from the washer cabinet. Then turn the leveling foot clockwise to lower the washer or counterclockwise to raise the washer.

On models with plastic feet, use adjustable pliers to turn the plastic leveling foot counterclockwise to lower the washer or clockwise to raise the washer. On all models, recheck levelness of washer and repeat as needed.

HELPFUL TIP: You may want to prop up front of washer about 4" (102 mm) with a wood block or similar object that will support weight of washer.

1. Tighten leveling feet


On models with metal feet, when washer is level, use a 9/16" or 14 mm open-end or adjustable wrench to turn jam nuts counterclockwise on leveling feet tightly against washer cabinet.

HELPFUL TIP: You may want to prop washer with wooden block.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

16. Plug into a grounded 3 prong outlet

Line drawing of an electrical outlet with a plug inserted, showing a black arrow pointing to the outlet (no text or symbols present)

COMPLETE INSTALLATION CHECKLIST

☐ Check electrical requirements. Be sure you have correct electrical supply and recommended grounding method.
☐ Check that all parts are now installed. If there is an extra part, go back through steps to see what was skipped.
☐ Check that you have all of your tools.
☐ Check that shipping materials were completely removed from washer.
☐ Check that water faucets are on.
☐ Check for leaks around faucets and inlet hoses.
☐ Remove protective film from console and any tape remaining on washer.
☐ Check that washer is plugged into a grounded 3 prong outlet.
☐ Dispose of/recycle all packaging materials.
Read "Washer Care" in your Use and Care Guide.
☐ To test and clean your washer, measure 1/2 of normal recommended amount of powdered or liquid detergent and pour it into washer basket or detergent dispenser (on some models). Close lid. Select any cycle. Start washer and allow to complete full cycle.

SÉCURITÉ DE LA LAVEUSE

Simple line drawing of a wrench (no text or symbols)

Simple line drawing of a rectangular block with three circular holes, no text or symbols present.

Niveau

Cale en bois

Simple line drawing of a measuring tape (no text or symbols)

Line drawing of a pair of pliers (no text or symbols)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Lampe de poche

Simple line drawing of a bucket with handle (no text or symbols)

Seau

Pièces fournies :

Line drawing of a U-shaped tube with coiled tubing and a small connector (no text or symbols)

Coiled black hoses with metallic connectors, no text or symbols visible

Line drawing of a washing machine next to an open refrigerator, showing internal wiring and mounting bracket (no text or symbols)

Line drawing of a printer with an open lid and an upward arrow indicating upload or loading (no text or symbols)

Diagram showing two mechanical components with coiled hoses and clips, no text or symbols present

Diagram of a pipe connection with two valves and a hose, no text or symbols present

Three-panel diagram showing a coiled hose being inserted into a housing, with arrows indicating direction of movement (no text or symbols)

Diagram showing two mechanical setups for valve assembly, with no visible text or symbols

Line drawing of a bucket with two buckets and a handle (no text or symbols)

Two illustrations of a faucet with liquid dripping, one showing water drop and the other showing liquid droplets (no text or symbols)

Line drawing of a front view of a washing machine (no text or symbols)

Line drawing of a washing machine with control panel (no text or symbols)

Simple geometric diagram with a circle containing a central shaded rectangle and two vertical lines inside, no text or symbols present.

Pas d'aplomb

Simple geometric diagram with a circle, shaded rectangular regions, and a small semicircle inside (no text or symbols)

APLOMB

Simple geometric diagram with a circle, horizontal stripes, and a central vertical bar (no text or symbols)

Pas d'aplomb

Line drawing of an electrical outlet with a plug inserted into a socket (no text or symbols)

LISTE DE VÉRIFICATION POUR L'ACHÈVEMENT DE L'INSTALLATION
