Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best performance and control - indeed we are setting the highest standards of excellence.

In addition to this you find environmental and energy saving aspects as an integral part of our products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this manual

Important information concerning your personal safety and information on how to avoid damaging the appliance

General information and tips

Environmental information

Contents

Safety 64

Disposal 66

Appliance Packaging Information....66

Disposal of old Appliances 66

Remove transport safeguard ....66

Installation....67

Installation Location 67

Your appliance needs air .67

Rear spacers....68

Fitting the door handle 68

Rehingeing the door .68

Electrical Connection ....70

Prior to Initial Start-Up 70

Operating and indicator panel ....70

Temperature setting buttons 71

Freezing and storing frozen food 74

Ice Pack 75

Energy Saving Tips ....75

Defrosting 76

Cleaning and Care ....77

Switching off the appliance ....77

What to do if 78

Correcting Malfunctions 78

Regulation, Standard and Guidelines .....79

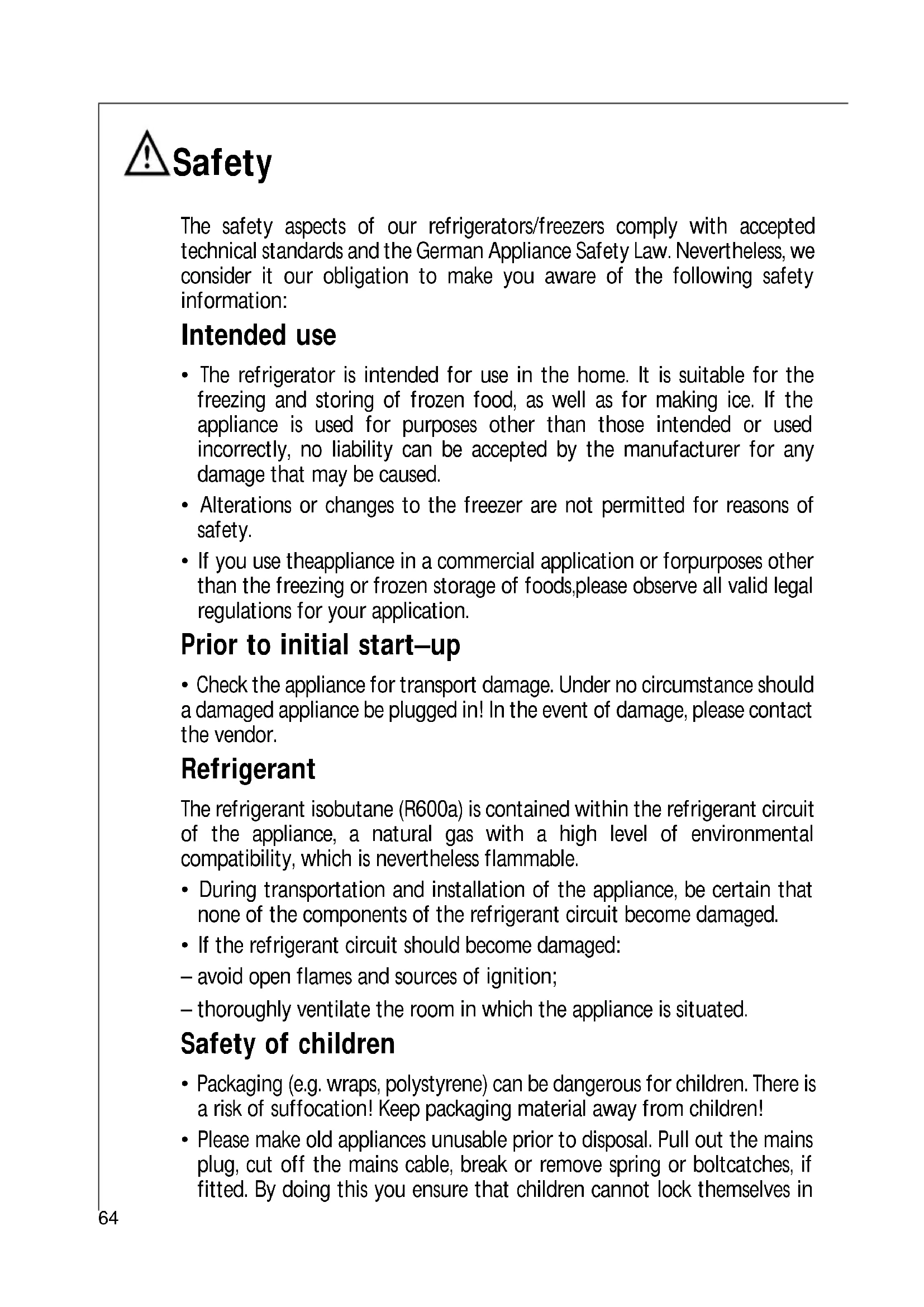

Safety

The safety aspects of our refrigerators/freezers comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, we consider it our obligation to make you aware of the following safety information:

Intended use

• The refrigerator is intended for use in the home. It is suitable for the freezing and storing of frozen food, as well as for making ice. If the appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage that may be caused.
• Alterations or changes to the freezer are not permitted for reasons of safety.
• If you use the appliance in a commercial application or for purposes other than the freezing or frozen storage of foods, please observe all valid legal regulations for your application.

Prior to initial start-up

- Check the appliance for transport damage. Under no circumstance should a damaged appliance be plugged in! In the event of damage, please contact the vendor.

Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition;
  – thoroughly ventilate the room in which the appliance is situated.

Safety of children

• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation! Keep packaging material away from children!
• Please make old appliances unusable prior to disposal. Pull out the mains plug, cut off the mains cable, break or remove spring or boltcatches, if fitted. By doing this you ensure that children cannot lock themselves in

the fridge when playing (there is risk of suffocation!) or get themselves into other dangerous situations.

- Often children cannot recognise the hazards present in household appliances. It is therefore important that you ensure adequate supervision and never let children play with the appliance!

Daily Operation

• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer compartment. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer compartment. Exception: high alcohol content spirits can be stored in the freezer compartment.
• Do not put ice creams or ice cubes in the mouth immediately after removal from the freezer compartment. Very cold ice can freeze to the lips or tongue and cause injury.
• Do not touch frozen food with wet hands. Your hands could freeze to the food.
• Do not operate any electrical appliances in the refrigerator/freezer (e.g. electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.

In case of malfunction

• If the a malfunction occurs on the appliance, please look first in the "What to do if ..." section of these instructions. If the information given there does not help, please do not perform any further repairs yourself.
• Refrigerators/freezers may only be repaired by qualified service engineers. Improper repairs can give rise to significant hazards. If your appliance needs repairing, please contact your specialist dealer or our Customer Service.

Disposal

Appliance Packaging Information

All materials are environmentally sound! They can be dumped or burned at an incinerating plant without danger!

About the materials: The plastics can be recycled and are identified as follows:

PE< for polyethylene, e.g. the outer covering and the bags in the interior.

PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.

The carton parts are made from recycled paper and should be disposed of at a waste-paper recycling collection location.

Disposal of old Appliances

For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of its service life - for your new appliance as well.

Warning! Before disposing of old appliances make them inoperable. Remove plug from mains, sever the power cable, remove or destroy any snap or latch closures. This eliminates the danger that playing children lock themselves into the appliance (danger of suffocation!) or place themselves into other life-endangering situations.

Disposal:

- The appliance may not be disposed of with domestic waste or bulky refuse.

- The refrigerant circuit, especially the heat exchanger at the back of the appliance, may not be damaged.

- The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Remove transport safeguard

The appliance and the interior fittings are protected for transport.

- Pull off the adhesive tape on the left and right side of the door.

- Remove all adhesive tape and packing pieces from the interior of the appliance.

Installation

Installation Location

The appliance should be set up in a well ventilated, dry room.

Energy use is affected by the ambient temperature. The appliance should therefore

• not be exposed to direct sunlight;
• not be installed next to radiators, cookers or other sources of heat;
• only be installed at a location whose ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the serial plate, which is located at the left on the inside of the appliance.

The following table shows which ambient temperature is correct for each climate classification: each climate classification:

Climate classification for an ambient temperature of

If installation next to a source of heat is unavoidable, the following minimum clearances must be maintained at the sides of the appliance:

• for electric cookers 3 cm:
• for oil and coal fired ranges 30 cm.

If these clearances cannot be maintained a heat insulating pad is required between the cooker and the refrigeration appliance.

If the refrigeration appliance is installed next to another refrigerator or freezer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance.

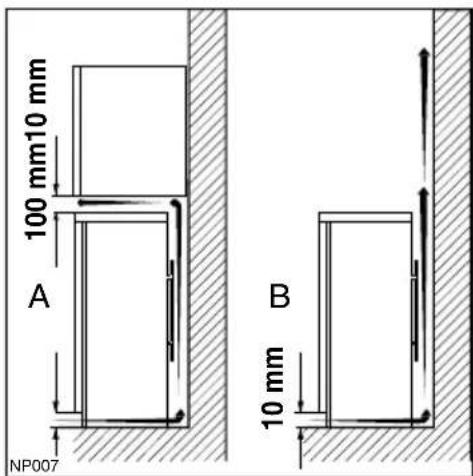

Your appliance needs air

For safety reasons, minimum ventilation must be as shown Fig.

Attention: keep ventilation openings clear of obstruction;

100 mm10 mm A NP007 B 10 mm

Rear spacers

In the appliance you find two spacers which must be fitted.

Slacken the screws and insert the spacer under the screw head, then re-tighten the screws.

Illustration of a hand installing or adjusting a door panel, with a magnified inset showing the detail (no text or symbols present)

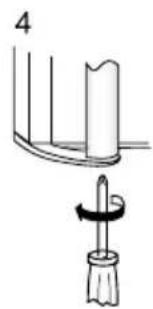

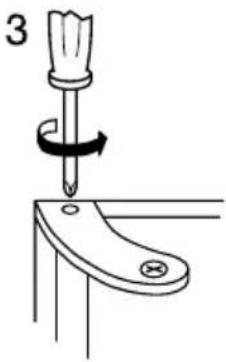

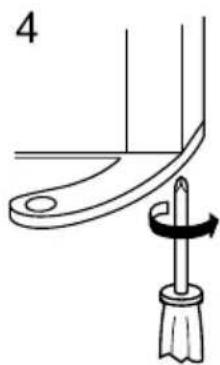

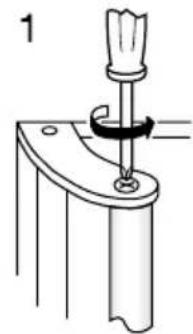

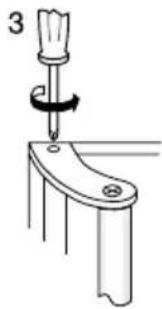

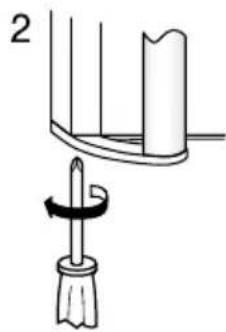

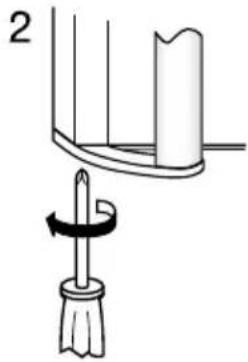

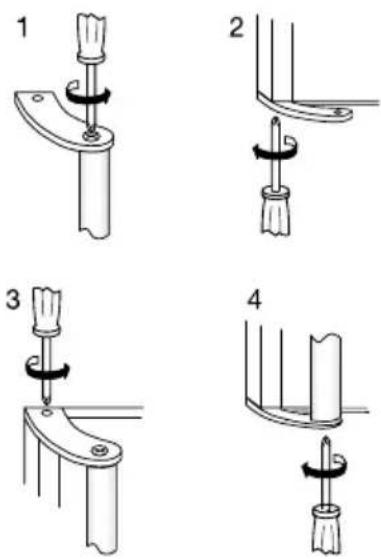

Fitting the Door Handle

1. Screw the top handle bracket to the handle rod (1). Fit the bottom handle bracket on the lower left-hand side of the door (2).

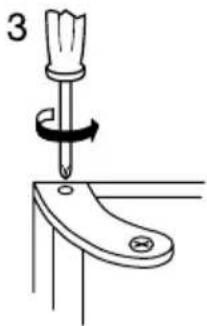

2. Fit the top handle bracket on the top left-hand side of the door (3) and screw the handle rod to the bottom handle bracket (4).

Attention!

Do not overtighten the screws (max. 2 Nm) as you may damage the door handles.

Rehingeing the door

The side at which the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires.

Warning! When changing the side at which the door opens, the appliance may not be connected to the mains. Remove plug from the mains beforehand.

Proced as follows:

To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the door of the appliance during the operations.

Gently lay the appliance on its back.

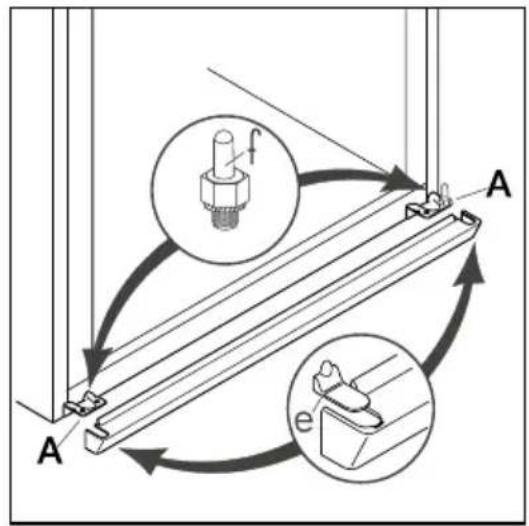

1. Remove the ventilation grille.
2. Remove the bottom hinge (A) by unscrewing the fixing screws.
3. Remove the door.
4. Unscrew the pin of the bottom hinge (f) and refit it on the opposite side.

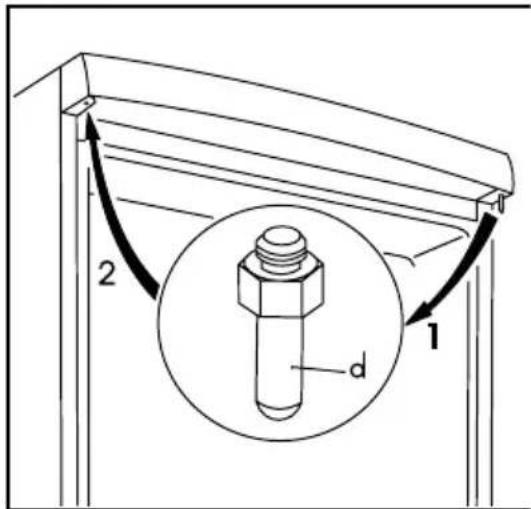

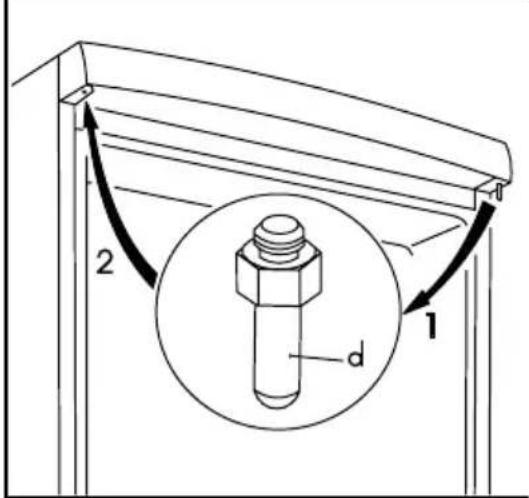

5. Unscrew the pin of the upper hinge (d) and refit it on the opposite side.
6. Insert the door in the upper hinge and refit the upper hinges (A). Pay attention that the border of the doors are parallel to the top border, otherwise adjust the position of the lower hinge of the door (A).
   7) Remove from the ventilation grille the cover (e) and refit it on the opposite side.
   8) Refit ventilation grille.

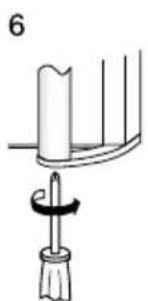

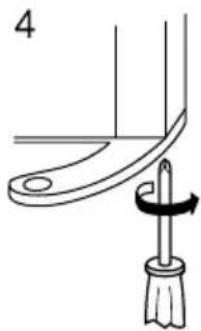

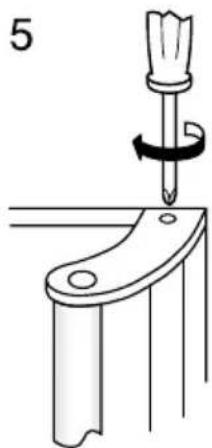

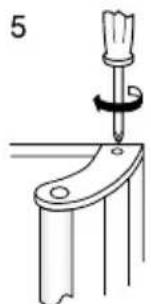

   9) Unscrew the top handle bracket from the handle rod (1). Unscrew the bottom handle bracket from the door (2).

Unscrew the top handle bracket from the door (3) and screw onto the bottom right-hand side of the door (4).

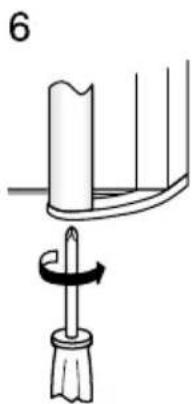

Turn the handle bracket with the handle rod 180° and screw them to the door (5) and the fitted handle bracket (6).

Move the small plug from right to left. Reposition, level the appliance, wait for at least one hour and then connect it to the mains socket.

In any case you do not want to carry out the above mentioned operations, contact the nearest After Sales Service Force. The After Sales Service specialist will carry out the reversibility of the doors at your cost.

Diagram illustrating a mechanical or electrical system with labeled components A and e, showing rotational and linear motion paths.

Technical diagram showing a mechanical assembly with labeled parts and a magnified inset of a bolt detail.

Simple line drawing of a mechanical component with a base and lever (no text or symbols)

Diagram of a mechanical component with a screw and lever, no text or symbols present

Simple line drawing of a mechanical component with a screw and lever (no text or symbols)

Attention: After having reversed the opening direction of the doors check that all the screws are properly tightened and that the magnetic seal adheres to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. in that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.

Electrical connection

Before initial start-up, refer to the appliance rating plate to ascertain if supply voltage and current values correspond with those of the mains at the installation location.

e.g.: AC 230 ... 240 V 50 Hz or

230 ... 240 V\~ 50 Hz

(i.e. 230 to 240 volts alternating current, 50 Hertz)

The rating plate is inside the appliance on the left.

A correctly installed, earthed socket is required for the electrical supply. The supply must have a fuse rating of at least 10 Amps. If the socket is not accessible once the appliance is built in, the electrical installation must include suitable means of isolating the appliance from the mains (e.g. fuse, cut-out, current trip or similar with a minimum contact separation of 3 mm).

Attention: The mains connection cable may only be replaced by a skilled electrician. Please contact your dealer or our customer service department for repairs.

Prior to Initial Start—Up

- Please clean the appliance interior and all accessories prior to initial start-up (see section: "Cleaning and Care").

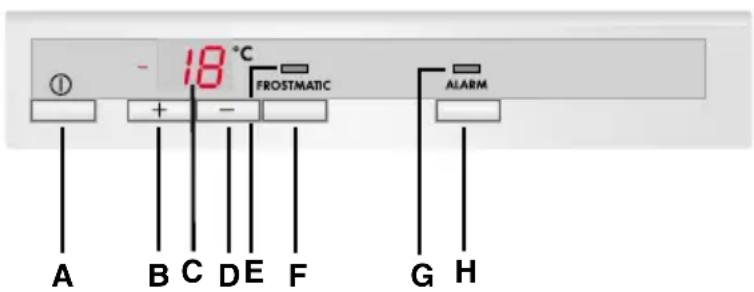

Operating and indicator panel

18 °C FROSTMATIC ALARM A B C D E F G H

A. Freezer button ON/OFF
B. Temperature setting button (+)
C. Temperature display
D. Temperature setting button (-)
E. FROSTMATIC function "on" indicator (yellow)
F. FROSTMATIC button
G. Alarm light

Temperature setting buttons

The temperature is adjusted using the „B“ and „D“ buttons. These buttons are connected to the temperature display.

• The temperature display is switched over from the display of the ACTUAL temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two buttons, „B“ or „D“.
  • Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24 hours.

If neither button is pressed, the temperature display automatically switches back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.

DESIRED temperature means:

The temperature that has been selected for inside the freezer. The DESIRED temperature is indicated by flashing numbers.

ACTUAL temperature means:

The temperature display indicates the current temperature inside the freezer. The ACTUAL temperature is indicated with illuminated numbers.

Temperature Adjustment

1. Press either the „+“ (WARMER) or „-“ (COLDER) button.

The temperature display switches over and the DESIRED temperature currently set flashes on the temperature display.

1. To adjust to a warmer temperature, press the „+“ (WARMER) button. To adjust to a colder temperature, press the „-“ (COLDER) button. The changed setting is immediately displayed on the temperature display. Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C.

The following DESIRED temperature settings are possible:

- Operating mode "Freezing": from -15 °C up to -24 °C in 1 °C steps;

If the buttons are not pressed again the temperature display will change after approx. 5 seconds from the DESIRED temperature to the ACTUAL temperature. The display changes from flashing to illuminated numbers.

Important! Please check red warning display and temperature display regularly to assure maintenance of the storage temperature.(see the chapter "Temperature Adjustment").

Temperature display

The temperature display can indicate several pieces of information.

• During normal operation, the temperature currently present in the freezer (ACTUAL temperature) is displayed.
• When the temperature is being adjusted a flashing display indicates the freezer temperature currently set (DESIRED temperature).

Starting Up - Setting the Temperature

1. Plug the mains plug into the mains socket.
2. If the display is OFF, press ON/OFF button. The alarm light flashes and the buzzer sounds.
3. Press the "I" button to stop the buzzer, the light still flashes since the temperatur is reached.
4. Press either the „B“ or „D“ button. The temperature display switches over and the DESIRED temperature currently set flashes on the temperature display.
5. Set the required temperature by pressing the „B“ or „D“ buttons (see section "Temperature setting buttons"). The temperature display will immediately show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
   From a food safety point of view -18 °C should be considered sufficiently cold for storing food in the freezer.

FROSTMATIC

The FROSTMATIC function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming.

1. The FROSTMATIC function is switched on by pressing the FROSTMATIC button. The yellow light illuminates.
   If the FROSTMATIC function is not ended manually, the appliance electronics switch off the FROSTMATIC function after 52 hours. The yellow light goes out.
2. The FROSTMATIC function can be ended manually at any time by pressing the FROSTMATIC button again. The yellow light goes out.

Alarm OFF button

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) warning light (G) will start to flash and a buzzer will sound.

After the temperature has returned to normal, the warning light (G) will continue to flash, although the buzzer has stopped.

When the alarm button is pressed, the warmest temperature reached in the compartment flashes on the indicator.(max. 5 seconds).

To stop the buzzer push the button "I".

Switching the Appliance off

To switch off, hold down the ON/OFF button for approx. 3 seconds. This will result in a countdown from "3" to "1" taking place in the temperature display. On reaching "1" the appliance will switch off. The temperature display will go off.

Note: The appliance cannot be switched on or off if unplugged, or if there is no power being supplied to it. Following connection to the mains power supply, the appliance returns to the same operating state as before the interruption of main power.

If the appliance is not going to be used for an extended period:

1. Switch off the appliance, holding down the ON/OFF button until the display goes off (see above).
2. Remove the mains plug or switch off or turn out the circuit breaker or fuse.
3. Defrost the freezer compartment and clean the appliance thoroughly (see section: "Cleaning and Maintenance").
4. Finally, leave the doors open so as to avoid a build up of odours

Freezing and storing frozen food

You can use your freezer for freezing fresh food yourself.

Important!

• The temperature in the freezer compartment must be -18^ or colder before freezing food.
• Please observe the freezing capacity given on the rating plate. The freezing capacity is the maximum quantity of fresh food that can be frozen within a period of 24 hours. If you wish to freeze food several days in a row, please observe a maximum capacity of only 2/3 to 3/4 of that on the rating plate. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals) may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer. Exception: high alcohol content spirits can be stored in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.

Caution! Do not touch frozen food with wet hands. Your hands could freeze to the food.

1. Place the packed food in the drawers.

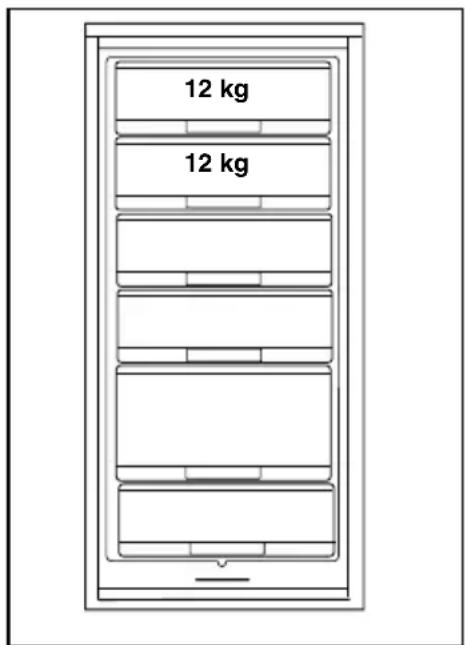

Place food to be frozen As shown in figure. Unfrozen food must not touch items already frozen, otherwise the frozen food could

12 kg 12 kg

begin to defrost.

1. Press the fast freeze button 24 hours before introducing fresh food for freezing of fresh food. The yellow light comes on.
2. Place frozen foods in the drawers sorted by type, as far as possible.

Ice pack

There are two ice packs in one drawer of the freezer.

In the event of a power failure or malfunction, the ice packs will lengthen the amount of time it takes for the frozen food to become too warm by several hours. The ice packs can only fulfil this task optimally if it is placed in the uppermost drawer, at the front, above the frozen food. You can use the ice packs for cooling cold bags.

Energy Saving Tips

• Do not install the appliance near cookers, radiators or other sources of warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will then be used to cool the fridge.
• Keep the heat emitting condenser, the metall grille on the rear wall of your appliance, always clean.

Defrosting

The freezer can not be equipped with automatic defrosting set since the deep-frozen and frozen foods do not endure melting temperature.

When small frost and ice occurs scrape off and remove frost and ice coating with the supplied plastic scraper.

When ice coating is so thick that it cannot be removed with the plastic scraper, the cooling gill have to be defrosted. Frequency of defrosting depends on usage (generally 2-3 times a year).

Take the frozen foods out of the appliance, and put them into a basket lined with paper or cloth. Store them in a possibly cool place or replace them into another refrigerator.

Pull out the mains plug from the mains socket, so both parts of the appliance are out of operation.

Open the doors of both parts of the appliance and clean the refrigerator according to 'Regular cleaning'.

Maintain and clean the freezer as following:

Sweep off the melting water with a cloth or sponge in direction of sides of the cooling plates.

Technical line drawing of a mechanical assembly with a lever and base component (no text or symbols)

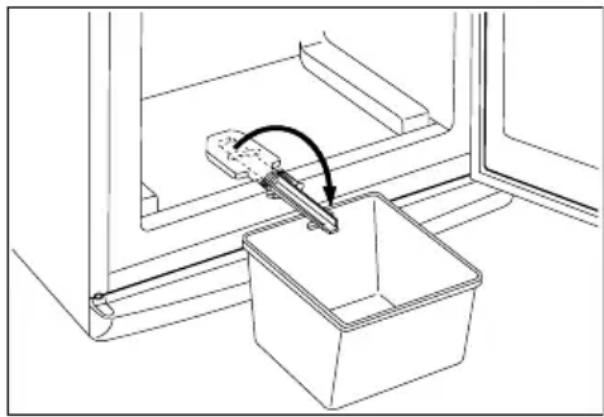

The melting water swept down gathers in the outlet channel practically formed in the bottom of the appliance and can be removed according to figure.

Put an adequately high bowl or dish under the outlet. The bowl in figure is not a piece of accessories to the appliance! Wipe the surfaces after defrosting and leading the water out.

Put the mains plug into the mains socket and put foods taken out back to their places.

It is recommended to operate the appliance at the highest position of the thermostatic control for some hours so that it can reach the sufficient storing temperature as soon as possible.

Warning!

Never use metal tools to scrape off the frost

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Cleaning and Care

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Warning!

• The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and rem ve the plug from the mains, or switch off or turn out the circuit breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.

Attention!

• Ethereal oils and organic solvents can attack plastic parts, e.g.
  – lemon juice or the juice from orange peals;
• butyric acid;
  – cleansers which contain acetic acid.
  Do not allow such substances to come into contact with appliance parts.

• Do not use any abrasive cleansers.

• Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered.

• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.

er cleaning wipe with fresh water and rub dry.

Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Switching off the appliance

If the appliance is not going to be used for an extended period:

1. Remove all deep-frozen packages as well as ice trays.
2. Switch off the appliance by holding down the ON/OFF button.
3. Remove the mains plug or switch off or turn out the circuit breaker or fuse.
4. Clean thoroughly (see section: "Cleaning and Care").
5. Leave the door open to avoid the build up of odours.

What to do if ...

Correcting Malfunctions

A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other work on the appliance if the following information does not provide assistance in your specific case.

Warning! Repairs to refrigerators/freezers may only be performed by qualified service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or our Customer Service.

Malfunction Possible	Cause Remedy
Appliance does not work, no pilot light is illuminated.	Appliance is not switched on Switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
Green light does not light up, yellow light lights up when fast freeze fuction is activated, appliance is on.	Green light faulty.	Please inform your customer service
Yellow light does not light up, when fast freeze fuction is activated, appliance is on.	Yellow light faulty.	Please inform your customer service
Appliance cools too much. Temperature is set too cold.		Turn the temperature regulator to a warmer setting temporarily.
	Temperature is not properly adjusted.	Please look in the "Initial Start Up" section.
	Door was open for an extended period.	Open the door only as long as necessary. Press the FROSTMATIC button
The freezer temperature is not sufficient, red light lights up, temperature signal sounds	A large quantity of warm food was placed in the appliance within the last 24 hours.	Press the FROSTMATICbutton
	The appliance is near a heat source.	Please look in the "Installation location" section.
	Disturbance on the appliance	Switch on the FROSTMATIC button, keep the freezer closed, inform your customer service
Heavy build up of frost, possibly also on the door seal.	Door seal is not air tight (possibly after changing over the hinges).	Carefully warm the leaking sections of the door seal with a hair dryer (not hotter than approx. 50 °C). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises.	Appliance is not level.	Readjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
The compressor does not start immediately after changing the temperature setting.	This is normal, no error has occurred.	The compressor starts after a period of time.

Regulations, Standards, Guidelines

This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary measures in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in the manufacture of this appliance.

The refrigerant circuit has been checked for leaks.

This appliance is in accordance with the following EU guidelines:

- 73/23/EWG dated 19 February 1973 - low voltage guidelines.

- 89/336/EWG dated 3 May 1989

(including guideline change notice 92/31/EWG) - EMV guideline

www.electrolux.com

www.aeg-electrolux.nl

www.aeg-electrolux.de

www.aeg-electrolux.be

Subject to change without notice
