USER MANUAL Gemini MET8720DE MAYTAG

• Aux États-Unis p. 49
• Au Canada p. 49
• Accessoires p. 49

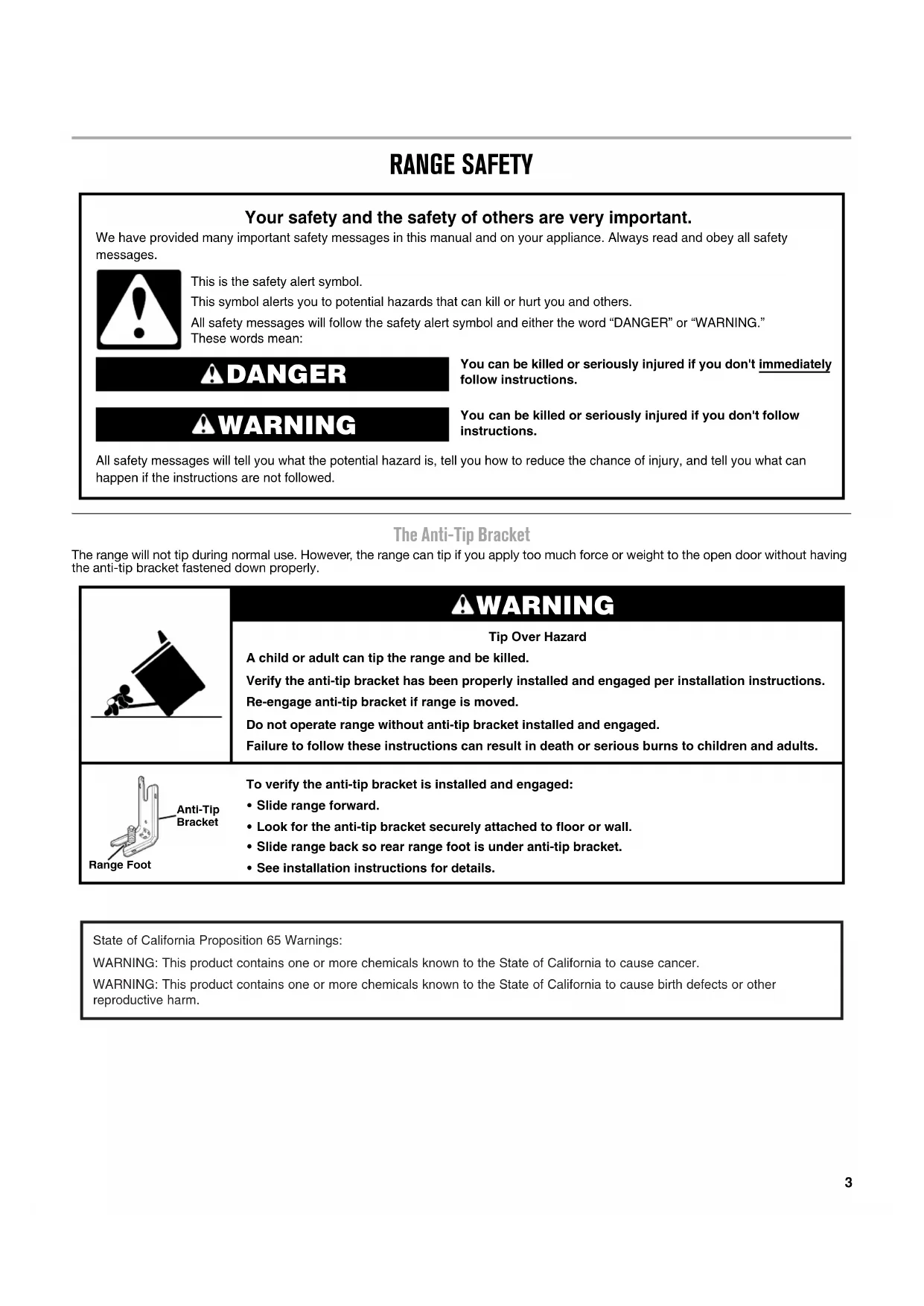

• GARANTIE RANGE SAFETY The Anti-Tip Bracket The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without having the anti-tip bracket fastened down properly. You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING Tip Over HazardA child or adult can tip the range and be killed.Verify the anti-tip bracket has been properly installed and engaged per installation instructions.Re-engage anti-tip bracket if range is moved.Do not operate range without anti-tip bracket installed and engaged.Failure to follow these instructions can result in death or serious burns to children and adults.To verify the anti-tip bracket is installed and engaged:• Slide range forward.• Look for the anti-tip bracket securely attached to floor or wall.• Slide range back so rear range foot is under anti-tip bracket.• See installation instructions for details. WARNING Anti-TipBracketRange Foot State of California Proposition 65 Warnings:WARNING: This product contains one or more chemicals known to the State of California to cause cancer.WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.4 p. 503

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock,

injury to persons, or damage when using the range, follow basic precautions, including the following: ■ WARNING: TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY

SECURELY ATTACHED TO FLOOR OR WALL, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET. ■ CAUTION: Do not store items of interest to children in cabinets above a range or on the backguard of a range – children climbing on the range to reach items could be seriously injured. ■ Proper Installation – Be sure the range is properly installed and grounded by a qualified technician. ■ Never Use the Range for Warming or Heating the Room. ■ Do Not Leave Children Alone – Children should not be left alone or unattended in area where the range is in use. They should never be allowed to sit or stand on any part of the range. ■ Wear Proper Apparel – Loose-fitting or hanging garments should never be worn while using the range. ■ User Servicing – Do not repair or replace any part of the range unless specifically recommended in the manual. All other servicing should be referred to a qualified technician. ■ Storage in or on the Range – Flammable materials should not be stored in an oven or near surface units. ■ Do Not Use Water on Grease Fires – Smother fire or flame or use dry chemical or foam-type extinguisher. ■ Use Only Dry Potholders – Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth. ■ DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among those areas are the cooktop and surfaces facing the cooktop. ■ Use Proper Pan Size – The range is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency. ■ Never Leave Surface Units Unattended at High Heat Settings – Boilover causes smoking and greasy spillovers that may ignite. ■ Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage. ■ Protective Liners – Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire. ■ Glazed Cooking Utensils – Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature. ■ Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units. ■ Do Not Soak Removable Heating Elements – Heating elements should never be immersed in water. ■ Do Not Cook on Broken Cooktop – If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately. ■ Clean Cooktop With Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface. ■ Use Care When Opening Door – Let hot air or steam escape before removing or replacing food. ■ Do Not Heat Unopened Food Containers – Build-up of pressure may cause container to burst and result in injury. ■ Keep Oven Vent Ducts Unobstructed. ■ Placement of Oven Racks – Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven. ■ DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN – Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns – among these surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of oven doors. For self-cleaning ranges – ■ Do Not Clean Door Gasket – The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket. ■ Do Not Use Oven Cleaners – No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. ■ Clean Only Parts Listed in Manual. ■ Before Self-Cleaning the Oven – Remove broiler pan and other utensils. For units with ventilating hood – ■ Clean Ventilating Hoods Frequently – Grease should not be allowed to accumulate on hood or filter. ■ When flambeing foods under the hood, turn the fan on.5 COOKTOP USE This manual covers several different models. The range you have purchased may have some or all of the items listed. The locations and appearances of the features shown here may not match those of your model. Cooktop Controls The control knobs can be set anywhere between HIGH and LOW. Push in and turn to setting. Use the following chart as a guide when setting heat levels. Cooktop On Indicator Lights A Cooktop On Indicator light is located on the control panel. When any surface element is turned on, the light will glow. Hot Surface Indicator Light A Hot Surface indicator light is located on the control panel. The hot surface indicator light will glow as long as any surface cooking area is too hot to touch, even after the surface cooking area(s) is turned off.A. Left front element control knobB. Left rear control knobC. Electronic oven controlD. Right rear control knobE. Right front control knobF. Hot surface indicator lightG. Cooktop on indicator light

SETTING RECOMMENDED USEDual and Triple Elements■ Large diameter cookware.■ Large quantities of food.■ Home canning. High ■ Bring liquid to a boil.Medium High■ Hold a rapid boil.■ Quickly brown or sear food. WARNING Fire HazardTurn off all controls when done cooking.Failure to do so can result in death or fire. SETTINGS RECOMMENDED USEMedium■ Maintain a slow boil.■ Fry or sauté foods.■ Cook soups, sauces and gravies.Medium LowBetweenLow and Med■ Stew or steam food.■ Simmer.Low ■ Keep food warm.■ Melt chocolate or butter.Warm Zone■ Keep cooked foods warm. REMEMBER: When range is in use or (on some models) during the Self-Cleaning cycle, the entire cooktop area may become hot.6 Dual and Triple Elements (on some models) The Dual and Triple elements offer flexibility depending on the size of the cookware. Single size can be used in the same way as a regular element. The dual and triple sizes combine the single, dual, and outer element and is recommended for larger cookware, larger quantities of food and home canning. To Use the Dual Element: 1. Push in and turn the control knob clockwise from OFF to the Dual zone area to anywhere between HIGH and LOW.2. Push in and turn the control knob to OFF when finished. To Use the Triple Element 1. Push in and turn the control knob clockwise from OFF to the Triple zone area to anywhere between HIGH and LOW.2. Push in and turn the control knob to OFF when finished. Power™ Element Cooking Zone (on some models) The Power™ Element Cooking Zone offers flexibility for 2 optional heating choices. The Power Boost™ option can be used to boil liquids faster. The Melt option can be used to prepare sauces, to brown or saute foods and to keep food at a low temperature. Use cookware appropriate in size for the Power™ Element Cooking Zone. Warming Center Use the Cooktop Warming Center element to keep cooked foods warm. One hour is the recommended maximum time to maintain food quality.Do not use it to heat cold foods.The Warming Center element can be used alone or when any of the other surface cooking areas are being used.The Warming Center element area will not glow red when cycling on. However, the Element On light will glow while the Cooktop Warming Center element is in use. ■ Use only cookware and dishes recommended for oven and cooktop use. ■ Cover all foods with a lid or aluminum foil. When warming baked goods, allow a small opening in the cover for moisture to escape.■ To avoid damage to the cooktop, do not use plastic wrap to cover food because the plastic wrap may melt.■ Use pot holders or oven mitts to remove food. To Use: 1. To turn on, press WARMING CENTER ON and then START.2. To turn off, press WARMING CENTER OFF.A. Single sizeB. Dual sizeA. Single sizeB. Dual sizeC. Triple sizeA. Single Element Control - left sideB. Dual Element Control - right sideA. Single B. Triple C. Dual

WARNING Food Poisoning Hazard Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness.7 Ceramic Glass (on some models) The surface cooking area will glow red when an element is on. Some parts of the surface cooking area may not glow red when an element is on. This is normal operation. The burner will cycle on and off to maintain the selected heat level. It will also randomly cycle off and back on again, even while on High, to keep the cooktop from extreme temperatures. It is normal for the surface of light colored ceramic glass to appear to change color when surface cooking areas are hot. As the glass cools, it will return to its original color. Cleaning off the cooktop before and after each use will help keep it free from stains and provide the most even heating. On cooktops with light colored ceramic glass, soils and stains may be more visible, and may require more cleaning and attention. Cooktop cleaner and a cooktop scraper are recommended. For more information, see “General Cleaning” section.

Avoid storing jars or cans above the cooktop. Dropping a heavy or hard object onto the cooktop could crack the cooktop. ■ To avoid damage to the cooktop, do not leave a hot lid on the cooktop. As the cooktop cools, air can become trapped between the lid and the cooktop, and the ceramic glass could break when the lid is removed. ■ For foods containing sugar in any form, clean up all spills and soils as soon as possible. Allow the cooktop to cool down slightly. Then, while wearing oven mitts, remove the spills using a scraper while the surface is still warm. If sugary spills are allowed to cool down, they can adhere to the cooktop and can cause pitting and permanent marks. ■ To avoid scratches, do not slide cookware or bakeware across the cooktop. Aluminum or copper bottoms and rough finishes on cookware or bakeware could leave scratches or marks on the cooktop. ■ Do not cook popcorn in prepackaged aluminum containers on the cooktop. They could leave aluminum marks that cannot be removed completely. ■ To avoid damage to the cooktop, do not allow objects that could melt, such as plastic or aluminum foil, to touch any part of the entire cooktop. ■ To avoid damage to the cooktop, do not use the cooktop as a cutting board. ■ Use cookware about the same size as the surface cooking area. Cookware should not extend more than ½" (1.3 cm) outside the area. ■ Use flat-bottomed cookware for best heat conduction and energy efficiency. Cookware with rounded, warped, ribbed or dented bottoms could cause uneven heating and poor cooking results.

Determine flatness by placing the straight edge of a ruler across the bottom of the cookware. While you rotate the ruler, no space or light should be visible between it and the cookware. ■ Cookware designed with slightly indented bottoms or small expansion channels can be used. ■ Make sure the bottoms of pots and pans are clean and dry before using them. Residue and water can leave deposits when heated. ■ To avoid damage to the cooktop, do not cook foods directly on the cooktop. Home Canning When canning for long periods, alternate the use of surface cooking areas, elements or surface burners between batches. This allows time for the most recently used areas to cool. ■ Center the canner on the grate or largest surface cooking area or element. On electric cooktops, canners should not extend more than ½" (1.3 cm) beyond the surface cooking area or element. ■ Do not place canner on 2 surface cooking areas, elements or surface burners at the same time. ■ On ceramic glass models, use only flat-bottomed canners. ■ For more information, contact your local agricultural department. Companies that manufacture home canning products can also offer assistance. Cookware IMPORTANT: Do not leave empty cookware on a hot surface cooking area, element or surface burner. Ideal cookware should have a flat bottom, straight sides and a well- fitting lid, and the material should be of medium-to-heavy thickness. Rough finishes may scratch the cooktop. Aluminum and copper may be used as a core or base in cookware. However, when used as a base they can leave permanent marks on the cooktop. Cookware material is a factor in how quickly and evenly heat is transferred, which affects cooking results. A nonstick finish has the same characteristics as its base material. For example, aluminum cookware with a nonstick finish will take on the properties of aluminum. Cookware with nonstick surfaces should not be used under the broiler. Use the following chart as a guide for cookware material characteristics. A. Surface cooking areaB. Cookware/cannerC. ½" (1.3 cm) maximum overhang

COOKWARE CHARACTERISTICS Aluminum ■ Heats quickly and evenly.■ Suitable for all types of cooking.■ Medium or heavy thickness is best for most cooking tasks. Cast iron ■ Heats slowly and evenly. ■ Good for browning and frying.■ Maintains heat for slow cooking. Ceramic or Ceramic glass ■ Follow manufacturer’s instructions.■ Heats slowly, but unevenly.■ Ideal results on low to medium heat settings. Copper ■ Heats very quickly and evenly. Earthenware ■ Follow manufacturer’s instructions.■ Use on low heat settings. Porcelain enamel-on- steel or cast iron ■ See stainless steel or cast iron. Stainless steel ■ Heats quickly, but unevenly.■ A core or base of aluminum or copper on stainless steel provides even heating.8

ELECTRONIC OVEN CONTROLS

Display When power is first supplied to the range or if a power failure occurs, “12:00” will appear on the display. See “Clock” in the “Settings” section to set time of day. When the oven is not in use, the display shows the time of day. Cancel The Cancel pads stop any function except the Clock, Timer and Control Lock. Oven Lights While the oven doors are closed, press OVEN LIGHT to turn the lights on and off. Both oven lights will come on when either door is open. The oven lights will not come on during the Self-Clean cycle. Kitchen Timer The Kitchen Timer can be set in hours or minutes up to 9 hours and 59 minutes, and counts down the set time. The Kitchen Timer does not start or stop the oven. To Set:

1. Press KITCHEN TIMER.

“Set TIMER” will scroll down the upper text display area, and the clock will display “--:--” with the colon flashing.

2. Press the Temp/Time “+” or “-” pads until the desired time is

reached. “Press TIMER” will scroll down the upper text display area.

3. Press KITCHEN TIMER to start the timer. The colon stops

flashing, and the time begins counting down. “TIMER STARTED” will scroll down the upper text display area. The last minute of the timer countdown will be displayed in seconds. At the end of the set time, one long beep will sound, and “TIMER End” will be displayed.

4. Press KITCHEN TIMER to clear the display.

NOTE: A reminder beep will sound until the Kitchen Timer is canceled. To Cancel: Press KITCHEN TIMER. Settings Settings enables you to personalize audible tones and oven operation to suit your needs. After completing your adjustments, press a CANCEL key or wait 30 seconds for the display to show the time of day. Fahrenheit and Celsius The temperature is factory preset to Fahrenheit, but can be changed to Celsius.

1. Press SETTINGS once.

“TEMP UNIT” appears in the upper text area. “FAHRENHEIT. Press (+) for Celsius” will scroll twice in the lower text area.

2. Press the Temp/Time “+” pad to change the temperature unit

setting. “CELSIUS. Press (+) for Fahrenheit” will scroll twice from right to left in the lower text area.

3. “CELSIUS Selected” will scroll twice from right to left in the

lower text area. The temperature units have been changed. A. Upper oven settingsB. Oven displayC. Options settingsD. Oven lightE. Cooktop warming centerF. Lower oven cancelG. Upper oven cancelH. StartI. Temp/timeJ. Lower oven settingsK. Convect settings

Tones Tones are audible signals, indicating the following: Basic Functions One tone ■ Valid pad press ■ End of Kitchen Timer (long tone) ■ Function has been entered ■ Oven is preheated Three tones ■ Invalid pad press Four tones ■ End of cycle Adjusting Sound On or Off The oven sound is factory preset for On but can be changed to Off.

1. Press SETTINGS twice until “SOUND” appears in the upper

text area and “ON. Press (+) for OFF” scrolls twice from right to left in the lower text area.

2. Press the Temp/Time “+” pad to turn the sound Off. “OFF.

Press (+) for ON” will scroll twice from right to left in the lower text area.

3. “OFF Selected” will scroll twice from right to left in the lower

text area. The sound has now been turned off. Adjusting Sound Volume The oven sound is factory preset for High but can be changed to Low.

1. Press SETTINGS 3 times until “SOUND VOLUME” appears in

the text area and “HIGH Press (+) for LOW” scrolls twice from right to left in the lower text area.

2. Press the Temp/Time “+” pad to turn the sound Low. “LOW

Press (+) for HIGH” scrolls twice from right to left in the lower text area.

3. “Low Selected” scrolls twice from right to left in the lower text

area. The sound volume has now been changed. Adjusting End Tone On or Off The end tone is factory preset for On but can be changed to Off.

1. Press SETTINGS four times until “END TONE” appears in the

upper text area and “ON. Press (+) for OFF” scrolls twice from right to left in the lower text area.

2. Press the Temp/Time “+” pad to turn the end tone Off. “OFF

Press (+) for ON” will scroll twice in the lower text area.

3. “OFF Selected” will scroll twice from right to left in the lower

text area. The end tone has now been turned off. Adjusting Keypress Tone On or Off The keypress tone is factory set for On but can be changed to Off.

1. Press SETTINGS five times until “KEYPRESS TONE” appears

in the upper text area and “ON. Press (+) for OFF” scrolls twice from right to left in the lower text area.

2. Press the Temp/Time “+” pad to turn the keypress tone Off.

“OFF. Press (+) for ON” will scroll twice in the lower text area.

3. “OFF Selected” will scroll twice from right to left in the lower

text area. The keypress tone has now been turned off. Adjusting Reminder Tone On or Off The reminder tone is factory preset for On but can be changed to Off.

1. Press SETTINGS six times until “REMINDER TONE” appears in

the upper text area and “ON. Press (+) for OFF” scrolls twice from right to left in the lower text area.

2. Press the Temp/Time “+” pad to turn the reminder tone Off.

“OFF. Press (+) for ON” will scroll twice in the lower text area.

3. “OFF Selected” will scroll twice from right to left in the lower

text area. The reminder tone has now been turned off. Clock The clock can be set to display time in a 12-hour or 24-hour format. The clock is factory preset for the 12-hour format. To Change the Clock to 24-Hour Format:

1. Press SETTINGS seven times until “12/24 HOUR” appears in

the upper text area and “12 HR. Press (+) for 24 Hr” scrolls twice in the lower text area.

2. Press the Temp/Time “+” pad once to select 24 hour and again

3. Wait 30 seconds or press CANCEL to accept the setting.

To Set the Clock: Before setting, make sure the oven and Kitchen Timer are off.

1. Press CLOCK. “Set Time” will appear in the upper text area.

2. Press the Temp/Time “+” or “-” pads until the desired time is

3. “Press CLOCK” will appear in the upper text area, and “or Push

START” will appear in the lower text area.

4. Press CLOCK or START. “Time Set” will appear in the upper

text area. Once it disappears, the time is set. Sabbath Mode Sabbath Mode configures the range to conform to Star-K Jewish Sabbath requirements for a Bake cycle, including Timed Bake or Delayed Bake functions. Refer to the “Sabbath Mode” section for a full description of this feature. 12-Hour Auto Off The oven control is factory preset to automatically shut off the oven 12 hours after the oven turns on. This will not interfere with any timed or delayed cook function. To Cancel 12-Hour Auto Off:

1. Press SETTINGS nine times until “12 Hr AUTO_OFF” appears

in the upper text area and “ON. Press (+) for Off” scrolls twice from right to left in the lower text area.

2. Press the Temp/Time “+” pad to turn off the 12-hour Auto Off

feature. “OFF. Press (+) for ON” will scroll twice from right to left in the lower text area.

3. “OFF Selected” will scroll twice from right to left in the lower

text area. The feature has been turned off.10 Language The Language is factory preset to English but can be changed to French. To Change the Language to French:

1. Press SETTINGS 10 times until “LANGUAGE” appears in the

upper text area and “ENGLISH. Press (+) for French” scrolls twice from right to left in the lower text area.

2. Press the Temp/Time “+” pad to select French.

“FRENCH. Press (+) for English” will scroll, in French, twice from right to left in the lower text area.

3. “FRENCH Selected” will scroll, in French, twice from right to

left in the lower text area.

4. The language displayed will now be French.

Oven Temperature Control The oven provides accurate temperatures; however, it may cook faster or slower than your previous oven, so the temperature calibration can be adjusted. It can be changed in Fahrenheit or Celsius. Temperature adjustment applies to upper or lower ovens. A minus sign means the oven will be cooler by the displayed amount. The absence of a minus sign means the oven will be warmer by the displayed amount. Use the following chart as a guide. To Adjust Oven Temperature Calibration:

1. Press SETTINGS 11 times until “TEMP CALIB” appears in the

upper text area and “UPPER CALIBRATE. Press (+) for Lower calibrate or push START” scrolls twice from right to left in the lower text area.

2. Press START to calibrate the upper oven. “UPPER Calibrate

selected” will scroll twice from right to left in the lower text area. “UPPER calibrate” is shown in the upper text area and “Press (+) or (-) for offset” scrolls twice from right to left in the lower text area.

Press (+) to calibrate the lower oven. “LOWER Calibrate selected” scrolls twice from right to left in the lower text area. “LOWER Calibrate” is shown in the upper text area and “Press (+) or (-) to set offset” scrolls twice from right to left in the lower text area.

3. Press the Temp/Time “+” pad to increase or decrease the

temperature in 5°F (3°C) increments. The adjustment can be set between 30°F (17°C) and -30°F (-17°C).

4. Press START to set the adjustment and exit the Temperature

Calibration menu. Control Lockout The control can be locked out to avoid unintended use of the oven. The control cannot be locked if the oven is in use or the oven temperature is 400°F (205°C) or above. The current time of day will remain in the display when the control is locked. To Lock Control:

1. Press and release UPPER CANCEL and LOWER CANCEL.

2. Press and hold START for 3 seconds or until “CONTROL

LOCKED” scrolls in the display. “CONTROL LOCKED” scrolls while the control is locking, then “LOCKED” is displayed. “LOCKED” remains lit in the display. To Unlock Control:

1. Press and hold START for 3 seconds or until “Press and hold

START” scrolls in the display. “UNLOCKING” appears in the display while the control is unlocking. The time of day appears and remains in the display. OVEN USE Odors and smoke are normal when the oven is used the first few times, or when it is heavily soiled. IMPORTANT: The health of some birds is extremely sensitive to the fumes given off. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well- ventilated room. The upper and lower ovens have rapid and standard preheat options. When only one oven is used (either upper or lower) the oven in use will default to the rapid preheat option. The rapid preheat option is only recommended for single-rack baking. When both ovens are used simultaneously, the ovens will default to the standard preheat option. The standard preheat option is recommended for multi-rack baking in the lower oven. When the lower oven is used independently, the oven will default to the rapid preheat option. To use the standard preheat option for multi-rack baking in the lower oven, it can be selected during Bake or Convection Bake operation. To toggle between single or multi-rack baking, press START after beginning the Bake or Convection Bake mode. Aluminum Foil IMPORTANT: To avoid permanent damage to the oven bottom finish, do not line the oven bottom with any type of foil, liner or cookware. ■ For best cooking results, do not cover entire rack with foil because air must be able to move freely. ■ To catch spills, place foil on rack below dish. Make sure foil is at least ¹⁄₂" (1.3 cm) larger than the dish and that it is turned up at the edges. Positioning Racks and Bakeware IMPORTANT: To avoid permanent damage to the porcelain finish, do not place food or bakeware directly on the oven door or bottom. Racks ■ Position racks before turning on the oven. ■ Do not position racks with bakeware on them. ■ Make sure racks are level. ■ The upper oven is equipped with 1 flat rack. ■ The lower oven is equipped with 2 flat racks. ■ Place food so it will not rise into the broil element. Allow at least ¹⁄₂" (1.3 cm) between pans and the broil element. ADJUSTMENT °F (ADJUSTMENT °C) COOKS FOOD 10°F (6°C) ...a little more 20°F (12°C) ...moderately more 30°F (17°C) ...much more -10°F (-6°C) ...a little less -20°F (-12°C) ...moderately less -30°F (-17°C) ...much less11 To Remove Oven Racks: Flat Racks: Pull rack out to the stop position, raise the front edge, and then lift out. To Replace Oven Racks: Place rack on the rack support in the oven. Tilt the front edge up slightly, and slide rack back until it clears the stop position. Lower front and slide back into the oven. Rack Positions - Upper Oven - Exposed Bake Baking Rack Positions - Upper Oven - Hidden Bake Baking Broiling - Exposed or Hidden Bake Ovens Rack Positions - Lower Oven - Exposed and Hidden Bake Traditional Cooking Convection Cooking (on some models)

Cakes, meat and poultry 1 Most foods such as biscuits and cookies on baking sheets and pizza

Large roasts, turkeys 1 or 2 Yeast breads, quick breads, muffins, tube cakes, small cuts of meat and poultry and 2-rack baking

Cookies, biscuits, casseroles, muffins, cakes, 1-rack baking

2-rack baking 2 and 4

RACKS USED RACK POSITION(S) Convection baking 1 3 Convection baking 2 2 and 4 Convection roasting 1 1 or 2

Multiple Rack Cooking 2-rack: Use rack positions 2 and 4. When baking 2 racks of pizza, stagger pizza so that the pizza on rack position 2 is toward the right side of the oven and the pizza on rack position 4 is toward the left side of the oven. Baking Layer Cakes on 2 Racks For best results when baking cakes on 2 racks, use rack positions 2 and 4. Place the cakes on the racks as shown. BAKEWARE To cook food evenly, hot air must be able to circulate. Allow 2" (5.0 cm) of space around bakeware and oven walls. Use the following chart as a guide. Bakeware The bakeware material affects cooking results. Follow manufacturer’s recommendations and use the bakeware size recommended in the recipe. Use the following chart as a guide. Meat Thermometer A meat thermometer is not supplied with this appliance. Follow manufacturer's directions for using a meat thermometer. On models without a temperature probe, use a meat thermometer to determine whether meat, poultry and fish are cooked to the desired degree of doneness. The internal temperature, not appearance, should be used to determine doneness. Oven Vents The oven vents release hot air and moisture from the ovens, and should not be blocked or covered. Blocking or covering the vents will cause poor air circulation, affecting cooking and cleaning results. Do not set plastics, paper or other items that could melt or burn near the oven vents. Model Cook function Bake element Rack position MET8665 MET8775 MET8885 Bake Convect bake Convect bake Exposed Hidden Hidden 2 and 4 2 and 4 2 and 4 MET8775 Bake Hidden 2 and 4 MET8885 Bake Hidden 2 and 4 NUMBER OF PAN(S)

1 Center of rack. 2 Side by side or slightly staggered. 3 or 4 Make sure that no bakeware piece is directly over another. See illustrations for placement of layer cakes. BAKEWARE/ RESULTS RECOMMENDATIONS Light colored aluminum ■ Light golden crusts■ Even browning■ Use temperature and time recommended in recipe. Dark aluminum and other bakeware with dark, dull and/or nonstick finish ■ Brown, crisp crusts■ May need to reduce baking temperatures slightly. ■ Use suggested baking time.■ For pies, breads and casseroles, use temperature recommended in recipe. ■ Place rack in center of oven. Insulated cookie sheets or baking pans ■ Little or no bottom browning ■ Place in the bottom third of oven.■ May need to increase baking time. Stainless steel ■ Light, golden crusts ■ Uneven browning■ May need to increase baking time. Stoneware/Baking stone ■ Crisp crusts■ Follow manufacturer’s instructions. Ovenproof glassware, ceramic glass or ceramic ■ Brown, crisp crusts■ May need to reduce baking temperatures slightly. A. Upper oven vent B. Lower oven vent

B13 Baking Before baking, position racks according to the “Positioning Racks and Bakeware” section. ■ If only one oven is to be used, that oven will preheat more quickly. ■ Allow at least ½" (1.3 cm) between the baking pan or casserole and the top element in the upper oven. Loaf, angel food or bundt pans are not recommended in the upper oven. ■ When preheating with a baking/pizza stone inside the upper oven, do not set oven above 450°F (232°C). To use baking/ pizza stones at temperatures above 400°F (205°C) in the upper oven, put stone in after the preheat beep. Foods cooked using the baking/pizza stone may need to be removed from the oven early. ■ On some models the convection fan may operate during preheating or during the bake cycle. ■ The back part of the lower oven bake element will not glow red during baking. This is normal. ■ Use only 1 rack in the upper oven. To Bake:

1. Press upper or lower oven BAKE.

“BAKE” will scroll in the upper or lower text area (depending on oven selection), and “350°F (175°C)” will be displayed. “Set temp or” will scroll in the selected oven text area, followed by “Push START.”

2. Press the Temp/Time “+” or “-” pads until the desired

temperature is displayed. NOTE: The temperature may be changed at any time by pressing the Temp/Time “+” or “-” pads until the desired temperature is displayed and then START. Changing the temperature once food is placed in the oven could affect the performance.

3. (Optional) If a Set Cooking Time is desired, press COOK TIME.

Press the Temp/Time “+” or “-” pads to adjust the cook time by 1-minute increments until the desired time is displayed. “Push START” will scroll in the selected oven text area.

If the upper oven is used, “Preheating” will appear in the upper oven text area. If the lower oven is used, depending on the selection, “Rapid preheating for single rack. Press START to preheat for multi rack baking.” will appear. If no change is made, “Preheating for single rack baking” will appear in the display. If multi-rack baking is desired, press the START pad. “Standard preheat for multi rack baking. Press START to preheat for single rack baking.” will appear in the display followed by “Preheating for multi rack baking.” “Rapid preheating for single rack baking” will scroll in the selected oven text area. “Preheating” remains in the text area until the set temperature is reached.

5. When the preheat cycle is complete, “Insert food for one rack

baking” or “Insert food for multirack baking” will appear in the selected oven text area. “Bake” will scroll in the selected oven text area until CANCEL for the selected oven is pressed.

6. Place food in the oven when preheat is complete.

7. Press upper oven or lower oven CANCEL when finished.

8. Remove food from the oven.

NOTE: If Cook Time is to be used when only one oven is used, increase the cook time by 10 minutes. If Cook Time is to be used when both ovens are used or multi-rack bake in the lower oven, increase the cook time by 15 minutes. When Cook Time expires, the oven(s) will turn off. Broiling Broiling uses direct radiant heat to cook food. The lower the temperature, the slower the cooking. Thicker cuts and unevenly shaped pieces of meat, fish and poultry may cook better at lower broiling temperatures. ■ For best results, use a broiler pan and grid (not provided). It is designed to drain juices and help avoid spatter and smoke. If you would like to purchase a broiler pan, one may be ordered. See “Assistance or Service” section to order. ■ For proper draining, do not cover the grid with foil. The bottom of the pan may be lined with aluminum foil for easier cleaning. ■ Trim excess fat to reduce spattering. Slit the remaining fat on the edges to avoid curling. ■ Select HI/550°F (288°C) broil for most broiling. Select LO/450°F (232°C) broil for low-temperature broiling of longer cooking foods such a poultry to avoid over browning. ■ Pull out oven rack to stop position before turning or removing food. Use tongs to turn food to avoid the loss of juices. Very thin cuts of fish, poultry or meat may not need to be turned. ■ After broiling, remove the pan from the oven when removing the food. Drippings will bake on the pan if left in the heated oven, making cleaning more difficult. Before broiling, position rack according to the Broiling Chart. Position food on grid in the broiler pan, then place it in the center of the oven rack for lower oven broil. Preheat the oven for 5 minutes for upper oven broil. Close the door to the broil stop position (about 4" [10.0 cm]) to ensure proper broiling temperature. To Broil Using Hi/Low Temperature Settings:

1. Place the food in the oven, preheating is not necessary when

using the lower oven. For the upper oven, preheat oven for 5 minutes then put the food in the upper oven.

2. Position oven door to broil stop position.

3. Press BROIL for the desired oven. “BROIL” scrolls down in the

upper text area or scrolls up in the lower text area, depending on oven selected, and “HI” is displayed. “Set temp or” scrolls in the selected oven text area, followed by “Push START.”

4. Press the Temp/Time “+” or “-” pads to adjust the broil

temperature setting to HI or LO.

“Broiling” scrolls in the selected oven text area. NOTE: The broil temperature may be changed at any time by pressing the Time/Temp “+” or “-” pad until the desired temperature is displayed and pressing START. Changing the temperature once food is placed in the oven could affect the performance. “BROIL” scrolls in the selected oven text area once the set temperature is reached and remains there until CANCEL for the desired oven is pressed.14

6. Press CANCEL for the desired oven when finished.

7. Remove food from the oven.

To Broil Using Cook Time:

1. Place the food in the upper or lower oven at the appropriate

2. Press BROIL for the desired oven. “BROIL” appears in the text

area depending on oven selected and “HI” is displayed. “Set temp or” scrolls in the selected oven text area followed by “Push START.”

“Set cooking time or push START” scrolls from right to left in the selected oven text area. Press Temp/Time “+” or “-” pad to adjust cook time. Cook time adjusts in 1-minute increments. “Push START” scrolls in the selected oven text area.

“Broiling” appears in the selected oven text area and remains until the set temperature is reached or the cook time has counted down. NOTE: The oven temperature can be changed at any time by pressing the Temp/Time “+” or “-” pad until the desired temperature is displayed and pressing START. Once the set temperature is reached, “Broil” scrolls in the selected oven text area. “Broil” remains in the selected oven text area until the cook time countdown is complete then “Cooking complete” scrolls continuously until Cancel for the desired oven is pressed or the door is opened. When the cook time expires, the oven turns off.

5. Press CANCEL for the desired oven.

6. Remove food from the oven.

BROILING CHART It is not necessary to preheat the lower oven when broiling. The upper oven should be preheated for 5 minutes when broiling. Times are guidelines only and may need to be adjusted for individual tastes. Most foods should be turned halfway through cooking time. Recommended rack positions are numbered from the bottom (1) to the top (5). For diagram, see the “Positioning Racks and Bakeware” section. *When broiling fish, spray broil pan with cooking oil. Do not turn fish filets. For hamburgers that have rare interiors and seared exteriors, broil less time on one side. Convection Cooking - Lower Oven Only (on some models) During convection cooking, the fan provides increased hot air circulation throughout the oven. The movement of heated air around the food helps to speed up cooking by penetrating the cooler outer surfaces. ■ It is important not to cover foods so that surface areas remain exposed to the circulating air, allowing browning and crisping. ■ Keep heat loss to a minimum by opening the oven door only when necessary. ■ Choose cookie sheets without sides and roasting pans with lower sides to allow air to move freely around the food. ■ Test baked goods for doneness a few minutes before the minimum cooking time with a method such as a toothpick. ■ Use a meat thermometer to determine the doneness of meats and poultry. Check the temperature of pork and poultry in 2 or 3 different places, including the thickest part. ■ Before convection cooking, position the rack(s) according to the “Positioning Racks and Bakeware” section. ■ When using more than one rack, position bakeware/cookware on the racks to allow movement of the fan circulated air around the food. See the “Positioning Racks and Bakeware” section. ■ If the oven is full, extra cooking time may be needed. ■ For optimal cooking results, do not cover food.

UPPER OVEN LOWER OVEN

FOOD RACK POSITION SETTING COOK TIME (minutes) RACK POSITION SETTING COOK TIME (minutes) Steak 1" (2.5 cm) thick medium 1 HI 22-28 4 HI 15-19 Ground meat patties 4 oz (113 g), ³₄" (2.0 cm) thick up to 12, well-done up to 6, well-done

8-13 10-1615 ■ When roasting poultry and meat, use a broiler pan and grid. It is not necessary to wait for the oven to preheat, unless recommended in the recipe. To order a broiler pan, see the “Assistance or Service” section. Convection Baking (on some models) Use Convect Bake for single or multiple rack baking. When convection baking, reduce your recipe baking temperature by 25°F (15°C). To Set Convect Bake:

1. Press CONVECT BAKE until “CONVECT BAKE” is displayed in

the lower text area, and “325°F (163°C)” is displayed. “Set temp or” will scroll in the lower oven text area, followed by “Push START.”

2. Press the Temp/Time “+” or “-” pads until the desired

temperature is displayed.

3. Press START to begin preheating oven.

“CONVECT BAKE” will scroll in the lower oven text area and “Power Preheating for single rack. Press start to preheat for multi-rack” will scroll in the lower oven text area until the set temperature is reached. NOTE: If the upper oven is in use, the lower oven will default to the standard preheat/multi-rack baking option.

4. “Insert food for one rack convect only” will scroll twice in the

lower text area once the one-rack preheat temperature is reached.

5. When prompted in the display, press START if multi rack baking

is desired. If multi-rack baking is selected, “Standard preheating for multi-rack baking. Press Start to preheat for single rack” will appear in the display followed by “Preheating for multi rack baking.” “Insert food” will appear once the oven set temperature is reached.

6. When the preheat cycle is complete, “CONVECT BAKE” will

scroll in the lower oven text area until LOWER CANCEL is pressed.

7. Place food in the oven.

To change the oven temperature during cooking, press the Temp/Time “+” or “-” pads until the desired temperature is displayed and then START.

8. Press LOWER CANCEL when finished.

9. Remove food from the oven.

Convection Broil (on some models) When convection broiling, enter your normal broiling temperature. The oven door must be closed when using Convect Broil. It is not necessary to preheat the oven for convect broil.

1. Place the food in the oven and close the oven door.

2. Press CONVECT BROIL until “CONVECT BROIL” is displayed

in the lower text area, and “550°F (288°C)” is displayed. “Set temp or” will scroll in the lower oven text area, followed by “Push START.”

3. Press the Temp/Time “+” or “-” pads until the desired

temperature is displayed.

“CONVECT BROIL” will scroll in the lower oven text area. “Preheating” will scroll in the lower oven text area until the set temperature is reached. When the preheat cycle is complete, “CONVECT BROIL” will scroll in the lower text area. The set temperature will also be displayed. To change the oven temperature during cooking, press the Temp/Time “+” or “-” pads until the desired temperature is displayed and then START. “CONVECT BROIL” will scroll in the lower oven text area until LOWER CANCEL is pressed.

5. Press LOWER CANCEL when finished.

6. Remove food from the oven.

Convection Roasting (on some models) When convection roasting, enter your normal roasting temperature. The roasting time should be 15-30% less than that of conventional cooking. It is not necessary to preheat the oven for convect roast.

1. Place food in oven.

2. Press CONVECT ROAST until “CONVECT ROAST” is displayed

in the lower text area, and “325°F (163°C)” will be displayed. “Set temp or” will scroll in the lower oven text area, followed by “Push START.”

3. Press the Temp/Time “+” or “-” pads until the desired

temperature is displayed.

“CONVECT ROAST” will scroll in the lower oven text area. “Preheating” will scroll in the lower oven text area until the set temperature is reached. When the preheat cycle is complete, “CONVECT ROAST” will scroll in the lower text area. The set temperature will also be displayed. To change the oven temperature during cooking, press the Temp/Time “+” or “-” pads until the desired temperature is displayed and then START. “CONVECT ROAST” will remain in the lower text area until LOWER CANCEL is pressed.

5. Press LOWER CANCEL when finished.

6. Remove food from the oven.

B16 Keep Warm™ Feature IMPORTANT: Food must be at serving temperature before placing it in the warmed oven. Food may be held up to 1 hour; however, breads and casseroles may become too dry if left in the oven during the Keep Warm™ function. For best results, cover food. The Keep Warm™ feature allows hot cooked foods to stay at serving temperature. To Use:

1. Press the KEEP WARM keypad for the desired oven.

“KEEP WARM” will scroll in the upper or lower text area (depending on oven selection), and “170°F (77°C)” will be displayed. “Set temp or” will scroll in the selected oven text area, followed by “Push START.”

2. Press the Temp/Time “+” or “-” pads to adjust the temperature

by 5°F (3°C) increments until the desired temperature is displayed. The temperature can be set from 145°F (63°C) to 190°F (85°C). NOTE: The temperature may be changed at any time by pressing the Temp/Time “+” or “-” pads until the desired temperature is displayed and then START.

“Keeping Warm” will appear in the selected oven text area, and the set temperature will be displayed.

4. “KEEPING WARM” and the temperature will be displayed while

the Keep Warm setting is active.

5. Place food in the oven.

6. Press CANCEL for the desired oven when finished.

7. Remove food from the oven.

To Cancel Keep Warm™ Feature: Press CANCEL for the desired oven. Remove food from oven. Sabbath Mode The Sabbath Mode allows the range to operate in compliance with the Star-K Jewish Sabbath requirements for a Bake cycle, including Timed Bake or Delayed Bake functions. To use the Sabbath Mode on this range note the following: ■ The Sabbath Mode feature must first be enabled. This is done only one time and only if Sabbath Mode is expected to be used at a later time. ■ When Sabbath Mode is enabled all range features and functions operate the same as before Sabbath Mode was enabled. ■ When Sabbath Mode is enabled and activated it can be used for any Bake, Timed Bake or Delayed Bake cycle by completing the steps in “To Activate Sabbath Mode” in this section. When Sabbath Mode is activated your range will run under the following conditions: ■ All cooking functions for both ovens are disabled except for Bake, Timed Bake and Delayed Bake. ■ The following keypads can be used: Bake, Cancel, Start, Kitchen Timer and the Temp/Time “+” and “-” pads. ■ The following features are disabled and cannot be used: all tones and chimes; timers; 12 Hour Shutoff and Oven Cleaning. ■ Cooktop elements can be enabled for use during Sabbath Mode. ■ The oven light will not change and will remain on or off all the time, even if the Oven Light keypad is pressed or the oven doors are opened or closed. ■ For best results, cooking should be done on one rack in the upper oven and one rack in the lower oven. To Enable Sabbath Mode (one time only): Sabbath Mode must be enabled to allow the control to activate a Bake, Timed Bake or Delayed Bake under the conditions listed previously.

1. Press SETTINGS until “SABBATH” appears in the upper text

“ON Selected” scrolls twice in the upper text area. The oven is now enabled to be run in Sabbath Mode.

3. Press any CANCEL to exit. Sabbath Mode remains enabled.

NOTE: To disable the Sabbath Mode, repeat the previous steps 1-3. “Sabbath OFF” should scroll in the display. To Activate Sabbath Mode: Sabbath Mode can be activated for a Bake, Timed Bake or Delayed Bake if Sabbath Mode has been enabled.

1. Start a Bake, Timed Bake or Delayed Bake.

2. If Sabbath Mode is to be used for both ovens, start a Bake,

Timed Bake or Delayed Bake in the second oven.

3. Press and hold KITCHEN TIMER for 5 seconds. “Sabbath-

Bake” appears in the upper text area for 3 seconds. For a Timed Bake function, the time will also be displayed. To Adjust Temperature (when Sabbath Mode is running in only one oven):

1. Press the Temp/Time “+” or “-” pads. Each press of the pads

will increase or decrease temperature by 25°F (14°C). No temperature change will appear in the display.

2. Press and hold START longer than 1 second to set the

temperature change. No temperature change will appear in the display. To Adjust Temperature (when Sabbath Mode is running in both ovens):

1. Press BAKE for the desired oven.

2. Press the Temp/Time “+” or “-” pads. Each press of the pads

will increase or decrease temperature by 25°F (14°C). No temperature change will appear in the display.

3. Press and hold START longer than 1 second to set the

temperature change. No temperature change will appear in the display. To Deactivate Sabbath Mode: Sabbath Mode can be deactivated at any time during an active Sabbath Mode.

1. Press and hold KITCHEN TIMER for 5 seconds to return to

regular baking or press any CANCEL to turn off the oven(s). If a Power Failure Occurs During Sabbath Mode If a power failure occurs during Sabbath Mode, and the upper text area displays “Sabbath,” press any CANCEL to exit Sabbath Mode. The display will show the time of day. Sabbath Mode is no longer active, but it is still enabled for the range. WARNING Food Poisoning Hazard Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food poisoning or sickness.17 Favorite The Favorite feature allows you to save the time and temperature settings from any active cook function. To Save a Cooking Function as a Favorite:

1. Press and hold FAVORITE until “PRESS + FOR UPPER OVEN”

appears in the upper text area, and “PRESS (-) FOR LOWER OVEN” appears in the lower text area.

2. Press the Temp/Time “+” or “-” pad to select the oven in use.

The selected cooking function will be displayed in the selected oven text display area for 3 seconds.

3. “SAVED” will scroll in the selected oven text display area for

3 seconds. If a cook time is programmed, it will be displayed.

4. The cooking function is now stored as a Favorite, and the

control resumes operation of the saved cooking function. To Recall and Start a Favorite:

The name of the saved cook function will scroll into the display text area of the oven that it was saved from for 3 seconds. “Set temp or” appears in the display followed by “Push START.”

The name of the saved cook function will scroll into the display text area of the oven that it was saved from for 3 seconds followed, by the appropriate preheating message. The temperature and time displays are active and indicate the current oven temperature (if below 170°F, “Lo” is displayed) and the countdown time elapsed. The set temperature can be changed by pressing the Temp/ Time “+” or “-” pads, then START. Similarly, the Cook Time can be changed by pressing COOK TIME then the Temp/Time “+” or “-” pads to adjust to the desired time, then START. If the cook time is adjusted, the time remaining is increased by the additional time. Once the set temperature is reached, the temperature will display, and the name of the saved cook function will scroll into the display text area of the oven that it was saved from until the Cook Time countdown has been completed.

3. Place food in the oven.

4. Press CANCEL for the oven that is being used when finished.

5. Remove food from the oven.

To Cancel a Favorite Cycle:

1. Press UPPER or LOWER CANCEL (depending on the oven

where the Favorite function is operating). The stored Favorite cycle will not be affected.

2. Remove food from the oven.

Timed/Delay Cooking Timed Cooking allows the oven(s) to cook for a set length of time. Delay Cooking allows the oven(s) to be set to turn on at a certain time of day, Delay start should not be used for food such as breads and cakes because they may not bake properly. Timed Cooking is available on most cycles except Self-Clean and Keep Warm. Delay Cooking is available on the Bake, Convect Bake, and Convect Roast cycles. To Set a Cook Time:

1. Press the button for any cooking function except Self-Clean or

Keep Warm. Press the Temp/Time “+” or “-” pads to enter a temperature other than the one displayed, then press START.

3. Press Temp/Time “+” or “-” pads to enter the desired length of

The cook time countdown will appear on the oven display. When the stop time is reached, the oven will shut off automatically, and end-of-cycle tones will sound. To Set a Delay Cooking Time: Before setting, make sure the clock is set to the correct time of day. See “Clock” section.

1. Press the button for any cooking function except Self-Clean or

Keep Warm. Press the Temp/Time “+” or “-” pads to enter a temperature other than the one displayed, then press START.

2. Press DELAY START.

3. Press Temp/Time “+” or “-” pads to enter the delay start time.

The delay start time is the amount of time by which you want to delay the start.

5. Press Temp/Time “+” or “-” pads to enter the desired length of

The start time is automatically calculated and displayed. The delay countdown appears on the oven display. When the start time is reached, the oven will automatically turn on. The cook time countdown will appear on the oven display. The set temperature and minute time countdown will appear on the oven display. When the stop time is reached, the oven will shut off automatically, and end-of-cycle tones will sound. WARNING Food Poisoning Hazard Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food poisoning or sickness. WARNING Food Poisoning Hazard Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food poisoning or sickness.18 RANGE CARE Self-Cleaning Cycle IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well-ventilated room.Self-clean the oven before it becomes heavily soiled. Heavy soil results in longer cleaning and more smoke.Keep the kitchen well-ventilated during the Self-Cleaning cycle to help get rid of heat, odors and smoke.Do not block the oven vent(s) during the Self-Cleaning cycle. Air must be able to move freely. Depending on your model, see “Oven Vent” or “Oven Vents” section.Do not clean, rub, damage or move the oven door gasket. The door gasket is essential for a good seal. Prepare Oven: ■ Remove the broiler pan, grid, cookware and bakeware and, on some models, the temperature probe from the oven. ■ Remove oven racks to keep them shiny and easy to slide. See “General Cleaning” section for more information.■ Remove any foil from the oven because it may burn or melt, damaging the oven.■ Hand clean inside door edge and the 1½" (3.8 cm) area around the inside oven cavity frame, being certain not to move or bend the gasket. This area does not get hot enough during self-cleaning to remove soil. Do not let water, cleaner, etc., enter slots on door frame. Use a damp cloth to clean this area. ■ Wipe out any loose soil to reduce smoke and avoid damage. At high temperatures, foods react with porcelain. Staining, etching, pitting or faint white spots can result. This will not affect cooking performance. Prepare Cooktop: ■ Remove plastic items from the cooktop because they may melt.NOTE: The cooktop warming center will not function during the self-clean cycle.IMPORTANT: Oven temperature must be below 400°F (205°C) to program a clean cycle.Only 1 oven can be cleaned at a time. Both oven doors lock when either oven is being cleaned. How the Cycle Works IMPORTANT: The heating and cooling of porcelain on steel in the oven may result in discoloring, loss of gloss, hairline cracks and popping sounds.The Self-Cleaning cycle uses very high temperatures, burning soil to a powdery ash. The oven is preset for a 3 hour clean cycle; however, the time can be changed. Suggested clean times are 2 hours for light soil and between 3 hours and 4 hours for average to heavy soil. Once the oven has completely cooled, remove ash with a damp cloth. To avoid breaking the glass, do not apply a cool damp cloth to the inner door glass before it has completely cooled.The oven light will not work during the Self-Cleaning cycle.On some models, the surface elements will not work during the Self-Cleaning cycle.When “LOCK” shows in the display, the door cannot be opened. To avoid damage to the door, do not force the door open when “LOCK” is displayed.If an oven door is left open, “Door Open? Clean Canceled” will appear in the display and a signal will beep. Close the oven door and press SELF CLEAN.NOTE: Only one oven can use the Self-Clean cycle at a time, and 24 hours must pass before the next Self-Clean can begin. To Self-Clean: 1. Close the oven door.2. Press SELF CLEAN. “PRESS (+) FOR UPPER OVEN” will appear in the upper oven text area, and “PRESS (-) FOR LOWER OVEN” will appear in the lower oven text area3. Press the Temp/Time “+” or “-” pads to select the desired oven.“REMOVE RACKS” will scroll in the selected oven text area followed by “SELECT OPTION.” In the other text area, “PRESS + or - KEY” will scroll from left to right.

4. Choose the Standard Clean setting by pressing the Temp/Time

“+” or “-” pads until “STANDARD CLEAN” and “PUSH START” scroll in the displays.5. Press START.“Select level” will appear in the display.6. Press the Temp/Time “+” or “-” pads to adjust the clean level.7. Press START.“UNLOCK IN XXX” will scroll in the upper or lower text area (depending on oven selection). “LOCKING” will scroll until the door is locked.After the door is lock, “CLEAN UPPER” or “CLEAN LOWER” will scroll in the selected oven text area until the clean cycle is finished.When the self-clean cycle ends:“CLN COMPLETE will scroll in the selected oven text area. “OVEN COOLING” will scroll in the display until the oven temperature falls below 500°F (260°C).“UNLOCKING” will be displayed until the oven door unlocks and the lock icon turns off. WARNING Burn Hazard Do not touch the oven during the Self-Cleaning cycle. Keep children away from oven during Self-Cleaning cycle. Failure to follow these instructions can result in burns.19 To Delay Start Self-Clean:

1. Press Delay Start.

“PRESS (+) FOR UPPER OVEN” will appear in the upper text area, and “PRESS (-) FOR LOWER OVEN” will appear in the lower text area.

2. Press the Temp/Time “+” or “-” pads to select the desired oven.

“--:--” will be displayed, and “Set starting time. Push START” will scroll from right to left in the selected oven text area for 2 minutes or until the Temp/Time “+” or “-” pads are pressed again.

3. Press the Temp/Time “+” or “-” pads until the desired time is

reached. “Select cooking/cleaning mode” will scroll in the selected oven text area for 2 minutes or until a cleaning cycle is selected.

4. Press SELF CLEAN.

“REMOVE RACKS” will scroll in the selected oven text area for 5 seconds, followed by “SELECT OPTION.” In the other text area, “PRESS + or - KEY” will scroll from left to right.

5. Press the Temp/Time “+” or “-” pads until “Standard Clean” is

displayed. “Push START” will scroll in the selected oven text area.

“Select level” will appear in the display.

7. Press the Temp/Time “+” or “-” pads to select the desired

8. Press START. The cleaning cycle will begin when the delay time

is reached. The cleaning cycle will begin when the delay time is reached. “UNLOCK IN XXX” will scroll in the upper or lower text area (depending on oven selection). “LOCKING” will scroll until the door is locked. After the door is lock, “CLEAN UPPER” or “CLEAN LOWER” will scroll in the displays until the clean cycle is finished. When the self-clean cycle ends: “CLN COMPLETE will scroll in the selected oven text area. “OVEN COOLING” will scroll in the display until the oven temperature falls below 500°F (260°C). “UNLOCKING” will be displayed until the oven door unlocks and the lock icon turns off. General Cleaning IMPORTANT: Before cleaning, make sure all controls are off and the oven and cooktop are cool. Always follow label instructions on cleaning products. Soap, water and a soft cloth or sponge are suggested first unless otherwise noted.

EXTERIOR PORCELAIN ENAMEL SURFACES

Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the entire range is cool. These spills may affect the finish. Cleaning Method: ■ Glass cleaner, mild liquid cleaner or nonabrasive scrubbing pad: Gently clean around the model and serial number plate because scrubbing may remove numbers. ■ affresh

Kitchen and Appliance Cleaner Part Number W10355010 (not included): See “Assistance or Service” section to order. STAINLESS STEEL (on some models) To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, Cooktop Cleaner, steel-wool pads, gritty washcloths or abrasive paper towels. Cleaning Method: Rub in direction of grain to avoid damaging. ■ affresh

Stainless Steel Cleaner Part Number W10355016 (not included): See “Assistance or Service” section to order. ■ Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth. CERAMIC GLASS (on some models) To avoid damage to the cooktop, do not use steel wool, abrasive powder cleansers, chlorine bleach, rust remover or ammonia. Cleaning Method: Always wipe with a clean, wet cloth or sponge and dry thoroughly to avoid streaking and staining. Use affresh

Cooktop Cleaner Part Number W10355051, Cooktop Cleaning Pads Part Number W10391473 and Cooktop Scraper Part Number WA906B to clean and remove stains from the cooktop. Use Cooktop Protectant Part Number 31463A regularly to avoid stain buildup, pitting and scratching, while conditioning the cooktop for easier future cleaning. These can be ordered as accessories. See the “Accessories” section for more information. The Cooktop Scraper uses razor blades. Store razor blades out of the reach of children. Light to moderate soil ■ Paper towels or clean damp sponge. Sugary spills (jellies, candy, syrup) ■ Cooktop Scraper: Scrape off sugary spills while the cooktop is still warm. You may want to wear oven mitts while cleaning the cooktop. ■ affresh

Cooktop Cleaner and Cooktop Cleaning Pads: Clean as soon as cooktop has cooled down. Rub product into surface with a Cooktop Cleaning Pad. Continue rubbing until white film disappears. Heavy soil, dark streaks, specks and discoloration ■ affresh

Cooktop Cleaner or nonabrasive cleanser with Cooktop Cleaning Pads: Clean as soon as cooktop has cooled down. Rub product into soil with a Cooktop Cleaning Pad. Continue rubbing until white film disappears. Burned-on soil ■ affresh

Cooktop Cleaner, Cooktop Cleaning Pads and Cooktop Scraper: Clean as soon as cooktop has cooled down. Rub product into soil with a Cooktop Cleaning Pad. Hold scraper as flat as possible on surface and scrape. Repeat for stubborn spots. Polish entire cooktop with Cooktop Cleaner and paper towel. Metal marks from aluminum and copper ■ affresh

Cooktop Cleaner and Cooktop Cleaning Pads: Clean as soon as cooktop has cooled down. Rub product into surface with a Cooktop Cleaning Pad. Continue rubbing until white film disappears. The marks will not totally disappear, but after many cleanings they will become less noticeable.20 Tiny scratches and abrasions ■ affresh

Cooktop Cleaner and Cooktop Cleaning Pads: Clean as soon as cooktop has cooled down. Rub product into surface with a Cooktop Cleaning Pad. Continue rubbing until white film disappears. Scratches and abrasions do not affect cooking performance, and after many cleanings they will become less noticeable. COOKTOP CONTROLS To avoid damage to the cooktop controls, do not use steel wool, abrasive cleansers or oven cleaner. To avoid damage, do not soak knobs. When removing or replacing knobs, make sure knobs are in the Off position. Do not remove seals under knobs, if present. Cleaning Method: ■ Warm, soapy water: Pull knobs straight away from control panel to remove. CONTROL PANEL To avoid damage to the control panel, do not use abrasive cleaners, steel-wool pads, gritty washcloths or abrasive paper towels. To avoid turning the controls on while cleaning, you may activate the Control Lock feature (on some models). See “Control Lockout” section. Cleaning Method: ■ Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel. ■ affresh

Kitchen and Appliance Cleaner Part Number W10355010 (not included): See “Assistance or Service” section to order.

Cleaning Method: ■ Glass cleaner and paper towels or nonabrasive plastic scrubbing pad: Apply glass cleaner to soft cloth or sponge, not directly on panel. ■ affresh

Kitchen and Appliance Cleaner Part Number W10355010 (not included): See “Assistance or Service” section to order. OVEN CAVITY Do not use oven cleaners. Food spills should be cleaned when oven cools. At high temperatures, foods react with porcelain and staining, etching, pitting or faint white spots can result. Cleaning Method: ■ Self-Cleaning cycle: See “Self-Cleaning Cycle” first. OVEN RACKS Cleaning Method: ■ Self-Cleaning cycle: See “Self-Cleaning Cycle” first. Remove racks, or they will discolor and become harder to slide. If this happens, a light coating of vegetable oil applied to the rack guides will help them slide. ■ Steel-wool pad. Oven Light The ovens light is a standard 40-watt appliance bulb. Before replacing, make sure the oven and cooktop are cool and the control knobs are off. To Replace:

1. Unplug range or disconnect power.

2. Turn the glass bulb cover in the back of the oven

counterclockwise to remove.

3. Turn bulb counterclockwise to remove from socket.

4. Replace bulb, then bulb cover by turning clockwise.

5. Plug in range or reconnect power.

Oven Door IMPORTANT: Use two hands to remove oven door(s). ■ Prior to removing the oven door, prepare a surface where you will place it. This surface should be flat and covered with a soft blanket. To avoid oven door glass breakage: ■ Do not close the oven door if the racks are not fully inserted into the oven cavity or when bakeware extends past the front edge of an oven rack. ■ Do not set objects on the glass surface of the oven door. ■ Do not hit glass surfaces with bakeware or other objects. ■ Do not wipe down glass surfaces until the oven has completely cooled. For normal range use, it is not suggested to remove the oven door. However, if removal is necessary, make sure the oven is off and cool. Then, follow these instructions. The oven door is heavy. To Remove:

1. Open oven door all the way.

2. Locate the oven door hinge locks in both corners of the oven

door. Rotate the hinge locks forward and down to the unlocked position.

3. Partially close the oven door to engage the door latch locks.

The door will stop at this point.

4. Using two hands, lift the oven door while holding both sides.

Continue to push the oven door closed and pull it away from the oven door frame.

5. Set the oven door(s) aside on the prepared covered work

surface, with the oven door resting on its handle.21 To Replace:

1. Using two hands, grasp the door as shown in the following

illustration. Locate the slots on each side of the oven cavity, and insert the oven door hinges into the slots.

2. Open the oven door.

You should hear a “click” as the door is set into place.

3. Lower the oven door to the fully open position.

4. Move the oven door hinge locks back to the locked position.

Check that the door is free to open and close. If it is not, repeat the previous steps. TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Nothing will operate ■ Is the power supply cord unplugged? Plug into a grounded outlet. ■ Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Cooktop will not operate ■ Is the control knob set correctly? Push in knob before turning to a setting. ■ Is the Cooktop Control Lock set? See “Control Lockout” section. Excessive heat around cookware on cooktop ■ Is the cookware the proper size? Use cookware about the same size as the surface cooking area, element or surface burner. Cookware should not extend more than ½" (1.3 cm) outside the cooking area. Hot Surface indicator light stays on ■ Does the Hot Surface indicator light stay on after control knob(s) have been turned off? See “Cooktop Controls” section. Cooktop cooking results not what expected ■ Is the proper cookware being used? See “Cookware” section. ■ Is the control knob set to the proper heat level? See “Cooktop Controls” section. ■ Is the range level? Level the range. See the Installation Instructions. Oven will not operate ■ Is the electronic oven control set correctly? See “Electronic Oven Controls” section. ■ On some models, is the oven control lockout set? See “Control Lockout” section. Oven temperature too high or too low ■ Does the oven temperature calibration need adjustment? See “Oven Temperature Control” section. ■ On some models, does the cooling fan run during BAKE, BROIL or CLEAN? It is normal for the fan to automatically run when the oven is in use. This helps cool the electronic control. Oven indicator lights flash ■ Do the oven indicator lights flash? See the “Display” and/or the “Oven Lights” section. If the indicator light(s) keeps flashing, call for service. See “Assistance or Service” section. Display shows messages ■ Is the display showing a flashing time? There has been a power failure. Clear the display. See “Display” section. On some models, reset the clock, if needed. See the “Clock” section in the “Settings” section. ■ Is the display showing a letter followed by a number? Depending on your model, press OFF/CANCEL, OFF or CANCEL/OFF to clear the display. See “Display” section. If it reappears, call for service. See “Assistance or Service” section. Self-Cleaning cycle will not operate ■ Is the oven door open? Close the oven door all the way. ■ Has the function been entered? See “Self-Cleaning Cycle” section. ■ On some models, has a delay start Self-Clean cycle been set? See “Self-Cleaning Cycle” section. Oven cooking results not what expected ■ Is the range level? Level the range. See the Installation Instructions. ■ Is the proper temperature set? Double-check the recipe in a reliable cookbook. ■ Is the proper oven temperature calibration set? See “Oven Temperature Control” section. ■ Was the oven preheated? See “Baking” section. ■ Is the proper bakeware being used? See “Bakeware” section.22 ■ Are the racks positioned properly? See “Positioning Racks and Bakeware” section. ■ Is there proper air circulation around bakeware? See “Positioning Racks and Bakeware” section. ■ Is the batter evenly distributed in the pan? Check that batter is level in the pan. ■ Is the proper length of time being used? Adjust cooking time. ■ Has the oven door been opened while cooking? Oven peeking releases oven heat and can result in longer cooking times. ■ Are baked items too brown on the bottom? Move rack to higher position in the oven. ■ Are pie crust edges browning early? Use aluminum foil to cover the edge of the crust and/or reduce baking temperature.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new MAYTAG

appliance. To locate factory specified parts in your area, call the following customer assistance telephone number or your nearest designated service center. In the U.S.A. Call Maytag Customer eXperience Center toll free: 1-800-688-9900, or visit our website at www.maytag.com Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.■ Installation information.■ Use and maintenance procedures.■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors and service companies. Maytag

appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States. To locate the Maytag

appliances designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to Maytag

appliances with any questions or concerns at: Maytag Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Canada LP Customer eXperience Centre toll free 1-800-807-6777 or visit our website at www.maytag.ca. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■ Use and maintenance procedures.■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors and service companies. Maytag

appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at: Whirlpool Canada LP Customer eXperience Centre

200 - 6750 Century Ave

Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence.23 Accessories To order accessories, visit our website at www.maytag.com/ cookingaccessories. In Canada visit our website at www.whirlpoolparts.ca Cooktop Care Kit (ceramic glass models) (includes cleaner, cleaning pads, protectant, scraper, and applicator pads) Order Part Number 31605 Cooktop Cleaning Pads (ceramic glass models) Order Part Number W10391473 affresh

Cooktop Cleaner (ceramic glass models) Order Part Number W10355051 affresh

Stainless Steel Cleaner (stainless steel models) Order Part Number W10355016 affresh

Kitchen and Appliance Cleaner Order Part Number W10355010 Cooktop Scraper (ceramic glass models) Order Part Number WA906B Premium Broil Pan and Roasting Rack Order Part Number W10123240 www.maytag.com/broilerpan24 1/14 MAYTAG

ELECTRIC RANGE LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center:■ Name, address and telephone number■ Model number and serial number■ A clear, detailed description of the problem■ Proof of purchase including dealer or retailer name and address IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions

can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit https://www.maytag.com/product_help.

All warranty service is provided exclusively by our authorized Maytag Service Providers. In the U.S. and Canada, direct all requests for warranty service to: Maytag Customer eXperience Center In the U.S.A., call 1-800-688-9900. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized Maytag dealer to determine whether another warranty applies.

TEN YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR) For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Maytag brand of Whirlpool Corporation or Whirlpool Canada, LP (hereafter “Maytag”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased.

SECOND THROUGH TENTH YEAR LIMITED WARRANTY

(CERTAIN COMPONENT PARTS ONLY -

LABOR NOT INCLUDED) In the second through tenth years from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Maytag will pay for factory specified parts for the following components to correct non-cosmetic defects in materials or workmanship in these parts that prevent function of this major appliance and that existed when this major appliance was purchased. This is a limited 10-year warranty on the below named parts only and does not include repair labor. ■ Glass-Ceramic Cooktop (if due to thermal breakage) ■ Electric Surface Elements ■ Electric Bake/Broil Elements (Excludes Convection Element) ■ Cavity (Rust Through and Broken Welds Only) YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Maytag designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential or multiple-family use, or use inconsistent

with published user, operator or installation instructions.

2. In-home Instruction on how to use your product.

3. Service to correct improper product maintenance or installation,

installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).

5. Conversion of your product from natural gas or L.P. gas.

6. Damage from accident, misuse, abuse, fire, floods, acts of God or use

with products not approved by Maytag.

7. Repairs to parts or systems to correct product damage or defects caused

by unauthorized service, alteration or modification of the appliance.

8. Cosmetic damage including scratches, dents, chips, and other damage

to appliance finishes unless such damage results from defects in materials and workmanship and is reported to Maytag within 30 days.

9. Discoloration, rust or oxidation of surfaces resulting from caustic or

corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

10. Food loss due to product failure.

11. Pick-up or delivery. This product is intended for in-home repair.

12. Travel or transportation expenses for service in remote locations where an

authorized Maytag servicer is not available.

13. Removal or reinstallation of inaccessible appliances or built-in fixtures

(i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

14. Service or parts for appliances with original model/serial numbers

removed, altered or not easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Maytag makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Maytag or your retailer about buying an extended warranty. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. https://www.maytag.com/ product_help25

ASSISTANCE OU SERVICE
