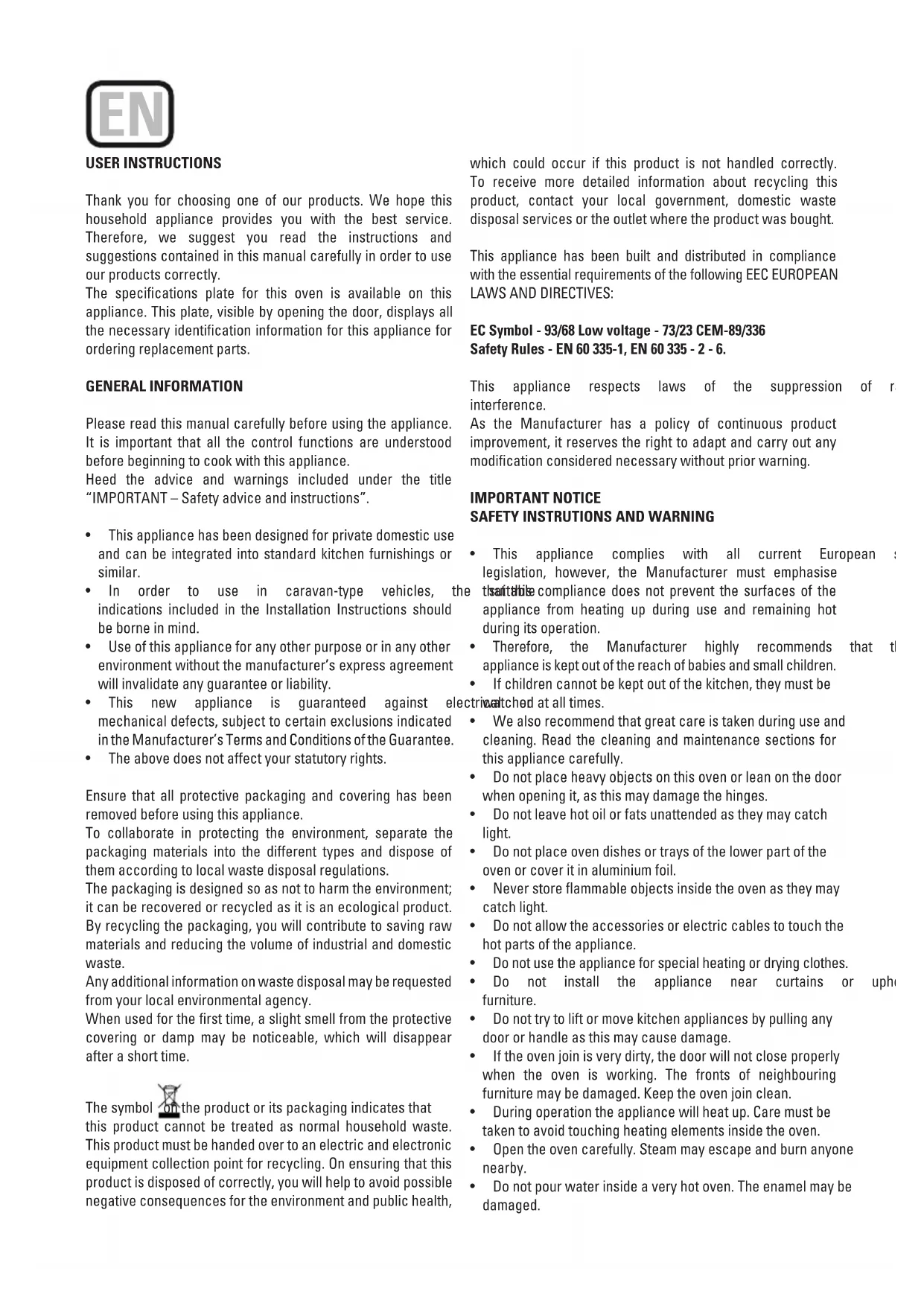

Thank you for choosing one of our products. We hope this household appliance provides you with the best service. Therefore, we suggest you read the instructions and suggestions contained in this manual carefully in order to use our products correctly.

The specifications plate for this oven is available on this appliance. This plate, visible by opening the door, displays all the necessary identification information for this appliance for ordering replacement parts.

GENERAL INFORMATION

Please read this manual carefully before using the appliance. It is important that all the control functions are understood before beginning to cook with this appliance.

Heed the advice and warnings included under the title "IMPORTANT - Safety advice and instructions".

• This appliance has been designed for private domestic use and can be integrated into standard kitchen furnishings or similar.
  In order to use in caravan-type vehicles, indications included in the Installation Instructions should be borne in mind.
• Use of this appliance for any other purpose or in any other environment without the manufacturer's express agreement will invalidate any guarantee or liability.
• This new appliance is guaranteed against all mechanical defects, subject to certain exclusions indicated in the Manufacturer's Terms and Conditions of the Guarantee.
  The above does not affect your statutory rights.

Ensure that all protective packaging and covering has been removed before using this appliance.

To collaborate in protecting the environment, separate the packaging materials into the different types and dispose of them according to local waste disposal regulations.

The packaging is designed so as not to harm the environment; it can be recovered or recycled as it is an ecological product. By recycling the packaging, you will contribute to saving raw materials and reducing the volume of industrial and domestic waste.

Any additional information on waste disposal may be requested from your local environmental agency.

When used for the first time, a slight smell from the protective covering or damp may be noticeable, which will disappear after a short time.

The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. This product must be handed over to an electric and electronic equipment collection point for recycling. On ensuring that this product is disposed of correctly, you will help to avoid possible negative consequences for the environment and public health,

which could occur if this product is not handled correctly. To receive more detailed information about recycling this product, contact your local government, domestic waste disposal services or the outlet where the product was bought.

This appliance has been built and distributed in compliance with the essential requirements of the following EEC EUROPEAN LAWS AND DIRECTIVES:

EC Symbol - 93/68 Low voltage - 73/23 CEM-89/336 Safety Rules - EN 60 335-1, EN 60 335 - 2 - 6.

This appliance respects laws of the suppression of r interference.

As the Manufacturer has a policy of continuous product improvement, it reserves the right to adapt and carry out any modification considered necessary without prior warning.

IMPORTANT NOTICE SAFETY INSTRUCTIONS AND WARNING

This appliance complies with all current European legislation, however, the Manufacturer must emphasise it's a compliance does not prevent the surfaces of the appliance from heating up during use and remaining hot during its operation.
- Therefore, the Manufacturer highly recommends that the appliance is kept out of the reach of babies and small children.
If children cannot be kept out of the kitchen, they must be

ctivewatched at all times.

• We also recommend that great care is taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully.
• Do not place heavy objects on this oven or lean on the door when opening it, as this may damage the hinges.
• Do not leave hot oil or fats unattended as they may catch light.
• Do not place oven dishes or trays of the lower part of the oven or cover it in aluminium foil.
• Never store flammable objects inside the oven as they may catch light.
• Do not allow the accessories or electric cables to touch the hot parts of the appliance.
• Do not use the appliance for special heating or drying clothes.
• Do not install the appliance near curtains or upholstery furniture.
• Do not try to lift or move kitchen appliances by pulling any door or handle as this may cause damage.
  If the oven join is very dirty, the door will not close properly when the oven is working. The fronts of neighbouring furniture may be damaged. Keep the oven join clean.
• During operation the appliance will heat up. Care must be taken to avoid touching heating elements inside the oven.
• Open the oven carefully. Steam may escape and burn anyone nearby.

• Do not pour water inside a very hot oven. The enamel may be damaged.

• This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer's instructions.

• The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.
• Heat, vapour and humidity are produced during use, avoid all kinds of personal damage and ensure that the room is suitably ventilated. If used for a prolonged period of time, additional ventilation may be necessary - consult a qualified installer if you have any doubts about the necessary volume.

INSTRUCTIONS

This User Manual must be kept for future reference and use by someone who is not familiar with the appliance.

Before using the oven, carefully clean the inside with a non-abrasive detergent and warm water. Introduce the grill and tray in their respective runners. Once the operation is complete, turn the oven on to the maximum temperature for approximately 20 minutes to remove any traces of manufacturing grease, oil or resins which may cause unpleasant odours when cooking.

WARNING: During this first heating some smoke or unpleasant odours may appear. Should this happen ventilate the room suitably until the first operation is finalised.

Once this simple operation has been carried out the oven is ready to use for cooking.

This appliance is exclusively for domestic use.

Use the oven to cook food only.

USING THE OVEN

The oven is controlled by a thermostat between 50^ and 250 ^ C , depending on the temperature required. The thermostat pilot light turns on and off to indicate the temperature control during use.

The required cooking mode is selected using the multi-functional control button. The functions that may be selected are:

A. OVEN LIGHT. Automatic when selecting the cooking mode for all models. The oven light remains on when using the oven.

B. CONVECTION MODE. Provides traditional cooking with heat from the upper and lower elements.

C. UPPER ELEMENT MODE. For gentle cooking, brown- ing or keeping cooked dishes warm.

D. LOWER ELEMENT MODE. For slow cooking and heating food.

E. FAN-ASSISTED CIRCULAR ELEMENT MODE. Provides uniform heating with the fan and allows different dishes to be cooked at the same time on different levels.

F. FAN-ASSISTED LOWER ELEMENT MODE. This provides heating by semi-convection with the lower element for delicate dishes.

G. FAN-ASSISTED CONVECTION MODE. This provides convection heating of the upper and lower elements for uniform cooking.

H. GRILL. For gratinating and browning food.

1. MAXI-GRILL. As above, but the grill element provides a larger area for roasting.

J. FAN-ASSISTED GRILL. This provides fast browning so that food remains juicy. For convection baking, this is the most energy-efficient function.

K. THAWING MODE

The fan works without heat to reduce the thawing time for frozen food.

USEFUL ADVICE

• Before cooking, make sure all oven accessories that are not required are removed from the oven.
• Pre-heat the oven to the cooking temperature before using it.
• Place the cooking trays in the centre of the oven and leave space in between when using more than one, so that the air can circulate.
• Do not fill the tray to full when preparing a juicy, fruit cake. Any fruit juice that drips from the tray will produce stains that cannot be removed.
• Do not put oven trays on the base of the oven or cover it with aluminium foil. This will cause thermal accumulation. The cooking and roasting times will not coincide and the enamel may be damaged.
• Try to open the oven door as little as possible to see the food (the oven light remains on during cooking).
  Take care when opening the door to avoid contact with hot parts and steam.

COOKING INSTRUCTIONS

Read the information of the food packaging for the cooking temperatures and times. Once familiar with the performance of the appliance, the temperatures and times may be varied to adapt them to your personal tastes.

Check that frozen food is completely thawed before cooking, unless indicated otherwise.

Type of food Temp. °C Runners Cooking time			Personal
		in minutes Suggested
Cake mixture desserts in moulds
Sponges or buns 175 2 55-65
Cake 175 3 60-70
Short pastry desserts in moulds
Pie base 200 3 08-10
Cheesecake pie base 200 3 25-35
Fruit pie base 200 3 25-35
Raised dough desserts in moulds
Pie base 180 3 30-45
Soft bread 1 kg of flour	200 3 25-35
Small pastries
Short pastry 200 3 10-15
Doughnut dough 200 2 35-45
Biscuit dough 200 3 15-20
Lasagne 225 2 40-50
Meats (Cooking time per cm of thickness)
Long roasts 200 2	120-150
Short roasts 200 2 60-90
Meatballs	200 2 30-40
Poultry
Duck 1 1/2 Kg 200 2	120-180
Goose 3 Kg	200 2	150-210
Roast chicken	200 2 60-90
Turkey 5Kg	175 2	240-260
Game
Hare	200 2 60-90
Leg of venison	200 2	90-150
Vegetables
Oven-baked potatoes	220 2 30-40
Cooked vegetable flan	200 2 40-50
Fish
Trout 200	2 40-50
Sea Bream	200 2 40-50
Pizza	240	3 10-20
Grill
Chops		4	8-12
Sausages		4	10-12
Grilled chicken		2	25-35
Spit-roasted veal 0,6Kg			50-60

• The runner number is counted from the bottom of the oven up (Excluding the base of the oven as trays cannot be placed on it)

THE POSITION INFORMATION IS INDICATIVE BECAUSE THE COOKING TYPE AND TIMES CHANGE DEPENDING ON THE QUANTITY AND QUALITY OF THE FOOD.

HOW TO USE THE GRILL

Place the food to be browned on the grid or in the shallow tray. The grid has to be placed on the highest runner, whilst the tray for collecting fat should be on the lower runner. Connect the grill using the following positions of fan-assisted oven selector knob, or in the position of the multi-function oven selection knob.

Depending on the type of food (meat, fish, poultry, etc.) it will be necessary to turn it over to expose both sides to the infra-red rays of the grill. For guidance only, we indicate some cooking times below:

Food to be grilled	Cooking times in minutes Suggested
Lean or thin meat	4-6
Normal meat	5-8
Fish without scales	8-10
Fish (e.g. Trout, salmon)	12-15
Sausages	10-12
Sandwiches	2-5

WARNING

• Do not use aluminium foil to cover the grill tray or heat.
• Do not wrap elements in aluminium foil or place them under the grill - the great reflective quality of aluminium may damage the grill element.

USING THE 6-BUTTONE ELECTRONIC TIMER

Description of the button functions:

Alarm

Automatic cooking (duration)

End of cooking time (end time)

Manual operation

Reducing numbers in all programmes

Adding numbers in all programmes

Meaning of the lit symbols:

Indicates that programmed cooking is under way or it is the manual position.

Programmed alarm.

More "AUTO" (Both flashing): Programming error.

AUTO: AUTOMATIC PROGRAMME

Flashing: Programmer in automatic position, but not programmed or ended.

(Light on): Programmer in automatic position and programmed.
No symbol lit, except the clock numbers means that a waiting time is programmed.

Programmer functions:

24-hour display clock.

Alarm (Maximum 23:59).

Automatic programming (start and end of cooking).

Semi-automatic cooking (only start or only end of cooking).

The timer only works when the appliance is connected to the electricity supply.

Electronic clock

Immediately after connection (Also after a power cut) THREE flashing digits will appear on the panel.

To enter the correct time press simultaneously and AT THE SAME TIME one of the buttons 0 until the cor- rect time is shown. There is a 5-second acceptance delay dur ing which no button should be touched.

The speed that the marker changes will noticeably increase some seconds after beginning to press the buttons and

Manual cooking

(Without using the programmer)

To use the oven with the help of the programmer, the ing AUTO indication must be cancelled by p button

If the AUTO indicator is not flashing (which means that the oven is programmed) the programming must be cancelled first by pressing and setting the marker to 0.

Automatic cooking.

(Start and end of cooking)

1)Programme the cooking time using

2) Programme the end of the cooking time using

3) Select the temperature and function required using the thermostat and selector knobs.

After these operations, the «AUTO» symbol will appear on the display, indicating that the oven has been programmed.

Practical example:

We wish to cook for 45 minutes and that the cooking time ends at 2 p.m.

• Pressing we set 0.45 on the display.

• Pressing we set 14:00 on the display.

After these operations the current time will reappear on the display as well as the «AUTO» symbol, indicating that our programming has been understood and memorised.

At 13:15 (14:00 minus 45 minutes), the oven will automatically start, the symbols and «AUTO» appearing during cooking.

At 14:00 the cooking will automatically stop and the alarm will sound intermittently.

Press turn the alarm off.

Semi-automatic cooking

A. Programming the duration of the cooking

Set the chosen cooking time using the button and set the duration.

Cooking will start immediately, the symbols «AUTO» and will appear on the display. When the programmed time has passed the cooking will stop and the alarm will sound intermittently. Turn the alarm off as described above.

B. Programming the end of the cooking

Set the chosen end time for the cooking using the button and set the end time. Cooking will start immediately and the symbols «AUTO» and 空 will appear on the display. Cooking will end at the set time and the alarm will sound intermittently. Turn it off as indicated above. The state of the programming can be checked at any time by pressing the corresponding button.

The programming can also be cancelled at any time by pressing and setting the marker to zero. By then pressing the oven will be ready for manual operation.

Electronic alarm

The timer function consists solely of an alarm which can be adjusted for a maximum period of 23:59. To adjust the time, press the button and at the same time (+) or (-) until the desired time appears. Having made the adjustment, the real time will reappear next to the symbol

The countdown will begin immediately and can be viewed on the display at any time by simply pressing the button. When the time has ended, the symbol will disappear and the alarm will sound intermittently, which may be turned off by pressing the butto The alarm does not control any of the oven functions.

NOTE

• If an error is made it will be indicated via an alarm and the "AUTO" symbol will flash. Cancel the adjustment by pressing the button and then re-programme to rectify it.
  The alarm that sounds at the end of a programme will continue for seven minutes unless cancelled by pressing the button. However, at the end of the seven minutes the "AUTO" symbol will continue flashing.

• The alarm has three tone positions, low, medium and high. To adjust the tone, check that the timer is in the manual mode, then press the button and hold down to hear the tone selected. On releasing the button, press again and hold down to select another time. Repeat the procedure until the required tone is heard.

WARNING! a power cut will result in the programmed functions to be cancelled, including the clock. Once the power returns three flashing zeros will appear and the oven can be re-programmed.

USING THE MECHANICAL TIMER

Once the thermostat controls are in the desired position, turn the knob clockwise to the maximum position and then turn it anti-clockwise to the desired time; at the end of this set time the buzzer will sound. The timer only indicates the end of the set time, but it does not stop the function being used.

CLEANING THE APPLIANCE

IMPORTANT

As a safety precaution, before beginning to clean the oven always unplug it from the power supply or remove the appliance power lead.

Cleaning an oven that does not self-cleaning panels must be done after use, when it is switched off but still warm, not hot, so that the film of grease produced by the cooking vapours on the walls is still easy to remove, as well as the drips and splashes of fat that are not yet hard and dry.

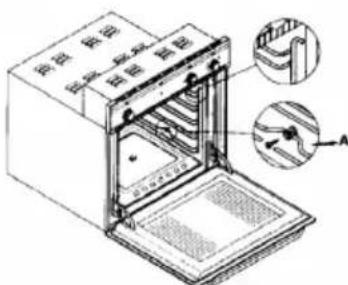

Remove the chrome-plated wire side supports; pull the front part upwards to unattach them from the wall and remove them from the rear orifices. Clean the oven with a soft cloth soaked in a diluted ammoniac solution; rinse and dry. If there are still stains and splashes, place a damp cloth soaked in ammoniac at the back, close the door and, after a few hours, wash the oven with warm water and liquid detergent, rinse and dry carefully. To clean the shiny metal outside doors, use a soft cloth with soap and water; do not use any powdered products that contain abrasive substances.

Also avoid the use of acid or alkaline substances (lemon juice, vinegar, salt, tomatoes, etc.). Avoid using products containing chlorine, acid or abrasive substances specially for cleaning the varnished walls. Do not use thick steel wool or hard utensils, as they can damage the surface finishes.

Do not use high pressure cleaners or steam appliances for cleaning the oven.

Normally, wiping with a damp soft cloth and warm detergent is enough, but for stubborn stains the following is recommended:

OVEN CLEANING SYSTEM EQUIPPED WITH THE AQUAS-MART SYSTEM

1 Take out the internal components: tray, screen, side screens.
2 Pour 200ml of soapy water on the bottom of the oven
3. Turn on and set the oven at 200^ for 15 minutes
4. Move the temperature control from 200^ to 0^ . Let the oven cool down for 20 minutes.
5. Move the AquaSmart function to 0. Wipe clean with a rag or soft cloth.

VITRIFIED ENAMELLED PARTS

Only use a recommended cleaner for this type of material - avoid chloride-based products such as bleach.

GLASSDOOR PANEL

Do not use abrasive products which could damage the glass. Remember that if the surface of the glass panel becomes scratched, it could cause a dangerous failure.

To simplify the cleaning, the inner glass panel can be taken out of the door. The method for removing the glass from the three types of door is shown below.

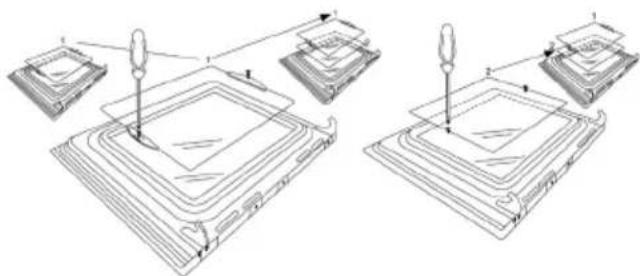

Door type A

After removing the screws fixing the glass, located on the inner face of the door, lift the glass out carefully. In versions with three glasses the intermediate glass can also be removed. The procedure is the same as above.

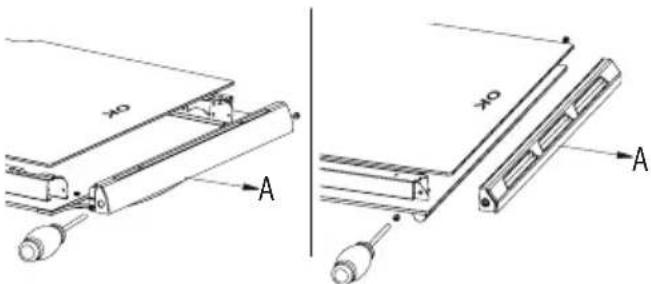

Door type B1/B2

After removing the screws fixing the upper support of the glass, remove the support in direction "A". Then the glass can be pulled out. In versions with three glasses the intermediate glass can also be removed.

Door type C

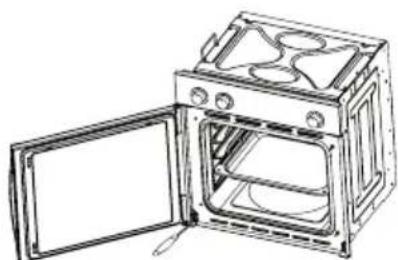

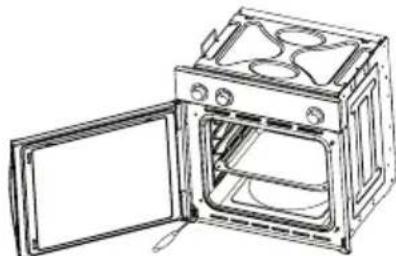

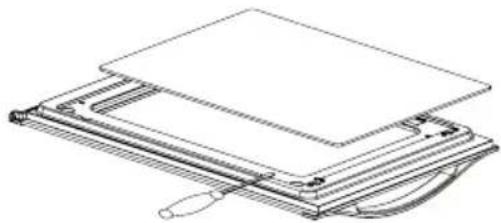

Carefully lever up the glass with a flat screwdriver located in the groove shown in the figure.

When refitting the glass, check that it is correctly fitted into the toothed joint of the door and all around.

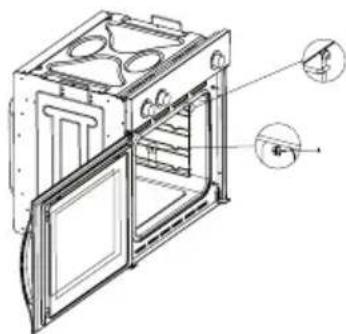

REMOVING THE DOOR FROM THE OVEN

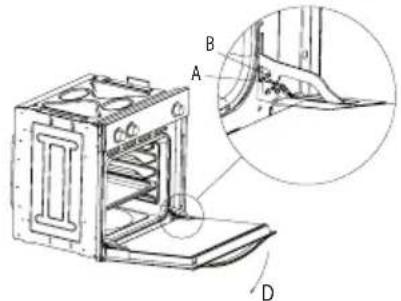

To simplify cleaning the interior of the oven, the door can be removed. The process of removing the door for the three types is shown below:

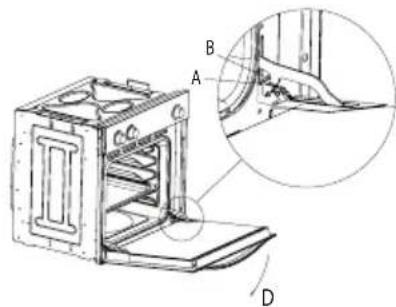

Door type A/B2

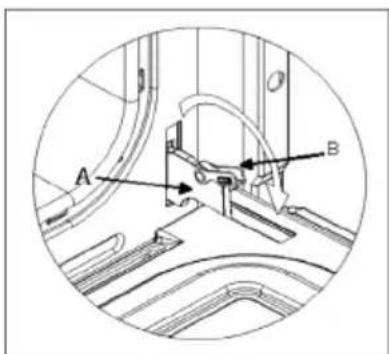

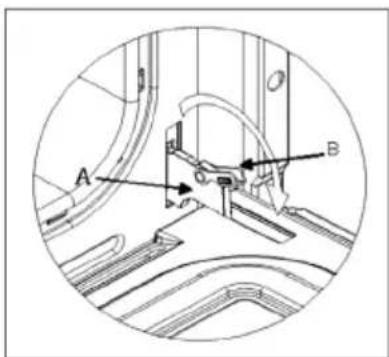

The hinges "A" have two moving bolts "B".

When the bolt "B" is lifted, the hinge comes out of its housing. Then close the door to the half-way position.

Next, lift the door upwards and remove it, sliding it outwards; hold the door by the sides close to the hinges when doing this. To replace the door, first slide the hinges into their grooves and open the door completely.

Remember to turn the two moving bolts "B" used to engage the two hinges before closing the door (Fig. 3).

WARNING

Take care not to remove the hinge locking system when taking off the door, as the hinge mechanism can spring back suddenly.
- Never submerge the door in water for any reason.

Door type B1

Open the door fully to position "D"

Lift the two mobile links "A" of the hinges, until fixing at point "B".

Then close the door to the half-way position.

Next, lift the door upwards and remove it, sliding it outwards; hold the door by the sides close to the hinges when doing this.

To replace the door, first slide the hinges into their grooves and open the door completely.

Remember to turn the two moving links "B" used to engage the two hinges before closing the door (Fig. X).

WARNING

Take care not to remove the hinge locking system when taking off the door, as the hinge mechanism can spring back suddenly.
- Never submerge the door in water for any reason.

Door type C

Open the door and support it firmly.

Using a suitable screwdriver remove the lower hinge by the part fixed to the oven.

Then remove the upper hinge from its place and take off the door.

To replace the door, follow the same steps in reverse.

Oven accessories (Fig. 4)

The oven can be provided with lateral guides fitted to the oven wall. Insert the grid and oven sheet provided on the lateral guides. To remove the guides proceed as follows for the two types:

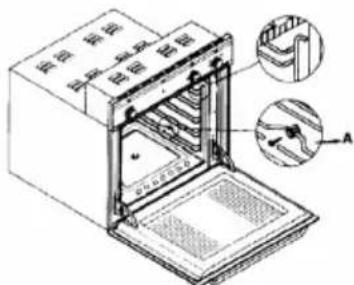

Bars type 1

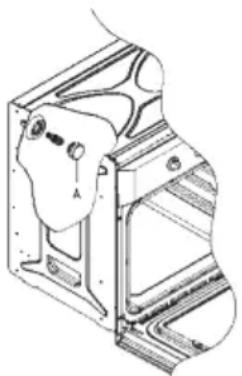

To remove the lateral guides press downwards at point A.

Bars type 2

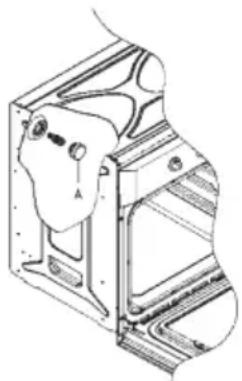

To remove the lateral guides take out the screw using a suitable screwdriver, lift the bars upwards until they are free.

INSTRUCTIONS FOR INSTALLATION

This appliance must be installed by a competent person, in accordance with the current version of the UK Safety Rules and Regulations or their European equivalent:

Urban development regulations (published by the Department of Environment).

Urban development laws (published by the Scottish Executive Development Department).

IEE wiring regulations.

Electricity in labour regulations.

PRIOR START-UP OF THE APPLIANCE

When it is unpacked, check that the following parts are with the oven:

• Instructions and Installation Manual
  Oven grid
  1 tray
• Screws and stoppers for fitting the appliance in the housing

FITTING THE APPLIANCE (see Fig. 5)

These appliances are classified as Class I.

The earth is obligatory as provided for by law. The manufacturer declines all liability in the event that the accident prevention rules have not been followed.

IMPORTANT

The adjacent piece or furniture or cupboard and all the materials used in the installation must resist a minimum temperature increase of 85^ above the ambient temperature during use of the appliance.

Certain types of vinyl or laminated kitchen furniture are particularly susceptible to damage due to decolouration at temperatures below those indicated.

If the appliance is installed without paying attention to this temperature limit or if it is placed less than 4mm from the adjacent cupboards, liability will belong to the owner.

INSTALLATION NOTES

1. The oven has to be installed in a standard gap of 600mm as indicated in Fig. 5, whether under a hob or in a column.
2. On inserting the oven in a column, it is essential in order to ensure there is enough ventilation, to remove the rear panel of the furniture and have an opening of at least 85 - 90mm as indicated in Fig. 5.

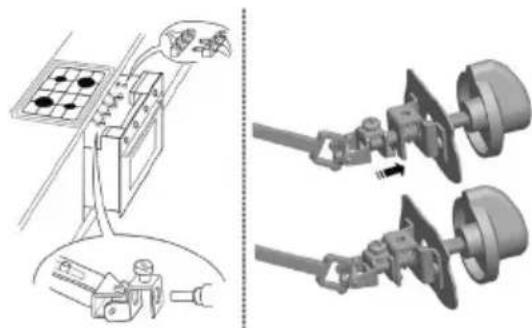

3. Check that the oven has been fixed securely in the housing. Fixing the oven into the cupboard is done using 4 screws "A" Fig.5. One in each corner of the oven door frame.

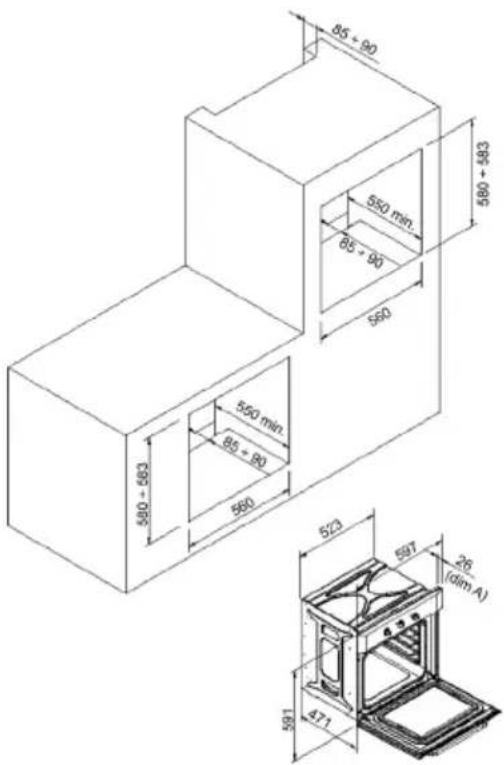

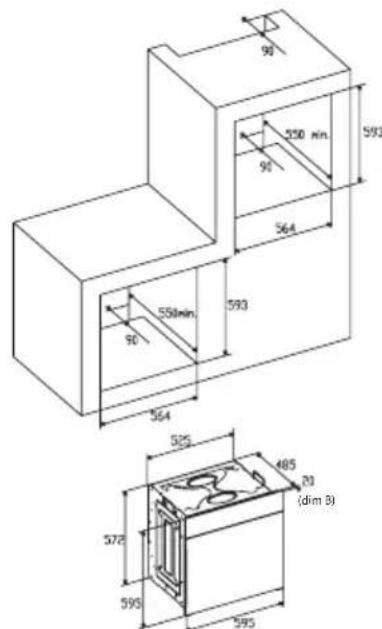

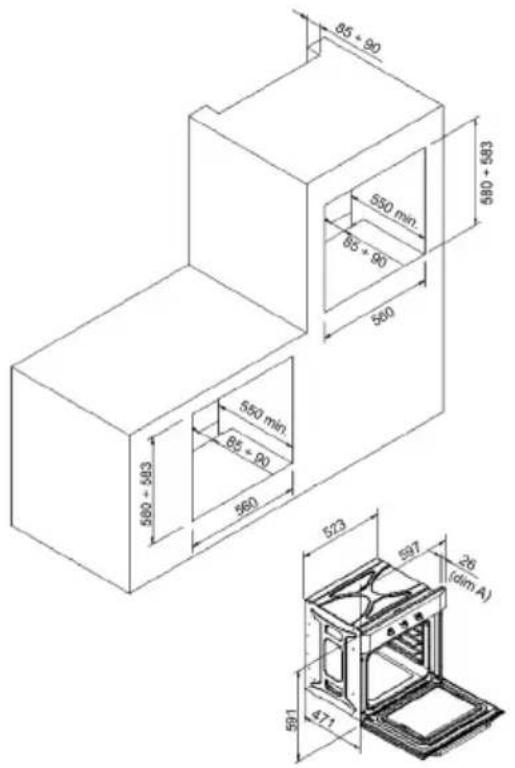

Fig. 5: Installation distanced for simple electric ovens of 60 cms wide (the shape of the upper casing may vary) and attachment to the cupboard.

BUILT IN DIMENSION FOR OVEN WITH DOOR THICKNESS OF 26mm (dim A)

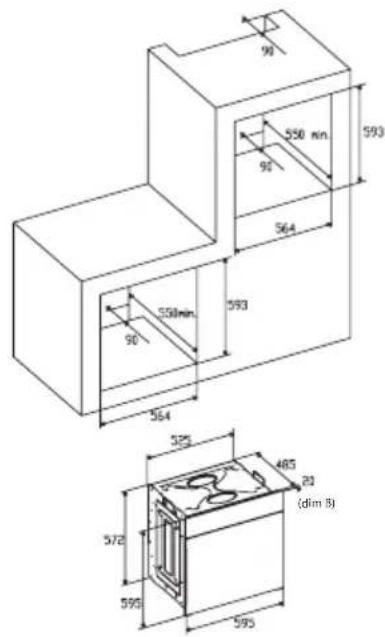

BUILT IN DIMENSION FOR OVEN WITH DOOR THICKNESS OF 20mm (dim B)
4. When installing multipurpose ovens install the s shown in figure n°6.

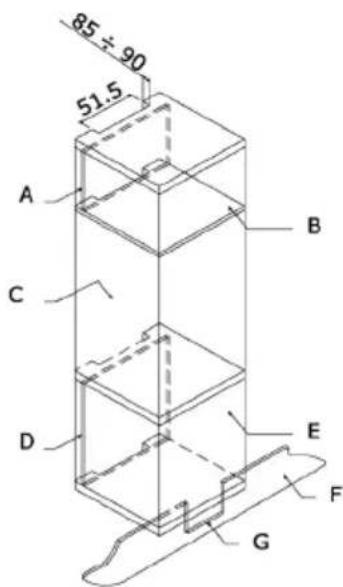

Fig. 7: Ventilation and gap requirements for the installation of a simple electric oven in a standard cooking unit. Minimum ventilation requirements for upper, base and support shelves for the rear part of the unit.

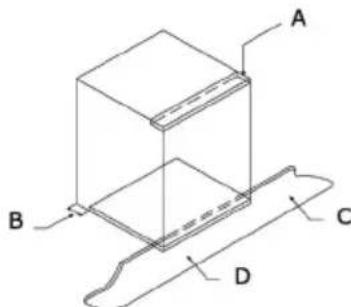

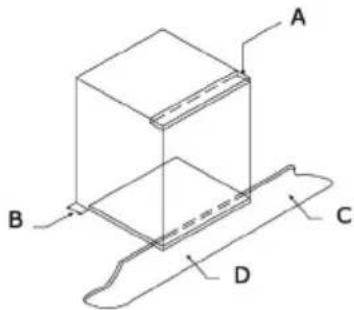

A. The support runner must be removed
B. Spacing of 75-90 mm between the wall and the rear part of the support shelf and the base of the cupboard
C. Base
D. False box front to be assembled

A.Rearpanel
B.Storagespace
C. Remove the rear part of this section
D.Realpanel
E.Storagespace
F.Base

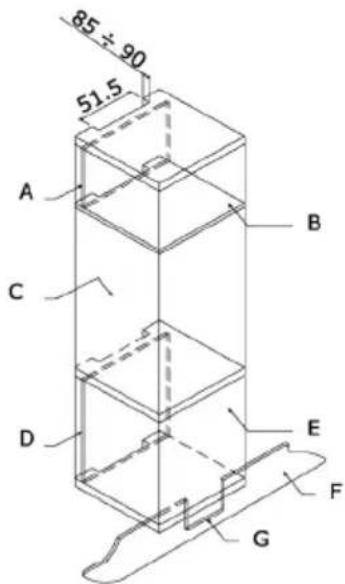

G. Minimum ventilation gap 80~cm^2

Fig. 8: Ventilation and gap requirements for the installation of a simple electric oven in an upper cupboard.

ELECTRICAL CONNECTION

Before connecting the appliance, check that the voltage marked on the specifications plate coincides with the voltage of the electricity network.

The NICEIC register is recommended for electrical installations.

WARNING - THIS APPLIANCE MUST BE EARTHED

This appliance must be wired to a 13 A bipolar automatic switch with protected socket, which has a 3mm separation between contacts and is placed in an easily accessible place next to the appliance.

IMPORTANT

The conductors of the network power supply lead are coded by colours are follows:

Green and yellow -Earth

Blue - Neutral

Brown-Live

• The green and yellow conductor must be connected to the terminal marked "E" or with the symbol of the earth or which is green and yellow.
• The blue conductor must be connected to the term marked "N".
• The brown conductor must be connected to the terminal marked "L".
  The lead must not reach a temperature higher than above the ambient temperature at any point.
• If the power lead is damaged, it must be replaced by a special lead or unit supplied by the manufacturer or it after-sales service.

REPLACEMENT OF THE NETWORK POWER SUPPLY LEAD

If it is necessary to replace the network power supply lead, proceed as follows:

1. Disconnect the appliance from the power supply, unscrews the fastening screws and remove the rear panel.
2. Unscrew the fastening screws and those of the terminals to free the existing lead.
3. Assemble the replacement lead which must comply with the information listed in the Specifications, ensuring the correct connection of the colour codes and that all the screws are correctly tightened.

MAINTENANCE

Before carrying out maintenance, disconnect the appliance from the power supply.

During the guarantee period, if necessary all services should be commissioned to the Manufacturer's Technical Assistance Service Department. Bear in mind that intervention or repair by unauthorised personnel will invalidate this guarantee.

REPLACEMENT OF THE OVEN LIGHTBULB

Not covered by the appliance guarantee.)

The oven has a light with the following characteristics: 15 W or 25 W, 300^ and type E-14

WARNING: Disconnect the appliance from the electricity supply, remove the oven door (as described above), as well as the oven shelves.

Remove the glass cover that protects the light bulb by turning it anti-clockwise. Fig. 9 (A)

Unscrew the old light bulb and dispose of it safely and ecologically, change it for one as specified in the Specifications and replace the cover.

NOTE - The glass cover may be tight and, therefore, may need a grip to release it.

CARE AND REPLACEMENT OF THE CATALYTIC COVERING

(When assembled, the covering is not covered by the appliance guarantee).

In order to keep the covering "always clean" efficiently, the oven must be heated to a minimum of 200^ whenever there are stubborn stains, so that they do not become permanent.

If the covering becomes black and shiny, they must be replaced. Remove all the internal accessories to facilitate the replacement of the covering.

The replacement covering may be bought directly from the Manufacturer's Replacement Part Department (see details included in the cover). Indicate the reference numbers of the product type described in the specifications plate and/or the series number of the appliance on ordering.

SPECIFICATIONS

INTERIOR DIMENSIONS

Height: 340 mm

Width: 440 mm

Depth: 390 mm

Useful volume: 59 litres

ELECTRICAL INFORMATION

Nominal voltage:

220V-240V\~50Hz

Power connection: 13A (automatic bipolar switch with protected socket, with 3mm separation between contacts)

POWER ABSORPTION

Base Resistance: 1,30 kW

Roof Resistance: 0,90 kW

Fan Resistance: 2,30 kW

Grill Resistance: 1,35 kW

Network power cable:

3x1.5mm² type H07RN-F

Oven light bulb:

15 W - 25 W / 300 °C screw type E-14

The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance.

The Manufacturer reserves the right to make any modification it believes necessary and useful to the products, without prior warning.

ISTRUZIONI PER L'UTENTE

Volume utile: 59 litri

DATI ELETTRICI

Tensione nominale:

220V-240V\~50Hz

WAARSCHUWING en VEILIGHEIDSVOORSCHRIFTEN

WAARSCHUWING-DIT APPARAAT MOET GEAARD WORDEN

Para as instalacoes electrolyicas, recomenda-se o registo NICEIC.

JaHHoe yCTPOIcTB COOTBeTCTByeT 3aKOHAm O IIOaBJIeHN paDNONOMex.

Tak kak n3rotobntel npndepknaeTcnpnHnnoB NOCTOHHORO COBepweHCTBOBaHN npodykta, OH OCTaBnEET 3a c6oB npnHmAtb N BblONHb TBCAKHe MOINKauuN, KOTOpBle CHTaOTcH He06XOnMbIMn, 6e3 KaKOrO 6bl To Hn 6bln PpeDbapntelhoro yBeOMJhen.

AXHHOE 3AMEUAHNE - INHCTPYKUMI NO TEXHUKE BE3OJACHOCTN I NPEUYIPEXKDEHNE

3NeKtponpnp6op n ero OTKpbItbIe qactn MoryT 3HaunTeBJaHHoe yctpoiCTBO COOTBeTCTByET BcEMy TeKyuemy ebponenCKOMy 3aKOHODaTEbCTBy IO 6eONaCHOCTN, ODAKO I3ROTOBNTbIOJIKeH NODUePKHyT, YTO 3TO COOTBeCTBHe HE KAcaeTCHarpeBaHm NOBepXHOCTeY cTPOiCTBA BO BpEm 3KcNpyataLIM, KOToPbIE OCTaIOrC rOpAUMM BO BpEm pa6Otbl.
He- IOnTOMy H3ROTOBNTeHb HAcTOAteHbHO peKoMeHnyeT HeJ DOnyCKaTb K YCTPOINCTBy MaJIeHbKnx DeTei.
Ecni oecneuHTb OTCyTCTBnE DeTei B KyxHe HeB MOxHO,3a HmH NyKHO NOCTOARHHo CNeDNTb.
Takke pekomeHnyem 6bItb OCTopoXhbIMN BO BpeM NOIb3OBaHnI OOHTKn. BHImaTeJIbHO npouHTaIte pa3dJIbI NO daHHOMy yCTpoJCTBy, KacaIOUneCra OoNCTK IN TexHnueCKOrO o6cLyKINBaHnI.
He KnaIte Ha IyXOBky TjKeIbIX npEIMeTO H He OINpaTecb Ha IBepy, KOrJa ee OTKpbIbAeTe, NOTOMy UTO 3TO MoKet npNBecrN K NOBpeKJeHIO nTeNb.
He octabriae 6e3 npncmotpa ropayee macno nnn knp, TaK KaK OHN MOryT 3aRopeTbcra.
He KlaInte npOTBn NnIOHocbHa dHO dyXOBKn Hne npIKpbBaIte ee aIOMMHNEBOH oJbRoN.
Hikorda He xpaHnte BHTpn DyXOBKn IerKOBocnAmeneHembIe PpeMeTbl, NOTOMy YTO OHN MOrY 3aRopeTbCra.
- He donyckaIte npinkocHOBeHn npHaJNeKHOCTe nINn 3NeKtpnuecknx Ka6enei c ropeuMn deTaIaMn yCTpoIcTbA.
He nCnoB3yIte yCTpoINCTBO Ia CneuaJIbHbIX HArpeBaHn nn dny cyWeHHOeKDbI.
He yctaHaBnBaIte ycTpoIcTB0 B6n3n 3aHaBeCOK mRKO Me6eJI.
He nbTaIteCb NOHMaTb nn nepemeaaTb KxOHbYcTpoNCTBa 3a pyky nn 3a DBepuy, TaK KaK 3TNM Bbl MoXe nx NOBpeNDtB.
- Ecnn nloockoctn conpkaeHna DyXOBKn OueHb rp3HbI, DBepca He 6ydt Hndnexkaunm 06pa3om 3aKpbBaTcBcR BO BpeMa p6oTb. Moryt 6blT nobpeXdeHb I nepeHne qactn 6bn3ko paonoloxeHHo Me6enn. POndepXnbAitte YNCTOTy nloockctn conpkaeHna DyXOBKn.
Bo Bpempa60bI yCTpoNCTBO HArpeBaETc. CneJyET 6bTb octopoxKhbIM n36eRaTb KOHTaTKa C HarpeBaTeNbHbIMn 3JIeMeHTAMn BHyTpnu DxyOBKn.

• OTkpbBaIte dyxOBky octopoXkHo. I3 dyxOBKn MoKet BblpBaTb nap npuHHnB oXoN HaxOJaUMCpaJOM.
  He BInBaIte BOy BOBHyTpbo OyeHb rOpaye MoKeT 6blb NOBpeKdHa 3MaJIb.
• UcpoICTBO DOJIXHO npabunbHO yCTaHaBnBaTcBcJINUOM, 06naiaoum DoCTaTOHOn KBaIIuKNaCneB, B CTporom COOTBeCTBm C nHCTpyKUmaN m3rOToBnteJI.
• I3ROBtEnb CHMaet C c6eIIO6yIO TBETCTBeHHOCTb 3a TpaBMbl mATEpnaHbH yuep6, HAcTyINBwne B pe3yIbTaTe HnpeBaNbHOH kCnIyatauNN nII HnpeBaNbHOH yCTaHOKn DaHHoD yXOBKn.
  Bo Bpempa60tbo 6oepa3yetc TENIO,NCnapeHIN BR n36eraIte NOnyuehn TpaBM n ObecneubTe Hndnxayu BOHTNJRAUIO NOMEUHNI. PnN OJb3OBAHN B TeueHHe NPOdoJXNTeBHO NEPNOA MoKET OKa3aTbc HEo6xOIMON DOnOHNTEbHAR BEHTNJCAUR -ecn y Bac Bo3HkHYT COMHeHNA B OTHOWeHHN Heo6xOIMORO O6bema, pOKOH CyIbTnpuyTeCB C KBaINΦuNPoBaHHbIM MOHTaxHKOM.

MHCTPYKUIN

DaHoe pykoBODCTBO nonb3oBaTeN JOnJXHO xpaHITbcB KaueCTBe cnpaBOOHoro Noc6nHa 6dyuee n dny noB3OBAHnue YeIOBEKOM, He3HaKOMbIM C daHHbM yCTPOIcTBOM. PpeXdye NpB3OBAbTcB dyXOBKO, TuaTeNbHO OUnCTnTE BHyTpeHHne NOBepxHOCTn Hea6pa3NBbIM YnCTAunm CpeIcTBOM n TeNIOB BOIOy UCTAHOBtpeWetky n IpoTNBEh B COOTBetCTByIOUne HAnpABJIIOUne. I0 3aBepWeHN 3TOI ONepaUN, BKJIIOHTe DxyOBKY Ha MaKcMmaIbHyIO Tempepatpy npImepHO Ha 20 MNHT dny UdaJIeHNr CneoB 3aBODCKOcm3Kn, MaCna ININ CMONbl, KOTOpbl MOrYr CTaTb npNInHO HeNPnRTbIX 3aNaXOB BO Bpem nprirotobJeHn nn.

PNEyPExKHeHne:BoBpemnepBoroHarpeBaHnMOxET NOBtbcrDbIM NnHn HnpnTHbte 3anaxn. B TaKOM Clyuae XopoOIO npOBeHTnIpyTe NOMeJeHne, noka He3aKOHHTcNepBaIonepaun.

Iocne OKOHuaHnE 3ToI npocToI onepaunu DyXOBka 6ydet roTOBa dny nprirotobHeHHn.

HactoJee yctpoiCTBO npedHa3haueHO ncknOHTeJIb-HO DnI DAOMaHIero NOLb3OBAHIN.

IcnoB3yTe DxyOBky ToIbKO dI npuroToBneHn NIIuN.

NOLb3OBAHNE NLIHTOJ

Данная духова ретуниретс ТермocтамВдидао He ot 50^ do 250^ B3abncmoctnOT hyxhoT TemnepaTpybl.ИнdkaTopnaЯamnoчka Tepmoctata BKIOUaetcN BbIKIOUaETcДяУka3AHNAHa TEMpepaTyphbI KOHTpOJIb BO BpeM NOlb3OBAHNA.

Heo6xodnmbi pekm roTOBKn BbIbnpaTc npn nOmo mHorofoyHKuHOHaBHO KNOpKn ynpabEnn. MoKHO BB6paTb CneDyUOune FoHKun:

A.OCBEUHEHNE DYXOBKN.OHa aBTOMaTnuecka npu Bb6ope pexmra TOTOBKn Ira BCxMoJeNe).OcBeueHne dyXOBKn BcerdaBKloueHO npn Nolb3OBAHn eo.

B. KOHBEKUOHHBI PEKM. O6ecneuBaET TpaNtIOHHyIO rTOBky C NOCTyJIeHNEm TEIIa OT BepXHeRo I HIXHeRo 3JIeMeHTOB.

C.PEKIM BEPXHEO 3JEMEHTA.ДЯ rOTOBKHa MeIeHHOM OrHe,ДЯ NOJkaPbAHnI INN

DyXOBKpaHHeHnraTOBbIX 6NIO TENNbIMN.

D.PEXNIM HNXHEO 3LEMEHTA.1nra rTOBKnHa MeIeHHOM OrHe nIa noOrpeBaHnna Nnui.

E. PEXKIM KPYROBOTO 3JEMEHTA C NOIyBOM. O6ecneuBaet oHoo6pa3Hoe HaRpeBaHHe C npImeHHeM BeHTnJIrTopa I daET BO3MOXHOCTb pNIROTaBnBAt bOHOBpemeHHo pa3NIuHbIe 6JIOna Ha pa3HbIx ypoBHx.

F. PEXKUM HXXHEO 3JEMEHTA C NOIDY-BOM. O6ecneuBaet HarpeBaHne c noIykoHBeKUnei HxKHM 3JEMeHToM dIg N3bICKaHHbIX 6nIO.

G.KOHBEKUOHHBIPEXUMCNOyBOM.06ecneuBaet KOHBeKUoHHe HaPeBaHneBepxHMn HnxHm 3JeMeHTaMn dpaBHomepHOI TeNIOBOI 6pa6OTKn.

Hn OINH CmB0N He NODcBeueH 3a NCKJIIOUeHHem UOpP YacOB, YTO O3Haayet, YTO nporpaMMpyeTc BpEm OxN- daHn.

Функци nporpammaTopa:

YacbC 24-ycobim nucnneem Cunhaun3aunna(Makcymm 23:59)

AbTomatnuecko nporpammmpoBaHne (Haayao n OkOH-uaHne TepnoBoi 6pa6oTKn)

IonyaBTomatnuecka TeNIOBaa 06pa6oTKa (ToIbKO Ha- yano nn ToIbKO OKOHuaHne TeNIOBOI 6pa6oTKn)

Taimep pa6oTaET ToIbKO B TOM cIyue, ecnn dYxOBKa IOdkHoueHa K NCTOCHNYeJIeKtpuYeCKORO NITAHIN.

3neKtpoHHbIe yacblreloj electronic

Cpa3y Je nocJe coeHHeHn (TaKJe n nocJe otKnHoueHn 3JekTpo3Heprn) Ha naHeJn NOBJIOTc TpN MuraIOxuX uOphbl.

Для Вьда npabnblho BPemHn Haxmnte + icon OndOBpeMeHHo n B TO KE CAMOE BPEM oHy n3 KHOOK nIN, nOka He noBHTc npabnblHoE Bpe

M. BbINOJIHЯETc5-CEkyHdHa 3aepKka dna npHeMa, B TeueHne KOTOpO HeIb3ra HaxmuTb Hn Ha KaKne KHONKn.

Ckopoctb n3MeHeHn MapKepa 3aMeTHo BO3pactaetpe3 HeckOJIbKO CeKHyI NOcJe HaxaTnHa KHOJKN

FToTobKa BpyHOM pexnme

(6e3 noIb3OBAHn nporpaMmTaopa)

KAK BbIHytb ABEPU NCH

Ibepua neu ChmMaetc da ngleerHn yXoJa 3a BHyTpEnHe nnOIOCTbIO neu. HnKeMb npINBOOM ONCAHne pa36OpKn DBepu b neu dN BCEXP Tpex BO3MOKhbIX BNDOB DBepubl:

BnA DBepuI A/B2

Дя Дверньх neteЛь "A" npeducmOTpeHbI DBa noDbNk-HbIX 6oNTa"B".

Pn noHnTn 6oTaB"DBeHna nTe nCBoOdHo ChmMaetc. Pocne 3TOrO 3aKpOte DBepy Do npomexyTouHoro noJoxeHH.

3aTeM NOHmnte DBepy No HApBaBHeHIO BBepx N BbIHbTe ee, NotHyB 3a Hee No HApBaBHeHIO HApJy, n npIepKJBAB A Bepy B MeCTax PAnOM C NeTlAMN.

IJIa c6OpKn DBepebl, BO-nerpBbIX, BCTaBbTe DBepeHbIe neTIN B COOTBeTCTByIOUcne Na3bl IN NOHOCtBIO OTKPOITe DBepey.

He 3a6ydbte NOBepHyb o6a noDbNkHbIX 6oTnTa "B", KOTopbl Bbl noDhann dIra ChTnA DBepcbl, Ila 3akpenneHHna 0eHX nTeNb nepez 3akpbItmem DBePcbl (Pnc.3).

BHIMMAHNE

BbHmam Bepuy, cneinte 3a Tem, TTo6bI BmecTe DBepeu BHe BbHynn CnCTemy 6NoKIpOBKn nTeNb, TAK KaK B 3TOM cnUyae MexaHn3M nTeNbHoro 3aTBopa pe3KO BepHTcB uCXoHoe NOJoxKeHne.
Kateropnueckn 3anpeaetc nppykaTb Dbepuy B

BuaDbepbB1

OTKpoIte DBepu HAcTeXb Do OocTnxKeHn NpOxKeHn "D" POnHMnTe 6o nOpBnKhBie 3BeHa "A" DBePbIX nTeJb, Do 3aKpePnEHHr ToKn B".

Iocne 3toro 3aKpOte DBepu y Do DocnXKeHn npomeKyTOuHOro NIOJoxHeHn.

3aTe mnoHmMTE DBepu No HappaBHeHIO BBePx N BbHbTe ee, NotaHyB 3a Hee no HappaBHeHIO HApyKu, npueM npu BbINOHeHH 3TuX DeiCTBuN npndepKuBaIte DBepu B MeTax PAnOM C nETnAMN.

IЯсборкн DBepci, BO-NepBbIX, BCTaBbTe DBepHbie neTIN B COOTBeTcTBYIOUIne Na3bl N NOJIHOCTbIO OT-KpoITe DBepuy.

He 3a6ydbTe NOBepHyb o6a noDbNkHbIX 6oTaN“A”，KoTOpblb Bb nOdHnnn dIy Chrtny DBepuI，Iy 3akpenneHnna 06eunx neTebpeep 3akpbItnem DBepuI (Pnc.X).

BHIMAHNE

BbIHMaA DBepy, CneIte 3a TeM, QTO6bI BMeCTe CDbepuei BbI He BbHynn CnCTemy 6JIOKIpOBKn peTeNb, TAK KaK B 3TOM Cnyae MexAHN3M NeTeNbHORO 3aTBopa pe3KO BepHeTcB NxCoDHOE NOLOKeHne.
Kateropnueckn 3anpeaaetc norpyxkTaB DBepyu B Body.

BnA DBepuCb C

OTkpOte DBepeu N Kpenko ee npIepKnte.

C NOMOUBIO COOTBeTCTByIOUeI OTBepTK, CHIMNTE HIXKHO DBepHyIO NETIO, KOtOpA KpENIT DBepu K Neu.

Iocne 3TOrO nonHOCTbIO OCBO6oNDte BepxHIO IO neTIO IN CHIMNTe DBepuy.

ДясборкIN DBepciI, NOBTOPte Bce 3TN DeiCTBnI, HO B O6paTHOM nopRKe.

PnHaJnxHocTn, BxOJaIue B KOMnNeKT DBepubl (Pnc.4)

B KOMNNEKT Neu Moryt BxOoNTb 6OKOBbie HnpaBnaIOUne, KOtOpBie npKpePienHe b K cTeHke neu. B 3TOM Cnyaue HaDo BCTaBnTb B 3TN HnpaBnaIOUne COOTBeTcTByIOUne peWeTKn, a TaKxe NODOn, BxOoAun B KOMNNEKT Neu. Hnke npBODNTc ONsCaHne pa36OpKn HnpaBnaIOUne dIaDByxCuSeCTByIOUnx BIDOB:

Pewetka Bn1

IIN CHTIN 60KOBbIX HAnpaBnIOx IOCTaTOHcNerKa HaxaTb NO HAnpaBHeHIO BHN3 Ha ToKy A.

Pewetka Bm2

Дя CHЯТЯ 6OKOBbIX HAnpaBnIQUx, OTBnHTnTe 6OIT COOTBeTCTByIOUe OTBepTKoI, n NotaHnTe 3a peWetKy NO HApBaJIeHnIO BBePx, NOKA OHa He CHIMETcR.

NHCTPYKLIIMIOYCTAHOBKE

DyXOBKa DOnJxHa yCTaHaBnBaTbCk KBaIINΦuNPOBaH HbIM CneuaNtOM B COOTBeTcBnC TeKyuSei BepCne HOpM n npaBn TexHKn 6e3oNaChOCTn CoeHNHeHoro KoponeBCTBa nn nx eBponecknx aHaNoROb:

HopMbI rpaOCTpOnTeJIbCTBa (ony6NIKOBaHbI denapTaMeHTOM OKpykaHOSe cpebl)

3aKohbI rpaOCTpOnTeJIbCTBa (ony6NIKOBAHbI wOTlaHcknM INCNOJHTeJIbHbIM DeapTaMeHTOM pa3BHTNA)

3JNeKtpotexHnueckne npabna HcHctntyTa NHKeHepOB NO 3JIeKtpnke n 3JIeKtpoHnke

3NeKtpnueCTBO B TpyoBOM 3aKOHOaTeJIbCTBe

NEPEB BKJIIOUeHHeM yXOBKn

Pn pacnaKOBKe npoBepbTe, HaxoJrTcN B DyXOBKe cnedyuoune Detan:

• INHCTpyKuIMn pykoBOIDCTBO NO yCTaHOBKe.
  -NeuHbIepeWTeKNnN
  1 npOTnBeHb
  BnHTbI nCTOnOpbln BCTpaNBaHn DxyOBKn BnHy.

MOHTaX JyXOBKn (CMOTpn pnc.5)

3tn dyxobkn klaaccnphiunpyoTcno knaccy I.

3a3eMlHeHne 683aTeIbHo, KaK TOro Tpe6yEt 3aKOH. N3-rotOBHTeJIb CHIMaET C Ce6B BcIO OTBeTCTBeHHOCTb PnHecO6JIIODeHn IpaBn IpeD0TBpaUeHn HecuactHbIX cnyuaEB.

BAXKHOE 3AMEUAHNE:

Pnmbkaoaa Me6eb nnn uKaΦ, a TaKxe Bce MaTepeaIbI, nCnoB3yeMbI e np yCTAHOBKe, DOnxHbI BbIepXnBaTb, KaMnHmym, NObBiWeHne TemnepaTypbHa 85°C BiIe TemnepaTypbOkpykaioue Cpebl BO Bpempa60TbI dyXOBKn.

OnpeHeneHHbI TINbI KxOHHO Me6eN I3 BHNHa IIN cONCTORO NAACTKc Oo6o YyBCTBnTEJbHbI K NOBpeXdEHnM B CBA3N C ObecuBeuBaHnEM PnI TeMnpaTpyax Hnke yKa3AHnO. Ecn dYxOBKa yCTaHaBnBaETc8 6e3 yUeta 3TORo TEMepaTyphoro npeJa, IIN eCn OHa yCTaHaBnBaETcHa paCtOraHm MeHee 4 MM OT npMbkaIOxN X KaΦOB, OTBeTCTBeHHOCtB 3a 3TO 6yDet HeCTN BlaJeue.

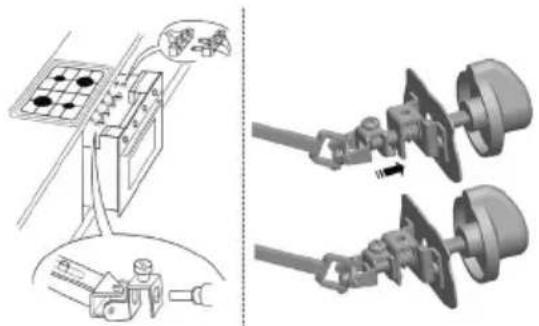

3AMEUAHNIOYCTAHOBKE

1.Духовka yctaHaBnBaETcB CtaHdapTHOM npoeme 600 MM, KaK yka3aHO Ha pncyHke 5, 6ydTo NOI nonkO IЯ HarpeBaHH NIN B NeHaJ.
2.Пи установке духови Bпehаочевь вaxho,уTO6bl obecneuHTb DOCTaTOHHy BOHTINLAQUIO,CHrTb 3aHIOI naHelen c Me6eNn IN ppeyCMOTpeTb OTBepCTne pa3Me- pamn, no KpaHHeMpe,85-90 MM kaK yKa3aHO Ha pucyHke 5.
3. Поберп, чтбд духовka 6ына habжно 3aфксюва в пош. 3akpenлени духовkn b shkaфу oyusectbnaertc npn nomouи 4 bintob "A", pnc.5.По odHOMyВKaJDOM yIny dBePHOpaMbI dYxOBKn.

Pnc.5:PacctoHn npu yctaHOBKe dna npoctbix 3neKtpnuecknx neeu uupnHO 60 cm (phiMa BepxHero KoxyamaoKeT 6bTB pa3HO) n BcTpaNBHe B ukaΦ.

PA3MEPbI YJIYBJEHINIA JLYDXYOBOTO LKAΦA CTOJIUHOJ DBEPLbl 26 MM (dim A)

PA3MEPbI YJIYBJEHINJI DYXOBORU LKAΦA CTOJIUNHOI DEBPLbl 20 MM (dim B)

1. Ppn yctaHOBKe MHorOfoyHKnOHaJIbHOJ DyXOBKn, yCTaHOBtEs, NOKa3aHHyO Ha pncyHke 6

A. Onophyu HnpaBraIouyu HyxHcHrTb
B. PacctoHne 75-90 MM MEXy CTeHKoN 3aDHeu qactbIO ONOPHOIJKN IOCHOBAHNEM WkaΦa
C.Ochobahne
D.YctaHaBJIbAeTcIeKOpaTnBHaHaHKJaKa

Pnc.7: Tpe6oBaHnK BeHTnlaucn n 3a3Opam npu yctahOBke npocToI 3JeKtpnueckO dyXOBKn B CtaHdaTpHO KyxOHHO Me6eJI.

MnHmAbhble Tpe6oBaHn K BeHTnlaCnn dny BepxHe, 6a3OBOu nOnOPHOI NOLOK dny 3aDHe uactn DyXOBKn.

A.3aHnnaHnB
B.MecToIyXpaHeHn
C.CHIMMTE3aHIOU qACTb 3TOI CeKUN
D.3aHnnaHeB
E.MecToIyXpaHeHn
F.Ochobahnne
G. MInHmAlbHbI 3a3Op dIe BcHTnJIaIu 80 cm

Pnc.8:Tpe6oBaHnKBeHTnIaunnN3a3Opam npu yCTaHOKe npocToJ 3neKtpnueckOdyXOBKn B Bepxhem Wkafoy.

3NEKTPNUECKNE COEDINHEHNA

Ipejde yem nodknouaTb dxyOBky, npOBepbTe, yTO6bl HAnpJxKeHne, yka3aHHoe Ha nacnpTHo T6nUKe, COBnaDano C HAnpJxKeHem 3eKTPnueckOc cTeN.

Длэлкгчecнх установok pekomehnyetcnoь30baTbca Pernctpom NICEIC (Cobet haunohahhoHnHcneKuIN DnI NOpRyUKNOB, BblONHryUOxNx 3eKtpotexHnueckne pa60tbl).

PNEyPExKDeHne -DAHHOE YCTPOIcTBO NOJIEXKUT 3A3EMJIeHIO

PpOBoDka DaHnHO yCTpoNCTBa DOJXHa OcyueCTBnTbcyape3 DByxNIOUChbI aBTOMaTNueCKn BblKIOuTaTeNb Ha13 amnpc 3aunneHHo p0eTKo, B KOTOPm npedycmTopeh 3aOp 3 MM MeKdy KOHTaKTamn, N KOTOpb yCTaHaBBInBaETcBAERKO DOCTynHom MecTe PraDM C yCTPOINCTBOM.

BAXHOE 3AMEYAHNE

PpOBoJaIe JxNJIb CeTeBOro Ka6JIa NITaHn O6O3Ha- YHebl CBeTobOIM MapKnOpOBKo CNeDyUOIm 06pa3OM:

3eJeho-JeJIbI-3emJIa

Tny6oH-HeuTpalb

KopnueBbIn - Φa3a

3eIeHO-JeENTbI npOBODHnK dONJKeH 6bITb npucoEiHHeN K KJIeMMe, oO3HaueHHoN "E" nII K KJIeMMe CcMBOLOm 3a3eMHeHn, nII K KJIeMMe, oO3HaueHHoN 3eJeHO-JeETbIM cBeTOM.
TOny60n npoBOnHnK dOnJKeH 6bItb npncOeDnHeN KJIemMe, o6O3HaueHHoN "N".
KopnueHbI npoBOHNKdoJIKeH 6bITb npncOeUNHeK KJIemme, o6O3HaueHHoN"L".
Tempepatypa npoBOnHnka Hn B KaKo erOdoJXHa DoCTnRaTb Tempepatypb BiIe 50^ NaTepaTpyo OKpyKaIOUeI cpebl.
- Ecnn cnnoBoi Ka6eIb NoBpeXJeH, erO HyKHO 3aMeHnTb CneuaJIbHbIM Ka6eIeM nnN Ka6eIeM, NOCTaBnEeMbIM N3- roTOBnTeIeM nnN npN nocIeInpoDaXHom 06cnyKuBaHH.

3AMEHA CETEBOTO KABELI NITAHNA

Pn Heo6xOaMOnCT 3aMeHntb ceTeBOI Ka6JIb NtHaNIA NOCTynITe CNeDyUoiM O6pa3OM:

1. OToCoeHnHTe DxyOBky OTeNKeKtpOnuTaHnry, OToBnHTnTe BnHTbI KpeHneHnry n CHmUte 3aDnHO npHeJIb.
2. OTBnHTnte BnHTbI KpePnEHHN IN BnHTbIKJIeMM, YTO6bl OCBO6oNDtB CTapBn Ka6eJb.
   3.ПисоeHINHTe HObI Ka6eIb, KOTOpB IOnJxH COOT BcTBOBaTb INHΦOpMaIuN, yKa3aHHoB B TexHnuecknx YCIOBnIX, CJIeIa 3a CBeTOBoM MapKIpOBKO N 3aTARnBA BnHTbI COOTBeTCTByIOUm yCUNEm.

TEXHNUECKOE O6CJYKBAHNE

PpeKdyeBbINOJIHrTbTexHnueeCKoe 06CnykBaHne,OTcoeHNHTe dyXOBky OT3NeKTPoNtAHn.

B TeueHne rapaHTnHoro nepnoa Bce Heo6xOumoe 06cnyKuBaHne dONXHo npuyatbca OTeDeny TexHueCKOrO 06cnyKuBaHnN u3rTOBnteN. POMHnte, 4TO BMeWateNbCTBO nnn peMOHT co CTOpOHb HeyNoHHomOueHHoro Ha 3TORo nepcoHaHa npuBoNT K aHHyInpOBaHnIO Hactoae rapaHTnN.

3AMEHA JAMNOUKNOCBUEHNA DYXOBKN

(Ha lamnoky rapaHTna Ha dYxOBky He pacnpoctpaHareTc) B dyXOBke npedycmOTpeHa lamnoyka co cneDyUOuMN xapaKtepncnKaAMn: 15 BaTT nnn 25 BaTT, 300^, Tnnpe3b6bl E-14

PNEyPExKHeHME:OTcoeINHte DxyOBky OT cETN 3JIeKtpuueckoro NtAHn,CHMnTe DBepu DxyOBKn (KaK ONCaHO BbIe),a TaKKe NOJKN DxyOBKn.

Chmnte cTeKnHHyo KpbIky, 3aunuOuyo lamnoKy, NOBepHyB ee npotnb yacobOy cTpekn. Pnc. 9 (A)

BbInHTte CTapyIO lamnoky u yTuIN3npyTe ee 6e3- onaChbIM o6pa3OM n 6e3 BpeDa OKpykaUoIe cpeIe, BBInHTte HObyIO, KaK yKa3aHO B TexHnuecknx ycNoBnax, I NOCTaBBte Ha MeCTO KpbuIKy.

PIMMEUAHNE -CTeknHaHk KpbIkwKa MoXeT cnDeTb Tyro, n dA CHaTna MoXeT Notpe6oBaTbcra ycInne.

TOUKe He

YXOD 3A KATAJINTUeCKIM NOKPbITnEM I ERO 3AMEHA

(Ecnn npedymoTpeHO 3TO NOKpbITNe, rapaHTnHa DyXOBky Ha NOKpbITNe He pacnpocTpahReTc).

IINrTOOyTO6bI NOKpbITHe BcERda OUYUaONcB 0f0eKTHBHO,dyXOBKa DOJXHa HArpeBaTbcra,NO KpaHHe Mepe,do 200^ B IIO6OM Cnyae, KOrDa BO3HNkaIOT TpyDHOBBIODNMBie PNTHa CTEm, yTO6bI OHn He OCTaJIncb HaBCerda.

Ecnn noKpbItne cTaHOBITcAeHbIM n 3epKaJbHbIM,ero HxKHO 3aMeHNtB. N3BNeKInTe Bce BHyTpEnHHe npHaIeXHocTn, yTO6bl 6blIO Ierue npOn3BOIDtB 3aMeHy NOKpbITnra. NOKpbITnHa 3aMeHy MoKHO npNo6peTn HEnOcpeCTBeHHo B OTdene 3aNaChbIX qAcTeu N3rOToBnTeN (CMOTPN NOpO6HyU INΦOpMaunu, yKa3aHHyU Ha NOKpbITn). Pprn 3aKa3e YkKaJnTe CnpaBOUhBie Homepa TINa npOdyKTa, yKa3aHHbIe Ha NaCnOpTHoi Ta6nUKe N (nn) cepNHBIOHOMep DyXOBKn.

TEXHNUECKNE YCIOBNA

BHYTPEHHNE PA3MEPbl:

BbICota:340 MM

UnpHa:440MM

Глбина:390MM

3NEKTPNUECKNE DAHHbIE

HomnhaNbHoe HappxKeHne:

220-240 BoIbT, 50 rep
Подклоченп петаня: 13-amнернь ABTOMaTчeckn BыКИюаTeNb C 3aцишЕнHо рОзТКо, B KOTOpOM npeducmTopeH 3a3Op 3 MM МжДу KOHTaTAMN

3HEPronOTPEBJIeHHe:

MoUHOCTb HIXKHeO 3JIeMeHTo:1,30 kBt

MoHOCbBepxHero 3JeMeHtA:0,90 KBT

MoIHOCTb BEHTUNIATopa:2,30 KBT

Mouhoctb rnpa:1,35 kBt

MaKcImaJIbHoe 3HeprOnoTpe6JIeHne:2,38 KBT

Cetebo Ka6ebnTuHaHna:

3×1,5MM²,TnH07RN-F

---

JaMnoka ocBeueHn yXOBKn:

15-25BaTT, 300^ TUNpe3b6bE-14

U3ROBNTeIb He HecET HNKaKOt OTBeTCTBeHHOCt 3a yuep6, npuHHeHbI IIOdAm N MaTePnAblHOMy UMy- uectBy n3-3a HenpaBnblHoY cTaHOBKn dYXOBKn.

N3ROTOBtEnb coxpaHReT 3a co6oI npaBO BHOCuTb B N3dennn N3MeHeHH, KOToPbIe, no erO MHeHHIO, RAJIOTc HEO6XoDmMbIM Nnn NOe3HbIMN 6e3 npeBapntenbHorO yBeDomLeHH.

用户手册
