XS Sport - Loudspeaker 808 Audio - Free user manual and instructions

Product Type	Robust Wireless Speaker
Brand	808 Audio
Model	XS Sport
Wireless Connection	Bluetooth
Bluetooth Range	Approximately 10 m (33 ft)
Auxiliary Audio Input	3.5mm AUX IN jack
Power	Internal rechargeable battery via USB (5V), DC IN port
Charging Indicator	Red while charging, green when fully charged
Battery Life	Not specified in the manual
Bass Amplifier (Bass Boost)	Yes, can be activated/deactivated via the EQ button
Water Resistance	Yes, water resistant (do not immerse)
Shock Resistance	Yes
Carabiner included	Yes, in 2 parts
USB cable included	Yes
Control Buttons	Power/Pairing, Volume +/-, EQ
Status Lights	Blue (Bluetooth), white (AUX), red/green (charging)
Use while charging	Possible
Customer Service	Phone support: 1 800 732-6866
Website	808Audio.com
Care and Cleaning	Clean with a dry cloth. Do not immerse.

Frequently Asked Questions - XS Sport 808 Audio

How do I pair the XS Sport speaker with my phone?

Turn on the speaker by holding down the ⏻ button. Enable Bluetooth on your phone. If the front indicator is not flashing rapidly, quickly press the ⏻ button twice. Select 808 XS Sport from the Bluetooth list. A sound indicates connection.

How do I charge the XS Sport?

Open the back flap, plug the provided USB cable into the DC IN jack, then into a USB source (computer, adapter). The rear indicator is red while charging and turns green when fully charged.

What do the different lights mean?

Front indicator: fast blue flashing = pairing, slow blue flashing = reconnecting, steady blue = connected, steady white = AUX mode, off = powered off. Rear indicator: red = charging, green = charged.

Can I use the speaker while plugged into a wall outlet?

Yes, it is possible to use the speaker while it is charging.

How do I activate or deactivate the bass amplifier (Bass Boost)?

Press the EQ button on the back of the speaker to toggle between Bass Boost mode and normal mode.

Is the speaker waterproof?

No, it is water resistant but not waterproof. Do not immerse it in water or any other liquid.

How do I connect a device via the AUX cable?

Plug a 3.5mm audio cable (not included) from your device into the AUX IN jack on the back. The speaker automatically switches to AUX mode (white light). To return to Bluetooth, unplug the cable.

What if Bluetooth doesn't connect?

Check that Bluetooth is enabled on your device and that no cable is plugged into the AUX jack. Move the speaker closer to your device (max range 10 m). If needed, quickly press the ⏻ button twice to start pairing.

How do I use the included carabiner?

Insert the smaller piece of the carabiner into the notch on the left side of the speaker until it clicks. You can then attach the speaker to a bag or belt.

How do I contact customer service?

For any questions, visit 808Audio.com or call toll-free 1 800 732-6866.

USER MANUAL XS Sport 808 Audio

RUGGED WIRELESS SPEAKER

QUICK START GUIDE

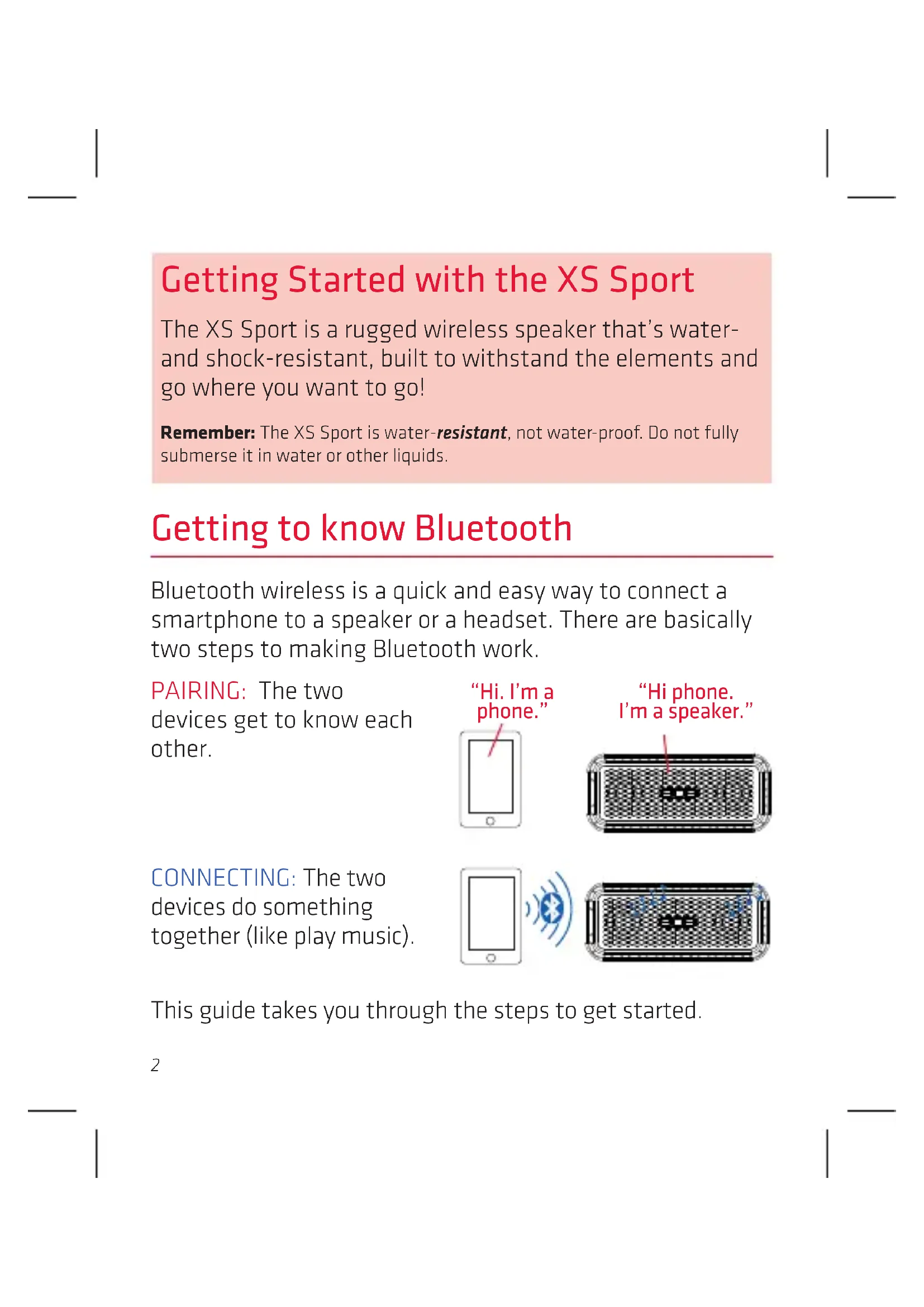

Getting Started with the XS Sport

The XS Sport is a rugged wireless speaker that's water-and shock-resistant, built to withstand the elements and go where you want to go!

Remember: The XS Sport is water-resistant, not water-proof. Do not fully submerse it in water or other liquids.

Getting to know Bluetooth

Bluetooth wireless is a quick and easy way to connect a smartphone to a speaker or a headset. There are basically two steps to making Bluetooth work.

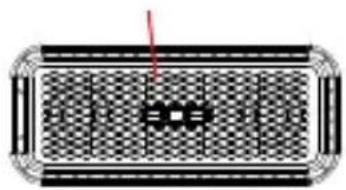

PAIRING: The two devices get to know each other.

"Hi. I'm a phone."

"Hi phone. I'm a speaker."

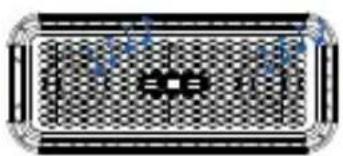

CONNECTING: The two devices do something together (like play music).

This guide takes you through the steps to get started.

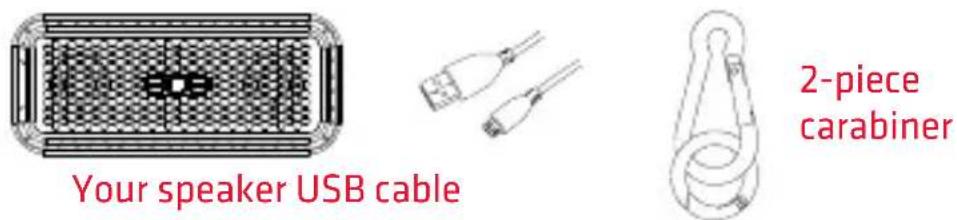

Step 1: Unpack

Make sure the following items came in this package.

Step 2: Charge the XS Sport

Before you start using the XS Sport speaker for the first time, it's a good idea to charge it completely.

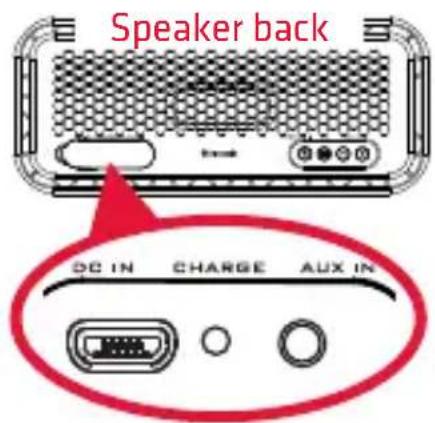

To charge the speaker: Open the flap covering the DC IN jack on the speaker's back panel. Plug the included USB cable into the DC IN jack.

Plug the other end of the USB charging cable into a power source, like a computer or a USB charging adapter.

The charging indicator on the back of the speaker is red while the speaker is charging. It turns green when the speaker is fully charged.

Note: You can use the speaker while it's charging.

Step 3: Turn on

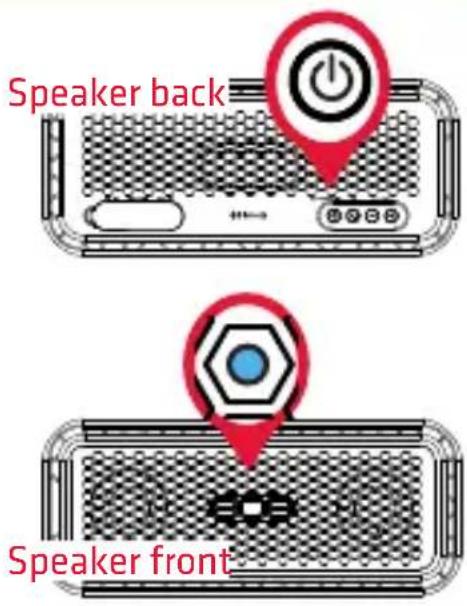

Press and hold the ⏻ button on the back of the speaker.

The power-up tone sounds and the indicator on the front of the speaker starts blinking.

After a few seconds, the speaker goes to Bluetooth pairing mode to set up with your smartphone.

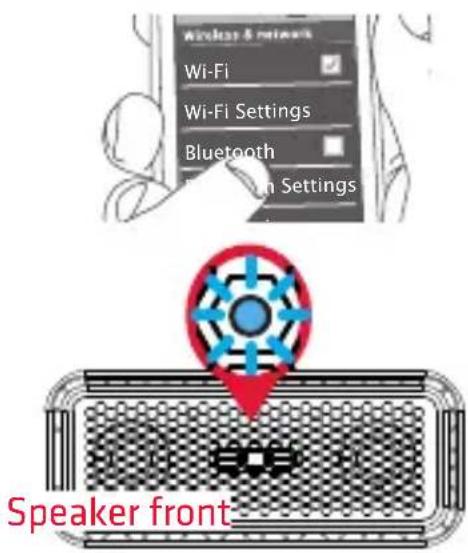

Step 4: Pair + Connect

Enable Bluetooth on your smartphone or other device.

Make sure the indicator light on the front of the speaker is blinking rapidly. (If it isn't, give a short double-press on the button. The speaker gives an audio signal.)

If you've previously paired your phone or other Bluetooth device with this speaker, the speaker will automatically attempt to reconnect to that device when you switch the speaker on. If you want to pair to a new device, give a short double-press to the ⏻ button. The speaker gives a signal and indicator light on the front of the speaker starts blinking.

Choose 808 XS Sport from the pairing options on your smartphone. (If it's not in the list, choose "Scan" from your phone's Bluetooth menu.)

The speaker gives an audio signal when it's finished pairing and connecting to your smartphone. The indicator light on the front of the speaker turns solid blue.

Note: The process of enabling Bluetooth and connecting varies from device to device. See your device's owners manual for more information and specific instructions.

Bluetooth Wireless Connection Tips

• Make sure the Bluetooth capability of your device is turned on.
• Make sure there's nothing plugged into the speaker's AUX IN jack when you're trying to use Bluetooth.
• The Bluetooth wireless connection works up to a range of roughly 33 feet (10 meters). This range may vary, however, based on other factors, such as room layout, wall material, obstacles, your device's Bluetooth performance, etc. If you're having problems connecting to this speaker, move closer to it.
• If your device asks you for a password to connect, use "0000".
• If you've paired your device with the speaker before but you're having trouble reconnecting when you turn the speaker back on, give a short press to the button while the indicator light on the front of the speaker is flashing. The speaker will attempt to connect to a previously paired device.

Step 5: Play music

Set your device's volume for music to 50%.

Note: This is to make sure the sound from the speaker isn't too loud when you start streaming.

Start playing music or other audio on your device. Within seconds, the speaker starts streaming the audio wirelessly via Bluetooth.

To adjust the volume of your audio:

Press the VOLUME + and -buttons on the back of the speaker (or use the volume controls on your phone).

Using Bass Boost

The XS Sport speaker has a Bass Boost feature that enhances the lower frequencies in your music. Bass Boost is turned on by default. Press the EQ button on the back of the speaker to toggle Bass Boost on and off.

Using the Aux In input

Use a 3.5mm audio cable (not included) to connect the audio output from your device to the AUX IN audio input on the speaker's back panel (it's behind the protective flap).

The speaker automatically switches to the AUX IN audio, and the indicator on the front of the speaker turns white.

To listen to Bluetooth audio again, unplug the cable from the speaker's AUX IN jack. The speaker will try to reconnect to the last Bluetooth device.

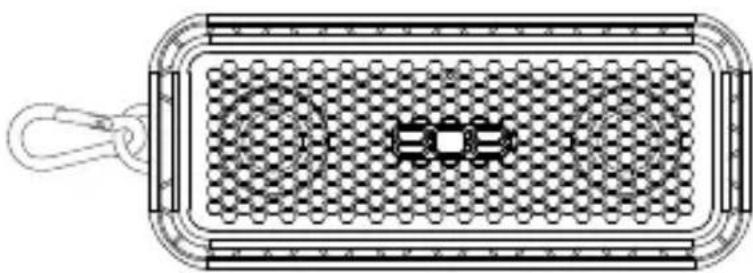

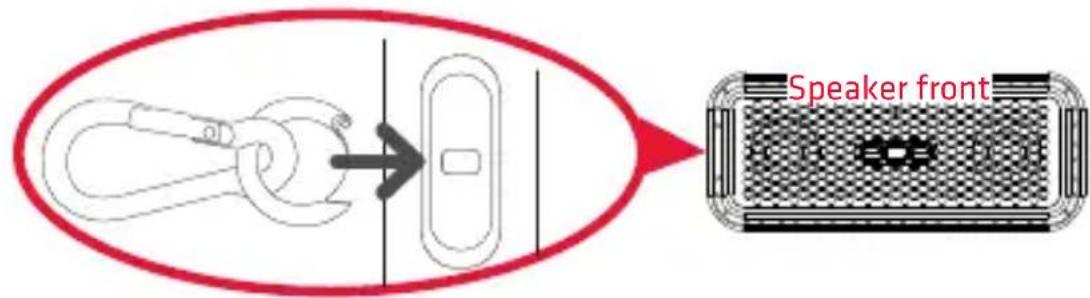

Attaching the 2-Piece Carabiner

The 2-piece carbiner that comes with the XS Sport speaker attaches to a ring on the left side of the speaker.

To attach the carabiner to the speaker: Push the opening on the smaller carabiner piece onto the notch on the left side of the speaker. The carabiner goes into a through the hole in the middle of this notch.

Tour of the speaker

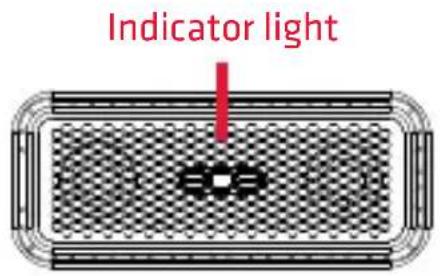

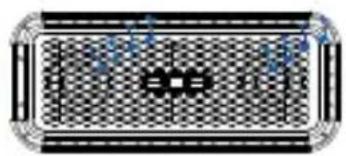

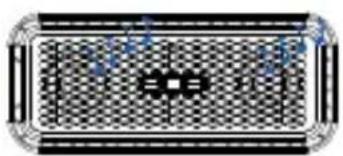

Front

Indicator light shows the speaker's pairing/connection status:

• fast blinking blue while pairing
• slow blinking blue while reconnecting
• solid blue when paired
  • solid white when the Aux In jack is in use
• off when the speaker's off.

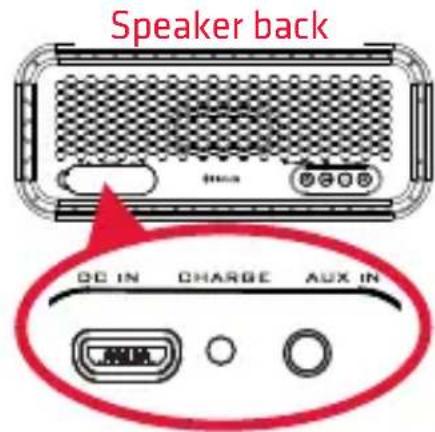

Back

DC IN jack connects to the provided USB charging cable to plug the speaker into a power source or adapter.

CHARGE indicator shows the charging status of the speaker:

• solid red while charging
- green when fully charged

AUX IN jack lets you connect an audio device directly to the speaker using a 3.5mm audio cable.

POWER/PAIR button has three functions:

• it turns the speaker on and off (press and hold)
• it puts the speaker into pairing mode (short double-press when the speaker's on) to connect to a new Bluetooth device
• it attempts to reconnect to the last paired device (short single-press when the speaker's on).

EQ switches between bass boost and regular equalization.

VOLUME - / + decrease or increase the volume of the speaker's audio.

XSSPORT™

HAUT-PARLEUR SANS FIL ROBUSTE

GUIDE DE DÉMARRAGE RAPIDE

English instructions......1

English instructions......1

If you have any questions about this product, visit 808Audio.com or call our toll-free help line at 1-800-732-6866.
