Universal ISC 100 - Car speaker FOCAL - Free user manual and instructions

Product type	2-way coaxial speaker kit
Brand	Focal
Model	Universal ISC 100
Category	Car speaker
Woofer diameter	100 mm
Installation type	Recessed into original location
Maintenance	Clean carefully before installation; protect from metal shavings and dust
Safety	Limit listening to sound levels below 110 dB; above 130 dB, risk of irreversible damage
Warranty	2 years (France) from date of purchase, non-transferable
Warranty conditions	Return the warranty card within 10 days; if a problem occurs, contact the retailer
Manufacturer	Focal-JMlab, 108 rue de l'Avenir, 42353 La Talaudière cedex, France
Recycling	Do not dispose of with household waste; take to a waste disposal or recycling center

Frequently Asked Questions - Universal ISC 100 FOCAL

How to install the Universal ISC 100 kit?

Before installation, check the available space for recessing by referring to the plans on the packaging. Make the necessary cutouts. For mounting in the original location, ensure there is sufficient space between the speaker and the protective grille. Clean the area carefully before installation and keep the speakers away from metal shavings and dust.

What is the recommended power for the amplifier?

The manual does not specify a recommended power. For best performance, it is advisable to use an amplifier compatible with the speaker's impedance and power. Consult your Focal retailer for personalized advice.

Can I install this speaker in any car?

The Universal ISC 100 kit is designed to be adaptable in many vehicles, thanks to its compact size. However, it is imperative to check the available space for recessing before any installation. The elliptical models (ISC 570/690) are suitable for some brands such as Toyota, Jeep, Dodge, Ford.

How to clean the speakers before installation?

Before mounting, carefully clean the installation area to remove any dust or metal shavings. The speakers must be kept away from metal particles and dust during the process.

What is the product warranty?

The warranty for France is 2 years from the date of purchase, non-transferable in case of resale. For other countries, conditions are set by the local official Focal distributor.

What to do in case of sound problem?

In case of a problem, contact your Focal retailer. If the equipment is defective, return it in its original packaging to the retailer for analysis. If the fault is covered by the warranty, the product will be repaired or replaced free of shipping charges.

How to validate the Focal warranty?

To validate the warranty, return the enclosed warranty card within 10 days of purchase to: Focal-JMlab - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France. You can also register your product online at www.focal.com/garantie.

Can I listen at maximum volume without risk?

No. Prolonged listening at levels above 110 dB can permanently damage hearing. Even brief listening above 130 dB can cause irreversible hearing damage. It is recommended to limit the volume.

Where to find the exact dimensions for recessing?

The exact dimensions are provided on the plans on the product packaging. Please refer to them before any cutting.

Is the kit compatible with original systems?

Yes, the Universal ISC 100 kit is designed to be installed in the original locations of many vehicles. Check the available space and compatibility with your vehicle before installation.

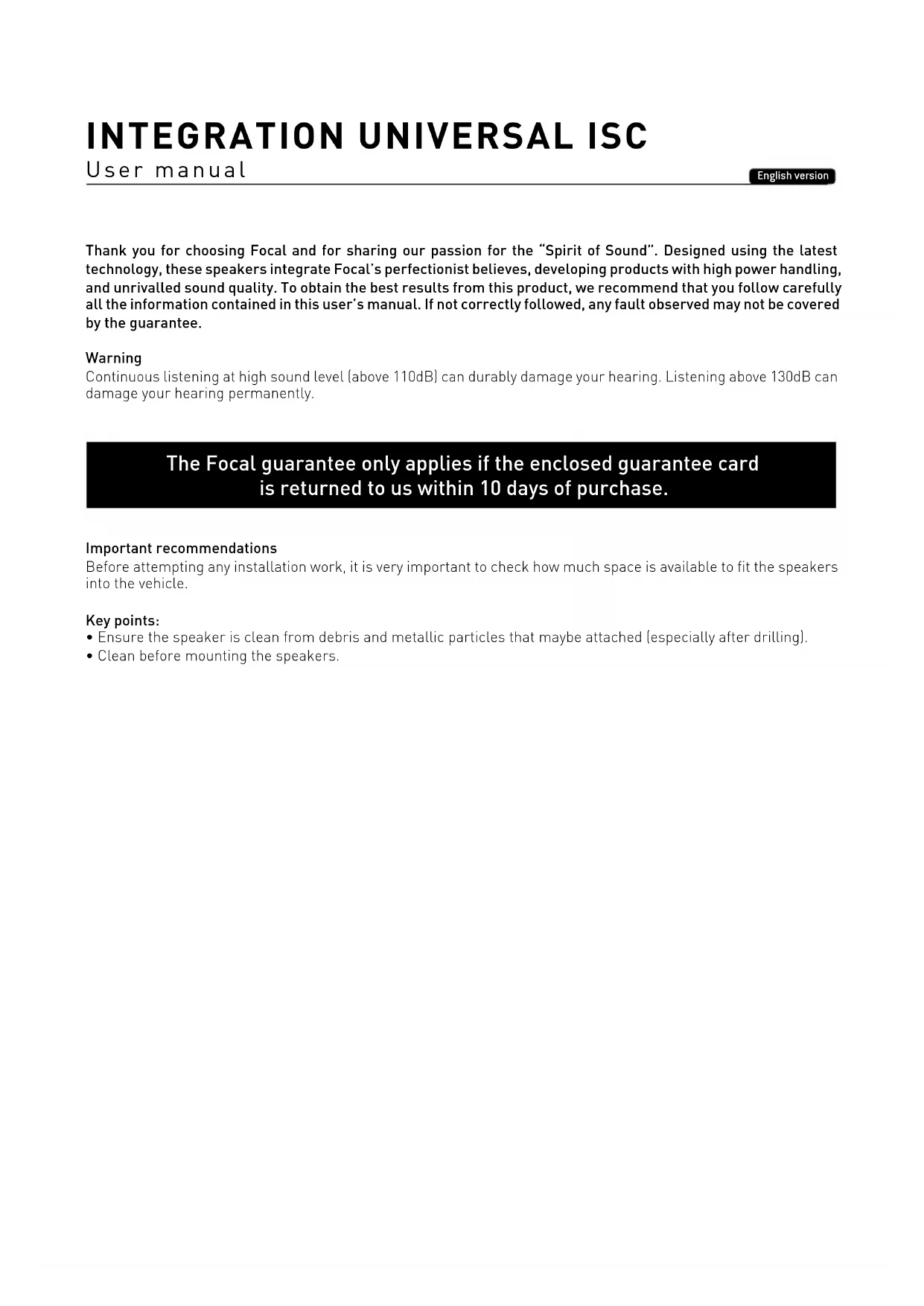

USER MANUAL Universal ISC 100 FOCAL

Thank you for choosing Focal and for sharing our passion for the “Spirit of Sound”. Designed using the latest technology, these speakers integrate Focal’s perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user’s manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

INTEGRATION UNIVERSAL ISC

User manual

3

Woofer ISC

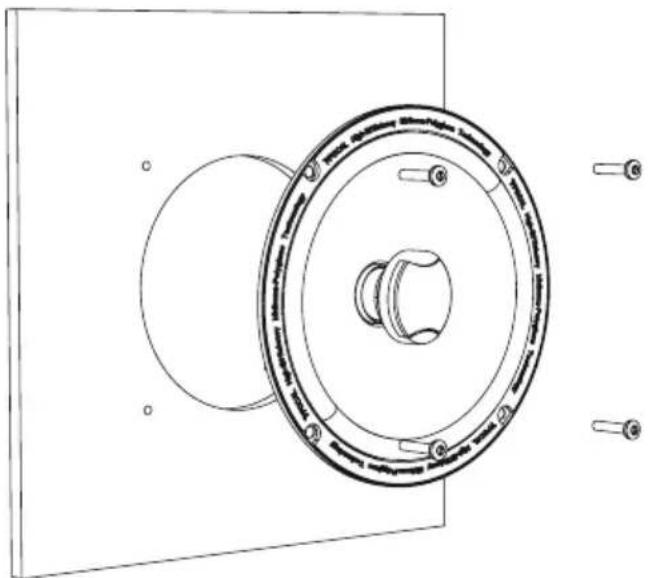

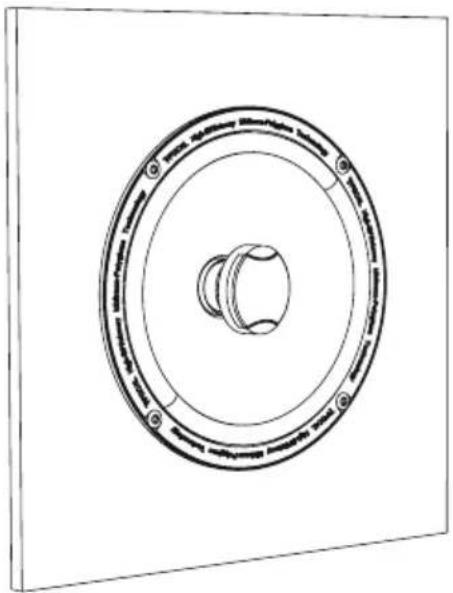

1/ Mounting the ISC 100 / 130 / 165 woofer in original space.

Technical line drawing of a circular mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

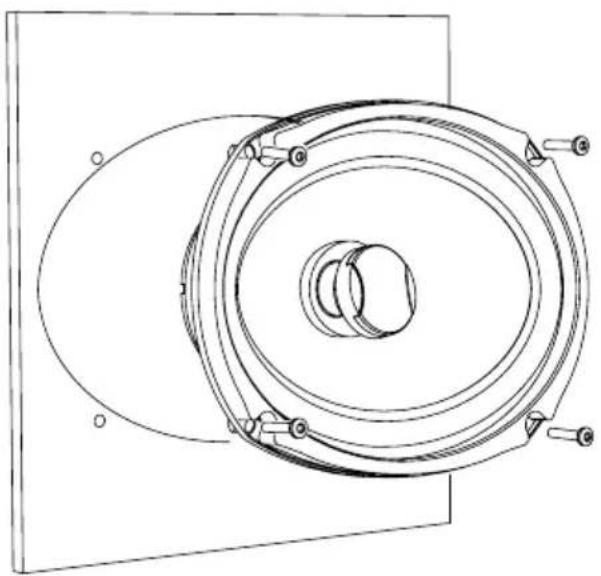

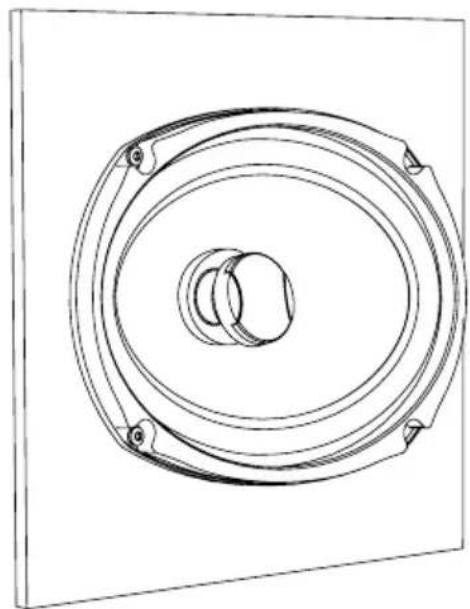

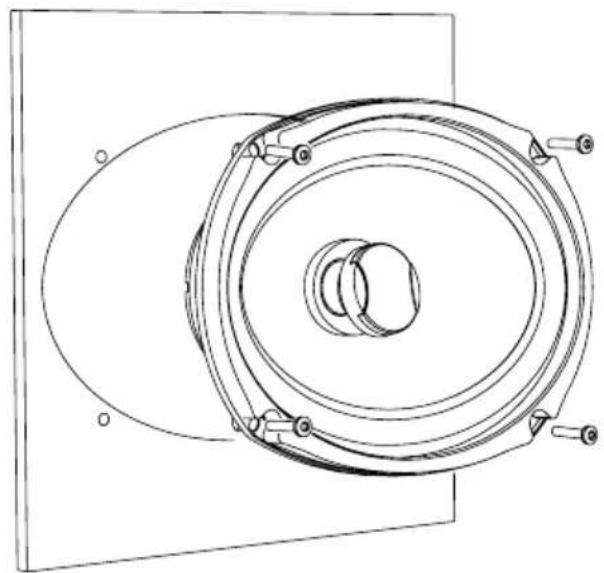

2/ Mounting the ISC 570 / 690 woofer in original space.

Technical line drawing of a circular mechanical component with mounting holes (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

These “elliptic” kits can be fitted into the following car models Toyota ^® , Jeep ^® , Dodge ^® , Ford ^® .

INTEGRATION UNIVERSAL ISC

User manual

4

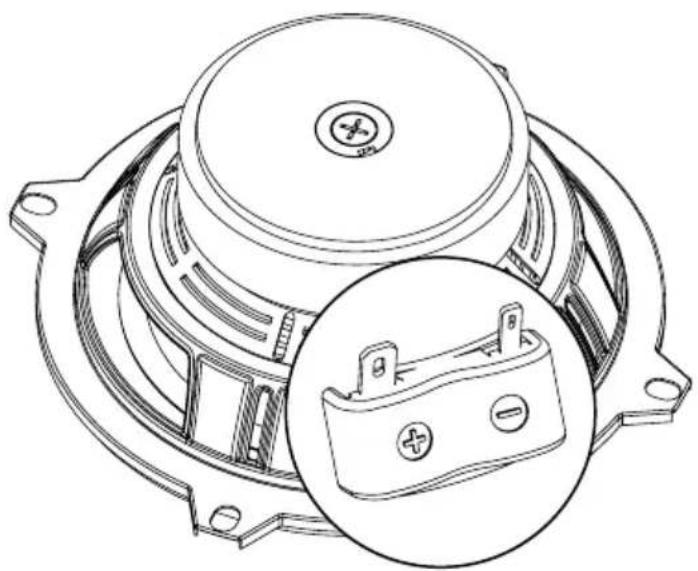

3/ Rear view of the terminal block (marked "+" and "-").

Technical line drawing of a speaker component with an inset close-up showing its internal components (no text or symbols)

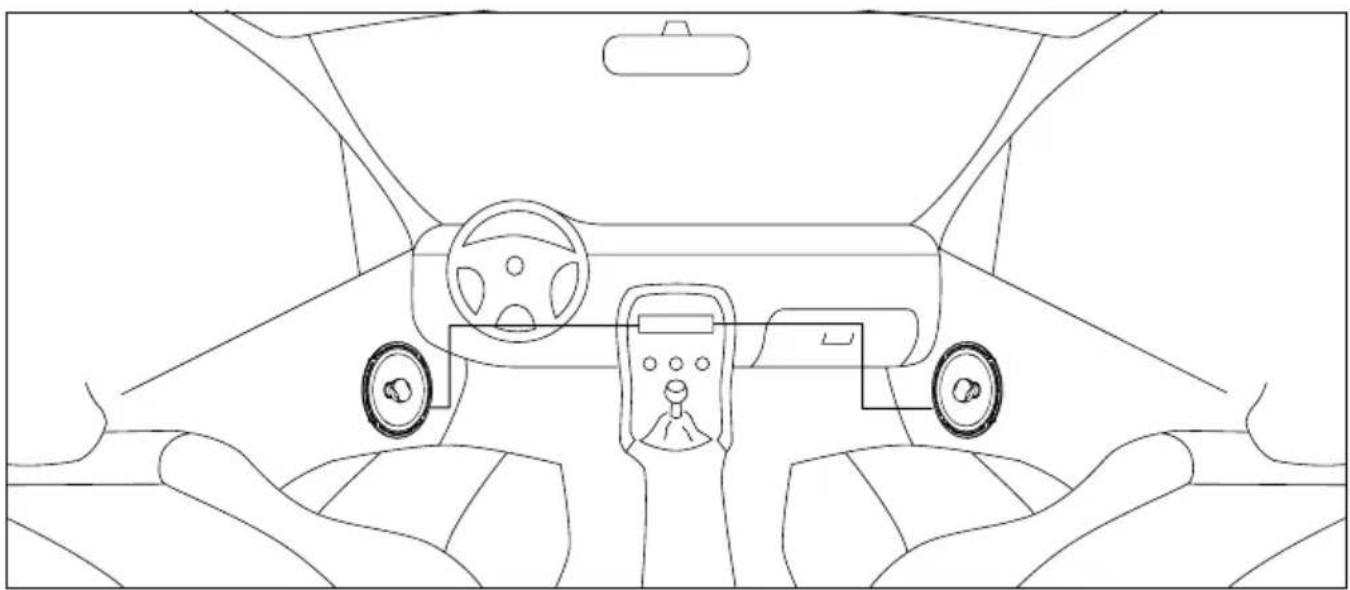

4/ View of the full installation in the vehicle.

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

INTEGRATION UNIVERSAL ISC

User manual

5

Conditions de garantie

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

INTEGRATION UNIVERSAL ISC

Technical line drawing of a circular mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a speaker component with an inset close-up showing its internal components (no text or symbols)

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

INTEGRATION UNIVERSAL ISC
