Product type	Refrigerator with freezer compartment
Brand	Blomberg
Model	KND 9861 XA++
Cooling system	Dual (two separate circuits for refrigerator and freezer)
Freezing capacity	4.5 kg/24h (per 100 liters of freezer volume)
Freezer star rating	4 stars
Special functions	Fast Freeze, Fast Cool, Eco-Fuzzy, Holiday, Lock
Multi-Hygiene	Hygiene+, Silver+, Ion+
Ice cube dispenser	Yes (built-in)
Low temperature compartment	Yes
Open door alarm	Yes (audible after 1 minute)
Display	Electronic with temperature and function indicators
Defrost	Automatic for freezer compartment
Interior lighting	Yes
Power supply	230 V ~ 50 Hz
Minimum ambient temperature	10 °C
Care and cleaning	Interior cleaning with warm water and baking soda
Safety	Earthing mandatory, child lock, do not block vents
Lifespan	10 years
Spare parts	Available for 10 years
Repairs	By authorized after-sales service only

Frequently Asked Questions - KND 9861 XA++ BLOMBERG

How to adjust the refrigerator temperature?

Use the temperature adjustment buttons on the indicator panel. For the refrigerator compartment, press the corresponding button to select 2, 4, 6 or 8 °C. For the freezer, press the adjustment button to choose -18, -20, -22 or -24 °C.

What to do if the refrigerator does not work?

First check that the appliance is correctly plugged in and that the fuse has not blown. Consult the 'Recommended solutions to problems' section of the manual. If the problem persists, contact the authorized after-sales service.

How to use the fast freeze function?

Press the Fast Freeze button before introducing large quantities of fresh products. The indicator lights up. The function cancels automatically after 4 hours or when the desired temperature is reached. You can also cancel it manually by pressing the button again.

How to clean the interior of the refrigerator?

Unplug the appliance before cleaning. Use a damp cloth with a solution of one teaspoon of baking soda per half liter of warm water. Never use abrasive products or solvents. Dry thoroughly.

What to do in case of a power outage?

Do not open the freezer door. Frozen food will remain intact for the autonomy duration indicated on the rating plate. If the outage lasts longer, check the food and consume it quickly or refreeze it after cooking.

How to activate holiday mode?

Press and hold the Eco-Fuzzy button for 3 seconds. The refrigerator compartment is set to 15 °C to avoid bad odors. To deactivate, press and hold the same button again for 3 seconds.

Why is there condensation inside?

This may be due to high ambient temperature, frequent door opening, or uncovered liquids. Set the thermostat to a colder level and reduce door openings. Wipe condensation with a dry cloth.

How to replace the bulb?

The bulb replacement must be carried out by an authorized after-sales service. Do not attempt to change it yourself. Contact customer service for assistance.

How to use the ice cube dispenser?

Fill the dispenser with drinking water and put it back in place. Ice cubes are ready in about 2 hours. Turn the knobs 90° clockwise to drop the ice cubes into the storage container. Then serve the ice cubes.

What to do if the door does not close properly?

Check that food or packaging is not blocking the closure. Make sure the refrigerator is level by adjusting the front feet. If the seal is dirty or damaged, clean it or contact after-sales service.

USER MANUAL KND 9861 XA++ BLOMBERG

Operating instructions

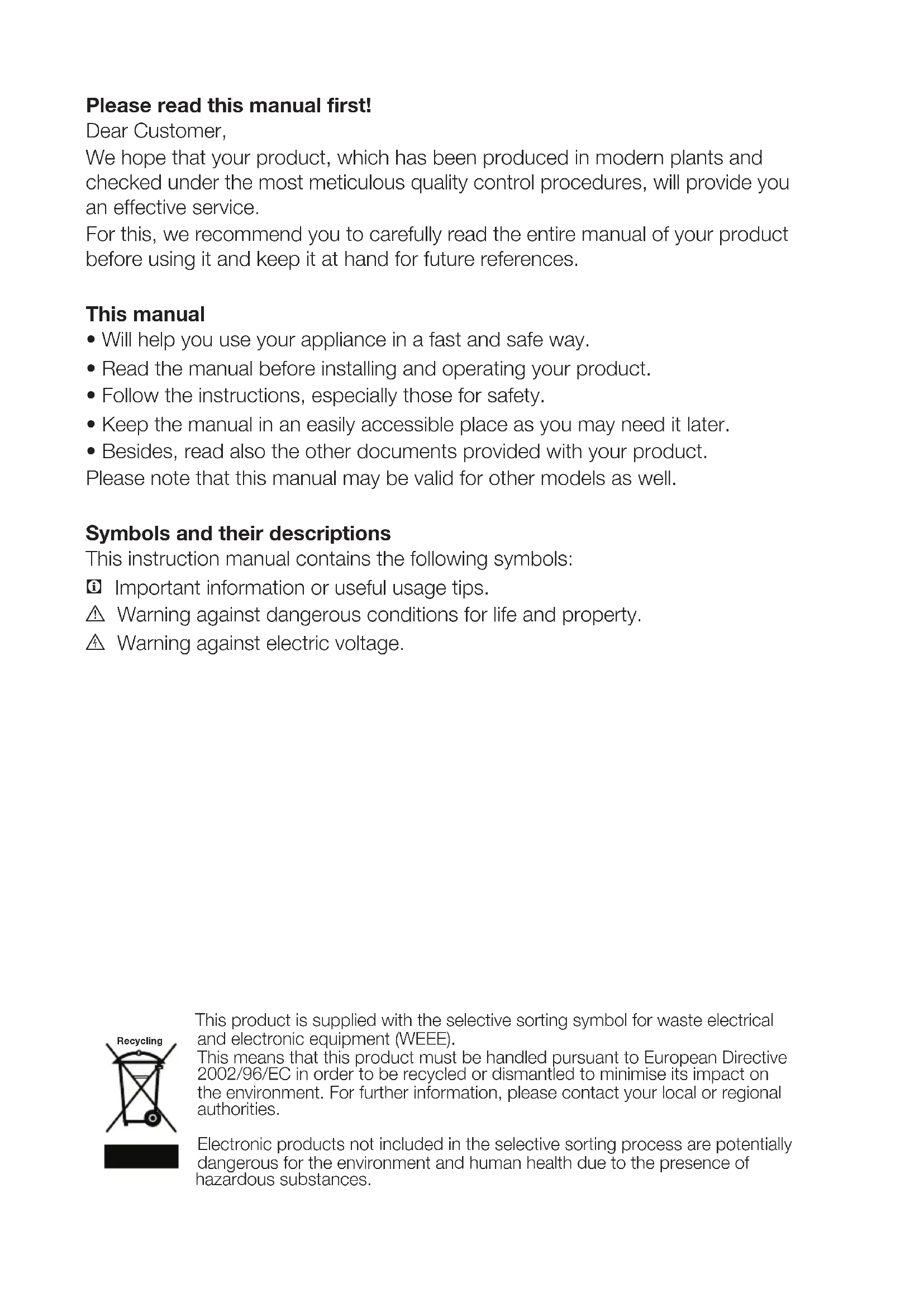

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.
⚠ Warning against dangerous conditions for life and property.
⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use ....4

For products with a water dispenser; .6

Child safety 6

HCA Warning 6

Things to be done for energy saving ..7

3 Installation 8

Points to be considered when re-transporting your refrigerator .....8

Before operating your refrigerator .....8

Electric connection 8

Disposing of the packaging .....9

Disposing of your old refrigerator .....9

Placing and Installation 9

Changing the illumination lamp .....10

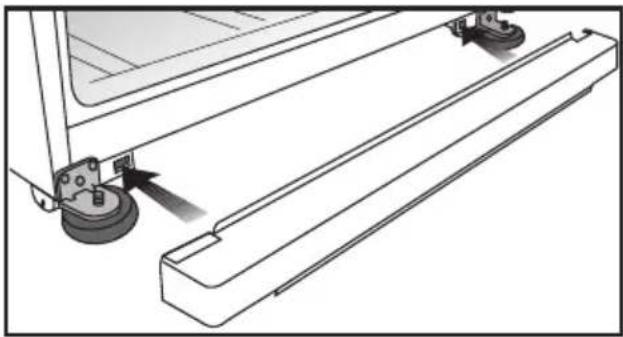

Installing the lower ventilation cover .10

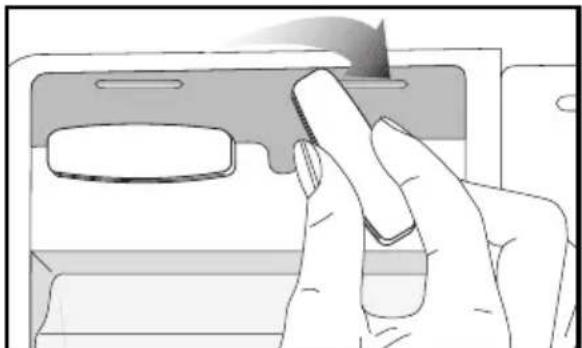

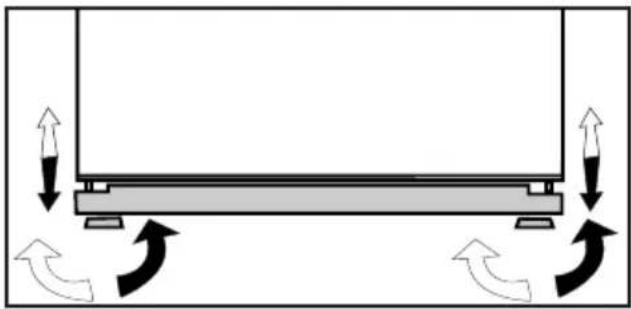

Adjusting the legs 10

4 Preparation 11

5 Using your refrigerator 12

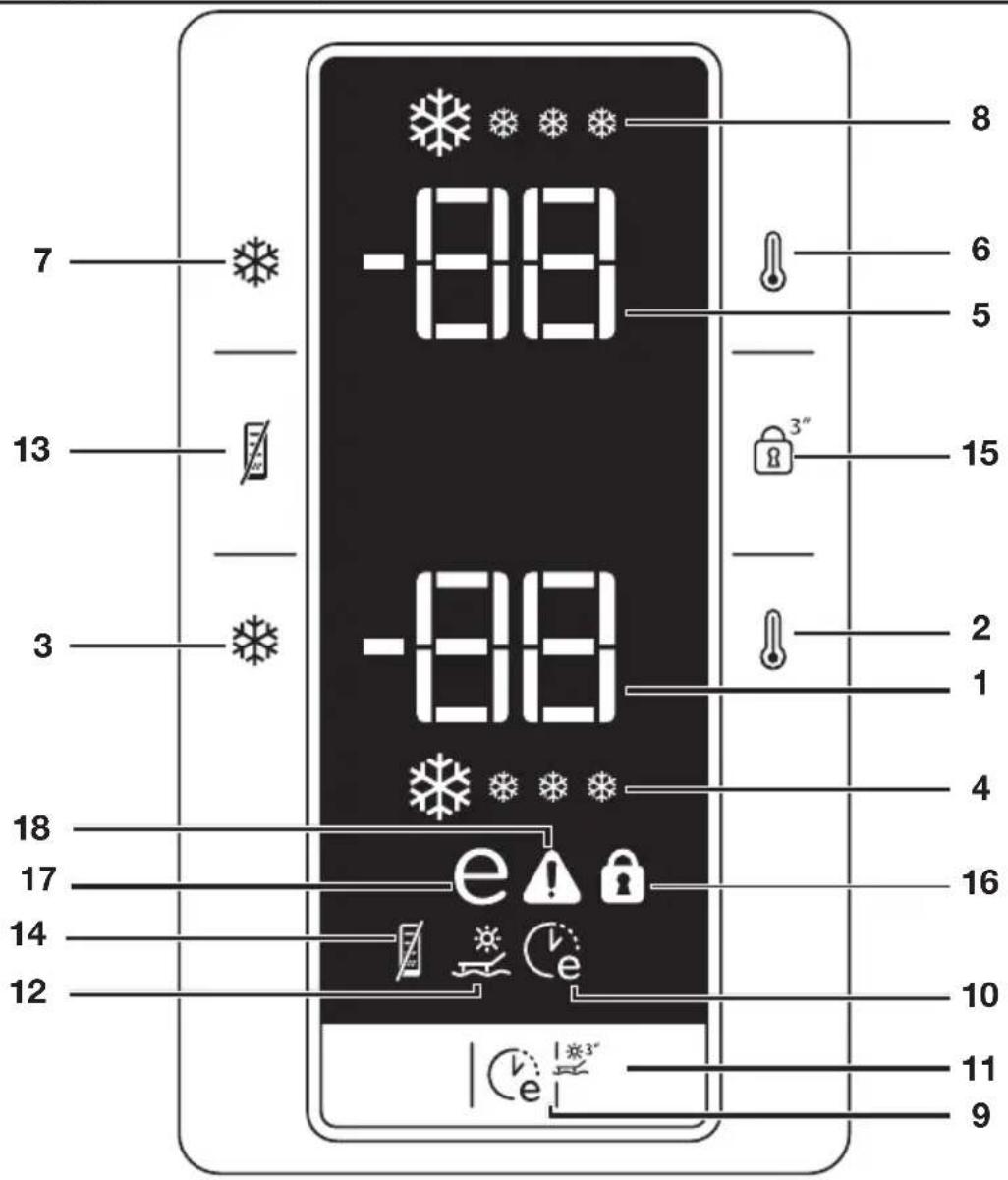

Indicator Panel 12

Freezing fresh food 15

Recommendations for preservation of frozen food ....15

Placing the food 16

Deep-freeze information .....16

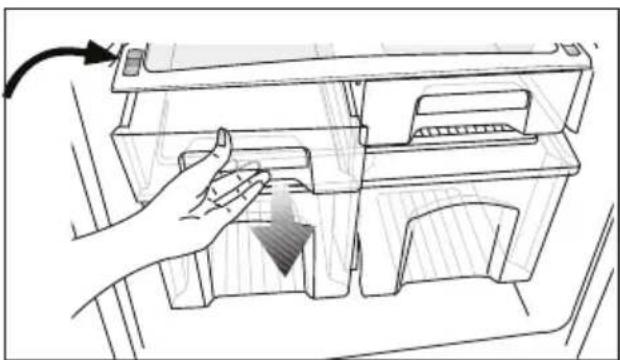

Zero temperature compartment .....17

Multi-Hygiene 17

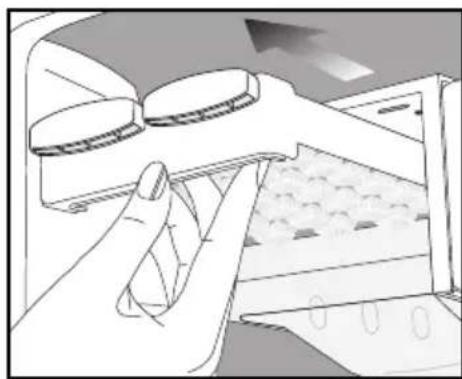

Icematic and ice storage container ..17

6 Maintenance and cleaning 18

Protection of plastic surfaces .....18

7 Recommended solutions for the problems 19

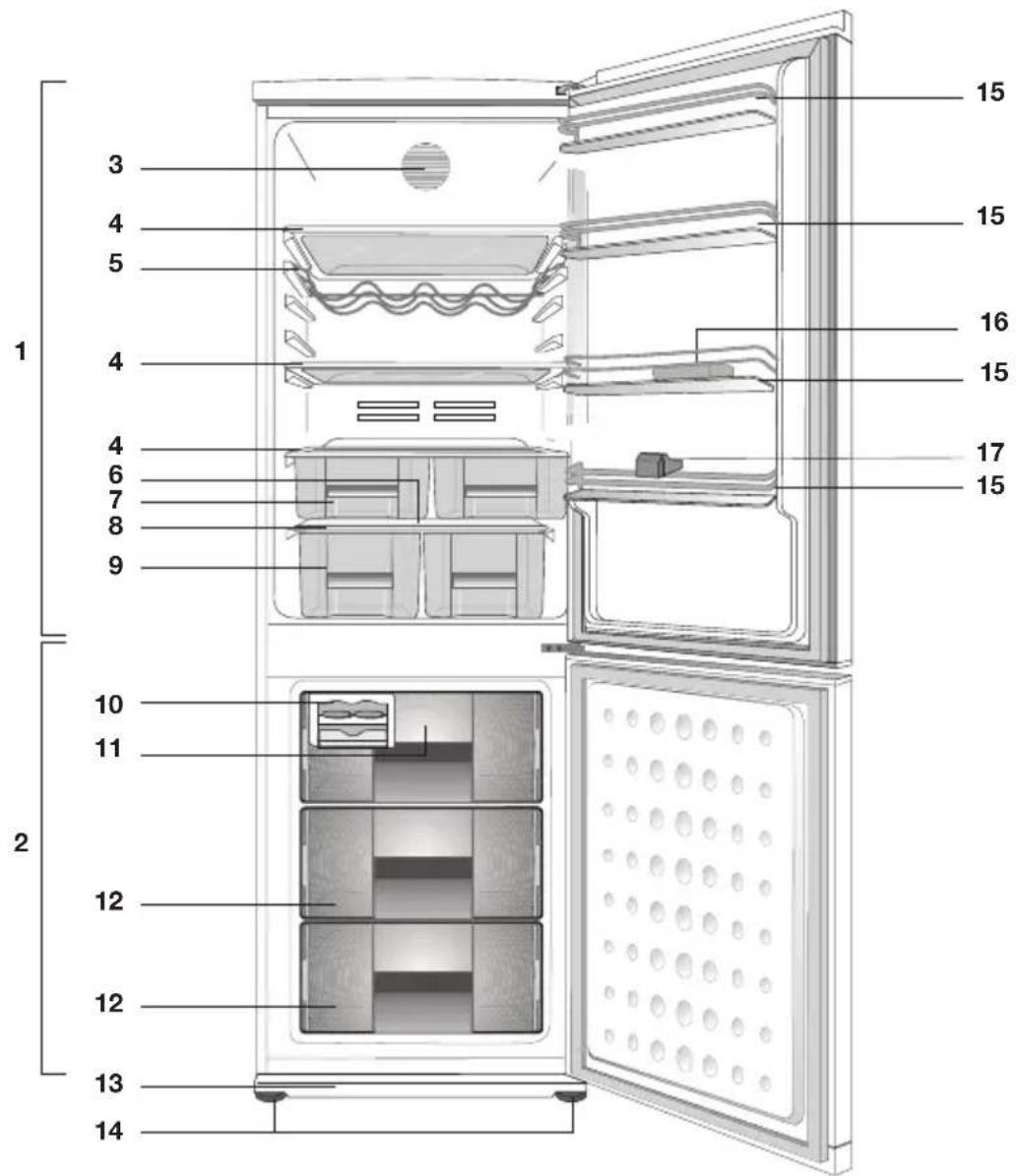

1 Your refrigerator

1 2 3 4 5 4 6 7 8 9 10 11 12 13 14 15 15 16 15 17 15

1. Fridge compartment
2. Freezer compartment
3. Fan
4. Adjustable body shelves
5. Wine rack
6. Salad crisper
7. Second floor crispers
8. Crisper cover

9. Crispers

10. Icebank

11. Quick freeze compartment
12. Deep-freeze compartment
13. Air grille
14. Adjustable front feet
15. Fridge compartment door shelves
16. Egg holders
17. Bottle holder

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

- indoors and in closed areas such as homes;

– in closed working environments such as stores and offices;

– in closed accommodation areas such as farm houses, hotels, pensions.

- This product should not be used outdoors.

General safety

- When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

- Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

- For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

- For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

- Do not touch frozen food by hand; they may stick to your hand.

- Unplug your refrigerator before cleaning or defrosting.

- Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

- Never use the parts on your refrigerator such as the door as a means of support or step.

- Do not use electrical devices inside the refrigerator.

- Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

- Do not cover or block the ventilation holes on your refrigerator with any material.

- Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

- In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.
• Place the beverage with higher proofs tightly closed and vertically.
• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product
• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact authorized service when there is a power cable damage to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended for only storing food items. It must not be used for any other purpose.

• Label of technical specifications is located on the left wall inside the refrigerator.

• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
• This operation manual should be handed in to the new owner of the product when it is given to others.

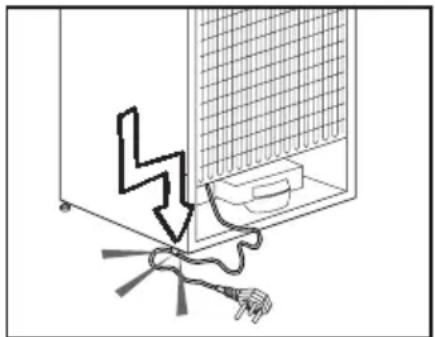

• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

Diagram showing a device with wires and a plug inserted into a container, no text or symbols present

• Do not plug the refrigerator if the wall outlet is loose.
• Water should not be sprayed directly on inner or outer parts of the product for safety purposes.
• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

• Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.

• Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
• The plug's tip should be regularly cleaned; otherwise, it may cause fire.
• The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.
• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation

⚠️Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

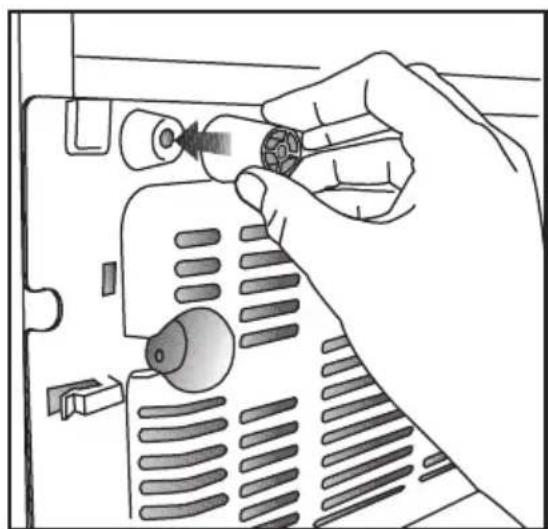

2. Please install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

1. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.
2. Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on.
3. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
4. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance with national regulations.
• The power cable plug must be easily accessible after installation.

• The specified voltage must be equal to your mains voltage.

• Extension cables and multiway plugs must not be used for connection.
  A damaged power cable must be replaced by a qualified electrician.
  △Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorised dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.
4. Place your refrigerator on an even floor surface to prevent jolts.
5. Do not keep your refrigerator in ambient temperatures under 10^ C.

Changing the illumination lamp

To change the lamp used for illumination of your refrigerator, please call your Authorized Service.

Installing the lower ventilation cover

You can install the lower ventilation cover as illustrated in the figure.

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

4 Preparation

i Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator

-88 -88 7 13 3 18 17 14 12 8 6 5 3" 15 2 1 4 16 10 11 9

Indicator Panel

1.Freezer Compartment Temperature Indicator

Indicates the temperature set for Freezer Compartment.

2.Freezer Compartment Temperature Setting Function

This function allows you to set the freezer compartment temperature. Press this button to set the temperature of the freezer compartment to -18, -20, -22 and -24 degrees, respectively.

3. Quick Freeze Function

Quick Freeze indicator is illuminated when the Quick Freeze function is active. To cancel this function, press Quick Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Quick Freeze will cancel itself automatically after 4 hours or when the freezer compartment reaches the required temperature. If you want to freeze large amounts of fresh food, press the Quick Freeze button before putting the food into

the freezer compartment. If you press the Quick Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately. This function is not recalled when power restores after a power failure.

4. Quick Freeze Indicator

This symbol flashes in an animated style when the Quick Freeze function is active.

5.Fridge Compartment Temperature Indicator

Indicates the temperature set for the Fridge Compartment.

6.Fridge Compartment Temperature Setting Function

This function allows you to set the fridge compartment's temperature. Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2 degrees, respectively.

7. Quick Fridge Function

When you press the Quick Fridge button, the temperature of the compartment will be colder than the adjusted values. This function can be used for food required to be cooled down rapidly in the fridge compartment. If you want to cool large amounts of fresh food, it is recommended to activate this function before putting the food into the fridge. Quick Fridge indicator is illuminated when the Quick Fridge function is active. To cancel this function, press Quick Fridge button again. Quick Fridge indicator will turn off and return to its normal settings. If you do not cancel it, Quick Fridge function will cancel itself automatically after 2 hours or when the fridge compartment reaches the required temperature.

This function is not recalled when power restores after a power failure.

8. Quick Fridge Indicator

This symbol flashes in an animated style when the Quick Fridge function is active.

9.Eco-Fuzzy (Special Economic Usage) Function

When you press Eco-Fuzzy button, Eco Fuzzy Function will be activated and Eco-Fuzzy Indicator will illuminate. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active. Press Eco Fuzzy button again to disable the Eco-Fuzzy function.

10.Eco-Fuzzy (Special Economic Usage) Indicator

This symbol illuminates when the Eco-Fuzzy Function is active.

11. Vacation Function

Press and hold Eco Fuzzy button for 3 seconds to activate Vacation Function and illuminate Vacation indicator. The cooling of Fridge Compartment is stopped and temperature of Fridge Compartment is fixed to 15 degrees to prevent bad odours. When this function is active, Fridge Compartment Temperature Indicator will not display the temperature. To deactivate

Vacation Function, press and hold Eco-Fuzzy button for 3 seconds.

12. Vacation Function Indicator

This indicator illuminates when Vacation Function is active.

13. Energy Efficiency Function

When you press Energy Efficiency button, Energy Efficiency Function will be activated and Energy Efficiency Indicator will illuminate. When Energy Efficiency Function is active, all indicators, except for Energy Efficiency Indicator, will turn off. This function will be deactivated when any button is pressed or door is opened; display indicators will return normal settings and Energy Efficiency Indicator will stay illuminated. If you do not press any button or open the door within 5 minutes when Energy Efficiency Indicator is still illuminated, Energy Efficiency Function will be activated again and display indicators will turn off. If you press Energy Efficiency button when the function is not active but the indicator is still illuminated, this will deactivate Energy Efficiency function and turn off Energy Efficiency Indicator.

14. Energy Efficiency Indicator

This indicator illuminates when Energy Efficiency Function is selected.

15.Key Lock Function

When you press and hold Key Lock button for 3 seconds, Key Lock Function will be activated and Key Lock Indicator will illuminate. No button will operate when this function is active. Press and hold Key Lock button for 3 seconds to deactivate this function.

16.Key Lock Indicator

This indicator will illuminate when Key Lock Function is active.

17.Economic Usage Indicator

Economic Usage Indicator illuminates when the Freezer Compartment is set to -18^ C. When Quick Freeze or Quick Fridge is selected, Economic Usage Indicator will turn off.

18. High Temperature/Error Warning Indicator

This light illuminates during high temperature failures and error warnings.

Freezer Compartment Adjustment	Fridge Compartment Adjustment	Explanations
-18 C 4 C This is the normal recommended setting.
-20,-22 or -24 C 4 C		These settings are recommended when the ambient temperature exceeds 30 C.
Quick Freeze	4 C	Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over.
-18 C or colder 2 C		If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-18 C or colder Quick Fridge		You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food.

Freezing fresh food

• It must be preferred to wrap or cover the food before placing them in the refrigerator.
• Hot food must cool down to the room temperature before putting them in the refrigerator.
• The foodstuff that you want to freeze must be fresh and in good quality.
• Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.
• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.
• Frozen food must be used immediately after they are thawed and they should never be re-frozen.

• Please observe the following instructions to obtain the best results.

• Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

• Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.
• Take special care not to mix already frozen food and fresh food.

Recommendations for preservation of frozen food

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ^* (4-star) frozen food storage compartment.

• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

• Put packages in the freezer as quickly as possible after purchase.

• Ensure that contents are labeled and dated.
• Do not exceed "Use By", "Best Before" dates on the packaging.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Egg tray Egg
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Crisper Vegetables and fruits
Freshzone compartment	Delicatessen products (cheese, butter, salami and etc.)

Deep-freeze information

Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality.

The TSE norm requires (according to certain measurement conditions) the refrigerator to freeze at least 4.5 kg of foodstuff at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-liters of freezer volume. It is possible to keep the food for a long time only at -18°C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

WARNING!

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.
• Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

Materials necessary for packaging:

• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.

Frozen food must be used immediately after they are thawed and they should never be re-frozen.

Multi-Hygiene

Consists of 3 main protection systems.

Hygiene+: The photocatalyst filter in the air channel of refrigerator helps to clean the air inside. Also this filter reduces bad smells.

Silver+: Inner surfaces of the refrigerator and crispers both have anti-bacterial properties because of silver ingredient. So bacteria can not reproduce on these surfaces. Thus the unpleasant smell will not be produced by the bacteria on the surfaces.

Ion+: Ionizer, that is in the air channel of refrigerator, ionizers the air. With the help of this system airborne bacteria and bad smells originated from these bacteria will be reduced.

Zero temperature compartment

This compartment has been designed to store frozen food which would be thawed slowly (meat, fish, chicken, etc.) as required. Zero temperature compartment is the coldest place of your refrigerator in which dairy products (cheese, butter), meat, fish or chicken may be kept at ideal storage conditions. Vegetables and/or fruits must not be placed in this compartment.

Diagram of a hand pressing down on a mechanical component with a cable outlet (no text or symbols)

Icematic and ice storage container

Using the Icematic

* Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

* Turn the knobs on it clockwise by 90 degrees.

Ice cubes in the cells will fall down into the ice storage container below.

* You may take out the ice storage container and serve the ice cubes.

* If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

Illustration of a hand using a tool to clean or store food items (no text or symbols visible)

Illustration of a hand pressing down on a device panel with a scroll arrow (no text or symbols)

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
⚠️ Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠ Make sure that no water enters the lamp housing and other electrical items.
⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently.
  • Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
• Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.
• Are the temperature adjustments correctly made?
  • Power might be cut off.

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time.
• The ambient room temperature may be high. This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.
  Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.
  Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.
  Food kept in the fridge compartment drawers are freezing.
• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.
  Temperature in the fridge or freezer is very high.
• The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.
• Doors might have been opened frequently or left ajar for a long time; open them less frequently.
• Door might have been left ajar; close the door completely.
• Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.
• The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

·The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

·The floor is not even or it is weak. The refrigerator rocks when moved slowly.Make sure that the floor is strong enough to carry the refrigerator, and level.·The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

·Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

·Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

·Hot and humid weather increases icing and condensation. It is normal and not a fault.·Doors might have been left ajar; make sure that the doors are closed fully.·Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

·There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

·Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.·Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

·Food packages may prevent the door's closing. Replace the packages that are obstructing the door.·The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.·The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

·The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Hand inserting a component into a device panel (no text or symbols visible)

Technical line drawing of a mechanical assembly with a rotating component and base plate (no text or symbols)

Réglage des pieds

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

4 Préparation

Two-panel illustration showing hands using a device to clean or store items, with no visible text or symbols.

Line drawing of a hand pressing down on a mechanical component with a cable outlet (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing a mechanical or electrical component with a lightning bolt and lever mechanism, no text or symbols present.

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Füße einstellen

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Illustration of a hand using a computer to interact with a device, showing screen and screen layout (no text or symbols)

Illustration of a hand holding a small object over a device panel (no text or symbols visible)

0 °C-Fach

Line drawing of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Hand inserting a component into a device panel (no text or symbols visible)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Ρύθμιση των ποδιώ ν

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

4 Προετοιμασία

Illustration of a hand cleaning a window with a magnifying glass (no text or symbols)

Illustration of a hand holding a small electronic device with a scroll wheel (no text or symbols visible)

Hand placing a component into a multi-chamber refrigerator with a cable outlet (no text or symbols visible)

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

Illustration of a hand holding a device with a grid-patterned panel, no visible text or symbols

Illustration of a hand inserting a card into a device (no text or symbols visible)

Scomparto temperatura zero

Diagram of a hand pressing down on a mechanical component with a cable outlet (no text or symbols)

Diagram showing a lightning bolt striking a wall-mounted device with wiring and plug (no text or symbols)

- Não ligue o frigorífico à tomada, se a tomada de parede estiver solta.

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present.

Technical line drawing of a mechanical assembly with a pulley and base plate (no text or symbols)

4 Preparação

Illustration of a person using a computer to interact with a device (no text or symbols visible)

Illustration of a hand pressing down on a device component (no text or symbols visible)

Compartimento de temperatura zero

Diagram of a hand pressing down on a mechanical component with a cable outlet (no text or symbols)

EI Recycling

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Ajuste de los pies

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Two-panel illustration showing hands using a device to clean or install a product; top panel shows hand cleaning a tray with filter bands (no text or symbols)

Compartimento de temperatura cero

Line drawing of a hand inserting a component into a storage unit (no text or symbols)

Diagram showing a lightning bolt striking a wall-mounted device with a cable and plug, no text or symbols present

Hand inserting a component into a device panel (no text or symbols visible)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

Illustration of a hand using a computer to interact with a device, showing screen and keyboard (no text or symbols)

Illustration of a hand pressing down on a device component (no text or symbols visible)

چند بهداشتى

Diagram of a hand pressing down on a mechanical component with a directional arrow (no text or symbols)

حقاظت سطوح پلاستیکی

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Hand inserting a component into a device casing (no text or symbols visible)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Diagram of a mechanical or electrical setup with directional arrows indicating motion, no text or symbols present

4 Подготовка

Line drawing of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Illustration of a hand using a device to interact with a screen (no text or symbols visible)

Illustration of a hand pressing down on a device with a scroll wheel (no text or symbols visible)
