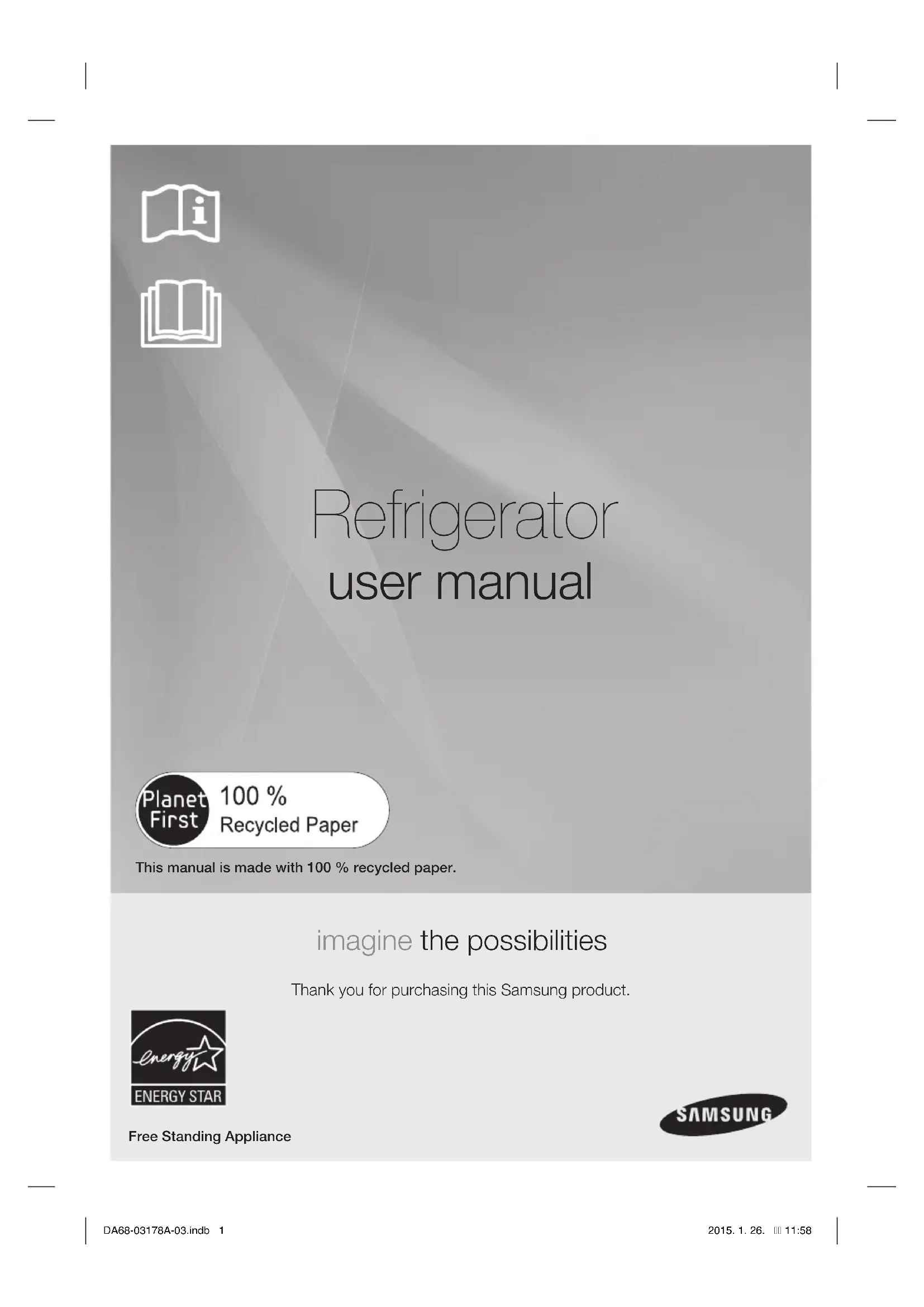

USER MANUAL RH30H9500SR SAMSUNG

Refrigerator user manual imagine the possibilities Thank you for purchasing this Samsung product. Free Standing Appliance This manual is made with 100% recycled paper. DA68-03178A-03.indb 1DA68-03178A-03.indb 1 2015. 1. 26. 11:582015. 1. 26. 11:58English - 2 Safety information SAFETY INFORMATION Before using your new Samsung Side-By-Side Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and effi ciently. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual. If you have any question, contact us at 1-800-SAMSUNG or fi nd help and information online at www.samsung.com. Important safety symbols and precautions: WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions carefully. Unplug the power plug from the wall socket. Make sure the refrigerator is grounded to prevent electric shock. Call the contact center for help. Note. These warning symbols are here to prevent injury to you and others. Please follow them carefully. After reading this section, keep it in a safe place for future reference. Contents SAFETY INFORMATION ……………………………………………………………… 2

• Do not install the refrigerator in a damp location or place where it may come in contact with water. - Deteriorated insulation on electrical parts may cause an electric shock or fire.

• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.

• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate. - This provides the best performance and also prevents overloading of house wiring circuits, which could cause a fire hazard from overheated wires.

• If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock of fire.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy objects on it.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• When moving the refrigerator, be careful not to roll over or damage the power cord. - This may result in an electric shock or fire.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug fi rmly and pull straight out from the outlet. - Damage to the cord may cause a short-circuit, fire, and/or electric shock.

• Do not use aerosols near the refrigerator. - Using aerosols near the refrigerator may cause an explosion or fire.

• Do not install this appliance near a heater or infl ammable material.

• Do not install this appliance in a humid, oily, or dusty location , or in a location exposed to direct sunlight or water (rain, etc.).

• Do not install this appliance in a location where gas may leak. - This may result in an electric shock or fire.

• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

• Connect the power plug in the proper position with the cord hanging down. - If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.

• When moving the refrigerator, be careful not to roll over or damage the power cord. - This constitutes a fire hazard.

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

• Keep the packing materials out of reach of children. - There is a risk of death from suffocation if a child puts the packing materials on his or her head.

• The appliance must be positioned so that the plug is accessible after installation. - Failing to do so may result in an electric shock or fire due to electric leakage.

• You need to remove all the protective plastic fi lm before you initially plug the product in.

• The refrigerator must be safely grounded. - Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the DA68-03178A-03.indb 3DA68-03178A-03.indb 3 2015. 1. 26. 11:582015. 1. 26. 11:58English - 4 receptacle box is fully grounded.

• Plug the power plug into the wall socket fi rmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or fire.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard. CAUTION INSTALLATION CAUTIONS

• Allow suffi cient space around the refrigerator and install it on a fl at surface. - If your refrigerator is not level, cooling efficiency and durability decrease. - Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

• Allow the refrigerator to stand for two hours after it has been installed and turned on before loading it with food.

• We strongly recommend you have a qualifi ed technician or service company install the refrigerator. - Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury. - When installing the refrigerator, make sure both legs contact the floor for secure installation. Legs are located at the bottom back of each door. Insert a flathead screwdriver and turn it in the direction of the arrow until it is level. - Always balance the load on each door. - Overload on any one door may fell the refrigerator, causing physical injury. WARNING

CRITICAL USAGE WARNINGS

• Do not insert the power plug into a wall socket with wet hands.

• Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not insert hands, feet or metal objects (such as knives, etc.) into the bottom or the back of the refrigerator. - This may result in an electric shock or injury. - Any sharp edges may cause a personal injury

• Do not put a container fi lled with water on the refrigerator. - If spilled, there is a risk of fire or electric shock.

• Children should be supervised to ensure that they do not play with the appliance. - Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• Do not let children hang on the door. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped.

• Do not insert your hands into the bottom area under the appliance. - Any sharp edges may cause personal injury.

• Do not let children step on a drawer cover. - The drawer may break and cause them to slip.

• Do not overfi ll the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage.

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite.

• Never put fi ngers or other objects into the water dispenser hole, ice chute, or ice maker bucket. - It may cause personal injury or material damage.

• Do not use or place any substances sensitive DA68-03178A-03.indb 4DA68-03178A-03.indb 4 2015. 1. 26. 11:582015. 1. 26. 11:58English - 5 SAFETY INFORMATION to temperature such as fl ammable sprays, fl ammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.

• Do not keep volatile or fl ammable objects or substances (such as benzene, thinner, propane gas, alcohol, ether, LP gas, etc.) in the refrigerator. - This refrigerator is for storing food only. - This may result in fire or explosion.

• Do not store pharmaceutical products, scientifi c materials, or temperature sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use an electrical appliance inside the refrigerator, unless it is of a type recommended by the manufacturer.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fi re, problems with the product, or injury.

• Do not put a container fi lled with water on the appliance. - If spilled, there is a risk of fire or electric shock.

• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.

• Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself.

• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center. - Failing to do so may result in an electric shock, fire, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, please contact your nearest service center.

• Children should be supervised to ensure that they do not play with the appliance. - Keep fingers out of “pinch point” areas. : Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• Do not let children hang on the door. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped.

• Bottles should be stored tightly together so that they do not fall out.

• This product is intended only for the storage of food in a domestic environment.

• If a gas leak is detected, avoid any naked fl ames or potential sources of ignition, and air the room in which the appliance is standing for several minutes. - Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in an explosion or fire.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center.

• If you experience diffi culty changing a non-LED light, contact a Samsung service center.

• If the product is equipped with LED Lamps, do not disassemble the Lamp Covers and LED Lamps yourself. - Please contact your service agents.

• If dust or water enters the refrigerator, unplug the refrigerator and contact your Samsung Electronics service center. - There is a risk of fire. DA68-03178A-03.indb 5DA68-03178A-03.indb 5 2015. 1. 26. 11:582015. 1. 26. 11:58English - 6 CAUTION USAGE CAUTIONS

• Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or fi zzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer. - When the contents freeze, the glass may break and cause personal injury.

• Use only the ice maker provided with the refrigerator.

• Have the refrigerator’s water supply connected only to a potable water supply. To operate the ice maker properly, water pressure of 20 ~ 125psi (138 ~ 862kPa) is required. If you will be away from home for a long period of time (on vacation, for example) and won’t be using the water or ice dispensers, close the water valve. - Otherwise, water leakage may occur.

• If you won’t be using the refrigerator for a very long period of time, (3 weeks or more) empty the refrigerator including ice bucket, unplug it, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.

• Service Warranty and Modifi cation.

• Any changes or modifi cations performed by a 3rd party on this fi nished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifi cations.

• Do not block the air vents inside the refrigerator. - If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If this cooling period lasts too long, the water filter may break and cause water leakage.

• If the refrigerator is disconnected from the power supply, you should wait for at least fi ve minutes before plugging it back in.

• If you have a long vacation planned or do not intend to use the refrigerator for a long period of time, (3 weeks or more) empty the refrigerator including ice bucket, pull out the power plug, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.

• To get the best performance from the product: - Do not place food too close to the vents at the rear of the refrigerator as it can obstruct free air circulation in the refrigerator compartment. - Wrap food up properly or place it in airtight containers before putting it into the refrigerator. - Do not place glass bottles or carbonated beverages into the freezer. They can freeze and break. Broken beverage containers can cause injury. - Please observe maximum storage times and expiration dates of frozen goods. - There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. However, if you will be away for more than three weeks, remove all the food and the ice in the ice bucket, unplug the refrigerator, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purifi ed water). - Do not fill the tank with tea or a Sports drink. This may damage the refrigerator.

• Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage.

• If the product is fl ooded, make sure to contact your nearest service center. - There is a risk of electric shock or fire. DA68-03178A-03.indb 6DA68-03178A-03.indb 6 2015. 1. 26. 11:582015. 1. 26. 11:58English - 7 SAFETY INFORMATION CAUTION CLEANING CAUTIONS

• Do not spray water directly on the inside or outside the refrigerator. - There is a risk of fire or electric shock.

• Do not use a hair dryer to dry the inside of the refrigerator.

• Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or fire.

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug. - Otherwise, there is a risk of fire or electric shock.

• Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in an electric shock or fire. WARNING

• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. WARNING

CRITICAL DISPOSAL WARNINGS

• DANGER : Risk of child entrapment. Before you throw away your old refrigerator or freezer: - Take off the doors and door latch. - Leave the shelves in place so that children cannot easily climb inside. - Children trapped inside a refrigerator can hurt themselves or suffocate to death.

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this product contains fl ammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. If trapped inside, the child may get hurt or suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over his or her head, the child could suffocate. DA68-03178A-03.indb 7DA68-03178A-03.indb 7 2015. 1. 26. 11:582015. 1. 26. 11:58English - 8

• In the event of a power failure, call the local offi ce of your Electricity Company and ask how long it is going to last. - Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. - Should the power failure last more than 24 hours, remove and discard all frozen food.

• The refrigerator might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) when sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which it is designed.

• Refrigeration can have an adverse effect on certain foods (bananas, for example) and cause them to deteriorate. Do not refrigerate these foods.

• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.

• Temperature rise during defrosting complies with ISO requirements. If you want to prevent an undue rise in the temperature of frozen food while the refrigerator defrosts, wrap the frozen food in several layers of newspaper.

• Do not re-freeze frozen foods that have thawed completely. Saving Energy Tips - Install the refrigerator in a cool, dry room with adequate ventilation. Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (a radiator, for example). - For the highest energy efficiency, do not block any internal or external grills or vents. - Allow warm food to cool down before placing it in the refrigerator. - Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator. - Do not keep the door of the appliance open for too long when putting food in or taking food out. The shorter the time the door is open, the less frost build-up you’ll have in the freezer. - To reduce power consumption and keep your energy bills low, we recommend that you install the refrigerator with at least 2 inches of clearance on the back and sides. DA68-03178A-03.indb 8DA68-03178A-03.indb 8 2015. 1. 26. 11:582015. 1. 26. 11:58English - 9 SETTING UP

GETTING READY TO INSTALL

THE REFRIGERATOR Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many state-of-the-art features and effi ciencies that this new appliance has to offer. Selecting the best location for the refrigerator

• Select a location with easy access to a water supply.

• Select a location without direct exposure to sunlight.

• Select a location with level (or nearly level) fl ooring.

• Select a location with enough space for the refrigerator doors to open easily.

• Select a location that allows suffi cient space to the right, left, back, and top for air circulation.

• Select a location that allows you to move the refrigerator easily if it needs maintenance or service.

• Do not install the refrigerator in locations where the temperature is over 110°F (43°C) or below 50°F (10°C).

(50mm) (50mm) 35 3/4" (908 mm) 35 3/4" (908 mm) 30 3/4" 30 3/4" (780 mm) (780 mm) 15 1/4" 15 1/4" (389 mm) (389 mm) 1 3/8" (35 mm) 1 3/8" (35 mm) 1 1/4" (32 mm) 1 1/4" (32 mm) 52 6/8" (1340 mm) 52 6/8" (1340 mm) 20 2/8" (515 mm) 20 2/8" (515 mm)

• Measurements refl ect the design dimensions. The actual dimensions of your refrigerator may differ slightly. Setting up your side-by-side refrigerator DA68-03178A-03.indb 9DA68-03178A-03.indb 9 2015. 1. 26. 11:582015. 1. 26. 11:58English - 10 When moving your refrigerator To prevent fl oor damage, be sure the front levelling legs are in the up position (above the fl oor). See “Leveling the Refrigerator” on page 14 for instructions. Screw DriverLeg Flooring For proper installation, you must place this refrigerator on a level, hard surface that is the same height as the rest of the fl oor. This surface should be strong enough to support a fully loaded refrigerator. To protect the fi nish of the fl ooring, cut a large section of the cardboard carton and place it under the refrigerator where you are working. When moving the refrigerator, you need to pull and push it straight forwards or back. Do not wiggle it from side to side. Required Tools (Not provided) Philips screwdriver (+) Flat-blade screw driver (-) Socket wrench (13/32”) (10mm) Allen wrench (3/16”) (5mm)

REMOVING THE REFRIGERATOR

DOORS If your entrance won’t allow the refrigerator to pass easily through it, you can remove the doors. To remove the doors, follow the steps starting below. If you do not need to remove the doors, go to “Leveling the Refrigerator” on page 14.

1. Pull the two water lines (which are in the Fixer)

out to the front. DA68-03178A-03.indb 10DA68-03178A-03.indb 10 2015. 1. 26. 11:582015. 1. 26. 11:58English - 11 SETTING UP

2. Remove the two water lines (White for water

and the other for ice) by pressing the coupler (1) and pulling the water line (2) away. CAUTION

Make sure the color Make sure the color of the water lines of the water lines match. match. CAUTION When reconnecting the supply hoses, make sure you connect hoses of the same color together.

2. DISASSEMBLE THE FREEZER DOOR

1. Remove the cover screw using a Phillips

screwdriver (1). Then push the hooks on the sides using a fl athead screwdriver to loosen the cover (2). Open the freezer door and lift up the back part of the cover (3) and then pull the cover up and towards you to detach it (4). - Detach the hinge cover with the door open and then close the door once the hinge cover has been detached.

2. Remove the hinge cover and then disconnect

the electrical wire connector.

3. Flip the clamp (A) up in direction 1 and then

pull it off in direction 2.

5. Lift up the door and detach it from the

refrigerator. CAUTION

• Be careful not to damage the electrical wires when assembling or disassembling the doors.

• Make sure the doors do not fall over and become damaged while they are detached from the refrigerator. DA68-03178A-03.indb 11DA68-03178A-03.indb 11 2015. 1. 26. 11:582015. 1. 26. 11:58English - 12

1. Remove the screw on the upper hinge cover

(1). With the door open, disengage the two locking tabs with a fl at-head screw driver (2) and remove it while the lifting up the rear of the cover (3).

2. Disassemble the housing connector.

3. Remove the three fastening screws on the top

hinge of the show case.

1. Push the fi xer hinge up, and pull it forward to

2. Remove the top hinge from the front of the

3. Remove the entire door.

To reassemble the doors, follow the steps below.

• Be sure to reassemble the Freezer Door before reassembling the Fridge Door.

• Before reassembling, make sure that all the wire connectors at the bottom of the Freezer Door are connected. How to Reassemble the Freezer Door

1. Attach the doors to the hinges at the bottom of

2. Insert the hinge (B) into the hinge slot on the

refrigerator, and then press down over the hinge hole on the door.

3. Insert the clamp (A) in the direction of arrow

(1) and then lower it in the direction of arrow (2) to lock it in place.

5. Insert the front part of the cover fi rst, push

down on the back part of the cover, and then secure the cover in place using a Phillips screwdriver. CAUTION The display may not function properly if you neglect to connect the electrical wires while assembling the door. DA68-03178A-03.indb 13DA68-03178A-03.indb 13 2015. 1. 26. 11:582015. 1. 26. 11:58English - 14

2. REASSEMBLING THE FRIDGE DOOR

AND THE SHOW CASE DOOR OF THE FRIDGE To reassemble the FRIDGE DOOR and the SHOW CASE DOOR OF FRIDGE, assemble the parts in reverse order.

1. Both water lines must be fully Inserted to the

center of the transparent coupler to prevent water leakage from the dispenser.

2. Insert the clips in the install pack and check

that each clip holds each line fi rmly. Center of Transparent coupler Center of Transparent coupler Clip A (1/4”) Clip A (1/4”) (6.35mm) (6.35mm) CAUTION

• Keep the clips out of the reach of children and make sure that children do not play with them or put them into their mouths.

• When reconnecting the supply hoses, make sure you connect hoses of the same color together.

How to level the refrigerator If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily. Setting up the refrigerator on an uneven surface will cause the refrigerator to lean. If the freezer side is lower:

• Insert a fl athead screwdriver into the height leveler located at the bottom back of the freezer door and turn it in the direction of the arrow until it is level. If the refrigerator side is lower:

• Insert a fl athead screwdriver into the height leveler located at the bottom back of the refrigerator door and turn in the direction of the arrow until it is level. DA68-03178A-03.indb 14DA68-03178A-03.indb 14 2015. 1. 26. 11:582015. 1. 26. 11:58English - 15 SETTING UP

• Raise the front of the refrigerator so that the doors close by themselves. Adjusting the levelers so that the back of the refrigerator is much higher than the front of the refrigerator can make it diffi cult to open the doors.

• If the back of the refrigerator is not level, put an appropriately sized thin piece of wood or tile where the refrigerator leg you want to raise will be set, and then secure it in place using tape. Slide the refrigerator into its spot, with the back leg you want to raise on the tile or wood. Then, adjust the level of the front legs.

• When pushing the refrigerator in, be careful not to damage the fl oor.

HOW TO ADJUST THE DOOR

HEIGHT If one door is lower than the other:

• The refrigerator door height can be adjusted using the adjustment nuts located at the bottom of each door.

• Raising the door too high can cause the door to interfere with the hinge cover when it is opened or closed.

1. Open the door that needs to be adjusted and

loosen the clamping nut (A) at the bottom of the door by turning it clockwise ( ) using the spanner included in the product package. (Raise the lower of the two doors fi rst.)

2. Adjust the height of the door by turning the

adjustment nut (B) with a spanner. (Turn it counterclockwise ( ) to increase the height of the door and clockwise ( ) to decrease it.) - Open the door and adjust it from the inside.

3. Once the doors are level, turn the clamping nut

(A) counterclockwise ( ) to tighten it.

Adjusting the level when the refrigerator is empty can result in the refrigerator becoming uneven again once items have been placed inside. If this occurs, adjust the level again. DA68-03178A-03.indb 15DA68-03178A-03.indb 15 2015. 1. 26. 11:582015. 1. 26. 11:58English - 16

If the gap between the refrigerator door and the freezer door is uneven:

• Use the gap adjustor located at the top of the refrigerator door (right side).

• Excessive force can cause the adjustor bolt to break.

1. Remove the refrigerator

door’s hinge cover. - Detach the hinge cover with the door open and then close the door once the hinge cover has been detached.

2. Adjust the gap using a 4 mm Allen wrench (not

included). Rotate the bolt clockwise ( ) to widen the gap. Rotate it counterclockwise ( ) to narrow the gap. Adjust until the gap between the refrigerator door and the freezer door appears even. CAUTION When arranging the cables, take caution not to tear or peel off the cable coating.

BODY If the gap between the refrigerator door and the refrigerator is uneven :

• Use the adjustors located at the top edge of the refrigerator, inside each door.

1. Open the door where the gap with the

refrigerator is narrower and then turn the adjustor counterclockwise ( ) until the gap is even. Adjustor Adjustor

2. Once the gap between the door and the

DISPENSER LINE A water dispenser is one of the helpful features on your new Samsung Refrigerator. To help promote better health, the Samsung water fi lter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that. The water line also connects to the ice maker. For the ice maker to operate properly, water pressure of 20 ~ 125psi (138 ~ 862kPa) is required. If the refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to compensate for the low pressure. After you have connected the water line, make sure the water storage tank inside the refrigerator is properly fi lled. To do this, press the water dispenser lever until water runs from the water dispenser. Water line installation kits are available at extra cost from your dealer. We recommend using a water supply kit that contains copper tubing. The Samsung refrigerator warranty does not cover water line installation. We strongly recommend you have a plumber or authorized installer install the water line. Connecting to the water supply line

1. First, shut off the main water supply line and

make sure the ice maker is turned off. The refrigerator should NOT be plugged in at this point.

2. Locate the nearest cold water drinking water

3. Install the pipe clamp and shut off valve.

4. Connect the water line installation kit to the

shut off valve. Shut off valve Shut off valve Pipe clamp Pipe clamp Cold water line Cold water line Water line installation kit Water line installation kit DA68-03178A-03.indb 17DA68-03178A-03.indb 17 2015. 1. 26. 11:582015. 1. 26. 11:58English - 18 Connecting the water supply line to the refrigerator There are several items that you need to purchase to complete this connection. You may fi nd these items sold as a kit at your local hardware store. Use Copper Tubing Use Plastic Tubing

• ¼” compression nut (1pc) Compression Nut Compression Nut (1/4”) (Assembled) (1/4”) (Assembled) Ferrule Ferrule (Not supplied) (Not supplied) Plastic Tubing Plastic Tubing (Supplied) (Supplied) Compression Compression Fitting (Assembled) Fitting (Assembled) Bulb Bulb Compression Compression nut (B) (1/4”) nut (B) (1/4”) (Not supplied) (Not supplied)

Copper tubing Copper tubing (Not supplied) (Not supplied) Plastic tubing (C) Plastic tubing (C) (Not supplied) (Not supplied) Household water line Household water line Refrigerator Refrigerator

1. Connect the household water line to the

assembled compression fi tting. - If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown. - If you are using plastic tubing (C), insert the molded end (Bulb) of the plastic tubing (C) into the compression fi tting. CAUTION Do not use plastic tubing (C) without the molded end (Bulb).

2. Tighten the compression nut (B) onto the

compression fi tting. Do not over-tighten the compression nut (B).

3. Turn the water on and check for any leaks

inside the refrigerator, around the water fi lter, and in any connection areas. If you fi nd water drops or leaks, turn off the main water supply. If the leaks are in the connection areas, check the connections and, if necessary, tighten. If there are leaks in the refrigerator, check the water fi lter and confi rm it is in the locked position. Turn on the water supply and check for leaks again.

4. Plug in the refrigerator.

5. Flush 3 gallons of water through the fi lter before

drinking or using the water from the refrigerator. (Flush approximately 6 minutes.) This will clean the water supply system and remove air from the lines. To fl ush, press the Water button, and then press a large glass or cup against the water dispenser lever. Fill the glass, empty it into the kitchen sink after it is fi lled, and then repeat. Additional fl ushing may be required in some households.

6. Open the refrigerator door and make sure there

are no water leaks coming from the water fi lter.

• After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that period of time, throw out the fi rst 1 or 2 buckets of ice the ice maker makes to ensure all impurities have been removed from the water line.

• Only connect the water line to a drinkable water source.

• If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to make sure you get a snug, leak-free connection.

• You can test the water line quickly using a paper cup. Under normal conditions, the water dispenser can fi ll a 5.75oz. (170cc) cup in about 10 seconds. DA68-03178A-03.indb 18DA68-03178A-03.indb 18 2015. 1. 26. 11:582015. 1. 26. 11:58English - 19 SETTING UP

COMPLETING THE SET UP

Now that you have your new refrigerator installed in place, you are ready to set up and enjoy the features and functions of the appliance. By completing the following steps, your refrigerator should be fully operational.

1. Make sure your refrigerator is in an appropriate

location with reasonable clearance between it and the wall. Refer to installation instructions in this manual.

2. Once the refrigerator is plugged in, make sure

the interior light turns on when you open the doors.

3. Set the Temperature control to the coldest

temperature and wait for an hour. The freezer will get slightly chilled and the motor will run smoothly. Reset the refrigerator and freezer to the temperatures you want.

4. After you plug the refrigerator in, it will

take a few hours to reach the appropriate temperature. You can store food and drinks in the refrigerator after the temperature is suffi ciently cool.

5. Once installation is complete, press the

dispenser lever to check if the water or the ice is properly dispensed.

6. Make sure the front side of the refrigerator is

0.6 degree higher than its rear side.

If condensation or water drops appear on dispenser surrounding (a) and partition between freezer and refrigerator (b), turn the Energy Saver mode off after removing the condensation. (See the explanation of the Energy Saver button in “Using the Control Panel” on page 20.) (a) (a) (b) (b) DA68-03178A-03.indb 19DA68-03178A-03.indb 19 2015. 1. 26. 11:582015. 1. 26. 11:58English - 20 Operating the SAMSUNG side- by-side refrigerator

USING THE CONTROL PANEL

(1) (2) (3) (8) (4) (5) (6) (9) (10) (10) (7) (7) (1) Freezer / Power Freeze (3sec) The Freezer button serves two purposes: - To set the Freezer to your desired temperature. - To turn the Power Freeze function on and off.

1. To set the Freezer temperature, touch

the Freezer button. You can set the temperature between 5°F (-15°C) and -8°F (-23°C).

2. Power Freeze function

Touch and hold this button for 3 seconds to decrease the time needed to freeze products in the Freezer. It can be helpful if you need to quickly freeze easily spoiled items or if the temperature in the freezer has warmed dramatically. (For example, if the door was left open.) When you use this function, the energy consumption of the refrigerator will increase. Remember to turn it off when you don’t need it and return the freezer to your original temperature setting. If you need to freeze a large amount of food, activate the Power Freeze function at least 20 hours before you put the food into the freezer. To cancel the Power Freeze function, press and hold the Freezer/Power Freeze (3 sec) button again for 3 seconds. (2) Lighting / Filter Reset (3sec) The Lighting button serves two purposes: - To turn the dispenser light on and off - To reset the water fi lter life indicator.

Touching the Lighting button turns on the Dispenser LED lamp in continuous mode so that it stays on continuously. The button also lights up. If you want the Dispenser lamp to come on only when some one uses the dispenser, press the Lighting button to turn the continuous mode off.

2. Filter Reset (3sec) Function

After you replace the water fi lter, touch and hold this button for 3 seconds to reset the water fi lter life indicator. When you reset the water fi lter life indicator, the Filter icon on the panel turns Off. The Filter icon turns red to let you know it is time to change the fi lter. See page 23 for more information. DA68-03178A-03.indb 20DA68-03178A-03.indb 20 2015. 1. 26. 11:582015. 1. 26. 11:58English - 21 OPERATING (3) Energy Saver Touching this button turns Energy Saver mode on and off. When you turn Energy Saver on, the Energy Saver icon lights. Turn Energy Saver off and the icon goes off. The Energy Saver function automatically turns on when power is supplied to the refrigerator. If condensation or water drops appear on the doors, turn the Energy Saver mode off. (4) Fridge / Power Cool (3sec) The Fridge button serves two purposes: - To set the Fridge to your desired temperature. - To turn the Power Cool function on and off.

1. To set the Fridge temperature, press

the Fridge button. You can set the temperature between 34°F (1°C ) and 44°F (7°C).

2. Power Cool function

Touch and hold this button for 3 seconds to decrease the time needed to cool products in the Refrigerator. It can be helpful if you need to quickly cool easily spoiled items or if the temperature in the fridge has warmed dramatically. (for example, if the door was left open) To cancel the Power Cool function, just press and hold the Fridge/Power Cool (3sec) button again for 3 seconds. (5) Alarm / °C↔°F (3sec) The Alarm button serves two purposes: - To turn the door open alarm on and off - To switch the temperature units between ºC and ºF.

1. Door Alarm Function

If the door alarm is set to On, an alarm beeps if a refrigerator door is left open for more than two minutes. The beeping stops when you close the door. The door alarm function is pre-set to On in the factory. You can turn it off by pressing and then releasing the Alarm button. You can turn it back on in the same fashion. The icon lights up when the function is on. When the Door Alarm function is on and the alarm sound is triggered, the Door Alarm Icon will blink while the alarm sounds.

2. To switch the temperature units

between ºC and ºF. Touch and hold this button for 3 seconds to select the temperature display you want. Each time you press and hold the button, the ºC and ºF temperature modes alternate and the ºC or ºF icon lights up, indicating your selection. DA68-03178A-03.indb 21DA68-03178A-03.indb 21 2015. 1. 26. 11:582015. 1. 26. 11:58English - 22 (6) Ice Maker Off The Ice Maker Off button serves two purposes: - To turn the Ice maker on and off - To turn the Control Lock Function on and off.

Touch and hold this button for 3 seconds to lock the display and the dispenser buttons so the buttons cannot be used. When Control Lock is on, the refrigerator does not dispense ice or water, even if the Dispenser Lever is pressed. The Control Lock icon lights up to indicate you’ve activated the Control Lock function. Press 3 seconds to unlock. If the ice maker function is ON, and the water Line is not connected, there will be a water valve noise from the back of the unit. Press the Ice Maker Off (Control Lock (3sec)) button for less than 3 seconds until the Ice Off Indicator ( ) illuminates. Display Off To conserve energy, the Panel Display turns off automatically under the following conditions: When no button has been pressed, when no doors are open, or when no Dispenser Lever has been pushed for a period of time. However, the icon indicating your cubed or crushed ice selection, will stay on. When you press a button, open a door, or push a Dispenser Lever, the Panel Display turns on again. Except for the Water, and Cubed / Crushed Ice buttons, all function buttons become operational after you remove your fi nger from the button you are currently pressing. (7) Control Lock Icon This icon lights when you activate the Lock function. When the Control Lock icon is lit, all the panel buttons, including the Ice button and the dispensers, are locked and de- activated. Press and hold the Ice Maker Off/Control Lock button for 3 seconds to turn Control Lock off and re-activate the panel buttons. Water The Water icon is on continuously, indicating that you can dispense water at any time. (8) Cubed Ice (9) Crushed Ice Cubed Cubed Crushed Crushed Touch the Cubed Ice or Crushed Ice button to select the type of ice you want to dispense. Each time you press the button, the cubed and crushed ice modes alternate and the Cubed or Crushed ice icon lights up, indicating your selection. If you don’t need ice, turn the function off to save on water and energy consumption (See Ice Maker Off above.) DA68-03178A-03.indb 22DA68-03178A-03.indb 22 2015. 1. 26. 11:582015. 1. 26. 11:58English - 23 OPERATING (10) Filter Icon Water fi lter usage This icon lights when you need to change the fi lter, usually after the refrigerator has dispensed about 300 gallons of water (after about 6 months). The icon will blink red for several seconds when you open or close the door. After you replace the water fi lter, touch and hold the Lighting / Filter Reset (3sec) button for 3 seconds to reset the water fi lter life indicator. - If water is not dispensing or dispensing slowly, you need to replace the water fi lter because the water fi lter is clogged. - Some areas have large amounts of lime in their water, which causes the water fi lter to clog more quickly. If this is the case in your area, you will need to change the water fi lter more frequently than every six months. Cooling Off Mode - North American (US and Canadian) Models Only: Cooling Off mode (also called Shop mode), is designed for use by retailers when they are displaying refrigerators on the shop fl oor. In Cooling Off mode, the refrigerator’s fan motor and lights work normally, but the compressors do not run, and the refrigerator and freezer do not get cold. To start Cooling Off mode, touch and hold the Lighting, the Freezer and the Fridge buttons for 5 seconds during normal operation. The refrigerator chime sounds and the temperature display fl ashes OFF. To cancel Cooling Off mode, touch and hold the Freezer, the Lighting and the Fridge buttons again for 5 seconds. CAUTION If your refrigerator appears to be working, but it is not cooling, and the Freezer and Fridge Temperature Indicators are moving, the Fridge is in Cooling Off mode. To cancel Cooling Off mode, follow the directions under Cooling Off Mode below. DA68-03178A-03.indb 23DA68-03178A-03.indb 23 2015. 1. 26. 11:582015. 1. 26. 11:58English - 24

Use this page to become more familiar with the parts and features of the Refrigerator. For the greatest energy effi ciency, leave all selves, drawers, and baskets in their original positions, as shown in the illustrations above. (4) (4) (5) (5) (6) (6) (11) (11) (1) (7) (7) (8) (8) (10) (10) (2) (3) (9) (9) DA68-03178A-03.indb 24DA68-03178A-03.indb 24 2015. 1. 26. 11:582015. 1. 26. 11:58English - 25 OPERATING (1) Freezer Shelves Use for storing meat, fi sh, frozen dumplings, ice cream and other types of frozen food. (2) Multipurpose Freezer Compartments Features tall freezer compartments for more effi cient food storage. Do not use these compartments for ice cream or items you intend to store for a long time. (3) Dried Food and Meat Storage Bin Use for long-term storage of dried food and meat. Wrap the items in aluminum foil or kitchen wrap before storing them. (4) Cheese Case Use for storing eggs, cheese, butter, and other types of dairy products. (5) Sauce Case Use for storing different types of sauces. (6) Fridge Shelves Use for storing general types of food that require refrigeration. (7) Drink Case Use for storing water, milk, juice, and other types of beverage. (8) Snack Case Use for storing salads and side dishes. (9) Well-Being Vegetable Bin Use to keep fruit and vegetables fresh. (10) Kids’ Case Located at a height within easy reach of children. Use for storing yogurt, snacks, and other items for kids. (11) Multi Case Use for storing dehydrated food such as dried pasta (spaghetti), beef jerky etc. WARNING

• If you plan to go away for a signifi cant amount of time, empty the refrigerator and turn it off. Wipe the excess moisture from the inside of the appliance and leave the doors open. This helps keep odor and mold from developing.

• If you do not intend to use the refrigerator for a long period of time, pull out the power plug. - Deterioration in the power cord insulation may cause a fi re. DA68-03178A-03.indb 25DA68-03178A-03.indb 25 2015. 1. 26. 11:582015. 1. 26. 11:58English - 26 CONTROLLING THE TEMPERATURE Basic temperature of Freezer and Fridge Compartments The recommended temperatures of the Freezer and Fridge compartments are 0°F and 37°F (or -18°C and 3°C) respectively. If the temperature of the Freezer or Fridge Compartments are too high or low, adjust the temperature manually. Controlling the Freezer temperature Recommend Temp (Freezer) : 0 °F (or -18 °C ) Recommend Temp (Freezer) : 0 °F (or -18 °C ) The Freezer temperature can be set between -8°F and 5°F (or between -23°C and -15°C) to suit your particular needs. Press the Freezer button repeatedly until the desired temperature is shown in the temperature display. The temperature will change by 1°F (or 1°C) with each press. See below. Fahrenheit : 0°F → -1°F → -2°F → -3°F → -4°F

• -18°C. Keep in mind that foods such as ice cream may/ melt at 4°F (or -15.5°C). The temperature display will move sequentially from -8°F to 5°F (or from -23°C to -15°C). Controlling the Fridge temperature Recommend Temp (Fridge) : 37 °F (or 3 °C ) Recommend Temp (Fridge) : 37 °F (or 3 °C ) The fridge temperature can be set between 34°F and 44°F (or between 1°C and 7°C) to suit your particular needs. Press the Fridge button repeatedly until the desired temperature is shown in the temperature display. The temperature will change by 1°F (or 1°C) with each press. See below. Fahrenheit : 37°F → 36°F → 35°F → 34°F → 44°F → 43°F → 42°F → 41°F → 40°F → 39°F

• 38°F → 37°F. Centigrade : 3°C → 2°C → 1°C → 7°C → 6°C → 5°C → 4°C → 3°C. The temperature control process for the Fridge works just like the Freezer process. Press the Fridge button to set your desired temperature. After a few seconds, the Fridge will begin adjusting the temperature. This will be refl ected in the digital display.

• The temperature of the Freezer or Fridge may rise if you open the doors too frequently, or if a large amount of warm or hot food is placed inside.

• This may cause the digital display to blink. Once the Freezer and Fridge temperatures return to their normal set temperatures, the blinking will stop.

• If the blinking continues, you may need to “reset” the refrigerator. Try unplugging the refrigerator, waiting for around 10 minutes, and then plugging the power cord back in. DA68-03178A-03.indb 26DA68-03178A-03.indb 26 2015. 1. 26. 11:582015. 1. 26. 11:58English - 27 OPERATING

USING THE ICE AND COLD

WATER DISPENSERS Push the appropriate button to select what you want to dispense. NO ICESelect this if you want to turn ice maker off Using the ice lever (1) ( 1 )( 2 ) Push the Ice lever dispenser (1) gently with your glass. Ice will be released from the dispenser. You can choose the type of ice by pushing the cubed or crushed button fi rst. Make sure the glass is in line with the dispenser to prevent the ice from bouncing out. If you select Cubed Ice after using the Crushed Ice feature, a small amount of residual crushed ice might be produced. Using the Water lever (2) Push the Water lever dispenser (2) gently with your glass. Water will be released from the dispenser. If you push the water and ice lever at about the same time, only the lever you actually pushed fi rst will function. To prevent spills, please wait 2 seconds after dispensing water or ice before removing your cup or glass from under the dispenser. Do not pull out the lever dispenser after dispensing ice or water. It comes back automatically. Using the Ice & Water Dispenser together To get Ice and water, push the Ice lever (1) fi rst for ice, then move your glass down and press the water dispenser lever (2) for water. CAUTION If the refrigerator door is open, the dispenser does not work.

• Do not pull the lever out. You could damage or break the lever’s spring.

• To clean the ice bin/bucket, wash with a mild detergent, rinse well, and dry thoroughly it. Do not use harsh or abrasive cleaners or solvents.

• In case ice doesn’t come out, pull out the ice bucket and press the test button located on the right side of ice maker.

• Do not press the test button continuously when the tray is fi lled with ice or water. Water may overfl ow or ice may jam the bucket.

• When you press the Test button, you will hear the refrigerator chime (ding-dong). When the chime sounds, release the Test button.

• The chime sounds automatically again to let you know the ice maker is working well. DA68-03178A-03.indb 27DA68-03178A-03.indb 27 2015. 1. 26. 11:582015. 1. 26. 11:58English - 28 CAUTION If a power failure occurs, ice cubes may melt then freeze together when the power comes back on, causing the dispenser to be out of order. To prevent this problem, after a power failure, pull out the ice bucket and discard the residual ice or water. After you dump the ice from the ice bucket, you should press the dispenser lever once with the ‘ICE CUBED’ or ‘CRUSHED’ function ON. The ice maker will make new ice faster after you return the ice bucket to the refrigerator. WARNING

• Do not put your fi ngers, hands, or any unsuitable objects in the chute or ice-maker bucket. - This can cause personal injury or material damage.

• Use only the ice maker provided with the refrigerator.

• The water line to this refrigerator must be installed / connected by a suitably qualifi ed person and must be connected to a potable water supply.

• The ice maker requires water pressure of 20-125psi (138~862kPa) to operate properly. CAUTION

• If you are going on a long vacation or business trip and won’t be using the water or ice dispensers for that period of time, close the water valve to prevent leaks.

• If you have not used the Ice maker for a while, or you have opened the freezer door frequently, the Ice may stick together. If this occurs, empty the ice bucket or break up the ice with a wood kitchen tool. Do not use sharp items such as knives or forks.

• When you remove the ice bucket, there may still be some residual ice in the ice maker. The ice maker may eject this ice into the freezer.

• To Remove the Ice Bucket. - Hold the handle as shown in fi gure1. - Lift up and pull the Bucket out slowly. - Take out Ice Bucket slowly to prevent damage. - When you reinstall the ice bucket, press and hold the ICE button for 6 seconds. Figure 1 Figure 1

• Normal Operation - Any sounds you hear when the ice maker dumps ice into the bucket are part of normal operation. - Ice may clump in the bucket if you do not dispense ice for long periods of time. If this occurs, remove all the ice and empty the bucket. - If ice does not come out, check for any ice stuck in the chute and remove it. - The fi rst batch of ice cubes after installation may be small because air has entered the water line. Any air will be purged during normal use. ice ice DA68-03178A-03.indb 28DA68-03178A-03.indb 28 2015. 1. 26. 11:582015. 1. 26. 11:58English - 29 OPERATING CAUTION

• When Ice Maker Off blinks on the display panel, reinsert the ice bucket and/or make sure it’s installed properly.

• When the door is open, the Ice and water dispenser do not work.

• If you close the door hard, it may cause water to spill over the ice maker.

• To prevent the ice bucket from dropping, use both hands when removing it.

• To prevent injury, be sure to clean up any ice or water that may have dropped on the fl oor.

• Do not let the children hang on the ice dispenser or on the bucket. They may get hurt.

• Be sure not to put your hand or any object into the ice chute. It may cause personal injury or damage mechanical parts.

Smart Eco System Keeps food at its freshest by using four sensors to monitor the external environment, usage patterns, and the refrigerator’s operating status while conserving energy and saving on electricity costs. Outside Humidity Outside Humidity Sensor Sensor Outside Temperature Outside Temperature Sensor Sensor Internal Temperature Sensors Internal Temperature Sensors DA68-03178A-03.indb 29DA68-03178A-03.indb 29 2015. 1. 26. 11:582015. 1. 26. 11:58English - 30

FRIDGE MULTI-PURPOSE DOOR

BIN A detachable divider makes it easy to store food in convenient, temporary compartments. Food products can be stored by type or size.

• Put the divider in place when storing slim-size condiment bottles and canned drinks together.

• Take out the divider when storing carton- size milks or drinks. How to Use the DIVIDER

1. Insert the divider as

shown in the diagram to compartmentalize the bin.

simply fl ip it around and move it out of the way as shown in the diagram. How to Use the MULTI SUPPORTER

leave the Multi Supporter fl ipped over as shown in the diagram.

Supporter to position 1 to prevent items from falling out and over.

Supporter to position 2 to use it as a divider.

1. Shelves (Freezer/Fridge)

• Open the door completely and then lift up the shelf as you pull it out to remove it. Stopper Stopper

• If you are unable to open the door completely, pull out the shelf, lift it up, and then turn it to remove it.

• To remove a Door Bin, hold the bin with both hands, and then gently lift it up.

• To remove a Drawer, pull the drawer out, and then lift it up slightly.

4. Vegetable Bin/Dry Bin Cover

• Take out the bin above the Vegetable Bin (refrigerator)/Dry Bin (freezer).

• Press down on the clips on either side of the Vegetable Bin (refrigerator)/Dry Bin (freezer) and pull it out towards you. (Optional) (Optional)

5. Vegetable Bin/Dry Bin

• Before taking out the Vegetable Bin/Dry Bin, you need to remove the multipurpose compartments from the door.

• Lift the bin up slightly as you pull it out.

6. Ice Bucket (Freezer)

- Remove the Icemaker Bucket by lifting it up, and then pulling it out slowly. - Grip the handle as shown in the fi gure. - Remove the Ice Bucket slowly to prevent damage. Do not use excessive force when removing the drawer cover. You can break the cover and cause injury. Before removing any accessories, make sure that no food is in the way. When possible, remove the food altogether to reduce the risk of accidents. DA68-03178A-03.indb 31DA68-03178A-03.indb 31 2015. 1. 26. 11:582015. 1. 26. 11:58English - 32

CLEANING THE REFRIGERATOR

WARNING Do not use benzene, thinner, Clorox, or car detergent to clean the refrigerator. They can damage the surface of the appliance and may cause a fi re. Do not spray the refrigerator with water while it is plugged in. This can cause an electric shock. To clean the refrigerator, follow these steps: To Clean the Refrigerator

1. Unplug the power cord of the refrigerator.

2. Slightly dampen a soft, lint-free-free cloth or

paper towel with water. Do not use any kind of detergent to clean the refrigerator. Detergent can discolor or damage the refrigerator.

3. Wipe the inside and outside of the refrigerator

until it is clean and dry.

4. Plug the power cord of the refrigerator back in.

CHANGING THE INTERIOR

LIGHTS Freezer / Fridge LED Lamp

• If the LED Lamp Cover is stained with foreign substances, the LED lamp may not look bright. Wipe the surface cover with a clean, dry cloth to return the light to full brightness. CAUTION Do not disassemble or replace the LED type lighting yourself. To replace the LED lights, contact a Samsung service center or your authorized Samsung dealer. If you attempt to replace the LED lamps yourself, you risk subjecting yourself to an electric shock or serious personal injury.

CHANGING THE WATER FILTER

WARNING To reduce risk of water damage to your property DO NOT use generic brands of water fi lers in your SAMSUNG Refrigerator. USE ONLY SAMSUNG BRAND WATER FILTERS. SAMSUNG is not legally responsible for any damage, including, but not limited to property damage caused by water leakage from the use of a generic water fi lter. SAMSUNG Refrigerators are designed to work ONLY WITH SAMSUNG Water Filters. How to Change the Water Filter The “Filter Indicator” light lets you know when it is time to change your water fi lter cartridge. To give you preparation time to get a new fi lter, the red light will come on just before the capacity of the current fi lter runs out. Changing the fi lter on time provides you with the freshest, cleanest water from your fridge. To change the water fi lter, follow these steps:

fi lter 90˚ counter- clockwise.

fi lter from the fi lter housing.

3. Insert the new water

fi lter inside the fi lter housing.

4. Turn the new water

fi lter 90˚ clockwise. DA68-03178A-03.indb 32DA68-03178A-03.indb 32 2015. 1. 26. 11:582015. 1. 26. 11:58English - 33 OPERATING

5. Touch and hold the “Lighting/Filter

Reset(3sec)” button ( ) for about 3 seconds to reset the water fi lter. The indicator turns off. A newly installed water fi lter cartridge may cause water to briefl y spurt from the water dispenser. This is due to air getting into the line. It should pose no problem to operation. CAUTION When you replace the water fi lter, water can drip from the bottom front of the refrigerator. Make sure to clean up any drips or spills after you have changed the fi lter. Removing residual matter inside the water supply line after installing a new fi lter

1. Press the Water button, and then push the

Dispenser Lever with a cup or glass.

2. Flush 1 gallon of water through the fi lter, one

cup or glass at a time. (Flush approximately 6 minutes.) This will clean the water supply system and remove air from the lines. - Additional fl ushing may be required in some households.

3. Open the refrigerator door and make sure there

are no water leaks coming from the water fi lter. Reverse Osmosis Water Supply IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa). If a reverse osmosis water fi ltration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa.) If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

• Check to see whether the sediment fi lter in the reverse osmosis system is blocked. Replace the fi lter if necessary.

• Allow the storage tank on the reverse osmosis system to refi ll after heavy usage.

• If your refrigerator has a water fi lter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water fi lter. If you have questions about your water pressure, call a licensed, qualifi ed plumber. Ordering replacement fi lters To order more water fi lter cartridges, contact your authorized Samsung dealer. DA68-03178A-03.indb 33DA68-03178A-03.indb 33 2015. 1. 26. 11:582015. 1. 26. 11:58English - 34 Troubleshooting PROBLEM SOLUTION The refrigerator does not work at all or it does not chill suffi ciently.

• Check if the power plug is properly connected.

• Is the temperature control on the display panel set to the correct temperature? Try setting it to a lower temperature.

• Is the refrigerator in direct sunlight or located too near a heat source? If so, it may not be able to cool suffi ciently. Install it in a location that is out of direct sunlight and not near a heat source.

• Is the back of the refrigerator too close to the wall, preventing proper ventilation? If so, the refrigerator may not be able to cool suffi ciently. Keep the wall at least two inches from the back and sides of the refrigerator.

• Is there too much food inside so that the food is blocking the outlet vent? To keep the refrigerator at a suitable temperature, do not fi ll the refrigerator with too much food. The food in the fridge is frozen.

• Is the temperature control on the display panel set to the correct temperature? Try setting it to a warmer temperature.

• Is the temperature in the room very low?

• Did you store the food with a high water content in the coldest part of the fridge? Move the food to another part of the fridge. You hear unusual noise or sounds.

• Check if the refrigerator is level and stable.

• Is the back of the refrigerator too close to the wall, keeping air from circulating?

• Was anything dropped behind or under the refrigerator?

• If you hear a “ticking” sound from inside the refrigerator, this is normal. It occurs because various parts contract or expand in response to temperature changes in the refrigerator interior. The front corners of the appliance are hot and condensation is occurring.

• Some heat is normal as anti-condensators are installed in the front corners of the refrigerator to prevent condensation.

• Is the refrigerator door ajar? Condensation can occur when you leave the door open for a long time.

• Water condensation in a drawer may occur if the drawer contains vegetables. The condensation will dissipate naturally as time passes. Ice is not dispensing.

• Did you wait for 12 hours after the installation of the refrigerator and water supply line before making ice? The refrigerator can take longer to make ice if it is not suffi ciently cool, such as during the fi rst 12 hours after it was installed.

• Is the water line connected and the shut-off valve open?

• Did you manually stop the ice making function? Make sure the Ice Maker is on and Ice Type is set to Cubed or Crushed.

• Are there any ice clumps in the ice maker bucket? Remove them.

• Is the freezer temperature too warm? Try setting the freezer temperature lower. You can hear water bubbling in the refrigerator.

• This is normal. The bubbling comes from the refrigerant coolant liquid circulating through the refrigerator. DA68-03178A-03.indb 34DA68-03178A-03.indb 34 2015. 1. 26. 11:582015. 1. 26. 11:58English - 35 TROUBLESHOOTING PROBLEM SOLUTION There is a bad smell in the refrigerator.

• Has a food item spoiled?

• Make sure that strong smelling food (for example, fi sh) is wrapped so that it is airtight.

• Clean out your freezer periodically and throw away any spoiled food. When cleaning the inside of the fridge, store food elsewhere and unplug the appliance. Wipe with a dry dishcloth after 2-3 hours and then circulate air inside the refrigerator. Frost forms on the walls of the freezer.

• Is the air vent blocked? Remove any obstructions so air can circulate freely.

• Allow suffi cient space between the stored food for effi cient air circulation.

• Is the freezer door closed properly?

• Is the freezer drawer closed properly? If the freezer drawer is not completely closed or is blocked, humidity from outside may enter and cause severe frost to form. The water dispenser is not functioning.

• Is the water line connected and the shut-off valve open?

• Has the water supply line tubing been crushed or kinked? Make sure the tubing is free and clear of any obstruction.

• Is the water tank frozen because the refrigerator temperature is too low? Try selecting a warmer setting on the main display panel.

• Check if the fi lter is properly installed. If it is not properly installed, the water dispenser may not work. The freezer door is not closing properly.

• Push the water lever dispenser and confi rm that it dispenses water.

• Push the ice lever dispenser and confi rm that the auger motor is operating.

• Remove objects on the shelves that might obstruct drive auger or the door. Precautions : If you have not dispensed water or ice for an extended time, ice clumps can accumulate in the ice bucket and interfere with the drive auger, preventing the ice dispenser from dispensing ice. Remove the remaining ice from the ice bucket to ensure the auger is not being blocked by ice clumps, and then operate the ice and water dispensers more frequently. This will improve the auto-closing function of the freezer door. DA68-03178A-03.indb 35DA68-03178A-03.indb 35 2015. 1. 26. 11:582015. 1. 26. 11:58Warranty (USA)

This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung) and delivered new, in the original carton to the original consumer purchaser, is warranted by Samsung against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) year Parts and Labor on Refrigerator Five (5) years Parts and Labor on sealed Refrigeration system only* Ten (10) years Parts and Five (5) years Labor on Digital Inverter Compressor (*Compressor, evaporator, condenser, drier, connecting tubing) This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung authorized service center. Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulated herein, with new or reconditioned parts during the limited warranty period specifi ed above. All replaced parts and products become the property of Samsung and must be returned to Samsung. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. In-home service will be provided during the warranty labor period subject to availability within the contiguous United States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed and accessible from fl oor level to service personnel. If during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, Samsung may elect, at our option, to provide for transportation of our choice to and from a Samsung authorized service center. Otherwise, transportation to and from the Samsung authorized service center is the responsibility of the purchaser. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior fi nish; accidents, abuse, neglect, fi re, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied and authorized by Samsung, or which damage this product or result in service problems; incorrect electrical line voltage, fl uctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; loss of food due to spoilage; consumable items including fi lters and light. THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specifi c legal rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact Samsung at:

SAMSUNG CUSTOMER CARE CENTER

Samsung Electronics America, Inc. 85 Challenger Road Ridgefi eld Park, NJ 07660 1-800-SAMSUNG (1-800-726-7864) and www.samsung.com/us/support DA68-03178A-03.indb 36DA68-03178A-03.indb 36 2015. 1. 26. 11:582015. 1. 26. 11:58If your refrigerator needs service Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number when your product is not functioning properly. Warranty Information (CANADA) Limited Warranty for Original Purchaser This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods: Labor : 1 years (in-home) Parts : 1 years Inverter Compressor : 10 years SECA further warrants that if this product fails to operate properly within the specifi ed warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to fi nd out if in-home service is currently available in your area by using the contact information at the back of this warranty. All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To fi nd the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca) Obligation to the Original Owner The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer. Exclusions of the Warranty This warranty does not cover damage due to accident, fi re, fl ood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in the Canada. If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) DA68-03178A-03.indb 37DA68-03178A-03.indb 37 2015. 1. 26. 11:582015. 1. 26. 11:58Memo DA68-03178A-03.indb 38DA68-03178A-03.indb 38 2015. 1. 26. 11:582015. 1. 26. 11:58Memo DA68-03178A-03.indb 39DA68-03178A-03.indb 39 2015. 1. 26. 11:582015. 1. 26. 11:58Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

(50mm) (50mm) 35 3/4" (908 mm) 35 3/4" (908 mm) 30 3/4" 30 3/4" (780 mm) (780 mm) 15 1/4" 15 1/4" (389 mm) (389 mm) 1 3/8" (35 mm) 1 3/8" (35 mm) 1 1/4" (32 mm) 1 1/4" (32 mm) 52 6/8" (1340 mm) 52 6/8" (1340 mm) 20 2/8" (515 mm) 20 2/8" (515 mm)

MISES EN GARDE RELATIVES AU
