USER MANUAL 587.14663 KENMORE

• = color number, numéro de couleur 587.1466*, 587.1465* P/N 675000612980Sears Brands Management Corporation,Hoffman Estates,IL 60179 U.S.A.www.kenmore.comwww.sears.com2 When installed, operated and maintained according to all instructions supplied with the product, if this appliances fails due to a defect in material or workmanship within one year fromt he date of purchase, Call 1-800-4-MY-HOME® to arrange for free repair. If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase. This warranty covers only defects in material and workmanship. Sears will NOT pay for: 1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not istalled, operated or maintained according to all instructions supplied with the product. 5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose. 6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you. This warranty applies only while this appliance is used in the United States or Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Sears Brand Management Corporation, Hoffman Estates, IL 60179 USA Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 Kenmore Limited Warranty Read all instructions before using this appliance. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

- indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury. - indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. Model No. _____________________________________ Serial No.______________________________________ Date of Purchase _______________________________ Save sales receipt for future reference. Product Record In this space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on an identification plate. See page 5 Dishwasher Features for serial label location.

Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Definitions All rights reserved. Printed in the USA. Kenmore Limited Warranty .................................................... 2

• Read all instructions before using the dishwasher.

• Use your dishwasher only as instructed in this Use and Care Guide.

• Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of reach of children.

• When loading items to be washed: - Locate sharp items and knives so that they are not likely to damage the door seal or tub. - Load sharp items and knives with the handles up to reduce the risk of cut-type injuries.

• Do not wash plastic items unless marked “dishwasher safe” or the equivalent. Check with manufacturer for recommendations, if not marked. Items that are not dishwasher safe may melt and create a potential fire hazard.

• Do not touch the heating element during or immediately after use.

• Do not operate your dishwasher unless all enclosure panels are properly in place.

• If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.

• Disconnect electrical power to dishwasher before servicing.

• Do no tamper with controls.

• Do not let children abuse, sit, stand or play on door or racks of a dishwasher.

• Keep young children and infants away from dishwasher when it is operating.

• Under certain conditions, hydrogen has may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for serveral minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Important Safety Instructions Electrical Shock HazardElectrical Shock Hazard Electrical Shock HazardElectrical Shock Hazard Electrical Shock Hazard Do not use dishwasher untilDo not use dishwasher until Do not use dishwasher untilDo not use dishwasher until Do not use dishwasher until completely installed.completely installed. completely installed.completely installed. completely installed. Do not push down on open door.Do not push down on open door. Do not push down on open door.Do not push down on open door. Do not push down on open door. Doing so can result in serious injury orDoing so can result in serious injury or Doing so can result in serious injury orDoing so can result in serious injury or Doing so can result in serious injury or cuts.cuts. cuts.cuts. cuts. Tip Over HazardTip Over Hazard Tip Over HazardTip Over Hazard Tip Over Hazard Electrically ground dishwasher.Electrically ground dishwasher. Electrically ground dishwasher.Electrically ground dishwasher. Electrically ground dishwasher. Connect ground wire to green groundConnect ground wire to green ground Connect ground wire to green groundConnect ground wire to green ground Connect ground wire to green ground nut in terminal box.nut in terminal box. nut in terminal box.nut in terminal box. nut in terminal box. Do not use an extension cord.Do not use an extension cord. Do not use an extension cord.Do not use an extension cord. Do not use an extension cord. Failure to do so can result in death,Failure to do so can result in death, Failure to do so can result in death,Failure to do so can result in death, Failure to do so can result in death, fire, or electrical shock.fire, or electrical shock. fire, or electrical shock.fire, or electrical shock. fire, or electrical shock. GROUNDING INSTRUCTIONS

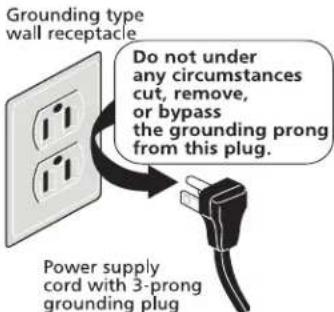

• For a grounded, cord-connected dishwasher: The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. : Improper connection of the equipment- grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

• For a permanently connected dishwasher: The dishwasher must be connected to a grounded metal, permanent wiring system, or a equipment- grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher. Before Using Your Dishwasher4 Dishwasher Features Your dishwasher illustrated below, cleans by spraying a mixture of hot, clean water, and detergent against the soiled surfaces of your dishes and tableware. Each cycle starts with a pre-drain. Next, the dishwasher fills with water to a level even with the heating element. This water is constantly pumped through the rotating spray arm and sprayed on the dishes. Soiled water is pumped out and replaced with clean water during a cycle. The number of water fills depends upon the cycle being used. Control PanelControl Panel Control PanelControl Panel Control Panel Door SpringDoor Spring Door SpringDoor Spring Door Spring PanelPanel PanelPanel Panel Toe & Kick PlateToe & Kick Plate Toe & Kick PlateToe & Kick Plate Toe & Kick Plate Leveling LegsLeveling Legs Leveling LegsLeveling Legs Leveling Legs MotorMotor MotorMotor Motor Lower Spray ArmLower Spray Arm Lower Spray ArmLower Spray Arm Lower Spray Arm Lower RackLower Rack Lower RackLower Rack Lower Rack Upper Spray ArmUpper Spray Arm Upper Spray ArmUpper Spray Arm Upper Spray Arm Upper RackUpper Rack Upper RackUpper Rack Upper Rack Appearance may vary from your model. How Your Dishwasher Cleans5 Operating Instructions

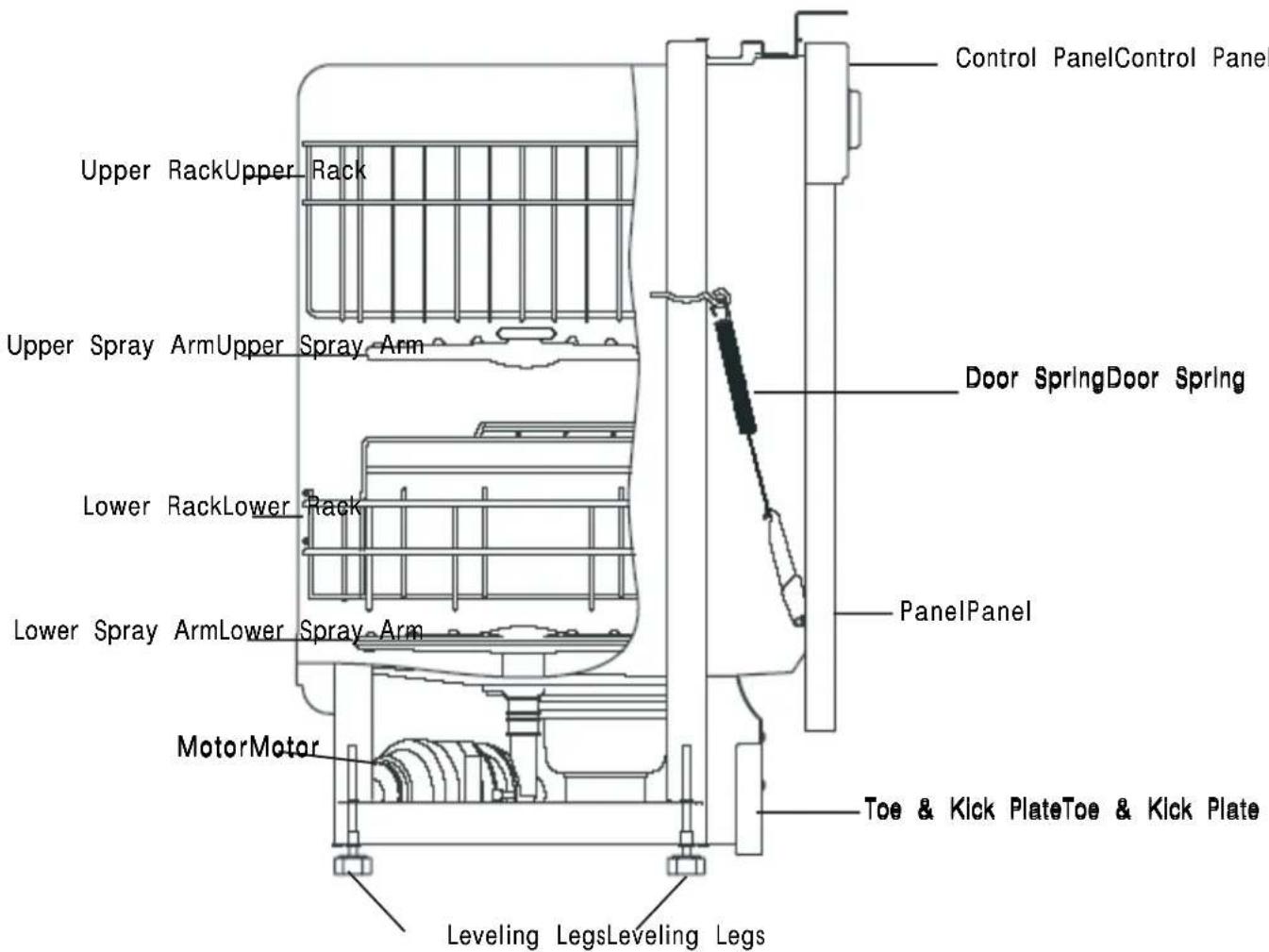

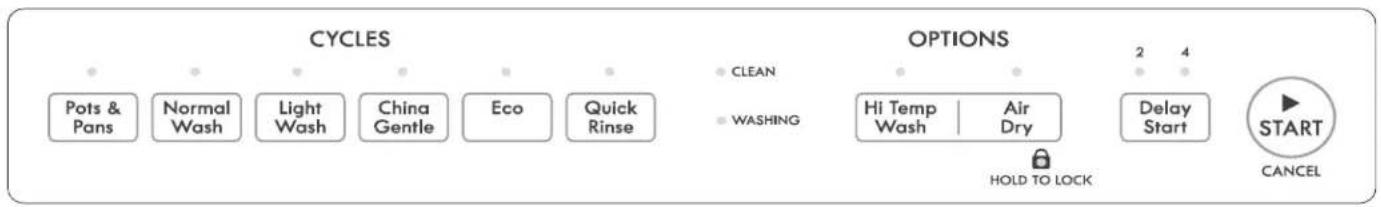

Note:Note: Note:Note: Note: Cycle times are approximate and will vary with options selected. Not all cycles available on all models. Getting Started

6. Select desired OPTIONS.

7. See Page 12 for instructions on connecting the protable

8. Run hot water faucet nearest dishwasher until water is

hot. Turn water off.

9. To Start, close door to latch.

• Select desired OPTIONS. 2 washes 5 rinses

• Select desired options. gal. liters 2 washes 2 rinses 65 mins.

For lightly soiled and pre-rinsed dishes and silverware.

ycle Chartycle Chart ycle Chartycle Chart ycle Chart DescriptionDescription DescriptionDescription Description Time*Time* Time*Time* Time* (approx.)(approx.) (approx.)(approx.) (approx.) Washes/Washes/ Washes/Washes/ Washes/ RinsesRinses RinsesRinses Rinses WaterWater WaterWater Water (approx.)(approx.) (approx.)(approx.) (approx.) To Select CycleTo Select Cycle To Select CycleTo Select Cycle To Select Cycle CycleCycle CycleCycle Cycle LightLight LightLight Light WashWash WashWash Wash 2 washes 4 rinses 95 mins. For regularly soiled dishes and silverware. NormalNormal NormalNormal Normal WashWash WashWash Wash

• Select desired options.

• Select desired options. gal. liters 2 washes 3 rinses 85 mins.

EcoEco EcoEco Eco For lightly soiled or pre- rinsed dishes and silverware.

Appearance may vary from your model.

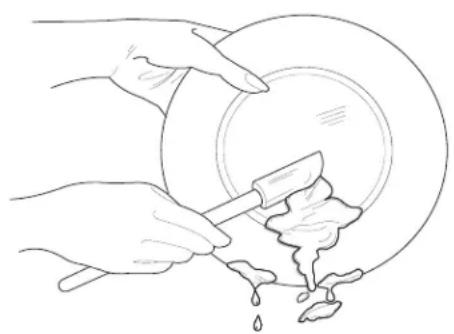

Operating Instructions Dish Preparation It is not necessary to rinse dishes before putting them into the dishwasher. Just remove large pieces and quantities of food, bones, pits, etc. Empty glasses and cups. It may be necessary to presoak or lightly scour firmly cooked-on or baked-on foods. Food such as mustard, mayonnaise, vinegar, lemon juice and tomato-based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. Unless the dishwasher is to be operated at once, it is best to rinse off these food soils. Hi-Temp Wash OptionHi-Temp Wash Option Hi-Temp Wash OptionHi-Temp Wash Option Hi-Temp Wash Option When HI-TEMP WASH ON option is selected, the dishwasher heats the water in the main wash to approximately 140°F (60°C). This increase in water temperature helps dishwasher detergent remove food grease and soil from dishes more effectively and aids in drying. HI-TEMP WASH option can be used with all cycles except LIGHT WASH and QUICK RINSE. HI-TEMP WASH is automatically provided when HEAVY WASH cycle is selected. To turn off the HI-TEMP WASH option, press the pad a second time. Air Dry OptionAir Dry Option Air Dry OptionAir Dry Option Air Dry Option The unit defaults to heated dry when it is started with any cycle selected. This drying uses a combination of the heated dry with rinse aid that achieves enhanced drying performance. If you prefer to only have AIR DRY for dishes, you will select AIR DRY and the uit will not energize the heating element. This will reduce energy consumption, but reduce drying performance. Delay StartDelay Start Delay StartDelay Start Delay Start The DELAY START option allows you to automatically delay starting your dishwasher from 2 - 4 hours. To cancel the delay and start the cycle before the delay period is over, open the door and press the START/ CANCEL key. Close the door and the cycle will start. Make cycle selections, press the DELAY START key until the desired delay LED is it, then close the door and the delay time will start.

• Load dishes facing the center of the rack so that the water spray from the rotating spray arm can reach soiled surfaces.

• Be sure large items do not block the detergent dispenser, preventing it from opening during the wash cycle.

• To be sure an item is dishwasher safe, read the manufacturer’s care instructions.

• If the dishwasher drains into a food disposer, be surebe sure be surebe sure be sure disposer is completely empty before dishwasherdisposer is completely empty before dishwasher disposer is completely empty before dishwasherdisposer is completely empty before dishwasher disposer is completely empty before dishwasher is started.is started. is started.is started. is started.

• To save energy, wash full loads.

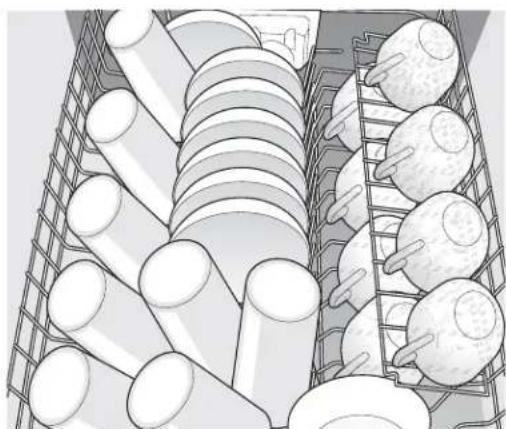

• For best washing results, load correctly and avoid overloading.7 Preparing and Loading Dishes Loading the Top Rack Glasses and cupsGlasses and cups Glasses and cupsGlasses and cups Glasses and cups—Place glasses and cups against outside pins at an angle. Cups with a concave bottom will collect water. Small plates and saucersSmall plates and saucers Small plates and saucersSmall plates and saucers Small plates and saucers—Place dishes between middle two rows of pins. PlasticwarePlasticware PlasticwarePlasticware Plasticware—Load plasticware in the top rack to avoid melting. BowlsBowls BowlsBowls Bowls—Place bowls between the middle 2 rows of pins facing down. Miscellaneous itemsMiscellaneous items Miscellaneous itemsMiscellaneous items Miscellaneous items—Place long handled knives and utensils in top rack. Cup ShelfCup Shelf Cup ShelfCup Shelf Cup Shelf—The cup shelf can be folded down over short items (juice glasses, cups, etc.) for more loading space. When using cup shelf, alternate items with layer below so that water can reach all inside surfaces. Loading the Bottom Rack Large plates and plattersLarge plates and platters Large plates and plattersLarge plates and platters Large plates and platters—Place between the support pins with soiled sides facing inward. Bowls, casseroles and sauce pans— Bowls, casseroles and sauce pans— Bowls, casseroles and sauce pans— Bowls, casseroles and sauce pans— Bowls, casseroles and sauce pans— Load upside down or at an angle facing inward. Slightly tilting items will provide better drainage.

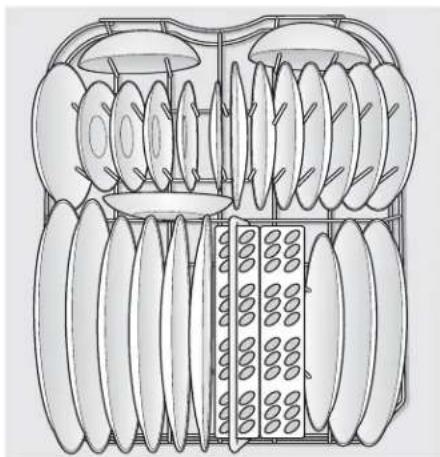

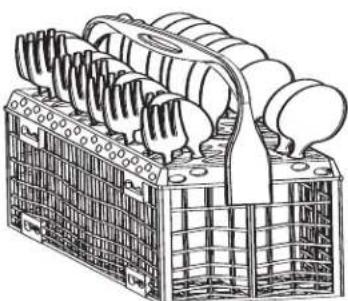

ots and pansots and pans ots and pansots and pans ots and pans—Place upside down and at an angle. Do not allow handles to protrude through bottom of rack, blocking wash arm rotation. Load large items at the sides and not across the front so they do not block the detergent dispenser preventing it from opening. Loading the Silverware Basket Load sharp items with handles up.Load sharp items with handles up. Load sharp items with handles up.Load sharp items with handles up. Load sharp items with handles up. Be sure items do not protrude through the holes in the basket and stop the rotation of the spray arm. Load silverware so items are mixed in each section to prevent nesting. Water spray cannot effectively reach nested items.

1. Make sure there is a full wash cycle yet to be

completed so that any added items are thoroughly washed and rinsed.

2. Unlatch door and wait for water action to stop.

3. Open door and add dish.

4. Firmly close door to latch and resume cycle.

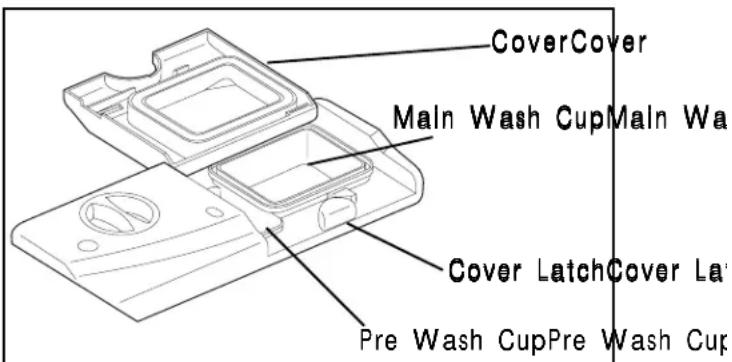

Dishwasher Dispenser & Detergents Filling the Detergent Dispenser The detergent dispenser has one main wash cup and one prewash cup. The covered cup opens automatically to release detergent.

• Use only fresh automatic dishwashing detergent. Other detergents will cause oversudsing.

• When using automatic dishwashing detergent tabs, place one tab in main wash cup and close.

• Add detergent just before starting cycle.

• Store detergent in a cool, dry location. Moist or caked detergent will not dissolve properly. The use of industrial grade detergent can damage the heating coil and other parts of the dishwasher leading to damage to the unit and surrounding property. Use only household grade automatic dishwasher detergents. How much Detergent to use The amount of detergent to use depends on the water hardness. Water hardness is measured in grains per gallon. Using too little detergent can result in poor cleaning and hard water filming or spotting. Using too much detergent in soft water can cause a permanent film called etching. Your local water company, water softener company or county extension agent can tell you the water hardness in your area. CoverCover CoverCover Cover Pre Wash CupPre Wash Cup Pre Wash CupPre Wash Cup Pre Wash Cup Cover LatchCover Latch Cover LatchCover Latch Cover Latch Note: Note: Note: Note: Note: If the cover is closed on the Main Wash Cup, open by pressing the cover latch. Main Wash CupMain Wash Cup Main Wash CupMain Wash Cup Main Wash Cup Pots & Pans

(each cup– 1/4 full) 4 teaspoons (each cup–fill to line above "Regular") 6 teaspoons (each cup– completely full) Each Cup – Completely Full (water softener recommended) Light Wash

(Main Wash cup– 1/4 full) 4 teaspoons (Main Wash cup–fill to line above "Regular") 6 teaspoons (Main Wash cup– completely full) Main Wash Cup – Completely Full (water softener recommended) *Note: For very hard water, detergent alone may not be enough. A water softener is recommended to improve water quality and dishwashing performance. Try adding more detergent at the beginning of the main wash portion of the cycle. As a rule, use 1 teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent to the bottom of the tub. Close the door to latch and the dishwasher will continue through the cycle. Quick Rinse No Detergent No Detergent No Detergent No Detergent (water softener recommended)9 Dishwasher Dispenser & Detergents Rinse Aid Rinse aid greatly improves drying and reducesRinse aid greatly improves drying and reduces Rinse aid greatly improves drying and reducesRinse aid greatly improves drying and reduces Rinse aid greatly improves drying and reduces water spots and filming.water spots and filming. water spots and filming.water spots and filming. water spots and filming. Water "sheets" off dishes rather than forming water droplets that cling and leave spots. A dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse. If spotting and poor drying are problems, increase the amount of rinse aid dispensed by rotating the dial to a higher number. The dial is located under the dispenser cap. The indicator will be dark when full and will show clear when it is time to refill. To add liquid rinse aid, turn dispenser cap 1/4 turn counterclockwise and lift out. Pour in rinse aid until liquid touches the indicated fill level. Replace cap. Do not overfill since this can cause oversudsing.Do not overfill since this can cause oversudsing. Do not overfill since this can cause oversudsing.Do not overfill since this can cause oversudsing. Do not overfill since this can cause oversudsing. Wipe up any spills with a damp cloth.Wipe up any spills with a damp cloth. Wipe up any spills with a damp cloth.Wipe up any spills with a damp cloth. Wipe up any spills with a damp cloth. The dispenser holds enough for 35 to 140 washes,The dispenser holds enough for 35 to 140 washes, The dispenser holds enough for 35 to 140 washes,The dispenser holds enough for 35 to 140 washes, The dispenser holds enough for 35 to 140 washes, depending on setting.depending on setting. depending on setting.depending on setting. depending on setting. Adjustable setting Adjustable setting Adjustable setting Adjustable setting Adjustable setting Dispenser OpeningDispenser Opening Dispenser OpeningDispenser Opening Dispenser Opening Dispenser CapDispenser Cap Dispenser CapDispenser Cap Dispenser Cap IndicatorIndicator IndicatorIndicator Indicator MoreMore MoreMore More LessLess LessLess Less Water Pressure Water pressure should be between 20 and 120 pounds per square inch. Low water pressure occurs most often during periods of high water consumption, such as when laundry or showers are being done. To determine if you have enough water pressure, put a 2 quart container under fully opened hot water faucet nearest the dishwasher. It should fill in less than 14 seconds. Be sure all other faucets are turned off during test. Water Temperature Hot water is needed for best dishwashing and drying results. Water entering dishwasher should be 120°F (49°C) to give satisfactory results. To check water temperature entering dishwasher:

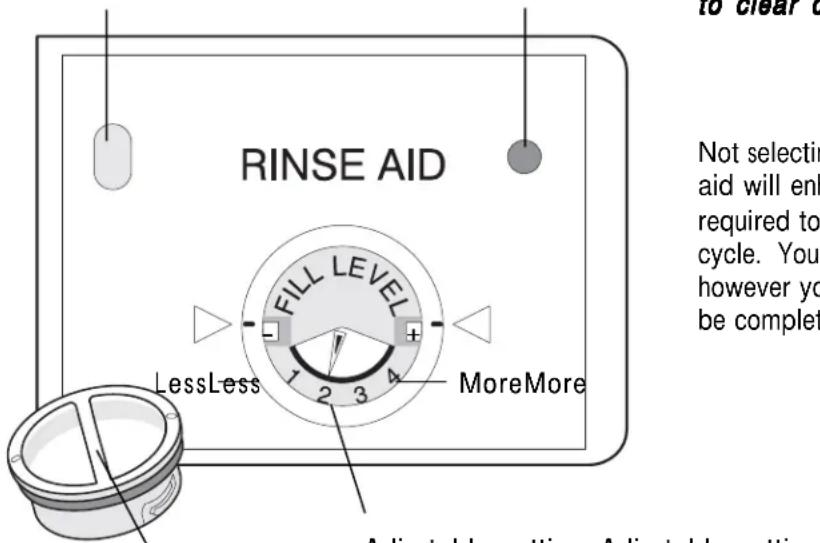

• Turn on hot water faucet nearest dishwasher for several minutes to clear cool water from pipes.

• Hold a candy or meat thermometer in stream of water to check the temperature.

• If temperature is below 120°F (49°C), have a qualified person raise the hot water heater thermostat setting. Important: Before starting a cycle, run hot waterImportant: Before starting a cycle, run hot water Important: Before starting a cycle, run hot waterImportant: Before starting a cycle, run hot water Important: Before starting a cycle, run hot water to clear cool water from pipe.to clear cool water from pipe. to clear cool water from pipe.to clear cool water from pipe. to clear cool water from pipe. Factors Affecting Performance Not selecting the AIR DRY option in combination with rinse aid will enhance drying performance. The energy required to use the AIR DRY option costs pennies per cycle. You may choose to select the AIR DRY option; however you will have items in your dish load that will not be completely dry at the end of the cycle.10 Care & Cleaning Property Damage Hazard Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected. Failure to do so could result in property damage. For optimum performance, your dishwasher is equipped with a filter assembly featuring a main filter, cup and fine filter as shown in the drawing above. All food fragments are removed from the dishwasher as water passes through the filter assembly. Each part of the assembly should be cleaned often to ensure that all food fragments are removed from the dishes. To remove food fragments from the filter assembly, the filters must be removed from the dishwasher. To remove the filters, pull up on the edge of the main filter. Next, rinse the main filter and fine filter under running water. Cleaning with a brush may also be necessary to remove any fragments trapped in the filters. Once cleaning has been completed, simply reassemble the filter as shown in the drawing above. To ensure that the filter is fully seated, please press down on the top of the main filter.

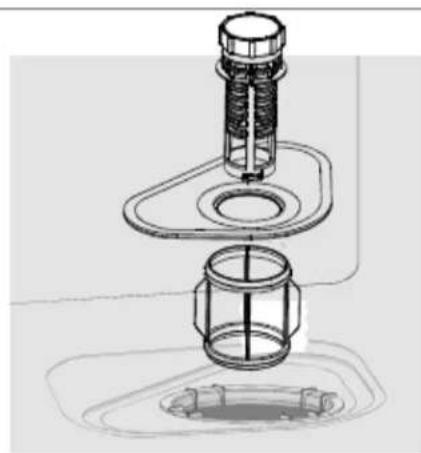

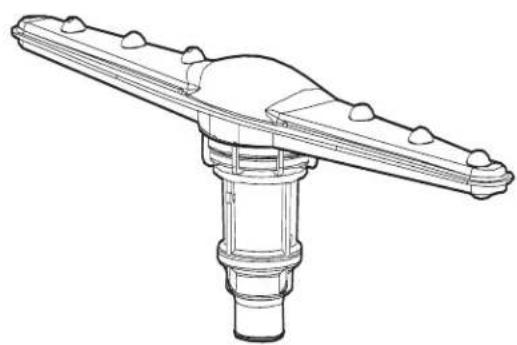

sing the dishwashersing the dishwasher sing the dishwashersing the dishwasher sing the dishwasher without a properly installed filter is notwithout a properly installed filter is not without a properly installed filter is notwithout a properly installed filter is not without a properly installed filter is not recommended as it will reduce the cleaningrecommended as it will reduce the cleaning recommended as it will reduce the cleaningrecommended as it will reduce the cleaning recommended as it will reduce the cleaning efficiency and may damage dishware.efficiency and may damage dishware. efficiency and may damage dishware.efficiency and may damage dishware. efficiency and may damage dishware. Cleaning the Filter The spray arm may need to be cleaned to insure that there are no clogs to the spray arm jets and bearings due to hard water chemicals. To remove spray arm simply hold the spray arm in place and turn the retaining nut clockwise and pull up on the spray arm lifting off the shaft. To clean the spray arm use warm soapy water using a soft brush to clean the jets and bearings. To replace the spray arm simply set the spray arm on the shaft, take the retaining nut and turn it counter clockwise till it has locked into place. Cleaning the Spray Arm11 Care & Cleaning Allow heating element to coolbefore cleaning the interior.Failure to do so can result in burns.Burn Hazard Care of Drain Air Gap If a drain air gap was installed for your built-indishwasher, check to make sure it is clean so thedishwasher will drain properly. A drain air gap is usuallymounted on countertop and can be inspected by removingthe cover. This is not part of your dishwasher and is notcovered by warranty. Outside—Occasionally wipe with a mild nonabrasive detergent and water. Rinse and dry. Inside—The inside of the dishwasher is self-cleaning with normal use.To clean Stainless Steel wipe with the grain. NEVER use the products that contain Chlorine Bleach or Citric Acid. Important: The dishwasher motor is permanently lubricated at the factory and does not need to be oiled.

o Disconnect Sero Disconnect Ser o Disconnect Sero Disconnect Ser o Disconnect Ser vice:vice: vice:vice: vice: 1. Turn off electrical power to the dishwasher at thesupply source by removing fuses or tripping circuitbreaker.2. Shut off water supply.3. Place a pan under the inlet valve. Disconnect waterline from inlet valve and drain into pan.4. Disconnect drain line from pump and drain water into pan.

o Restore Sero Restore Ser o Restore Sero Restore Ser o Restore Ser vice:vice: vice:vice: vice: 1. Reconnect the water, drain, and electrical powersupply.2. Turn on water and electrical power supply.3. Fill both detergent cups and run dishwasher through aNORMAL WASH Cycle.4. Check connections to make sure they do not leak.A dishwasher left in an unheated place should beprotected from freezing. Have a qualified persondo the following: Winterizing Note: Note: Note: Note: Note: See Installation Instructions for more details on disconnecting and restoring service to your dishwasher. Note: Note: Note: Note: Note: See Installation Instructions for more details on disconnecting and restoring service to your dishwasher.12 Connecting and Disconnecting Portable Dishwasher The portable dishwasher must be connected to a faucet and electrical outlet each time it is used. Follow directions on this page to properly connect dishwasher. IMPORTANT: Make sure door is latched before moving dishwasher.IMPORTANT: Make sure door is latched before moving dishwasher. IMPORTANT: Make sure door is latched before moving dishwasher.IMPORTANT: Make sure door is latched before moving dishwasher. IMPORTANT: Make sure door is latched before moving dishwasher. The power cord and faucet coupler with hoses are located in a compartment in back of dishwasher. A special adapter must be installed on faucet before you can connect dishwasher (Figure A).

1. Remove faucet adapter assembly from literature package.

2. Unscrew existing sink faucet aerator.

3. Check faucet spout to see if threads are inside or outside.

• If threads are on inside of faucet spout, use both rubber washers.

• If threads are on outside of faucet spout, use one rubber washer only.

• If faucet has no threads, an adapter kit with instructions for attachment to a non-threaded spout is available at most hardware stores.

4. Assemble faucet spout as shown in Figure A.

Connecting the Portable DishwasherConnecting the Portable Dishwasher Connecting the Portable DishwasherConnecting the Portable Dishwasher Connecting the Portable Dishwasher

1. Run water at faucet until it is hot. Turn off faucet.

2.Pull hoses out of compartment. 3.Push collar down and slip faucet connector onto faucet adapter (Figure B). 4.When connector snaps into place, release collar. 5.Slowly turn on hot water all the way. 6.Plug power cord into grounded outlet. Disconnecting the Portable DishwasherDisconnecting the Portable Dishwasher Disconnecting the Portable DishwasherDisconnecting the Portable Dishwasher Disconnecting the Portable Dishwasher

1. When cycle has finished, unplug power cord and return it to compartment.

2.Turn off hot water. 3.Press red button on coupler to release water pressure. 4.Press down on collar to release coupler. 5.Empty remaining water from coupler and return it to compartment. IMPORTANT: IMPORTANT: IMPORTANT: IMPORTANT: IMPORTANT: A sink spray hose can burst due to constant waterA sink spray hose can burst due to constant water A sink spray hose can burst due to constant waterA sink spray hose can burst due to constant water A sink spray hose can burst due to constant water pressure while in use. If your spray hose is installed on same waterpressure while in use. If your spray hose is installed on same water pressure while in use. If your spray hose is installed on same waterpressure while in use. If your spray hose is installed on same water pressure while in use. If your spray hose is installed on same water line as the dishwasher, it is your responsibility to disconnect sink'sline as the dishwasher, it is your responsibility to disconnect sink's line as the dishwasher, it is your responsibility to disconnect sink'sline as the dishwasher, it is your responsibility to disconnect sink's line as the dishwasher, it is your responsibility to disconnect sink's spray hose and to plug hole.spray hose and to plug hole. spray hose and to plug hole.spray hose and to plug hole. spray hose and to plug hole. Electrical Connection for a Portable DishwasherElectrical Connection for a Portable Dishwasher Electrical Connection for a Portable DishwasherElectrical Connection for a Portable Dishwasher Electrical Connection for a Portable Dishwasher An electrical supply of 120 volts, 60 Hz, AC only, 15 amps is required. For your safety, the dishwasher must be grounded. If there is a malfunction or breakdown, grounding will reduce risk of electrical shock. This dishwasher has a power cord with a 3-prong grounding plug. It must be plugged into a mating 3- prong grounding type receptacle, installed and grounded in accordance with the National Electrical Code and any local codes and ordinances. Faucet Adapter AssemblyFaucet Adapter Assembly Faucet Adapter AssemblyFaucet Adapter Assembly Faucet Adapter Assembly (Figure A)(Figure A) (Figure A)(Figure A) (Figure A) Connecting theConnecting the Connecting theConnecting the Connecting the Portable FaucetPortable Faucet Portable FaucetPortable Faucet Portable Faucet Adapter AssemblyAdapter Assembly Adapter AssemblyAdapter Assembly Adapter Assembly (Figure B)(Figure B) (Figure B)(Figure B) (Figure B) Electric Shock Hazard Avoid fire hazard or electrical shock. Do not use an adapter plug, extension cord or remove grounding prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.13 Solutions to Common Dishwashing Problems Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your dishwasher. Dishes not cleanDishes not clean Dishes not cleanDishes not clean Dishes not clean—Check pages 4 to 8 for information on correct wash cycle, proper loading, water temperature, water pressure, hard water, amount of detergent, old and ineffective detergent, and dish placement. To maximize wash performance clean the filter of all large food particles after each wash. To ensure that you clean the filter correctly refer to page 10. Dishes not dryingDishes not drying Dishes not dryingDishes not drying Dishes not drying

can be greatly improved by using a rinse aid and hot water. Hot water raises temperature of dishes to speed up drying. When loading, invert cups and bowls so that water can run off. Avoid nesting of articles. If dishes are not completely dry at end of cycle (which may occur when COOL DRY setting is used), open door, roll out racks, and allow dishes to air dry. SpottingSpotting SpottingSpotting Spotting—Spots form when hard water droplets evaporate leaving a deposit. Low phosphate detergents increase the problem in hard water. To prevent, use hot water and a detergent with a higher level of phosphates (preferably 8.7% or higher), or use more of a low phosphate detergent. Be sure to use a rinse aid. If water is very hard, it may be necessary to install a water softener. Load glasses and plates so they have minimum contact with racks and pins. Avoid overloading. Spotting will occur where dishes and glasses touch. Cloudy films and streaking Cloudy films and streaking Cloudy films and streaking Cloudy films and streaking Cloudy films and streaking are usually caused by a combination of hard water and an insufficient amount of detergent. Low phosphate detergents are also a factor. To correct, increase amount of detergent, check water temperature and always use a rinse aid. If water is very hard, it may be necessary to install a water softener. Etched film on glasswareEtched film on glassware Etched film on glasswareEtched film on glassware Etched film on glassware is caused by using too much detergent in soft or softened water. This film cannot be removed. It is more likely to occur on soft leaded glass or expensive crystal. An early warning of this condition is a cloudy iridescent appearance on glasses. To prevent, be sure dishwasher is getting a full fill of water. Water should reach base of heating element. If water level is low, have water pressure checked by a plumber. Use less detergent and make sure water temperature is not higher than 150°F (66°C). Underload to assure thorough rinsing. Use the COOL DRY Option. Chipped dishes and glassesChipped dishes and glasses Chipped dishes and glassesChipped dishes and glasses Chipped dishes and glasses can result from rough handling and improper loading. Do not put glasses in direct contact with other items. Place glasses securely against pins. Crazing of older china and potteryCrazing of older china and pottery Crazing of older china and potteryCrazing of older china and pottery Crazing of older china and pottery happens when items are subjected to very hot water. Once crazing (fine cracks in the glaze) appears, it cannot be removed. Do not machine wash again or condition may worsen. Gray-black stains on dishesGray-black stains on dishes Gray-black stains on dishesGray-black stains on dishes Gray-black stains on dishes are caused by manganese in water supply. To correct, install a manganese filtering system into house water supply. Coffee and tea stains Coffee and tea stains Coffee and tea stains Coffee and tea stains Coffee and tea stains can occur when water contains traces of iron. To avoid stains, rinse cups out immediately after use. Increase amount of detergent and use a rinse aid. Water temperature should be approximately 140°F (60°C). If problem persists, install a water softener with an iron removal unit. To remove stains, hand wash cups in solution of 1/2 cup (120 ml) bleach and a quart (1 L) of warm water. Rinse thoroughly. Reddish-brown stains on dishes, glasses andReddish-brown stains on dishes, glasses and Reddish-brown stains on dishes, glasses andReddish-brown stains on dishes, glasses and Reddish-brown stains on dishes, glasses and interiorinterior interiorinterior interior are caused by iron in water. To avoid iron stain, increase detergent, use water heated to approximately 140°F (60°C) and a rinse aid. It may be necessary to install a water softener with an iron removal unit. To improve appearance, use a commercial rust and lime scale remover. Plastic items Plastic items Plastic items Plastic items Plastic items can lose their shape due to high temperatures of automatic dishwashing. Read labels before washing. Place washable items in top rack away from heating element. Discoloration of plasticwareDiscoloration of plasticware Discoloration of plasticwareDiscoloration of plasticware Discoloration of plasticware

by some foods, such as tomato sauce, can stain plasticware. If stained, soak item in solution of 1 tablespoon dishwasher detergent and a quart of hot water or in a solution of 1/2 cup (120 ml) bleach and a quart (1 L) of hot water. Fading of patterns and metallic trimFading of patterns and metallic trim Fading of patterns and metallic trimFading of patterns and metallic trim Fading of patterns and metallic trim is due to many washings, detergent and hot water. Most of today’s china is dishwasher safe. Antique, handpainted china, and handpainted pottery should be washed by hand. Do not place silverDo not place silver Do not place silverDo not place silver Do not place silver next to or touching stainless steel utensils in dishwasher silverware basket. This can cause pitting of stainless steel blades. (Most silver knives have stainless steel blades. Do not let blades touch other stainless steel utensils during wash cycle.) Tarnish on silver plateTarnish on silver plate Tarnish on silver plateTarnish on silver plate Tarnish on silver plate occurs when worn down to the base metal and turns a bronze color when exposed to hot water and detergent. Remove bronzing by soaking item in vinegar for 10 minutes or use a silver polish. For permanent protection, have silver replated. Silver tarnishSilver tarnish Silver tarnishSilver tarnish Silver tarnish can be caused by prolonged contact with air or with foods containing sulphur like eggs, mayonnaise, or seafood. Contact with undissolved detergent can also cause tarnish. To prevent this, rinse silver soon after use. Use care not to pour detergent directly onto silver. Remove tarnish with a silver polish. Discoloration of stainless steelDiscoloration of stainless steel Discoloration of stainless steelDiscoloration of stainless steel Discoloration of stainless steel—Food soil can create a film or discoloration. To avoid, rinse stainless items promptly. Food soil films can be removed with a stainless steel cleanser or mild cleanser. Rinse thoroughly.14 Solutions to Common Dishwashing Problems Pitting of stainless steelPitting of stainless steel Pitting of stainless steelPitting of stainless steel Pitting of stainless steel is caused by prolonged contact with detergent granules and foods like salt, mayonnaise, fruits, butter or milk. To prevent, rinse soon after use. Do not allow detergent to fall directly onto stainless steel items. Discoloration of aluminumDiscoloration of aluminum Discoloration of aluminumDiscoloration of aluminum Discoloration of aluminum—Anodized (colored) aluminum cannot withstand machine washing. Resulting loss of color is permanent. Other aluminum may darken when machine washed. To decrease chance of discoloration, do not place aluminum directly beneath detergent dispenser. To brighten darkened items, scour with soap filled steel wool pads. For severely darkened pans, simmer an acidic food or a solution of 2 teaspoons (10 ml) cream of tartar per quart (1 L) of water for 1/2 hour. Scour with soap filled steel wool pad, rinse and dry. Knife handles become looseKnife handles become loose Knife handles become looseKnife handles become loose Knife handles become loose when the cement is exposed to very hot water. Test wash a single knife for several weeks. Damaged knives should be professionally re-cemented. Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material. Troubleshooting Noise problems?Noise problems? Noise problems?Noise problems? Noise problems? It is normal to hear swishing and pulsating sounds. These sounds mean that water is circulating through the dishwasher. It is normal to hear motor sounds before water enters tub. Loud ticking usually means something is hitting wash arm. See Preparing and Loading DishesPreparing and Loading Dishes Preparing and Loading DishesPreparing and Loading Dishes Preparing and Loading Dishes. Vibrating or rattling sounds can mean dishes are touching each other. See Preparing and Loading Dishes.Preparing and Loading Dishes. Preparing and Loading Dishes.Preparing and Loading Dishes. Preparing and Loading Dishes. Operating problems?Operating problems? Operating problems?Operating problems? Operating problems? Be sure door is firmly closed. It is normal for dishwasher to pause between cycles. Leaking?Leaking? Leaking?Leaking? Leaking? Check for items sticking out of dishwasher that could prevent door from closing and sealing properly. Use only fresh dishwashing detergent to avoid oversudsing. Water coming through door vents? When a dish is added after starting dishwasher, wait a few seconds before latching door. This permits entering cold air to expand slowly inside dishwasher. Water in tub?Water in tub? Water in tub?Water in tub? Water in tub? A small amount of water in bottom of tub is normal. It keeps water seal lubricated. Detergent left in cup?Detergent left in cup? Detergent left in cup?Detergent left in cup? Detergent left in cup? Detergent may be too old. Discard old detergent.Use fresh detergent. Dishes may not be loaded properly. Be sure items do not protrude from front of bottom rack preventing detergent cup from opening. Dishes not dry?Dishes not dry? Dishes not dry?Dishes not dry? Dishes not dry? Check to see if rinse aid dispenser needs refilling. Hot water temperature may be too low (min. 120°F 49°C). If COOL DRY option is being used, additional drying time may be required with door open.15 Master Protection Agreements Parts and labor Parts and labor Parts and labor Parts and labor Parts and labor needed to help keep products operating properly under normal useunder normal use under normal useunder normal use under normal use, not just defects. Our coverages goes well beyond thewell beyond the well beyond thewell beyond the well beyond the prpr prpr

oduct warrantyoduct warranty oduct warrantyoduct warranty oduct warranty

. No deductibles, no func- tional failure excluded from coverage - realreal realreal real protection.protection. protection.protection. protection. Expert service Expert service Expert service Expert service Expert service by a force of more than 10,000 10,000 10,000 10,000 10,000 authorized Sears service techinicians, authorized Sears service techinicians, authorized Sears service techinicians, authorized Sears service techinicians, authorized Sears service techinicians, which means someone you can trust will be working on your product. Unlimited serviceUnlimited service Unlimited serviceUnlimited service Unlimited service and nationwide serviceand nationwide service and nationwide serviceand nationwide service and nationwide service, as often as you want us, whenever you want us. “No-lemon” guarantee“No-lemon” guarantee “No-lemon” guarantee“No-lemon” guarantee “No-lemon” guarantee – replacement of your covered product if Four or more product failures occur within twelve months Product replacementProduct replacement Product replacementProduct replacement Product replacement if your covered product can't be fixed Annual Preventive Maintenance CheckAnnual Preventive Maintenance Check Annual Preventive Maintenance CheckAnnual Preventive Maintenance Check Annual Preventive Maintenance Check at your request - no extra charge Fast help by phoneFast help by phone Fast help by phoneFast help by phone Fast help by phone – we call it Rapid Resolu-Rapid Resolu- Rapid Resolu-Rapid Resolu- Rapid Resolu- tion tion tion tion tion - phone support from a Sears representative on all products. Think of us as a "talking owner's manual"

wer surge prwer surge pr wer surge prwer surge pr wer surge pr otectionotection otectionotection otection against electrical damage due to power fluctuations $250 Food Loss Protection $250 Food Loss Protection $250 Food Loss Protection $250 Food Loss Protection $250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer. Rental reimbursementRental reimbursement Rental reimbursementRental reimbursement Rental reimbursement if repair of your covered product takes longer than promised 10% discount10% discount 10% discount10% discount 10% discount off the regular price of any non- covered repair service and related installed parts. Congratulations on making a smart purchase. Your new Kenmore

product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation. The Master Protection Agreement also helps extend the life of your new appliance. Here's what the Agreement* includes: Some limitations and eSome limitations and e Some limitations and eSome limitations and e Some limitations and e xclusions applyxclusions apply xclusions applyxclusions apply xclusions apply . For prices. For prices . For prices. For prices . For prices and additional information call 1-800-827-6655.and additional information call 1-800-827-6655. and additional information call 1-800-827-6655.and additional information call 1-800-827-6655. and additional information call 1-800-827-6655. *Coverage in Canada varies on some items. For*Coverage in Canada varies on some items. For *Coverage in Canada varies on some items. For*Coverage in Canada varies on some items. For *Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.full details call Sears Canada at 1-800-361-6665. full details call Sears Canada at 1-800-361-6665.full details call Sears Canada at 1-800-361-6665. full details call Sears Canada at 1-800-361-6665. Sears Installation ServiceSears Installation Service Sears Installation ServiceSears Installation Service Sears Installation Service For Sears professional installation of home appliances, garage door openers, water heaters, and major home items, in the U.S.A. call 1-800-4-M1-800-4-M 1-800-4-M1-800-4-M 1-800-4-M
