SMO 3638S - Microwave Oven SINBO - Free user manual and instructions

Brand	Sinbo
Model	SMO 3638S
Product type	Microwave oven
Cavity capacity	20 litres
Diameter of the glass turntable	245 mm
Microwave power	700 W
Power supply	AC 230 V, 50 Hz
Number of power levels	10 (10% to 100%)
Manual timer	Up to 90 minutes
Control type	Digital panel with buttons
Main functions	Microwave cooking, quick defrost and defrost by weight, cooking by weight, quick cooking (popcorn, potato, pizza, drink, frozen dinner, reheating), clock, timer, child lock
Defrost function	Yes (quick and by weight)
Cooking end sound signal	Yes
Interior light	Yes
Turntable	Yes, glass
Door	Glass door with silver curved handle
Cavity material	Stainless steel or enamel
Safety	Child lock, door lock system, automatic shut-off, microwave protection
Maintenance and cleaning	Clean the cavity, door and gaskets regularly with a damp cloth. Do not use abrasive cleaners. Wash the turntable and rotating ring with soapy water.
Spare parts and repairability	Repairs only by approved service center. Spare parts available through the manufacturer.
General information	Household use only. Do not use outdoors. Keep the instruction manual.

Frequently Asked Questions - SMO 3638S SINBO

How to set the clock on the Sinbo SMO 3638S oven?

In standby mode, press the CLOCK button. Use the numeric buttons to enter the time (24h format). Press CLOCK again to confirm. Example: for 12:30, press 1,2,3,0 then CLOCK.

How to use the quick defrost function?

In standby mode, press SPEED DEFROST. Enter the desired defrost time using the numeric buttons (e.g., 2:50 for 2 min 50 s). Press START/STOP to start. Turn the food over during the cycle if necessary.

What utensils can I use in this microwave?

Use heat-resistant ceramic, glass, or microwave-safe plastic containers. Never use metal, ceramic with metal trim, or non-heat-resistant plastic. Avoid sealed containers.

How to clean the Sinbo SMO 3638S microwave oven?

Unplug the appliance. Clean the cavity, door and gaskets with a damp cloth. For odors, heat lemon slices in a cup of water for 2-3 minutes at maximum power. Wash the turntable and rotating ring with soapy water, rinse and dry.

What to do if the oven displays 'Err0' or 'Err1'?

Err0 indicates a sensor short circuit, Err1 an open circuit. In both cases, stop using the oven and contact an approved repair service to replace the sensor.

Can I run the oven empty?

No, never run the oven without food or liquid inside. This could damage the appliance.

How to lock the control panel for child safety?

Press and hold the RESET button for 3 seconds to activate the child lock. To deactivate, press and hold RESET again for 3 seconds.

What is the maximum power of this microwave?

The maximum microwave power is 700 W. You can select 10 power levels from 10% to 100%.

How to program a two-stage cooking?

Example: cook 3 min at 100% then 9 min at 20%. After power on, set time 3:00, press POWER, enter 10 (for 100%), press COOK. Then set 9:00, press POWER, enter 2 (for 20%), then START/STOP. The oven will execute both stages.

Why does my oven emit smoke or smell on first use?

This is normal. Manufacturing residues or oil can produce slight smoke. To remedy, place a cup of water in the oven and heat it at maximum power for a few minutes. Air the room.

USER MANUAL SMO 3638S SINBO

White Sintco microwave oven with black glass door and control panel (no visible text or symbols)

ÜRÜN TANITIMI • PRODUCT DESCRIPTION • DESCRIPTION DE LA PIÈCE PRODUKTBESCHRIJVING • وصف المنتج

KONTROL PANELI • CONTROL PANEL • PANNEAU DE COMMANDES •
CONTROLEPANEEL • loحة التحكم

Değerli Müsterimiz,

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please read this booklet carefully before fixing and using, and keep it for future reference

1. Remove the packaging and take out the distance limiter from accessory in microwave oven (some models have been installed already), unlock the power cord, according to the specific shape of distance limiter, install by following the given instruction. The purpose of the distance limiter is to make the microwave oven to keep a certain distance from the wall.
2. Take out all the packing. Carefully check whether there is damage to the microwave oven. Such as:
   a. the oven cavity is impacted or pressured.
   b. the door is not flat; the switch is not smooth and flexible.
   c. the metal Insulated mesh on the door is bended or deformed.
   d. the power cord is loose.

IF IT IS FOUND ABOVE, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

1. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
2. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
3. The position of the oven shall be far from the TV, Radio or antenna to avoid disturbance, the distance at least more than 5 m.
4. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
5. The microwave oven shall not be placed in a cabinet. The microwave oven is intended to be used freestanding.
6. The back of the oven must be placed against a wall.
7. To keep the microwave oven at a distance from the wall, it is necessary to install a distance limiter.

FOR THE FIRST USE

Due to the possible presence of manufacturing residue or oil in the oven cavity or heating element, it usually would smell the odor, even a slight smoke; It is normal case and would not occur after several times use. Keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times.

IMPORTANT SAFEGUARDS

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fire in the oven cavity:

a. Do not overcook the food.

b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.

c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.

d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire.

e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.

f. Close supervision is necessary when using disposable containers made from plastic, paper or other combustible material.

1. To reduce the risk of explosion and sudden boiling:

a. Do not place sealed containers in the oven. Baby bottles fitted with a screw cap or teat are considered to be sealed containers.

b. When boiling liquid in the oven, use the wide -mouthed container and stand about 20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids.

c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard -boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

d. The cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.
e. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
5. Never operate the oven further if the door or door seals is damaged or the oven is malfunctioned or supply cord is damaged. Return the appliance to the nearest authorized service center for repair and maintenance. Never try to adjust or repair the oven yourself.
6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
7. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
8. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.
9. To prevent the turntable from breaking:
a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.
10. Make sure the utensils do not touch the interior walls during cooking.
11. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Only use utensils that are suitable for use in microwave ovens.
13. Do not store food or any other things inside the oven.
14. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.
15. This appliance is not intended for using by young children or infirm persons without supervision.
16. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
17. Any accessories not recommended by the manufacturer may cause injuries to persons.
18. Do not use outdoors.
19. Save these instructions.
20. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
21. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
22. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode;
23. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
24. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
25. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
26. Microwave heating of beverages can result in delayed eruptive boiling therefore care must be taken when handling the container;
27. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
28. Eggs in their shell and whole hard -boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
29. The oven should be cleaned regularly and any food deposits removed;
30. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
31. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
32. WARNING: Accessible parts may become hot during use. Young children should be kept away.
33. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
34. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
35. Children should be supervised to ensure that they do not play with the appliance.
36. The appliances are not intended to be operated by means of an external timer or separate remote -control system.

1. The surfaces are liable to get hot during use.

CAUTION: HOT SURFACE

1. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential environments;

• bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years. Cleaning and user maintenance shall not be made by children without supervision.

3. The door or the outer surface may get hot when the appliance is operating.

Household use only

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container Microwave Notes
Heat-resistant ceramic Yes Never use the ceramics decorated with metal rim or glazed
Heat-resistant plastic Yes Can not be used for long time microwave cooking
Heat-resistant glass Yes
Grill rack No
Plastic film Yes It should not be used when cooking meat or chops as over temperature may do damage to the film

PRODUCT INTRODUCTION

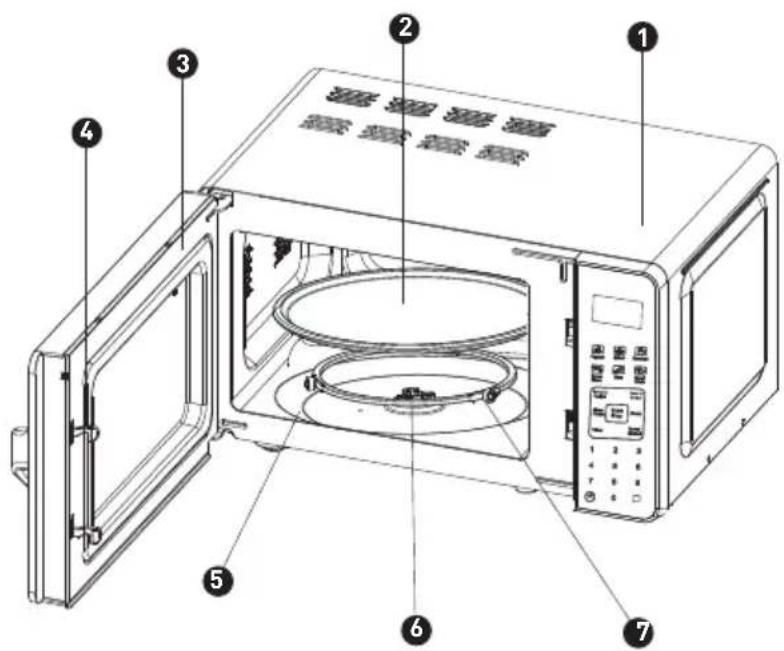

1. Appearance and structure diagram

1. Housing, 2. Glass Turntable, 3. Oven Door, 4. Door Interlock, 5. Oven Cavity, 6. Rotating Axis, 7. Rotating Ring

WARNING

a. Do not remove the Waveguide cover during cleaning

b. Make sure the Waveguide cover installation right and no damage during cooking

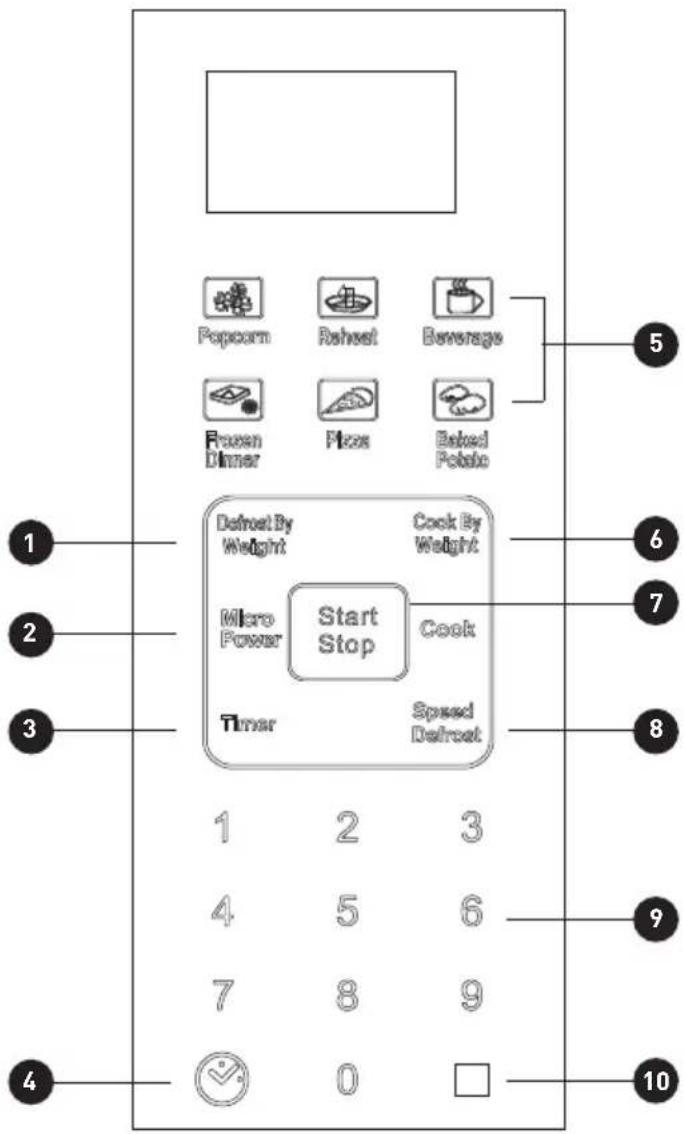

2. Control panel

1. To set the weight of the food to defrost

2. Set power level

3. You can use the timer function independently, even while a cooking program is going on in the oven.

4. To set the clock.

5. Set quick menu, allow you to reheat or cook food automatically without entering power level or time.

6. To enter weight of meat accurately and the oven will automatically set the cooking time and power level

7. Start or stop cooking.

8. Set speed defrost

9. Number button use for select the food kind and cooking time

10. Clear setting

Function and Operation method

CAUTION

The LED flashes 3 times when plugged in power supply. Then it flashes “:”, prompting you to input the cooking menu and time.

1. Beeps during oven setting

ONE BEEP: Oven accepts the entry.

TWO BEEPS: Oven does not accept the entry, check and try again.

2. Microwave cooking

After plugging power outlet, the LED will display "ENTER, TIME, CLOCK,": "is flashing, the system will enter state of setting clock. Touch the RESET key or waiting for 30 seconds, the "ENTER, TIME" will disappear," CLOCK and ":" will rest, the appliance will enter standby state.

3. Setting the clock

1. On standby state, touch CLOCK key.

Note: on the state of setting clock the step can be omitted.

1. Use the number keys to enter the correct time. You must touch at least three numbers to set the clock (one for hour and two for minutes).

2. Touch CLOCK key again. the system will enter clock state.

Note: This is a 24 hour clock. When the oven is first plugged in or when power resumes after a power interruption, the display will show ENTER, CLOCK, TIME, if you prefer to not have the clock displayed, touch □ key, the following refers to Reset key. You can check the clock time while cooking is in progress by touching the CLOCK key.

For example: to set 12:30

Depress Display
1 After power-up, the colon flashes, then press Reset button once or wait for 30sec :
2 Press the button of " 1"," 2"," 3"," 0" 12:30
3 Press the Clock button to confirm it

4. Setting the oven timer

1. Touch TIMER key.

2. Enter the amount of time you want to count down by touching the number keys. Digit time is in minutes and seconds and set left to right. Set one digit (a 5 for 5 seconds) or up to four digits (2405 for 24 minutes, 5 seconds). The maximum number can be entered is 99min, 99sec.

3. Touch START/STOP key confirm it

CAUTION:

a. Time countdown can be seen in display for 3 seconds before clock or cooking time is returned to display.

b. Touch TIMER and then touch RESET to cancel TIMER during timing process.

5. Setting cooking times and power levels

A. One-stage cooking

1. On standby state or clock state, use the number keys to set a cooking time. You can set the cooking time from one second to 99 minutes and 99 seconds. If you are setting a time greater than one minute, you must enter numbers for both minutes and seconds. For example: to set 20 minutes, enter 2, 0, 0, 0.

2. Press POWER and number button to select the desired the power level.

3. Touch START/STOP to start cooking. USE THESE SINGLE DIGIT TO REPRESENT POWER LEVELS

Number key % of power Microwave instruction
Tap POWER once 100% P100 and P90 --- High power, 100% and 90% microwave power.
	Applicable for quick and thorough cooking
9 90%
8 80% P80 and P70 --- Medium High power, 80% and 70% microwave power.
	Applicable for medium express cooking
7 70%
6 60% P60 and P50 --- Medium power, 60% and 50% microwave power.
	Applicable for steaming food
5 50%
4 40% P40 and P30 --- Medium Low power, 40% and 30% microwave power.
	Applicable for defrosting food
3 30%

2 20% P20 and P10 --- Low power, 20% and 10% microwave power. Applicable for keeping warm

1 10%

Example: To cook at P80 for 10 minutes.

Depress Display

1 After power-up, the colon flashes, then press Reset button once or wait for 30sec
2 Set cooking time by pressing the number button of "1", "0", "0", "0" 10:00
3 Touch Power once then select the desired microwave power by pressing number "8" 80P
4 Press Start/stop button to start, and LED will count down to show left time

CAUTION

a. The max time which can be set is 99'99''
b. Never use the grill rack during microwave cooking.
c. Never operate the oven empty.
d. If you turn the food during operation, press the Start/stop button once and the preset cooking procedure will continue.
e. If you intend to remove the food before the preset time, you must press Start/stop button once to clear the preset procedure to avoid unintended operation of next time use.

B. Two-stage cooking

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow:

Example: You want to cook food with 100P microwave for 3 minutes then 20P for 9 minutes.

Depress Display

1 100P microwave for 3min
1.1 After power-up, the colon flashes, then press Reset once or wait for 30sec :
1.2 Press "3" "0", "0" to set cooking time 3:00
1.3 Touch Power once then select the desired microwave power by pressing number" 1"" 0" 100P
1.4 Press Cook button once to confirm
2 20P for 9min
2.2 Press "9", "0", "0" to set cooking time 9:00
2.3 Touch Power once then select the desired microwave power by depressing number " 2" 20P
3 Start cooking by pressing Start/Stop button

6. Setting "speed defrost"

1. On standby state or clock state, touch SPEED DEFROST key.
2. Enter desired defrosting time by touching correct number keys. Digital timer sets minutes and seconds from left to right so a single digit can be set (5 for 5 seconds) or up to 4 digits (2405 for 24 minutes 5 seconds).
3. Touch START/STOP key.

Example: To speed defrost 0.2kg poultry With 2min50sec

Depress Display

1 After power-up, the colon flashes, then press Reset button once or wait For 30sec :
2 Touch Speed Defrost key :
3 Set defrost time by pressing the number button of "2", "5", "0" 2:50
4 Start cooking by pressing Start/Stop, and LED will count down to show running time

CAUTION

a. After time has elapsed four beeps sound and END appears in display. Touch RESET key or open the door to clear END before starting another cooking function.
b. After setting SPEED DEFROST, oven can be programmed to automatically switch to one or two-Stage cooking. - or speed defrost and one stage cooking, follow steps above. Before touching START/STOP key, touch COOK key, and enter time and power level. Then touch START/STOP key.
- or speed defrost and two stage cooking, follow steps above. Before touching START/STOP key, enter two-stage cooking programs.

7. Setting "cook by weight"

The oven has default cooking menu for simple operation. You set the type and weight of food, and the oven automatically sets the cooking time and power level.

"COOK BY WEIGHT" CODE DESCRIPTIONS

CODE YPE WEIGHT RANGE

1 Beef 0.1, 0.15, 0.2.....2.9, 2.95, 3.0 Kg

2 Mutton 0.1, 0.15, 0.2.....2.9, 2.95, 3.0 Kg

3 Pork 0.1, 0.15, 0.2.....1.9, 1.95, 2.0 Kg

Example: To cook 1.2Kg beef

Depress Display

1 After power-up, the colon flashes, then press Reset button once or wait for 30sec :
2 Touch Cook By Weight button once
3 Select the food kind by entering Code"1" 0.
4 Set food weight by pressing number"1" "2" "0" 1.20
5 The oven start cooking and Time will appear automatically. 34:24
During cooking Two beeps will be sound, it reminds you to turn over the Food, after finishing turning over food, press Start/Stop to resume cooking

WARNING

a. Weight must be in Kg
b. After total cooking time, 4 beeps sound and END appears in display. Touch RESET or open oven door to clear END before starting another cooking function
c. Please wait for few minutes before take food out

8. Setting "defrost by weight"

You set the type and weight of food, and the oven automatically sets the defrosting time

Example: To defrost 1.15Kg beef

Depress Display

1. After power-up, the colon flashes ,then press Reset button once or wait for 30sec	:
2. Press Defrost By weight button 0.
3. Set defrosting weight by pressing the number button of "1","1"."5"	1.15
4. Start cooking by pressing Start/stop and LED will count down to show running time.	23:00
During cooking Two beeps will be sound, it reminds you to turn over the food, after finishing turning over food, press Start/Stop to resume cooking

CAUTION

a. It is necessary to turn over the food during operation to obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking the food.
c. If the food can be cut by knife, the defrosting process can be considered completed.
d. Microwave penetrates around 4cm into most food.
e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.
f. Weight must be in kg, you can set the Food weight from 0.1, 0.15. 0.2.....2.9, 2.95, 3.0 Kg.

9. ABOUT "QUICK COOK" SETTINGS

"QUICK COOK" allow you to cook or reheat food automatically without entering power level or time. When setting "quick cook", check visual guide on key for correct setting. Three "quick cook" setting allow you to cook several amounts of the same food. These include the "POPCORN", "BAKED POTATO", "PIZZA", "BEVERAGE", "FROZEN DINNER", "REHEAT". In each "quick cook" category, smaller size food is set by touching key once. The larger size can be set by touching the picture key twice.

Setting "popcorn"

1. In standby state or clock state, touch Popcorn key which automatically sets the cooking time of microwave popcorn.
2. Touch Start/Stop key.

To reset POPCORN time: tap POPCORN key twice. ENTER TIME appears in display. Touch number keys to enter minutes and seconds. Touch START/STOP key. This new cooking time will remain whenever you touch the POPCORN key until you reset it.

Setting "baked potato"

For potatoes (0.11 to 017 kg. per entries):

1. in standby state or clock state, touch Baked potato key once. LED will display
2. Enter number or potatoes by touching number keys from 1 to 4.
3. Touch Start/Stop key.

Setting "pizza"

Reheating a slice (or two thin ones) of leftover pizza:

1. in standby state or clock state, touch Pizza key once.
2. Touch Start/Stop key.

Setting "beverage"

For coffee cups (0.14 to 0.2kg. per share):

1. On standby state or clock state, touch Beverage key once.
2. Enter number of cups by touching number pads from 1 to 4.
3. Touch Start/Stop key.

Setting "frozen dinner"

Microwaving one or two small (0.2 to 0.25kg, per share) frozen dinner:

1. In standby state or clock state, touch Frozen dinner key once.
2. Touch 1 or 2 key to select 1 entree or 2 entrees.
3. Touch Start/Stop key.

Setting "reheat"

1) On standby state or clock state, touch REHEAT key.
2) Touch START/STOP key.

CAUTION

This setting lets you reheat a dinner plate of chilled leftovers with good results.

10. Child lock function

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode.

1) To set child lock, press and hold Reset button about 3 seconds.
2) To cancel child lock, press and hold Reset button about 3 seconds.

11. Cooking Tips

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for a adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

• Color and hardness of food help to determine if it is done, these include:
• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content.

Also, the preheating time specified in the dish instruction manual must not be exceeded

CLEANING and MAINTENANCE

Microwave oven care

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy
2. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.
3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
4. The oven should be cleaned regularly and any food deposits removed
5. Details for cleaning door seals, cavities and adjacent parts.
6. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
7. Do not remove the waveguide cover
8. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:
   a. Place several lemon slices in a cup, then heat with high power for 2-3 min.
   b. Place a cup of red tea in oven, then heat with high power.
   c. Put some orange peel into oven, and then heat them with high power for 1 minute.

TIPS for cleaning

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window

Wipe the door seals and adjacent parts to remove any spill or spatter

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

Servicing

Please check the following before calling for services.

a. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.

b. Does the oven lamp light?

c. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

d. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

e. Is the water inside the oven hot?

If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

WARNING

MICROWAVE RADIATION?

It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy.

WARNING

The temperature of accessible surfaces may be high when the appliance is operating

WARNING

The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

WARNING

During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

1. Magnetron

2. High voltage transformer

3. High voltage capacitor

4. High voltage diode

5. High voltage fuse

WARNING

The following conditions may cause undue microwave exposure during servicing.

Improper fitting of magnetron;

Improper matching of door interlock, door hinge and door;

Improper fitting of switch support;

Door, door seal or enclosure has been damaged.

CAUTION

1. If LED displays Err0 during working, it indicates that sensor has been short circuit and you need replace it at the nearest repaired department.

2. If LED displays Err1 during working, it indicates that sensor has been open circuit and you need replace it at the nearest repaired department.

WARNING

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy.

Liquids or other foods must not be heated in sealed containers since they are liable to explode;

FEATURES

• Cavity volume: 20 LITERS
• Glass turntable
• Glass plate diameter: 245mm
• Digital panel
• Glass door with silver oblique handle/silver pull handle
• Defrost function,
• 10 microwave power levels
• Cooking end signal
• 90 minutes manual timer
• AC230V, 50Hz, 700W output microwave power

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

FRANÇAIS

SINBO SMO 3638, SMO 3638S FOUR À MICRO-ONDES MODE D'EMPLOI

BEOD وصل شاشة LED ب XCDR ALTAGA SEYSDR WMYSH " : " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " “"

"CLOCK " "ENTER TIME " , وستبقي " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER TIME " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTER Time " , "ENTERTime"

United Favour Development Limited

Unit B, 10/F Lee May Building 788-790

Nathan Road, Mongkok, Kowloon, HK.

- UYGUNLUK BEYANI / CE -

Intertek Testing Services Shenzhen Ltd.

Guangzhou Branch

Block E, No.7-2 Guang Dong Software

Science Park, Caipin Road, Guangzhou

Science City, GETDD, Guangzhou, China
