MiniBike Cycloony - Exercise bike Klarfit - Free user manual and instructions
Find the device manual for free MiniBike Cycloony Klarfit in PDF.
| Product type | Mini exercise bike (portable pedal exerciser) |
| Brand | Klarfit |
| Model | MiniBike Cycloony |
| Net weight | 5,5 kg |
| Maximum supported load | 120 kg |
| Power supply | 220-240 V ~ 50/60 Hz |
| Power consumption | 70 W |
| Safety standard | EN957 (domestic use) |
| Main functions | Pedaling for legs or arms, remote resistance adjustment, LCD display (distance, speed, calories) |
| Package contents | Main unit, 2 pedals, 2 feet, screws, washers, assembly tool, manual |
| Usage | On floor for legs or on table for arms |
| Resistance adjustment | Via remote control (from light to intense) |
| Maintenance and cleaning | Clean with a soft, dry cloth, avoid volatile products, regularly check fastenings |
| Safety | Do not expose to water, keep children away, consult a doctor before use, stop if pain occurs |
| Repairability | Do not open or repair yourself, contact a qualified workshop |
| Warranty | Warranty not applicable in case of damage due to modification or misuse |
| Manufacturer | CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin |
| Compliance | Directives 2004/108/EC, 2006/95/EC, 2011/65/EC, EN957 |
Frequently Asked Questions - MiniBike Cycloony Klarfit
User questions about MiniBike Cycloony Klarfit
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Exercise bike in PDF format for free! Find your manual MiniBike Cycloony - Klarfit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MiniBike Cycloony by Klarfit.
USER MANUAL MiniBike Cycloony Klarfit

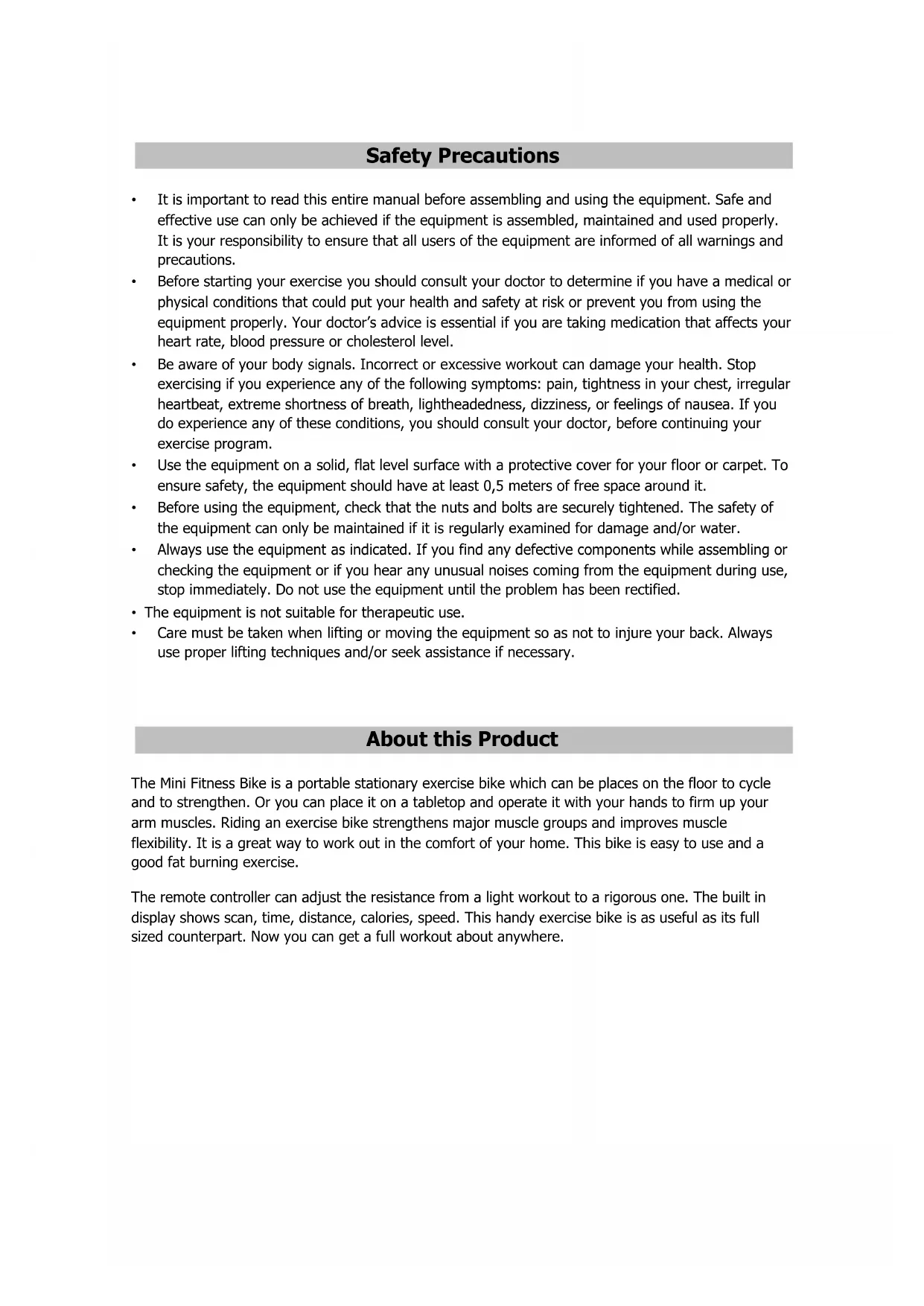

- It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
- Before starting your exercise you should consult your doctor to determine if you have a medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
- Be aware of your body signals. Incorrect or excessive workout can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions, you should consult your doctor, before continuing your exercise program.
- Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 0,5 meters of free space around it.
- Before using the equipment, check that the nuts and bolts are securely tightened. The safety of the equipment can only be maintained if it is regularly examined for damage and/or water.
- Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment or if you hear any unusual noises coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been rectified.
- The equipment is not suitable for therapeutic use.
- Care must be taken when lifting or moving the equipment so as not to injure your back. Always use proper lifting techniques and/or seek assistance if necessary.
About this Product
The Mini Fitness Bike is a portable stationary exercise bike which can be places on the floor to cycle and to strengthen. Or you can place it on a tabletop and operate it with your hands to firm up your arm muscles. Riding an exercise bike strengthens major muscle groups and improves muscle flexibility. It is a great way to work out in the comfort of your home. This bike is easy to use and a good fat burning exercise.
The remote controller can adjust the resistance from a light workout to a rigorous one. The built in display shows scan, time, distance, calories, speed. This handy exercise bike is as useful as its full sized counterpart. Now you can get a full workout about anywhere.
Operation
- Connect the plug to a power outlet and put the switch on the ON position. You can hear a triple buzzer sound. The Display shows - - . The LEDs are off. The machine is now in standby mode.
- In standby mode, press the "ON/OFF" key to put the machine into working mode. Pressing "ON/OFF" again puts it back into standby mode.
- The default speed is "1" and the timer is set to 5 minutes. You can adjust the speed by pressing the speed buttons.
- Every 5 seconds you can switch through different display modes by pressing "MODE".
- If the display shows "ERR", just press "ON/OFF" and restart the machine.

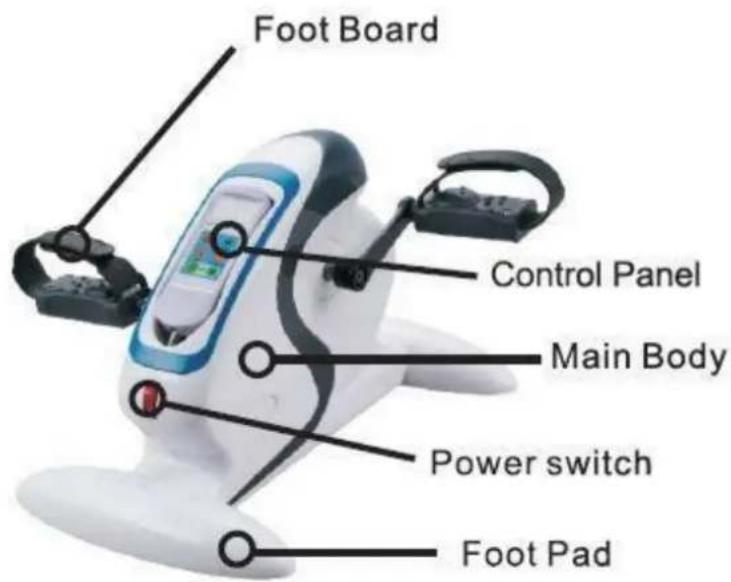

Overview

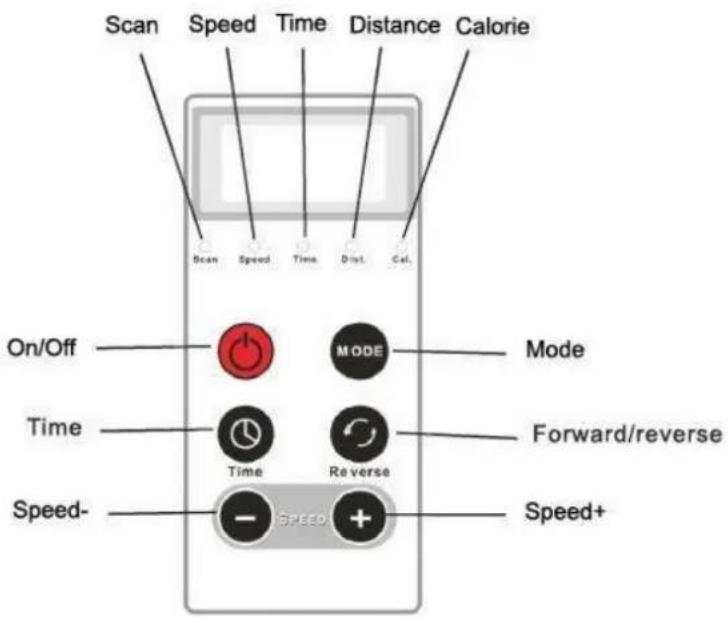

Control panel
Packing List
| Description | Quantity |
| Main body | 1 |
| Instruction manual | 1 |
| Foot pad | 2 |
| Foot board | 2 |
| Cross screw | 4 |
| Gasket | 4 |
| Assemble | 1 |
Technical specifications
| Power Supply | 220V / 50Hz |
| Power | 70W |
| Weight | 5.5kg |
| Max. bearing weight | 120kg |
The manufacturer of this product is CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin.
This product complies with the requirements of the directives
2004/108/EC (EMC)
2006/95/EC (LVD)
2011/65/EC (RoHS)
EN957
