Product type	Radiant heater
Brand	Taurus
Model	PR1
Intended use	Domestic use only, not suitable for drying clothes
Power supply	230 V ~ 50 Hz, grounded outlet 16 A minimum
Power	2000 W (standard estimate for this type of device)
Grid material	Iron
Carrying handle	Yes, on top
Switch	On/Off (positions I/0)
Safety distance from combustible materials	≥ 150 cm
Safety device	Automatic shut-off in case of incorrect positioning
Overheating protection	Do not cover the device
Protection type	Do not use with timer or programmer
Cleaning	Damp cloth, do not immerse, no solvents or abrasives
Maintenance / Repair	Authorized technical service only
Operating environment	Flat, stable surface, resistant to high heat, away from water
Recycling	WEEE, do not dispose of with household waste
Country of origin	European Union
Weight	Approximately 3 kg (estimate for a heater of this size)
Dimensions (approx.)	Height 60 cm, Width 40 cm, Depth 25 cm (estimate)

Frequently Asked Questions - PR1 TAURUS

How to turn the PR1 heater on and off?

Use the switch on the device: position I to turn on, position 0 to turn off.

Can I use the PR1 heater in a bathroom?

No, it is forbidden to use the device near a bathtub, shower, or swimming pool. Risk of electric shock.

What to do if the device does not heat?

Check that the cable is properly plugged in and the switch is at I. If the problem persists, contact an authorized technical service.

Can the heater be used to dry laundry?

No, never use the device to dry clothes. Risk of fire and overheating.

How to clean the PR1 heater?

Unplug and wait for complete cooling. Clean with a damp cloth, then dry. Do not immerse or use abrasive products.

Where to safely place the device?

On a flat, stable, heat-resistant surface, more than 150 cm from any combustible material (curtains, furniture, etc.).

Can I use an extension cord with this heater?

It is not recommended to use an extension cord. Plug directly into a grounded outlet supporting at least 16 A.

What does the crossed-out wheelie bin symbol mean?

It means the device must not be disposed of with household waste. Deposit it at a WEEE collection point for recycling.

The device turns off by itself, is this normal?

Yes, the heater is equipped with a safety device that automatically shuts it off if not properly positioned or in case of overheating.

Can I repair the device myself if it breaks down?

No, any repair must be carried out by an authorized technical service. Do not disassemble the device yourself, risk of electric shock.

USER MANUAL PR1 TAURUS

Technical diagram of a heating element with labeled parts A, B, and C

Line drawing of a heating element with a hand pressing down on it, showing internal grid structure and directional arrows (no text or symbols)

Fig. 1

Radiador de cuarzo

PR1

PR2

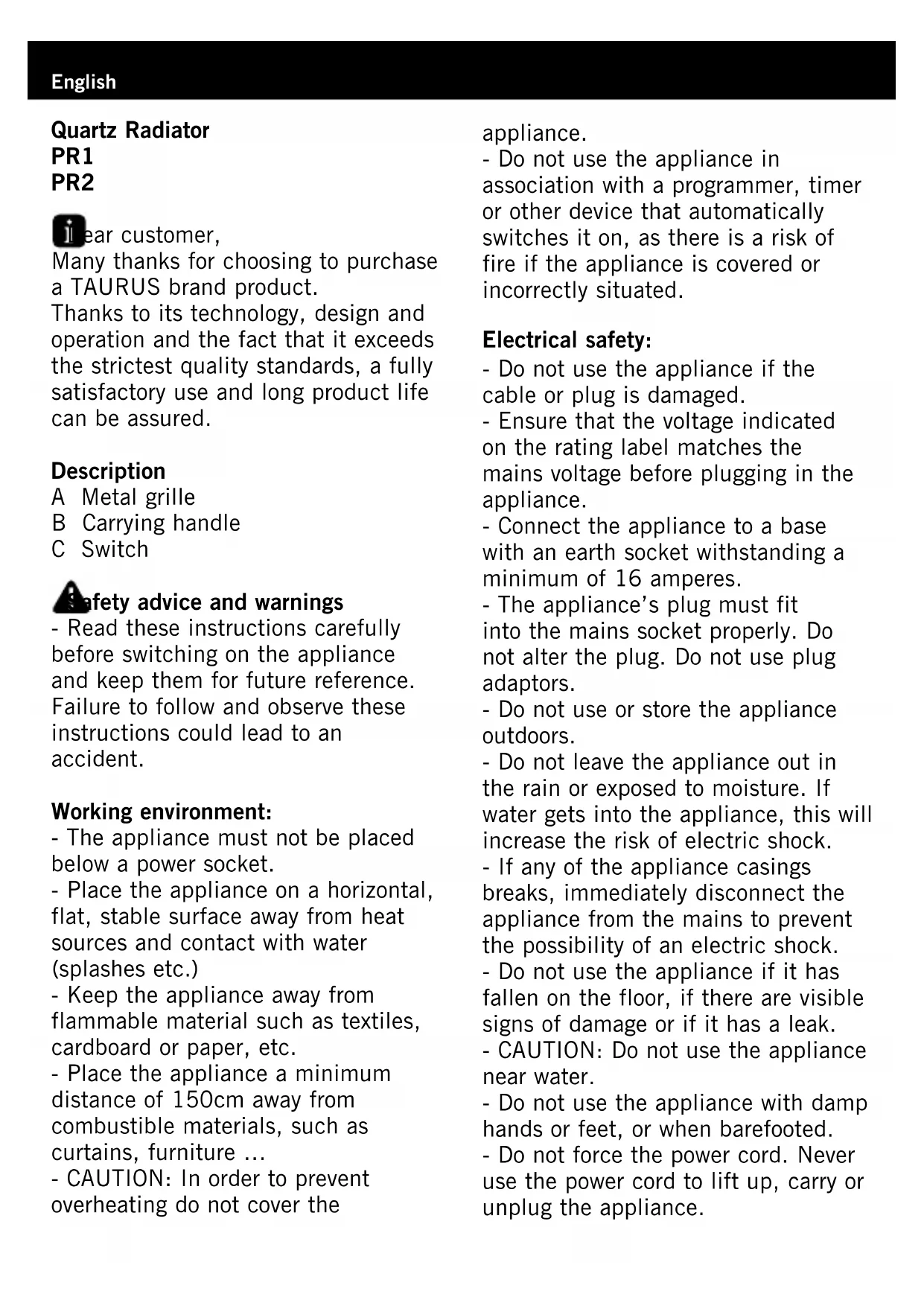

iistinguido cliente:

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

A Metal grille
B Carrying handle
C Switch

afety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

Working environment:

• The appliance must not be placed below a power socket.
• Place the appliance on a horizontal, flat, stable surface away from heat sources and contact with water (splashes etc.)
• Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.
• Place the appliance a minimum distance of 150cm away from combustible materials, such as curtains, furniture ...
• CAUTION: In order to prevent overheating do not cover the

appliance.

- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on, as there is a risk of fire if the appliance is covered or incorrectly situated.

Electrical safety:

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• CAUTION: Do not use the appliance near water.
• Do not use the appliance with damp hands or feet, or when barefooted.

• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

• Do not wrap the power cord around the appliance.

• Do not clip or crease the power cord.
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
• Keep the appliance well away from heat sources, oil, sharp edges or moving parts.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30 mA. Ask for advice from a competent installer.
• Do not touch the plug with wet hands.

Personal safety:

- Do not use the appliance, in the case of persons insensitive to heat (the appliance has heated surfaces).

- The appliance has a safety device which automatically switches it off when it is in irregular position.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• This appliance is for household use only, not professional or industrial use.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended for adult

use. Ensure that this product is not used by the disabled, children or people unused to its handling.

• This appliance should be stored out of reach of children and/or the disabled.
• Do not store the appliance if it is still hot.
• Do not use the appliance to dry textiles of any kind.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

structions for use

• Unroll the cable completely before plugging in.
• Connect the appliance to the mains. Model PR1
• Use the switch to turn the appliance on "I", or off "O".

Model PR2

- Use the switch to turn on each individual element, and turn the appliance on "I" or off "O".

Once you have finished using the appliance:

• Turn the appliance off, using the on/off switch.
• Unplug the appliance from the mains.

Carry handle/s:

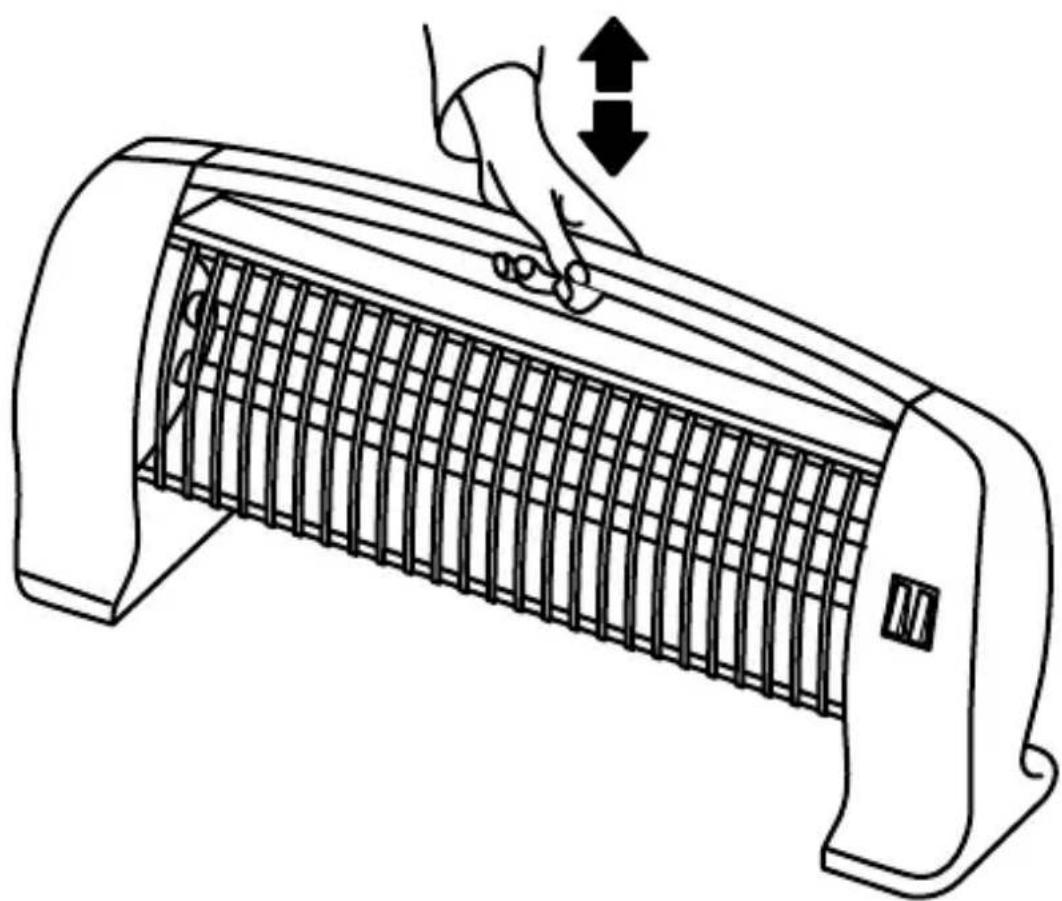

- This appliance has a handle on the upper part of the body, which facilitates comfortable transportation (Fig.1).

eaning

- Disconnect the appliance from the

mains and allow it to cool before undertaking any cleaning task.

• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

nomalies and repair

- Take the appliance to an authorised technical support service if a product damage or other problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous. - If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

- This symbol means that product can't be covered.

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

Radiateur à quartz

PR1

PR2

ner Client,

Product weight (approximate)

PR1:

Gross Weight: 2,2 KG

Net Weight: 1,65 KG

PR2:

Gross Weight: 2,2 KG

Net Weight: 1,65 KG
