Galexia Premium - Baking tray TAURUS - Free user manual and instructions

Product type	Electric plancha (bakplat)
Brand	Taurus
Model	Galexia Premium
Electrical supply	220-240 V, 10 A, grounded plug
Power	2000 W (estimated)
Cooking surface	Non-stick plate
Temperature control	Temperature selector with Min to Max positions
Indicator light	Indicates heating and reached temperature
Fat collecting tray	Removable, to collect fats and oils
Approximate dimensions	40 x 25 x 10 cm (estimated)
Approximate weight	2.5 kg (estimated)
Use	Domestic use only
Safety	Removable connector, hot surfaces indicated, do not immerse
Cleaning	Damp cloth, do not use abrasive products, do not wash in dishwasher, do not immerse
Maintenance	Check that the connector contacts are dry before use
Repairability	Entrust to an approved technical service, do not disassemble yourself
Environment	Product recyclable according to WEEE directive

Frequently Asked Questions - Galexia Premium TAURUS

What type of utensils to use on the non-stick plate?

Use utensils made of wood, silicone or heat-resistant plastic to avoid scratching the non-stick coating. Avoid metal ones.

How to clean the fat collecting tray?

Remove the tray from the appliance (Fig. 1), empty its contents, then clean it with hot water, a soft sponge and dish soap. Dry it thoroughly before putting it back.

The indicator light does not turn on, what to do?

Check that the appliance is properly plugged in and that the temperature selector is not on the Min position. If the indicator light remains off, contact an approved technical service.

Can I use the appliance without the fat collecting tray?

No, the tray is essential to collect fats and avoid spills. Always use the appliance with the tray in place.

Is the plate removable?

The manual does not specify that the plate is removable. Therefore, it is not recommended to disassemble it. Only the fat collecting tray is removable.

What is the power of the appliance?

The power is not indicated in the manual, but for a plancha of this size, it is estimated at about 2000 W.

Can I use an extension cord?

Avoid extension cords. If necessary, use an extension cord of sufficient cross-section (at least 1.5 mm²) and suitable for the appliance's power, following safety instructions.

How to store the appliance after use?

Wait for the appliance to cool down completely, clean it, dry all parts, then store it in a dry place out of reach of children.

What to do if the appliance does not heat up?

Check that the temperature selector is on a position other than Min, that the socket works, and that the cord is not damaged. If the problem persists, consult a technical service.

Is the appliance guaranteed?

Yes, but the warranty is void if the appliance is not used according to the instructions. Keep the manual for any recourse.

USER MANUAL Galexia Premium TAURUS

Line drawing of a tablet device with a cable connector attached (no text or symbols)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

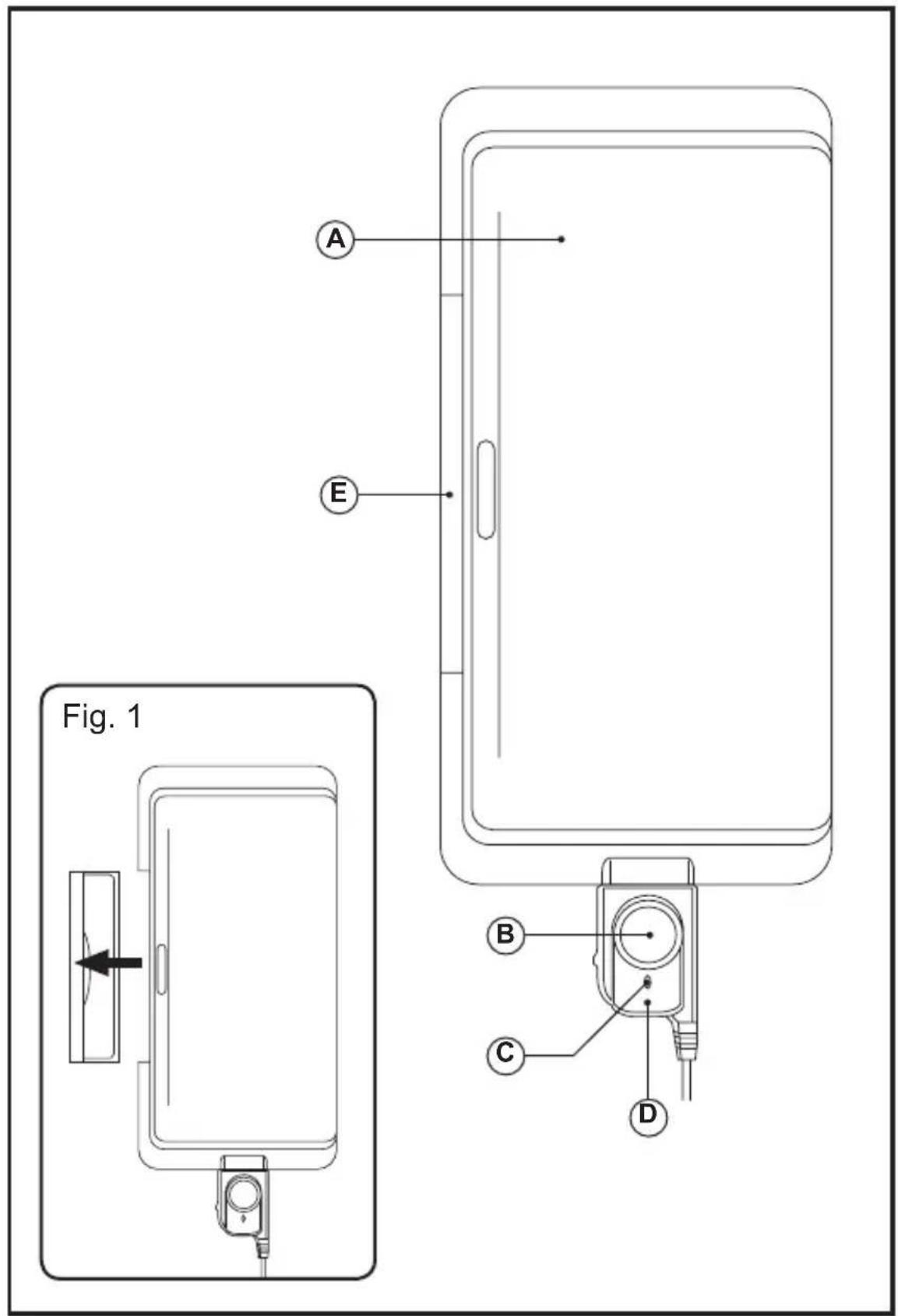

Fig. 1 A E B C D

Español

Plancha asador

Galexia Premium

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

Servicio:

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

A Grill with non-slip treatment
B Temperature selector
C Pilot light
D Connector
E Drip tray

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

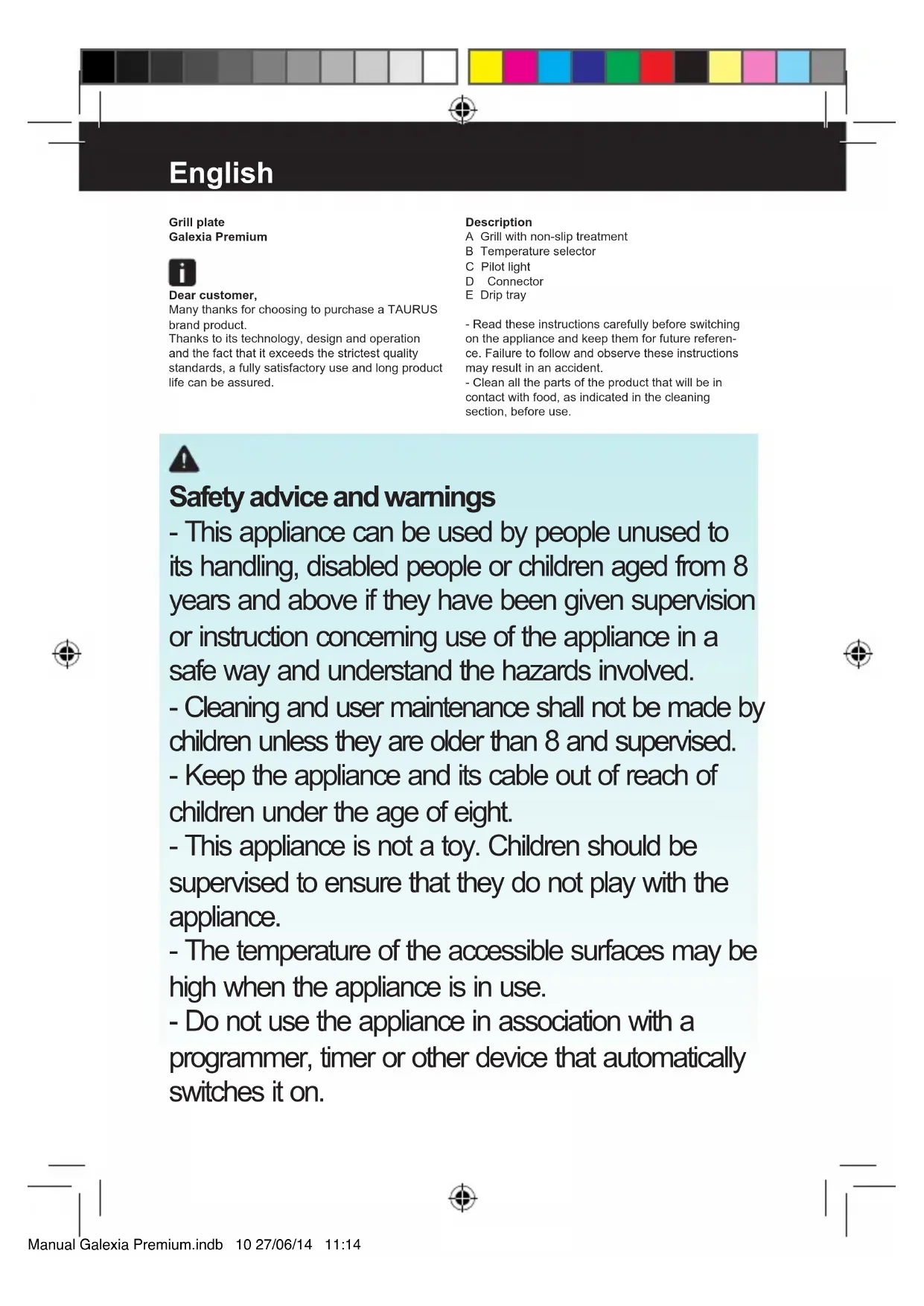

Safety advice and warnings

- This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cable out of reach of children under the age of eight.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• The temperature of the accessible surfaces may be high when the appliance is in use.
• Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.

Only use the appliance with the specific electric connector provided.

• Remove the electrical connector before starting any cleaning operation.
• Never submerge the connector in water or any other liquid or place it under running water.
• Dry the product immediately after any cleaning operation and ensure that the base of the product's connector is perfectly dry.

• If the connection is damaged it must be replaced. Take the appliance to an authorised Technical Assistance Service. Do not try to dismantle or repair without assistance, as this may be dangerous.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• Do not allow the connection cable to come into contact with the appliance's hot surfaces.
• Check the condition of the electrical connection cable. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional or industrial use.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not put the appliance away if it is still hot.
• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.

Service:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Before using the product for the first time, clean the non-slip plate with a soft cloth dampened with water. Connect the plug to your electrical socket and set the temperature selector to the desired position.
  Set the thermostat to the desired temperature. The pilot light will come on, indicating that the appliance is in the process of heating up.
  Wait until the pilot has gone out, indicating that the appliance has reached the ideal temperature.
  Work with the food you want to process.
  Carefully place the food to be roasted on the grill. When the food is cooked to your taste, remove it from the appliance using a wooden spatula or similar utensil.

Once you have finished using the appliance:

- Select the minimum position (MIN) using the thermostat control.

Cleaning

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
  -Remove the temperature selector from its location with the connector before any cleaning operation.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
  -Not suitable for dishwashers.
  -Do not use solvents or abrasive products to clean it.

Drip tray:

• The appliance has a tray that permits you to collects the fat and oil that is left in the appliance
• Remove the appliance's tray (Fig 1)
• Pour away the contents of the tray.
  -After any cleaning operation, ensure that the fixed contacts of the plate's connector are perfectly dry.

Anomalies and repair

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

For EU product versions and/or in the case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This symbol means that surface could to get hot during the use.

This appliance complies with Directive 2006/95/EC on Low Voltage, Directive 2004/108/EC on Electromagnetic Compatibility, Directive 2011/65/EC on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Français

Plaque grill

Galexia Premium

Cher Client,

Color palette bar with grayscale intensity mapping and a central crosshair (no text or symbols)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

taurus

Avda. Barcelona, s/n

E 25790 Oliana

Spain

Net weight: 2,6Kg aprox.

Gross weight: 3,1Kg aprox.
