USER MANUAL OT 810 TEAM

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Front cover page (first page) Assembly page 1/24

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

9. Lower heating element

11. Carrying handle for baking tray /grilling

12. Carrying handle for spit

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

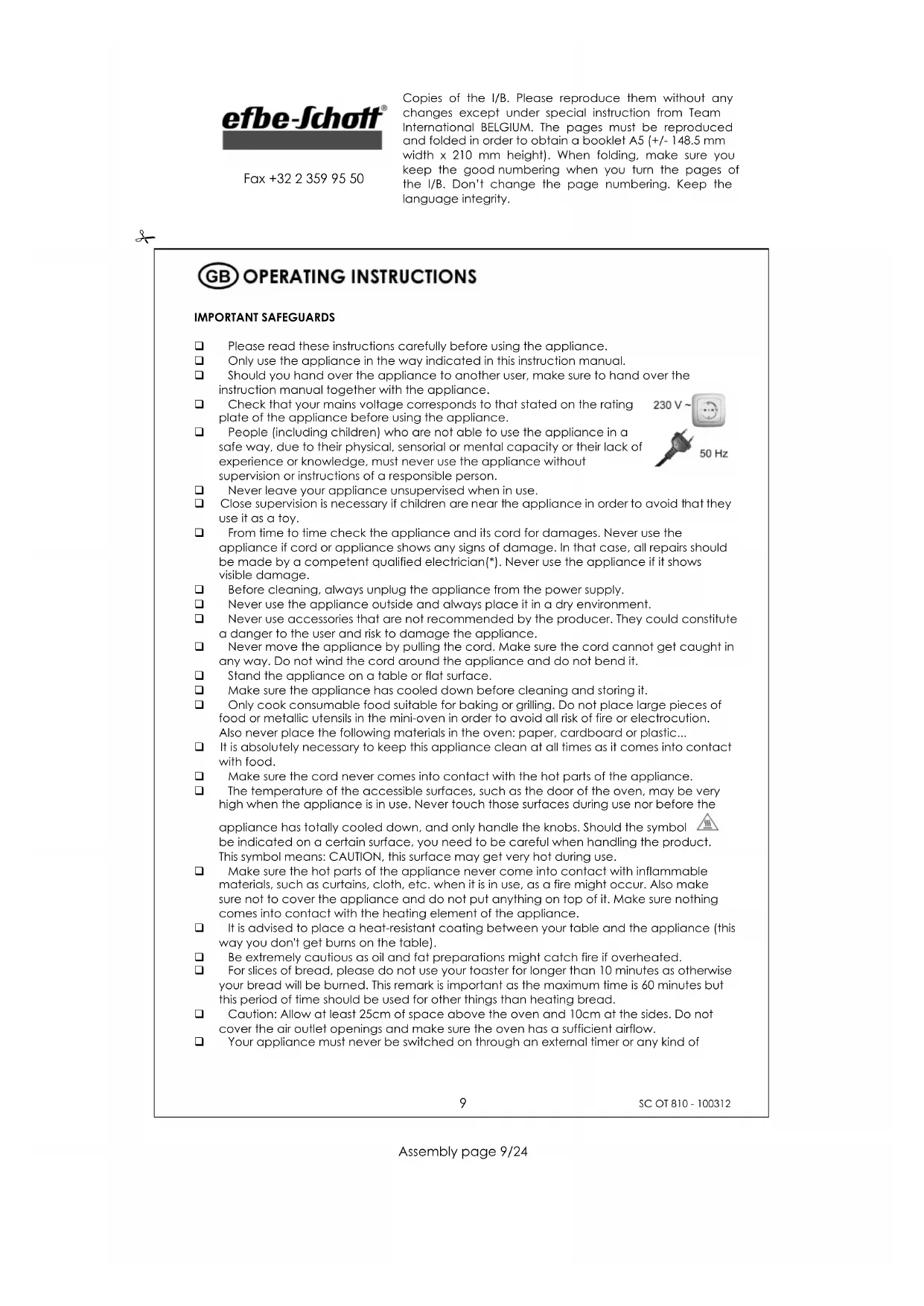

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Only use the appliance in the way indicated in this instruction manual. Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance. Check that your mains voltage corresponds to that stated on the rating plate of the appliance before using the appliance. People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person. Never leave your appliance unsupervised when in use. Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy. From time to time check the appliance and its cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, all repairs should be made by a competent qualified electrician(*). Never use the appliance if it shows visible damage. Before cleaning, always unplug the appliance from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a table or flat surface. Make sure the appliance has cooled down before cleaning and storing it. Only cook consumable food suitable for baking or grilling. Do not place large pieces of food or metallic utensils in the mini-oven in order to avoid all risk of fire or electrocution. Also never place the following materials in the oven: paper, cardboard or plastic... It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food. Make sure the cord never comes into contact with the hot parts of the appliance. The temperature of the accessible surfaces, such as the door of the oven, may be very high when the appliance is in use. Never touch those surfaces during use nor before the appliance has totally cooled down, and only handle the knobs. Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means: CAUTION, this surface may get very hot during use. Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc. when it is in use, as a fire might occur. Also make sure not to cover the appliance and do not put anything on top of it. Make sure nothing comes into contact with the heating element of the appliance. It is advised to place a heat-resistant coating between your table and the appliance (this way you don't get burns on the table). Be extremely cautious as oil and fat preparations might catch fire if overheated. For slices of bread, please do not use your toaster for longer than 10 minutes as otherwise your bread will be burned. This remark is important as the maximum time is 60 minutes but this period of time should be used for other things than heating bread. Caution: Allow at least 25cm of space above the oven and 10cm at the sides. Do not cover the air outlet openings and make sure the oven has a sufficient airflow. Your appliance must never be switched on through an external timer or any kind of

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service. TECHNICAL DATA

• Mechanical 60-minute timer with disabling signal

• Steplessly adjustable temperature up to 230°C

• Outside measurements: length 420mm x depth 360mm x height 240mm

• Capacity: 17 liter max.

• Equipment: rack, baking tray 262 x 198 mm, crumb tray, carrying handle for baking tray or rack, turnspit with carrying handle BEFORE USE

Unpack the appliance and accessories, then wash and wipe these accessories.

It is normal if some smoke or smell emanates from the appliance when using it for the first time. Therefore, we advise you to use your appliance empty once before the first use. Set the timer to ca. 10 minutes at the maximum temperature (230°C) on the "heat from above and below" position. OPERATING INSTRUCTIONS

• When using for the first time, clean the appliance with a damp cloth and wipe dry.

• Plug the unit into an earthed wall socket.

• Put the food in the oven.

Select the desired cooking mode (upper heating element, lower heating element or both combined) and the temperature thanks to the buttons 2 and 1 on the control panel.

Turn the mechanical timer (4) to set the desired cooking time. The pilot light will illuminate. You'll hear a signal when the cooking time has elapsed. The appliance will switch off automatically. The pilot light will go out.

• If you want to stop before the selected time is over, place the timer in the “0” position or place the function selector in the off position.

• Turnspit: As soon as you turn on the timer, the catch for the turnspit on the right-hand side of the oven cavity starts turning automatically. So please remove the turnspit when you do not wish to use it.

• When you have fitted the turnspit (make sure that the foodstuffs do not stick out too far and that they cannot touch the heating elements, fix for instance chicken drumsticks with wooden toothpicks), first put the square part of the turnspit into the opening of the catch on the right, then into the guide groove on the left.

• Always carefully open the door, preferably using an oven glove.

• Remove the food using appropriate utensils. To take out the baking tray or the rack, make use of the carrying handle (11).

• After use, remove the plug from the wall socket. SETTINGS THERMOSTAT You can adjust the temperature steplessly up to 230°C.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Off Heat from above (700W) Heat from below (600W) Heat from above & below (1300W)

TIMER You can choose a desired cooking time up to 60 minutes. If you wish to set the timer to less than 5 minutes, turn it to a position higher than 5 minutes first and then set it back to the desired time.

The following table contains some examples of foods and their cooking time, which can vary according to one's sense of taste and to the amount and size of the foodstuffs. For ready- made meals, also consult the cooking information indicated on the food's package. Food Utensil Preheat

Position Cooking time Frozen rolls Grill +/- 1 min Heat from above & below 8-12 min * Bread roll Grill Heat from above & below 8-10 min Toast Grill Heat from above & below 3-5 min according to the desired browning level Frozen pizza Grill 2-3 min

Heat from above & below +/- 14 min French stick Grill 2-3 min

Heat from above & below 10 min Frying sausage Baking tray Heat from above & below 8-10 min Hawaiian Toast Baking tray Heat from above & below +/- 8 min Soup Heat-resistant receptacle Heat from below ca. 12-15 min

• Use the residual heat after having switched off the oven by leaving the bread rolls one more minute in the oven.

MAINTENANCE Before cleaning, unplug the appliance from outlet and allow it to cool down. Inside cleaning Remove the baking tray (10), the rack (5), the crumb tray (8) and the turnspit (13) and clean these parts with absorbent paper towel or a soft damp cloth. To remove baked on food you can use some mild detergent. Outside cleaning

• Wipe clean with a soft damp cloth.

• Do not use steel wool, scouring pads or abrasive cleaners.

• Do not immerse in water or any other liquid.

• This appliance is for household use only.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

• A short power supply cord is provided to reduce the risk resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use.

• The electrical rating of the extension cord should be at least that of the appliance.

• The longer cord should be arranged so that it will not drape over the counter top or table, where it can be pulled on by children or tripped over.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents. If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair. Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg. In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
