USER MANUAL HW37B INVENTUM

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

DESCRIPTION OF THE APPLIANCE PAGE 13

1. SAFETY INSTRUCTIONS PAGE 13
2. BEFORE FIRST USE PAGE 14
3. BOILING WATER PAGE 14
4. CLEANING & MAINTENANCE PAGE 15
5. DESCALING PAGE 15

GUARANTEE &

AFTER SALES SERVICE PAGE 18

NEDERLANDS

1. Openingsknop deksel
2. Handgreep
3. Aan-/uit schakelaar
4. Aansluitbasis

5. Behuizing

6. Waterniveau indicator

7. Schenkduit

8. Deksel
9. Controleampje
10. Anti-kalkfilter

1 | VEILIGHEIDSVOORSCHRIFTEN

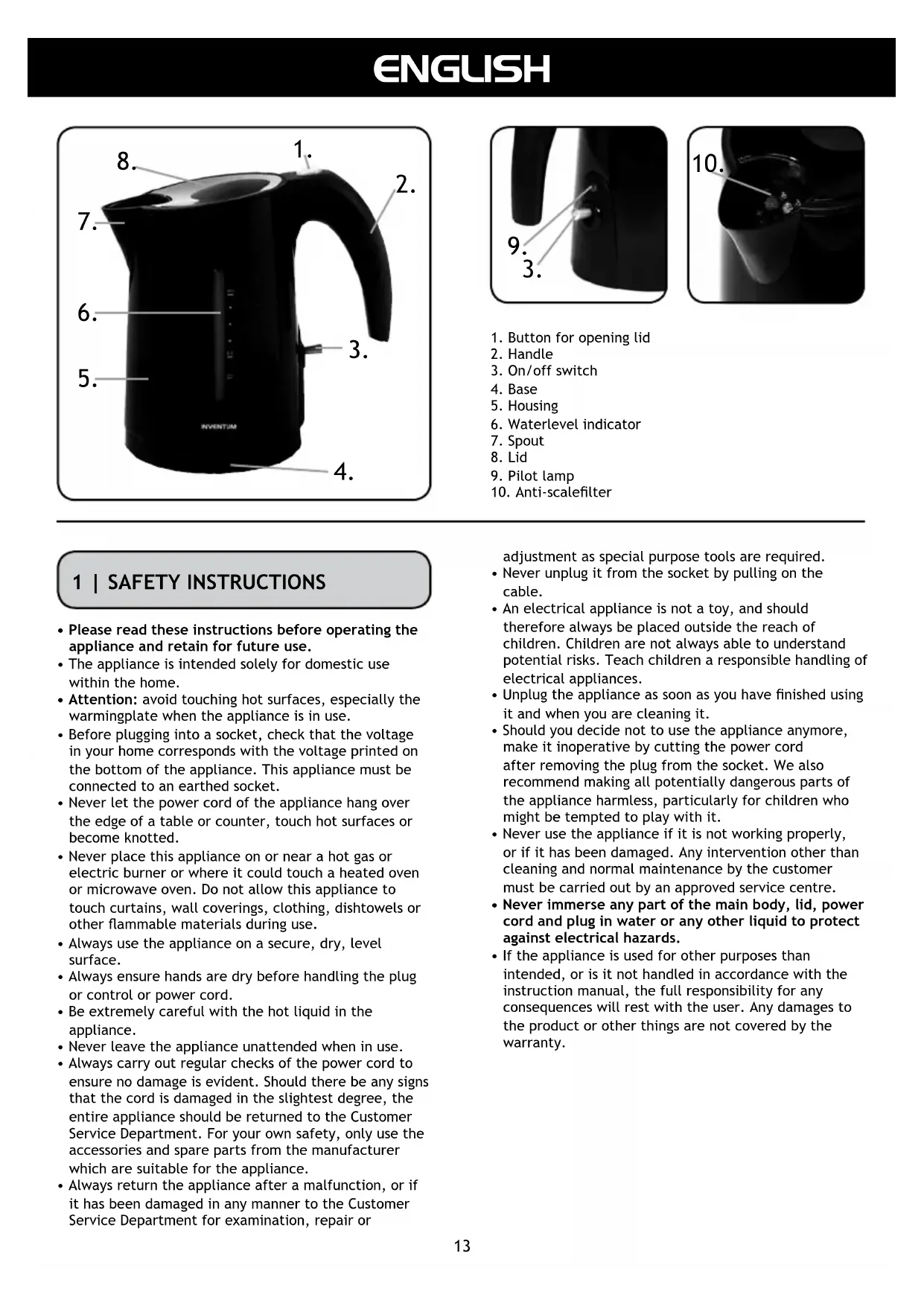

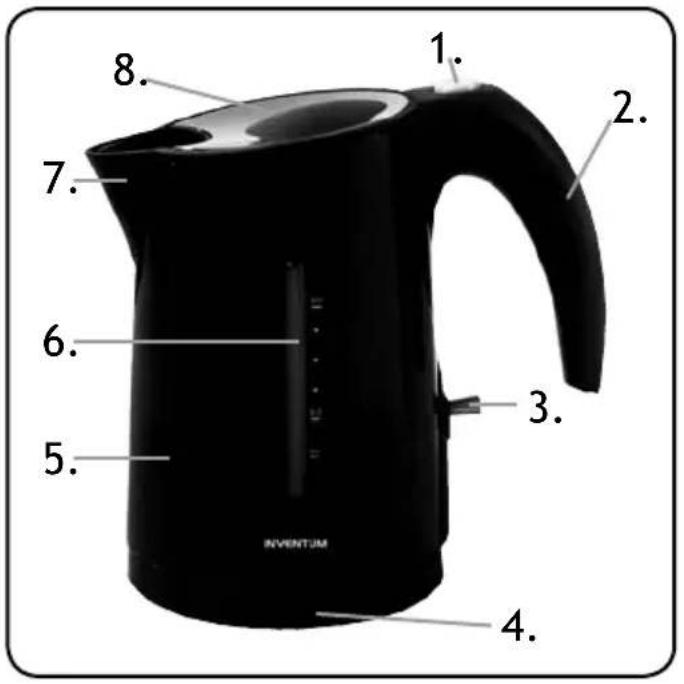

1. Button for opening lid

2. Handle

3. On/off switch
4. Base

5. Housing

6. Waterlevel indicator

7. Spout

8. Lid
9. Pilot lamp

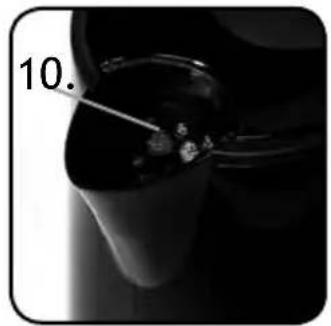

10. Anti-scalefilter

1 | SAFETY INSTRUCTIONS

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention: avoid touching hot surfaces, especially the warmingplate when the appliance is in use.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance. This appliance must be connected to an earthed socket.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave oven. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  Always use the appliance on a secure, dry, level surface.
• Always ensure hands are dry before handling the plug or control or power cord.
• Be extremely careful with the hot liquid in the appliance.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or

adjustment as special purpose tools are required.

• Never unplug it from the socket by pulling on the cable.
• An electrical appliance is not a toy, and should therefore always be placed outside the reach of children. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
• Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.
• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

2 | BEFORE FIRST USE 3 | BOILING WATER

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance. Put the appliance on a flat, stable and heat resistant surface. Before use you must fill the waterkettle to the maximum level and boil this amount. Do this twice. Throw away the boiled water and rinse the kettle with cold water. The appliance is now ready to use. The kettle is only suitable for boiling water. Never fill the kettle with milk, tea, coffee or other drinks. The minimum amount of water must be 0,2 liters. The maximum amount of water to be used is 1,0 liters.

Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance. Put the appliance on a cool, flat and stable surface. Connect the appliance to an earthed socket. You can adjust the length of the cord by pulling it out from, or pushing it into, the interior of the appliance.

1. Open the lid by pushing the button.
2. Fill the kettle with an amount of water and close the lid by pushing it down.
3. Place the kettle on the base and make sure that the plug is in the socket.
4. Switch the kettle on by pressing the on/off switch down to position 1.

The red pilot lamp will light up. The kettle will now boil the water.

1. The kettle will automatically switch off when the water is boiled.

The pilot lamp will switch off.

If you want to boil the water again, you must wait approx. 30 seconds before you switch it on again, so that the switch can cool down. The kettle can also be switched off at any time with the switch. When you take the waterkettle off the base while boiling, it will switch off. When you place the waterkettle back on the base the water will continue boiling. If that is not necessary, switch the kettle of by pushing the switch to position 0.

Attention! Never switch the kettle on without water. If, for whatever reason, the kettle is switched on without water, the dry-boilprotection will automatically switch the kettle off. Put the switch back to "0". In this case take the kettle off the base and let it cool down for several minutes. After that, refill the kettle and switch it on again. Make sure that the lid is closed properly, if not the kettle will go on boiling and will not automatically switch off.

Attention! It may occur that you see condensation on the base. This is completely normal and has no consequences for the use of the waterkettle.

4 | CLEANING & MAINTENANCE

Clean the waterkettle on regular bases for continues performance. Never immerse the waterkettle, the base or the plug in water or other liquids. Let the waterkettle cool off and always unplug the appliance before cleaning. Wipe the outside of the waterkettle with a damp cloth and dry the kettle afterwards. Never use any abrasives!

To remove the anti-scalefilter for cleaning, take the waterkettle of the base and let it cool down. Do not remove the anti-scalefilter when the waterkettle is still warm and/or filled with water. Pull the anti-scalefilter straight up out of the spout and clean it with warm water. Make sure while replacing the filter to place it correctly in the spout. Never place the anti-scalefilter loose in the waterkettle.

5 | DESCALING

Scale can form on the inside of the waterkettle. It may be necessary to descale the waterkettle from time to time. Use a suitable descalingproduct for waterkettles/ coffeemachines and follow the instructions.

You can also descale the waterkettle with lemonjuice. The acid in this juice will remove the scale. This natural method avoids the use of chemicals. Fill the waterkettle half-full with warm water. Add the juice of half a lemon. Boil the water and leave it to cool for half an hour. Throw away the boiled water and rinse the waterkettle to remove any remainders. Fill the waterkettle with fresh water and boil it again. Throw away the water and rinse the kettle once more. Attention! Never clean the appliance with detergents. These products can damage your waterkettle.
