USER MANUAL PW710BG INVENTUM

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Description of the appliance

1. Safety instructions
2. Interesting facts
3. Before first use
4. Calculating weight + BMI
5. Weigh only
6. Tips
7. Incorrect measurements
8. Cleaning & maintenance

Guarantee & after sales Service

page 7

page 7

page 8

page 8

page 8

page 8

page 8

page 9

page 9

page 17

DEUTSCH

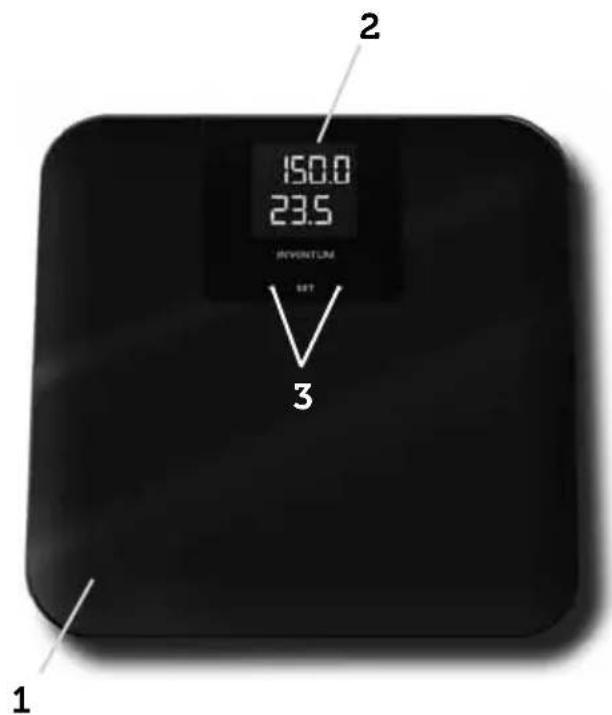

1. Glass surface
2. Display
3. Keys for setting
4. Battery compartment

1 SAFETY INSTRUCTIONS

• Please read the instructions carefully and completely before operating this appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
  Always use batteries which corresponds with the voltage printed on the bottom of the appliance.
• Caution! Do not stand on the outer edge to one side of the scale otherwise it may tip!
• An electrical appliance is not a toy and should therefore always be placed outside of the reach of children. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• If possible, always weigh yourself at the same time of day (preferably in the morning), after using the toilet, on an empty stomach and unclothed, in order to achieve comparable results.
• Stand on the scale without moving and with equal weight distribution on both feet!
• Minor deviations are normal. When you drink 1 glass of water for example a difference of 300 grams can occur.
• Protect the scale against hard knocks, moisture, dust, chemicals, major temperature fluctuations and heat sources which are too close (stove, heating radiators).
• Always ensure that the scale is placed on a flat, stable surface and only use it indoors.
• If you decide never to use the appliance again, we

advise you to dispose of it in special containers or at a municipal waste collection point.

- Never immerse the scale in water or other liquids.

The scale can accept a maximum load of 180 kg (396 lb, 28St). The weight measurement is displayed in increments of 100 g (0.2lb, 1/4St). The measuring results for the body fat, body water and muscle percentages are displayed in 0.1% increments.
- On delivery the scale is set to the units "cm" and "kg". For changing the measuring unit, please read the instruction manual.
- When you want to store the scale for a longer period, we advise to keep it in the original carton.
- Repairs may only be carried out by Inventum customer service or authorized dealers. Before submitting any complaint, first check the batteries and replace them if necessary.
- If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
- The device is only for private use and is not intended for medical or commercial purposes.
- Please note that technically related measuring tolerances are possible, as the scale is not calibrated for professional medical applications.
- If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

2 | INTERESTING FACTS

Weighing correctly

If possible, always weighs yourself at the same time of day (ideally in the morning), after going to the toilet, on an empty stomach and without clothes to achieve comparable results. Minor deviations are normal. When you drink 1 glass of water for example a difference of 300 grams can occur. Place the scale on a firm, flat surface; a firm floor covering is a basic requirement for correct weight measurement.

Your scale is an accurate instrument. The human body is the hardest thing to weigh, because it is always in motion. Therefore a 99% accuracy of the body weight is the highest possible. Stand on the scale without moving and with equal weight distribution on both feet! Do not underestimate the weight of clothing and when you have just eaten or drunken anything. Only the long-term trend counts.

The measuring principle of the BMI scale

Body Mass Index (BMI) states the relation between weight and lenght according to the calculation body weight in kilogram divided by the square of the body lenght in meter. BMI = body weight (kg) / body length ()^2

For instance: a person weighs 75 kilograms and has a lenght of 1,80m . The BMI will be: 75 / (1,8× 1,8) = 23

The limits for BMI defined by WHO - World Helath Organization.

Classification Index	kg/m2) - BMI
underweight less than 17,5
mild thinness less than 18,5
normal weight 18,50-24,99
overweight 25,00-29,99
Obese more than 30

3BEFORE FIRSTUSE

Before you use the appliance for the first time, please do as follows: carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the scale on a firm, flat surface.

Remove the batteries from the protective packaging and insert with the correct polarity. See the diagram inside the battery compartment.

Press the UNIT button on the back of the scale to select the correct measuring unit (kg/st/lb).

kg = kilograms

lb = pounds

st = stone

Place the scale on a flat and stable surface and wait for the scale to turn itself off.

4 | CALCULATING WEIGHT + Bmi

You must enter personal user parameters in order to measure your body fat percentage and other physical data. The scale has 4 memory positions in which you and other members of your family can save and retrieve personal settings.

Now you can enter the following setting:

Memory position (P) 1 to 4
Body size 100 to 220 cm

• Press the SET key when the display is switched off to change the setting. The first memory position P1 flashes on the display. To select the correct user, press the or keys and press the SET key again to confirm.
• After you have entered the correct user, the indication for body size (height) will blink (preset 165 cm). To set your own height press the or keys and press the SET key again to confirm. To switch between cm and ft press the UNIT button on the back of the scale.

After all parameters have been entered, you can now measure your weight and BMI. The display will show 0,0kg .

TIP: To reset a memory position for another user perform the same steps as described above. All positions are preset.

5 | WEIGH ONLY

The scale has a step-on function. Step barefoot onto the

scale. Stand still with your weight distributed evenly on both legs. The scale will start measuring your weight immediately and a short time later will display your weight. When you step off the scale it will turn off after a few seconds.

6 | TIPS

Remember that only long-term trends are important. Short-term fluctuations in weight over a few days are usually the result of a loss of fluid.

• If possible, always weighs yourself at the same time of day (ideally in the morning), after going to the toilet, on an empty stomach and without clothes to achieve comparable results.
• Stand still during the measurement.
• Wait several hours after unusually strenuous activity.
• Wait approx. 15 minutes after getting out of bed so that the water in your body can be distributed.

7 | INCORRECT MEASUREMENTS

If the scale detects an error during measurement, this is indicated with ----.

Possible causes of errors Causes of error

The maximum load-bearing capacity of 180kg (396 lbs) was exceeded ----

Only weigh the maximum permissible weight.

8 | CLEANING & MAINTENANCE

The scale should be cleaned occasionally.

Dirt and dust has a tendency to collect on the rubber electrodes. Always stand on the scale barefoot or wearing socks as the rubber surfaces will quickly become dirty if you wear shoes. Use a damp cloth to clean the scale. Do not use abrasive detergents and never immerse the scale in water.

• Do not use aggressive solvents or cleaning agents!
• Never immerse the scale in water or any other liquids.
• Handle the scale with care, protect the scale from impact with hard object and do not drop it.

Your scale is fitted with a change battery indicator. If the scale is operating with batteries which are too weak,

Lo appears on the display and the scale will switch off automatically. In this case, the batteries must be exchanged (2 x CR2032, 3V). If necessary please use a small screwdriver to remove the batteries.

Batteries can contain toxins that are harmful to health and the environment. The used, completely drained standard and rechargeable batteries must be disposed of in specially marked collection containers, at toxic waste collection points or electrical product retailers. You are legally obligated to dispose of the batteries.

Note: Batteries containing pollutants are marked with the following symbols: Pb = Battery contains lead, Cd = Battery contains cadmium, Hg = Battery containers mercury.

DEUTSCH

st = stone (Engelishe Masseinheit)

• This product is guaranteed for a period of 2 years from the date of purchase against mechanical and electrical defect.
• Guarantee can only be given if proof of purchase (e.g. till receipt) can be shown. Therefore keep it in a safe place. The guarantee period starts at date of purchase.

• Guarantee is not valid in case of:

• normal wear;

• damage through misuse use or when the instructions were not followed correctly;
• lack of maintenance;
• not following the operation- and safety instructions;
• incompetent montage or repairs made by yourself or others;
• using accessories and spare parts which are not suitable for the appliance;

for assessment by our technical department.

The guarantee is not valid for:

normal wear;
- batteries;

• (interchangeable) signal- and controllamps for assessment by our technical department.

Return to your supplier of send the appliance, including a copy proof of purchase and description of the complaint, stamped to:

Inventum Group BV

Generatorstraße 17

3903 LH VEENENDAAL

THE NETHERLANDS

Website: www.inventum.eu

IES Import Electronic Service GmbH

Lembekstrasse 36

22529 Hamburg

GERMANY

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.
