Product type	Chest freezer
Brand	Novamatic
Model	SUPER OKO PLUS 2230.1IB
Dimensions (H × L × P)	876 × 1190 × 665 mm
Net volume	Approximately 223 L (estimate)
Climate class	SN, N, ST, T (+10°C to +43°C)
Voltage	230 V / 50 Hz (European standard)
Refrigerant type	Isobutane (R600a)
Fast freezing function	Yes, via 'Full load' position
Freezing capacity/24h	Indicated on the rating plate (not provided)
Power failure autonomy	53 hours (temperature rise time)
Anti-frost system	Low Frost (frost reduction up to 80%)
High temperature alarm	Yes, indicator light
Interior light	Replaceable bulb (max power indicated on diffuser)
Number of baskets	Several baskets included (removable, stackable)
Temperature setting	Rotary thermostat (positions OFF, Half load, Full load)
Door gasket	Magnetic, cleanable
Air release valve	Yes, makes opening the lid easier
Maintenance and cleaning	Clean with warm water and liquid soap; manual defrost when frost is 10-15 mm
Child safety	Magnetic closure; safe disposal
Warranty	2 years (parts, labor and travel)
Country of origin	Not specified (probably manufactured in Europe)

Frequently Asked Questions - SUPER OKO PLUS 2230.1IB Novamatic

How to adjust the temperature of my Novamatic SUPER OKO PLUS 2230.1IB freezer?

Turn the thermostat located on the control panel. For more intense cold, turn to the maximum position (Full load). For moderate cold, use the minimum position. The Half load position is suitable for small quantities, Full load for large quantities. The setting adjusts according to the load.

What to do in case of high temperature alarm on my appliance?

The Alarm indicator lights up if the temperature in the freezer rises (for example after a power failure). Do not place food in the freezer during the alarm. Once normal temperature is restored, the indicator turns off automatically. If the problem persists, check possible causes (lid not closed properly, overload, etc.).

How to defrost the Novamatic SUPER OKO PLUS 2230.1IB freezer?

Defrost when the ice layer reaches 10-15 mm. Turn off the appliance, remove the food wrapped in newspaper, and place them in a cool place. Open the lid, remove the drain plug, and place a container underneath. Gently scrape the ice with a plastic spatula. After defrosting, wipe and dry the interior, replace the plug, then turn the appliance back on to the coldest position for 2-3 hours before putting the food back.

Why is my freezer making noise?

Noises come from the compressor and the refrigeration circuit. Check that the appliance is stable on its four feet. Excessive noise can also be due to poor leveling. If the noise persists, contact after-sales service.

How to clean the inside of the freezer?

Unplug the appliance. Use warm water mixed with a mild liquid detergent (like dish soap). Clean the walls, accessories, and lid gasket with a soft sponge. Rinse and dry thoroughly. Never use abrasive products, metal sponges, or sharp objects.

What to do if the lid does not close properly?

Check that the gasket is clean and in good condition. If there is frost, defrost the appliance. Make sure no food is blocking the closure. Clean the gasket with soapy water. If the problem persists, the gasket may be damaged and needs replacement.

Can I freeze hot food in this freezer?

No, always allow food to cool to room temperature before placing it in the freezer. Introducing hot food increases the internal temperature and may compromise the preservation of other products.

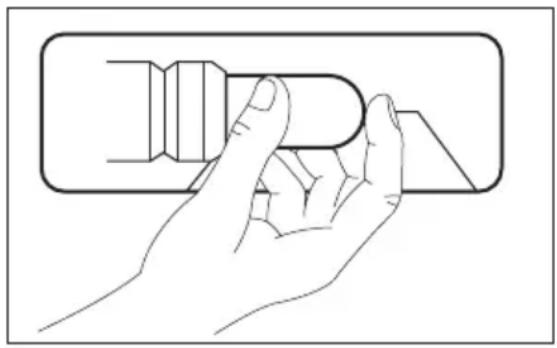

How to replace the light bulb?

Unplug the appliance. Remove the diffuser (do not remove? The manual says: 'Do not remove the diffuser when changing the bulb.' Follow the instructions: replace the defective bulb with a new bulb of identical power, specifically designed for household appliances. The maximum power is indicated on the diffuser. Reconnect and check the lighting.

What is the maximum freezing capacity per 24 hours?

The maximum amount of food you can freeze in 24 hours is indicated on the rating plate of the appliance (located on the right outer side). Consult this plate for the exact value. In general, for a freezer of this size, it is about 20-30 kg.

What to do in case of prolonged power failure?

If the power is cut off, do not open the lid to preserve the cold. The appliance's autonomy (temperature rise time) is 53 hours. If the failure exceeds this duration, thawed food must be consumed quickly or cooked then refrozen. Monitor the high temperature alarm when power is restored.

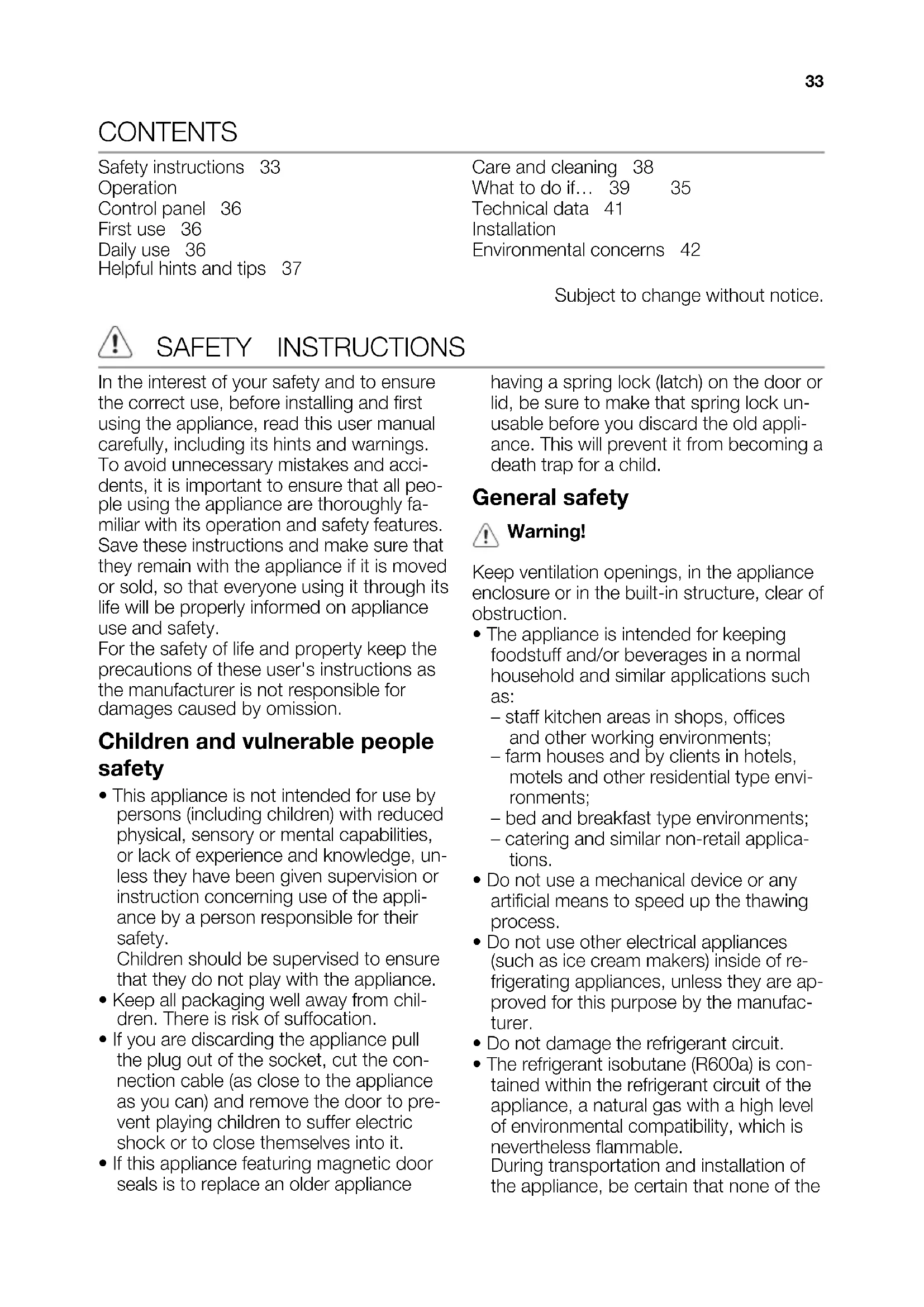

USER MANUAL SUPER OKO PLUS 2230.1IB Novamatic

Safety instructions 33

Operation

Control panel 36

First use 36

Daily use 36

Helpful hints and tips 37

Care and cleaning 38

What to do if... 39 35

Technical data 41

Installation

Environmental concerns 42

Subject to change without notice.

SAFETY INSTRUCTIONS

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance

having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications.

• Do not use a mechanical device or any artificial means to speed up the thawing process.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the

components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition

• thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

！

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in the appliance.

• Do not store flammable gas and liquid in the appliance, because they may explode.

• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)

• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraph.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be car

ried out by a qualified electrician or competent person.
This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not

be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

OPERATION

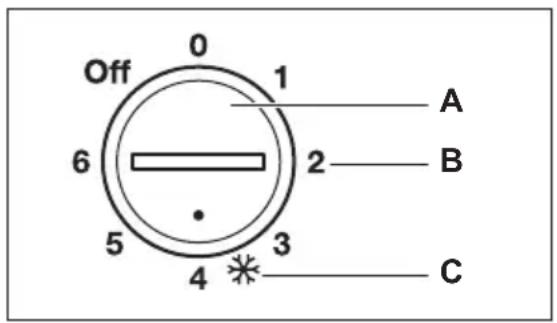

Switching on

A Temperature Regulator
B Half Loaded position
C Full Loaded position

Switching off

To turn off the appliance, turn the Temperature Regulator to the "OFF" position.

Temperature regulation

The temperature within the appliance is controlled by the Temperature Regulator situated on the control panel.

To operate the appliance, proceed as follows:

• turn the Temperature Regulator toward lower settings to obtain the minimum coldness.

Insert the plug into the wall socket.

Turn the Temperature Regulator to the Full Loaded position and let the appliance run for 24 hours to allow the correct temperature to be reached before placing food inside.

Adjust the Temperature Regulator according to the quantity of the stored foods.

• turn the Temperature Regulator toward higher settings to obtain the maximum coldness.
  i In case of freezing less food volumes, the Half Loaded setting is the most suitable.

In case of freezing much food volumes, the Full Loaded setting is the most suitable.

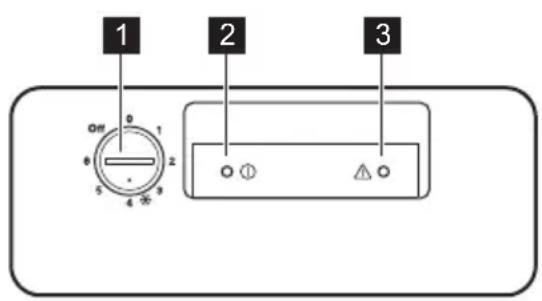

CONTROL PANEL

1 Temperature regulator
2 Pilot light

3 High temperature alarm light

High temperature alarm

An increase in the temperature in the freezer (for example due to an power failure) is indicated by switching on of the Alarm light During the alarm phase, don't place food inside the freezer.

When normal conditions are restored the Alarm light will switch off automatically.

FIRSTUSE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

DAILY USE

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate 4)

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run for 24 hours with the Temperature Regulator to the Full Loaded position.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical

characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

Opening and closing the lid

As the lid is equipped with a tightly closing seal, it is not easy to reopen it shortly after closing (due to the vacuum formed inside). Wait a few minutes before reopening the appliance. The vacuum valve will help you to open the lid.

Warning! Never pull the handle with immense force.

Low frost System

The appliance is equipped with Low frost System (you can see a valve inside the freezer in the backside) what reduces ice-build-up in the chest freezer by up to 80 percent.

Storage baskets

Plastic Low divider

With the low divider you can have a better use of the space above the compressor. The space formed this way will allow you to store small food packs that can be found more easily.

HELPFUL HINTS AND TIPS

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus

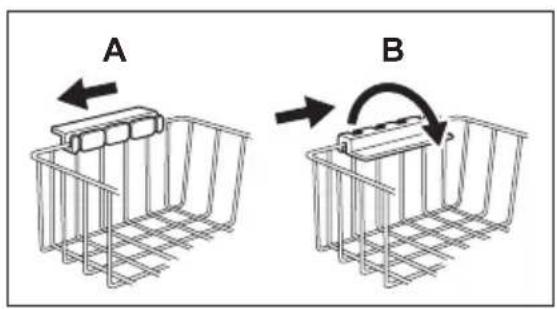

Hang the baskets on the upper edge of the freezer (A) or place them inside the freezer (B). Turn and fix the handles for these two positions as shown in the picture.

The baskets will slide into each other.

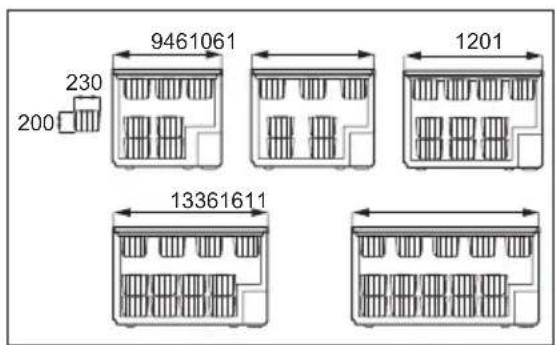

The following pictures show how many baskets can be placed inside the various freezer models.
You can purchase additional baskets from your local Service Centre.

The separator may also be used as a tray at the time of defrosting the freezer.

avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
  not open the lid frequently or leave it open longer than absolutely necessary.

CARE AND CLEANING

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

1. Switch off the appliance.
2. Disconnect the mains plug from the mains socket.
3. Regularly clean the appliance and the accessories with warm water and neutral soap. Clean the lid seal carefully.
4. Fully dry the appliance.
5. Connect the mains plug to the mains socket.
6. Switch on the appliance.

Caution! Do not use detergents, abrasive products, highly perfumed cleaning products or wax polishes to clean the inner side of the appliance. Prevent damage to the cooling system.

Important! There is no need to clean the compressor area.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

Defrosting the freezer

Defrost the freezer when the frost layer reaches a thickness of about 10-15 mm.

The best time to defrost the freezer when it contains no or only a little food.

To remove the frost, do these steps:

1. Switch off the appliance.

2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

3. Once defrosted, food deteriorates rapidly and cannot be refrozen.

4. Do not exceed the storage period indicated by the food manufacturer.

5. Leave the lid open, remove the plug from the defrost water drain and collect all defrost water on a tray. Use a scraper to remove ice quickly.

6. When defrosting is completed, dry the interior thoroughly and refit the plug.
7. Switch on the appliance.
8. Set the temperature regulator to obtain the maximum coldness and run the appliance for two or three hours using this setting.
9. Reload the previously removed food into the compartment.

Important! Never use sharp metal tools to scrape off frost as you could damage the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

The amount of frost on the walls of the appliance will be increased by the high level of the outer environment humidity and if the frozen food is not wrapped properly.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Switch off the appliance.
2. Disconnect the mains plug from the mains socket.
3. Remove all food.
4. Defrost and clean the appliance and all accessories.
5. Leave the lid open to prevent unpleasant smells.

Important! If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF...

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible	cause Solution
The appliance is noisy.	The appliance is not supported properly.	Check if the appliance stands stable (all the four feet should be on the floor).
The compressor oper-ates continually.	The temperature is not set correctly.	Set a warmer temperature.
The lid has been opened too frequently.	The lid is not closed properly.	Do not leave the lid open longer than necessary.
	The food is not closed properly.	Check if the lid closes well and the gaskets are undamaged and clean.
Large quantities of food to be frozen were put in at the same time.	Wait some hours and then check the temperature again.
Food placed in the appliance was too warm.	Allow food to cool to room temperature before storing.
The temperature of the room that contains the appliance is too high for efficient operation.	Try to reduce the temperature in the room where the appliance stands.
The High temperature alarm light is on.	It is too warm inside the freezer. Refer to "High Temperature Alarm".
The cabinet has been recently switched on and the temperature is still too high.	Refer to "High Temperature Alarm".
There is too much frost and ice.	Products are not wrapped properly. Wrap the products better.
The lid is not shut properly or do not close tightly.	Check if the lid closes well and the gaskets are undamaged and clean.
The temperature is not set correctly.	Set a warmer temperature.
The water drainage plug is not correctly positioned.	Position the water drainage plug in the correct way.
The lid doesn't close completely.	There is excessive frost. Eliminate excess frost.
The lid gaskets are dirty or sticky.	Clean the lid gaskets.
Food packages are blocking the lid.	Arrange the packages in the right way, see the sticker in the appliance.
The lid is difficult to open.	The lid gaskets are dirty or sticky. Clean the lid gaskets.
The valve is blocked. Check the valve.
The lamp does not work.	The lamp is defective.	Refer to "Replacing the lamp".
It is too warm in the freezer.	The temperature is not set correctly.	Set a lower temperature.
The lid does not close tightly or it is not shut properly.		Check if the lid closes well and the gasket is undamaged and clean.
Before freezing the appliance was not precooled sufficiently.		Pre-cool the appliance for enough time.
Large quantities of food to be frozen were put in at the same time.		Wait some hours and then check the temperature again. Next time insert smaller quantities of food to be frozen at any one time.
Food placed in the appliance was too warm.		Allow food to cool to room temperature before storing.
Products to be frozen are placed too closely to each other.		Place the products in a way so that cold air could circulate among them.
The lid has been opened often. Try to not open the lid often.
The lid has been opened for a long time.		Do not leave the lid open longer than necessary.
It is too cold inside the freezer.	The temperature is not set correctly.	Set a warmer temperature.
The appliance does not work at all. Neither cooling nor lighting works.	Plug is not connected to the mains socket properly.	Connect the mains plug properly.
Power does not reach the appliance.		Try connecting another electrical device to the power outlet.
The appliance is not switched on.		Switch on the appliance.
There is no voltage in the mains socket (try to connect another appliance into it).		Call an electrician.

Customer Service

If your appliance is still not working properly after making the above checks, contact the nearest service centre.

To obtain fast service, it is essential that when you apply for it you specify the model

and serial number of your appliance which can be found either on the guarantee certificate or on the rating plate located on the external right side of the appliance.

Replacing the lamp

Warning! Do not remove the lamp cover at the time of replacement.

1. Disconnect the mains plug from the mains socket.
2. Replace the used lamp with a new lamp of the same power and specifically designed for household appliances. (the maximum power is shown on the lamp cover)
3. Connect the mains plug to the mains socket.
4. Open the lid. Make sure that the lamp comes on.

Do not operate the freezer if the lamp cover is damaged or missing.

TECHNICAL DATA

Dimensions	Height × Width × Depth (mm):	Further technical information are situ-ated in the rating plate on the external right side of the appliance.
876 × 1190 × 665
Rising Time	53 hours

INSTALLATION

Positioning

Warning! If you are discarding an old appliance that has a lock or catch on the lid, you must ensure that it is made unusable to prevent young children being trapped inside.

Important! The appliance shall have the plug accessible after installation.

This appliance can be installed in a dry, well ventilated indoor (garage or cellar), but for optimum performance install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Ventilation requirements

1. Put the freezer in horizontal position on a firm surface. The cabinet must be on all four feet.
2. Make sure that the clearance between the appliance and rear wall is 5 cm.
3. Make sure that the clearance between the appliance and the sides is 5cm . The airflow behind the appliance must be sufficient.

ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Warranty / customer service

For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).

The guarantee covers the costs of materials, labour and travel.

The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.
