Product Type	Electric Convector
Brand	Kalorik
Model	KA CV 10 T
Category	Heating
Supply Voltage	220-240 V ~ 50 Hz
Available Powers	0 (Off), 1000 W, 2000 W, Turbo (2000 W with forced ventilation)
Thermostat	Adjustable from LO (minimum) to HI (maximum)
Thermal Safety	Automatic shut-off in case of overheating
Foot Assembly	Mandatory before use, slide two feet under the appliance
Safety Distance	At least 1 m from combustible materials, 50 cm from other objects
Intended Use	Domestic, indoor only
Do not use	Near a bathtub, shower, swimming pool or water source
Maintenance	Unplug before cleaning, soft damp cloth, vacuum for grilles
Do not immerse	Do not immerse in water or any other liquid
Do not cover	Fire hazard, never cover the appliance
Power Cord	Do not pull, do not wrap around the appliance
Environmental Protection	Do not dispose of in household waste, return to retailer or collection point
Number of pages in manual	24 pages

Frequently Asked Questions - KA CV 10 T KALORIK

How to mount the feet of the Kalorik KA CV 10 T convector?

Before first use, slide the two provided feet under the appliance. Make sure they are properly engaged. Never use the appliance without the feet.

What power settings can I select?

The power switch offers the positions: 0 (off), 1000 W, 2000 W and Turbo (2000 W with forced ventilation for increased air circulation).

How to adjust the temperature?

Turn the thermostat from the LO (minimum) position to HI (maximum) to achieve the desired temperature. The appliance automatically maintains the selected temperature.

What to do in case of overheating?

The convector has a thermal safety feature that automatically turns it off. Unplug the appliance, clear the ventilation grilles and wait at least 10 minutes before plugging it back in. If the problem persists, contact customer service.

Can I use the convector in a bathroom?

No, never use the appliance near a bathtub, shower, sink, swimming pool or any other water reservoir. The controls must not be accessible from a water point.

How to clean the convector?

Always unplug the appliance before cleaning. Use a soft damp cloth for the exterior, never immerse it. For the grilles, use a vacuum or brush regularly.

Is it normal for an odor to be emitted during first use?

Yes, a slight odor may appear during the first operation. It is normal and temporary. Ensure good ventilation of the room.

What safety distances must be observed?

Place the convector at least 1 meter from any combustible material (curtains, furniture) and at least 50 cm from any other object. Never cover the appliance.

Can I use an extension cord?

It is not recommended to use an extension cord. Always plug the appliance directly into a grounded wall outlet. If necessary, ensure the extension cord is suitable for the power (2000 W).

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by a qualified service (manufacturer or importer after-sales service) to avoid any danger.

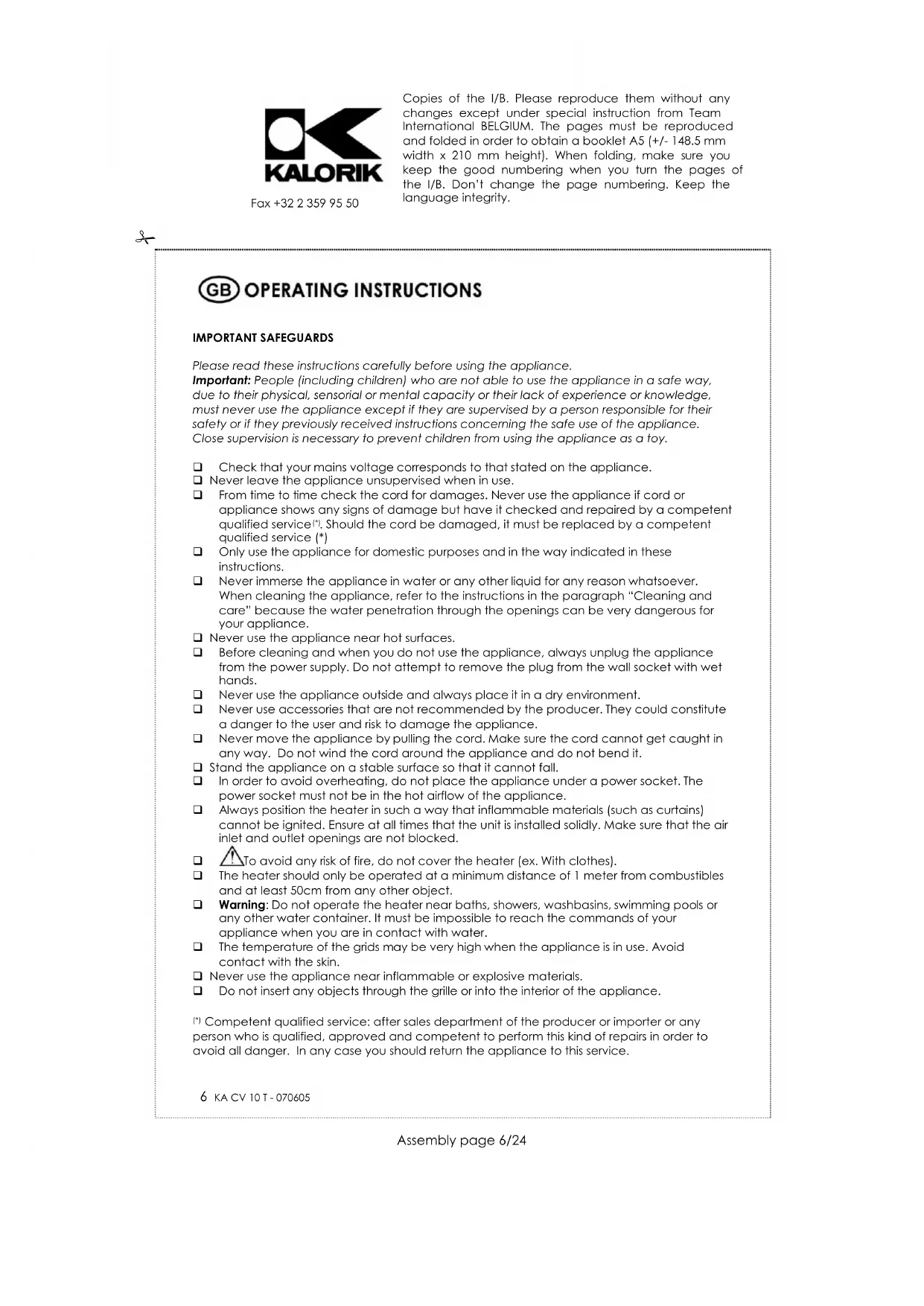

USER MANUAL KA CV 10 T KALORIK

D

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^[1] . Should the cord be damaged, it must be replaced by a competent qualified service (*)
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph "Cleaning and care" because the water penetration through the openings can be very dangerous for your appliance.
□ Never use the appliance near hot surfaces.
Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Stand the appliance on a stable surface so that it cannot fall.
☐ In order to avoid overheating, do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance.
□ Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited. Ensure at all times that the unit is installed solidly. Make sure that the air inlet and outlet openings are not blocked.
To avoid any risk of fire, do not cover the heater (ex. With clothes).
☐ The heater should only be operated at a minimum distance of 1 meter from combustibles and at least 50cm from any other object.
☐ Warning: Do not operate the heater near baths, showers, washbasins, swimming pools or any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water.
☐ The temperature of the grids may be very high when the appliance is in use. Avoid contact with the skin.
□ Never use the appliance near inflammable or explosive materials.
☐ Do not insert any objects through the grille or into the interior of the appliance.

1) Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this service.

6 KA CV 10T-070605

CONNECTION TO THE MAINS SUPPLY

Caution: We cannot be held responsible for any damage due to the wrong use or the non-observance of this instruction manual.

The convection heater should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with CE-directives.

BEFORE USE

Before using the convection heater for the first time, you must either attach the feet to the base of the unit.

Floor-standing

Attach each foot underneath the appliance by tightening sliding them in the slots foreseen. Make sure to install the appliance at a minimum distance of 50 cm to other objects. Never use the appliance without its feet.

OPERATION

After having installed your convection heater, insert the plug into an earthed power socket. When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly.

The power selector allows you to choose the desired power. The higher the power, the faster the heating.

The thermostat regulates the temperature in the room.

Power selector

0	OFF
1000W	1000 Watts
2000W	2000 Watts
	Turbo + 2000 Watts

When choosing the position, the turbo fan will be activated to increase the air circulation.

7 KA CV 10T-070605

Thermostatic selection range

HI. ----> LO.

Caution: the metallic parts of this appliance become hot during use so if you need to move the appliance during use, use the side handles.

OVERHEAT PROTECTION

This heater is protected with an overheat protection that switches off the appliance automatically in case of overheat, e.g. due to the total or partial obstruction of the grids. In this case, unplug the appliance, wait about 10 minutes for it to cool and remove the object that is obstructing the grids. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact the nearest customer service.

CLEANING AND CARE

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the heater with water and do not immerse it. Clean the housing with a damp cloth.
• If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner. This maintenance should be done regularly to assure the good operation of the appliance.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol , the rating label, your appliance should not be disposed of as unsorted municipal waste but should either be returned to the vendor, or disposed of in a separate collection point performing waste recovery by means of reuse, recycling or use for other applications.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

K070605

CE
