USER MANUAL KA CV 4 T KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/24

Konvektor Convector heater Convecteur Convectorkachel Convector Convector Termoconvettore KA CV 4 T 230V~2000W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Montage / Assembly / Montage / Montage / Montaje / Montagem / Assemblaggio Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

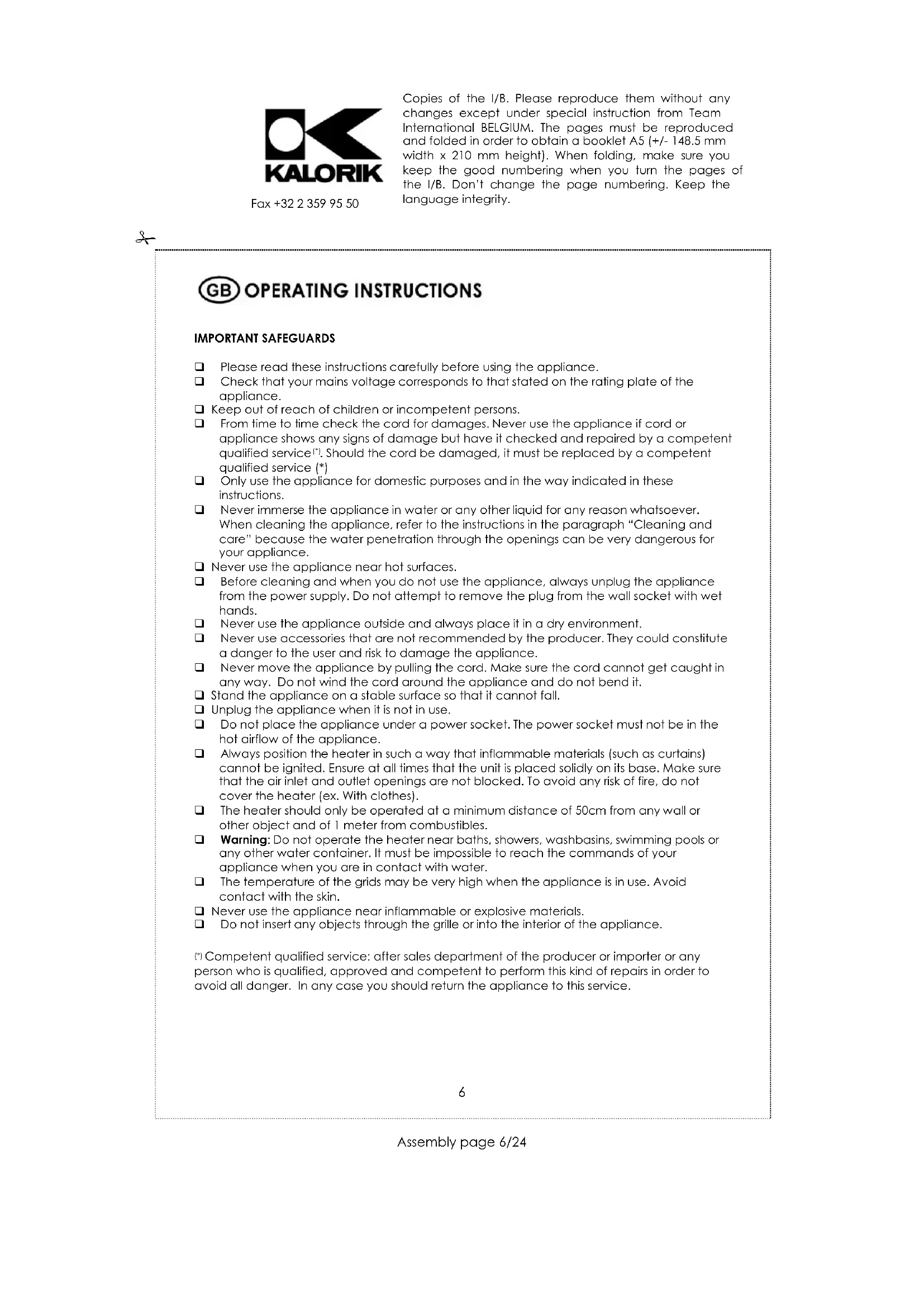

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the rating plate of the appliance. Keep out of reach of children or incompetent persons. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service (*) Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph “Cleaning and care” because the water penetration through the openings can be very dangerous for your appliance. Never use the appliance near hot surfaces. Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a stable surface so that it cannot fall. Unplug the appliance when it is not in use. Do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance. Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited. Ensure at all times that the unit is placed solidly on its base. Make sure that the air inlet and outlet openings are not blocked. To avoid any risk of fire, do not cover the heater (ex. With clothes). The heater should only be operated at a minimum distance of 50cm from any wall or other object and of 1 meter from combustibles.

Warning: Do not operate the heater near baths, showers, washbasins, swimming pools or

any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water. The temperature of the grids may be very high when the appliance is in use. Avoid contact with the skin. Never use the appliance near inflammable or explosive materials. Do not insert any objects through the grille or into the interior of the appliance.

Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this service. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Caution: We cannot be held responsible for any damage due to the wrong use or the non- observance of this instruction manual. The convection heater should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with CE-directives. MOUNTING Before using the convection heater for the first time, the feet must be fitted to the base of the unit and then secured with the screws provided. (see page 2) Never use the convection heater if the feet have not been assembled. OPERATION After having installed your convection heater, insert the plug into an earthed power socket. When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly. The power selector allows you to choose the desired power. The higher the power, the faster the heating. The thermostat regulates the temperature in the room. A pilot light will allow you to check the thermostatic regulation. When the appliance is heating, this pilot light will be on. It will go out when the desired temperature is reached. Power selector 0 OFF 1 800 W 2 1200 W 3 2000 W Note: the metallic parts of this appliance become hot during use so if you need to move the appliance during use, use the side handles.

OVERHEAT AND TIP-OVER PROTECTION

This heater is protected with an overheat protection that switches off the appliance automatically in case of overheat, e.g. due to the total or partial obstruction of the grids. In this case, unplug the appliance, wait about 10 minutes for it to cool and remove the object that is obstructing the grids. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact the nearest customer service. Your appliance is also fitted with a tip-over protection that disconnects your appliance when it is tilted or tipped. If your appliance falls, switch it off, replace it correctly and switch it on again. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. To avoid the risk of electric shock, do not clean the heater with water and do not immerse it. Clean the housing with a damp cloth. If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner. This maintenance should be done regularly to assure the good operation of the appliance. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
