TKG IH 9 - Heating KALORIK - Free user manual and instructions

Brand	Kalorik
Model	TKG IH 9
Product type	Halogen heater
Power supply	220-240 V ~ 50 Hz
Power	400 / 800 / 1200 W (3 levels)
Heat source	Halogen lamp
Oscillation	Yes, via button or remote control
Timer	0.5 to 7.5 hours (in 0.5 h increments)
Remote control	Yes, with 2x1.5V AA batteries (not included)
Control panel	ON/power selector, timer, oscillation, OFF buttons
Display	Indicator lights for timer and standby
Anti-tilt safety	Yes, automatic shut-off in case of fall
Overheat safety	Yes
Material	Plastic body, metal grille
Color	White / gray (not specified, estimate)
Dimensions (approx.)	Height 40 cm, width 25 cm, depth 25 cm
Weight (approx.)	2.5 kg
Cord length	1.2 m (estimation)
Assembly	Screw-on base (2 screws provided)
Maintenance and cleaning	Dry cloth, vacuum grille
Included accessories	Base, screws, remote control, manual
Warranty	Standard (excluding fall and remote control damage)

Frequently Asked Questions - TKG IH 9 KALORIK

How to assemble the base of the Kalorik TKG IH 9 heater?

To assemble the base, lay the device down, unscrew the 2 screws located under the heater, place the base on the central housing, then retighten the screws. Make sure the cord is clear.

What type of batteries to use for the remote control?

Use two AA 1.5V batteries. Do not mix new and old batteries or batteries of different types. Remove batteries if the remote is not used for a long time.

How to set the timer on the Kalorik TKG IH 9?

Press the 'TIME' button on the control panel or the corresponding button on the remote. Each press adds 0.5 hour. The timer can be set from 0.5 to 7.5 hours. Combinations of indicator lights show the selected time.

How to activate oscillation on this heater?

Press the 'TURN √' button on the control panel or the '√' button on the remote to activate or deactivate oscillation.

What to do if the heater does not turn on?

Check that the device is placed on the floor and nothing blocks the anti-tilt safety. Also make sure the plug is properly connected and the outlet works.

Can this heater be used in a bathroom?

No, it should not be used near bathtubs, showers, sinks or swimming pools. Never use it in a damp room or with wet hands.

How to clean the Kalorik TKG IH 9?

Always unplug the device before cleaning. Use a dry lint-free cloth. For the grilles, gently use a vacuum cleaner. Never use abrasive sponges or water.

What power levels are available?

The device offers 3 power levels: 400 W, 800 W and 1200 W. Select via the 'ON' button on the control panel or the remote.

The heater turns off by itself, is this normal?

Yes, the device is equipped with anti-tilt and overheat safety. If it falls or overheats, it shuts off automatically. Set it upright and turn it back on after cooling.

How to turn off the device completely?

Press the 'OFF/0' button on the control panel or the remote, then unplug the cord from the power outlet.

USER MANUAL TKG IH 9 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

DE

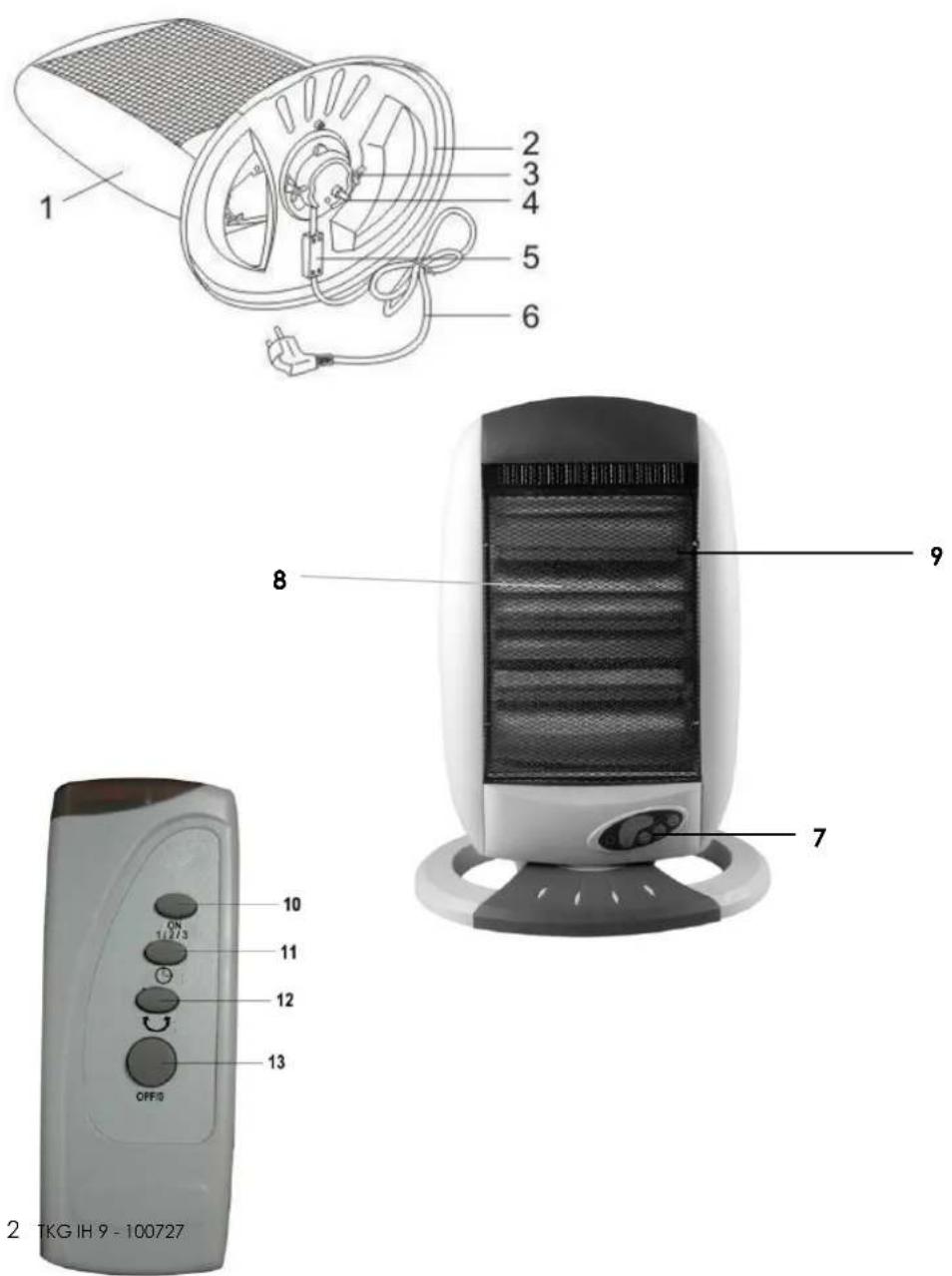

1. Housing
2. Support
3. 2 screws
4. Tilt switch
5. Cord storage
6. Cord
7. Control panel
8. Halogen lamp
9. Cellular grid

Remote control

1. ON & Power switch
2. Time button
3. Oscillation button
4. OFF switch

F

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service(*). Should the cord be damaged, it must be replaced by a competent qualified service (*)
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph "Cleaning and care" because the water penetration through the openings can be very dangerous for your appliance.
□ Never use the appliance near hot surfaces.
Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
☐ Stand the appliance on a stable surface so that it cannot fall.
☐ In order to avoid overheating, do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance.
□ Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited. Ensure at all times that the unit is placed solidly on its base. Make sure that the air inlet and outlet openings are not blocked.
To avoid any risk of fire, do not cover the heater (ex. With clothes).
☐ The heater should only be operated at a minimum distance of 50cm from any wall or other object and of 1 meter from combustibles.
☐ Warning: Do not operate the heater near baths, showers, washbasins, swimming pools or any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water.
☐ The temperature of the grids may be very high when the appliance is in use. Avoid contact with the skin.
☐ Do not allow the power cord to touch any hot part of the appliance.
□ Never use the appliance near inflammable or explosive materials.

☐ Do not insert any objects through the grille or into the interior of the appliance.
☐ Do not use double adapters, timers, programmers or other devices that connect the heater automatically.
1) Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this service.

ASSEMBLY

• To operate more easily lay the heater horizontally.
- Unscrew both screws located on the lower part of the appliance.
- Take out the power cord from the slot which is in the centre of the base and mount this base on the lower part.
- Insert the screws in the base and tighten them.

BATTERIES

• In order to be able to use the remote control, you first have to insert the batteries in it. To do so:
• Open the battery compartment by pressing on the cover and sliding this cover down.
• Insert the batteries, making sure you respect the + and - polarity.
• Close the compartment by sliding the cover in the opposite direction. Use 2 AA-type batteries of 1.5 V. Never mix up new and old batteries or batteries of different types.
• When you decide to throw away the appliance, make sure to remove the battery and to dispose of it in an ecological manner by handing it in a place intended for this end.

Caution: if you don't use your remote control for a long time, it is recommended to remove the batteries because they could run.

USE

• When the appliance is plugged in, the stand-by pilot light is on. Each time you press the buttons, a beep sound is heard.
• Select the heat by means of the suitable button "ON 1/2/3" on the remote control or "ON 400/800/1200W" on the control panel of the appliance. Press the "button of the remote control or "Turn" on the control panel to switch the oscillating movement on and off. By pressing the "button of the remote control or the "TIME" button on the control panel, you can set the switch-off time of the appliance. The timer is adjustable from 0.5 hour (min) up to 7.5 hours (max). Every pressing corresponds to 0.5 hour. Some settings will switch on several pilot lights. For instance, if you select 1 hour and 30 minutes, the first two pilot lights will be on.
• To switch off the appliance, press the "OFF/0" switch of the remote control or the "() on the control panel and remove the plug from the power supply.
• Your appliance is fitted with two safety devices: the first one disconnects your appliance when it is tilted or tipped. If your appliance falls, switch it off, replace it correctly and switch it on again. The second safety device disconnects the appliance in case of overheating by means of a thermo fuse.
• In case your appliance does not work when you switch it on, check that it is correctly placed and that the safety device is not blocked.

MAINTENANCE AND CLEANING

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• The housing may be wiped with a slightly damp, lint-fee cloth; do not use any abrasive scouring pad or steel wool.
  • The grids are particularly delicate; to clean them you can carefully use a vacuum cleaner.
• When you do not use the appliance, you can cover and place it in a dry environment.

GUARANTEE

Never move the appliance while it is operating and make sure it does not fall, as this could destroy the tubes.

Also make sure that the remote control does not fall and do not expose it to heat sources or high humidity as this could cause irreversible damages.

No guarantee claims will be accepted in case of non-observance of these instructions.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
