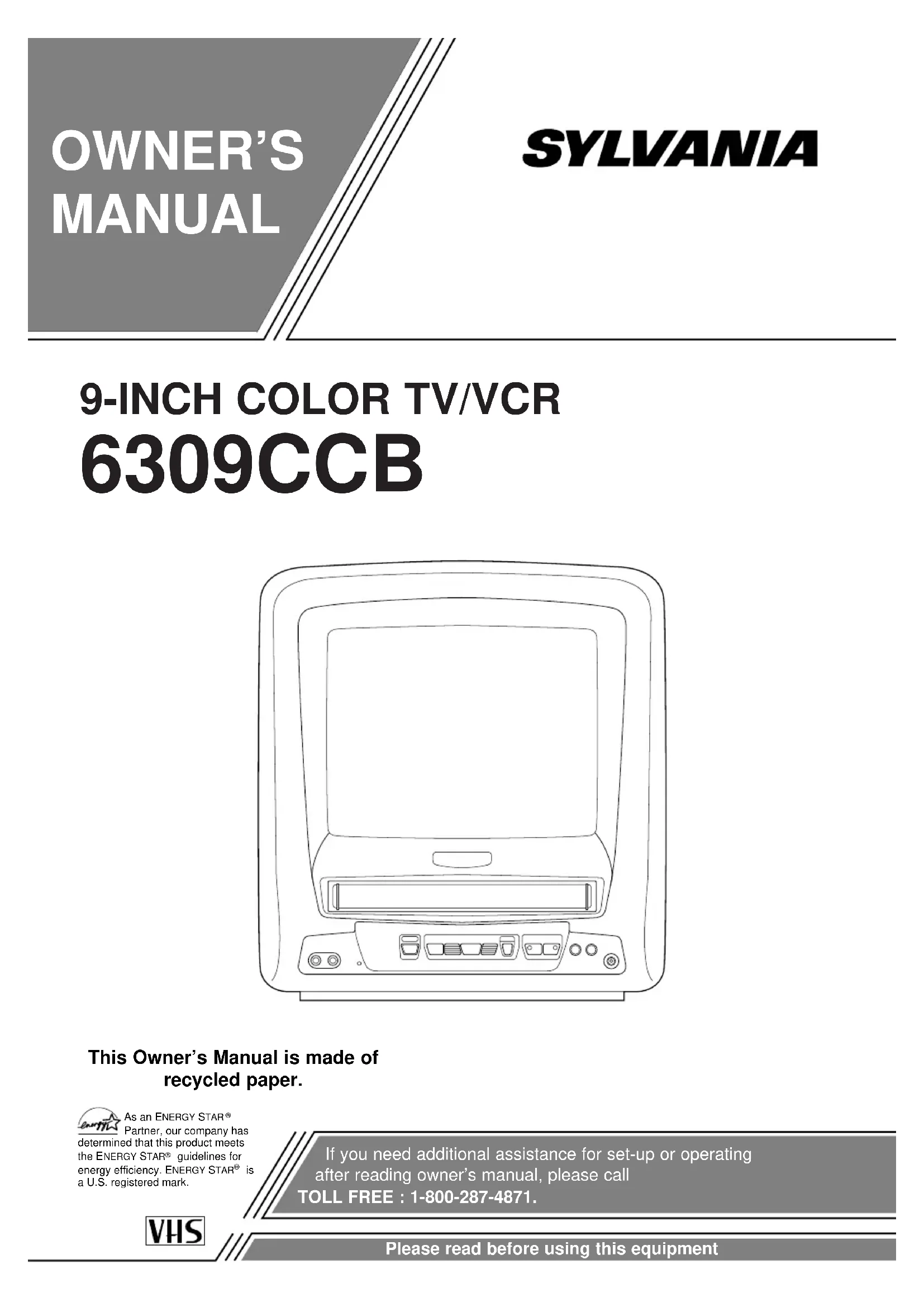

USER MANUAL 6309CCB SYLVANIA

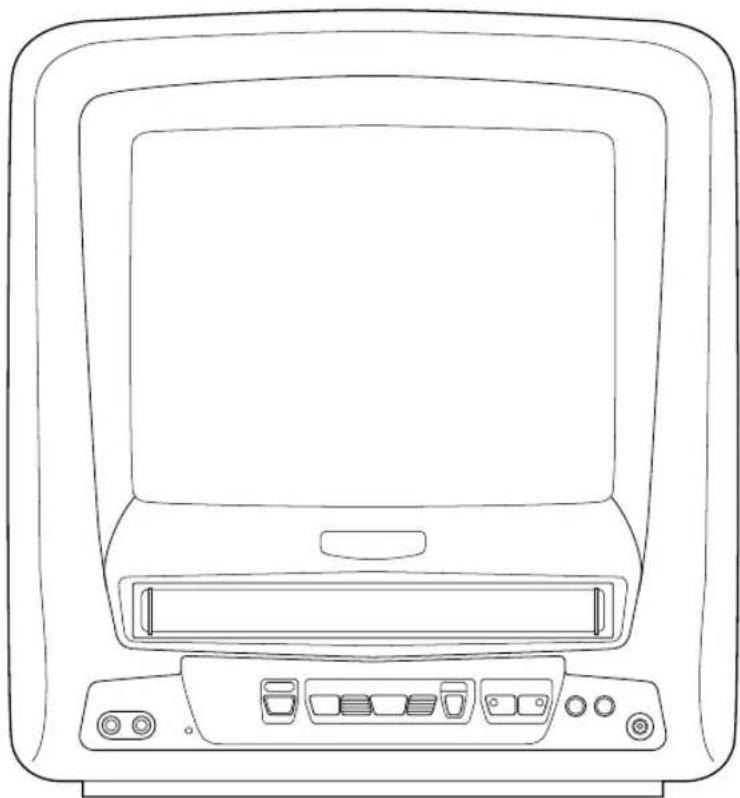

9-INCH COLOR TV/VCR 6309CCB

Line drawing of a vintage computer monitor with front panel and control buttons (no text or symbols)

This Owner's Manual is made of recycled paper.

As an ENERGY STAR®

determined that this product meets the ENERGY STAR® guidelines for energy efficiency. ENERGY STAR® is a U.S. registered mark.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1. Read instructions- All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instructions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions should be followed.
5. Cleaning-Unplug TV/VCR from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

1. Attachments-Do not use attachments not recommended by the TV/VCR manufacturer as they may cause hazards.
2. Water and Moisture-Do not use this TV/VCR near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
3. Accessories-Do not place this TV/VCR on an unstable cart, stand, tripod, bracket, or table. The TV/VCR may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or

table recommended by the manufacturer, or sold with the TV/VCR. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care.

PORTABLE CART WARNING

Silhouette of two people pushing a cart with a large block, enclosed in a circle (no text or symbols)

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/VCR and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/VCR on a bed, sofa, rug, or other similar surface. This TV/VCR should never be placed near or over a radiator or heat register. This TV/VCR should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. Power Sources-This TV/VCR should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/VCRs intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization-This TV/VCR is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
4. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

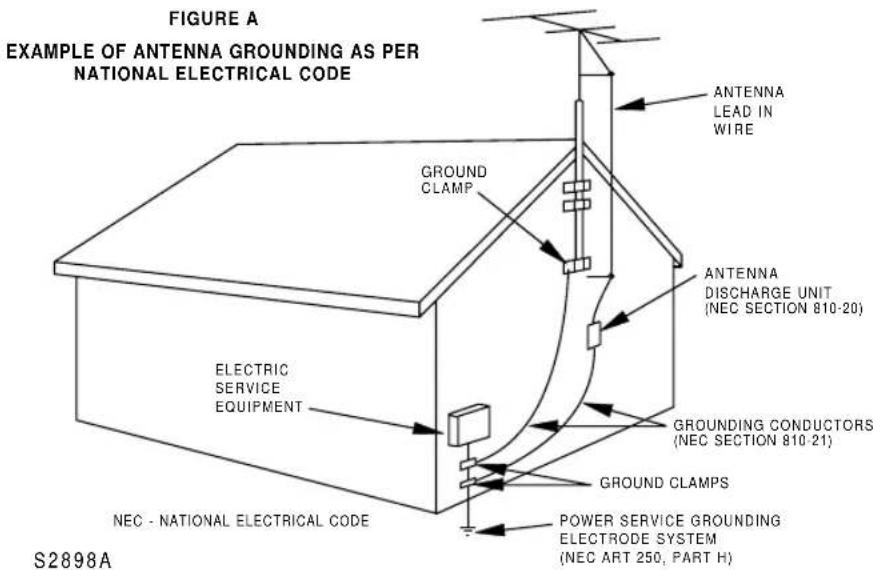

FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE GROUND CLAMP ANTENNA LEAD IN WIRE ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC - NATIONAL ELECTRICAL CODE S2898A

1. Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/VCR, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

2. Lightning-For added protection for this TV/VCR receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/VCR due to lightning and power-line surges.

3. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

4. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/VCR through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/VCR.

1. Servicing-Do not attempt to service this TV/VCR yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service-Unplug this TV/VCR from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into the TV/VCR.

c. If the TV/VCR has been exposed to rain or water.

d. If the TV/VCR does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/VCR to its normal operation.

e. If the TV/VCR has been dropped or damaged in any way.

f. When the TV/VCR exhibits a distinct change in performance-this indicates a need for service.

1. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

2. Safety Check-Upon completion of any service or repairs to this TV/VCR, ask the service technician to perform routine safety checks to determine that the TV/VCR is in proper operating condition.

3. Heat-This TV/VCR product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

LOCATION

For safe operation and satisfactory performance of your TV/VCR, keep the following in mind when selecting a place for its installation:

• Shield it from direct sunlight and keep it away from sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.
  • Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the TV/VCR near strong magnetic fields.
• Avoid moving TV/VCR to locations where temperature differences are extreme.

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.
• Do not put your fingers or objects into the TV/VCR cassette holder.
• Do not place anything directly on top of the unit.

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a tape is played in a TV/VCR which has moisture, it may damage the tape and TV/VCR. Therefore when the condensation occurs inside the unit, “DEW” appears on the screen. In this case, turn the POWER button on and allow at least 2 hours for the unit to dry out.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use, or other acts which infringe upon the rights of copyright owners.

The serial number of this product may be found on the back of the unit. No other TV/VCR has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.

TABLE OF CONTENTS

■IMPORTANT SAFEGUARDS ....2

■PRECAUTIONS ....4

LOCATION 4

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE ....4

WARNING 4

■FEATURES....6

■SUPPLIED ACCESSORIES ....6

EXTERNAL INPUT MODE ....12

■SET UP FOR USE .....13

CHANNEL SET UP FOR THE FIRST TIME .13

DELETING (OR ADDING) CHANNEL .....13

CHANNEL SET UP AGAIN .....14

SELECTING THE LANGUAGE .....14

DAYLIGHT-SAVING TIME .....14

CLOCK SET UP (AUTO / MANUAL) .....15

■ON SCREEN DISPLAY ....17

■SPECIAL FEATURES ....17

DEGAUSSING .....17

REAL TIME TAPE COUNTER .....17

AUTO REWIND-EJECT .....17

■TV OPERATION....18

WATCHING A TV PROGRAM .....18

GAME MODE....18

PICTURE CONTROL ....18

■PLAYBACK ....19

NORMAL PLAYBACK....19

TRACKING ADJUSTMENT....19

PICTURE SEARCH ....19

STILL PICTURE .....19

NOISE CANCEL (in the Still mode) .....19

VERTICAL HOLD CONTROL .....19

OTR (One Touch Recording) .....23

COPYING A VIDEO CASSETTE (Requires a VCR or camcorder) .....23

■TIMER 24

AUTOMATIC TIMER RECORDING .....24

TIMER PROGRAM EXTENSION .....25

HINTS FOR AUTOMATIC TIMER RECORDING ....26

AUTO RETURN .....26

WAKE UP TIMER....26

SLEEP TIMER....27

■MAINTENANCE....27

■TROUBLESHOOTING GUIDE .....28

■SPECIFICATIONS .....29

■CABLE CHANNEL DESIGNATIONS .....29

■WARRANTY ....30

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

• Infrared remote control
- Dew Sensor–Indicates that moisture condensation may occur inside the TV/VCR.
- Bilingual on screen menu display selectable in English or French
- Real time counter—This shows the elapsed recording or playback time in hours, minutes, and seconds. The “−” indication will appear when the tape is rewound further than the tape counter position “0:00:00”.
- 181 channel capability PLL frequency synthesizer tuner with direct station call—(A converter may be necessary to view scrambled cable channels.)
- Auto Clock Setting—Allows you to set the clock function from a PBS broadcast station.
- Game mode—Automatically sets external input mode and allows TV/VCR display to be suitable for use with TV games.
- Auto power on and off system—Automatically turns on the TV/VCR when you insert the cassette, turns off after auto-rewind, and ejects when the beginning of the tape is reached.
- Auto rewind when the end of a tape is reached—This function doesn't occur when using timer recording.
- 2 Step picture search operation—You can view a video program at a high speed or super high speed in either a forward or reverse direction in LP and SLP mode. For SP mode only high speed.
- Three different playback tape speeds : SP/LP/SLP
- Two different recording tape speeds : SP/SLP
- Auto Head Cleaner—Automatically cleans video heads as you insert or remove a cassette.
- Zero Return—The tape returns to counter of 0:00:00 by rewinding or fast forwarding.

• Still—“Freeze” the picture at any time, for close viewing of a particular scene. Only tapes recorded in SLP mode will show a fairly clear picture.
• Digital Auto Tracking (DTR)-Automatically adjusts the tracking for each tape you play.
• Rental play mode—Improves playback picture quality from worn tapes, such as rental tapes.
• Auto repeat—Allows you to repeat the playing of a tape indefinitely without pressing the PLAY button.
• Time search—Let you set the TV/VCR to advance the tape by entering the desired playback time you want to skip.
• OTR (One Touch Recording)—Instant timed recording from 30 to 480 minutes is possible at the push of the REC/OTR button.
• 1 Year, 8 events (including Daily and Weekly Timer Recording)—The built-in timer allows you to record up to 8 programs at different times on different channels up to 1 year in advance. The Daily timer allows recordings to be made of daily broadcasts, and the Weekly timer allows recording to be made once a week up to the end of the tape.
• Auto return—After timer recording is finished, the TV/VCR can return to the beginning of the recording.
• Wake up/Sleep timer—Allows you to have the TV/VCR automatically turn on or off at a desired time.
• Timer Program Extension—Allow you to shift the time schedule for automatic timer recording.
• Two-way power—Allows you to power the TV/VCR with standard household AC or your vehicle's battery, using the supplied car-battery cord.

SUPPLIED ACCESSORIES

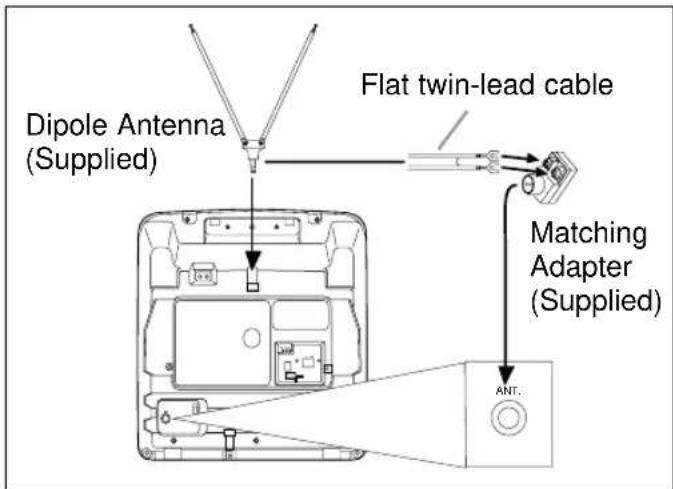

Remote Control UnitPART NO. (N0111UD)	Dipole Antenna(0EMN00723 or 0EMN01183)	(300ohm-75ohm)(1813641 or 1780258 or UCPGANTPK004)	Car Battery CordMatching AdapterWPZ0202GA004
		2 AA Batteries[IMAGE]	AC CordWPV0182LW001

• If you need to replace these accessories, please refer to the PART NO. under the illustrations and call 1-800-287-4871.

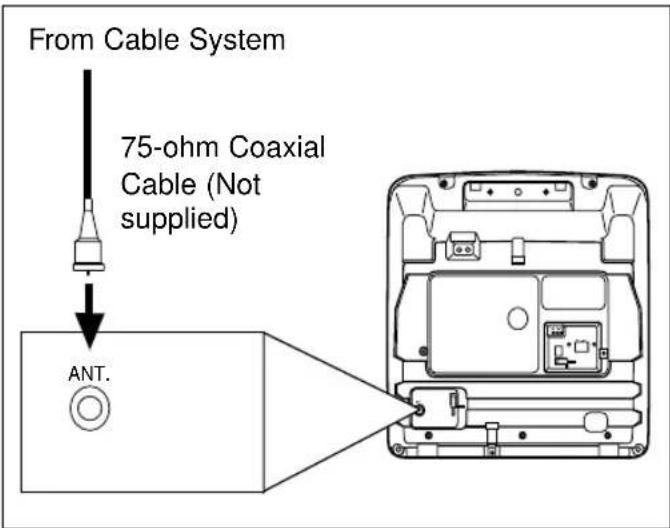

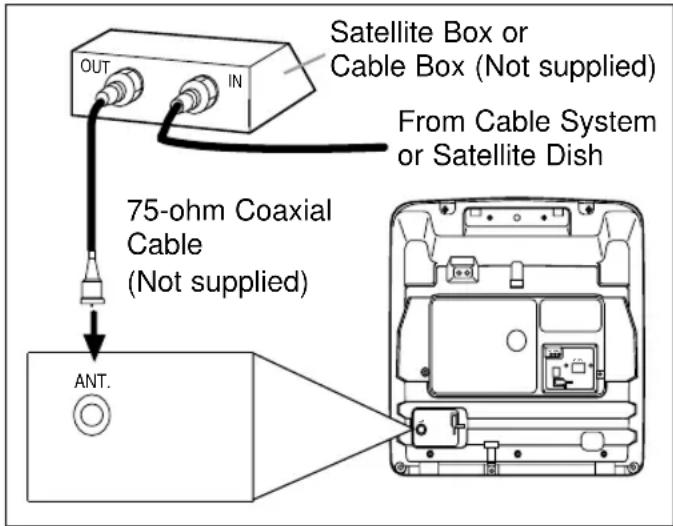

• Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators (Splitter). Contact your local electronics store for these items.
• We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control.

This TV/VCR will operate with any cassette that has the 📁. For best results, we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

PRECAUTIONS

• Avoid moisture. Moisture condensation may occur on the tape if it is moved from a cold place to a warm place or visa versa. Before using a tape with these conditions, to avoid damage of the tape and your TV/VCR, wait until the tape has warmed to room temperature and the moisture has evaporated.
• Avoid extreme heat, high humidity and magnetic fields.
• Do not tamper with the cassette mechanism.
• Do not touch the tape with your fingers.

TWO DIFFERENT TAPE SPEEDS

Before recording, select the tape speed from : SP mode (Standard Play) or SLP mode (Super Long Play).

The table below shows the maximum recording/play-back time using T60, T120 or T160 tapes in each mode.

Tape Speed Recording/Playback Time
	Type of tape	T60 T1	20 T160
SP mode 1 hour		2 hours 2-	2/3 hours
SLP mode 3 hours		6 hours	8 hours

Note: You can play back a tape recorded in LP mode (Long Play).

INSERTING A CASSETTE

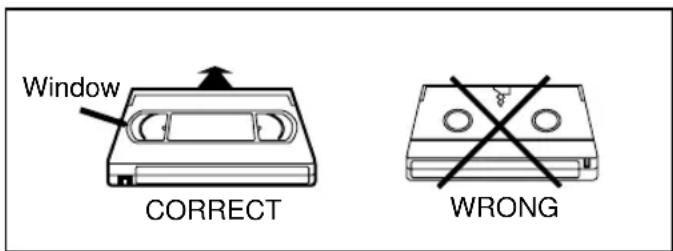

Insert the cassette in the direction as shown. Push in gently, but continuously, on the center-back of the cassette until it is drawn into the TV/VCR. The TV/VCR will automatically turn on.

Window CORRECT WRONG

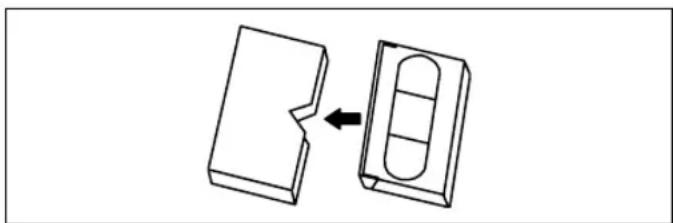

REMOVING A CASSETTE

1) In the Stop mode, press the EJECT button on the remote control or press the STOP/EJECT button on the TV/VCR. The cassette will eject.
2) Pull the cassette out of the cassette compartment.
3) Store the cassette in its case as shown.

Diagram showing a mechanical component being inserted into a housing (no text or symbols present)

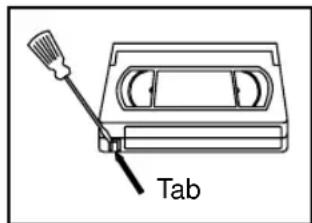

ERASE PREVENTION

You can prevent accidental erasing of recording by breaking off the tab on the back edge of the cassette.

Tab

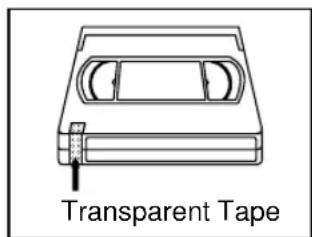

If you decide to record on the tape again, cover the hole with plastic tape.

Transparent Tape

NOTE:

- We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control.

If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control.

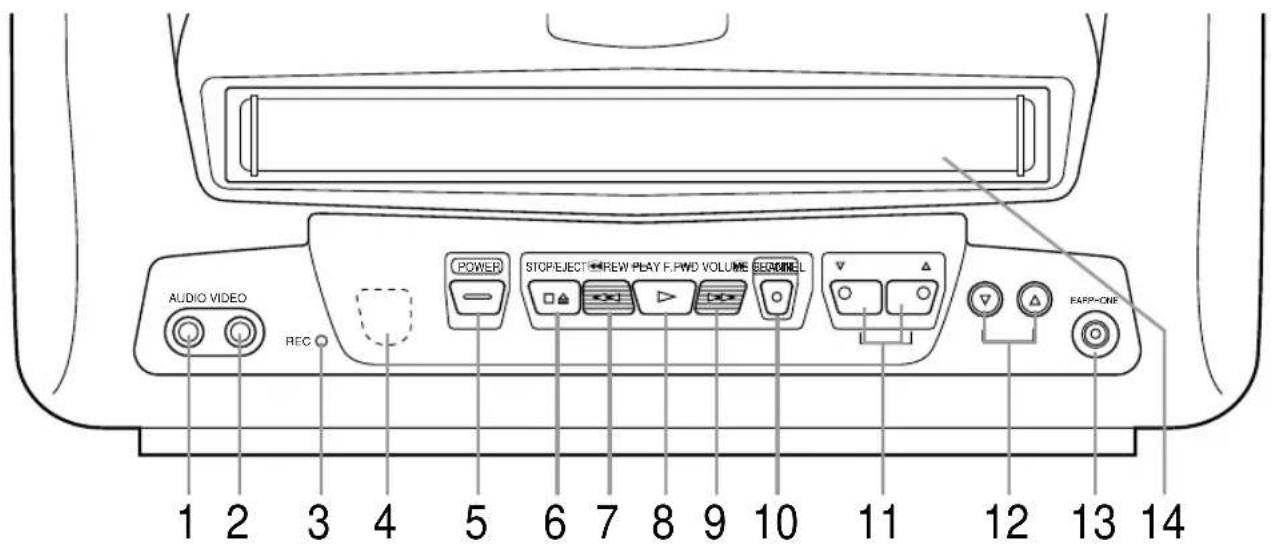

- TV/VCR FRONT PANEL -

AUDIO VIDEO REC POWER STOP/EJECT REW PLAY F.PWD VOLUME BEOGNEEL EAPP-ONE 1 2 3 4 5 6 7 8 9 10 11 12 13 14

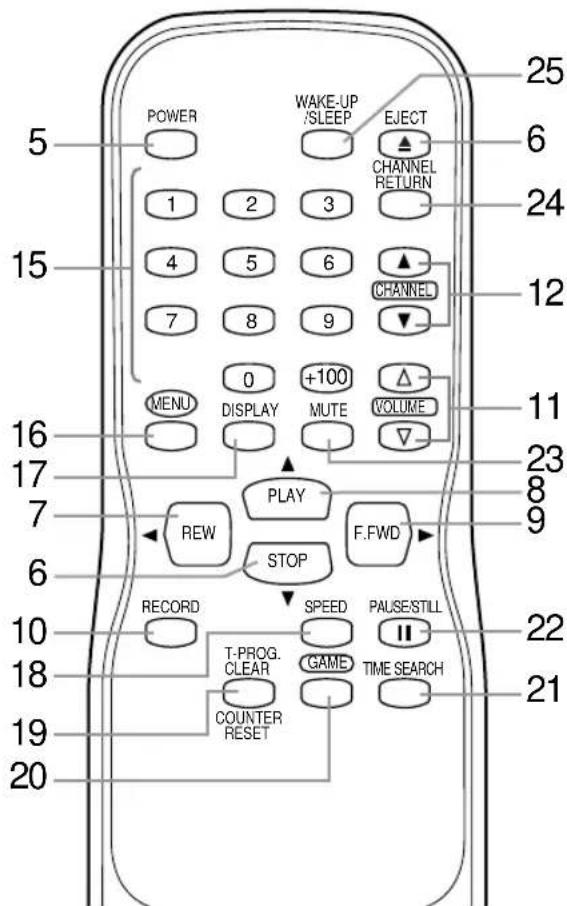

- REMOTE CONTROL -

POWER 1 2 3 4 5 6 7 8 9 0 DISPLAY MENU +100 MUTE PLAY REW STOP F.FWD RECORD T-PROG. CLEAR COUNTER RESET SPEED GAME EJECT CHANNEL RETURN CHANNEL VOLUME 25 6 24 12 11 23 8 9 22 21

1 AUDIO input jack- Connect to the audio output jack of your audio equipment, video camera or another VCR.

2 VIDEO input jack- Connect to the video output jack of your video camera or another VCR.

3 RECORD indicator— Flashes during recording. Lights up in the Stand-by mode for Timer Recording.

4 Remote Sensor Window- Receives the infrared signals from the remote control.

5 POWER button—Press to turn TV/VCR on and off. Press to activate timer recording.

6 STOP button- Press to stop the tape motion.
EJECT button- Press in the Stop mode to remove tape from TV/VCR.

▼button-

- Press to select setting modes from the on screen menu.

- Press to enter digits when setting program. (for example: setting clock or timer program)

7 REW button- Press to rewind the tape, or to view the picture rapidly in reverse during playback mode. (Rewind Search)

button-

- Press to select a mode from a particular menu. (for example: LANGUAGE or USER'S SET UP)

8 PLAY button- Press to begin playback.

▲button-

- Press to select setting modes from the on screen menu.

- Press to enter digits when setting program. (for example: setting clock or timer program)

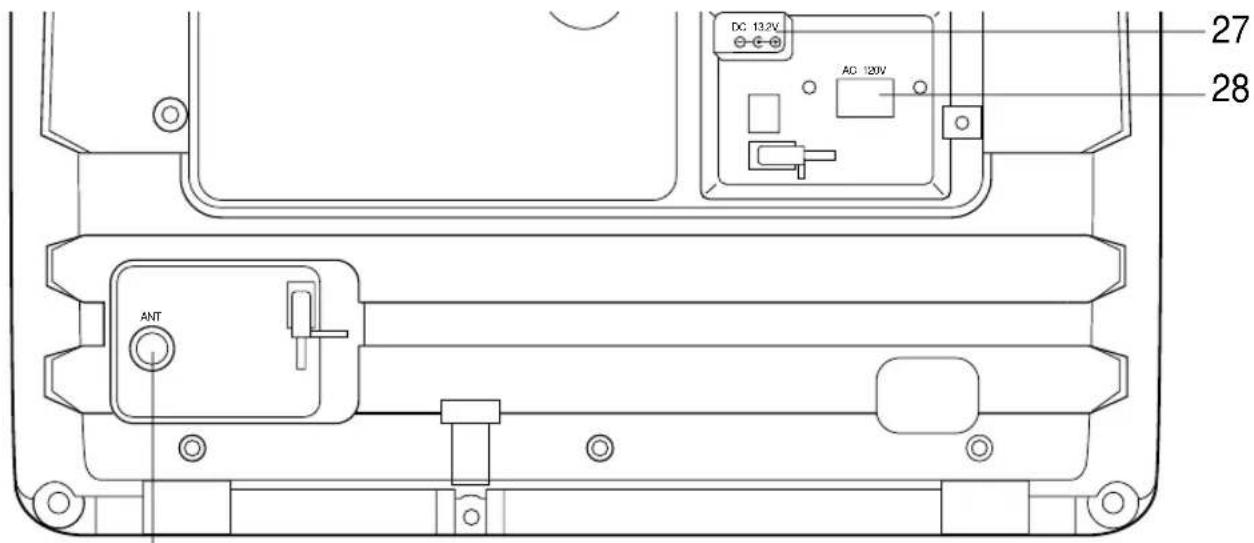

- REAR VIEW -

DC 13.2V AC 120V ANT 27 28

26

9 F.FWD button—Press to rapidly advance the tape, or to view the picture rapidly in forward during playback mode. (Forward Search)

▶ button-

• When setting program (for example: setting clock or timer program), press to determine your selection and proceed to the next step you want to input.
• Press to determine setting modes from on screen menu.
• Press to select a mode from a particular menu. (for example: LANGUAGE or USER'S SET UP)

10 REC button- Press for manual recording. OTR button- Activates One Touch Recording. (only on the TV/VCR)
11 VOLUME △/▽buttons- Adjust the volume level.
12 CHANNEL ▲ / ▼ buttons—Press to select the desired channels for viewing or recording. You may display the main menu on the TV screen by pressing repeatedly this button on the TV/VCR.

TRACKING function—Press to minimize video ‘noise’ (lines or dots on screen) during playback mode. (See page 19.)

13 EARPHONE jack- Connects to earphones (not supplied) for personal listening. The size of jack is 1/8" monaural (3.5mm).

14 Cassette compartment

15 Number buttons—Press to select desired channels for viewing or recording. To select channels from 1 to 9, first press the 0 button and then 1 to 9. +100 button—When selecting cable channels which are higher than 99, press this button first, then press the last two digits. (To select channel

125, first press the “+100” button then press “2” and “5”).

16 MENU button—Press to display the main menu on the TV screen.
17 DISPLAY button- Display the counter or the current channel number and current time on the TV screen. (See page 17.)
18 SPEED button—Press to choose the desired recording speed:SP/SLP.
19 T-PROG. CLEAR button—Press to cancel a setting of timer program. (See page 25.) COUNTER RESET button—Press to reset counter to 0:00:00.
20 GAME button—Sets the game mode and external input mode at the same time. (See page 18.)
21 TIME SEARCH button—Press to activate Time Search mode.
22 PAUSE/ STILL button- Press to temporarily stop the tape during the recording or to view a still picture during playback.
23 MUTE button- Mutes the sound. Press it again to resume sound.
24 CHANNEL RETURN button—Press to go back to the previously viewed channel. For example, pressing this button once will change channel display from 3 (present channel) to 10 (previously viewed channel), and pressing it a second time will return from 10 to 3.
25 WAKE-UP/SLEEP button—Sets the Wake up or Sleep Timer. (See page 26-27.)
26 ANT. terminal- Connect to an antenna or cable system.
27 DC 13.2V jack- Connect to the Car Battery Cord.
28 AC 120V jack- Connect to the AC cord.

ANTENNA/CABLE CONNECTIONS

DIPOLE ANTENNA HOOK UP

1. Push the stem of the Dipole Antenna (accessory) into the hole for antenna at the back of TV/VCR.
2. Connect the flat twin-lead cable from the Dipole Antenna to the 300/75 ohm Matching Adapter (accessory).
3. Plug the Matching Adapter to ANT terminal of TV/VCR as shown in drawing.

For the best reception, extend the Dipole Antenna and adjust its length and position. (Avoid handling the top section when making adjustments).

NOTE: If it is difficult to get good reception with the indoor antenna, the use of an outdoor antenna is recommended. Before an outdoor antenna is connected to the set, the indoor antenna should be disconnected.

Dipole Antenna (Supplied) Flat twin-lead cable Matching Adapter (Supplied) ANT.

VHF/UHF COMBINED ANTENNA

A VHF UHF 75 ohm combination antenna can be connected to ANT terminal.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

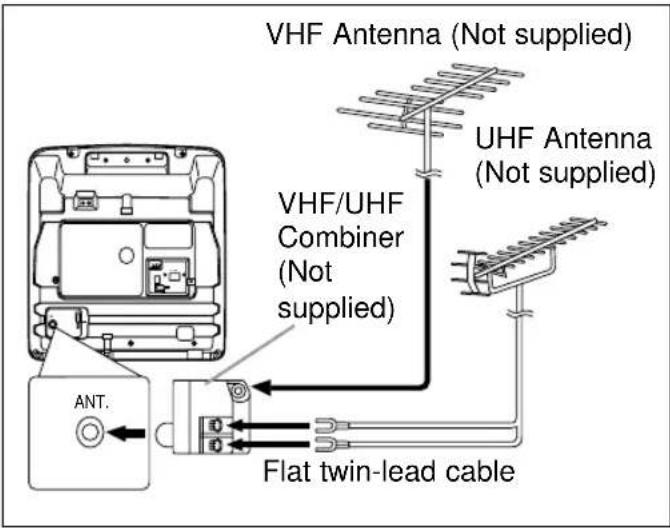

VHF Antenna (Not supplied) UHF Antenna (Not supplied) VHF/UHF Combiner (Not supplied) ANT. Flat twin-lead cable

CABLE WITHOUT CONVERTER/DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/VCR without a converter box.

By using this connection you can:

1) Use the TV/VCR remote to select channels.
2) Program one or more unscrambled channels for Automatic Timer Recording.

NOTE: This unit will ONLY record and view the same channel.

From Cable System 75-ohm Coaxial Cable (Not supplied) ANT.

Antenna/Cable Connections Continued on the Next Page.

CABLE WITH CONVERTER/ DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown here.

By using this connection you can also record scrambled channels. However, channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/VCR Remote Control. Unattended timer recording is limited to one channel at a time.

Satellite Box or Cable Box (Not supplied) From Cable System or Satellite Dish OUT IN 75-ohm Coaxial Cable (Not supplied) ANT.

TO RECORD A SCRAMBLED/UNSCRAMBLED CHANNEL

1. Set the TV/VCR channel selector to the output channel of the Cable Converter Box or Satellite Box. (Ex. CH3)

2. Select the channel to record from your Cable Converter Box or Satellite Box.

MOBILE CONNECTION

WARNING: The driver should never watch the TV/VCR while operating a motor vehicle.

CAUTION: If you use the TV/VCR with the vehicle's engine off, recharge the vehicle's battery after about every 4 hours of use to prevent it from running down. After you finish using the TV/VCR be sure you unplug the car-battery cord from the cigarette-lighter socket.

1) The supplied indoor antenna is adequate when your vehicle is stationary. For best reception on the road, use a high-quality VHF/UHF mobile TV antenna. 2) Attach the car battery cord to the DC13.2V connector on the back of the TV/VCR. Then, connect the other end to your vehicle's cigarette-lighter socket.

NOTES:

• Be sure your vehicle has a 13.2-volt, negative-ground electrical system.
• Be sure you use only the supplied car battery cord. Using another cord could damage the TV/VCR.
• Be sure the socket is free of ashes and other debris.
• Be sure to push the car battery cord's plug completely into the cigarette-lighter socket.
• Always unplug the car battery from the cigarette-lighter socket before you unplug it from the TV/VCR.
• You must disconnect the car battery cord from the TV/VCR before you can use the AC power.
• Be sure to replace the fuse with only the same type, 5A, 250V.

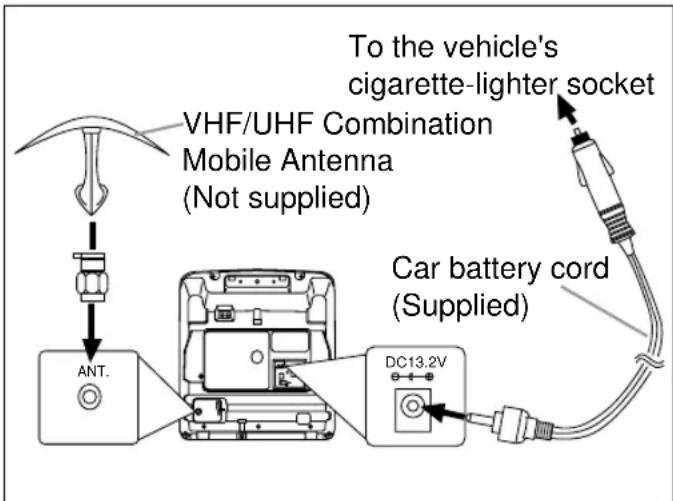

VHF/UHF Combination Mobile Antenna (Not supplied) To the vehicle's cigarette-lighter socket Ant. DC13.2V Car battery cord (Supplied)

INSTALLING THE BATTERIES

1) Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.
2) Insert 2 “AA” penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.
3)Replace the cover.

Top-down schematic of a remote control panel with indicator lights and an arrow pointing to the right side (no text or symbols)

EXTERNAL INPUT MODE

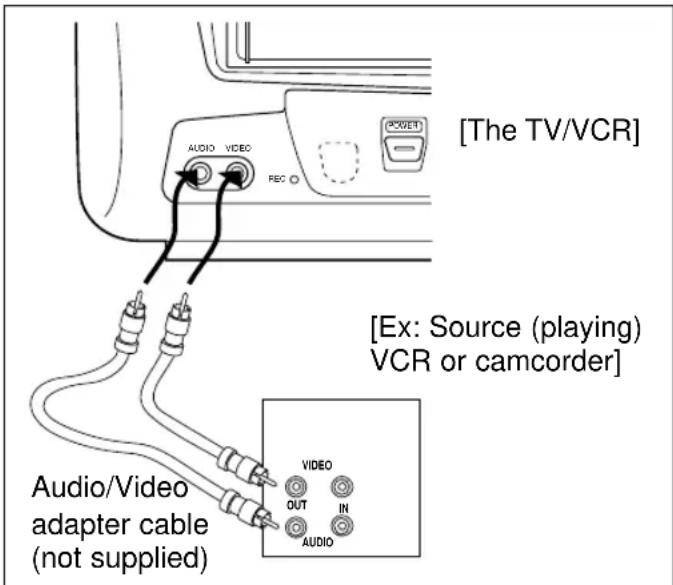

When using an external input signal (another VCR or video camera), connect the player's audio/video output cables to the AUDIO IN/VIDEO IN jacks of your TV/VCR. Then press the CHANNEL ▲ or ▼ button until “AUX” appears on the screen.

You can program the tuner to scan all the channels you receive in your area.

NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just select the TV/VCR channel selector to the output channel of the cable box or satellite box (Ex CH3). Then select the channel to be viewed on the Cable Box or Satellite Box.

CHANNEL SET UP FOR THE FIRST TIME

1 Plug in the TV/VCR power cord

Attach the smaller end of the supplied AC cord to the AC 120V connector on the back of the TV/VCR. Then, plug the other end into a standard AC outlet.

AC 120V

NOTES:

• You must disconnect the car battery cord from the TV/VCR before you use AC power.
• If some digits appear in the corner of the screen, press the POWER button without unplugging the power cord.

2 Turn on the TV/VCR

Press the POWER button to turn on the TV/VCR.

3 Select "ENGLISH" or "FRANÇAIS"

Select “ENGLISH” or “FRANÇAIS”=French using the F.FWD/▶ or REW/◀ button. “[ ]” indicate the selected language.

4 Begin auto preset

Press the PLAY/▲ or STOP/▼ button to point to "AUTO PRESET". Then press the F.FWD/▶ button. The tuner scans and memorizes all active channels in your area.

NOTES:

• The TV/VCR distinguishes between standard TV channels and cable channels.
• If you want to play or record a video tape BEFORE presetting the tuner, you must press the MENU button on the remote control. To preset the tuner again, see “CHANNEL SET UPAGAIN” on page 14.
• The TV/VCR may recognize TV channels to be CATV channels by the receiving conditions. In this case, try auto preset again in the fine receiving conditions.

5 After scanning

The tuner stops on the lowest memorized channel. If you want to recall the selected channels, you can select the desired channel directly with the remote control number buttons or CHANNEL ▲ or ▼.

DELETING (OR ADDING) CHANNEL

The channels you no longer receive or seldom watch can be deleted from the memory. (Of course, you can add the deleted channel into the memory again.)

1 Select "CHANNEL SET UP"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to “CHANNEL SET UP”.

Then, press the F.FWD/▶ button.

MENU

TIMER PROGRAMMING

PICTURE CONTROL

SETTING CLOCK

CHANNEL SET UP

▶ CHANNEL SET UP USER'S SET UP LANGUAGE [ENGLISH] ZERO RETURN TIME SEARCH

2 Select "ADD/DELETE CH"

Press the PLAY/▲ or STOP/▼ button to point to “ADD/DELETE CH”.

Press the F.FWD/▶button.

- CHANNEL SET UP -

▶ ADD / DELETE CH (TV) AUTO PRESET

3 Enter the desired channel number

Press the PLAY/▲ or STOP/▼ button until your desired channel number appears. (You can also use the number buttons or the CHANNEL ▲/▼button to enter it) (Example: CH8)

08

ADD / DELETE

4 Delete (or add) it from (into) memory

Press the F.FWD/▶ or REW/◀ button. The channel number changes to light red. The channel is deleted from memory.

• To delete another channel, repeat steps [3] and [4].
• If you press the F.FWD/▶ or REW/◀ button again, the channel is memorized again.

Added channel: Light blue.

Deleted channel: Light red.

5 Exit the channel setup mode

Press the MENU button on the remote control to returns to TV mode.

NOTE: To confirm that channel(s) has been deleted or added, press the CHANNEL ▲ or ▼ button.

CHANNEL SET UPAGAIN

Make sure ...

- Press the POWER button to turn on the TV/VCR.

1 Select "CHANNEL SET UP"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to “CHANNEL SET UP”.

Then, press the F.FWD/▶button.

-MENU

TIMER PROGRAMMING

PICTURE CONTROL

SETTING CLOCK

HANNEL SET UP

USER'S SET UP

LANGUAGE JENGLISHI

ZERO RETURN

TIME SEARCH

2 Begin auto preset

Press the PLAY/▲ or STOP/▼ button to point to "AUTO PRESET".

Then, press the F.FWD/▶button.

The tuner scans and memorizes all the active channels in your area.

- CHANNEL SET UP -

ADD / DELETE CH (TV)

▶ AUTO PRESET

3 After scanning

The tuner stops on the lowest memorized channel.

SELECTING THE LANGUAGE

Make sure ...

- Press the POWER button to turn on the TV/VCR.

NOTE: This function effects only the language on the screen menu and not the audio source.

1 Select "LANGUAGE"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to "LANGUAGE".

-MENU-

TIMER PROGRAMMING

PICTURE CONTROL

SETTING CLOCK

CHANNEL SET UP

USER'S SET UP

▶LANGUAGE [ENGLISH]

ZERO RETURN

TIME SEARCH

2 Select "ENGLISH" or "FRANÇAIS"

Select “ENGLISH” or “FRANÇAIS”= French using the F.FWD/▶ or REW/◀button.

3 Exit the Language mode

Press the MENU button on the remote control to return to TV mode.

NOTE: If for some reason the menu is in French, press the MENU button on the remote control, press the PLAY/▲button to point to “LANGUAGE

[FRANÇAIS]”, then press the F.FWD/▶ button, then press the MENU button on the remote control.

Select this feature and the TV/VCR's clock automatically will advance one hour in April, then reverse one hour in October.

When Daylight-Saving Time is ON, the clock will change automatically as follows:

• First Sunday of April : At 2 AM the clock immediately changes to 3 AM. Any timer programming you have set to occur between 2 AM and 3 AM will not record.
• Last Sunday of October : At 2 AM the clock immediately changes to 1 AM.

Make sure ...

- Press the POWER button to turn on the TV/VCR.

1 Select "SETTING CLOCK"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to “SETTING CLOCK”.

Then, press the F.FWD/▶button.

-MENU-

TIMER PROGRAMMING

PICTURE CONTROL

▶ SETTING CLOCK

CHANNEL SET UP

USER'S SET UP

LANGUAGE [ENGLISH]

ZERO RETURN

TIME SEARCH

2 Set "D.S.T." (Daylight-Saving Time) to [ON]

Press the PLAY/▲ or STOP/▼ button to point to "D.S.T.".

Then, press the F.FWD/▶ or REW/◀button until [ON] appears.

- SETTING CLOCK -

AUTO CLOCK [ON]

AUTO CLOCK CH [AUTO]

MANUAL CLOCK SET

▶D.S.T. [ON]

3 Exit the Daylight-Saving Time mode

Press the MENU button on the remote control to return to TV mode.

Repeat steps [1] to [2], select [OFF] using the F.FWD/▶ or REW/◀button.

CLOCK SET UP (AUTO / MANUAL)

Set the clock accurately for proper automatic timer recording. If the Public Broadcasting Station (PBS) is available in your area, follow “AUTO CLOCK SETTING”. If it is not, follow “MANUAL CLOCK SETTING”.

AUTO CLOCK SETTING

You can have the TV/VCR set the clock automatically by using the Public Broadcasting Station (PBS) channel in your area. Once you have set the clock by using the following procedure, the TV/VCR will automatically monitor the correct time and date being broadcast by the PBS station in your area, using a new service called Extended Data Service (XDS).

Make sure ...

• TV/VCR power must be turned on.
- Confirm that the antenna connections are correct.
- The cable converter box must be turned on if your TV/VCR is connected directly to it. (See NOTES:)
- The channel is properly set in advance. (See page 14.)

NOTES:

• Auto clock setting only needs to be set once. But it can be done again if the clock's time has become incorrect for some reason.
• If the TV/VCR is connected directly to a cable converter box or satellite box, the local PBS station must be selected on the cable box itself, and the TV/VCR must be set to the output channel of the cable converter box or satellite box (usually channel 3 or 4), to be able to set up or correct the clock automatically.

If you do not know what your local PBS station is, then follow “Manual Clock Settings” on page 16. The TV/VCR cannot control the channels of the cable converter box or satellite box.

- If you use a mobile connection, you cannot set the Auto Clock and D.S.T. functions.

1 Select "SETTING CLOCK"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to “SETTING CLOCK”.

Then, press the F.FWD/▶button.

2 Set "AUTO CLOCK" to [ON]

Press the F.FWD/▶ or REW/◀ button repeatedly until [ON] appears.

- SETTING CLOCK -

▶ AUTO CLOCK [ON]

MANUAL CLOCK SET

D.S.T. [OFF]

3 Enter the channel number for the PBS station

Press the PLAY/▲ or STOP/▼ button to point to “AUTO CLOCK CH”.

Then press the F.FWD/▶ or REW/◀button until the channel number for your local PBS station appears.

- SETTING CLOCK -

AUTO CLOCK [ON]

AUTO CLOCK CH [AUTO]

MANUAL CLOCK SET

▶ D.S.T. [OFF]

If you do not know the PBS channel number, leave it set to [AUTO] which is located before [2] . The TV/VCR will search automatically all available channels for the local PBS station, and will select that channel.

4 Exit the Auto Clock Setting

Press the MENU button on the remote control to return to TV mode.

5 Turn off the TV/VCR

Turn the TV/VCR off. Because the Auto Clock functions automatically while the TV/VCR is off.

If you choose [AUTO],

• the TV/VCR must search until the PBS channel is found. It must scan each channel for a couple of seconds to determine if that channel is transmitting the XDS signal.
• if the time, that is automatically set by this selected PBS station is incorrect, it may not be your local PBS station, but one from a different time zone. Or there is a case that no channel is broadcasting the XDS signal in your area, as shown by no time. In these cases, you must manually enter the correct local PBS station, or set the clock manually and turn off the Auto Clock Setting feature.

MANUAL CLOCK SETTING

Make sure ...

• TV/VCR power must be turned on.

1 Select "SETTING CLOCK"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to "SETTING CLOCK".

Then, press the F.FWD/▶ button.

2 Select "MANUAL CLOCK SET"

Press the PLAY/▲ or STOP/▼ button to point to “MANUAL CLOCK SET”.

Then, press the F.FWD/▶button.

3 Select the month

Press the PLAY/▲ or STOP/▼ button until your desired month appears. (Example: May → 05)

Then, press the F.FWD/▶button.

4 Select the day

Press the PLAY/▲ or STOP/▼ button until your desired day appears. (Example: 1st → 01)

Then, press the F.FWD/▶button.

5 Select the year

Press the PLAY/▲ or STOP/▼ button until your desired year appears. (Example: 2001)

Then, press the F.FWD/▶button.

-MENU-

TIMER PROGRAMMING

PICTURE CONTROL

SETTING CLOCK

CHANNEL SET UP

USER'S SET UP LANGUAGE TECHNOLOGY

LANGUAGE [ENGLISH] ZERO RETURN

ZERO RETURN TIME SEARCH

TIME SEARCH

- SETTING CLOCK -

AUTO CLOCK [ON]

AUTO CLOCK CH [AUTO]

▶MANUAL CLOCK SET

D.S.T. [OFF]

MANUAL CLOCK SET

MONTH DAY YEAR

HOUR MINUTE

-- : -- --

- MANUAL CLOCK SET -

MONTH DAY YEAR

HOUR MINUTE

-- : -- --

- MANUAL CLOCK SET -

MONTH DAY YEAR

05/01 TUE

HOUR MINUTE

-- : -- --

In the example below, the clock is to be set to:

DATE May 1st, 2001

SETTING TIME 5:40PM

6 Select the hour

Press the PLAY/▲ or STOP/▼ button until your desired hour appears.

(Example: 5, PM)

Then, press the F.FWD/▶button.

- MANUAL CLOCK SET -

MONTH DAY YEAR

05/01 TUE 2001

7 Select the minute

Press the PLAY/▲ or STOP/▼ button until the desired minute appears.

(Example: 40)

- MANUAL CLOCK SET -

MONTH DAY YEAR

05/01 TUE 2001

8 Start the clock

Press the MENU button on the remote control.

Although seconds are not displayed, they begin counting from 00 when you press the MENU button on the remote control. Use this feature to synchronize the clock with the correct time.

NOTE:

When unplugging the AC cord or if there is a power failure for more than 30 seconds, you may have to reset the clock.

5:40 PM

TO CHANGE CLOCK SETTING

If you want to change the clock,

1) Follow steps [1] and [2].

2) Select where you want to change using the F.FWD/▶ or REW/◀ button.

3) Enter correct numbers using the PLAY/▲ or STOP/▼ button.

4) Press the MENU button on the remote control to start the clock.

PLEASE NOTE:

If there is no local PBS station in your area or on your cable system, select "AUTO CLOCK" and press the F.FWD/▶ or REW/◀ button to turn [OFF] this function. Then you can manually adjust the clock.

To check the Counter, Clock and Channel number on the TV screen, press the DISPLAY button on the remote control. Each time you press the DISPLAY button on the remote control, the TV screen will change as follows:

• Counter mode: After 5 seconds, only the counter remains. To clear it, press the DISPLAY button.
• Clock mode: After 5 seconds, only the clock and the channel number remain. To clear them, press the DISPLAY button.

OFF mode Counter mode Clock mode

SPECIAL FEATURES

DEGAUSSING

Magnetism from nearby appliances might affect the color of the TV picture.

If this happens, move this unit away from the appliance. If the color is still not correct, disconnect power cord from AC outlet then reconnect it after 30 minutes.

REAL TIME TAPE COUNTER

This shows the elapsed recording or playback time in hours, minutes, and seconds. (The displayed time will not change on a blank tape or blank portions on the tape.) The “-” indication will appear when the tape has rewound further than “0:00:00” on the tape counter.

AUTO REWIND-EJECT

• When the end of a tape is reached during recording, playback, or fast-forward, the tape will automatically rewind to the beginning. After rewinding finishes, the TV/VCR will eject the tape and turn itself to off.
• This function is operative when Repeat Play is set to the [OFF] position.
• The tape will not auto-rewind during timer recording or One Touch Recording.

WATCHING A TV PROGRAM

1 Turn on the TV/VCR

Press the POWER button to turn on the TV/VCR.

2 Select the channel number

Press the CHANNEL ▲ or ▼ button to select your desired channel number or press the number buttons on the remote control.

Remember: If the TV/VCR is connected to a cable box or satellite box, the TV/VCR must be on CH3 or CH4, then the channel to be viewed must be selected on the cable box or satellite box.

3 Adjust sound

Press the VOLUME or button to adjust the volume.

VOLUME 20

......

GAME MODE

This function enables you to decrease the TV screen contrast and making it suitable for use with a TV GAME.

NOTE: This function can not be set during recording.

Press the GAME button on the remote control. "GAME" appears on the screen.

GAME

When you press the GAME button;

- The TV/VCR comes on automatically if it is off.

- The TV/VCR will be in external input mode automatically.

TO CANCEL THE GAME MODE

Press the GAME button or CHANNEL ▲ or ▼ button on the remote control.

PICTURE CONTROL

The TV/VCR's picture controls – BRIGHT, CONTRAST, COLOR, TINT and SHARPNESS – are preset to factory specifications. Although they are usually the best, you may need to make some further adjustments for a natural looking image.

NOTES:

• Procedures must be followed within 5 seconds or the Picture Control mode will be cancelled.
• When setting the Picture Control, the Game mode will be cancelled.

Make sure ...

• TV/VCR power must be turned on.

1 Select "PICTURE CONTROL"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to "PICTURE CONTROL".

Then, press the F.FWD/▶ button.

-MENU-

TIMER PROGRAMMING

▶ PICTURE CONTROL

SETTING CLOCK

CHANNEL SET UP

USER'S SET UP

LANGUAGE [ENGLISH]

ZERO RETURN

TIME SEARCH

2 Select item you want to adjust

Press the PLAY/▲ or STOP/▼ button until desired control is displayed.

BRIGHT

CONTRAST

COLOR

TINT

SHARPNESS

BRIGHT

-□□□□□□□■□□□□□□□+

3 Adjust the picture control

Press the F.FWD/▶ or REW/◀ button to adjust to your desired level.

	REW/◀F.FWD/▶
BRIGHT to decrease to increase brightness brightness
CONTRAST to decrease to increase contrast		ase contrast
COLOR	to pale	to brilliant
TINT	to purple	to green
SHARPNESS	to soft	to clear

- If there is a power failure of any kind, the unit will retain its memory for this feature.

NORMAL PLAYBACK

Make sure ...

• TV/VCR power must be turned on.

1 Insert a prerecorded tape

If the erase-protection tab has been removed, the TV/VCR will start playback automatically.

2 To begin playback

Press the PLAY button.

3 To stop playback

Press the STOP button when play-back is completed.

TRACKING ADJUSTMENT

• Tracking adjustment will be set automatically (Digital Tracking function) when you start playback.
• However when playing pre-recorded tapes or tapes recorded on units other than your own, noise lines (black and white streaks) may appear on the playback picture. If this occurs, you can adjust the tracking control manually by pressing the CHANNEL ▲ or ▼ button until the streaks disappear. To return to the DTR function, stop the tape once and start playback again.

PICTURE SEARCH

This feature is very useful in finding or skipping over a particular scene on a tape. In this mode, the sound will be muted.

1) You may view a video tape at a high speed in either a forward or reverse direction by pressing the F.FWD or REW button. (in the SP / LP / SLP modes)

2) Press it again and the TV/VCR will now search in super high speed. (in the LP / SLP modes only)
NOTE: Tapes recorded in the SP or LP mode will display a noise bar on the TV screen and the picture may revert to Black and White. This is normal.
3) Press the PLAY button to return to normal speed.

STILL PICTURE

You can view a still picture on the TV screen during playback (the Still mode). Press the PAUSE/ STILL button during playback. Only tapes recorded in the SLP mode will show the least amount of lines. Press the PLAY button to return to playback.

NOTES:

• Usually there will be video “noise” lines (black and white streaks or dots) on the screen. This is normal.
  If the tape was originally recorded in SP or LP mode, the still picture will be black and white in addition to the “noise” lines.
  This is not a fault of the machine, but is a by-product of the technology involved in producing a TV/VCR with 2 video heads.
• If it is left in the Pause mode for more than five minutes, the TV/VCR will automatically switch to the Stop mode.

NOISE CANCEL (in the Still mode)

This feature allows you to reposition or reduce the noise lines of a still picture. Press the PAUSE/ STILL button so that the noise lines change position on the screen so you can see the picture in its entirety without distracting noise lines.

NOTE: This feature can be activated ONLY when viewing a tape recorded in the SLP mode. If the tape was originally recorded in the SP or LP mode, the still picture may revert to black and white in addition to the “noise bars”. This is normal.

VERTICAL HOLD CONTROL

In the Pause/Still mode only, when the picture begins to vibrate vertically, stabilize the picture by pressing the CHANNEL ▲ or ▼button.

NOTE:

If there are video noise lines on the screen, reposition or reduce them. Refer to “NOISE CANCEL”.

Make sure ...

• TV/VCR power must be turned on.
- Insert a prerecorded tape.
- Before playback, follow steps below.

RENTAL PLAYBACK

This function enables you to improve the picture quality when playing back worn cassettes such as rented tapes.

1 Select "USER'S SET UP"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to "USER'S SET UP".

Then, press the F.FWD/▶button.

2 Set "RENTAL" to [ON]

Press the PLAY/▲ or STOP/▼ button to point to "RENTAL".

Press the F.FWD/▶ or REW/◀ button until [ON] appears.

3 Exit the Rental setting

Press the MENU button on the remote control to return to the TV mode.

4 Start playback

Press the PLAY button to start playback. “RENTAL PLAY ▶” appears.

- Once you select the Rental mode, it stays in effect even after you turn off the TV/VCR.

TO CANCEL THE RENTAL MODE

Repeat steps [1] and [2], select [OFF] using the F.FWD/▶ or REW/◀ button on the remote control. Press the MENU button on the remote control to return to TV mode.

If there is a power failure of any kind, the unit will retain its memory for this feature.

AUTO REPEAT PLAYBACK

The TV/VCR has the auto repeat function that allows you to repeat a tape indefinitely without touching the PLAY button.

ALL REPEAT: Repeat playback from the beginning to the end of the tape.

BLANK REPEAT: Repeat playback from the beginning to a blank part, which is blank for more than 10 seconds.

1 Select "USER'S SET UP"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to "USER'S SET UP".

Then, press the F.FWD/▶button.

-MENU-

TIMER PROGRAMMING

PICTURE CONTROL

SETTING CLOCK CHANNEL SET UP

CHANNEL SET UP ▶USER'S SET UP

LANGUAGE [ENGLISH]

ZERO RETURN

TIME SEARCH

2 Select "ALL" or "BLANK"

Press the PLAY/▲ or STOP/▼ button to point to "REPEAT PLAY".

Press the F.FWD/▶ or REW/◀ button repeatedly until your desired selection [ALL] or [BLANK] appears.

- USER'S SET UP -

RENTAL [OFF]

▶REPEAT PLAY [ALL]

AUTO RETURN [OFF]

3 Exit the Repeat Play setting

Press the MENU button on the remote control to return to the TV mode.

4 Start playback

Press the PLAY button to start the Repeat Play. "REPEAT PLAY ▶" appears.

• Once you select the Repeat Play mode, it stays in effect even after you turn off the TV/VCR.
• If the Rental mode is set [ON], the “RENTAL PLAY▶” display has priority.

TO CANCEL THE REPEAT PLAY MODE

Repeat steps [1] and [2], select [OFF] using the F.FWD/▶ or REW/◀ button on the remote control. Press the MENU button on the remote control to return to TV mode.

If there is a power failure of any kind, the unit will retain its memory for this feature.

Make sure ...

• TV/VCR power must be turned on.
- Insert a tape.

ZERO RETURN

This function allows you to search easily a beginning point that you want to review by rewinding or fast forwarding.

NOTE:

Zero Return WILL NOT work on a blank tape or a blank portion of a tape.

1 Stop a tape at your desired point

Rewind or fast forward the tape to the beginning point at which you want to review.

2 Reset the counter to 0:00:00

Press the COUNTER RESET button repeatedly.

3 Begin recording or playback

Press the RECORD or PLAY button.

Press the STOP button when recording or playback is completed.

4 To activate "ZERO RETURN" mode

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to "ZERO RETURN".

Then, press the F.FWD/▶button.

The counter will appear on the TV screen.

The tape will automatically stop when the counter returns to 0:00:00.

TIME SEARCH

The Time Search function makes it possible to quickly advance the tape to your desired position simply by entering the exact amount of playback time you want to skip.

NOTES:

- Time Search can be set up to a maximum of 9 hours 50 minutes (9:50) by 10 minutes at a time.

• This function will not operate in recording mode.
• This function is not operative when a cassette tape is not inserted in the TV/VCR.

In the example below: To watch a program after 2 hour 50 minutes from the present position, in either direction.

1 Insert a tape.

2 Select "TIME SEARCH" mode

Press the TIME SEARCH button (with each push it will increase by 10 minute).

OR

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to "TIME SEARCH".

Then, press the F.FWD/▶button.

-MENU-

TIMER PROGRAMMING

PICTURE CONTROL

SETTING CLOCK CHANNEL SET UP

CHANNEL SET UP USER'S SET UP

LANGUAGE [ENGLISH]

ZERO RETURN TIME SEARCH

3 Enter your desired time

Press the PLAY/▲ or STOP/▼ button until your desired time appears.

(Example: “2:50” stands for 2 hours 50 minutes)

If you wish to cancel the Time

Search at this point, press the MENU button on the remote control.

TIME SEARCH

2:50

/1\

4 Begin Time Search

By pressing the REW/◄ or F.FWD/► button, the TV/VCR will rewind or fast forward to the specified point.

The time counts down as the searching progresses. When 0:00 is reached, the tape will start playback automatically.

TO CANCEL THE TIME SEARCH at this point

Press the STOP/EJECT button on the TV/VCR or the remote control. This will delete the selected time.

Make sure ...

• TV/VCR power must be turned on.
- Insert a cassette tape with its erase prevention tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)

NOTE: This unit will ONLY record and view the same channel.

NORMAL RECORDING

You can ONLY watch the same TV program that is being recorded.

1 Select the channel to be recorded

Press the number buttons on the remote control or the CHANNEL

▲or ▼button.

Remember: If the TV/VCR is connected to a cable box or satellite

box, the TV/VCR must be on CH3 or CH4, then the channel to be recorded must be selected on the cable box or satellite box.

2 Select the tape speed

Press the SPEED button to select the desired tape speed (SP/ SLP).

3 Begin recording

Press the RECORD button.

SP

4 Stop recording

Press the STOP button when recording is completed.

SKIPPING UNWANTED SCENES DURING RECORDING

Press the PAUSE/ STILL button to temporarily stop recording. Press the PAUSE/ STILL or RECORD button to resume recording.

NOTE:

- After five minutes, the TV/VCR will automatically switch to the Recording mode to prevent tape damage.

OTR (One Touch Recording)

This function enables you to set a recording length simply by pressing the REC/OTR button on the TV/VCR.

Make sure ...

• TV/VCR power must be turned on.

- Insert a cassette tape with its erase prevention tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)

NOTES:

• This function CANNOT be done from the remote control.
• Recording starts immediately when the REC/OTR button is pressed.
• When the REC/OTR button is pressed 18 times, the TV/VCR returns to the Normal Recording mode.
• To stop the OTR operation, press the STOP button on the TV/VCR or on the remote control.
• To show the remaining time, press the DISPLAY button on the remote control so that “OTR” appears on the TV screen. (It will show up momentarily then disappear.)
• Recording stops when 0:00 is reached.
• Please note that in the SLP mode maximum recording time, assuming the tape is started at the beginning, is 8 hours using T-160 (or 6 hours using T-120).
• If the tape runs out before the end time, the TV/VCR will switch to the Stop mode immediately, ejects the tape and turns itself off.

1 Select the channel to be recorded

Press the number buttons on the remote control or the CHANNEL ▲or ▼button.

Remember: If the TV/VCR is connected to a cable box or satellite box, the TV/VCR must be on CH3 or CH4, then the channel to be recorded is selected on the cable box or satellite box.

2 Select the tape speed

Press the SPEED button to select the desired tape speed (SP/ SLP).

3 Begin OTR

Press the REC/OTR button on the TV/VCR as many times as needed. The recording length will be determined by the number of times you press the REC/OTR button. Each additional push will increase the recording time by 30 minutes. It is set up to 8 hours.

Push(es)	Display Recording length
1 push (normal recording)
2 pushes 0:30 30 minutes
3 pushes 1:00 60 minutes
↓	↓	↓
17 pushes	8:00 480 minutes

COPYING A VIDEO CASSETTE (Requires a VCR or camcorder)

You can make copies of video tapes made by friends or relatives for your enjoyment.

WARNING: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

Connect your TV/VCR and a Source (Playing) VCR using the following diagram.

[The TV/VCR] [Ex: Source (playing) VCR or camcorder] Audio/Video adapter cable (not supplied) VIDEO OUT IN AUDIO

1) Insert a pre-recorded video cassette into the Source (Playing) VCR or camcorder.
2) Insert a blank video cassette, or one you want to record over, into the TV/VCR's cassette compartment.
3) Press the SPEED button on remote control for the TV/VCR to select the desired recording speed (SP/SLP).
4) Press the CHANNEL ▲ or ▼ button on the TV/VCR until “AUX” appears on the screen.
5) Press the RECORD button on the TV/VCR.
6) Begin playback of the tape in the source (Playing) VCR or camcorder.

NOTE: For best results during dubbing, use the TV/VCR's front panel controls whenever possible. The remote control might affect the source (Playing) VCR's playback operation.

You may set the TV/VCR to start and end a recording while you are away. You can set 8 programs to record on specific days, daily or weekly within a 1 year period.

In the example below, the timer is being set to record:

DATE: July 6th, 2001

SETTING TIME: from 7:30PM to 8:50PM

CHANNEL: CH61

TAPE SPEED: SP

Make sure ...

• If a cable box or satellite box is connected with the TV/VCR you will be limited to record only one channel. And the channel selector on the TV/VCR must be selected to the output channel of the boxes CH 3 or CH 4 and then the actual channel to be recorded must be selected on the boxes.
• Clock must be set to the correct time and date before setting the timer.
  • TV/VCR power must be turn on to program it.
• Insert a cassette tape with its erase prevention tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)
• The channel you want to record is properly set in advance. (See page 14.)

Avoid over lap of programs ...

There is a chance that a program will not be recorded. when programs overlap;

• The program with an earlier start has priority.
• Once the earliest program finishes, the overlapping programs will begin recording in sequence.

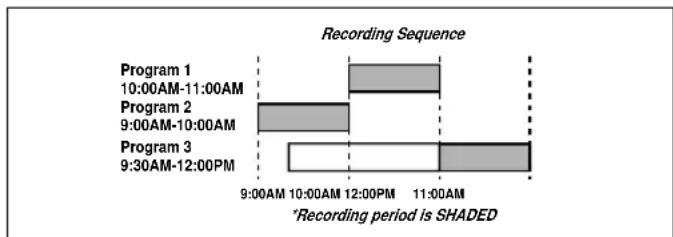

• The illustration below demonstrates the sequence of recordings.

Program 1 10:00AM - 11:00AM

Program 2 9:00AM - 10:00AM

Program 3 9:30AM - 12:00PM

1 Select "TIMER PROGRAMMING"

Press the MENU button on the remote control.

Confirm “TIMER PROGRAMMING” is pointed by pressing the PLAY/▲button.

And press the F.FWD/▶button.

• If you have not yet set the clock, "MANUAL CLOCK SET" appears. If so, follow stops [3] to [8] on page 16. Then set the timer recording.

-MENU-

▶ TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER'S SET UP LANGUAGE [ENGLISH] ZERO RETURN TIME SEARCH

2 Select your desired program position (1\~8)

Press the PLAY/▲ or STOP/▼ button to select the desired program position.

Then, press the F.FWD/▶button.

- TIMER PROGRAMMING - CH DATE BEGIN END + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - ×-

3 Set the channel number

Press the PLAY/▲ or STOP/▼ button until the desired channel number appears.

(Example: CH61)

Then, press the F.FWD/▶button.

- TIMER PROGRAMMING - CH DATE BEGIN END 61

Remember: If the TV/VCR is connected to a cable box or satellite box, the TV/VCR must be on CH3 or CH4, then the channel to be recorded is selected on the cable box or satellite box.

4 Select once, every day or weekly recording

For once recording :

Press the PLAY/▲(up) button until the desired date appears. (Example: "7/06" for July 6th). Then, press the F.FWD/▶ button.

- TIMER PROGRAMMING - CH DATE BEGIN END 61-705 FRI

For every day recording : To record a TV program at the same time on the same channel every day.

(Example: Monday through Sunday)

Press the STOP/▼ (down) button until “EVRY DAY” appears.

Then, press the F.FWD/▶button.

For weekly recording : To record a TV program at the same time on the same channel every week.

(Example: every Monday)

Press the STOP/▼ (down) button until “EVRY” and your desired day of the week appear together. Then, press the F.FWD/▶ button.

- TIMER PROGRAMMING - CH DATE BEGIN END 61 EVERY MON - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

5 Set beginning hour

Press the PLAY/▲ or STOP/▼ button until the desired hour appears. (Example: “7, PM” for 7:30PM) Then, press the F.FWD/▶ button.

- TIMER PROGRAMMING - CHDATE BEGIN END

6 Set beginning minute

Press the PLAY/▲ or STOP/▼ button until the desired minute appears. (Example: “30” for 7:30PM)

Then, press the F.FWD/▶button.

- TIMER PROGRAMMING - CHDATE BEGIN END

7 Set end hour

Press the PLAY/▲ or STOP/▼ button until the desired hour appears. (Example: “8, PM” for 8:50PM) Then, press the F.FWD/▶ button.

- TIMER PROGRAMMING - CHDATE BEGIN END

8 Set end minute

Press the PLAY/▲ or STOP/▼ button until the desired minute appears. (Example: “50” for 8:50PM)

Then, press the F.FWD/▶button.

- TIMER PROGRAMMING - CHDATE BEGIN END

9 Set the tape speed

Press the PLAY/▲ or STOP/▼ button until the desired tape speed appears. (Example: SP)

- TIMER PROGRAMMING -

10 Finish setting the program

Press the F.FWD/▶ or REW/◀ button. The program is now completed.

• To set another program, repeat steps [2] to [10].
• Press the MENU button on the remote control to return to original mode.

11 Set the timer

Press the POWER button to set automatic timer recording. The TIMER REC indicator lights up.

- You must turn off the TV/VCR to activate automatic timer recording.

If power is not turned off and you continue watching TV, “TIMER REC STANDBY” starts flashing on the TV screen 2 minutes before the programmed start time.

TIMER PROGRAM EXTENSION

To shift the time schedule of an automatic timer recording.

1) Press the POWER button.
2) Repeat step [1] on page 24.
3) Press the RECORD button and select the desired program using the PLAY/▲ or STOP/▼ button.
4) Press the RECORD button again.

Each additional push will shift forward the begin/end time for recording by 10 minutes. When the recording is already in progress, each additional push will shift forward the end time only. If you want to cancel while setting, press the PAUSE/ STILL button on the remote control. The recording time returns to the original time.

NOTE: When you shift forward the time schedule during recording, the recording speed will automatically be set to the SLP mode.

5) Press the F.FWD/▶ or REW/◀ button to exit the setting menu. Then press the MENU button on the remote control to return to original mode.

TO CORRECT A PROGRAM

• While setting a program; press the REW/◀ button to go back one step and enter the correct numbers using the PLAY/▲ or STOP/▼ button.
  • After setting a program;
  1) Press the POWER button.
  2) Repeat steps [1] - [2] on page 24.
  3) Press the F.FWD/▶ button (or press the REW/◀ button to go back one step) until the part you want to correct begins flashing, then make the changes pressing the PLAY/▲ or STOP/▼ button.
  4) Press the POWER button to set automatic timer recording.

TO CANCEL AN AUTOMATIC TIMER RECORDING

• After setting a program;
1) Press the POWER button.
2) Repeat steps [1] \~ [2] on page 24 and select a program you want to cancel.
3) Press the T-PROG. CLEAR button.
4) Press the MENU button on the remote control to return to TV mode.

• While recording is in progress;

1) Press POWER button.

2) Press the STOP/EJECT button on the TV/VCR.

TO CHECK THE BEGIN/END TIME

1) Press the POWER button so that the REC indicator goes off.
2) Press the MENU button on the remote control.
3) Confirm "TIMER PROGRAMMING" is pointed.
4) Press the F.FWD/▶ button. The details of programs appear on the TV screen.
5) Press the MENU button on the remote control to return to TV mode.

• Make sure the channel you want to record is properly set in advance.
• It is not necessary to press the RECORD button for timer recording.
• Recording begins automatically at the Start time.
• If you are recording using a Timer mode, you may not operate the unit manually.
• The erase-prevention tab on the cassette must be in place (or you must put tape over the hole).
• If the erase-prevention tab is removed, the cassette will be ejected when the POWER button is pressed to off.
• If the tape runs out before the end time, the TV/VCR will switch to the Stop mode immediately, and the tape will be ejected.

AUTO RETURN

With this feature, after timer recording is finished, the beginning of the recorded program(s) can be searched for automatically.

1 Select "USER'S SET UP"

Press the MENU button on the remote control.

Press the PLAY/▲ or STOP/▼ button to point to "USER'S SET UP".

Then, press the F.FWD/▶button.

-MENU-

TIMER PROGRAMMING

PICTURE CONTROL

SETTING CLOCK

CHANNEL SET UP

▶ USER'S SET UP LANGUAGE: ENGLISH

LANGUAGE [E ZERO RETURN

ZERO RETURN TIME SEARCH

TIME SEARCH

2 Set "AUTO RETURN" to [ON]

Press the PLAY/▲ or STOP/▼ button to point to "AUTO RETURN".

Press the F.FWD/▶ or REW/◀ button until [ON] appears.

_USER'S SET UP

RENTAL [OFF]

REPEAT PLAY [OFF]
▶ AUTO RETURN [ON]

3 Auto Return will begin

When all the timer recordings are completed, the TV/VCR will rewind to the beginning of the recorded program(s).

NOTE:

- If you press the POWER button while tape is rewinding, the Auto Return will stop.

4 Watch the recorded program

Press the PLAY button.

TO CANCEL THE AUTO RETURN MODE

Repeat steps [1] and [2], select [OFF] using the F.FWD/▶ or REW/◀button.

If there is a power failure of any kind, the unit will retain its memory for this feature.

WAKE UP TIMER

The Wake Up Timer function turns on the TV/VCR without using the POWER button after a desired period of time.

NOTES:

• Use the remote control for this procedure.
• Clock must be set to the correct time before setting the timer.
• If you want to select [TAPE], you must insert a cassette tape in the TV/VCR. The tape will start playback automatically on your desired time.

1 Select "WAKE UP TIMER"

Press the WAKE-UP/SLEEP button on the remote control once, and confirm "ON/OFF" is pointed.

Press the F.FWD/▶ or REW/◀ button until [ON] appears.

2 Select "TV" or "TAPE"

Press the PLAY/▲ or STOP/▼ button until to point to "TV/TAPE".

Press the F.FWD/▶ or REW/◀ button, and select [TV] or [TAPE].

3 Set wake up time

Press the PLAY/▲ or STOP/▼ button until to point to "TIME".

Press the F.FWD/▶ or REW/◀ button until your desired wake up time appears.

Each additional push will increase (or decrease) the time by 10 minutes.

4 Exit the Wake Up Timer setting

Press the MENU button on the remote control to return to TV mode.

Repeat step [1] but select [OFF].

SLEEP TIMER

The Sleep Timer function turns off the TV/VCR without using the POWER button after a desired period of time.

NOTE:

- This function does not operate during Recording mode.

1 Select "SLEEP TIMER"

Press the WAKE-UP/SLEEP button on the remote control until “SLEEP TIMER” appears.

2 Set sleep time

Press the PLAY/▲, STOP/▼, F.FWD/▶ or REW/◀ button until your desired sleep time appears.

Each additional push will increase the time by 30 minutes up to 120 minutes.

SLEEP TIMER [2:00]

Press the MENU button on the remote control to exit the Sleep Timer setting.

Press the WAKE-UP/SLEEP button on the remote control until “SLEEP TIMER” appears.

To view the time left for sleep timer press the WAKE UP/SLEEP button twice, then press the MENU button on the remote control to exit the sleep timer setting.

MAINTENANCE

CABINET CLEANING

• Wipe the front panel and other exterior surfaces of the TV/VCR with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the TV/VCR. Such chemicals may cause damage and discoloration to the exposed surfaces.

AUTO HEAD CLEANING

• Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.
• Playback picture may become blurred of interrupted while the TV program reception is clear. Dirt accumulated on the video heads after long periods of use, or the usage of rental or worn tapes can cause this problem.

If a streaky or snowy picture appears during play-back, the video heads in your TV/VCR may need to be cleaned.

1. Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.
2. If a Video Head Cleaner does not solve the problem, please call our help line at 1-800-287-4871, to locate an Authorized Service Center.

NOTES:

• Remember to read the instructions included with the video head cleaner before use.
• Clean video heads only when problems occur.

SERVICING

- Should your TV/VCR become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and please call our help line at 1-800-287-4871, to locate an Authorized Service Center.

If you have followed the instructions contained in this manual and have difficulty in operating your TV/VCR, locate the PROBLEM in the left column below. Check the corresponding CORRECTIVE ACTION column to remedy the problem.

PROBLEM CORRECTIVE ACTION
No power.	Make sure the AC cord is connected to an AC outlet.Make sure the car battery cord is connected to vehicle's cigarette lighter socket and to DC 13.2V jack on back of the TV/VCR.Check the fuse (5A, 250V) in car battery cord.Make sure the power is turned on.
No picture and sound.	Make sure the AC cord is connected to an AC outlet.Check antenna connection.Let the TV/VCR program its' tuner memory.
No picture or poor picture on TV/VCR.	Adjust direction or replace antenna.Adjust picture controls.
No sound or poor sound.	Adjust volume control on remote control or main unit.Press the MUTE button to restore sound.
Timer recording is not possible.	Make sure the timer recording is set correctly.Make sure the power is off.Make sure the TV/VCR clock is set correctly.
Cannot go into Record mode.	Make sure the tape has an erase-prevention tab. If need, cover the hole with plastic tape.
Playback picture is partially noisy.	Adjust tracking control for a better picture using the CHANNEL ▲ or ▼button on the TV/VCR.
No picture but the audio is OK in playback.	Head cleaning may be necessary. Refer to “AUTO HEAD CLEANING” on page 27.
No operation by infrared Remote Control.	Make sure the AC cord is connected to an AC outlet.Check batteries in remote control.
Video or color fades in and out when making a copy of a video tape.	You can not copy a copyrighted video tape. You are experiencing copy guard protection.
Can not set the auto clock to ON.	Make sure the AC cord is connected to an AC outlet.
“DEW” appears on the screen.	Refer to page 4 “WARNING”.

GENERAL SPECIFICATIONS

CRT : 9 inch in-line gun, 90° deflection tube

Television system : NTSC-M

Video Heads : Rotary two-head

Tape width : 1/2 inch

Tape speed

SP : 33.40mm/sec.

LP : 16.67mm/sec.

SLP: 11.12mm/sec.

Tuner channel

TV VHF Low : #2\~#6

TV VHF High : #7\~#13

TV UHF : #14\~#69

CATV

VHF : 5A

MID band : A5\~A1, A\~I

SUPER band : J\~W

HYPER band : W+1\~W+84

Terminals

Antenna input : VHF/UHF 75 ohms unbalanced

Video input : RCA connector × 1

Audio input : RCA connector × 1

Earphone : 1/8" monaural (3.5 mm)

ELECTRICAL SPECIFICATIONS

Video input level : 0.5\~2.0Vp-p

Audio input level : -15dBs

Video S/N ratio : More than 46dB

Audio S/N ratio : More than 43dB

OTHER SPECIFICATIONS

Power requirement : AC 120V/60Hz DC 13.2V

Power consumption : AC 55W / DC 60W

Dimensions : H:13" (330mm)

W:12-1/8" (308mm)

D:12-15/16" (329mm)

Weight : 18.7 lbs (8.5kg)

- Designs and specifications are subject to change without notice and without our legal obligation.

- If there is a discrepancy between languages, the default language will be English.

CABLE CHANNEL DESIGNATIONS

If you subscribe to cable TV, the channels are displayed as 1-125. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.

CATV channel	5A	2	3	4	5	6	7	8	9	10	11	12	13	A	B
TV Display	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
CATV channel	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q
TV Display	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30
CATV channel	R	S	T	U	V	W	W+1	W+2	W+3	W+4	W+5	W+6	W+7	W+8	W+9
TV Display	31	32	33	34	35	36	37	38	39	40	41	42	43	44	45
CATV channel	W+10	W+11	W+12	W+13	W+14	W+15	W+16	W+17	W+18	W+19	W+20	W+21	W+22	W+23	W+24
TV Display	46	47	48	49	50	51	52	53	54	55	56	57	58	59	60
CATV channel	W+25	W+26	W+27	W+28	W+29	W+30	W+31	W+32	W+33	W+34	W+35	W+36	W+37	W+38	W+39
TV Display	61	62	63	64	65	66	67	68	69	70	71	72	73	74	75
CATV channel	W+40	W+41	W+42	W+43	W+44	W+45	W+46	W+47	W+48	W+49	W+50	W+51	W+52	W+53	W+54
TV Display	76	77	78	79	80	81	82	83	84	85	86	87	88	89	90
CATV channel	W+55	W+56	W+57	W+58	A-5	A-4	A-3	A-2	A-1	W+59	W+60	W+61	W+62	W+63	W+64
TV Display	91	92	93	94	95	96	97	98	99	100	101	102	103	104	105
CATV channel	W+65	W+66	W+67	W+68	W+69	W+70	W+71	W+72	W+73	W+74	W+75	W+76	W+77	W+78	W+79
TV Display	106 107 108 109 110 111 112 113 114 115 116 117 118 119 120
CATV channel	W+80	W+81	W+82	W+83	W+84
TV Display	121 122 123 124 125

SYLVANIA HOME ENTERTAINMENT WARRANTY

We appreciate your purchase of a SYLVANIA Home Entertainment product. We take pride in the quality of our products and have manufactured your new Home Entertainment unit to exacting quality standards. We feel confident that in normal use, it will provide you with satisfactory performance. However, should you experience difficulty, you are protected under the provisions of this warranty.

SYLVANIA Home Entertainment products are warranted against manufacturing defects in materials and workmanship in normal use for the following periods from the date of purchase by the original user, and is conditional upon the unit being installed and used as directed in the instruction manual.

COLOUR MONITOR / VCR COMBO

Parts and Labour 1 Year

Special Parts:

Picture Tube 3 Years Parts / 1 Year Labour

Video Head 6 Months Parts and Labour

Remote Control 90 Days Parts and Labour

SYLVANIA S obligation under this warranty shall be limited to the repair, including all necessary parts and the cost of the labour connected therewith, or at our option the exchange of any Home Entertainment product which shows evidence of a manufacturing defect within the warranty period.

Replacement parts, furnished in connection with this warranty shall be warranted for a period equal to the unexpired portion of the original equipment warranty.

CUSTOMER OBLIGATIONS

This warranty applies to the product from the original date of purchase at retail. Therefore, the owner must provide a copy of the original, dated bill of sale. No warranty service will be performed without a bill of sale. Transportation to and from the service depot is the responsibility of the owner.

WARRANTY EXCLUSIONS

This warranty is extended to SYLVANIA Home Entertainment products purchased and used in Canada. This warranty shall not apply to appearance or accessory items including but not limited to: cabinet, cabinet parts, batteries, connecting cables, tapes. This warranty shall, in addition, not apply to cleaning video/audio heads, pinch rollers, tape transport system damages due to handling, transportation, unpacking, set-up, installation, customer adjustments that are covered in the instruction book, repair or replacement of parts supplied by other than the SYLVANIA authorized service depot, any malfunction or failure caused by or resulting from abnormal environmental conditions, improper unauthorized service, improper maintenance, modifications or repair by the consumer, abuse, misuse, neglect, accident, fire, flood, or other Acts of God, and incorrect line voltage.

This Home Entertainment product is only warranted to the original retail purchaser. This warranty becomes void in the event of commercial or rental use. This warranty becomes void in the event serial numbers are altered, defaced or removed.

SYLVANIA reserves the right to make changes in design or to make additions to or improvements upon this product without incurring any obligation to install the same on products previously manufactured. The foregoing is in lieu of all other warranties expressed or implied and SYLVANIA neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the sale or service of this product. In no event shall SYLVANIA or its SYLVANIA dealers be liable for special or consequential damage arising from the use of this product, or for any delay in the performance of this warranty due to cause beyond our control.

The purchaser may have other rights under existing provincial or federal laws, and where any terms of this warranty are prohibited by such laws, they are deemed null and void, but the remainder of the warranty shall remain in effect.

HOW TO OBTAIN SERVICE

Should this product require service, you may obtain specific information on how to obtain service by contacting the SYLVANIA Dealer from whom this product was purchased, or by contacting us directly:

SONIGEM SERVICE

300 Alden Road

Markham, Ontario

L3R 4C1

PHONE: [phone] FAX: [phone]

1-800-287-4871

Line drawing of a vintage computer monitor with front panel and control buttons (no text or symbols)

RISQUE D'ELECTROCUTION NE PAS OUVRIR

ATTENTION: AFIN DE REDUIRE LE RISQUE D'ELECTROCUTION, N'ENLEVEZ PAS LA PARTIE ARRIÈRE (ENDOS) DU BOÎTIER DE CET APPAREIL. IL NE CONTIENT AUCUNE PIÈCE POUVANT ÊTRE REPAREE PAR L'USAGER. CONFIEZ LA REPARATION À UN TECHNICIEN QUALIFIE.

ARRÊT SUR IMAGE .....20

RÉDUCTION DES PARASITES

Diagram showing a mechanical component being cut into a housing (no text or symbols present)

PRÉVENTION CONTRE L'EFFACEMENT

Top-down schematic of a remote control panel with indicator lights and an arrow pointing to the right side (no text or symbols)

ENTRÉE - SIGNAL EXTERNE

▶ RÉGLAGE MANUEL HORLOGE HEURE D'ÊTÉ [HF]

RÉGLAGE MANUEL HORLOGE MOIS JOUR ANNÉE 05 / -01 ----

HEURE MINUTE

RÉGLAGE MANUEL HORLOGE MOIS JOUR ANNÉE 05 / 01 MAR 2001

OBLIGATIONS DU CLIENT

EXCLUSIONS DE LA GARANTIE
