USER MANUAL LM216P Lattemento

Operating Instructions

GB

Information about this user manual. 23

Copyright. 23

Warnings 24

Intended use 25

Limitation of liability 25

Safety. 26

Danger from electrical current. 26

Risk of burning. 26

General safety instructions 27

Startup. 28

Safety information 28

Scope of delivery and transport inspection 28

Disposal of packaging. 29

Requirements on the setup location 29

Electrical connection 30

Before the first use 30

Device description 31

Handling and operation 32

Safety information 32

Preparing the milk foam. 33

Heating milk. 36

Cleaning and Care 37

Safety instructions 37

Cleaning. 37

Troubleshooting 38

Safety instructions 38

Cause of malfunction and repairs. 38

Storage/Disposal 39

Technical Data 39

EG Statement of Conformity 40

Index 41

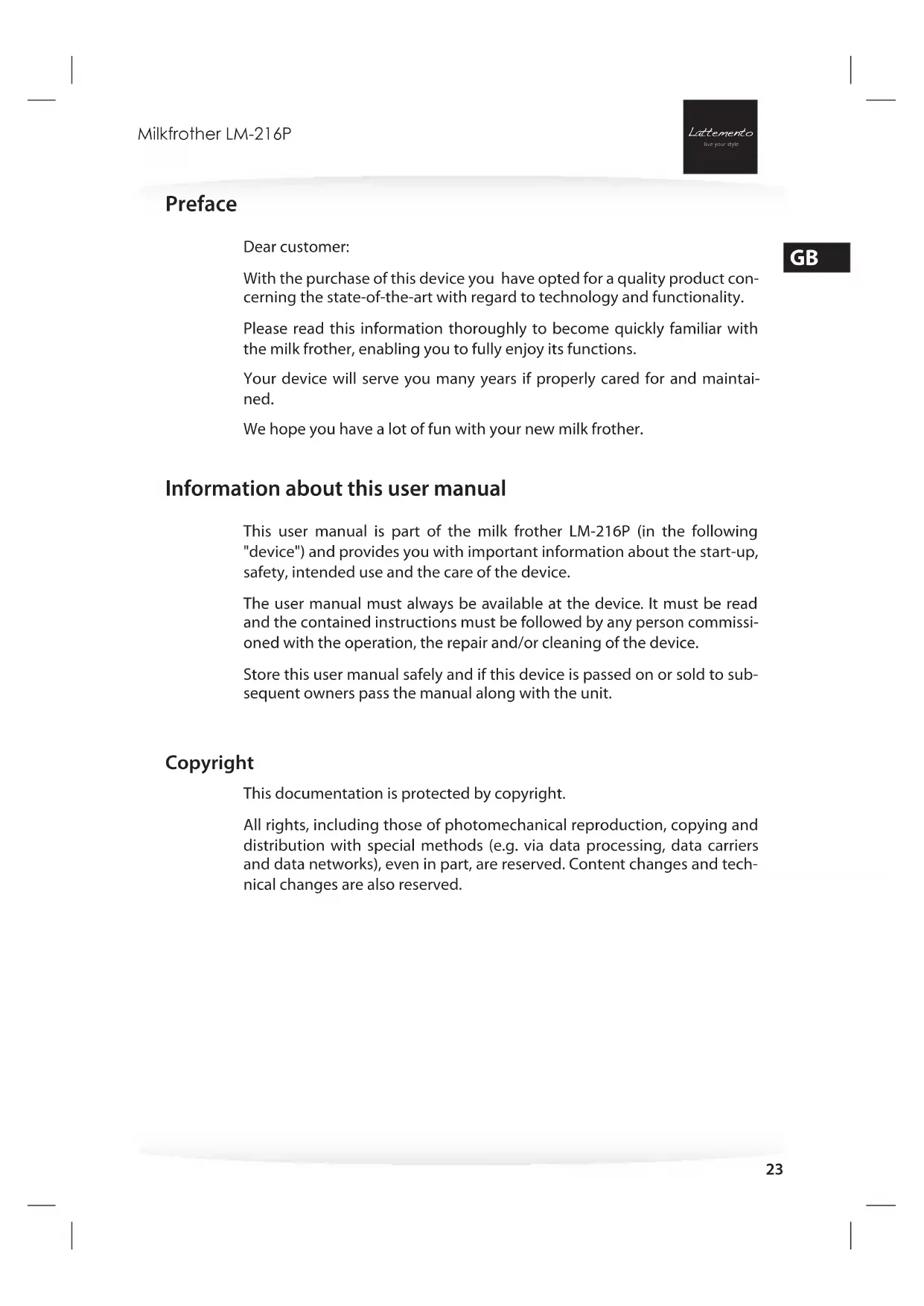

Preface

Dear customer:

With the purchase of this device you have opted for a quality product concerning the state-of-the-art with regard to technology and functionality.

Please read this information thoroughly to become quickly familiar with the milk frother, enabling you to fully enjoy its functions.

Your device will serve you many years if properly cared for and maintained.

We hope you have a lot of fun with your new milk frother.

Information about this user manual

This user manual is part of the milk frother LM-216P (in the following "device") and provides you with important information about the start-up, safety, intended use and the care of the device.

The user manual must always be available at the device. It must be read and the contained instructions must be followed by any person commissioned with the operation, the repair and/or cleaning of the device.

Store this user manual safely and if this device is passed on or sold to subsequent owners pass the manual along with the unit.

Copyright

This documentation is protected by copyright.

All rights, including those of photomechanical reproduction, copying and distribution with special methods (e.g. via data processing, data carriers and data networks), even in part, are reserved. Content changes and technical changes are also reserved.

Warnings

The following warnings are used in this user manual:

GB

DANGER

A warning of this degree of danger indicates a threatening danger.

If the danger is not avoided, death or serious injuries might be caused.

• Follow the instructions in this warning to prevent the risk of death or serious personal injuries.

WARNING

A warning of this degree of danger indicates a potential danger.

If the danger is not avoided, injuries and/or damages to property might be caused.

• Follow the instructions in this warning to prevent the risk of personal injuries or property damage.

NOTE

A note indicates additional information to facilitate the handling of the device.

Intended use

The device is intended only to heat and froth milk for non-commercial use in enclosed rooms.

Any other or additional use is considered as not intended.

WARNING

Danger from unintended use!

If the device is not used as intended and/or used differently than intended danger may be caused through the device.

Use the device only as intended.

Follow the procedures outlined in this user manual.

Claims of any kind due to damages from unintended use are excluded.

The operator alone bears the risk.

Limitation of liability

All technical information, data and comments for installation, operation and care, contained in this user manual, correspond with the last date of printing and are based on our experience and know-how to our best knowledge.

No claims can be deduced from the specifications, illustrations and descriptions in these instructions.

The manufacturer does not assume any liability for damages due to neglect of these instructions, unintended use, improper repair, unauthorized modifications or the use of non-approved spare parts.

Safety

GB

In this chapter important safety advices on handling the frother are given.

The frother corresponds with the stipulated safety regulations. However, improper use may lead to personal injuries or property damages.

Danger from electrical current

DANGER

Danger to life from electrical current!

Touching voltage carrying cables or parts can mean danger to life.

Obey the following safety instructions to prevent danger because of electrical current:

Do not use the device if the power cable or plug is damaged.

Have an authorized technician install a new power cable before you continue to use the device.

• Never open the device. There is the danger of electrocution, if voltage-carrying contacts are touched and the electrical and mechanical construction is modified.

Risk of burning

WARNING

Parts of the device may become very hot during operation.

Obey the following safety instructions to prevent scalding or burning yourself and/or others.

Special care need to be exercised when opening the lid, as the content of the pitcher may splash out.

Do not move the device while it is switched on. During movement, hot liquid may spill out of the device.

Always allow the device to cool down before cleaning.

General safety instructions

To ensure the safe handling of the device, please follow the safety instructions below:

Before using the device, inspect it for visible damages to the housing, the lid, the connecting cable and plug as well as damages to the pitcher. Do not start operating a damaged device.
□ Repairs of the device must only be done through authorized dealers or the factory's customer service department. Improper repair may cause significant dangers to the user. Furthermore, the warranty becomes void.
A repair of the device during the warranty period may only be conducted by a customer service agency authorized through the manufacturer, otherwise, no warranty claims may be upheld in case of consequential damages.
Defective parts must only be replaced with original spare parts. Meeting the safety requirements is only ensured when using original spare parts.
Persons who due to their physical, mental or motor abilities are not able to safely operate the device may use the unit only under supervision of or instruction by a responsible person.

Children are only allowed to use the device when supervised.

Always pull the power cable by the power plug and not the cable itself.

Do not carry the device by the power cable.

• Do not allow the power cable to dangle down. This presents a risk of pulling down the device by the cable.

Use the device only together with the supplied base station.

Startup

GB

Safety information

WARNING

Personal injuries and property damage may occur when starting up the device!

Obey the following instructions to prevent dangerous situations:

• Packaging material may not be used for playing. There is the risk of suffocation.

Note the information on the setup location as well as on the electrical connection of the device to prevent personal injuries and property damages.

Scope of delivery and transport inspection

The standard equipment of the device includes the following components:

Milk frother (base station and pitcher)

Attachment for milk foam

User manual

NOTE

Inspect the delivery for completeness and visible damages.

Report an incomplete delivery or damages due to inadequate pa-ckaging or through transport immediately to the freight carrier, the insurance company and the supplier.

Disposal of packaging

The packaging protects the device from transport damages. The packaging materials have been chosen under the aspects of environmental compatibility and to facilitate the disposal and can therefore be recycled.

Returning the packaging to the material cycle saves raw materials and reduces the amount of waste generated. Dispose packaging materials no longer needed at the collecting stations of your local recycling system.

NOTE

If possible, store the original packaging during the warranty period of the device to be able to properly package the device in case of a warranty issue.

Requirements on the setup location

To ensure the safe and trouble-free operation of the device, the setup location must meet the following requirements:

The device must be positioned on a firm, level, horizontal, skid-proof and heat-resistant surface.
Choose the place of installation in that way, that children are not able to reach the hot surfaces of the device.

The device is not intended for fitting in.

• Do not setup the device in a hot, wet or damp environment and not close to flammable materials.
  The electrical outlet must be easily accessible to readily allow pulling out of the power cable, if necessary.

Electrical connection

GB

To ensure the safe and correct operation of the device, the following instructions must be observed when electrically connecting the device:

Before connecting the device compare the connecting details (voltage and frequency) on the type plate with those of your mains system. The details must correspond to prevent damage to the device. Contact your electrical expert in case of doubt.
The electrical outlet must be protected with at least a 10A circuit breaker.
Make sure that the electrical cable is not damaged or routed via hot surfaces or sharp edges.
The device may not be connected using an extension cable or outlet strip.

The power cable may not be pulled taut.

The electrical safety of the device is only ensured if it is connected to a properly installed protective ground system. Operating the device from an outlet without earth conductor is forbidden. In case of doubt, have the home wiring inspected by a certified electrician. The manufacturer does not assume any liability for damages caused by a missing or interrupted earth conductor.

Before the first use

Remove the protective cardboard between base station and pitcher.

Before using the frother the first time, clean the device as described in the Chapter Cleaning and Care.

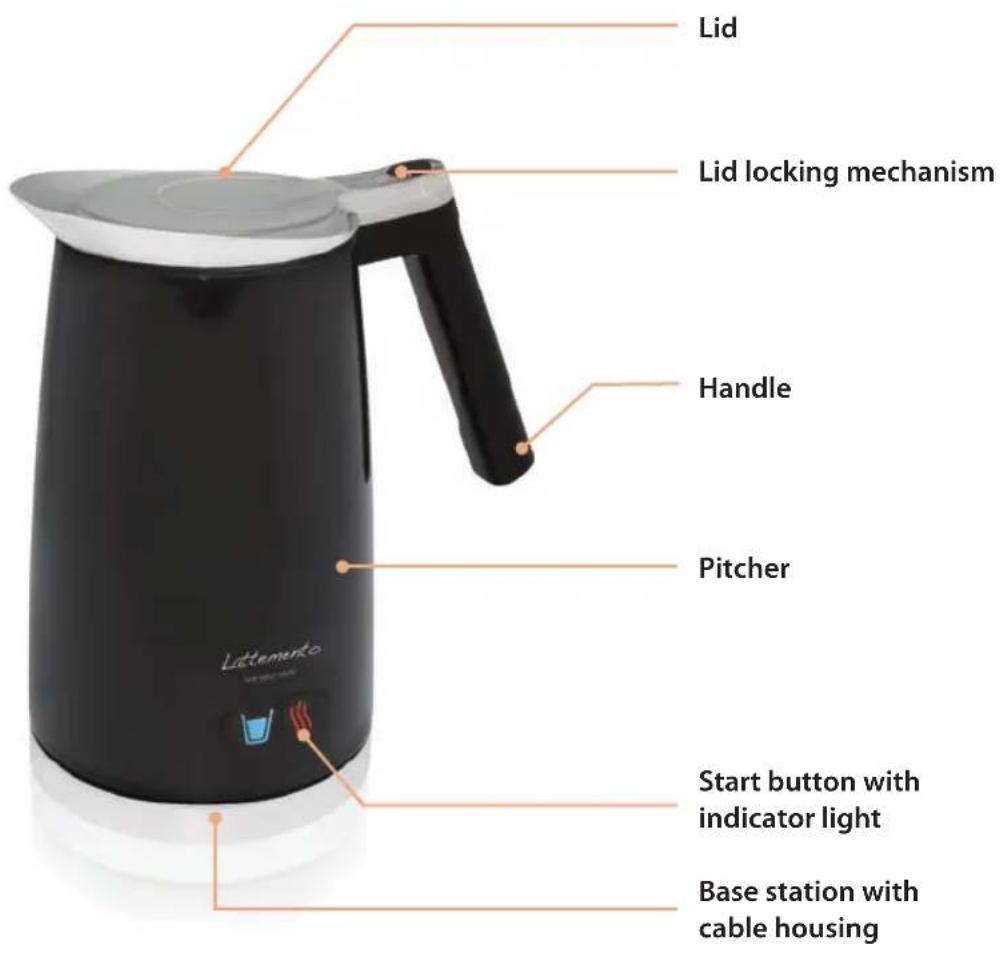

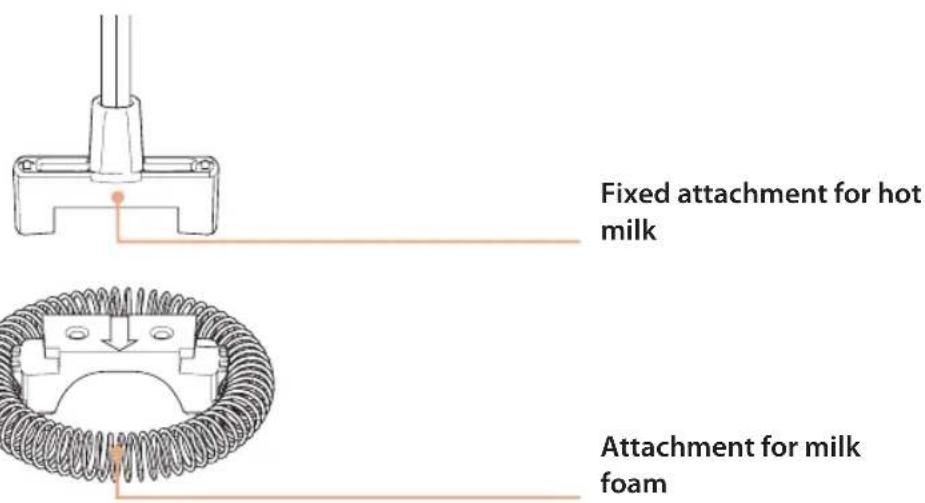

Device description

Handling and operation

GB

This chapter contains important information on handling and operating the device.

Safety information

WARNING

Obey the following safety instructions to prevent dangers and property damages:

Never touch rotating parts of the device.

Do not stick any objects or body parts into the running device.

Do not leave the device unattended during operation.

Do not place the pitcher in the microwave oven or the stove.

• Fill the device only up to the respective mark. Overfilling may cause hot liquid to spill from the pitcher.

The device and the contents become hot. Hold the device only by its handle.

NOTE

The milk's preparation cannot be interrupted manually. In case of unintended function pull the power plug from the outlet or lift the pitcher off the base station.

Allow the device to cool down before using it again.

WARNING

Children should be supervised to ensure that they do not play with the appliance

The appliance is only to be used with the stand provided.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;
  -by clients in hotels, motels and other residential type environments;
  -bed and breakfast type environments.

Preparing the milk foam

Proceed as follows to prepare milk foam:

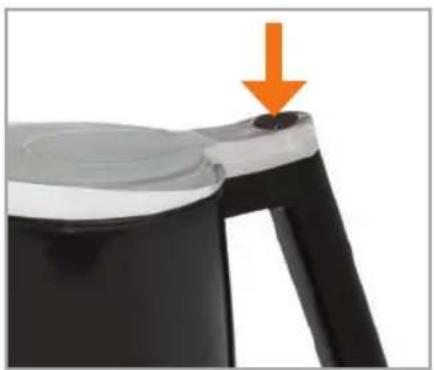

Push the button and lift the lid off upwards.

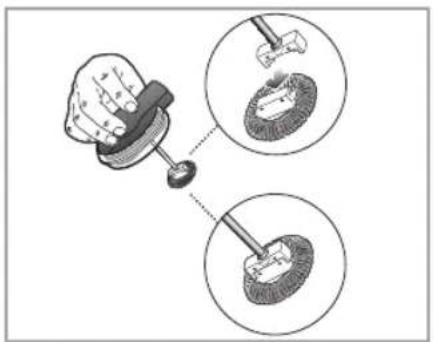

Push the attachment for foamed milk onto the mixer rod as shown.

Fill the desired amount of milk into the pitcher.

NOTE

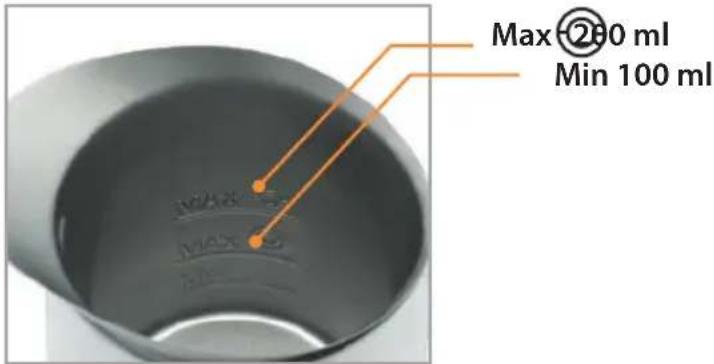

Fill the pitcher at least with 100ml and not higher than to the lower mark inside the pitcher (200ml)

Frothed milk expands and causes the pitcher to overflow, if filled up too high.

GB

Place the lid on the pitcher.

Start the preparation for warm milk foam by pushing the start button A.

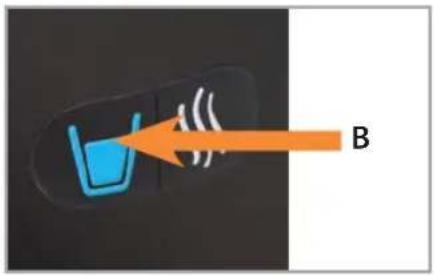

Start the preparation for cold milk foam by pushing the start button B.

NOTE

Depending on the filling volume, the preparation stops automatically after a maximum of 120 seconds.

Open the lid after you are done with the preparation and lift it off upwards.

Pour or ladle the milk foam into the drinking vessel.

After having used the frother, clean the device as described in the Chapter Cleaning and Care.

GB

Heating milk

Heating milk is different from preparing milk foam in the following steps: Remove the attachment for foamed milk as shown.

Fill the desired amount of milk into the pitcher.

NOTE

Fill the pitcher at least with 100ml and not higher than to the upper mark inside the pitcher (330ml)

The remaining steps are identical to the preparation of milk foam.

After having used the frother, clean the device as described in the Chapter Cleaning and Care.

NOTE

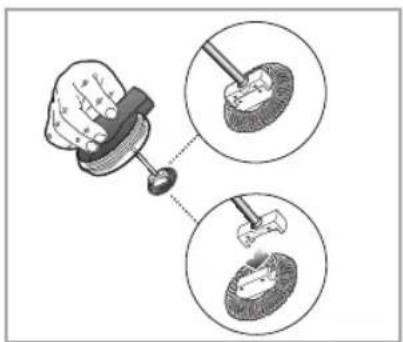

Fit the attachment for foamed milk again after use so that it is not lost.

Cleaning and Care

Safety instructions

WARNING

Obey the following safety instructions before beginning to clean the device:

Pull the power plug from the outlet before cleaning.

Always allow the device to cool down before cleaning.

The pitcher has a non-stick coating on the inside. Do not use any aggressive or abrasive cleaning agents and no solvents.

Do not scrape off tough soiling with hard objects.

• Never submerge the device base, the pitcher, the lid, the power cable or the power plug into water or other liquids.

Do not clean the device or parts of it with the dishwasher.

Cleaning

NOTE

For better cleaning, remove the mounted milk attachment and the sealing ring on the lid and clean them separately.

Clean the outer surfaces of the device and the lid with a soft damp cloth. In case of heavy soiling, a mild cleaning agent may be used.
- Rinse the pitcher with hot water after use. In case of tough soiling inside the pitcher wash it with a soap solution and rinse well. Use a soft cloth to prevent damage to the non-stick coating.

Troubleshooting

GB

Safety instructions

WARNING

Obey the following safety instructions to prevent dangers and property damages:

Do not open the device. Only specialists are allowed to repair elec- trical devices. Improper repair may cause significant dangers to the user and may damage the device.

Cause of malfunction and repairs

Faults Possible cause Repairs
The indicator light does not come on after swit-ching on the device.	Plug not plugged in. Plug in plug.
	Circuit breaker has tripped. Switch on circuit breaker.
	Temperature control has responded.	Allow device to cool down.
The device is heating but the stirring rod does not turn.	Lid not put on properly.	Place the lid correctly and turn it against the stop.
	Contacts on handle soiled. Clean contacts on handle.
Milk exits from the lid.	Device overfilled. Reduce filling level.
	Lid not put on properly.	Place the lid correctly and turn it against the stop.
	Sealing ring missing or soiled.	Clean and insert sealing ring.

NOTE

If you cannot solve the problem following the steps outlined above, please contact the customer service.

Storage / Disposal

If you do not need the device for an extended period of time, allow it to cool down and clean the device as described in the chapter Cleaning and Care to prevent mould formation. Mould fungus represents a health risk and stains may develop on the unit which can no longer be removed.

Electric and electronic end-of-life devices often still contain valuable materials. However, they also contain hazardous substances which were required for their proper function and safety.

If disposed of with regular household waste or treated incorrectly they can pose a risk to human health and the environment.

NOTE

Use the collecting station in your municipality to return electrical and electronic end-of-life device for recycling. Obtain the information required, if necessary, from your city hall, your waste disposal company or your dealer.

Render the device unusable before disposal. Make sure your end-of- life device is stored safely away from children until hauled away.

Technical Data

Dimensions (H x Ø) 195 x 122 mm
Approx. weight 0,80 kg
Operating voltage 220-240 VAC
Frequency 50/60 Hz
Power consumption, max. 600	W
Capacity, min.	100	ml
Capacity, max.	330	ml
Length of cable	0,75	m
Protection type	IP20

EG Statement of Conformity

Name/Address of manufacturer: Foremost BV Vierberg 14 NL-3755 BS Eemnes
We declare that the product
Make: Milk frother
Type: LM-216P
corresponds with the following relevant regulations: EG Directive on electrical equipment 2006/95/EG for the use within specific voltage limits The following harmonized standards were used completely or in part: EN 60335-1:2002 + A11:2004 + A1:2004 + A12:2006 + A2:2006 + A13:2008 EN 60335-2-15:2002 (Fifth edition) + A1:2005 + A2:2008 EN 60335-2-14:2006+A1:2008
EN 62233:2008
Eemnes, den 01.01.2010	(bindende handtekening)

Index

A

Attachment 31

B

Base station 31

C

Cable housing 31

Capacity Min./Max. 39

Causes of malfunction 38

Cleaning and care 37

Connecting data. 30

Copyright 23

D

Damaged device. 27

Danger from electrical current 26

Disposal 39

E

EG Statement of Conformity 40

Electrical connection. 30

Electrical safety 30

F

First use 30

G

General safety instructions 27

H

Handle 31

Handling 32

Heating milk. 36

1

Intended use 25

L

Lid 31

Limitation of liability 25

N

Non-stick coating. 37

P

Packaging 29

Pitcher 31

Preparing the milk foam 33

R

Risk of burning 26

s

Safety 26

Scope of delivery 28

Setup location 29

Start button 31

Startup 28

Storage. 39

Subsequent owner 23

T

Technical data 39

Transport inspection. 28

Troubleshooting. 38

W

Warnings 24

Sommaire

Avant-propos. 43

Cher client, chere clientele,

Stamp and signature of dealer
