Product type	Steam iron with boiler
Brand	Clatronic
Model	DBS 778 CB
Power supply	220-240 V~, 50/60 Hz
Power	2000-2400 W
Net weight	3.3 kg
Water tank capacity	1.7 liters
Protection class	I
Temperature settings	3 positions: Synthetic/Silk (low), Wool (medium), Cotton/Linen (high)
Functions	Steam ironing, steam boost, vertical steam
Soleplate type	Not specified (estimated: ceramic or non-stick)
Anti-calc filter	Replaceable filter cartridge (lifespan: approximately 18 liters)
Cord length	Not specified (estimated: 2-3 meters)
Auto shut-off	Not specified
Resting surface	Non-slip heat-resistant base
Maintenance	Clean the soleplate with a damp cloth; do not immerse; empty the tank after use
Safety	Do not leave unattended; hot surface; unplug before filling; keep out of reach of children
Warranty	Not specified (estimated: 2 years)

Frequently Asked Questions - DBS 778 CB CLATRONIC

What type of water to use with the Clatronic DBS 778 CB iron?

Use only tap water or distilled water. Do not use battery water, dryer water, or water with additives (starch, perfume, fabric softener).

How to fill the water tank during use?

Place the iron on the resting surface, set the thermostat to MIN, unplug the appliance, press the RELEASE button under the tank, remove the anti-calc filter, fill to the max mark, close and replace.

Why is steam not coming out?

Check that the thermostat is set above the •• (wool) position. Ensure the anti-calc filter is correctly inserted and saturated with water. If the pump is not pumping, hold the iron 30-40 cm lower than the base and press the steam button.

How to use the vertical steam function?

Hang the garment on a hanger, bring the iron to about 2-3 cm and press the steam eject button. Never direct steam towards people.

What to do if the iron does not heat?

Check the electrical outlet and fuse. Make sure the thermostat is not set to MIN. Plug into a protected contact socket of 220-240 V.

How to clean the Clatronic DBS 778 CB iron?

Unplug and allow to cool completely. Wipe the housing with a dry cloth. Clean the soleplate with a slightly damp cloth. Never immerse the appliance in water.

When to replace the anti-calc filter?

Replace the filter cartridge after filtering approximately 18 liters of water. You can temporarily use distilled water with the old filter.

Can the iron be used by children?

Children aged 8 and above may use it under supervision. Children must not play with the appliance. Cleaning must not be performed by children without supervision.

How to store the power cord?

Wind the cord around the groove under the base. Secure it with the provided cable tie and place the plug in a loop to fasten it.

What is the maximum power of the iron?

The total power is 2400 W. It is recommended to use a separate outlet with a 16 A circuit breaker. Extension cords must have a cross-section of at least 1.5 mm².

USER MANUAL DBS 778 CB CLATRONIC

DAMPFBÜGELSTATON DBS 778 CB

Stoomstrijkijzer • Station fer à repasser • Estación para planchar a vapor • Aparelho de engomar a vapor Sistema stirante a vapore • Steam Ironing Unit • Želazko z generatorem pary • Gözölös vasaló • Парова праска

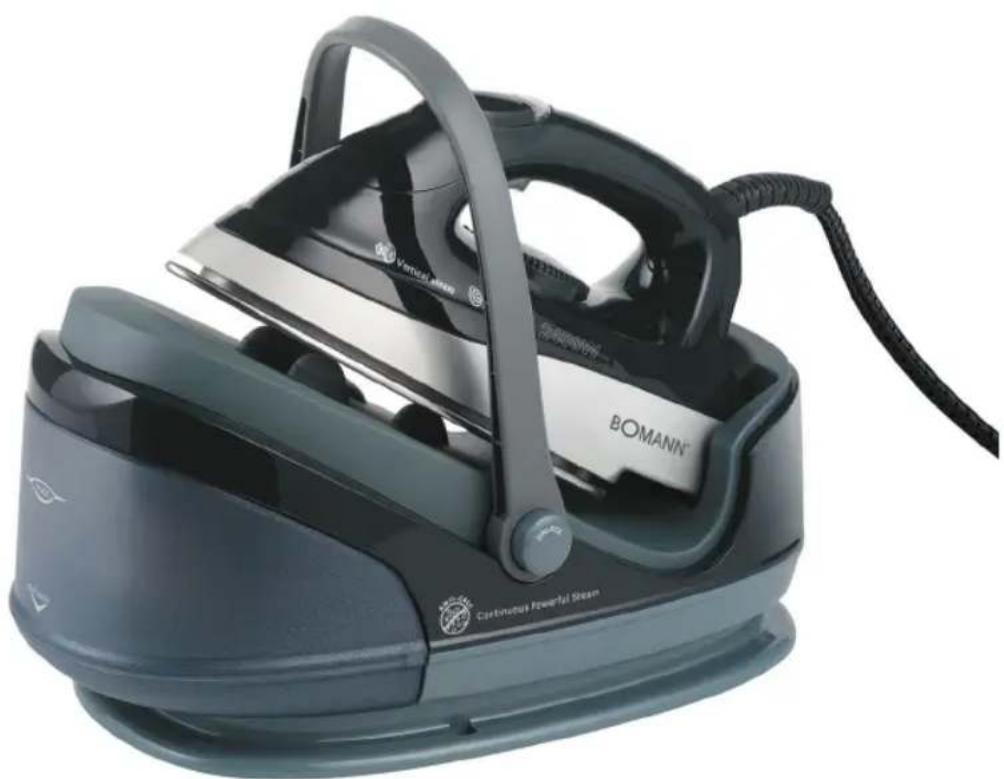

Exterior view of a BOMANN steam iron with visible branding and circuit board (no text-heavy elements)

Overview of the Components ...... Page 3

Instruction Manual....Page 29

Technical Data Page 32

Disposal Page 32

JEZYK POLSKI

Spis treści

During operation the temperature of the exposed surface may be very hot.

AVISO:

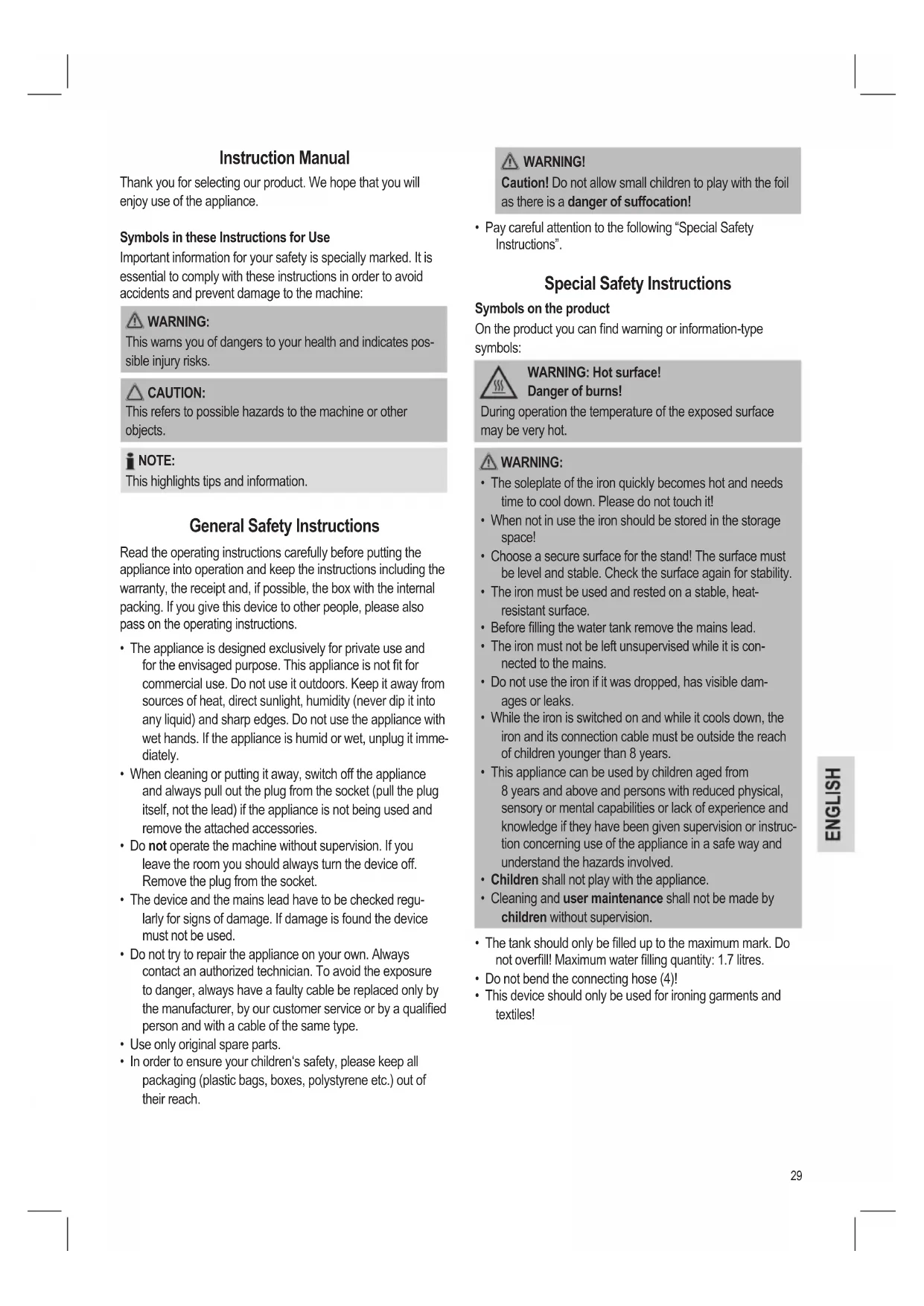

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions

Symbols on the product

On the product you can find warning or information-type symbols:

WARNING: Hot surface!

Danger of burns!

During operation the temperature of the exposed surface may be very hot.

WARNING:

• The soleplate of the iron quickly becomes hot and needs time to cool down. Please do not touch it!
• When not in use the iron should be stored in the storage space!
• Choose a secure surface for the stand! The surface must be level and stable. Check the surface again for stability.
• The iron must be used and rested on a stable, heat-resistant surface.
• Before filling the water tank remove the mains lead.
• The iron must not be left unsupervised while it is connected to the mains.
• Do not use the iron if it was dropped, has visible damages or leaks.
• While the iron is switched on and while it cools down, the iron and its connection cable must be outside the reach of children younger than 8 years.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

- The tank should only be filled up to the maximum mark. Do not overfill! Maximum water filling quantity: 1.7 litres.

- Do not bend the connecting hose (4)!

- This device should only be used for ironing garments and textiles!

Overview of the Components

1 "Temperature" control lamp
2 Steam jet button
3 Temperature control
4 Connecting tube
5 Base
6 Iron rest
7 Releasing device for handle "UNLOCK"
8 Water tank with lime filter
9 Handle

not shown

RELEASE button below the water tank. Releasing device of the water tank

Instructions

Unpacking

• Remove any protective foils and stickers from the soleplate.
• Please unwind the lead completely.

Electrical connection

• Make sure that the iron voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed socket with earthing contact.

Connected Wattage

The station has a total maximum wattage of 2400 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: OVERLOAD!

• If you use extension leads, these should have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

Temperature Control on the Iron (3)

The symbols on the control correspond to the following settings:

• (Synthetics, silk) low temperature
● ● (Wool) medium temperature
● ● ● (Cotton, linen) highest temperature

Water Tank (8)

• The water tank has a recessed grip on the bottom so that it can be removed.
• The lock of the water tank is also the lime filter cartridge. Take out the lime filter cartridge to fill with water.
  • The tank volume is 1.7 litres.

Water

Use only tap water or distilled water.

Do not fill battery water, water from the clothes dryer and water containing additives (such as starch, perfume, softener or other chemicals) into the water reservoir.

This could damage the iron due to residues forming in the steam chamber. These residues may cause impurities to the fabric when dropping out of the holes in the soleplate.

Operation

Before Initial Use

• Clean the ironing base with a slightly damp cloth.
• In order to remove all residues before initial use, please pass the iron a few times over an old clean cloth.

Ironing without steam

i NOTE:

• Sort out the garments according to their ironing temperatures.

• Always set the temperature control to "MIN", before connecting the appliance to a power point, or before disconnecting it.

• Place the iron on the rest (6).

• Only connect the machine to a properly installed safety socket.
• Set the temperature on the temperature control (3). If you have sensitive items to iron, please begin with the lowest temperature.

i NOTE:

The control lamp (1) on the iron shows that it is heating up. As soon as the control lamp goes off the operating temperature has been reached. Now you can start ironing.

- Always turn the temperature control to "MIN" after use and remove the mains plug (the control lamp in the handle goes off).

Steam Ironing

WARNING:

The iron expels a large quantity of hot steam. Danger of burns.

CAUTION:

• When using the steam iron please ensure that the water tank is always filled to the required level.
• The lime filter cartridge always has to be positioned in the water tank, even if you use distilled water.

CAUTION: INITIAL USE:

Please proceed as follows:

• The tank should only be filled up to the maximum mark. Do not overfill!
• Close the water tank and place it back in the base.
• Connect the base station to a socket with earthing contact.
• Set the desired temperature within the range “● ●” to “● ●”.

The control lamp on the iron lights up.

- Wait until the soleplate has heated up. Once the temperature has been reached the control lamp goes off.

- Now press the steam jet button (2) for at least 1 minute or until steam comes out of the soleplate of the iron. This time is needed for the steam to reach the iron.

NOTE ON STEAM IRONING:

If the temperature control is set to less than “● ●”, the production of steam is prevented.

Vertical Steam function (Vertical Steam)

This can be used to produce a jet of steam in a vertical direction. This function can be used to remove creases from hanging clothes or from curtains.

WARNING:

Never point the steam jet at other people. Danger of burns.

Hang your laundry on a clothes hanger and move the iron to approximately 2-3 cm away.

How can I replenish the water during operation?

Refill with water before the tank is completely empty.

• Place the iron on the rest (6).
• Set the temperature control to "MIN".
• Remove the mains plug from the socket.
• In order to remove the tank, press the RELEASE button below the water tank.
• Remove the lime filter cartridge.
• Fill the tank up to the maximum mark. Do not overfill!
• Close the water tank.
• Reinsert the lime filter cartridge and push the tank back into the base.
• You can now continue ironing.

When you have finished

• Now you can start ironing. Always turn the temperature control to "MIN" after use and remove the mains plug (the control lamp in the handle goes off).
• Remove the mains plug from the socket.
• Empty the water tank.
• Allow the device to cool down before you put it away.

Cable storage

Wind the mains cable around the cable groove at the foot of the stand. Secure the mains cable with the supplied cable clip. Place the mains plug into a loop of the mains cable to secure it.

Anti-scale filter

Your steam iron station is fitted with an anti-scale filter. The anti-scale filter cartridge becomes spent after filtering approximately 18 litres of water, depending on the hardness of your water. It then loses its effectiveness and must be replaced.

• Turn off the appliance.
• Disconnect the mains plug from the mains.
• Remove the water tank.
• Remove the anti-scale filter cartridge.
• Fill the tank up to the maximum mark. Do not overfill!
• Insert a new anti-scale filter cartridge.
• Before turning on the appliance, wait a few minutes until the new filter cartridge is saturated with water.

NOTE:

If you do not have a new anti-scale filter cartridge, you can still iron with the used cartridge and distilled water.

Cleaning

WARNING:

• Always remove the mains lead before cleaning!
- Wait until the machine has cooled down completely!
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Clean the casing with a slightly damp cloth.
• Clean the sole plate and the rest with a slightly damp cloth.
• Any residual water can remain in the water tank, but should be poured out if it has been in the tank for a prolonged period.

Troubleshooting

Fault Possible Cause Remedy
Device does not work	Faulty mains socket Try another socket
Loud noises during steam operation	The tank is empty Check the tank
The device suddenly stops working during operation	Is the electric circuit overloaded?	Check the house fuse
No steam is escaping	Adjusting the temperature regulator to less than “● ●”, prevents steaming.	Adjust the temperature regulator to higher than “● ●”.
	The limescale filter cartridge is not inserted (correctly), has dried out, or is new.	Fully insert the limescale filter cartridge and push the tank back into the base. It may take a moment until the limescale filter cartridge has completely been saturated with water.
The pump is not pumping despite the water tank having been refilled.	You pumped the water tank empty so that air was sucked in, and so that an air bubble formed in the feed line.	Hold the steam iron approx. 30 to 40 cm deeper than the base station and then press the steam button for a few seconds.

Technical Data

Model: DBS 778 CB

Power supply: 220-240 V\~, 50/60 Hz

Power consumption: 2000-2400 W

Protection class:

Maximum filling quantity of the water tank: 1.7 litres

Net weight: 3.3 kg

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obsługi

CTC Clatronic Sp. z o.o.
