EH0312 - Air purifier Prem-I-Air - Free user manual and instructions

Product Type	HEPA Air Purifier
Brand	Prem-I-Air
Model	EH0312
Power Supply	230 V, 50 Hz, 40 W
Airflow Rate	High: 3 m/s, Medium: 2 m/s, Low: 1 m/s
Coverage Area	20 m²
Air Cleaning Rate	> 90 %
Anion Concentration	> 1.5 x 10^6 ions/cm³
Main Functions	Purification, ionization, fragrance diffusion
Filters	Pre-filter, HEPA filter, activated carbon filter, TiO2 photocatalyst filter
Number of Speeds	3 (High, Medium, Low)
Timer	2 h, 4 h, 8 h
Remote Control	Yes, with AAA batteries (not included)
Display	Digital display
Operating Temperature	-10 °C to +55 °C
Maximum Humidity	95 %
Maintenance	Clean pre-filter every 2 months, replace filters every 6 to 12 months
Filter Change Indicator	Visual: HEPA filter changes from white to gray
Power Consumption	40 W
Operating Cost	Approximately €0.12 per day (based on €0.14/kWh)
Warranty	2 years
Safety	Indoor use only, stable surface, do not cover
Accessories	Fragrance compartment (optional)

Frequently Asked Questions - EH0312 Prem-I-Air

How to turn on the device?

Press the POWER button. By default, the speed is set to medium.

How to change the fan speed?

Use the SPEED selector to choose between low, medium and high.

How to set the timer?

Press the TIMER button to select 2 h, 4 h or 8 h of operation.

How to activate the ionizer?

Press the ION button to activate or deactivate the ionizer function.

How to use the fragrance function?

Open the fragrance compartment (optional), insert a cartridge and close. The device can operate without fragrance.

How often should the filters be cleaned?

The pre-filter should be cleaned with water every 2 months. The other filters should be replaced every 6 to 12 months.

When to replace the HEPA filter?

Replace it when it changes from white to gray, typically every 6 to 12 months depending on usage.

Can the device be used in a bathroom?

No, do not use in a bathroom, shower stall or damp room. Indoor use only.

How to clean the device?

Turn off the device, wipe with a damp cloth and a drop of dish soap. Do not use solvents. Dust the grilles with a dry brush.

What to do if the power cord is damaged?

Have the cord replaced by a qualified electrician. Connections: brown to L, blue to N, green/yellow to E.

USER MANUAL EH0312 Prem-I-Air

PREM~I~AIR

EH0312

Air purifier

Exterior view of a modern air purifier with control panel and power indicator (no text or symbols on main body)

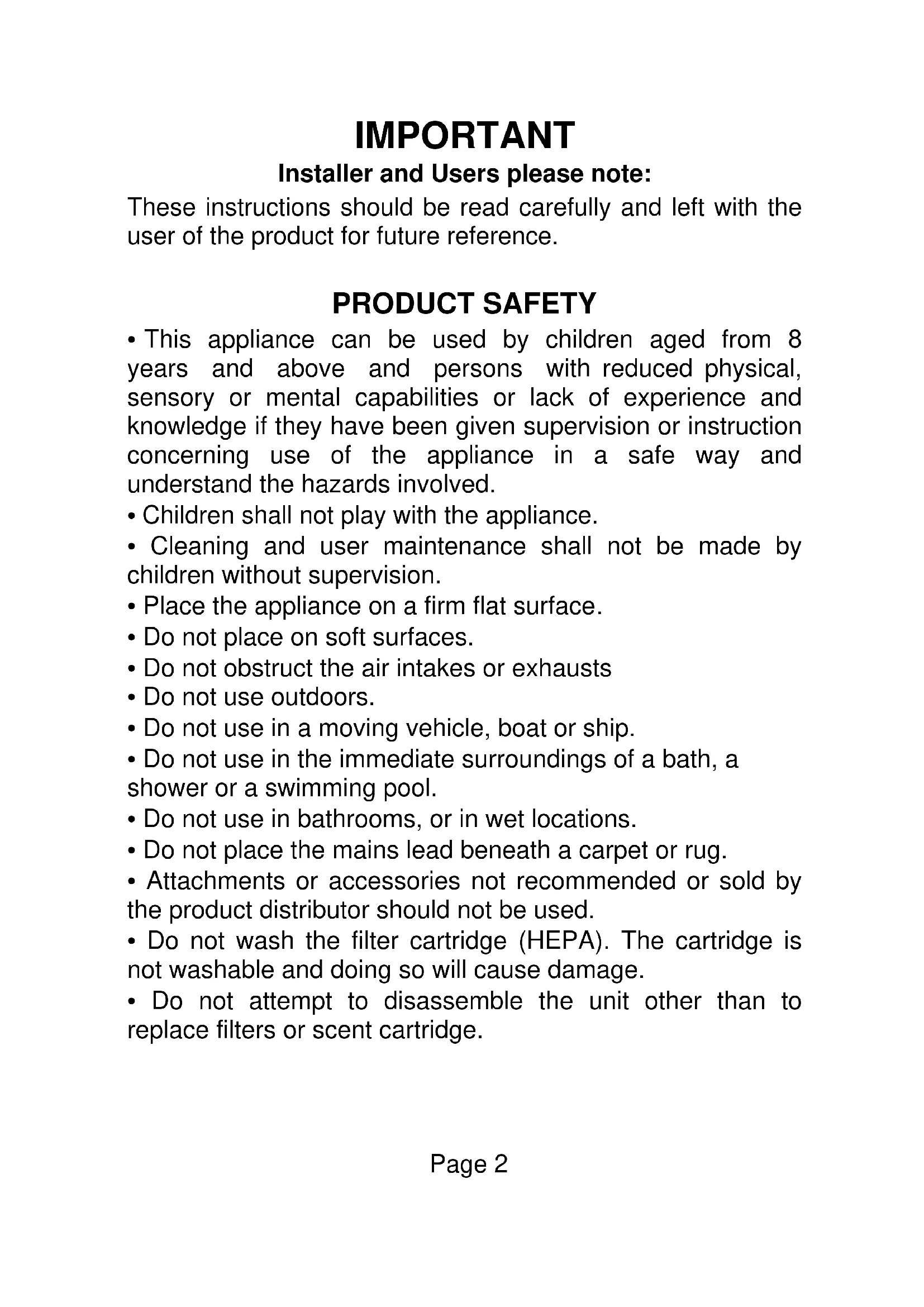

IMPORTANT

Installer and Users please note:

These instructions should be read carefully and left with the user of the product for future reference.

PRODUCT SAFETY

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- Place the appliance on a firm flat surface.

- Do not place on soft surfaces.

- Do not obstruct the air intakes or exhausts

- Do not use outdoors.

- Do not use in a moving vehicle, boat or ship.

- Do not use in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use in bathrooms, or in wet locations.

- Do not place the mains lead beneath a carpet or rug.

- Attachments or accessories not recommended or sold by the product distributor should not be used.

- Do not wash the filter cartridge (HEPA). The cartridge is not washable and doing so will cause damage.

- Do not attempt to disassemble the unit other than to replace filters or scent cartridge.

PAT TESTING

When used in an office environment, this product must be safety-tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations.

It is good practice that appliances are regularly PAT tested when used in a domestic environment.

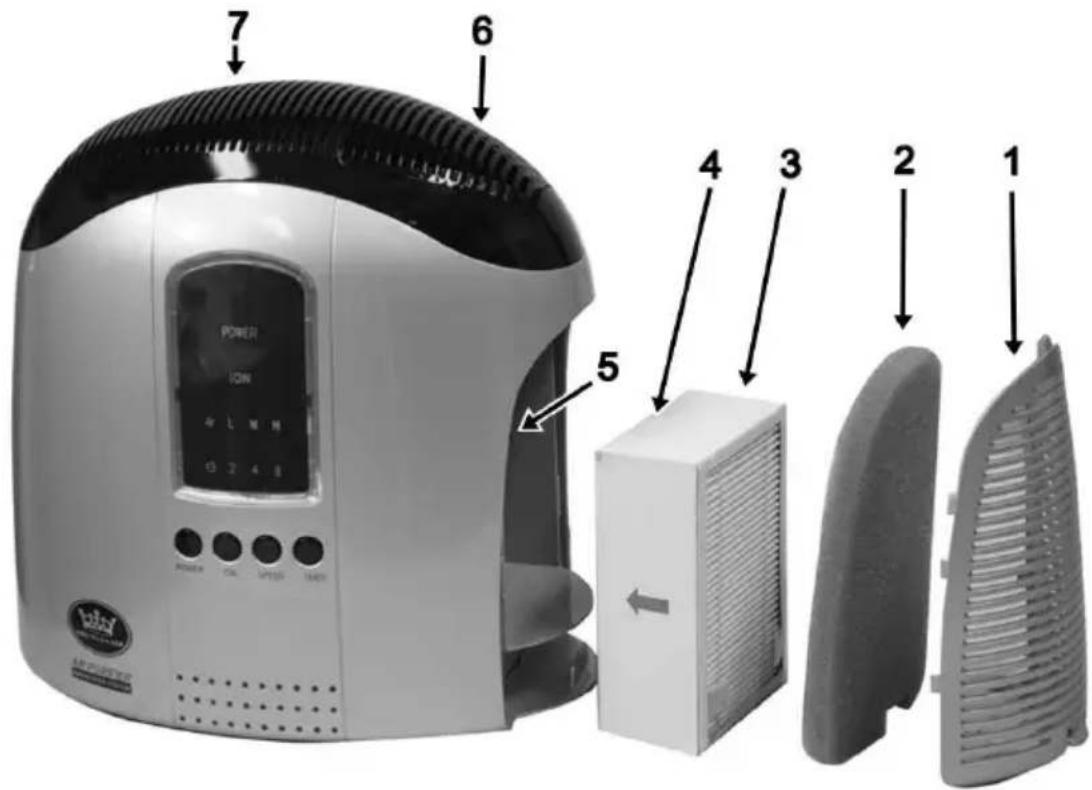

AIR CLEANING PROCEDURE

7 6 POWER ON 4 L M H 0 2 4 8 5 4 3 2 1 AUTO AUTO AUTO AUTO

1. Side grille: unfiltered air comes in through inlet.
2. Pre-filter: collects large-sized dust particles in air.
3. HEPA filter (white): stops small particles coming through with high-efficiency sterilizing and dust collection function.
4. Activated carbon filter (black): absorbs smoke and odours.
5. TiO _2 coated photocatalyst filter (grey): kill germs, bacteria and viruses.
6. Scent cover: scent comes from the outlet.
7. Upper cover: emits clean air from outlet.
   Note: HEPA means 'High Efficiency Particulate Air'.

OPERATION

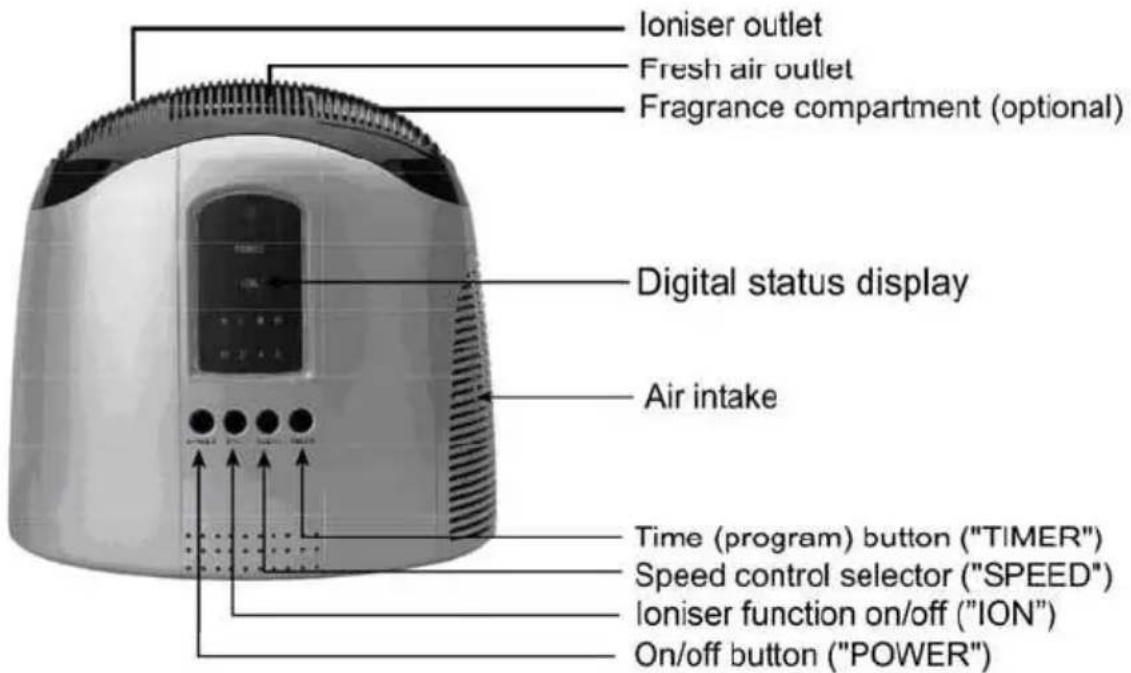

Ioniser outlet Fresh air outlet Fragrance compartment (optional) Digital status display Air intake Time (program) button ("TIMER") Speed control selector ("SPEED") Ioniser function on/off ("ION") On/off button ("POWER")

The EH0312 can be use as shown above, or lying on its back, whichever is most suitable for the application.

Plug the mains lead into a 13 Amp mains socket.

If connecting via an extension lead, make sure that the lead is rated at 3 Amps or more, and that it is fully unwound.

Switch the unit on at the mains socket.

The EH0312 has three functions: it can be used as an air purifier, ionizer and air fragrancer to improve the air quality in office or home.

Efficiently cleans the air: Using negative ion and multi-layer HEPA filters to collect dust, it can reduce indoor air pollution caused by pollen, suspended particles, hairs, germs, smoke, other odours and transportation of pollution.

Three-speed settings: set in high speed 'H' to clean room air rapidly, then turn to medium speed half an hour later to keep the air fresh and clean. Use extra quiet low speed at night.

There are 3 time setting modes and related indicator lights.

- Connect to power outlet and press POWER button. The default speed setting will be medium.

• Press the SPEED button to select low or high speed if required.
• Press the ION button to switch the ion generator on or off. The ION indicator will illuminate to indicate that the ion generator is operating.
• Press TIMER to select required run duration.

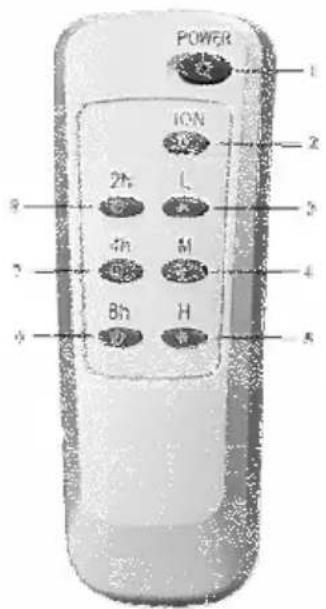

REMOTE CONTROL

POWER 1 ION 2 2h L 3 4h M 4 8h H 5

Each of the unit's function can be fully controlled via wireless remote control.

The function keys include:

1) Power
2) Ioniser on/off ("ION")
3) Low speed
4) Medium speed
5) High speed
6) 8 Hour time setting
7) 4 Hour time setting
8) 2 Hour time setting

Remote control requires two AAA batteries (not included).

Note: Batteries contain materials, which are hazardous to the environment; they must be removed from the appliance at the end of their life and disposed of safely.

GENERAL SAFETY REQUIREMENTS

Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at every change of occupancy. For office and retail premises, and buildings such as village halls, the wiring must be inspected at least once every 5 years.

It is recommended that all building be fitted with smoke alarms (it is mandatory for new buildings).

MAINTENANCE

Before cleaning, turn the appliance off, and disconnect from the mains supply. The appliance may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust or dirt from the case. Do no use stronger detergents or solvents as these may damage the paint finish.

• Using a dry 1" (25mm) paint-brush, remove any dust from the grilles and the ion outlet
• Remove cover (1) Clean the pre filter with water every 2 months to remove dirt and odour, replace when it is completely dry.
• Replace pre-filter and cover. Your filters will need replacing every 6-12 months, depending on the environment and frequency of use. On the filter there is a space for you to write the date you inserted into the unit.
• The HEPA filter will change from white to a dark grey when it needs to be replaced.

SCENT CARTRIDGE FITTING

Two grayscale images showing abstract shapes with no visible text or symbols

Press the scent cover (6) and insert the cartridge (after removing pull cover). Press again to close. The unit can be used without scent if preferred. Please note that for the small number of asthmatics who are sensitive to perfumes etc. they may have a similar reaction with the scent cartridge. These people should use the scent cartridge with caution.

REPLACEMENT FILTERS AND SCENT CARTRIDGES

These are available from our Help Desk on 0845 459 4816 If the mains lead is damaged, it must be replaced by the manufacturer or and authorised service centre. If the mains plug needs to be replaced, proceed as follows:

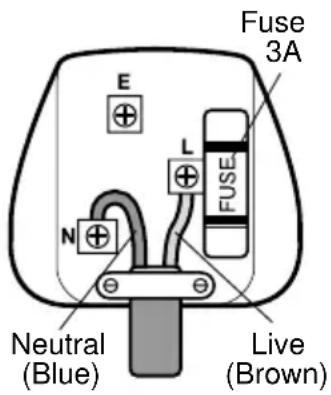

Fuse 3A E L FUSE N Neutral (Blue) Live (Brown)

• Connect the brown wire to the terminal labelled "L".
• Connect the blue wire to the terminal labelled "N".
• Make sure that the cord-grip is positioned correctly (over the outer sheath of the cable) and it fully tightened.

OPERATING COSTS

At time of going to press, the average cost of electricity is £0.12 per unit (kilowatt-hour). The amount you are being charged will be shown on your electricity bill.

At this cost, the EH0312 will cost 12p per day to run.

DISPOSAL AND RECYCLING

You must not dispose of this appliance with domestic household waste.

Most local authorities have specific collection system for appliances and disposal is free of charge to the end-user.

When replacing an existing appliance with a similar new appliance your retailer may take the old appliance for disposal.

TECHNICAL SPECIFICATION

Dimensions: 300 x 300 x 175 mm

Weight: 2.55 kg

Concentration of anions: >1.5 x10

^6 ions/cm ^3

Air cleaning rate: >90%

Air flow: H: 3 m/s

M: 2 m/s

L: 1 m/s

Input voltage: 230 V

Rated power: 40 W

Operating current: 0.17 A

Working Temperature -10°C - 55°C

Effective area: 20 m²

(depending on conditions)

SERVICE WARRANTY

Prem-i-Air guarantees the product free from defects in materials and workmanship for a period of twelve months.

Should this unit be operated under conditions other than those recommended, at voltages other than the voltage indicated on the unit, or any attempts made to service or modify the unit, then the warranty will be rendered void.

The product you buy may sometimes differ slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights.

If you have any problems with this product, please call our Help Desk on [phone].

Prem-i-Air Appliances Ltd.,

Lancots Lane,

Sutton Oak,

St. Helens,

Merseyside.

WA9 3EX

website: www.prem-i-air.com

IMPORTANT

On/off button = Bouton on/off ("POWER")

Two grayscale images of a person's head and shoulders, one with a hat and the other with a hat (no text or symbols visible)

Dimensions: 300x300x175 mm

Poids Net: 2,55kg

Poids Brut: 3,2kg
