EH1552 - Heating Prem-I-Air - Free user manual and instructions

Product Type	Electric Radiator
Brand	Prem-I-Air
Model	EH1552
Dimensions (wall-mounted)	543 x 402 x 119 mm
Dimensions (floor-standing)	543 x 450 x 238 mm
Weight	4.01 kg
Power Supply	230 V / 50 Hz
Operating Current	4.3 A
Power (approximate)	990 W
Operating Modes	Comfort, -1°C, -2°C, Economy, Frost Free, Program
Programmer	7 days, hourly time setting
Temperature Range	Adjustable Comfort mode, Frost free at 7°C
Overheat Protection	Yes, automatic shut-off in case of overheating
Key Lock	Yes, by pressing + and - simultaneously for 3 seconds
Installation	Wall or on casters (accessories provided)
Maintenance and Cleaning	Damp cloth with a drop of dish soap, dry brush of 25 mm for the grilles
Warranty	12 months against manufacturing defects
Usage	Indoor only, do not use in bathrooms, showers, or swimming pools

Frequently Asked Questions - EH1552 Prem-I-Air

How to install the radiator on the wall?

Remove the wall mounting bracket from the radiator by pressing the clips. Use the bracket as a template to drill four holes (the lowest at least 160 mm from the floor). Insert wall plugs and fix the bracket with the supplied screws. Align the rear raised areas of the radiator with the lower part of the bracket, then clip the radiator onto the top of the support.

How to use the 7-day programmer?

Press MODE until 'P' is displayed. Use + or - to select the day (1 to 7). Press P to set hour and minutes. Press P again: the first segment flashes (time slot 0-1h). Use MODE to choose the mode (comfort, -1, -2, eco, frost free), then + to move to the next slot. Once all 24h are programmed, press P to save and move to the next day. Repeat for all 7 days.

What to do if the device does not turn on?

Check that the power cord is plugged in and the socket works. If the display is off, the side switch must be in the 'I' position. If the display shows '[___]', the keypad is locked: press + and - simultaneously for 3 seconds to unlock.

How to clean the radiator?

Turn off and unplug the radiator before cleaning. Use a damp cloth with a drop of dish soap to remove dust and dirt. Do not use strong detergents or solvents. For the grilles, use a dry 25 mm brush.

What is the power consumption of the EH1552?

The operating current is 4.3 A at 230 V, giving a power of approximately 990 W. The operating cost at full power is about €0.13 per hour (based on an average rate of €0.13/kWh).

Can I use the radiator in a bathroom?

No, the radiator is designed for indoor use only and must not be placed in the immediate vicinity of a bathroom, shower, or swimming pool.

How to lock and unlock the keypad?

To lock the keypad, press the + and - keys simultaneously for 3 seconds. The display shows '[___]'. To unlock, repeat the same operation.

What to do in case of overheating?

The radiator has a protection that automatically turns it off. Let it cool for 20 minutes, then check that the air inlets and outlets are not obstructed. If the problem persists, contact a qualified repairer.

How to change the operating mode?

Press the MODE button several times until the desired mode symbol appears: sun for Comfort, -1, -2, moon for Economy, snowflake for Frost free, P for program. The temperature for Comfort mode is adjusted with the + and - buttons.

What is the warranty of the radiator?

Prem-I-Air guarantees this product against manufacturing or material defects for 12 months. The warranty is void in case of improper use or attempted repair. For any claim, contact your dealer.

USER MANUAL EH1552 Prem-I-Air

EH1550/EH1552/EH1554/EH1556

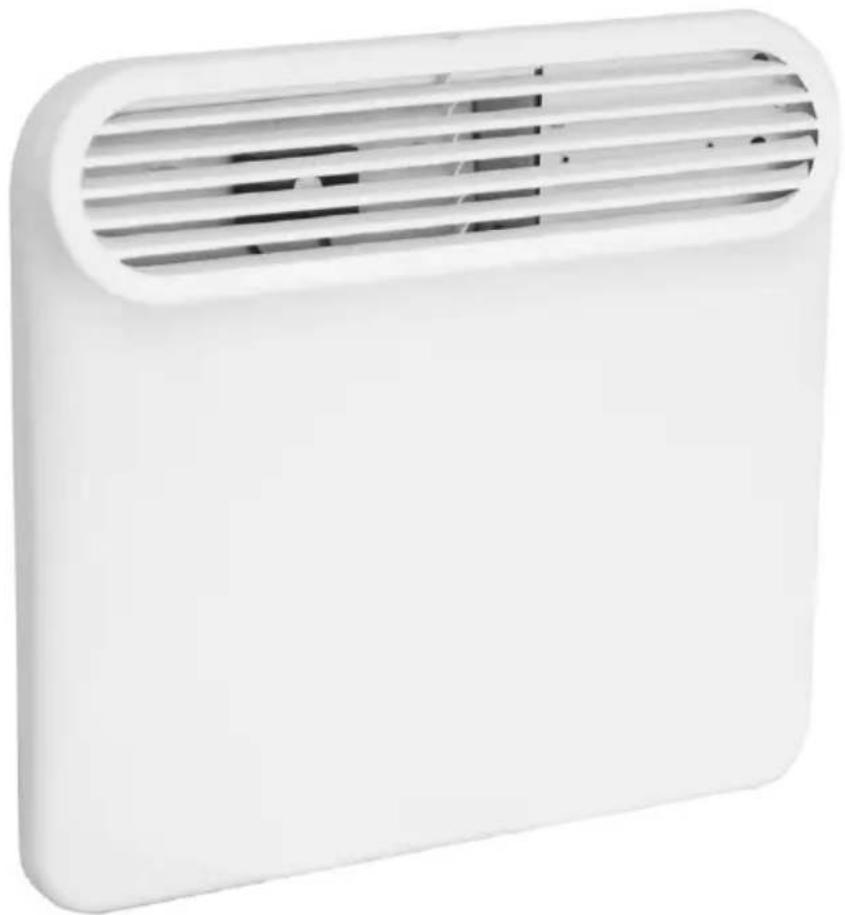

500 W / 1 kW / 1.5 kW / 2kW Programmable Panel Heater Chauffage Radiant Programmable

IMPORTANT

Installer and Users please note:

These instructions should be read carefully and left with the user of the product for future reference.

BEFORE USE

You must inspect the appliance including its cable and plug for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately.

INSTALLATION

For free-standing use: Attach the two castor-wheel brackets to the underneath of the heater using the eight M4x8 mm screws (four in each bracket). The longer side of the bracket goes at the back of the heater. Attach two castor-wheels to each bracket using the dome-nuts provided.

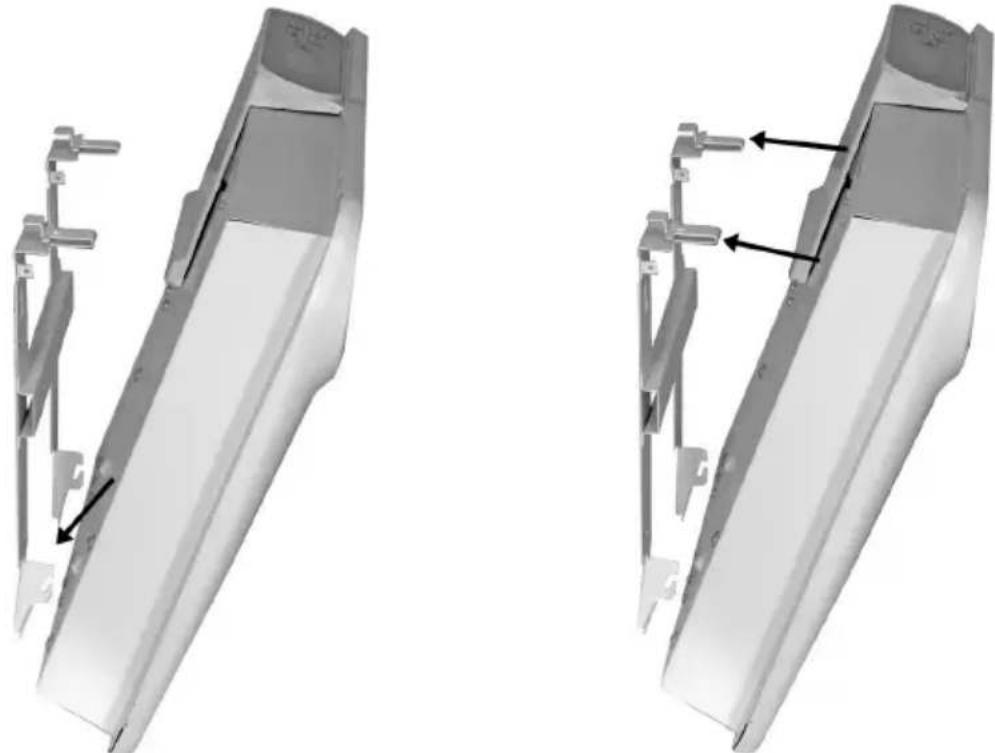

To wall-mount: Depress the two clips and remove the wall-mounting bracket from the heater. Using the bracket as a template, and using a spirit level to makes sure that the bracket is fitted level, drill four holes in the wall, the lower holes should be be at least 160mm above the floor. Insert a wall-plug into each hole. Fix the bracket to the wall with the four screws supplied. Align the two raised areas on the back of the heater with the lower part of the bracket, then clip the heater into the bracket at the top (see photo).

If correctly installed the heater will be firmly fixed at both top and bottom.

PAT TESTING

When used in a workplace, this product must be safety-tested yearly by a qualified electrician (PAT Tested) in order to comply with the Electricity at Work Regulations.

We recommend that it is PAT tested regularly when used in a domestic environment.

PRODUCT SAFETY

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Place the heater on a firm flat surface. Ensure that the air inlets (at the bottom) and the air outlets (at the top) are not obstructed.
• Ensure that curtains are at least 900mm (3') from the top of the heater
• Leave a gap of at least 50 mm( 2^ ) at the sides of the heater.
• If used free-standing, do not operate unless the feet are correctly attached.
• Do not place on soft surfaces.

• Do not cover. This symbol shown on the casing of the heater means that the heater should not be covered in order to avoid overheating.

• For indoor use only.

• Do not use in the immediate surroundings of a bath, a shower or a swimming pool. (refer to Section 701 of the 17^th Edition of the IEE Wiring Regulations)
• Do not place the mains lead beneath a carpet or rug.
• Do not use the heater in locations where paint, petrol or other flammable liquids are used or stored.
• Do not locate the appliance immediately below a socket outlet

GENERAL SAFETY REQUIREMENTS

Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at every change of occupancy.

For office and retail premises, and buildings such as village halls, the wiring must be inspected at least once every 5 years.

It is recommended that all buildings be fitted with smoke alarms (it is mandatory for new buildings)

OPERATING COSTS

At time of going to press, the average cost of electricity is £0.13 per unit (kilowat-hour). The amount you are being charged will be shown on your electricity bill.

At this cost, the running costs will be as follows:

EH1550 £0.07 per hour

EH1552 £0.13 per hour

EH1554 £0.21 per hour

EH1556 £0.26 per hour

These figures apply with the temperature programmed to its highest setting.

The running costs will be lower if programmed to a lower temperature, or if the ambient temperature is higher.

OPERATION

Plug the mains lead into a 13 Amp mains socket.

If connecting via an extension lead, make sure that the lead is rated at 13 Amps, and that it is fully unwound.

Switch the unit on at the mains socket, and at the switch on the side of the heater. The display will flash briefly, then will show the current room temperature, and the operating mode. There are six operating modes:

, -1, -2), ，and ±bP

The modes are as follows:

= comfort mode.

-1 = 1°C below comfort mode temperature

-2 = 2^ C below comfort mode temperature

= economy mode (31 / 2^ below comfort mode temperature)

= frost protection mode (keeps the temperature above 7^ )

P = program mode - the heater is controlled by a 7-day programmable timer, which can be programmed as detailed below.

To change mode press MODE repeatedly until the symbol for the required mode is displayed.

To set the operating temperature, press MODE repeatedly until is displayed, then press the + and - repeatedly until the required temperature for comfort modes is displayed. (The °C symbol on the display flashes whilst the operating temperature is being set, and appears constant when room temperature is being displayed)

Do not touch the case when the heater is in operation, because it will be hot. Unplug the heater from the mains when not in use.

PROGRAMMING THE TIMER

Press MODE repeatedly until P is displayed.

At the top left of the display, the numerals 1 to 7 are displayed, these correspond to the days of the week (Sunday to Saturday). In the lower half of the display, twenty-four symbols are displayed. These represent the operating mode of the heater for each hour of the day.

represents Comfort mode

represents 1^ below comfort mode

represents 2^ below comfort mode

represents Economy mode (31 / 2^ below comfort mode)

represents Frost protection mode.

Press the + or - keys until the symbol is above the correct day of the week.

Press P again, and the clock will be displayed, with the hours digits flashing. If the clock is not correct adjust the hours using the + and - buttons.

Press P again, and the clock will be displayed, with the minutes digits flashing. If the clock is not correct adjust the hours using the + and - buttons.

Press P again and the symbol will flash above the figure "1" indicating that the settings for the first day of the week are being programmed.

The first segment of the 24-segment display will be flashing, indicating the setting for the first hour (between midnight and 1 am) is being programmed.

Press the MODE button repeatedly until the required mode for this time period is shown, then press the + button to go on to the next hour period.

Repeat until all 24 hour periods have been programmed.

At any time it is possible to press the “-” button to return to the previous hour period.

Then press P to save the settings for the first day, and move on to the second day of the week. The symbol will flash above the figure "2".

Repeat until all seven days have been programmed.

When all seven days have been programmed, press P again and the heater will run the program that has been entered (P shown in the display).

The programming function can be locked to prevent tampering by pressing both the + and - keys together and holding down for 3 seconds.

The function can be unlocked to allow programming by pressing both the + and - keys together again and holding down for 3 seconds.

The display shows [_ ] to indicate that the panel is locked.

Do not touch the case when the heater is in operation, because it will be hot.

Unplug the heater from the mains when not in use.

MAINTENANCE

Before cleaning, turn the heater off, and disconnect from the mains supply. The heater may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust or dirt from the case. Do no use stronger detergents or solvents as these may damage the plastic.

If the mains lead is damaged, it must be replaced by the manufacturer or and authorised service centre.

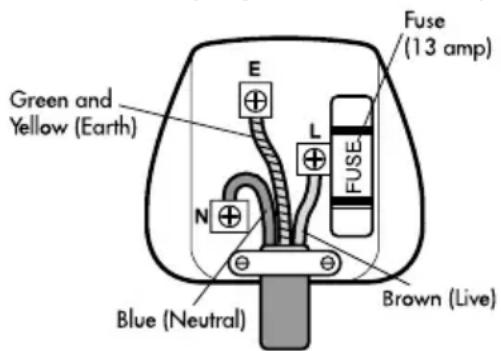

If the mains plug needs to be replaced, proceed as follows:

cable) and it fully tightened.

• Connect the brown wire to the terminal labelled "L".
• Connect the blue wire to the terminal labelled "N".
• Connect the green/yellow wire to the terminal labelled with the earth symbol or "E".
• Make sure that the cord-grip is positioned correctly (over the outer sheath of the

FAULT-FINDING

The heater has an overheat protection switch, which disconnects the power if the element gets too hot. The usual reason for this is because the air-flow has been obstructed. If the heater ceases to operate, leave it for 20 minutes to cool down, then check that the grilles are not being obstructed.

Switch back on, and check that the unit is operating normally. If not, contact an authorised service agent for repair.

If the keypad is unresponsive, and the display shows [ ] then the panel has been locked. Press + and - together and hold for 3 seconds to unlock it.

DISPOSAL AND RECYCLING

You must not dispose of this appliance with domestic household waste.

Most local authorities have specific collection system for appliances and disposal is free of charge to the end-user.

When replacing an existing appliance with a similar new appliance your retailer may take the old appliance for disposal.

TECHNICAL SPECIFICATION

Dimensions (wall mounting): EH1550 440x402x119 mm

EH1552 543x402x119 mm

EH1554 683x402x119 mm

EH1556 983x402x119 mm

Dimensions (floor standing): EH1550 440x450x238 mm

EH1552 543x450x238 mm

EH1554 683x450x238 mm

EH1556 983x450x238 mm

Weight: EH1550 3.2 kg

EH1552 4.01 kg

EH1554 4.85 kg

EH1556 6.5 kg

Power supply: 230 V AC

Power consumption: EH1550 500 W

EH1552 1kW

EH1554 1.5 kW

EH1556 2 kW

Operating current: EH1550 2.2 A

EH1552 4.3A

EH1554 6.5A

EH1556 8.7 A

SERVICE WARRANTY

• Prem-i-Air guarantees the product free from defects in materials and workmanship for a period of twelve months.
• Should this appliance be operated under conditions other than those recommended, at voltages other than the voltage indicated on the appliance, or any attempts made to service or modify the appliance, then the warranty will be rendered void.
• The product you buy may sometimes differ slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights.
• Our guarantee is administered by our retailers.
• If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer's contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Prem-i-air, only your retailer can arrange a replacement.
• If your product fails within the guarantee period, firstly read the "fault finding" section of this manual, because temperature and weather conditions can affect the performance of certain products. If the product needs to be repaired or replaced, you must contact the retailer from whom you bought it.
• The retailer's contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order.
• If you have just received your product and require technical help in using it, please call our Help Desk on [phone]
• If you have any other technical queires about the product, please call our Help Desk on [phone]

Prem-i-Air Appliances Ltd.,

Lancots Lane, Sutton, St. Helens, Merseyside.

WA93EX

website: www.prem-i-air.com
