LES6001F - Cooker Leonard - Free user manual and instructions

Product Type	Built-in hob
Brand	Leonard
Model	LES6001F
Heating Technology	Radiant
Number of Cooking Zones	4
Zone Diameters	Front left: 18 cm, Rear left: 14.5 cm, Front right: 14.5 cm, Rear right: 18 cm
Rated Power per Zone	Front left: 1800 W, Rear left: 1200 W, Front right: 1200 W, Rear right: 1800 W
Total Power	6.0 kW
Electrical Supply	220-240 V, 50-60 Hz
Energy Consumption (hob)	180.4 Wh/kg
Connection	Connector 1x14-pole orange (compatible with oven)
Child Safety	It is recommended to activate the safety device
Care and Cleaning	Clean with a soft cloth and non-abrasive detergent; special scraper for stubborn stains (plastic, sugar)
Spare Parts	Use only original spare parts
Repairability	Contact an authorized after-sales service
Origin	Made in Germany

Frequently Asked Questions - LES6001F Leonard

How to install the LES6001F hob?

Installation must be carried out by a qualified professional. Respect the minimum distances from other appliances and elements. Make sure the recessed surface is properly insulated and ventilation is adequate.

What to do if the hob does not turn on?

First check that the fuse has not tripped. If the problem persists, contact a qualified electrician. Do not attempt to repair it yourself.

How to properly clean the ceramic glass surface?

Use a soft cloth and non-abrasive detergent. For residues of plastic, sugar or aluminum, use a special scraper by tilting the blade. Never use a steam cleaner.

Is the hob suitable for children?

Yes, but it is recommended to activate the child safety device if available. Children under 8 years must be kept away during operation.

What utensils to use to avoid scratching the surface?

Use flat and smooth bottom utensils. Avoid cast iron, raw aluminum or rough bottoms. Always lift utensils to move them.

How to save energy with this hob?

Only heat the amount of water needed, cover utensils, use utensils appropriate to the zone size, and take advantage of residual heat to keep warm.

What to do in case of a crack on the ceramic glass surface?

Immediately turn off the appliance and unplug it to avoid any risk of electric shock. Contact an authorized after-sales service for replacement.

Can an external timer be used with this hob?

No, the appliance should not be used with an external timer or remote control system for safety reasons.

What is the total energy consumption?

The energy consumption of the hob is 180.4 Wh/kg according to standard EN 60350-2. Each zone has an individual consumption (e.g. front left 180.5 Wh/kg).

Where to find the rating plate and serial numbers?

The rating plate is located on the bottom of the hob. Note the serial number (PNC: 949 594 405 00) before installation for after-sales service.

USER MANUAL LES6001F Leonard

BESCHRIJVING VAN HET PRODUCT

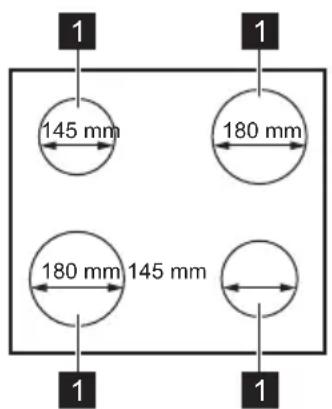

Indeling kookplaat

1 145 mm 180 mm 180 mm 145 mm 1 1

1 Kookzone

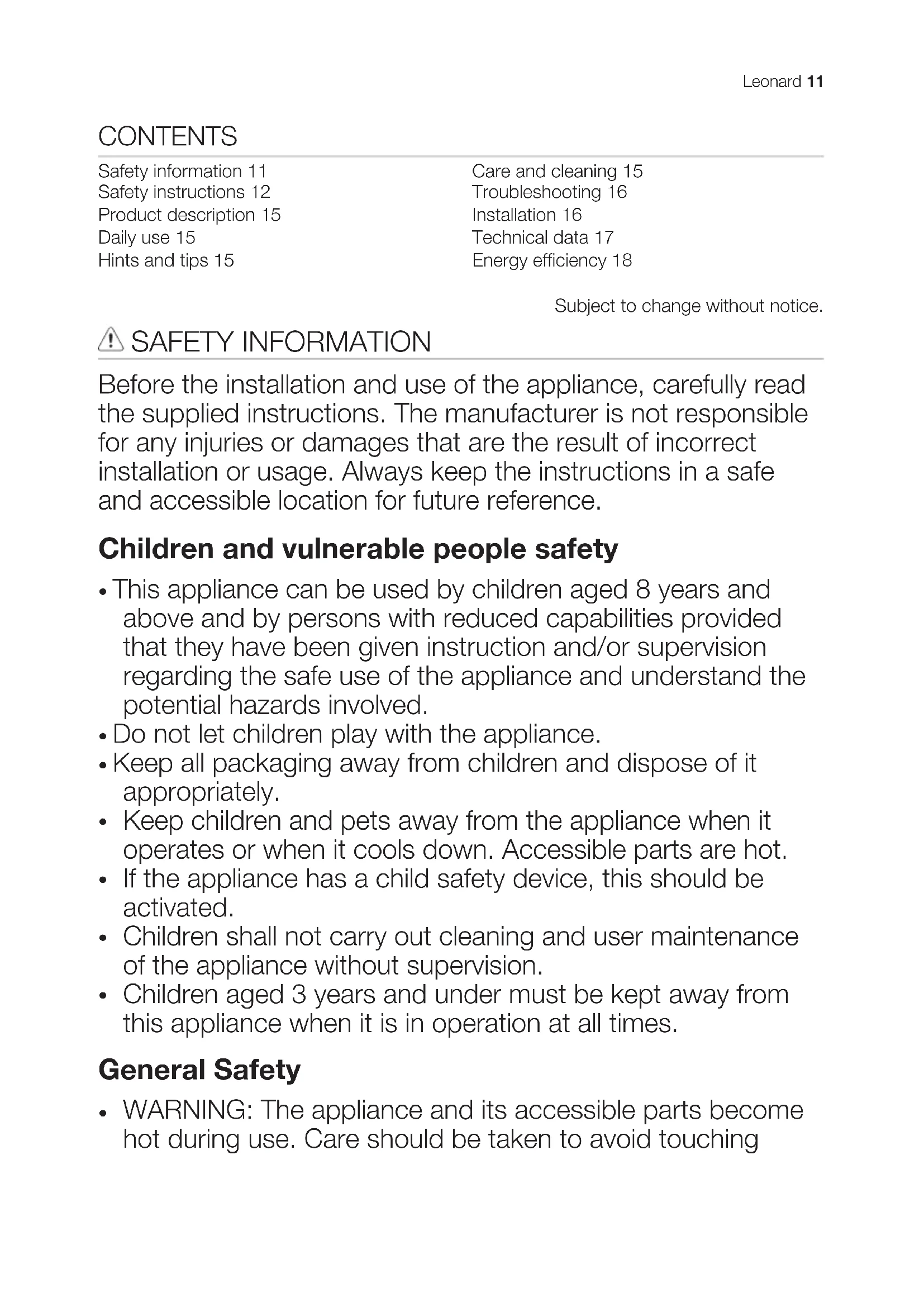

Safety instructions 12

Product description 15

Daily use 15

Hints and tips 15

Care and cleaning 15

Troubleshooting 16

Installation 16

Technical data 17

Energy efficiency 18

Subject to change without notice.

⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged 8 years and above and by persons with reduced capabilities provided that they have been given instruction and/or supervision regarding the safe use of the appliance and understand the potential hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, this should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away from this appliance when it is in operation at all times.

General Safety

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching

heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

• Do not operate the appliance by means of an external timer or separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Danger of fire: Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use a steam cleaner to clean the appliance.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

- Remove all the packaging.

• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the appliance.

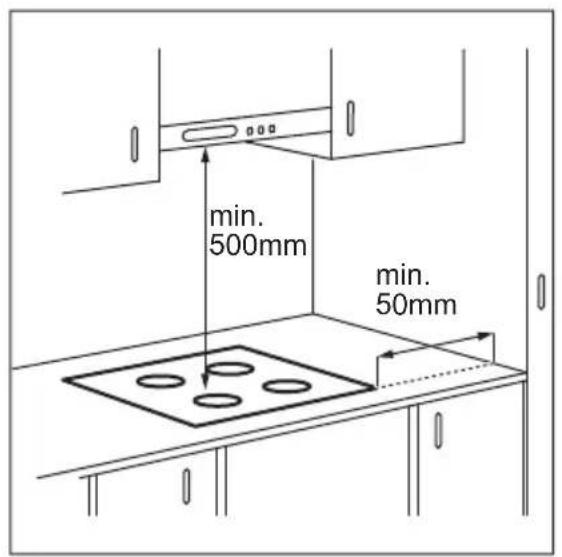

• Keep the minimum distance from the other appliances and units.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.
• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot. Make sure to install a non-combustible separation panel under the appliance to prevent access to the bottom.

Electrical Connection

WARNING! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Before connecting the hob to an oven and before every wiring make sure the main terminals of both appliances are not live.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.

• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

WARNING! Risk of injury, burns and electrical shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to “off” after each use.

• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• When you place food into hot oil, it may splash.

WARNING! Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.

• Do not put aluminium foil on the appliance.

• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Care and cleaning

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Deactivate the appliance and let it cool down before you clean it.
• Disconnect the appliance from the electrical supply before maintenance.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

PRODUCT DESCRIPTION

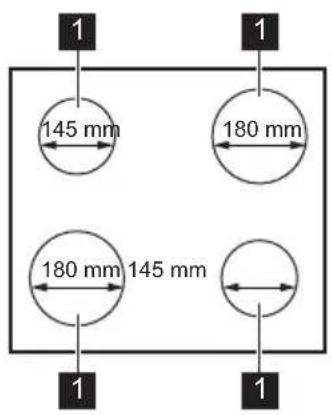

Cooking surface layout

1 145 mm 180 mm 180 mm 145 mm 1 1

1 Cooking zone

WARNING! There is a risk of burns from residual heat.

DAILY USE

WARNING! Refer to Safety chapters.

Operating the hob

You operate the hob with the knobs of the oven. The "Daily use" chapter for the oven tells how to operate the hob.

HINTS AND TIPS

WARNING! Refer to Safety chapters.

Cookware made of enamelled steel and with aluminium or copper bottoms can cause the colour change on the glass-ceramic surface.

Cookware

The bottom of the cookware must be as thick and flat as possible.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

• Scratches or dark stains on the surface have no effect on how the hob operates.
- Use a special cleaner applicable for the surface of the hob.
- Use a special scraper for the glass.

General information

• Clean the hob after each use.
  • Always use cookware with clean bottom.

Cleaning the hob

• Remove immediately: melted plastic, plastic foil, sugar and food with sugar. If not, the dirt can cause damage to the hob. Take care to avoid burns. Put the special scraper on the glass surface at an acute angle and move the blade on the surface.
• Remove when the hob is sufficiently cool: limescale rings, water rings, fat

TROUBLESHOOTING

stains, shiny metallic discoloration. Clean the hob with a moist cloth and non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.

- Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a moist cloth.

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Remedy
You cannot activate or operate the hob.	The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.

If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Make sure, you operated the hob correctly. If not the

INSTALLATION

servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

WARNING! Refer to Safety chapters.

Hob and oven connection type

This appliance has an orange 1x14 pole connector and can be connected to an oven with an orange 1x14 pole connector.

Before the installation

Before you install the hob, write down the information bellow from the rating plate.

The rating plate is on the bottom of the hob.

Serial number ....

Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

Assembly

Cooking zones specification

Cooking zone	Nominal Power (Max heat setting) [W]	Cooking zone diameter [mm]
Left front 1800 180
Left rear 1200 145
Right front 1200 145
Right rear 1800 180

For optimal cooking results use cookware not larger than the diameter of the cooking zone.

ENERGY EFFICIENCY

Product information according to EU 66/2014

Model identification LES6001F
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Radiant Heater
Diameter of circular cooking zones (∅)	Left front	18.0 cm
	Left rear	14.5 cm
	Right front	14.5 cm
	Right rear	18.0 cm
Energy consumption per cooking zone (EC electric cooking)	Left front	180.5 Wh / kg
	Left rear	182.6 Wh / kg
	Right front	182.6 Wh / kg
	Right rear	175.8 Wh / kg
Energy consumption of the hob (EC electric hob)	180.4 Wh / kg

EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance

Energy saving

You can save energy during everyday cooking if you follow below hints.

• When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.

• Before you activate the cooking zone put the cookware on it.

• The cookware bottom should have the same diameter as the cooking zone.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

ENVIRONMENT CONCERNS

Please recycle all materials marked with the symbol ♦ Dispose of all packaging materials appropriately and help to protect the environment, and future generations. Do not dispose of electrical equipment marked with the ⚡ symbol along with the general house hold waste. Dispose all electrical goods via applicable local authority collections, or at local authority or, commercial recycling centres.
