USER MANUAL LES6060F Leonard

BESCHRIJVING VAN HET PRODUCT

Indeling kookplaat

1 Kookzone
2 Restwarmte-indicatie

Restwarmte-indicatie

Safety instructions 12

Product description 14

Daily use 15

Hints and tips 15

Care and cleaning 15

Troubleshooting 16

Installation 16

Technical information 17

Energy efficiency 18

Subject to change without notice.

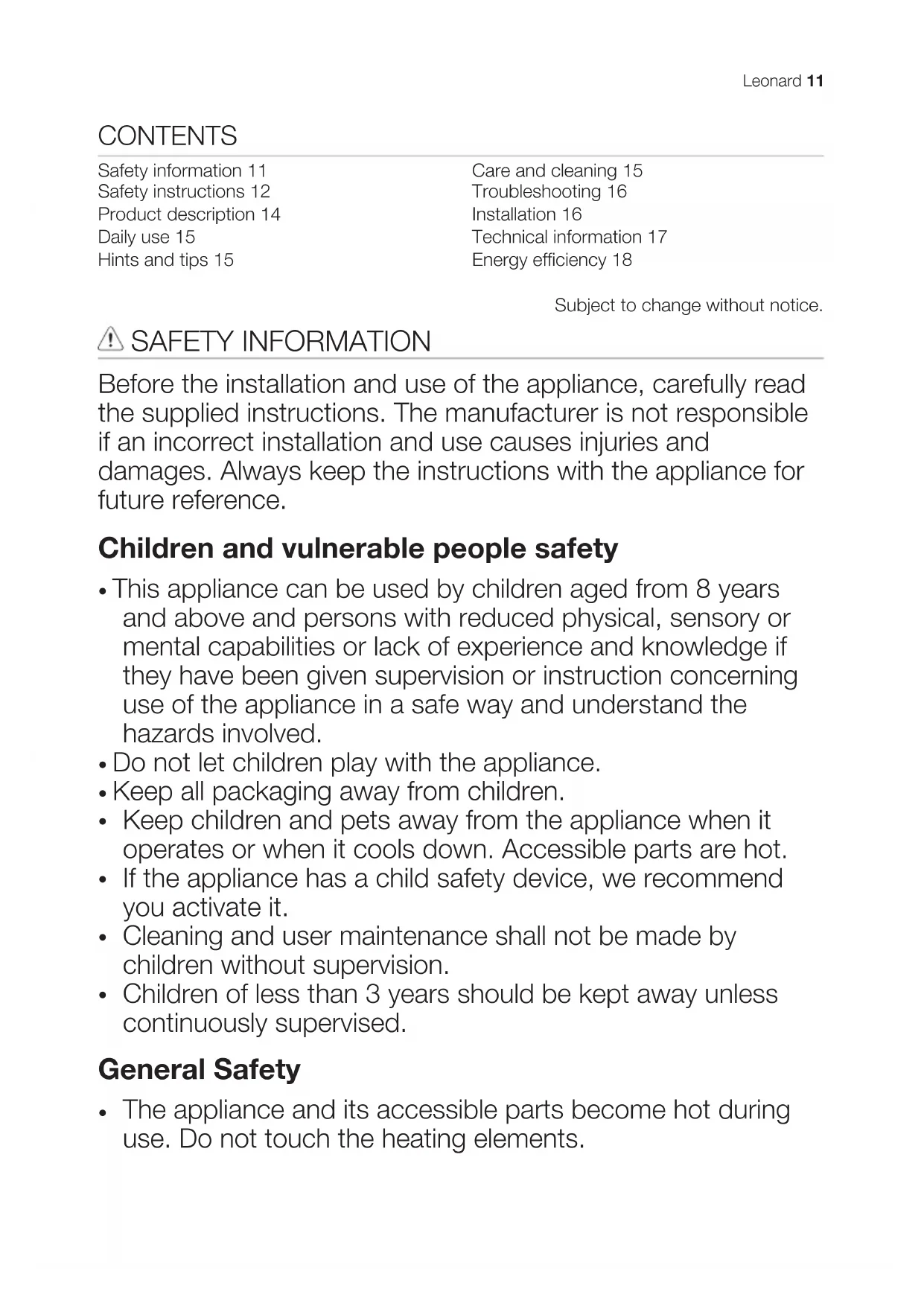

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.

General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.

• Do not operate the appliance by means of an external timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use a steam cleaner to clean the appliance.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Keep the minimum distance from the other appliances and units.
  Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.

• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.

• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.

• The bottom of the appliance can get hot. Make sure to install a non-combustile separation panel under the appliance to prevent access to the bottom.

Electrical Connection

WARNING! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Before connecting the hob to an oven and before every wiring make sure the main terminals of both appliances are not live.
• Make sure that the electrical information on the rating plate agrees with the

power supply. If not, contact an electrician.

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

WARNING! Risk of injury, burns and electrical shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.
  Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• When you place food into hot oil, it may splash.

WARNING! Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.

• Do not let cookware to boil dry.

• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Care and cleaning

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Deactivate the appliance and let it cool down before you clean it.
• Disconnect the appliance from the electrical supply before maintenance.

PRODUCT DESCRIPTION

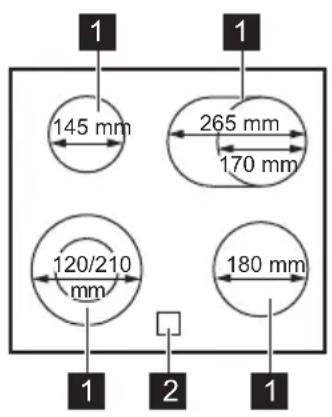

Cooking surface layout

Residual heat indicator

WARNING! There is a risk of burns from residual heat.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

Service

To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

1 Cooking zone
2 Residual heat indicator

The indicator comes on when a cooking zone is hot.

DAILYUSE

WARNING! Refer to Safety chapters.

Operating the hob

You operate the hob with the knobs of the oven. The "Daily use" chapter for the oven tells how to operate the hob.

Activating and deactivating the outer rings

You can adjust the surface you cook to the dimension of the cookware.

HINTS AND TIPS

WARNING! Refer to Safety chapters.

Cookware

The bottom of the cookware must be as thick and flat as possible.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General information

• Clean the hob after each use.
• Always use cookware with clean bottom.
• Scratches or dark stains on the surface have no effect on how the hob operates.
• Use a special cleaner applicable for the surface of the hob.
• Use a special scraper for the glass.

Cleaning the hob

• Remove immediately: melted plastic, plastic foil, and food with sugar. If not,

Use sensor field:

To activate the outer ring: touch the sensor field. The indicator comes on.

To deactivate the outer ring: touch the sensor field until the indicator goes out.

Cookware made of enamelled steel and with aluminium or copper bottoms can cause the colour change on the glass-ceramic surface.

the dirt can cause damage to the hob. Put the special scraper on the glass surface at an acute angle and move the blade on the surface.

• Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and some detergent. After cleaning, rub the hob dry with a soft cloth.

WARNING! Refer to Safety

chapters.

What to do if...

Problem Possible cause Remedy
You cannot activate or operate the hob.	The fuse is released. Make sure that the fuse is the cause of the malfunction. If the fuse releases again and again, contact a qualified electrician.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time.	If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.
There is a dark area on the multiple zone.	It is normal that there is a dark area on the multiple zone.

If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error

message that comes on. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

INSTALLATION

WARNING! Refer to Safety

chapters.

Before the installation

Before you install the hob, write down the information bellow from the rating plate. The rating plate is on the bottom of the hob.

Serial number

Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

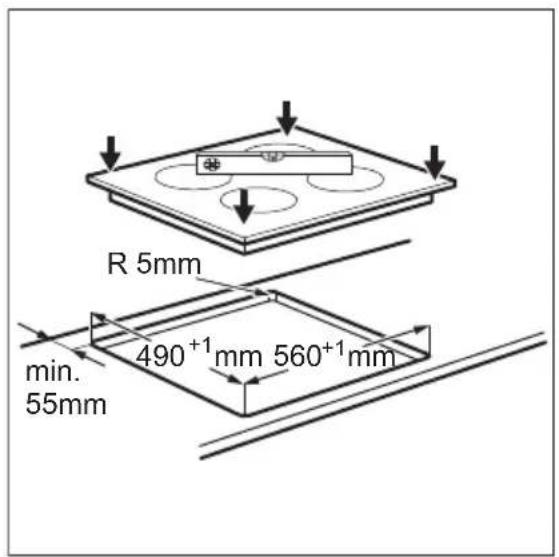

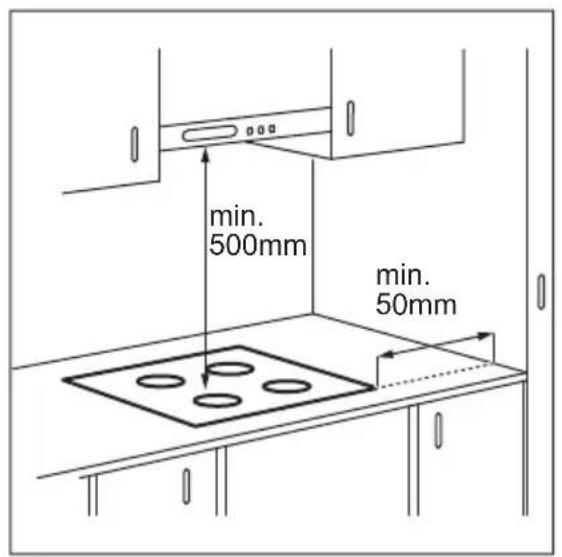

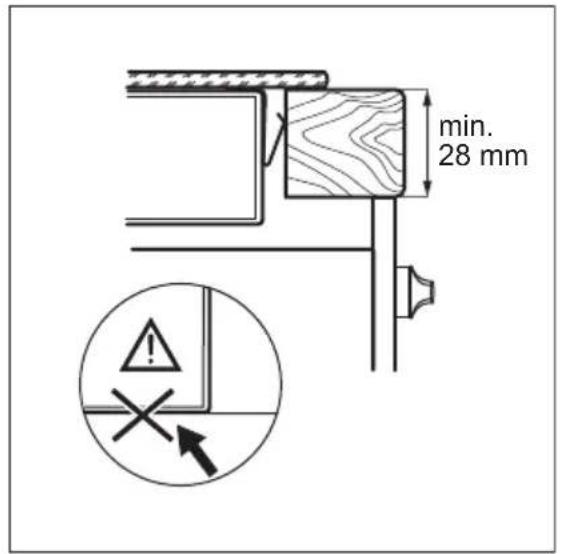

Assembly

TECHNICAL INFORMATION

Rating plate

Modell LES6060F PNC 949 594 291 00

Typ 58 AAD 65 ZO 220 - 240 V 50 - 60 Hz

Made in Germany

Ser.Nr. 7.6 kW

LEONARD

Cooking zones specification

Cooking zone	Nominal Power (Max heat setting) [W]	Cooking zone diameter [mm]
Left front 750 / 2200 120 / 210
Cooking zone	Nominal Power (Max heat set-ting) [W]	Cooking zone diameter [mm]
Left rear 1200 145
Right front 1800 180
Right rear 1500 / 2400 170 / 265

For optimal cooking results use cookware not larger than the diameter of the cooking zone.

ENERGY EFFICIENCY

Product information according to EU 66/2014

Model identification LES6060F
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Radiant Heat-er
Diameter of circular cooking zones (Ø) Left front		21.0 cm
	Left rear	14.5 cm
	Right front	18.0 cm
Lenght (L) and width (W) of non circular cooking zone	Right rear L 17.0 cm	W 26.5 cm
Energy consumption per cooking zone (EC electric cooking)	Left front	188.8 Wh / kg
	Left rear	182.6 Wh / kg
	Right front	180.5 Wh / kg
	Right rear	180.2 Wh / kg
Energy consumption of the hob (EC electric hob) 183.0 Wh / kg

EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance

Energy saving

You can save energy during everyday cooking if you follow below hints.

• When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.

• Before you activate the cooking zone put the cookware on it.

• The cookware bottom should have the same diameter as the cooking zone.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not

dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
