USER MANUAL SD1300.1 PHOENIX GOLD

• High Eciency Class D Topology

• Compact Size for Easy Installation

• High and Low Pass Crossovers

• Robust Unregulated Power Supply

• Surface Mount Component Technology

• Direct Insert Power and Speaker Terminals

• Audio Precision Quality Control Verication

• High Temperature Plexiglass cover

• Remote subwoofer level control included

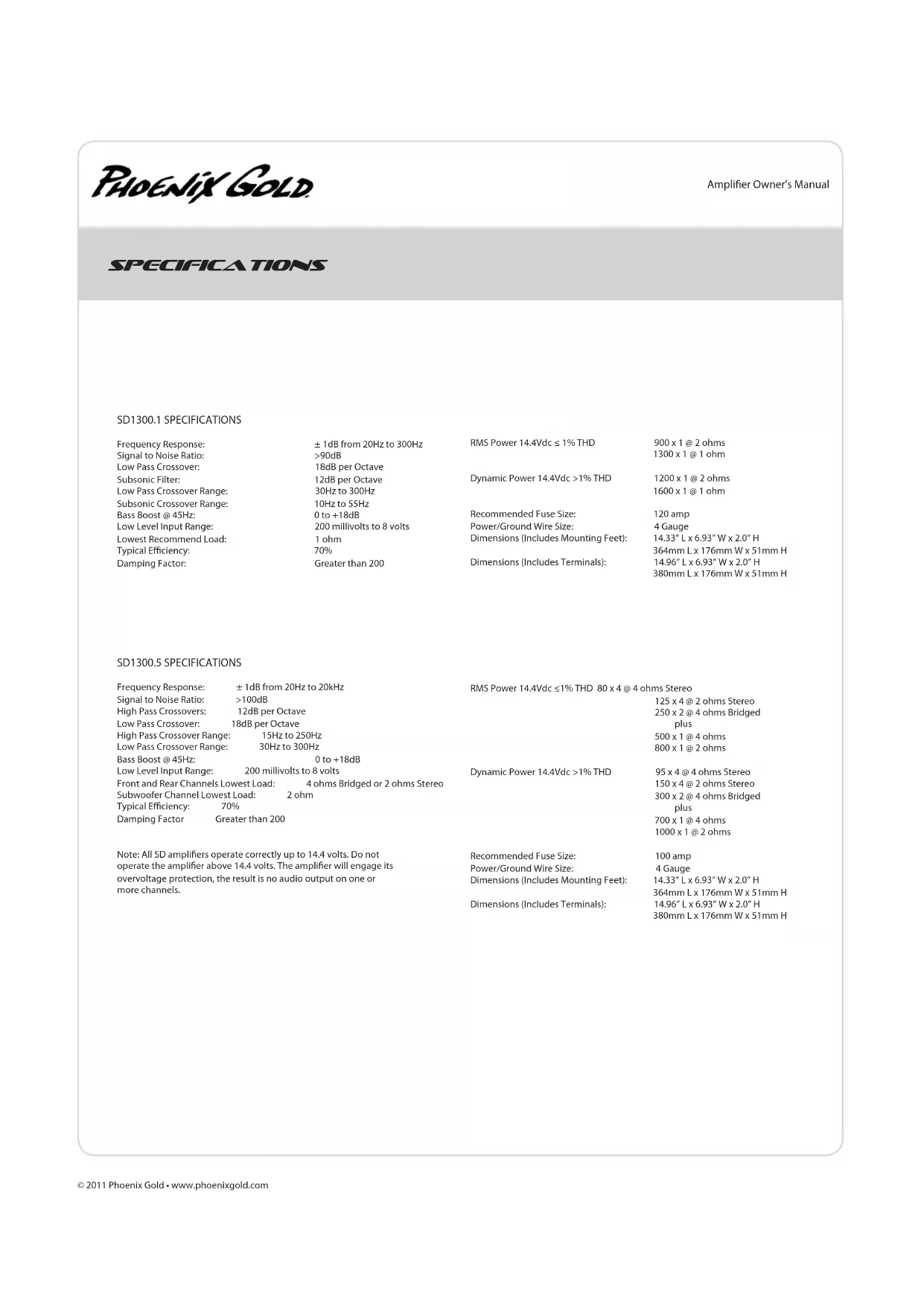

• Niveau de contrôle de passe-bas inclusAmplier Owner’s Manual © 2011 Phoenix Gold • www.phoenixgold.com Specifications SD1300.5 SPECIFICATIONS Frequency Response: ± 1dB from 20Hz to 20kHz Signal to Noise Ratio: >100dB High Pass Crossovers: 12dB per Octave Low Pass Crossover: 18dB per Octave High Pass Crossover Range: 15Hz to 250Hz Low Pass Crossover Range: 30Hz to 300Hz Bass Boost @ 45Hz: 0 to +18dB Low Level Input Range: 200 millivolts to 8 volts Front and Rear Channels Lowest Load: 4 ohms Bridged or 2 ohms Stereo Subwoofer Channel Lowest Load: 2 ohm Typical Eciency: 70% Damping Factor Greater than 200 Note: All SD ampliers operate correctly up to 14.4 volts. Do not operate the amplier above 14.4 volts. The amplier will engage its overvoltage protection, the result is no audio output on one or more channels. RMS Power 14.4Vdc ≤1% THD 80 x 4 @ 4 ohms Stereo 125 x 4 @ 2 ohms Stereo 250 x 2 @ 4 ohms Bridged plus 500 x 1 @ 4 ohms 800 x 1 @ 2 ohms Dynamic Power 14.4Vdc >1% THD 95 x 4 @ 4 ohms Stereo 150 x 4 @ 2 ohms Stereo 300 x 2 @ 4 ohms Bridged plus 700 x 1 @ 4 ohms 1000 x 1 @ 2 ohms Recommended Fuse Size: 100 amp Power/Ground Wire Size: 4 Gauge Dimensions (Includes Mounting Feet): 14.33” L x 6.93” W x 2.0” H 364mm L x 176mm W x 51mm H Dimensions (Includes Terminals): 14.96” L x 6.93” W x 2.0” H 380mm L x 176mm W x 51mm H SD1300.1 SPECIFICATIONS Frequency Response: ± 1dB from 20Hz to 300Hz Signal to Noise Ratio: >90dB Low Pass Crossover: 18dB per Octave Subsonic Filter: 12dB per Octave Low Pass Crossover Range: 30Hz to 300Hz Subsonic Crossover Range: 10Hz to 55Hz Bass Boost @ 45Hz: 0 to +18dB Low Level Input Range: 200 millivolts to 8 volts Lowest Recommend Load: 1 ohm Typical Eciency: 70% Damping Factor: Greater than 200 RMS Power 14.4Vdc ≤ 1% THD 900 x 1 @ 2 ohms 1300 x 1 @ 1 ohm Dynamic Power 14.4Vdc >1% THD 1200 x 1 @ 2 ohms 1600 x 1 @ 1 ohm Recommended Fuse Size: 120 amp Power/Ground Wire Size: 4 Gauge Dimensions (Includes Mounting Feet): 14.33” L x 6.93” W x 2.0” H 364mm L x 176mm W x 51mm H Dimensions (Includes Terminals): 14.96” L x 6.93” W x 2.0” H 380mm L x 176mm W x 51mm H© 2011 Phoenix Gold • www.phoenixgold.com Amplier Owner’s Manual RMS Power 14.4Vdc ≤1% THD 80 x 4 @ 4 ohms Stereo 125 x 4 @ 2 ohms Stereo 250 x 2 @ 4 ohms Bridged plus 500 x 1 @ 4 ohms 800 x 1 @ 2 ohms Dynamic Power 14.4Vdc >1% THD 95 x 4 @ 4 ohms Stereo 150 x 4 @ 2 ohms Stereo 300 x 2 @ 4 ohms Bridged plus 700 x 1 @ 4 ohms 1000 x 1 @ 2 ohms Recommended Fuse Size: 100 amp Power/Ground Wire Size: 4 Gauge Dimensions (Includes Mounting Feet): 14.33” L x 6.93” W x 2.0” H 364mm L x 176mm W x 51mm H Dimensions (Includes Terminals): 14.96” L x 6.93” W x 2.0” H 380mm L x 176mm W x 51mm H RMS Power 14.4Vdc ≤ 1% THD 900 x 1 @ 2 ohms 1300 x 1 @ 1 ohm Dynamic Power 14.4Vdc >1% THD 1200 x 1 @ 2 ohms 1600 x 1 @ 1 ohm Recommended Fuse Size: 120 amp Power/Ground Wire Size: 4 Gauge Dimensions (Includes Mounting Feet): 14.33” L x 6.93” W x 2.0” H 364mm L x 176mm W x 51mm H Dimensions (Includes Terminals): 14.96” L x 6.93” W x 2.0” H 380mm L x 176mm W x 51mm H INPUT Connect preamp signal cables from the head unit to these terminals. CROSSOVER FREQUENCY Controls the lowpass crossover point for the speaker outputs. BASS BOOST Variable bass boost from 0 to +18dB @ 45Hz.

REMOTE LEVEL CONTROL

This port is for connecting the subwoofer remote level control. This allows up to 20dB of volume adjustment. This is not a bass boost, it controls the level of the low pass signal. NOTE: This control is not compatible with the Phoenix Gold LPL44 level control. SENS Used to reach maximum amplier power with a wide variety of headunits.

SUBSONIC CROSSOVER FREQUENCY

Controls the highpass crossover point for the speaker outputs to eliminate extreme low frequencies. RMD Optional RMD Voltage Display plugs into this port. Sold separately. +12V This must be connected to the fused positive terminal (+12V) of the car’s battery. The fuse must be located within 18 inches of the battery. REMOTE This must be connected to switched +12V, usually a trigger wire coming from the head unit or ignition. GROUND This must be connected to the negative terminal of the car’s battery or bolted to a clean, unpainted part of the chassis of the vehicle. SPEAKER OUTPUTS Used to connect the amplier to speakers. SD1300.1 minimum impedance is 1 ohm. SD1300.1 Monoblock Power Amplifier NOTE: Visible through the plexiglass cover, a single blue power LED is located in the lower corner of all SD ampliers.

FLSUB.SUB. INPUT RRRLFRFL SUB INPUT

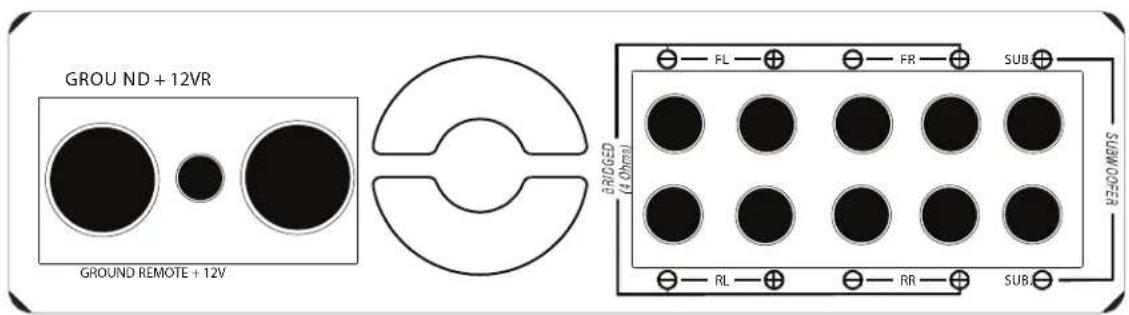

RMDAmplier Owner’s Manual © 2011 Phoenix Gold • www.phoenixgold.com +12V This must be connected to the fused positive terminal (+12V) of the car’s battery. The fuse must be located within 18 inches of the battery. REMOTE This must be connected to switched +12V, usually a trigger wire coming from the head unit or ignition. GROUND This must be connected to the negative terminal of the car’s battery or bolted to a clean, unpainted part of the chassis of the vehicle. SPEAKER OUTPUTS Used to connect the amplier to speakers. Front and Rear Channel minimum impedance is 4 ohms bridged or 2 ohms stereo. Subwoofer channel minimum impedance is 2 ohms. Use Right + and Left - to bridge the front or rear channels, the subwoofer channel is not bridgeable.

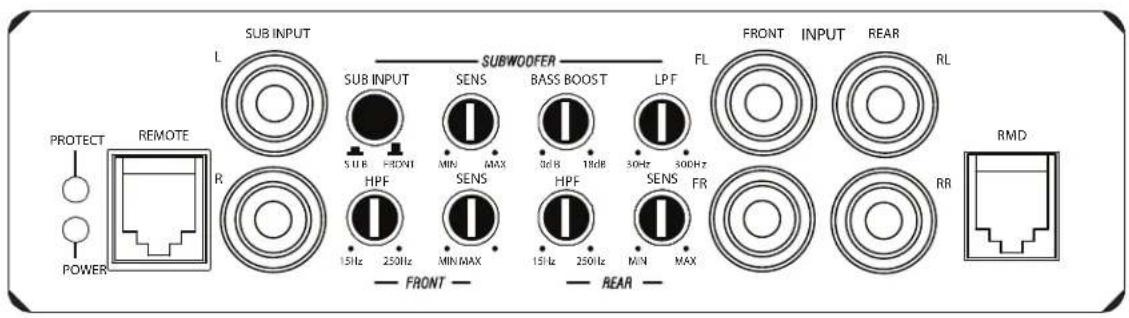

FRONT, REAR AND SUB INPUTS

Connect preamp signal cables from headunit to these inputs. The front AND rear inputs must be used, if only the front input is used then the rear speaker outputs will have no output signal. The Sub Input may or may not be used see SUB INPUT SWITCH for more information.

HPF AND LPF CROSSOVER FREQUENCY

Controls the crossover point for the speaker outputs.

REMOTE LEVEL CONTROL

This port is for connecting the subwoofer remote level control. This allows up to 20dB of volume adjustment. This is not a bass boost, it controls the level of the subwoofer channel only. NOTE: This control is not compatible with the Phoenix Gold LPL44 level control. BASS BOOST Variable bass boost from 0 to +18dB @ 45Hz for the subwoofer channel only. SENS Used to reach maximum amplier power with a wide variety of headunits.

IN: Subwoofer speaker output is fed by the sub Input. If the headunit or processor has a subwoofer low level output use this setting. OUT: Subwoofer speaker output is fed by the front input and the sub Input is not used. If the headunit or processor only has front and rear low level outputs use this setting. RMD Optional RMD Voltage Display plugs into this port. Sold separately. SD1300.5 5 Channel Power Amplifier NOTE: Visible through the plexiglass cover, a single blue power LED is located in the lower corner of all SD ampliers.

1. Install all system fuses.

2. Set the amplier’s input sensitivity controls to their minimum positions

(full counterclockwise).

3. Set all amplier crossover switches according to your system’s design.

4. Make preliminary adjustments to the crossover frequency, usually 80Hz

is good starting point for high and low pass. It may be necessary to ne tune the crossover frequency later for the best overall sound quality.

6. Turn the headunit on with the volume set to minimum.

7. Visually check the amplier’s has turned on by the power LED.

8. Check the condition of all other components to make sure they are

9. Set the headunit’s tone controls, balance, and fader to the center (at)

position. Turn o any loudness or other signal processing features.

10. Set the volume control of the headunit for maximum undistorted output

(on most headunits this will be approximately 7/8 of maximum volume). Use a very clear and dynamic recording.

11. Turn up the sensitivity or input level control on the amplier until the

speakers reach maximum undistorted output.

12. Repeat sensitivity level adjustments for all other ampliers.

13. Reduce the headunit’s volume to a comfortable level.

14. Listen to various musical selections to check overall system balance.

Compare front to rear, midbass to midrange, etc. If one speaker set is too loud compared to another, then its level must be lowered to blend correctly with the other speakers. Note: For subwoofers controlled by the Remote level control, keep the level setting from step 11 or 12. Use the control to blend subwoofers with the rest of the system. The correct subwoofer volume will change depending on road noise and dierences in recordings.

15. Fine tune crossover frequencies to achieve the smoothest possible

blending of each speaker set.

16. Adjust the Bass Equalization Controls on the amplier, headunit or

processor upstream if necessary to increase output. Note: Use these controls sparingly. Every 3dB of boost requires double the power at 45Hz. If your subwoofer system requires a lot of boost to sound good, there may be a problem. Look for out-of-phase woofers, a leaking subwoofer box, or incorrect box size.

17. With all levels set correctly, the system will reach overall maximum

undistorted output at the volume level set in step 10. OVERVOLTAGE WARNING - If the voltage is above 14.4V across the +12V and ground terminal this will cause the amplier to go into protection mode. The result is no audio ouput from one or more channels. Voltage must be between 11.5V to 14.4V for the amplier to operate correctly. No power: Check voltage at the amplier with a DMM (volt meter), +12v and R (with head unit on) the voltage should register between 11.5V and 14.4V when using the attached ground lead of the amplier. Check fuse at amplier and at the battery. Use a meter to verify connection from one end of the fuse to the other, breaks may not always be visible. If the fuse is blown, check the power wire and also the amplier for a short. If the short is in the amplier itself, see your Phoenix Gold dealer. If no short is present, replace the fuse. Power without sound: Turn the amplier o and check all input and output signal cables and power connections. Check the speakers for shorts with a DMM (volt meter) or by connecting them to another audio source. After making sure everything is correct, turn the amplier on again. Power without sound and the PROTECT LED is lit: The red PROTECT LED lights when the amplier shuts down for either thermal or over-current protection. A high internal amplier operating temperature will trigger thermal shutdown: after it cools about 5°C, the amplier will restart. A shorted speaker lead or operation into unusually low impedance loads will trigger over-current shutdown: cycle power at the amplier R terminal to restore operation. Check for shorted speaker wiring or damaged speakers or crossover systems if over-current shutdown occurs. No sound from one or more channels: Check for overvoltage on +12V and ground terminals. Check the balance control in the head unit. Check speaker connections. Check signal input connection. Very low output: Check your head unit’s fader control or the amplier’s input sensitivity level. Make sure subsonic frequency control is not set too high and LP frequency control is not set too low at the same time. Frequent amplier shutdown with automatic recovery: This indicates chronic amplier thermal shutdown because of operation at consistently high internal temperatures. High operating temperature can be caused by inadequate ventilation. Make sure you are not running a lower than recommend impedance. Also check for damaged speakers or passive crossover systems. Finally, chronic thermal shutdown may result from otherwise normal operation of the amplier at elevated output power levels, which can be resolved by providing additional amplier cooling, installing a higher-power amplier, or reducing amplier output level. “Motor Boating” - the power indicator going o repeatedly when the audio system is on: Check the amplier’s connection to the battery. Check battery voltage. If low, recharge or replace the battery. Check all ground connections.Manuel de l’amplicateur © 2011 Phoenix Gold • www.phoenixgold.com Spécifications Puissance Power 14.4Vdc ≤1% THD 80 x 4 @ 4 ohm Stereo 125 x 4 @ 2 ohm Stereo 250 x 2 @ 4 ohm Bridged

SUB. SUB. INPUT RRRLFRFL SUB INPUT

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modication or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty. INTERNATIONAL WARRANTIES: Products purchased outside the United States of America are covered only by that country’s Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country’s reseller for information.
