| Product Type | Subwoofer |
| Brand | Paradigm |
| Model | Monitor SUB 12 |
| Driver | 305 mm (12 in) mineral-filled polypropylene, Santoprene® surround, 50 mm 4-layer copper-clad aluminum voice coil, dual Nomex spider, 6.5 lb ferrite magnet |
| Built-in Amplifier | Class-D, 900 watts dynamic peak / 300 watts RMS sustained |
| Low Frequency Extension | 16 Hz (DIN) |
| Crossover Frequency | Variable 50 Hz to 150 Hz |
| Phase Alignment | Variable 0° to 180° |
| Line Level Inputs | Two RCA (L/R Mono) for line output L/R or Sub-Out/LFE-Out |
| USB Port | For connection to Perfect Bass Kit (PBK) and firmware updates |
| Wireless Mode | Optional with PT-2 transmitter (sold separately), range 15 m, adjustable latency 15-25 ms, up to 4 subwoofers |
| Power Supply | Mains, consumption < 1 W standby |
| Dimensions (H x W x D) | 38.5 cm x 33.0 cm x 36.8 cm (15-1/8 in x 13 in x 14-1/2 in) |
| Weight (unpacked) | 18.6 kg (41 lb) |
| Finish | Black Ash |
| Grille | Removable |
| Main Functions | Auto power on/off, standby after 20 min, thermal protection, soft clipping |
| Care and Cleaning | Clean with a soft damp cloth, avoid abrasive detergents, do not wet the device |
| Safety | Polarized plug, do not expose to water, refer servicing to qualified personnel |
| Warranty | 3 years against defects in materials and workmanship |
| Optional Accessories | PT-2 Wireless Transmitter, Perfect Bass Kit (PBK) |
Frequently Asked Questions - Monitor SUB 12 Paradigm
User questions about Monitor SUB 12 Paradigm
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Subwoofer in PDF format for free! Find your manual Monitor SUB 12 - Paradigm and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Monitor SUB 12 by Paradigm.
USER MANUAL Monitor SUB 12 Paradigm
Thank you for choosing Paradigm® subwoofoers and congratulations! You are about to hear the difference these high-performance subwoofoers will make in your music and home theater system.
These subwoofoers are the product of countless hours of comprehensive research and development and will reward you with superior high-end sound for many years.
To achieve all of the exceptional sound they are capable of providing requires care in installation and operation. Please take the time to read this manual and follow all instructions. If you have further questions, contact your Authorized Paradigm® Dealer or visit the Q&A page on our website at www.paradigm.com.
TABLE OF CONTENTS
Important
Safety Precautions 2
Important
Safety Instructions 3
Subwoofer Placement
and Connection (Pictorial). 4
Your New Subwoofer 5
Power Requirements. 5
Room Acoustics 5
Wireless Operation 5
Subwoofer Placement. 6
Subwoofer Connection 7
Fine Tuning. 9
Technical Specifications 10
Limited Warranty 11
IMPORTANT OPERATING INFORMATION READ BEFORE OPERATING YOUR NEW SUBWOOFER
INITIAL OPERATION
The LED on the subwoofer's front panel will only turn on when it senses a signal. In wireless operation, once the PT-2 transmitter is plugged in and in search mode, synching with the subwoofer occurs within 60 seconds. When the subwoofer senses the wireless signal from the PT-2 its LED automatically turns on.
PRODUCT CONSUMES LESS THAN I WAT IN STANDBY.
Your subwoofer is equipped with an advanced power saving mode. After about 20 minutes with no input signal the sub will enter a low-power (i.e. standby) state, at which time the blue LED on the front panel will turn off. When an input signal is received, the subwoofer will automatically turn on again and the LED will glow blue. The LED will only begin flashing if the subwoofer is intentionally re-synced with a PT-2 Wireless Transmitter or during the Paradigm Perfect Bass Kit (PBK) optimization procedure.
This device contains FCC ID: YZY-HT205 and IC ID: 9261A-HT205. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications of this product, not approved by the manufacturer, may void the user's authority, to operate the equipment.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
RECYCLING AND REUSE GUIDELINES FOR EUROPE
In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which, upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Paradigm Electronics Inc. (manufacturers of Paradigm® speakers and Anthem® Electronics) has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you. To find your local distributor please contact the dealer from whom you purchased this product or go to our website at www.paradigm.com.
Please note that the product only falls under the WEEE directive. When disposing of packaging and other s hipping material we encourage you to recycle through the normal channels.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowpoint within an equilateral triangle warns of the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle warns users of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE, AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE THE FUSE ONLY WITH THE SAME AMPERAGE AND VOLTAGE TYPE. REFER REPLACEMENT TO QUALIFIED SERVICE PERSONNEL.
WARNING: UNIT MAY BECOME HOT. ALWAYS PROVIDE ADEQUATE VENTILATION TO ALLOW FOR COOLING. DO NOT PLACE NEAR A HEAT SOURCE, OR IN SPACES THAT CAN RESTRICT VENTILATION.
IMPORTANT SAFETY INSTRUCTIONS
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with dry a cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
-
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination, to avoid injury from tip-over.
-
Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15.Use the mains plug to disconnect the apparatus from the mains or "TO COMPLETELY DISCONNECT THIS APPARATUS FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. - "WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC - SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE"
- "DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, ARE PLACED ON THE EQUIPMENT."
- "THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE."
SUBWOOFER PLACEMENT AND CONNECTION (Pictorial)
Fig. 1a
Fig. 1b
Fig. 2
Fig. 3
YOUR NEW SUBWOOFER
Break-In Although your Paradigm subwoofer will sound great "out of the carton" it will sound even better when broken in. Allow it to operate for several hours before you listen critically.
Cleaning
Do not use a strong or abrasive cleaner on your subwoofer. Clean it with a damp soft cloth, but do not get it wet. Do not place wet objects, such as drinking glasses or potted plants, on top of it. If allowed to soak in, even a small amount of water may permanently damage the enclosure.
POWER REQUIREMENTS
The "Watts" (W) rating indicated on the rear panel of your subwoofer is the typical AC power the unit will draw when producing its maximum power output. However, the actual
wattage draw will vary with the bass content of the program material.
ROOM ACOUSTICS
You are about to experience the powerful and extremely accurate deep bass performance of Paradigm subwooers. These subwooers offer incredible output with low distortion, exceptional extension and superb definition. It is important to note, however, that just as the amount of soft furnishings has a decided impact on mid and high frequencies, those frequencies below 150Hz are dramatically affected by the room itself—its size, shape, as well as the physical boundaries of the room. The extra care you take in correctly positioning your subwoofer(s) will result in greater listening enjoyment. Keep the following guidelines in mind when deciding on best subwoofer placement:
Concrete floors and walls tend to aggravate low-frequency standing wave problems and are less preferred.
- Rooms where height, width and length are similar should be avoided as they can exhibit significant low-frequency standing wave problems. This may result in reduced clarity. If no other room is possible, experiment with subwoofer placement to minimize acoustic problems.
NOTE: Even when the world's finest speakers are perfectly positioned, the room can still have a dramatic impact on performance. Paradigm's Perfect Bass Kit (PBK) sold separately is the solution. In less than five minutes problems of the room are a thing of the past. See the section on Connection for more details or contact your dealer to purchase the PBK.
WIRELESS OPERATION
Placement plays a major role in optimizing bass performance. However, it can impose the inconvenience not to mention the unsightliness of running long lengths of cable through walls, along baseboards and under floors and carpets. Listening rooms can become a rat's nest of wires! When you choose the wireless option, cable clutter becomes a thing of the past and actual system setup time is often drastically reduced. If you purchased the Paradigm PT-2 Transmitter to operate
your new sub wirelessly, follow the operating instructions that come with the product.
If you did not purchase the PT-2 but are interested in going wireless, see your dealer for more information.
TIP!
The PT-2 transmitter will work with up to four Monitor Series 7 subwoofer simultaneously.
SUBWOOFER PLACEMENT
To avoid personal injury, install subwoofer in a location where any rear amplifier parts such as panels and/or heatsinks, etc. cannot be accidentally touched.
Bass is less and less directional as it goes down in frequency. For best sonic integration, locating your subwoofer between your front speakers or beside one of them and close to the back wall will usually provide the best bass performance. If this location is not possible your subwoofer may be placed anywhere in the room without affecting the stereo image of your front speakers or the soundstage of your multichannel speaker system.
Fig. 1a and Fig. 1b, on page 4, highlight how bass output is generally affected by room placement. When seated in a typical listening area of your room, placing the subwoofer inside the "shaded" areas will typically result in bass performance as follows:

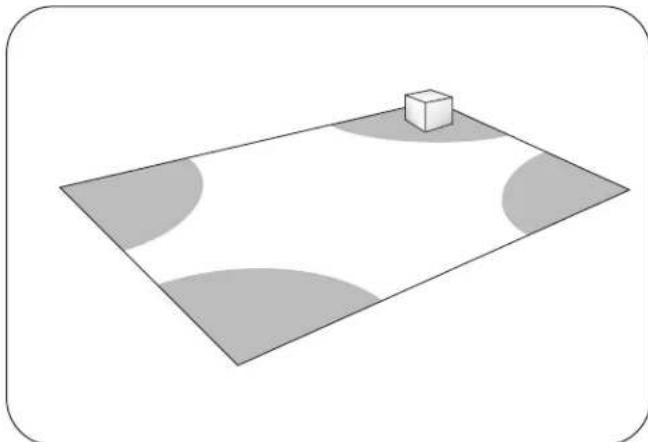

Fig. 1a: Corner placement provides the most bass, but sometimes at the expense of accuracy.

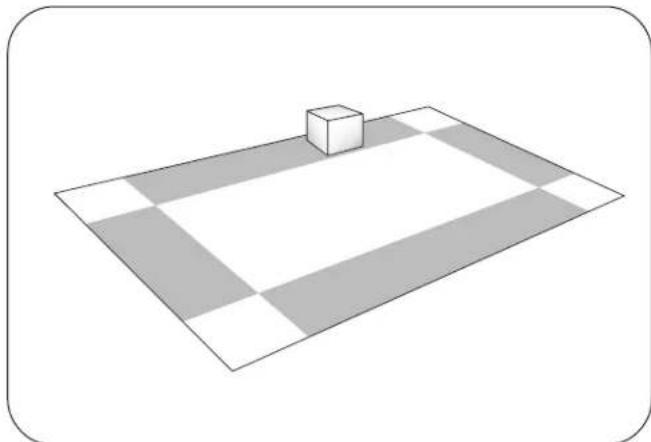

Fig. 1b: A subwoofer placed near a wall usually provides a good balance of quantity and accuracy.
Controls are provided to align your subwoofer's output to the other speakers in your system, see the section on "Fine Tuning."
The Advantages of Using Two Subwoofer
Although a single Paradigm subwoofer provides exceptional performance and substantial output, the quality (and quantity) of bass can be further improved with the use of two subwooers (Fig. 2). This allows you to randomize the standing waves within your listening room so that bass will be distributed in a more uniform manner. Two subwoofer also provide even lower distortion, especially at high output levels.
See Dealer for connection instructions using multiple subwoofoers.
For wireless operation of multiple subwoofoers, a PT-2 Transmitter (sold separately) may be used with up to four subwoofoers.

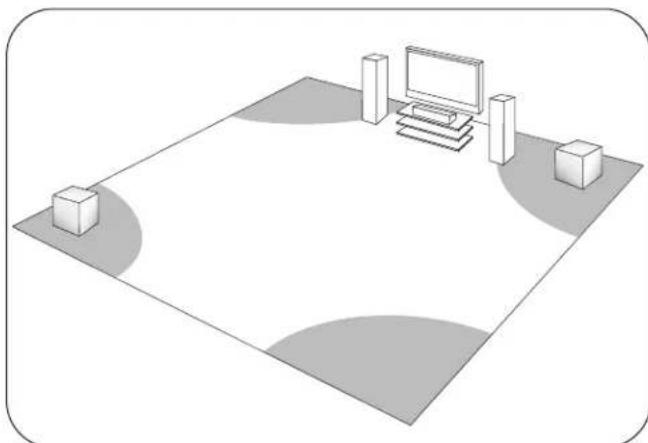

Placing two subwoofoers in your listening room
When using two subwoofoers, placing one in the front of the room and the other in the rear of the room (as shown in Fig. 2) usually provides the best bass performance and sonic integration. Consult the fine tuning section of the Owner's Manual for more information on adjusting phase settings. If those locations are not possible or if you want to experiment with placement options using two subwoofoers, the following procedure will be a helpful guide to achieving better bass performance. Refer to "Subwoofer Connection" then proceed as follows:
- Temporarily turn all speakers off (either by turning your amplifier off or disconnecting them);
-
Connect and place one subwoofer in the central area of your listening room. Follow directions for connection, as outlined in the following section;
-
At a moderately loud level, play music or a video soundtrack with extended bass that is repetitive or continuous;
- Walk around your room and note where the bass sounds louder and where it sounds quieter;
- Place the first subwoofer within a louder bass area of your room; then place the second subwoofer within a quieter bass area of your room;
- Connect both subwoofoers and switch all speakers back on; and switch the amplifier on, or reconnect it;
- Follow "Fine Tuning" instructions to optimize your system's overall bass performance.
NOTE: If you are not using the optional Paradigm Perfect Bass Kit (PBK) to find the best spot for your subwoofer, you may want to use a bass test disc and SPL meter to more accurately determine the bass characteristics of your listening room (ask your dealer for more information). Remember! Room acoustics vary so it will take some experimenting with placement to achieve best performance.
SUBWOOFER CONNECTION
SAFETY PRECAUTION: Before proceeding with this section be sure to read and follow all safety precaution and instruction notices at the beginning of this manual.
Turn all components OFF before connecting the subwoofer.
We recommend the use of high-quality cables and connectors when hooking up your subwoofer (see Dealer).
IF OPERATING YOUR SUBWOOFER WIRELESSLY, REFER TO THE OPERATING INSTRUCTIONS INCLUDED WITH YOUR PT-2 TRANSMITTER
INPUT FACILITIES
Line-Level
Allows connection from the Sub/LFE Output of an A/V receiver, processor, or other suitable low-level source.
CONTROL FACILITIES
Auto-On/Off/Standby
Automatic sensing feature inherent within the amplifier's design. No action on the user's part is required.
Subwoofer Level
Balances the subwoofer output level to your speakers.
For instructions on setting the Subwoofer Controls once your subwoofer has been connected refer to the section on "Fine Tuning".
Subwoofer Cut-Off Frequency
Controls the subwoofer's upper-frequency cut-off. This can be set to match the low-frequency roll-off characteristics of your front speakers. For example, if your front speakers play to approximately 80Hz , you can set the subwoofer cut-off frequency to approximately 80Hz .
Subwoofer/Satellite Phase Alignment
The sound from your subwoofer may arrive at the listening position out of phase with the front speakers. This control synchronizes the subwoofer and the front speakers through their frequency overlap region.
THE USB PORT
The USB port allows for:
- Connection of optional Paradigm Perfect Bass Kit (PBK™);
- Possible future upgrades to the software installed in your subwoofer.
PARADIGM PERFECT BASS KIT (PBK™)
Even when the world's finest speakers are perfectly positioned, the room can still have a dramatic impact on performance. Room dimensions, dead spots, archways, furniture placement and countless other factors can turn a room into an additional instrument, playing alongside musicians or movie scores with unwanted contributions of coloration and resonance.
Although the Control Facilities included on your Paradigm® subwoofer allow you to fine tune for optimal bass performance in your room, Paradigm's Perfect Bass Kit (PBK™) (sold separately, see Dealer) allows you to correct for the effects of your room's boundaries.

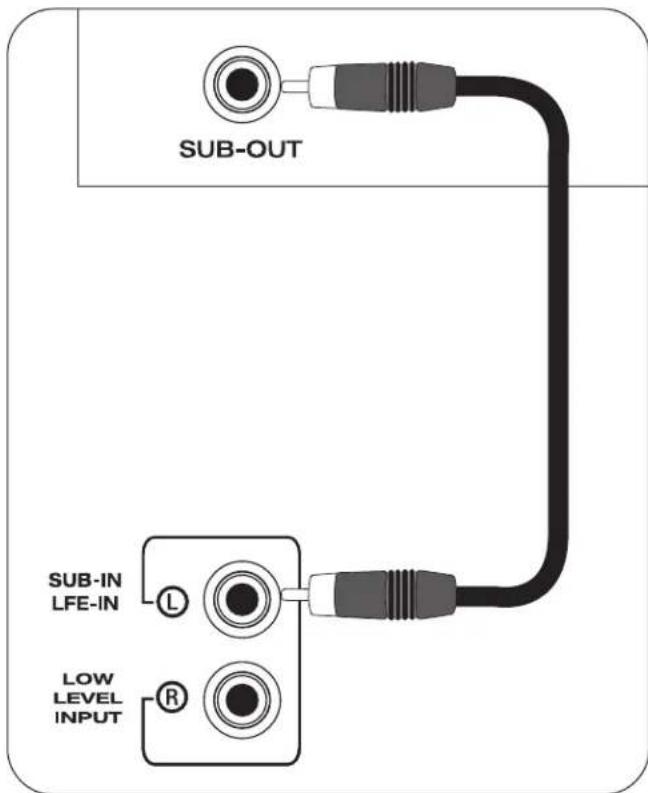

CONNECTION (Fig. 3)
Line-Level Input From Sub/LFE Output - For use with a receiver, processor or subwoofer control unit with a Sub-Out/ LFE-Out jack.
Using an RCA-to-RCA interconnect cable connect the subwoofer as shown.
(See Dealer if you require additional information.)
USING YOUR SUBWOOFER WITH HIGH-SENSITIVITY SPEAKERS
When the subwoofer is used with high-sensitivity speakers more volume gain may be required. You can obtain 6 dB
more gain by using a "Y" cable and plugging into both input jacks (not shown).
FINE TUNING
Once you have the rest of your speakers positioned in the room and have set speaker distances and calibrated speaker levels with your Processor or AV Receiver, it's time for a little fine tuning of the subwoofer(s).
Subwoofer Controls
When setting the subwoofer controls use music and video soundtracks that you know well. They should contain selections with extended bass that is continuous and repetitive. When you are adjusting your subwoofer,
remember: Bass should not be overbearing—the subwoofer should not draw attention to itself—but sound shouldn't be "thin" or difficult to hear. Certain subwoofer placement may result in bass frequency cancellations—this occurs when your front speakers and subwoofer are "out-of-phase", in other words, they work against each other through the crossover region. This will result in bass being reduced. If bass sounds weak or dislocated adjust the phase according to the instructions that apply to your subwoofer in the setup procedures that follow.
NOTE: When using receivers with Automatic Level and Crossover setting systems such as the Anthem Room Correction, refer to your receiver's Owners Manual for correct setup procedure, otherwise follow the instructions below.
SETTING SUBWOOFER CONTROLS
Set tone or equalizer controls on your receiver or preamplifier to flat (or 0^ ) and switch any loudness controls off.
- Turn the Subwoofer Level control completely counterclockwise to its minimum;
- Turn the Subwoofer Cut-Off Frequency control clockwise to its highest frequency (i.e. 150Hz
- Set the Phase Alignment Control to 0^
- While you listen to a bass music or video selection in your primary listening area, have an assistant turn up the Subwoofer Level control until the subwoofer can be clearly heard;
- Have an assistant try the Phase Alignment control until you hear the most bass. Your subwoofer and front speakers are now in phase. Do not change phase alignment again unless you move the subwoofer or the front speakers to a different location in the room or move or remove large items of furniture or room furnishings (i.e. carpet, draperies, etc.)
-
Turn the Subwoofer Level control completely counterclockwise to its minimum.
-
Turn the Subwoofer Cut-Off Frequency control completely counter-clockwise to its lowest frequency (i.e. 50Hz );
- Slowly rotate the Subwoofer Level control until you match the subwoofer output level with the level of your front speakers. Bass should be clearly audible, but not intrusive;
NOTE: If using an A/V receiver or processor to control crossover setting, skip the next step and set the subwoofer cut-ff frequency control to 'Bypass.'
- Slowly rotate the Subwoofer Cut-Off Frequency control until you hear the best subwoofer/main speaker blend. If the sound is too 'thin,' you have not set the frequency high enough; if the sound becomes 'boomy' you have set the frequency too high. Adjust until you find the most natural balance.
Technical Specifications
| SUB 8 | SUB 10 | SUB 12 | |
| Design | Single driver, acoustic suspension, built-in advanced Class-D amplifier, USB port for PBK equalization, removable grilles | Single driver, acoustic suspension, built-in advanced Class-D amplifier, USB port for PBK equalization, removable grilles | Single driver, acoustic suspension, built-in advanced Class-D amplifier, USB port for PBK equalization, removable grilles |
| Amplifier: High-Current, Discrete Output | 900 watts Dynamic Peak/300 watts RMS Sustained | 900 watts Dynamic Peak/300 watts RMS Sustained | 900 watts Dynamic Peak/300 watts RMS Sustained |
| Amplifier Design Features | Auto-On/off, soft clipping, thermal protection | Auto-On/off, soft clipping, thermal protection | Auto-On/off, soft clipping, thermal protection |
| Bass Driver | 210-mm (8 in) mineral-filled polypropylene, corrugated Santoprene® surround, 38-mm (1-1/2 in) 4-layer copper-clad aluminum voice coil. Nomex® spider, 4.5 lb ferrite magnet, AVS® die-cast heatsink chassis | 254-mm (10 in) mineral-filled polypropylene, corrugated Santoprene® surround, 38-mm (1-1/2 in) 4-layer copper-clad aluminum voice coil, Nomex® spider, 4.5 lb ferrite magnet, AVS® die-cast heatsink chassis | 305-mm (12 in) mineral-filled polypropylene, corrugated Santoprene® surround, 50-mm (2 in) 4-layer copper-clad aluminum voice coil, dual Nomex® spiders, 6.5 lb ferrite magnet, AVS® die-cast heatsink chassis |
| Low-Frequency Extension* | 19 Hz (DIN) | 17 Hz (DIN) | 16 Hz (DIN) |
| Subwoofer Cut-Off Frequency | Variable 50 Hz - 150 Hz | Variable 50 Hz - 150 Hz | Variable 50 Hz - 150 Hz |
| Sub/Sat Phase Alignment | Variable 0° - 180° | Variable 0° - 180° | Variable 0° - 180° |
| Line-Level Inputs | Two RCA (L/R-Mono) for L/R line out or Sub-Out/LFE-Out of receiver/processor or other line-level source | Two RCA (L/R-Mono) for L/R line out or Sub-Out/LFE-Out of receiver/processor or other line-level source | Two RCA (L/R-Mono) for L/R line out or Sub-Out/LFE-Out of receiver/processor or other line-level source |
| Height, Width, Depth (height includes feet; depth includes grille and amplifier) | 27.2 cm x 26.2 cm x 28.3 cm 10-11/16" x 10-5/16" x 11-1/8" | 33.0 cm x 28.3 cm x 32.4 cm 13" x 11-1/8" x 12-3/4" | 38.5 cm x 33.0 cm x 36.8 cm 15-1/8" x 13" in x 14-1/2" |
| Weight (unpacked) | 24.8 lb / 11.25 kg each | 30 lb / 13.6 kg each | 41 lb / 18.6 kg each |
| Accessories (sold separately) | Wireless PT-2 Transmitter; Paradigm Perfect Bass KitTM | Wireless PT-2 Transmitter; Paradigm Perfect Bass KitTM | Wireless PT-2 Transmitter; Paradigm Perfect Bass KitTM |
| Finish | Black Ash | Black Ash | Black Ash |
| Wireless Option with PT-2 Transmitter(for all models listed) | |||
| (Transmitter sold separately)RF Frequency(wireless model) | 2.4 GHz | ||
| Latency (ms) | Selectable (15 / 20 / 25 ms) | ||
| Transmission Range (ft/m) | 50 ft / 15 m | ||
| Sampling Frequency/# bits | 48 kHz, 16 bits | ||
| Connectivity | Up to four Monitor Series 7 subwooers | ||
LIMITED WARRANTY
Paradigm® subwoofoers covered in this manual are warranted to be and remain free of manufacturing and/or material defects for a period of three (3) years from the date of the original retail purchase.
Within the time period specified, repair, replacement or adjustment of parts for manufacturing and/or material defects will be free of charge to the original owner.
WIRELESS TRANSMITTER: Details on the warranty for your PT-2 Wireless transmitter can be found in the Owners Manual included with the PT-2.
Thermal or mechanical abuse/misuse is not covered under warranty.
Limitations:
- Warranty begins on date of original retail purchase from an Authorized Paradigm® Dealer only. It is not transferable;
- Warranty applies to product in normal home use only. If the product is subjected to any of the con ditions outlined in the next section, warranty is void;
- Warranty does not apply if the product is used in professional or commercial applications.
Warranty is Void if:
- The product has been abused (intentionally or accidentally);
- The product has been used in conjunction with unsuitable or faulty equipment;
- The product has been subjected to damaging signals, derangement in transport, mechanical damage or any abnormal conditions;
- The product (including cabinet) has been tampered with or damaged by an unauthorized service facility;
The serial number has been removed or defaced.
Owner Responsibilities:
- Provide normal/reasonable operating care and maintenance;
- Provide or pay for transportation charges for product to service facility;
- Provide proof of purchase (your sales receipt given at time of purchase from your Authorized Paradigm® Dealer).
Should servicing be required, contact your nearest Authorized Paradigm® Dealer, Paradigm Electronics Inc., or Import Distributor (outside the U.S. and Canada) to arrange bring in or ship prepaid any defective unit. Visit our website at www.paradigm.com for more information.
Paradigm Electronics Inc. reserves the right to improve the design of any product without assuming any obligation to modify any product previously manufactured.
This warranty is in lieu of all other warranties expressed or implied, of merchantability, fitness for any particular purpose and may not be extended or enlarged by anyone. In no event shall Paradigm Electronics Inc., their agents, or representatives be responsible for any incidental or consequential damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this exclusion may not apply to you.
Retain this manual and your sales receipt for proof of warranty term and proof of purchase.
Paradigm®
MONITOR SERIES
MODE D'EMPLOI
CAISSONS DE SOUS-GRAVES MONITOR SÉRIE 7
Specifications Techniques 10
Garantie limitee 11
