16272 - Food Processor Rösle - Free user manual and instructions

Product type	Manual mechanical chopper
Brand	Rösle
Model	16272
Container material	Transparent SAN plastic (impact resistant)
Lid material	Stainless steel housing
Mechanism	Patented cutting with two removable blades and helical rotor
Motor	Manual, maintenance-free, gear ratio 1:7
Power source	Manual (no electricity required)
Capacity	Not specified (suitable for fruits, vegetables, herbs)
Main functions	Chopping, mixing, emulsifying, drying herbs
Uses	Fruits, vegetables, herbs, sauces, dressings, soups, baby food, compotes
Included accessories	Spatula, herb basket, mixer, storage lid, blade cover
Care and cleaning	Parts except lid and rotor are dishwasher safe; lid can be cleaned with damp sponge; rotor cleaned with brush
Safety	Very sharp blades; keep out of reach of children; always hold the lid during use
Warranty	5 years
Country of manufacture	Germany (Rösle brand)

Frequently Asked Questions - 16272 Rösle

How to chop fruits and vegetables with the Rösle 16272?

Cut the food into quarters or eighths, place them in the container with the cutting rotor in place, close the lid and pull on the handle. For a coarse result, 5-6 pulls; for fine chopping, 13-20 pulls.

Can I use the chopper for fresh herbs?

Yes, use the provided herb basket. Pull slowly and carefully to avoid over-pressing the herbs by centrifugal force.

How to mix sauces or dressings?

Replace the cutting rotor with the included mixer. Pull on the handle to mix liquid or semi-liquid ingredients.

Are the parts dishwasher safe?

All parts except the lid (with mechanism) and the cutting rotor are dishwasher safe. The storage lid may warp slightly in the dishwasher, it's better to wash it by hand.

How to clean the cutting rotor?

Clean it with a Rösle dish brush or equivalent. The blades are very sharp: do not leave it in the sink with other utensils and store it in its protective cover.

What to do if water gets into the lid?

At the bottom of the lid there is an opening: open it with a coin or screwdriver, empty the water, let it dry, then close it properly.

How to get a finer chop?

Pull the handle more quickly to activate the mechanism. For light foods, attach the lower helix under the rotor to propel them towards the blades.

Can I store chopped food in the container?

Yes, use the provided storage lid. It has a freshness valve to keep food in the refrigerator.

Is the chopper safe for children?

No, it is not a toy. The blades are very sharp: keep the appliance out of reach of children and always store the rotor in its protective cover.

What is the warranty of the Rösle 16272?

The warranty is 5 years. In case of problem, contact Rösle customer service.

USER MANUAL 16272 Rösle

Assorted fresh vegetables including tomatoes, carrots, and lettuce on a white background (no text or symbols visible)

Multischneider Multi-Cutter Hachoir mécanique

Close-up of a small kitchen blender with red and black segments, set against a solid red background (no text or symbols visible)

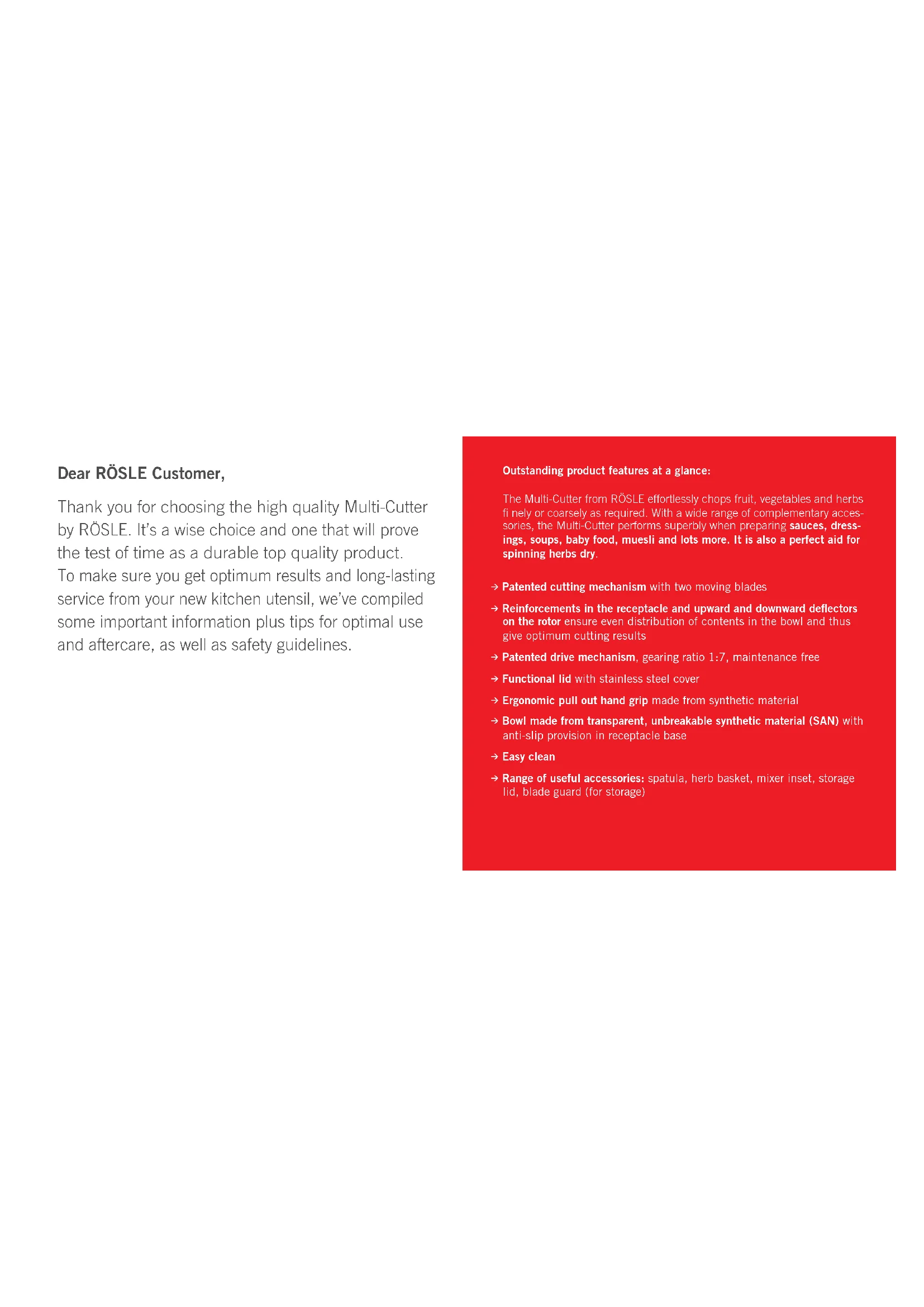

Thank you for choosing the high quality Multi-Cutter by RÖSLE. It's a wise choice and one that will prove the test of time as a durable top quality product. To make sure you get optimum results and long-lasting service from your new kitchen utensil, we've compiled some important information plus tips for optimal use and aftercare, as well as safety guidelines.

Outstanding product features at a glance:

The Multi-Cutter from RÖSLE effortlessly chops fruit, vegetables and herbs fi nely or coarsely as required. With a wide range of complementary accessories, the Multi-Cutter performs superbly when preparing sauces, dressings, soups, baby food, muesli and lots more. It is also a perfect aid for spinning herbs dry.

→ Patented cutting mechanism with two moving blades
→ Reinforcements in the receptacle and upward and downward deflectors on the rotor ensure even distribution of contents in the bowl and thus give optimum cutting results
→ Patented drive mechanism, gearing ratio 1:7, maintenance free
→ Functional lid with stainless steel cover
→ Ergonomic pull out hand grip made from synthetic material
→ Bowl made from transparent, unbreakable synthetic material (SAN) with anti-slip provision in receptacle base
→ Easy clean
→ Range of useful accessories: spatula, herb basket, mixer inset, storage lid, blade guard (for storage)

1. Close-up on the RÖSLE Multi-Cutter

Storage lid

Bowl

Herb basket

Mixer inset

Lid with integrated pull mechanism

Rotor with downward deflector and two blades

Upward deflector

Rotor blade guard (for storage)

Spatula

2. First time use

Before first time use clean all parts of the Multi-Cutter. Take care to observe the instructions provided under paragraph 3 "Cleaning and storage".

2.1. Chopping fruit and vegetables

Place the receptacle on a dry and stable worktop. Remove the blade guard from the rotor. Be careful to avoid injury from the sharp blades.

For shredding sticky, lightweight ingredients fix the upward deflector to the underside of the rotor. The upward deflector must point in an upward direction. When filling the bowl, the blades should be aligned with the downward deflector so that they are positioned directly above each other to provide space for a maximum load of ingredients.

Large fruit or vegetables should be halved or quartered before processing in the cutting apparatus so as not to block the blades.

Place the lid onto the bowl and make sure that the six edges of the rotor correctly fi t into position. Do not apply force when doing this.

The Multi-Cutter is now ready for use.

Place one hand onto the top of the Multi-Cutter, grip it well and use the other hand to operate the mechanism by pulling on the black hand grip. The first pull should be quick and powerful. Do not relax your hold on the grip when it is in its extended position, instead keep hold of it while the automatic mechanism returns it to its original position.

The faster the tug on the grip of the Multi-Cutter the smaller and more effectively the ingredients are shredded.

Cutting results

(depending on type of vegetable or fruit):

5 - 6 tugs: coarse to medium fine shredding

7 - 12 tugs: medium fi ne shredding

13 - 20 tugs: fi ne to extra fi ne shredding

Positioning the upward defl ector

When shredding sticky, lightweight ingredients such as parsley or dried herbs, use of the upward defl ector under the rotor blades is recommended. This ensures that the items are scooped up from the base and fed into the cutting area of the blades.

The upward defl ector is clipped into position on the underside of the rotor. There is only one position in the base of the rotor where it fi ts. When correctly mounted the upward defl ector points upward and is aligned with the down- ward defl ector above.

2.2. Spinning herbs dry

Replace the rotor blades with the herb basket for spinning herbs dry. In this case the pull mechanism should be operated slowly and more carefully so that herbs are neither crushed nor pressed into the apertures of the herb basket by centrifugal force.

2.3. Stirring and mixing sauces, soups and dressings

By changing from the rotor blades to the mixer inset, you'll be able to turn out delicious sauces, soups, creams, dips and dressings in seconds. The mixer inset is designed for stirring or whisking liquids and semi-liquid consistencies.

2.4. Storing and keeping things fresh

With the storage lid and its ventilation valve, chopped vegetables, fresh herbs or prepared sauces can be stored under perfect conditions and kept fresh in a refrigerator.

3. Cleaning and storage

All components except for the lid (with pull mechanism) and the rotor blades are dishwasher safe. We'd like to point out that the storage lid may slightly distort if put into a dishwasher. The lid with its pull mechanism should not be cleaned in a dishwasher or be submerged in washing up water. A wipe with a damp cloth usually suffi ces to clean the underside of the lid. If by any chance water seeps in, there is an aperture in the lid underside which can be opened using a coin or screw-driver. Once the water has been removed, make sure the lid is completely dry before re-assembling it.

Note: When cleaning the rotor blades absolute caution is necessary since the blades are extremely sharp. In order to prevent risk of injury, this component should not be submerged in the sink together with other utensils. A RÖSLE Washing-up Brush is the perfect tool for cleaning it. Caution is also needed when drying.

The rotor should always be stored in its protective blade guard. When applying the guard, be careful to avoid injury on the sharp blades.

4. General Safety Guidelines

The Multi-Cutter must not be used as a toy and should be handled with caution. Small components could be accidentally swallowed by children so please keep the appliance safely out of their reach.

→ The blades on the rotor are extremely sharp so caution is advised at all times when handling or cleaning the utensil.
→ The rotor should always be stored in its protective guard.
→ When operating the pull mechanism, always hold the lid firmly with one hand.
→ Keep the lid in position while the rotor is in action.
→ The appliance should only be used on a dry and stable worktop.
→ The Multi-Cutter should not be used if visible damage is apparent or if it seems to malfunction.
→ The Multi-Cutter is designed exclusively for household appliance with foodstuff.

We grant you a 5 Year Warranty on this product.

We wish you long lasting service from your new RÖSLE Kitchen Appliance.

Your RÖSLE Team from Marktoberdorf

5 Year RÖSLE-Warranty
