| Brand | Atag |
| Model | WD1692D |
| Category | Heated drawer and cabinet |
| Product type | Built-in heated drawer |
| Power supply | 220-240 V ~ single-phase, 10 A |
| Temperature range | 30 °C to 80 °C |
| Maximum load capacity | 25 kg |
| Heating system | Forced hot air with fan |
| Functions | Defrosting, preheating dishes, keep warm, slow cooking |
| Recommended temperatures | 30 °C (defrost), 50 °C (glasses), 60 °C (service), 70 °C (hot dishes), 80 °C (reheating and slow cooking) |
| Operation indicator | Control diode: flashing when the appliance heats, steady when the drawer is closed and temperature reached |
| Control | Rotary knob visible when drawer is open |
| Front face material | Stainless steel or glass (depending on version) |
| Maintenance | Clean with a damp cloth and soapy water; do not use steam cleaner or abrasive products |
| Safety | Do not open the housing; do not place hot dishes; maximum load 25 kg; do not sit on the drawer |
| Installation | Built-in; electrical connection before installation; provide an accessible socket |
| Included accessories | Fixing screws (4) and brackets |
| Repairability | Contact Atag after-sales service; spare parts available on request |
| Environmental protection | Recyclable packaging; do not dispose of appliance with household waste (WEEE directive) |
Frequently Asked Questions - WD1692D Atag
User questions about WD1692D Atag
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Warming drawers and cabinets in PDF format for free! Find your manual WD1692D - Atag and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WD1692D by Atag.
USER MANUAL WD1692D Atag
When contacting the service department, have the complete type number to hand.
Aereess and teetm hern the Kucenderstgranlisation Inen se au der Sarehakke. Xu will find the addressee and phone numbers of the service organisation on the muaqana card
gebruiksaanwijzing
Servieswarmer
mode d'emploi
Tiroir chauffant
Bedienungsanleitung
Wärmeschublade
instructions for use
Warming drawer
ATAG
WD1674M
WD1611D
WD1692D
NL
Handleiding NL3-NL16
FR

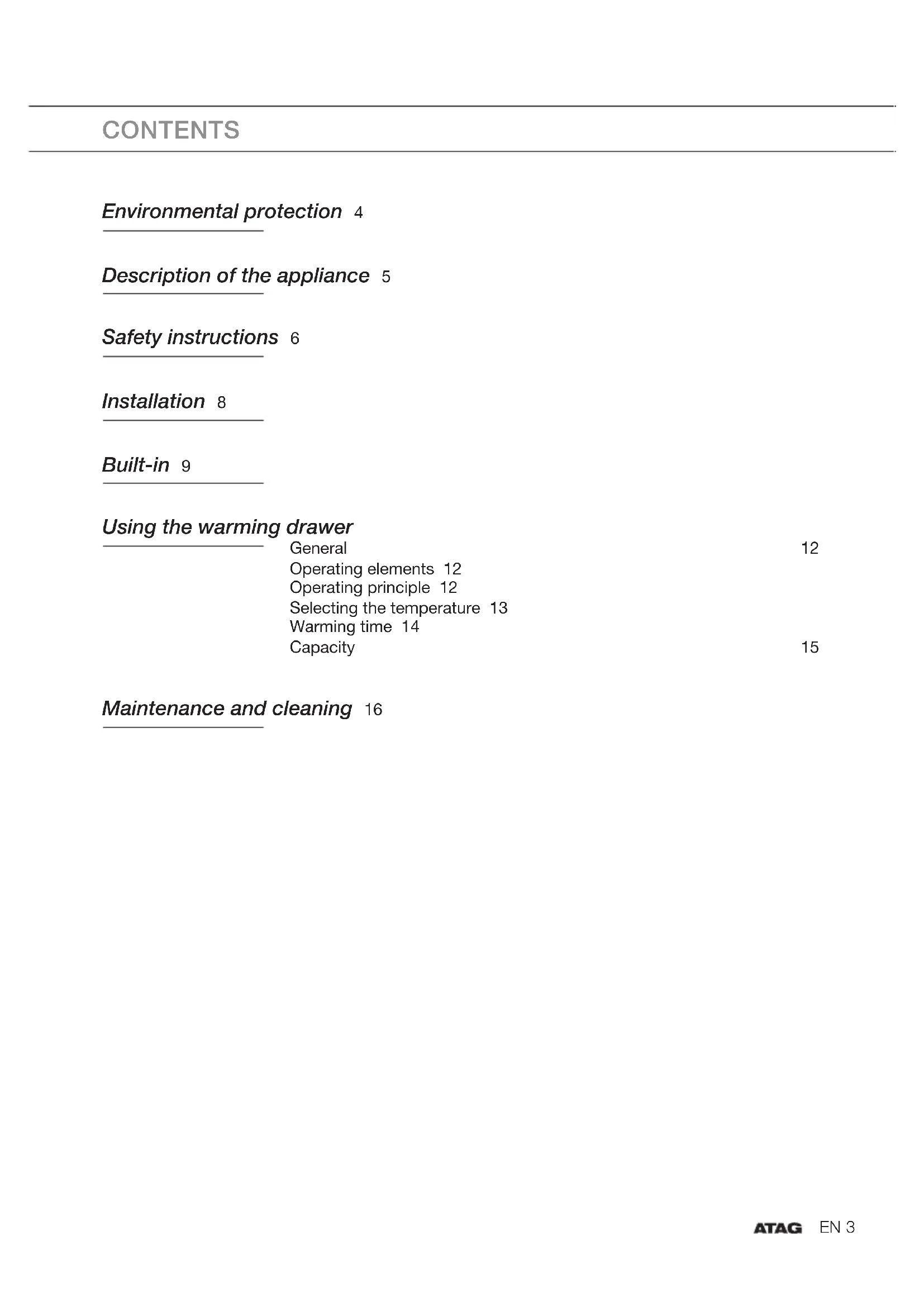

Environmental protection 4
Description of the appliance 5
Safety instructions 6
Installation 8
Built-in 9
Using the warming drawer
General
12
Operating elements 12
Operating principle 12
Selecting the temperature 13
Warming time 14
Capacity
15
Maintenance and cleaning 16
The appliance's packaging material can be recycled. Please throw this in the appropriate container or rubbish bag to help protect the environment.
Disposing of old electrical items
European Directive 2012/19/EC regarding Waste from Electrical and Electronic Equipment (WEEE), states that old household electrical appliances may not be disposed of via regular unsorted waste streams. To optimise used material recycling and reduce the negative effects on health and the environment, old appliances should be collected separately. The "crossed-out wheelie bin" logo on the product will remind you that when you wish to dispose of the appliance you are obliged to have it collected separately. Consumers should contact their local authority for information regarding the correct disposal of old appliances.
-

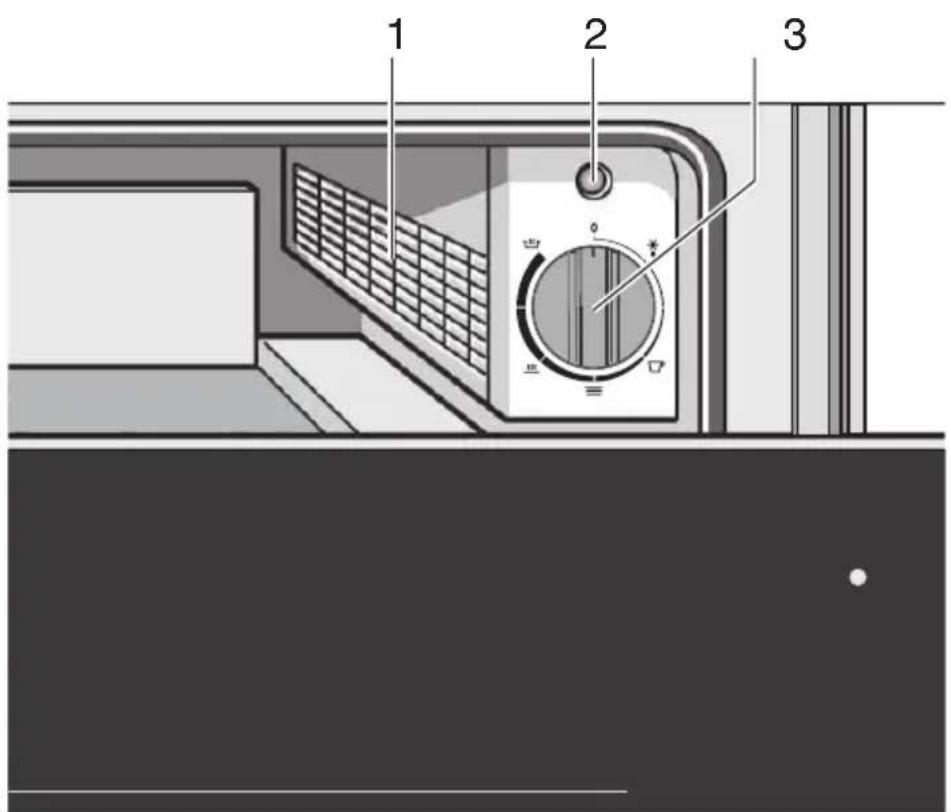

Fan and heating
-
Indicator light
-
Flashes if the appliance is switched on.
-
Lights up if the appliance is switched on and the drawer is closed.
-
Dial for setting the temperature
The temperature set is the temperature of the hot plate at the bottom of the drawer when the drawer is empty. Measurements using an external thermometer can vary and are not suitable for checking the temperature precisely.
The appliance will only heat up when the drawer is closed.
Keep this manual with your appliance. Ensure that you include the manual with the appliance if you sell or give it to someone else. Please read the recommendations before installing and using the warming drawer. These have been compiled for your safety and that of others.
This warming drawer is designed for use by individuals in their home. It is only intended for pre-warming tableware, keeping food warm and slow cooking. Any other use is prohibited and may be dangerous. The manufacturer disclaims liability in the event of improper use.
The hot plate surface is hot. Items placed at the bottom of the drawer will become hotter than objects at the top. Always use oven mitts or gloves to remove items from the drawer.
Only use this appliance after it has been built in. The appliance needs to be built in to avoid the risk of contact with other live components.
Under no circumstances should you open the appliance casing.
Under certain conditions, the outside of the warming drawer may reach 70^ (depending on the selected temperature and length of use). Always use oven mitts or gloves to remove the warmed tableware from the drawer.
Keeping food warm
Never place items such as pans in the drawer directly from naked flame or from the oven as this may damage the hot plate.
The drawer may be loaded to a maximum 25kg . Overloading can damage the appliance.
Do not climb or sit on the open drawer as this may damage the appliance.
Do not store or place plastic products or flammable objects in the appliance. These could melt or catch fire during use.
Children may only operate the appliance under adult supervision. Extra attention is required when the appliance is in use.
Prior to connecting the drawer, ensure that all cables in your home's electrical system are of sufficient diameter to supply the appliance properly. Your system should be protected by a 10-amp fuse.
The power circuit should have a bipolar power failure mechanism with contact gaps of at least 3mm .
Complete all electrical connections before building in the appliance.

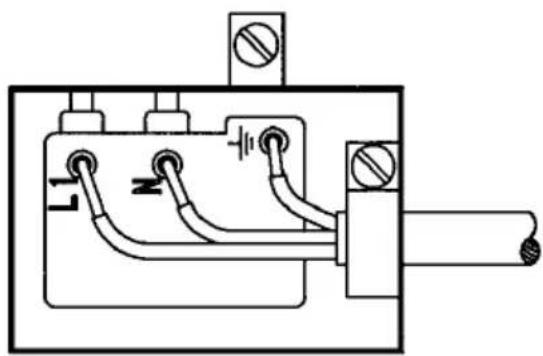

The drawer should be connected via a (normalised) power cable with 3 × 1 ~mm^2 conductors (1 phase + 1 N + earth) to single phase 220 - 240 V~ mains power, via a 1 phase + N + normalised earthing CEI 60083 plug socket or in accordance with local installation regulations. The earth wire (green/yellow) should be connected to the appliance's connector clamps and with the electrical system's earth.
If the appliance is connected to a plug socket, this must remain accessible after the drawer has been installed.
The warming drawer's neutral conductor (blue wire) should be connected to the mains power neutral conductor.
Slide the appliance in the kitchen cupboard aperture. Check whether the casing fits correctly.

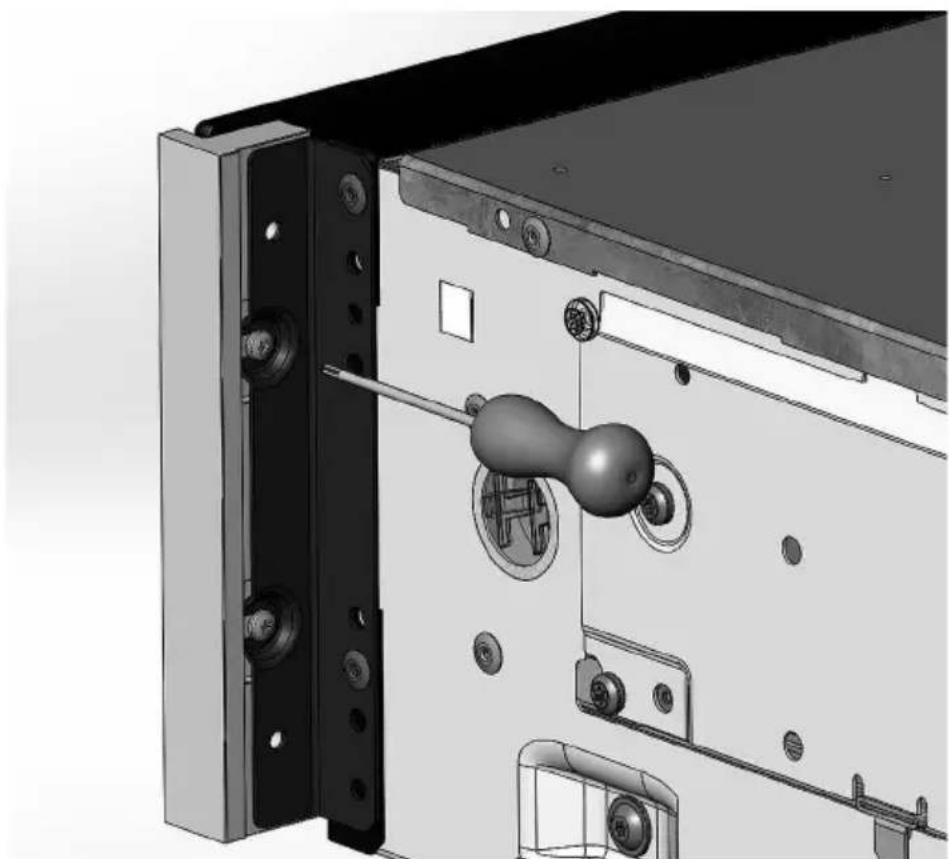

Open the drawer and secure the appliance to the side walls of the cupboard using the 4 screws and spacers supplied.
WD1674M - WD1611D - WD1692D

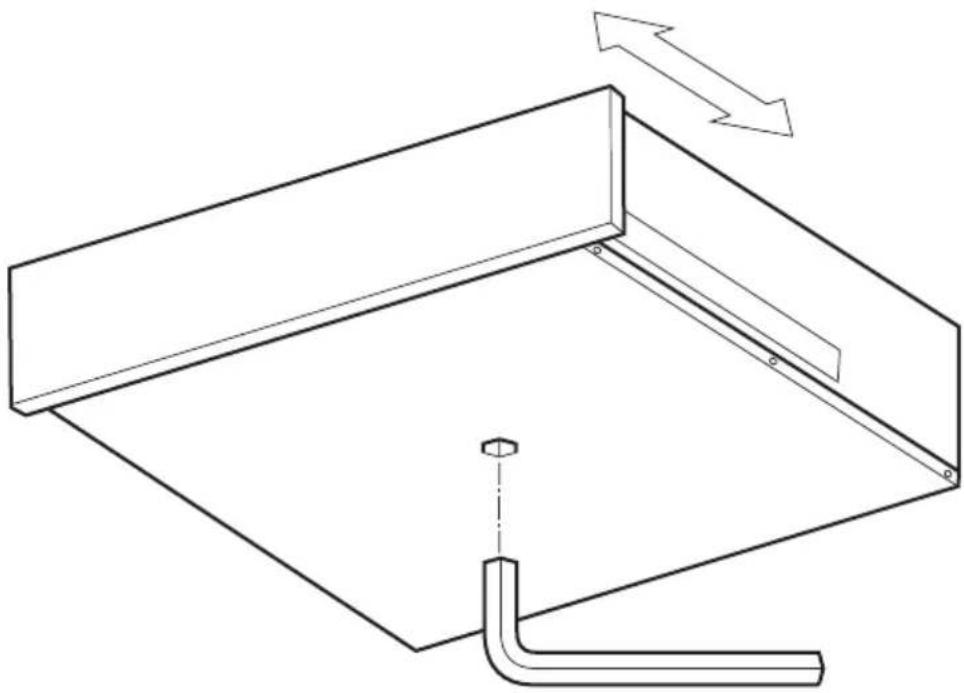

The front can be adjusted by a few millimetres for alignment with other appliances. Use the Allen key at the bottom of the appliance for this.
The aluminium profiles can be adjusted +/- 1 mm on the WD1674M.
General
The appliance has a hot air heating system. A fan distributes the heat evenly and quickly throughout the drawer.
A protective grille prevents contact with the resistors and the fan.
Operating elements
There is an ON/OFF and temperature regulation dial. This dial is only visible when the drawer is open.
When the drawer is closed, the indicator light on the front shows whether the appliance is switched on.
Operating principle
- Place the crockery or plates with food in the drawer.
- Set the desired temperature.
The 'appliance on' indicator will flash.
- Close the drawer.
The 'appliance on' indicator will light up.

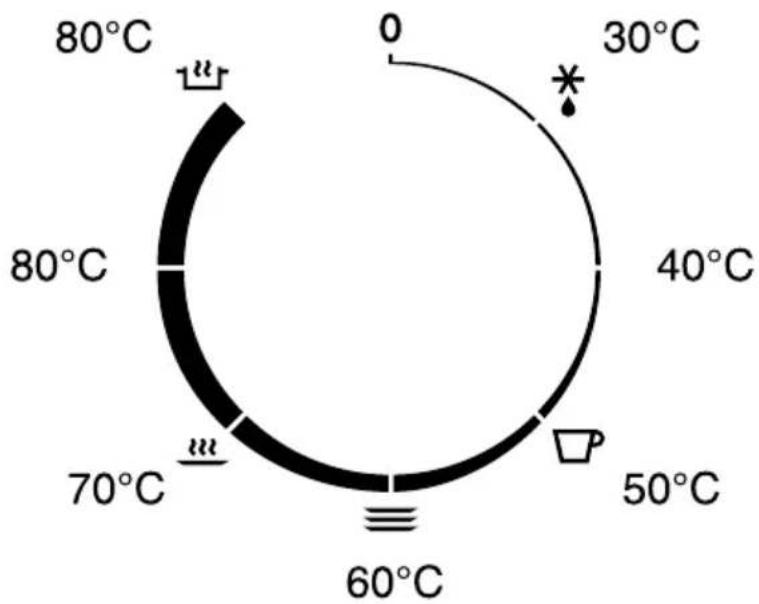

Selecting the temperature
Use the temperature knob to set a temperature between 30 and 80^
| Icon | Temperature Function Application | |
| 0 0 Off | - | |
| * | 30 °C Defrosting For defrosting food. | Allowing dough to rise. |
| - 40 °C | Defrosting | |
| 50 °C Warming cups and glasses Warming coffee cups. | ||
| 60 °C Warming crockery Warming plates and dishes. Keeping food warm (eggs, bread). | ||
| 70 °C Keeping food warm Keeping food warm | (meat, fish, vegetables). | |
| - 80 °C | Keeping food warm and reheating | Keeping food warm and reheating food. |
| 80 °C with fan Slow cooking After browning place the pan or dish in the drawer. Allow the dish to cook slowly for the recommended time. |
Warming time
The warming time for tableware depends on several factors:
- material and thickness of the tableware;
fill level; - distribution of the load;
temperature control.
This means that it is not possible to give precise data in advance.
A few recommendations:
Even warming at a temperature of 60^ will take:
approximately 30 mins for crockery for a meal for six people
approximately 40 mins for crockery for a meal for twelve people
You will learn from experience which timing suits your crockery best.
Capacity
The capacity depends on the model's height and the weight and the size of your crockery.
The drawer may be filled with up to 25kg of crockery.
The following examples are given for information:
WD1674M/WD1611D/WD1692D
The quantities are determined by the volume
Tableware for 6 people:
6 large plates 28 cm
6 soup plates 22 cm
1 dish 22 cm
1 dish 20 cm
1 dish 018 cm
2 meat dishes 36 cm
or 16 large plates 28cm
+8bowls 010cm
or 24 soup plates 22 cm
or 40 bowls 10cm
or 60 cups 8 cm
or ...
Switch off the appliance and allow it to cool before carrying out maintenance.
All surfaces should be cleaned only with a damp cloth and some soapy water. Then dry with a soft cloth.
Do not use a steam cleaner to clean the appliance.
Using abrasive products, alcohol or solvents is not recommended; these can damage the appliance.
The front is stainless steel or glass and is susceptible to scratching. Use special non-abrasive cleaning products suitable for stainless steel.
The glass bottom can be cleaned with warm water and washing-up liquid. It should only be replaced in the drawer once it is perfectly dry.
