Product type	Electric scooter
Brand	Vermeiren
Model	Carpo 4 limited edition
Dimensions (L x W x H)	1480 mm x 730 mm x 1350 mm
Ground clearance	150 mm
Maximum user weight	150 kg
Batteries	2 x 12 V - 75 Ah
Typical range	45 km (optimal conditions)
Maximum speed	17 km/h
Color	Brown
Display	LCD display showing speed, time, mode, battery charge, temperature and error code
Controls	Speed regulator (slow/fast), mode changer, horn, front/rear lights, turn signals, hazard lights, SET button
Odometer	Integrated, memorizes distances traveled
Time setting	Linked to charging system, must be reset after battery change
Safety	Recharge new batteries before first use
Maintenance	Clean with a soft damp cloth
Spare parts	Contact Vermeiren customer service
Technical modifications	Subject to change

Frequently Asked Questions - Carpo 4 limited edition Vermeiren

How to charge the batteries for the first time?

Before first use, fully charge the new batteries. This optimizes their performance and lifespan. Plug in the supplied charger and wait until the charge indicator shows completion.

What is the actual range of the scooter?

The typical range is 45 km under optimal conditions (flat terrain, good temperature). In practice, it may vary by ±15% depending on weight, slopes, acceleration, and terrain type.

What is the maximum speed?

The maximum speed is 17 km/h. It can be set to two modes: slow and fast, via the speed regulator.

What is the maximum user weight?

The maximum allowed user weight is 150 kg. Do not exceed this limit for safety and performance reasons.

How to set the time on the display?

Press the SET button to change mode. Use the + and - keys (if present) to adjust the time. Note that the time setting is linked to the charging system: it must be reset after a battery change.

What to do in case of an error code on the display?

An error code appears in case of malfunction. Consult the manual to identify the code. In most cases, restart the scooter after disconnecting the battery. If the problem persists, contact Vermeiren after-sales service.

How to maintain the scooter?

Clean the scooter regularly with a soft damp cloth. Avoid abrasive products. Check tire pressure and brake condition. Have the device serviced once a year by a professional.

Can I use the scooter in the rain?

The scooter is designed for outdoor use, but avoid heavy rain or deep puddles. Protect electronic components from excessive moisture. In case of rain, dry the device after use.

How to change the batteries?

The batteries are accessible under the seat or in a compartment. Disconnect the cables, remove the old batteries and install the new ones respecting polarity (2 x 12V - 75 Ah). Charge them fully before first use.

Where to find spare parts?

Spare parts are available from Vermeiren customer service or authorized dealers. Specify the Carpo 4 limited edition model to get the appropriate parts.

USER MANUAL Carpo 4 limited edition Vermeiren

The Carpo 4 Limited edition scooter is foreseen with a LCD display.

1. Technical Specifications

Description Dimensions
Length 1480 mm
Width 730 mm
Height 1350 mm
Ground clearance 150 mm
Batteries 2 x 12V - 75 Ah
Driving range 45 km*
Speed 17 km/h**
User weights 150 kg
Color Brown

• Typical range, calculated under best conditions in accordance with the European Standards. These driving range will be reduced if the wheelchair is used frequently on slopes, rough ground or to climb curbs.

** Speed and action radius can deviate (ca. 15%).

3. Safety rules

Recharge the new batteries before you use the scooter, to maximize the batteries efficiency and service life.

4. Components

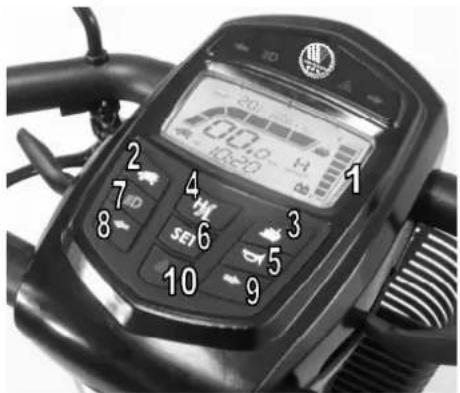

• Control panel

1. Battery level indicator / LCD display
2. Speed control (slow)
3. Speed control (fast)
4. Speed switch
5. Horn
6. Set: change mode
7. Lights (front and rear)
8. Indicator (left)
9. Indicator (right)
10. Emergency lights

Subject to technical alterations - vA - 2012-03

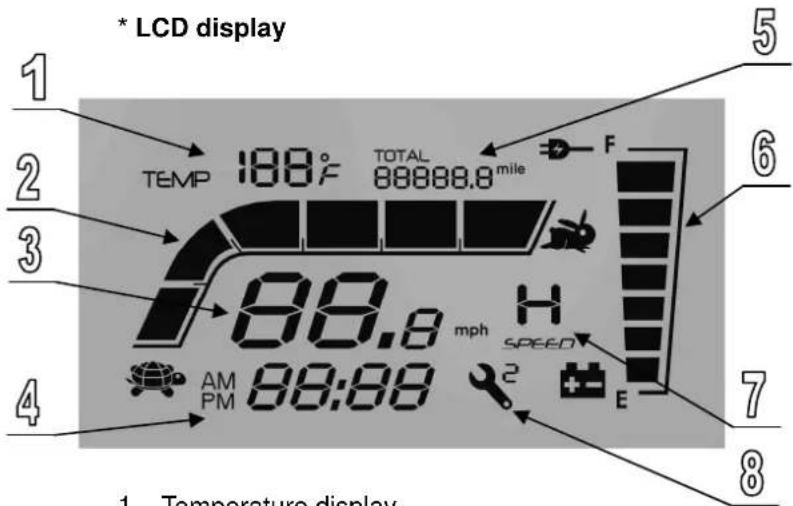

1. Temperature display
2. Speed bar
3. Speed display
4. Time display
5. Mileage or distance display
6. Battery indicator
7. High / Slow speed mode display
8. Controller fault code

5. Operation

The time setting is linked to the battery system, once you change or connect to new batteries, you must reset the time setting.

The system have a mileage memory for driving distance. You do not have to reset the Mileage display after changing the batteries.

Setting:

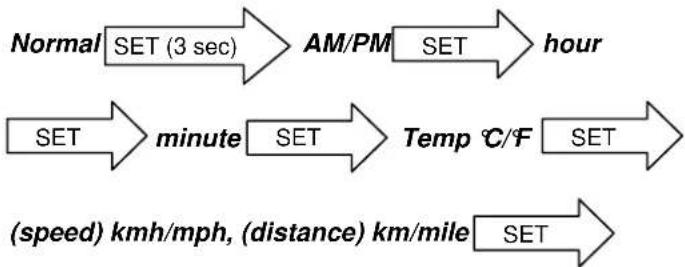

Press SET to change mode, to modify time and display.

Normal

Carpo 4 :

« Limited edition »

SET minuta SET Temp. ^ C / F SET
