PAI8100E - Cooker PROGRESS - Free user manual and instructions

Brand	Progress
Model	PAI8100E
Product type	Built-in induction hob
Number of cooking zones	4 induction zones
Power supply	220-240 V ~ 50-60 Hz
Total power	7.4 kW
Booster function	Yes, on left front and right rear zones (max 3700 W for 10 min)
Automatic cooking start	Yes
Timer	Countdown timer and independent timer (0-99 min)
Lock and child safety	Yes, with Lock function and Child safety device
Automatic shut-off	Yes
Pan detection	Yes
Residual heat indicator	Yes, for each zone

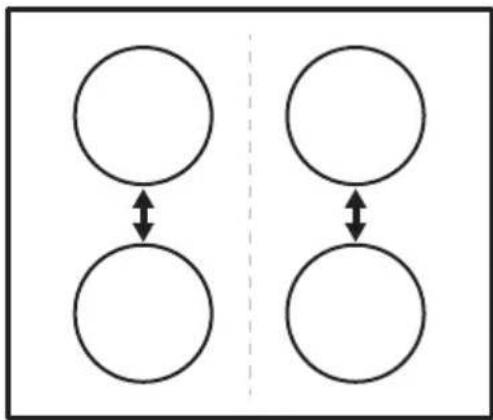

Power management	Yes, limit 3700 W per phase
Surface material	Vitroceramic
Approx. dimensions (W x D)	59 x 52 cm (standard built-in)
Approx. weight	~10 kg
Maintenance and cleaning	Clean with soft damp cloth and neutral detergent; use a scraper for stubborn dirt
Installation	Must be carried out by a qualified professional; allow ventilation space
Spare parts and repairability	Contact an authorized after-sales service; use only original parts
Energy consumption (EC electric hob)	178.9 Wh/kg

Frequently Asked Questions - PAI8100E PROGRESS

How to turn the hob on and off?

Press the ON/OFF key for 1 second to turn the hob on or off.

What to do if the hob turns off automatically?

This is normal if all zones are off, if no power level is set after switching on, or if an object is placed on the controls for more than 10 seconds. Remove the object or clean the control panel.

How to activate the child safety device?

Turn on the hob, do not press any zone, then press the Lock/Child safety key for 4 seconds. The symbol L appears. Turn off the hob to confirm.

What types of pans are suitable for induction?

Use pans made of cast iron, steel, enameled steel or stainless steel. Check with a magnet: it should stick to the bottom. Avoid aluminum, copper, glass, and ceramic.

Why does the hob make noises?

Some crackling, whistling, humming or clicking sounds are normal. They come from pan materials or electrical components. The fan may also make noise.

How to clean the hob?

Clean after each use. Use a soft damp cloth and neutral detergent. For encrusted dirt, use a special glass scraper at an angle. Remove sugar or melted plastic immediately.

What to do if the residual heat indicator does not light up?

If the zone has been on for a short time, it may not be hot. If it has heated up, contact the after-sales service.

How to use the Booster function?

Press the P key of the desired zone. The symbol P appears. The function lasts max 10 minutes, then returns to the highest power level.

The hob displays 'U' and a number, what to do?

This is an error. Unplug the hob for a few minutes, then plug it back in. If the error persists, contact an authorized after-sales service.

How to save energy with this hob?

Use lids, only heat the necessary water, place pans in the center of the zones, and use residual heat to keep warm.

USER MANUAL PAI8100E PROGRESS

BESCHRIJVING VAN HET PRODUCT

Indeling kookplaat

180 mm 300 mm 210 mm 145 mm 1 1 2

Diagram illustrating a recycling process with a container and labeled recycling symbol

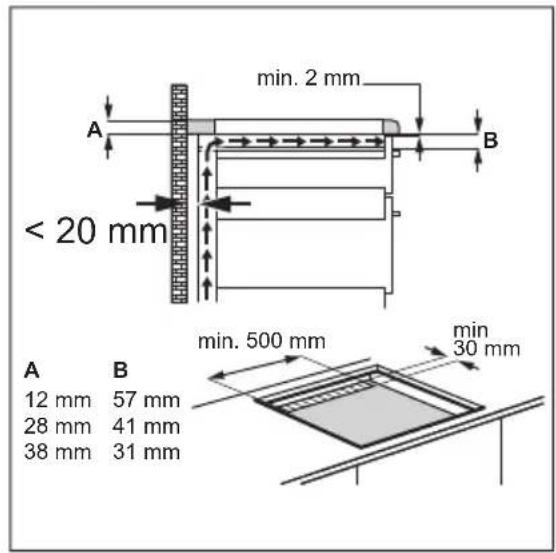

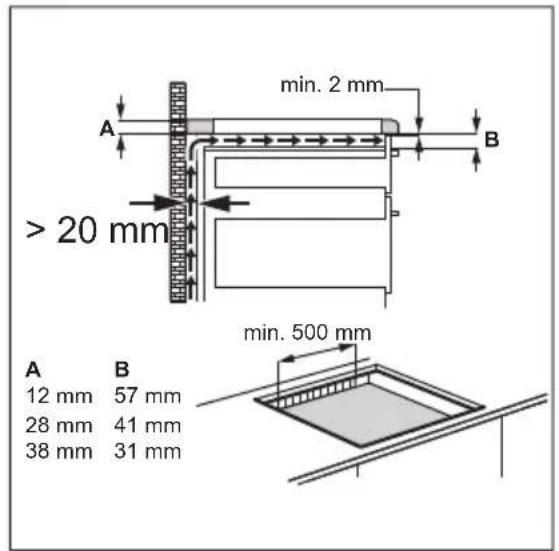

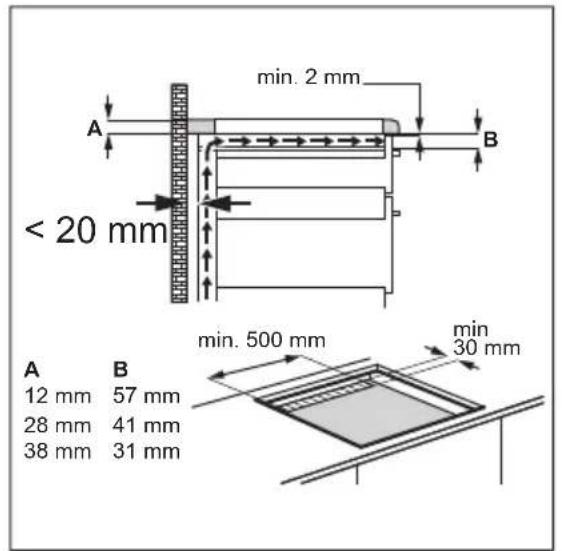

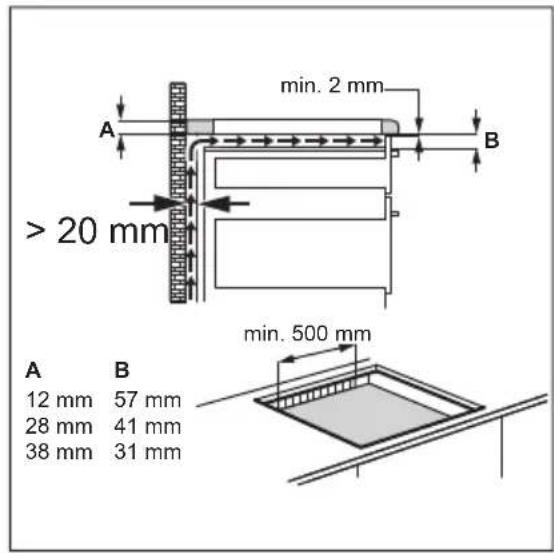

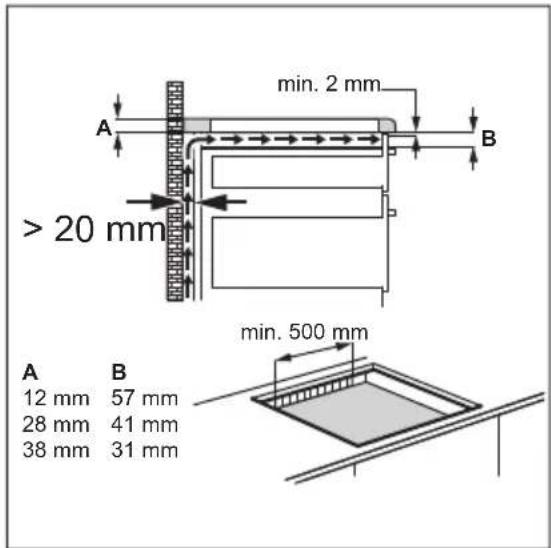

min. 2 mm A B > 20 mm min. 500 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

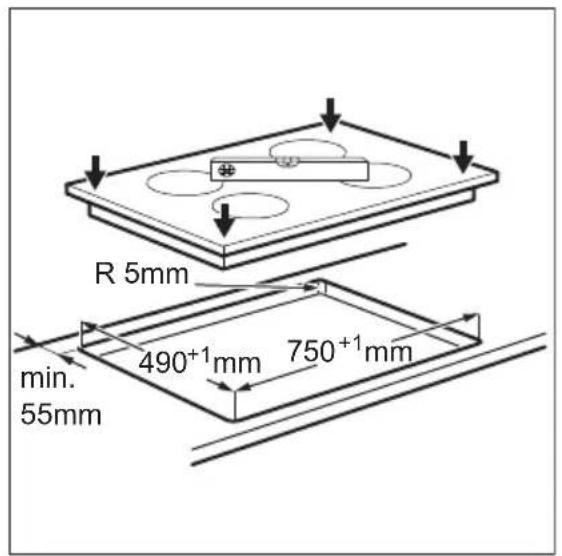

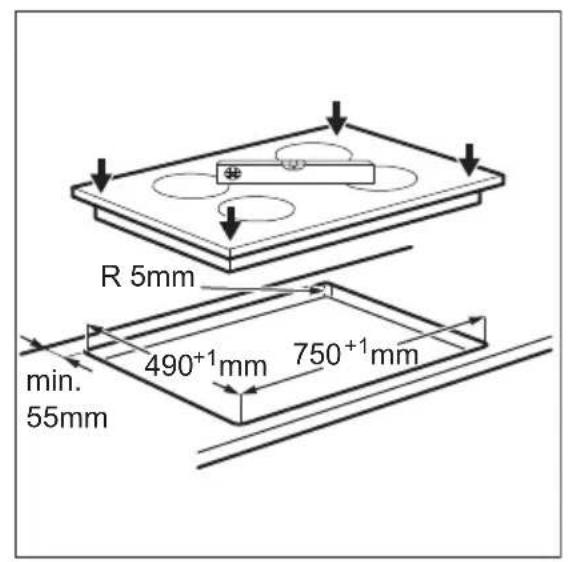

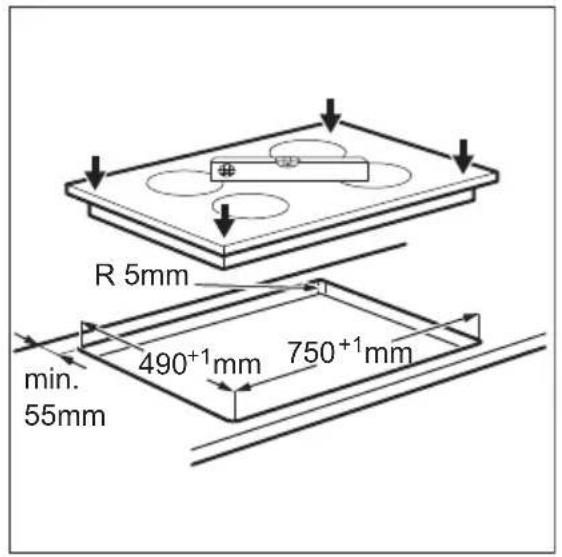

R 5mm min. 55mm 490⁺¹mm 750⁺¹mm

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows indicating process flow.

Safety instructions 20

Product description 23

Daily use 24

Hints and tips 27

Care and cleaning 28

Troubleshooting 29

Installation 31

Technical data 33

Energy efficiency 34

Subject to change without notice.

⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, this should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away from this appliance when it is in operation at all times.

General Safety

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching

heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

• Do not operate the appliance by means of an external timer or separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Danger of fire: Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use a steam cleaner to clean the appliance.
• After use, switch off the hob element by its control and do not rely on the pan detector.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.

• Follow the installation instruction supplied with the appliance.

• Keep the minimum distance from the other appliances and units.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.
• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot. Make sure to install a non-combustible separation panel under the appliance to prevent access to the bottom.

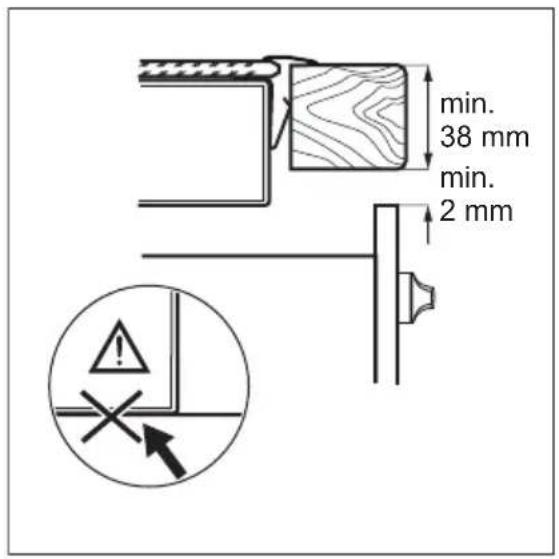

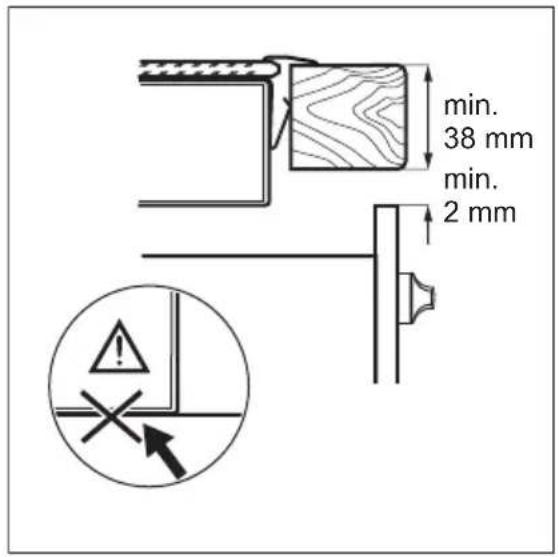

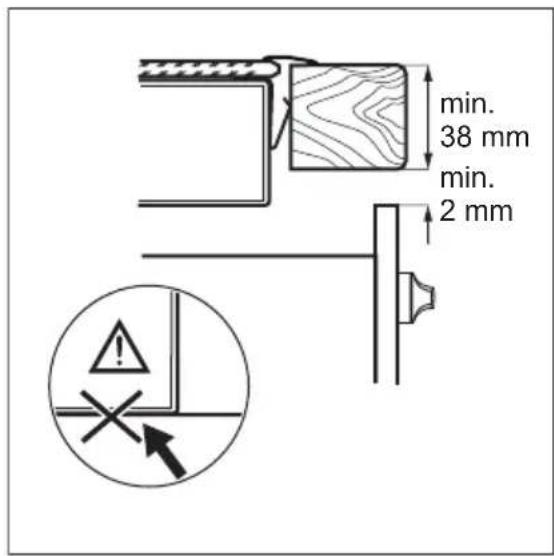

• Make sure that the ventilation space of 2 mm, between the worktop and the front of the below unit, is free. The warranty does not cover damages caused by the lack of an adequate ventilation space.

Electrical Connection

WARNING! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.

• Make sure that a shock protection is installed.

• Use the strain relief clamp on the cable.

• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

WARNING! Risk of injury, burns and electrical shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.

• Do not let the appliance stay unattended during operation.

• Set the cooking zone to "off" after each use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.
• When you place food into hot oil, it may splash.

WARNING! Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware to boil dry.

• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.

• Do not activate the cooking zones with empty cookware or without cookware.

• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Care and cleaning

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Deactivate the appliance and let it cool down before you clean it.
• Disconnect the appliance from the electrical supply before maintenance.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use any abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

Service

• To repair the appliance contact an Authorised Service Centre.
• Use original spare parts only.

PRODUCT DESCRIPTION

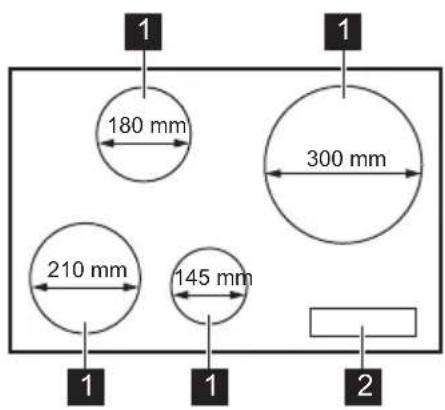

Cooking surface layout

180 mm 300 mm 210 mm 145 mm 1 1 2

1 Induction cooking zone
2 Control panel

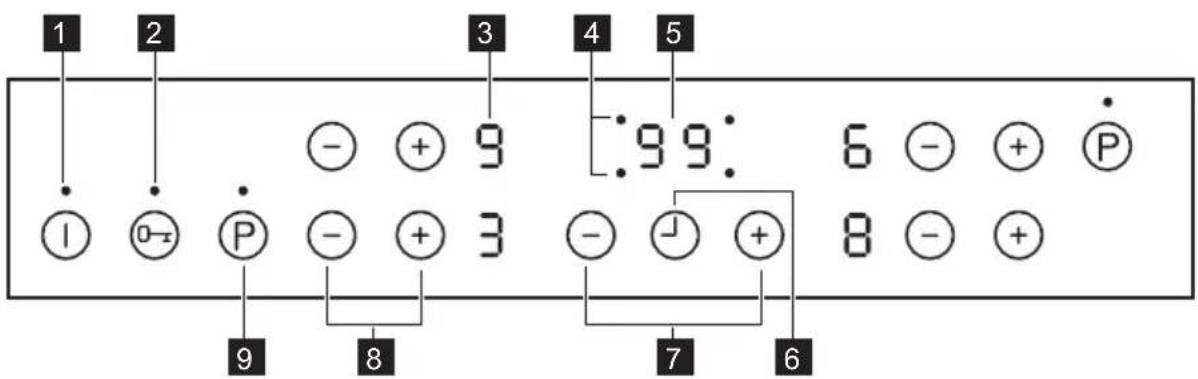

Control panel layout

1 2 3 4 5 - 99: 6 - + P I 0- P - + 3 - J + 8 - + 7 6 9 8

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

	Sensor field	Function Comment
1	➊	ON / OFF To activate and deactivate the hob.
2	0→	Lock / The Child Safety Device	To lock / unlock the control panel.
3	- Heat setting display To show the heat setting.
4	- Timer indicators of cooking zones		To show for which zone you set the time.
5	- Timer display To show the time in minutes.
6	➌	- To select the cooking zone.

	Sensor field	Function Comment
7	+/-	- To increase or decrease the time.
8	+/-	- To set a heat setting.
9	P	Power function To activate and deactivate the function.

Heat setting displays

Display Description
0	The cooking zone is deactivated.
1 - 9	The cooking zone operates.
A	Automatic Heat Up function operates.
P	Power function operates.
E + digit	There is a malfunction.
H	A cooking zone is still hot (residual heat).
L	Lock / The Child Safety Device function operates.
F	Incorrect or too small cookware or no cookware on the cooking zone.
-	Automatic Switch Off function operates.

Residual heat indicator

WARNING! There is a risk of burns from residual heat.

The induction cooking zones make the heat necessary for cooking process directly in

DAILY USE

WARNING! Refer to Safety chapters.

the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

Activating and deactivating

Touch ① for 1 second to activate or deactivate the hob.

Automatic Switch Off

The function deactivates the hob automatically if:

• all cooking zones are deactivated,
• you do not set the heat setting after you activate the hob,
• you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth, etc.). An acoustic signal sounds and the hob deactivates. Remove the object or clean the control panel.
• the hob gets too hot (e.g. when a saucepan boils dry). Let the cooking zone cool down before you use the hob again.
• you use incorrect cookware. The symbol F comes on and the cooking zone deactivates automatically after 2 minutes.
• you do not deactivate a cooking zone or change the heat setting. After some time - comes on and the hob deactivates.

The relation between the heat setting and the time after which the hob deactivates:

Heat setting	The hob deactivates after
u, 1 - 2	6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hour

The heat setting

Touch + to increase the heat setting. Touch - to decrease the heat setting. Touch + and - at the same time to deactivate the cooking zone.

Automatic Heat Up

If you activate this function you can get a necessary heat setting in a shorter time. The function sets the highest heat setting

for some time and then decreases to the correct heat setting.

To activate the function the cooking zone must be cold.

To activate the function for a cooking zone: touch P (comes on). Immediately touch + (comes on). Immediately touch — until the correct heat setting comes on. After 3 seconds R comes on.

To deactivate the function: touch —

Power function

This function makes more power available to the induction cooking zones. The function can be activated for the induction cooking zone only for a limited period of time. After this time the induction cooking zone automatically sets back to the highest heat setting.

Refer to "Technical information" chapter.

To activate the function for a cooking zone: touch P. domes on.

To deactivate the function: touch P or

Timer

Count Down Timer

You can use this function to set how long the cooking zone should operate for a single cooking session.

First set the heat setting for the cooking zone then set the function.

To set the cooking zone: touch 🏠 again and again until the indicator of a necessary cooking zone comes on.

To activate the function or change the time: touch + or of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone starts to flash slowly the time counts down.

To see the remaining time: set the cooking zone with ⏻The indicator of the cooking zone starts to flash quickly. The display shows the remaining time.

To deactivate the function: set the cooking zone with 📁 and touch . The remaining time counts back to 00. The indicator of the cooking zone goes out.

When the time comes to an end, the sound operates and 00 flashes. The cooking zone deactivates.

To stop the sound: touch ⏻

Minute Minder

You can use this function as a Minute Minder when the hob is activated and the cooking zones do not operate. The heat setting display shows ☐

To activate the function: touch ⏻

Touch for of the timer to set the time. When the time comes to an end, the sound operates and 00 flashes.

To stop the sound: touch ⏻.

The function has no effect on the operation of the cooking zones.

Lock

You can lock the control panel while cooking zones operate. It prevents an accidental change of the heat setting.

Set the heat setting first.

To activate the function: touch 0→L comes on for 4 seconds. The Timer stays on.

To deactivate the function: touch 0-1 The previous heat setting comes on.

When you deactivate the hob, you also deactivate this function.

The Child Safety Device

This function prevents an accidental operation of the hob.

To activate the function: activate the hob with ①Do not set the heat setting. Touch 0→ for 4 seconds. ②comes on. Deactivate the hob with ①

To deactivate the function: activate the hob with ①Do not set the heat setting. Touch for 4 seconds. comes on. Deactivate the hob with ①

To override the function for only one cooking time: activate the hob with Ⓘ. ≡ comes on. Touch ≡ for 4 seconds. Set the heat setting in 10 seconds. You can operate the hob. When you deactivate the hob with Ⓞ the function operates again.

Power management function

• Cooking zones are grouped according to the location and number of the phases in the hob. See the illustration.
  • Each phase has a maximum electricity loading of 3700 W.
• The function divides the power between cooking zones connected to the same phase.
• The function activates when the total electricity loading of the cooking zones connected to a single phase exceeds 3700 W.
• The function decreases the power to the other cooking zones connected to the same phase.
• The heat setting display of the reduced zones changes between two levels.

HINTS AND TIPS

WARNING! Refer to Safety chapters.

Cookware

For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.

Use the induction cooking zones with correct cookware.

Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, the bottom made of multi-layer (with correct mark from a manufacturer).
  • not correct: aluminium, copper, brass, glass, ceramic, porcelain.

Cookware is correct for an induction hob if:

• some water boils very quickly on a zone set to the highest heat setting.
• a magnet pulls on to the bottom of the cookware.

The bottom of the cookware must be as thick and flat as possible.

Cookware dimensions

Induction cooking zones adapt to the dimension of the bottom of the cookware automatically to some limit.

The cooking zone efficiency is related to the diameter of the cookware. The cookware with a smaller diameter than the minimum receives only a part of the power generated by the cooking zone.

Refer to "Technical information" chapter.

The noises during operation

If you can hear:

• crack noise: cookware is made of different materials (sandwich construction).
• whistle sound: you use the cooking zone with high power level and the cookware is made of different materials (sandwich construction).
• humming: you use high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.

The noises are normal and do not refer to hob malfunction.

Examples of cooking applications

The relation between the heat setting and the cooking zone consumption of power is not linear. When you increase the heat

setting, it is not proportional to the increase of the cooking zone consumption of power. It means that the cooking zone with the medium heat setting uses less than a half of its power.

The data in the table is for guidance only.

Heat setting Use to: Time		(min)	Hints
	Keep cooked food warm. as necessary	5 - 25 Mix from time to time.	Put a lid on the cookware.
1 - 2 Hollandaise sauce, melt: butter, chocolate, gelatine.
1 - 2 Solidify: fluffy omelettes, baked eggs.		10 - 40	Cook with a lid on.
2 - 3 Simmer rice and milkbased dishes, heating up ready-cooked meals.		25 - 50	Add the minimum twice as much liquid as rice, mix milk dishes part procedure through.
3 - 4 Steam vegetables, fish, meat. 20 -		45	Add some tablespoons of liq-uid.
4 - 5 Steam potatoes. 20 -		60	Use max. 1⁄4 l water for 750 g of potatoes.
4 - 5 Cook larger quantities of food, stews and soups.		60 - 150	Up to 3 l liquid plus ingredients.
6 - 7 Gentle fry: escalope, veal cor-don bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.		as necessary	Turn halfway through.
7 - 8 Heavy fry, hash browns, loin steaks, steaks.		5 - 15 Turn halfway through.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
P	Boil large quantities of water. Power function is activated.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General information

• Clean the hob after each use.

• Always use cookware with clean bottom.

• Scratches or dark stains on the surface have no effect on how the hob operates.

• Use a special cleaner applicable for the surface of the hob.
• Use a special scraper for the glass.

Cleaning the hob

• Remove immediately: melted plastic, plastic foil, sugar and food with sugar. If not, the dirt can cause damage to the hob. Take care to avoid burns. Put the special scraper on the glass surface at an acute angle and move the blade on the surface.
• Remove when the hob is sufficiently cool: limescale rings, water rings, fat

TROUBLESHOOTING

stains, shiny metallic discoloration. Clean the hob with a moist cloth and non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.

- Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a moist cloth.

WARNING! Refer to Safety

chapters.

What to do if...

Problem Possible cause Remedy
You cannot activate or operate the hob.	The hob is not connected to an electrical supply or it is connected incorrectly.	Check if the hob is correctly connected to the electrical supply. Refer to the connection diagram.
The fuse is blown. Make sure that the fuse is the		cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
Activate the hob again and		set the heat setting in less than 10 seconds.
You touched 2 or more sen-		Touch only one sensor field.
There is water or fat stains on		Clean the control panel.
An acoustic signal sounds and the hob deactivates. An acoustic signal sounds when the hob is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The hob deactivates. You put something on the sensor field		Remove the object from the sensor field.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time.	If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.
Automatic Heat Up function does not operate.	The zone is hot. Let the zone become sufficiently cool.
The highest heat setting is	set.	The highest heat setting has the same power as the function.
The heat setting changes between two levels.	Power management function operates.	Refer to "Daily use" chapter.
The sensor fields become hot.	The cookware is too large or you put it too near to the controls.	Put large cookware on the rear zones if possible.
- comes on.	Automatic Switch Off operates.	Deactivate the hob and activate it again.
L comes on.	The Child Safety Device or the Lock function operates.	Refer to "Daily use" chapter.
F comes on.	There is no cookware on the zone.	Put cookware on the zone.
The cookware is incorrect. Use the correct cookware.		Refer to "Hints and tips" chapter.
The diameter of the bottom	of the cookware is too small for the zone.	Use cookware with correct dimensions.Refer to "Technical information" chapter.
E and a number come on.	There is an error in the hob.There is an error in the hob because a cookware boiled dry. Automatic Switch Off and the overheating protection for the zones operate.	Disconnect the hob from the electrical supply for some time. Disconnect the fuse from the electrical system of the house. Connect it again.If E comes on again, speak to an Authorised Service Centre.Deactivate the hob. Remove the hot cookware. After approximately 30 seconds, activate the zone again. If the cookware was the problem, the error message goes out. Residual heat indicator can stay on. Let the cookware become sufficiently cool. Check if your cookware is compatible with the hob. Refer to “Hints and tips” chapter.

If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error

message that comes on. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

INSTALLATION

WARNING! Refer to Safety chapters.

Before the installation

Before you install the hob, write down the information bellow from the rating plate. The rating plate is on the bottom of the hob.

Serial number ....

Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units

and work surfaces that align to the standards.

Connection cable

• The hob is supplied with a connection cable.
• To replace the damaged mains cable use the following (or higher) mains cable type: H05V2V2-F T min 90°C. Speak to your local Service Centre.

Assembly

Diagram illustrating a recycling process with a container and labeled recycling symbol

min. 2 mm A B < 20 mm min. 500 mm min. 30 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

min. 2 mm A B > 20 mm min. 500 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

R 5mm min. 55mm 490+1mm 750+1mm

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows indicating motion.

If you use a protection box (an additional accessory), the front airflow space of 2 mm and the protective floor directly below the hob are not necessary. The protection box accessory may not be available in some countries. Please contact your local supplier.

You can not use the protection box if you install the hob above an oven.

TECHNICAL DATA

Rating plate

Model PAI8100E PNC 949 594 298 02

Typ 60 GBD C0 AU 220 - 240 V 50 - 60 Hz

Induction 7.4 kW Made in Germany

Ser.Nr. 7.4 kW

PROGRESS

Cooking zones specification

Cooking zone	Nominal power (maximum heat setting) [W]	Power function [W]	Power function maximum duration [min]	Cookware diameter [mm]
Left front 2300	3700 10 180 - 210
Left rear 1800	- - 145 - 180
Middle front 1400	- - 125 - 145
Right rear 2400	3700 10 210 - 300

The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.

For optimal cooking results use cookware not larger than the diameter in the table.

ENERGY EFFICIENCY

Product information according to EU 66/2014

Model identification PAI8100E
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Induction
Diameter of circular cooking zones (∅)	Left front	21.0 cm
	Left rear	18.0 cm
	Middle front	14.5 cm
	Right rear	30.0 cm
Energy consumption per cooking zone (EC electric cooking)	Left front	181.2 Wh / kg
	Left rear	178.7 Wh / kg
	Middle front	183.9 Wh / kg
	Right rear	171.6 Wh / kg
Energy consumption of the hob (EC electric hob)	178.9 Wh / kg

EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance

Energy saving

You can save energy during everyday cooking if you follow below hints.

- When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.
• Before you activate the cooking zone put the cookware on it.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol 🌐 Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not

dispose appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

CONSEILS

Diagram illustrating a recycling process with a container and hand holding a bin, showing directional arrows and a recycling symbol.

min. 2 mm A B > 20 mm min. 500 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

R 5mm min. 55mm 490⁺¹mm 750⁺¹mm

Technical diagram showing assembly steps of a mechanical component with labeled parts and dashed lines indicating alignment or disassembly.

Diagram illustrating a recycling process with a container and labeled recycling symbol

min. 2 mm A B < 20 mm min. 500 mm min 30 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

min. 2 mm A B > 20 mm min. 500 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

R 5mm min. 55mm 490⁺¹mm 750⁺¹mm

Technical diagram showing assembly steps of a mechanical component with labeled parts and dashed lines indicating assembly direction.
