PAS6000E - Cooker PROGRESS - Free user manual and instructions

Product type	Built-in ceramic hob
Brand	Progress
Model	PAS6000E
Category	Cooker (hob)
Number of cooking zones	4
Power of cooking zones	2 × 1200 W (front zones) + 2 × 1800 W (rear zones)
Maximum total power	~6000 W (subject to electrical configuration)
Power supply	230 V / 50 Hz, single-phase or two-phase connection (by qualified electrician)
Control type	Touch controls with digital display

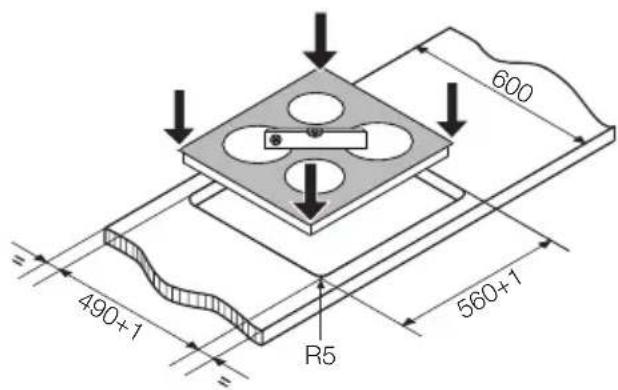

Approximate dimensions (W × D × H)	590 × 520 × 48 mm (cut-out: 560 × 490 mm)
Approximate weight	Approximately 8 kg
Main functions	On/off, cooking level selection (0-9), child safety, programmable auto shut-off, residual heat indicator
Child safety	Activate/deactivate by pressing both front zones simultaneously for 4 seconds (control panel lock)
Automatic safety shut-off	Yes, if no key is pressed for 10 seconds or if an object covers the keys
Maintenance and cleaning	Clean after each use with a damp cloth and mild detergent; use a specific scraper for burnt-on residues (sugar, plastic); special ceramic hob cleaners for stubborn marks
Spare parts and accessories	Scrapers and cleaning products for ceramic hobs available at specialist stores; power supply cable H05BB-F Tmax 90° from after-sales service
Repairability	Repairs only by a qualified professional; contact after-sales service for any faults
General information	Manual available in French, German, English, Dutch; warranty subject to compliance with safety instructions

Frequently Asked Questions - PAS6000E PROGRESS

How to turn the hob on and off?

To turn on, press the On/Off key (①) for 2 seconds. To turn off, press the same key for 1 second. After switching on, you must select a cooking level within 10 seconds, otherwise the hob switches off automatically.

How to activate child safety?

Turn on the hob without selecting a cooking level. Press both front zone keys (left and right) simultaneously for 4 seconds. The display shows L. The safety remains active even after switching off.

What to do if the display shows 'L'?

'L' means child safety is activated. To use it temporarily, turn on the hob, press the front zones for 4 seconds to deactivate until the next switch-off. For permanent deactivation, follow the same procedure then turn off the hob.

How to clean burnt-on residues on the ceramic hob?

Use a special ceramic hob scraper, holding it at an angle. Gently scrape off residues of sugar, plastic or aluminium. Then clean with a damp cloth and mild detergent. For stubborn marks, use a ceramic hob cleaner.

What to do if a cooking zone does not heat up after selection?

Check that more than 10 seconds have not passed since switching on: if so, turn the hob on again. Also check that child safety is not activated (L displayed). If the problem persists, unplug the appliance for a few minutes then plug it back in. If 'E' or a number is displayed, contact after-sales service.

What type of pans to use on this hob?

Use flat and thick-bottomed containers, preferably stainless steel or good quality enamel. Avoid aluminium or copper bases which may leave marks. Do not place empty containers on hot zones to avoid damaging the ceramic.

How to save energy during cooking?

Always place the container on the zone before switching it on. Use lids to reduce cooking times. Turn off the zone a few minutes before the end to take advantage of residual heat. Match the container size to the cooking zone.

What to do if the hob switches off by itself during use?

This may be due to the safety shut-off: if an object (cloth, pan) covers the touch keys for more than 10 seconds, the hob turns off. Remove the object and turn on again. If a zone remains on at the same level for too long, it will switch off automatically (see duration table). In this case, set the zone to 0 then adjust again.

Does electrical installation require an electrician?

Yes, connection must be made by a qualified electrician. Use a cable of type H05BB-F Tmax 90° (or higher). The connection to the mains must include an all-pole switch with contact opening distance of at least 3 mm.

How to contact after-sales service?

Prepare the model name (PAS6000E), product reference (PNC), serial number (S No.) visible on the rating plate, as well as the type of fault and error messages displayed. Contact your retailer or Progress after-sales service. All repairs must be carried out by an approved professional.

USER MANUAL PAS6000E PROGRESS

Safety instructions 13

Description of the Appliance 14

Operating the appliance 15

Tips on Cooking and Frying 17

Care and cleaning 18

Subject to change without notice

What to do if ... 19

Disposal 20

Installation Instructions 20

Service 22

Safety instructions

Warning! Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.

Correct use

• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children's safety

• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.
• To avoid small children and pets unintentionally switching the appliance on, we recommend activation of the child safety device.

General safety

• The appliance may only be installed and connected by trained, registered service engineers.

• Built-in appliances may only be used after they have built in to suitable built-in units and work surfaces that meet standards.

• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
- There is the risk of burns from the appliance if used carelessly.
- Remove stickers and film from the glass ceramic.
- Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.
- Switch the cooking zones off after each use.
- Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and saucepan lids on the cooking surface, as they can get hot.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or highpressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.

• The edge of the glass ceramic can be damaged by being knocked by the cookware.

• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface.

• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.

• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.

• Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance

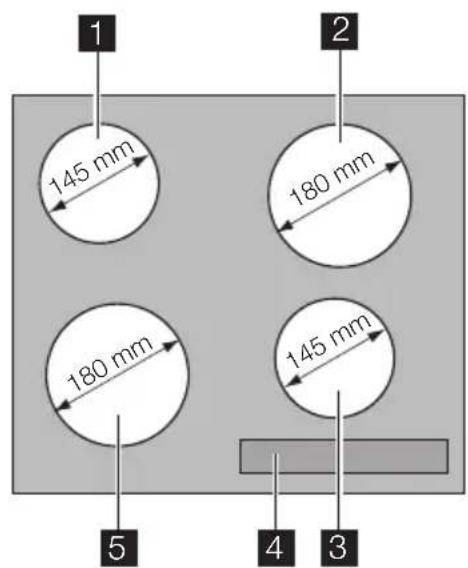

Cooking surface layout

1 Single cooking zone 1200 W
2 Single cooking zone 1800 W
3 Single cooking zone 1200 W
4 Control panel
5 Single cooking zone 1800 W

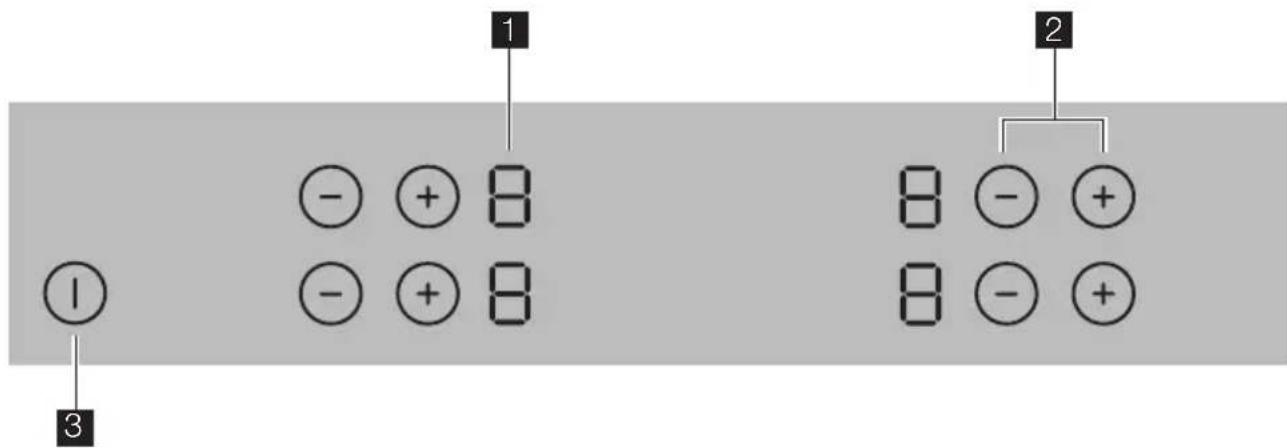

Control panel layout

1 Heat setting indicator
2 Heat setting selection
3 On/Off button

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields.

Touch the sensor fields from above, without covering other sensor fields.

Sensor field Function
①	On / Off To switch the appliance on and off
④	Increase settings Increasing heat setting/time
◎	Decrease settings Decreasing heat setting/time

Displays

Display Description
0	Cooking zone is switched off
1-9	Heat settings Heat setting is set
E	Fault Malfunction has occurred
H	Residual heat Cooking zone is still hot
L	Child safety device Lock/child safety device is engaged
-	Automatic switch off Switch off is active.

Residual heat indicator

Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator H.
Residual heat can be used for melting and keeping food warm.

Operating the appliance

Switching the appliance on and off

Control panel Display
Switch on	Touch for 2 seconds	∅ H
Switch off	Touch for 1 second	Hone

i After switching on, within approx. 10 must be set, otherwise the appliance au-seconds a heat setting or a function tomatically switches itself off.

Setting the heat setting

	Control panel	Indicator
To increase	Touch +	0 to 9
To decrease	Touch -	9 to 0
To switch off	Touch and at the same time	0

Using the child safety device

The child safety device prevents unintentional use of the appliance.

Switching on the child safety device

Step	Control panel	Display/Signal
1.	① Switch on the appliance. (Do not set a heat setting.)	⑩
Step Control panel Display/Signal
2.	Touch of both the cooking zones at the front simultaneously for 4 seconds.	L
3.	① Switch the appliance on.
The child safety device is switched off.

Switching off the child safety device

Step Control panel Display/Signal
1.	① Switch on the appliance. (Do not set a heat setting.)	L
2.	Touch of both the cooking zones at the front simultaneously for 4 seconds.	O
3.	① Switch the appliance off.
The child safety device is switched off.

The child safety device can only be switched on and off, if no heat setting is set.

Overriding the child safety device

The child safety device can be switched off in this way for a single cooking session; it remains activated afterwards.

Step C	Control panel Display/Signal
1.	① Switch the appliance on	L
2.	Touch of both the cooking zones at the front simultaneously for 4 seconds.	0
Until the appliance is next switched off, it can used as normal. After switching off the appliance, the child safety device is active again.

i After overriding the child safety device, a heat setting or a function must be set within approx. 10 seconds, otherwise the appliance automatically switches it- self off.

Automatic switch off

Cooking surface

• If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off.
• If one or more sensor fields are covered by objects (a pan, cloths, etc.) for longer than

approx. 10 seconds, the cooking surface switches off automatically.

• If all cooking zones are switched off, the cooking surface automatically switches itself off after approx. 10 seconds.

Cooking zones

If one of the cooking zones is not switched off after a certain time, or if the heat setting is not modified, the relevant cooking zone switches off automatically. is displayed. Before being used again, the cooking zone must be set to .

Heat setting Switches off after
1-2	6 hours
3-4	5 hours
5	4 hours
6-9	1.5 hours

Tips on Cooking and Frying

Information on acrylamides

i According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.

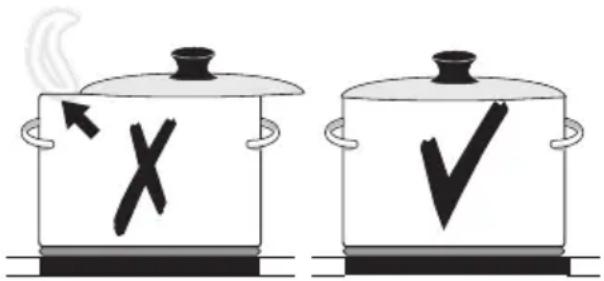

Cookware

• You can recognise good cookware from the bottoms of the pans. The bottom should be as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolorations on the glass ceramic surface which are difficult or impossible to remove.

Energy saving

Always place cookware on the cooking zone before it is switched on.
If possible, always place lids on the pans.
Switch cooking zones off before the end of the cooking time, to take advantage of residual heat.
Bottom of pans and cooking zones should be the same size.

Examples of cooking applications

The information given in the following table is for guidance only.

Heat setting Cooking process		Suitable for Cooking time Tips/Hints
0 Off position
1 Keeping food	warm	Keeping cooked foods warm	as required Cover
1 - 2 Melting Hollandaise		sauce, melting butter, chocolate, gelatine	5-25 mins. Stir occasionally
Solidifying Fluffy omelettes,		baked eggs	10-40 mins. Cook with lid on
2-3	Simmering on low heat	Simmering rice and milkbased dishes Heating up ready-cooked meals	25-50 mins. Add at least twice as much liquid as rice, stir milk dishes part way through cooking
3-4 Steaming Braising Steaming vegeta-		bles, fish braising meat	20-45 mins. With vegetables add only a little liquid (a few table-spoons)
4-5 Boiling Steaming pota-		toes	20-60 mins. Use only a little liquid, e. g.: max. 1/4 l water for 750 g potatoes
Cooking larger		quantities of food, stews and soups	60-150 mins. Up to 3 l liquid plus ingredients
6-7 Gentle Frying Frying escalopes,		veal cordon bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts	Steady frying Turn halfway through cooking
7-8 Heavy Frying Hash browns, loin		steaks, steaks, Flädle (pancakes for garnishing soup)	5-15 mins. per pan Turn halfway through cooking
9 Boiling Searing	Deep frying	Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast), deep frying chips

Care and cleaning

Warning! Risk of burns from residual heat.

Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid.

Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid.

1. Rub the appliance dry using a clean cloth.

Removing deposits

1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.

Cleaning the appliance after each use

1. Wipe the appliance with a damp cloth and a little washing up liquid.

Type of dirt	Remove
	immediately	when the appliance has cooled down	using
sugar, food containing sugar	yes	---	a scraper *
plastics, tin foil	yes	---	a scraper *
limescale and water rings	---	yes	cleaner for glass ceramic or stainless steel *
Remove Type of dirt immediately when the appliance has cooled down
fat splashes	---	yes	cleaner for glass ceramic or stainless steel*
shiny metallic discoloration	--- yes cleaner for glass ceramic		or stainless steel*

• Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops
  i Remove stubborn residues with a cleaner for glass ceramic or stainless steel.
  i Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance.

What to do if ...

Problem Possible cause Remedy
The cooking zones will not switch on or are not functioning	More than 10 seconds have passed since the appliance was switched on	Switch the appliance on again.
The child safety device is switch- ed on	ed on	Deactivate child safety device (See the section "Child safety device")
Several sensor fields were	touched at the same time	Only touch one sensor field
Automatic switch off has been triggered	triggered	Remove any objects (pan,cloths,etc.) that are lying on the control panel. Switch the appli- ance on again
The residual heat indicator is not displaying anything	The cooking zone was only on for a short time and is therefore not hot	If the cooking zone is supposed to be hot, call the Customer Service Department.
The appliance switches itself on and then off again.	The On/Off sensor field has been covered up, e.g. by a cloth	Do not place any objects on the control panel
☐ is lit	Overheating protection for the cooking zone has been trig- gered	Switch off the cooking zone.Switch the cooking zone on again
Automatic switch off has been triggered	triggered	Switch off the cooking zone.Switch the cooking zone on again
E and number are displayed	Electronics fault Disconnect the appliance from the electrical supply for a few mi- nutes (Take the fuse out of the house's wiring system) If after switching on again, E is dis- played again, call the customer service department

If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department.

Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

i If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place

free of charge, even during the warranty period.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for

the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Installation Instructions

Safety instructions

Warning! This must be read!

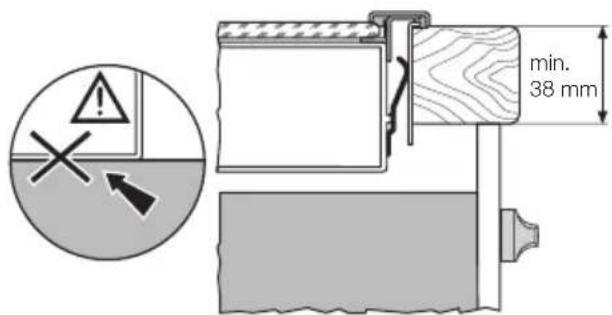

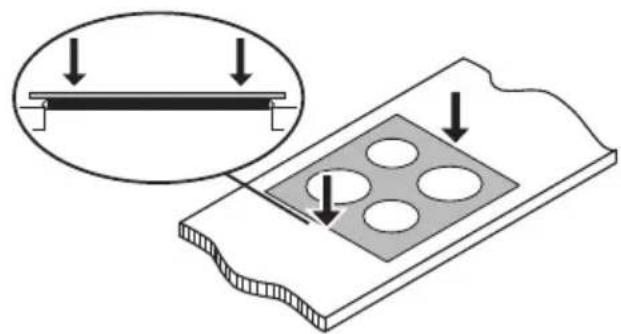

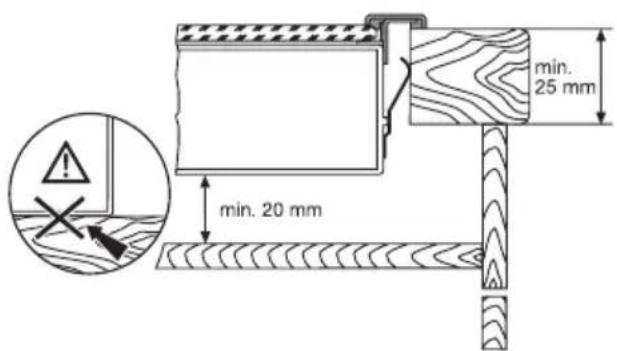

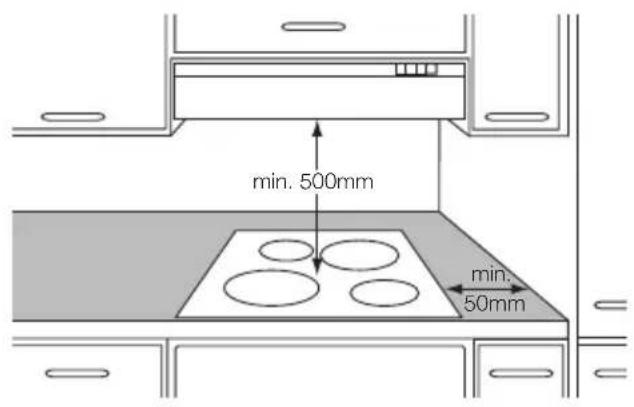

The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. Anti-shock protection must be provided by the installation, for example drawers may only be installed with a protective floor directly underneath the appliance. The cut surfaces of the worktop are to be protected against moisture using a suitable sealant. The sealant seals the appliance to the work top with no gap. When building in, protect the underside of the appliance from steam and moisture, e.g. from a dishwasher or oven. Avoid installing the appliance next to doors and under windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.

Warning! Risk of injury from electrical current.

• The electrical mains terminal is live.
• Make electrical mains terminal free of voltage.
• Follow connection schematic.

• Observe electrical safety rules.

• Ensure anti-shock protection by installing correctly.

• The appliance must be connected to the electrical supply by a qualified electrician.

Warning! Risk of injury from electrical current.

• Loose and inappropriate plug and socket connections can make the terminal overheat.
• Have the clamping connections correctly installed by a qualified electrician.
• Use strain relief clamp on cable.
• In the event of single-phase or two-phase connection, the appropriate mains cable of type H05BB-F Tmax 90^ (or higher) must be used.
• If this appliance's mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90^ ; or higher). The latter is available from the Customer Care Department

A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3mm . Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contractors.

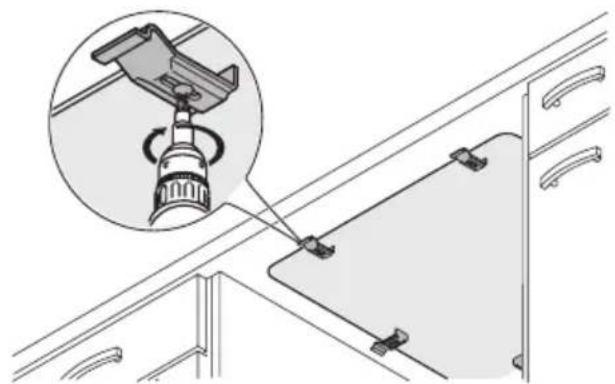

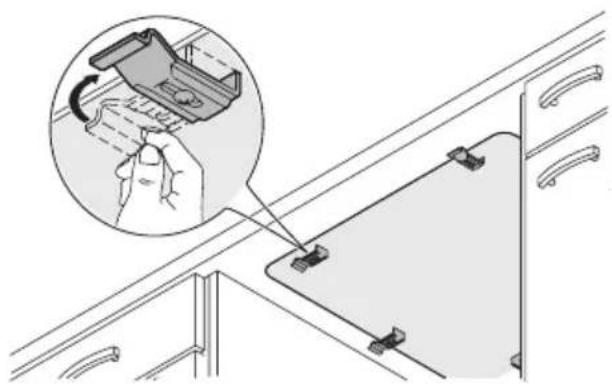

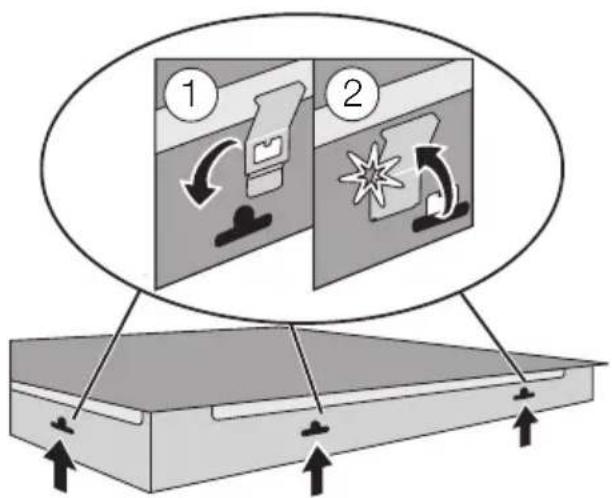

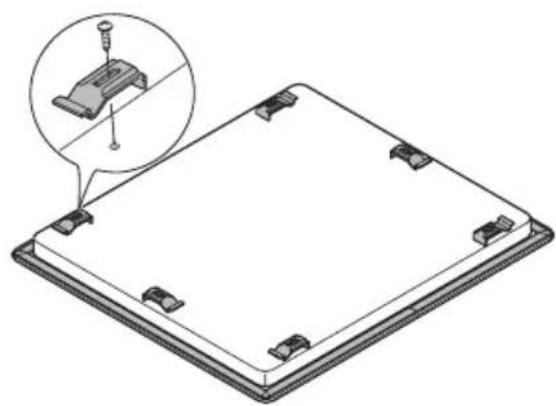

Assembly

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section "What to do if..."). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. In order to be able to assist you quickly, we require the following information:

• Model description

• Product number (PNC)

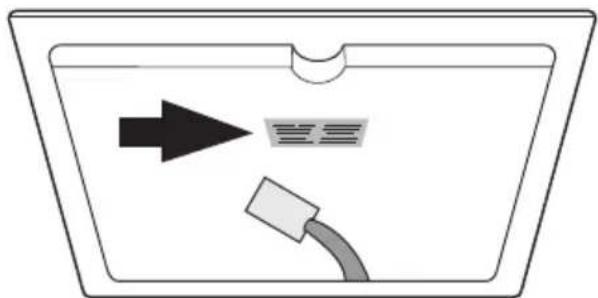

• Serial number (S No. - see rating plate)
• Type of fault
• Any error messages displayed by the appliance
• three digit letter-number combination for glass ceramic

Sommaire
