PKV1205 - Fridge PROGRESS - Free user manual and instructions
Find the device manual for free PKV1205 PROGRESS in PDF.
| Product type | Built-in refrigerator |
| Brand | Progress |
| Model | PKV1205 |
| Dimensions (H x W x D) | 1225 x 560 x 550 mm |
| Voltage | 230-240 V |
| Frequency | 50 Hz |
| Climate class | SN, N, ST, T (from +10°C to +43°C) |
| Refrigerant | Isobutane (R600a), flammable gas |
| Interior lighting | Long-life LED (replacement by after-sales service) |
| Temperature adjustment | Via + and - buttons, digital display, default +5°C |
| Main functions | Drinks Chill, Intensive Cooling, Child Safety, Open door alarm |
| 0°C compartment | Yes, with humidity control (dry/humid) and removable drawers |
| Defrosting | Automatic for the refrigerator compartment |
| Freezing capacity | Not applicable (refrigerator without freezer compartment) |
| Cleaning | Warm water and mild detergent; do not use abrasive products |
| Safety | Magnetic closure, key lock (Child Safety), open door alarm |
| Repairability | Spare parts available via after-sales service; LED lighting replacement by a professional |
| Energy consumption | Refer to energy label |
Frequently Asked Questions - PKV1205 PROGRESS
User questions about PKV1205 PROGRESS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual PKV1205 - PROGRESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PKV1205 by PROGRESS.

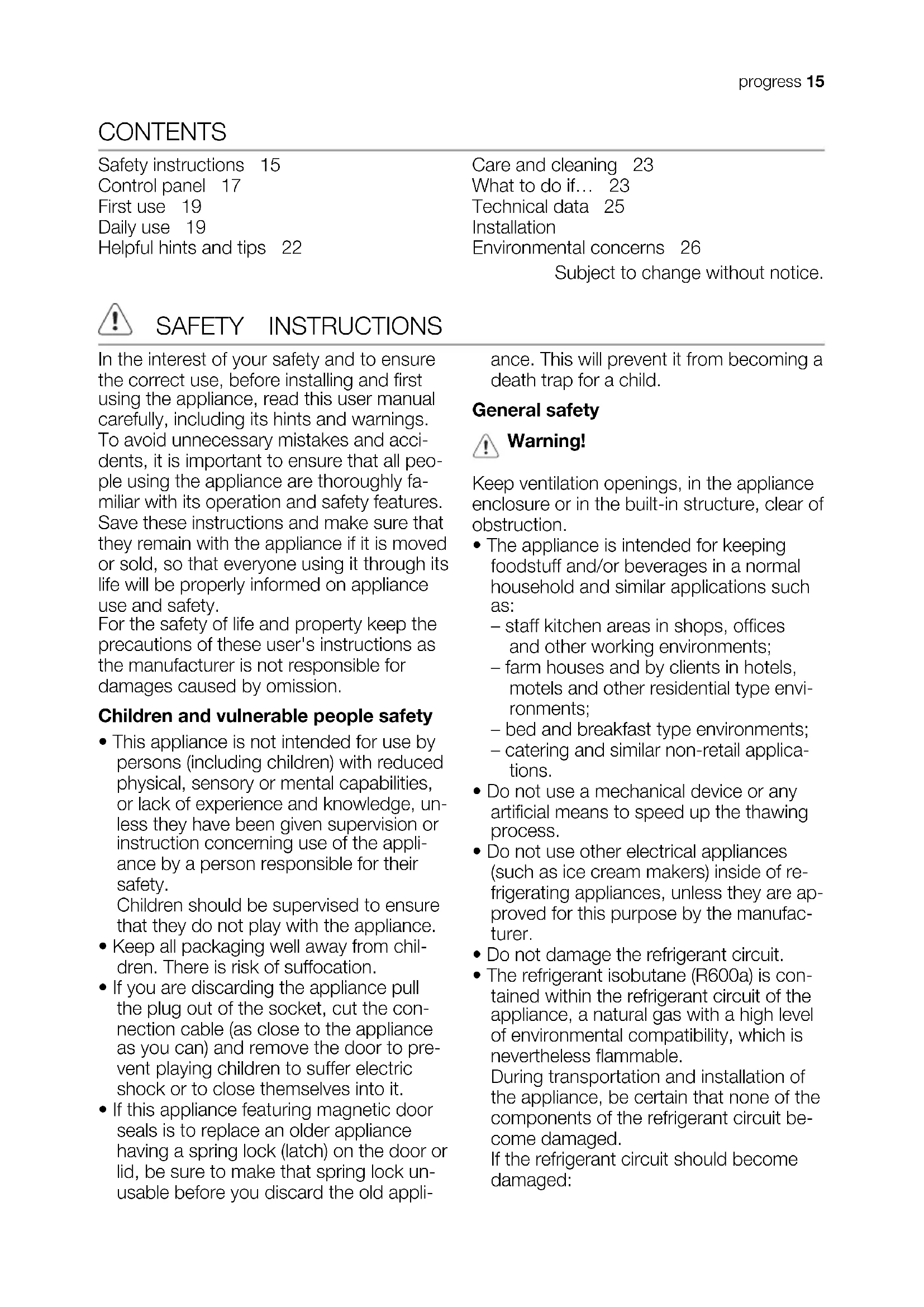

USER MANUAL PKV1205 PROGRESS
Line drawing of a mechanical device with two horizontal panels and an upward arrow indicating motion (no text or symbols)natural_image
Line drawing of a two-tiered storage cabinet with mesh internal compartments (no text or symbols)Temperatuurweergave
Control panel 17
First use 19
Daily use 19
Helpful hints and tips 22
Care and cleaning 23
What to do if... 23
Technical data 25
Installation
Environmental concerns 26
Subject to change without notice.
SAFETY INSTRUCTIONS
In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Keep all packaging well away from children. There is risk of suffocation.
- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appli-
ance. This will prevent it from becoming a death trap for a child.
General safety
Warning!
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- The appliance is intended for keeping foodstuff and/or beverages in a normal household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.
- Do not use a mechanical device or any artificial means to speed up the thawing process.
- Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
- Do not damage the refrigerant circuit.
- The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
- avoid open flames and sources of ignition
– thoroughly ventilate the room in which the appliance is situated
- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.
Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.
- Power cord must not be lengthened.
-
Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
-
Make sure that you can come to the mains plug of the appliance.
-
Do not pull the mains cable.
-
If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
-
You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.
- Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.
Daily Use
- Do not put hot pot on the plastic parts in the appliance.
- Do not store flammable gas and liquid in the appliance, because they may explode.
- Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)
- Frozen food must not be re-frozen once it has been thawed out.
- Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
- Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
- Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
- Ice lollies can cause frost burns if consumed straight from the appliance.
Care and cleaning
- Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
- Do not clean the appliance with metal objects.
- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
- Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
Important! For electrical connection carefully follow the instructions given in specific paragraphs.
- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
- It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

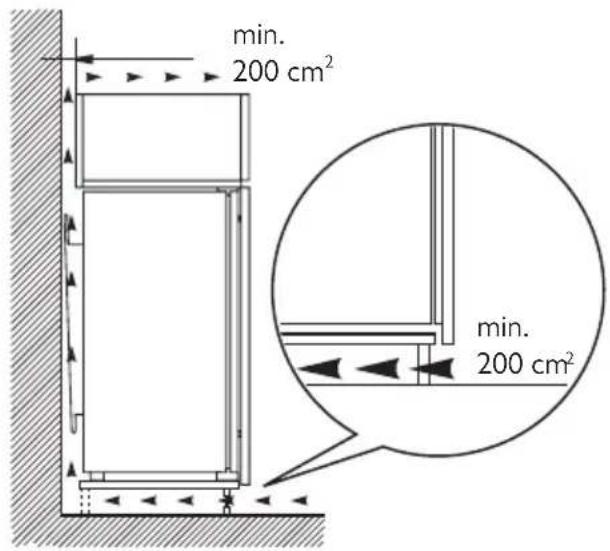

- Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
- Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
- The appliance must not be located close to radiators or cookers.
- Make sure that the mains plug is accessible after the installation of the appliance.
- Connect to potable water supply only (If a water connection is foreseen).
Service
- Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
- This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer,
in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

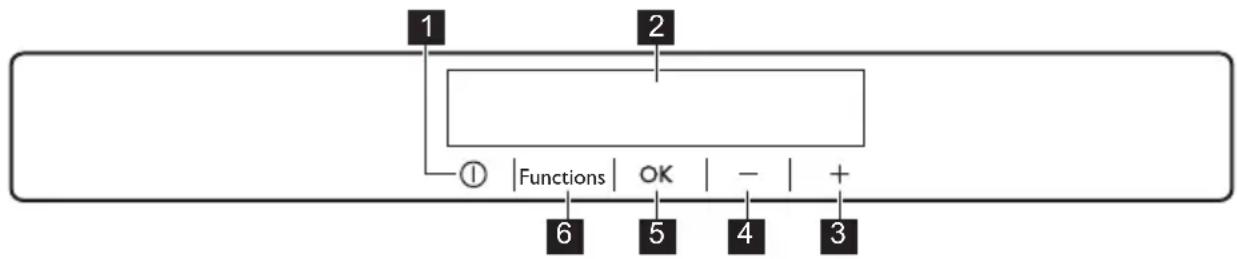

CONTROL PANEL
1 ON/OFF button
2 Display
3 Temperature warmer button
4 Temperature colder button
5 OK button
6 Functions button
It is possible to change predefined sound of buttons to a loudly one by pressing together Functions button and Temperature colder button for some seconds. Change is reversible.

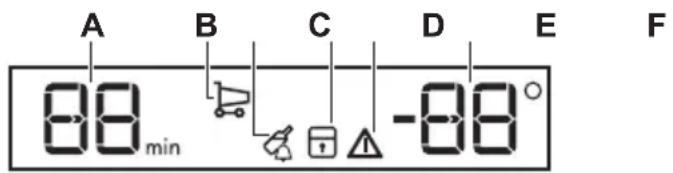

Display
B) Intensive Cooling function
C) Drinks Chill function
D) Child Lock function
E) Alarm indicator
F) Temperature indicator
Switching on
To switch on the appliance do these steps:
- Connect the mains plug to the power socket.
-
Press the ON/OFF button if the display is off.
-
The alarm buzzer may sound after a few seconds.
To reset the alarm refer to "Door open alarm".
If “DEMO” appears on the Display, the appliance is in demonstration mode: refer to “Troubleshooting” paragraph.
- The temperature indicators show the set default temperature.
To select a different set temperature refer to "Temperature regulation".
Switching off
To switch off the appliance do these steps:
- Press the ON/OFF button for 5 seconds.
- The display switches off.
- To disconnect the appliance from the power disconnect the mains plug from the power socket.
Temperature regulation
The set temperature of the fridge may be adjusted by pressing the temperature button.
Set default temperature: +5°C for the fridge.
The temperature indicator shows the set temperature.
The set temperature will be reached within 24 hours.
Important! After a power failure the set temperature remains stored.
Drinks Chill function
The Drinks Chill function is to be used to set an acoustic alarm at the preferred time, useful for example when you want to rapidly chill a bottle of wine for a certain length of time.
To switch on the function:
- Press the Functions button until the corresponding icon appears. The Drinks Chill indicator flashes. The Timer shows the set value (30 minutes) for a few seconds.
- Press the Temperature colder or Temperature warmer button to change the Timer set value from 1 to 90 minutes.
- Press the OK button to confirm. The Drinks Chill indicator is shown. The Timer start to flash (min).
At the end of the countdown the Drinks Chill indicator flashes and an audible alarm sounds:
- press OK button to switch off the sound and terminate the function. It is possible to deactivate the function at any time during the countdown:
- Press the Functions button until the Drinks Chill indicator flashes.
- Press the OK button to confirm.
- The Drinks Chill indicator goes off. It is possible to change the time at any time during the countdown and at the end by
pressing the Temperature colder button and the Temperature warmer button.
Child Lock function
To lock the buttons from unintentional operation select the Child Lock function.
To switch on the function:
- Press the Functions button until the corresponding icon appears.
- The Child Lock indicator flashes.
- Press the OK button to confirm. The Child Lock indicator is shown.
To switch off the function:
- Press the Functions button until the Child Lock indicator flashes.
- Press the OK button to confirm.
- The Child Lock indicator goes off.
Intensive Cooling function
If you need to insert a large amount of warm food, for example after doing the grocery shopping, we suggest activating the Intensive Cooling function to chill the products more rapidly and to avoid warming the other food which is already in the refrigerator.
To switch on the function:
- Press the Functions button until the corresponding icon appears. The Intensive Cooling indicator flashes.
- Press the OK button to confirm. The Intensive Cooling indicator is shown.
The Intensive Cooling function shuts off automatically after approximately 6 hours.
To switch off the function before its automatic end:
- Press the Functions button until the Intensive Cooling indicator flashes.
- Press the OK button to confirm.
- The Intensive Cooling indicator goes off.
Important! The function switches off by selecting a different fridge set temperature.
Door open alarm
An acoustic alarm will sound if the door is left open for a few minutes. The door open alarm conditions are indicated by:
- flashing Alarm indicator
- acoustic buzzer
When normal conditions are restored (door closed), the alarm will stop.
During the alarm, the buzzer can be switched off by pressing any button.
FIRST USE
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
If "dEMo" appears on the Display, the appliance is in demonstration mode: refer to "WHAT TO DO IF..." paragraph.
DAILY USE

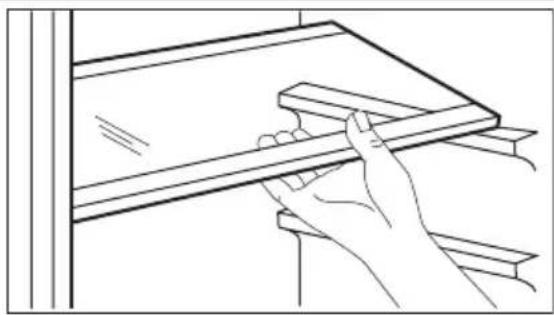

Movable shelves


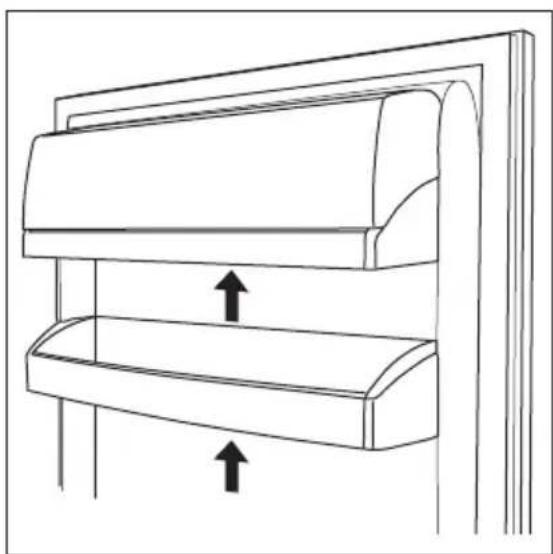

Positioning the door shelves
To
To make these adjustments proceed as follows:
gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

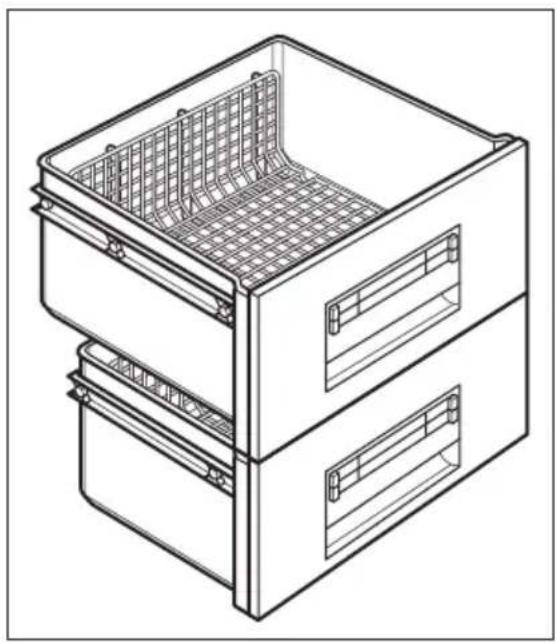

0°C Compartment
In the 0^ C compartment the temperature is controlled automatically. It stays constantly at about 0^ C, no adjustment is necessary. The constant storage temperature of about 0^ C and the relative humidity of between 45 and 90 % provide optimal conditions for the various kinds of food.
Important!
You can therefore store a variety of fresh food in the 0°C compartment, where it will last up to 3 times longer with better quality compared to normal refrigerator compartments. This allows you to stock more fresh food. Taste, degree of freshness, quality and nutritional values (vitamins and minerals) are well preserved. Loss of weight in vegetables and fruit diminishes. Food yields a higher degree of nutritional value.
Important!
The 0°C compartment is also suitable for defrosting food.
In this case the thawed food can be stored up to two days.

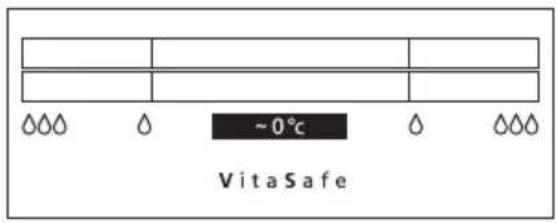

Humidity control
- „Dry“: low air humidity - up to 50 % relative humidity This humidity level is reached when both sliders are set into this position ⬆ and the ventilation openings are wide open.
- Humid": high relative humidity - up to 90% This humidity level is reached when both sliders are set in this position ⬆ and the ventilation openings are closed. Humidity is kept and can not escape.
1) The riper the fruit, the shorter the storage time

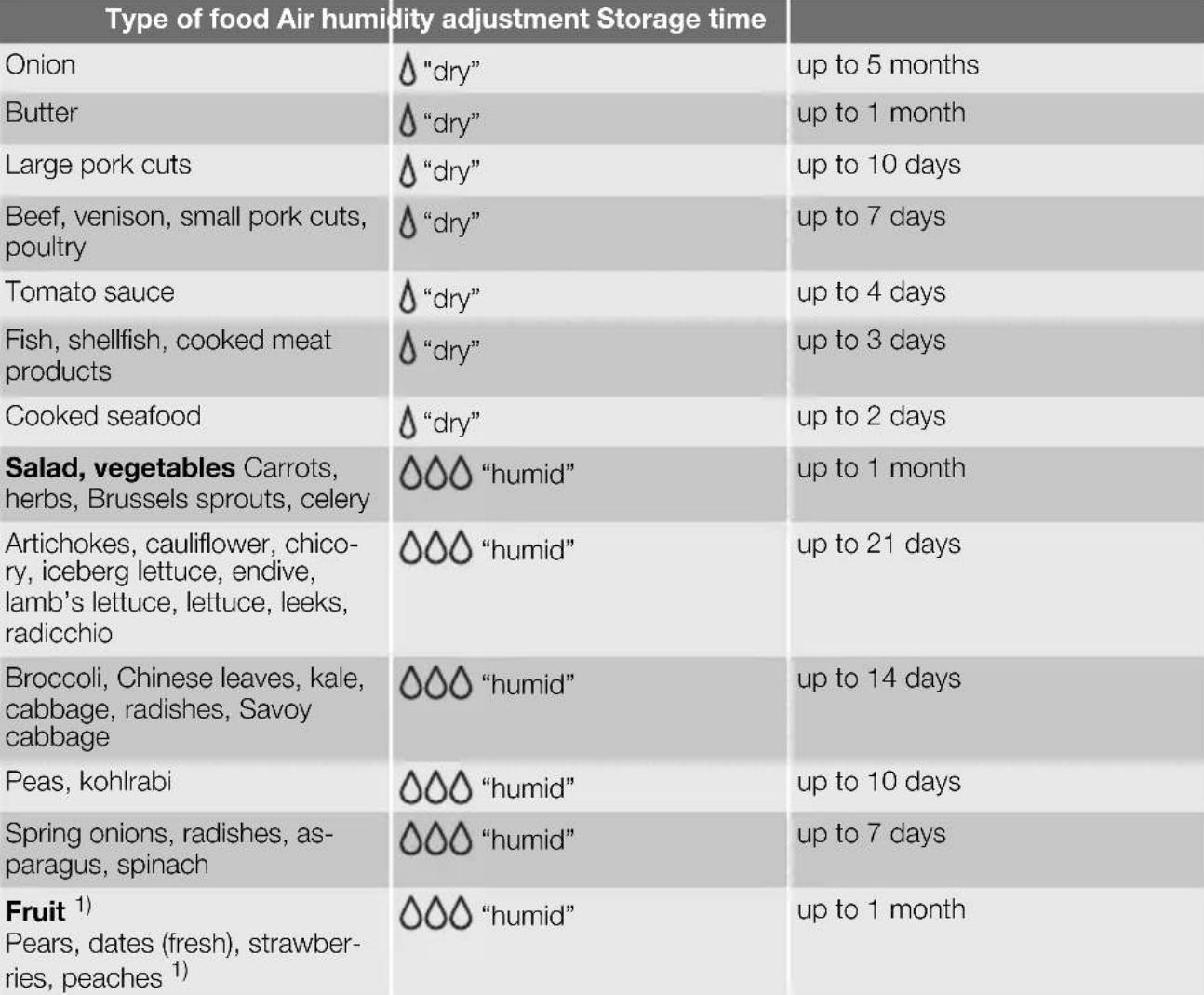

Storage time in the 0°C compartment for fresh food
 | ||
| Type of food Air humidity adjustment Storage time | ||
| Plums 1) rhubarb, gooseberries | “humid” | up to 21 days |
| Apples (not sensitive to cold), quinces | “humid” | up to 20 days |
| Apricots, cherries | “humid” | up to 14 days |
| Damsons, grapes | “humid” | up to 10 days |
| Blackberries, currants | “humid” | up to 8 days |
| Figs (fresh) | “humid” | up to 7 days |
| Blueberries, raspberries | “humid” | up to 5 days |
Important!
Cakes containing cream and other kinds of pastry products can be stored in the 0°C compartment for 2 or 3 days.
Important!
Not to be placed in the 0°C compartment:
- cold sensitive fruit which have to be stored at cellar or room temperature like pineapple, bananas, grapefruit, melons, mango, papaya, oranges, lemons, kiwi fruit.
- The types of food not mentioned above should be stored in the refrigerator compartment (e.g. all sorts of cheese, cold cuts, etc.)
Important!
The level of air humidity in the drawers depends on the content of humidity in the stored food, vegetable and fruit and on the frequency of door opening The 0°C compartment is also suitable for slow thawing of food. In this case the thawed food can be stored in the 0°C compartment for up to two days.
Tips:
- Pay attention to the freshness of the food, especially on the expiry date. Quality and freshness influence the storage time.
- The whole storage cycle time will depend on the preservation conditions made prior to the final storage in the fridge.
- Food, fruit or vegetables should always be packed or wrapped up before storage.
- Animal food always store packed and dry.
- Food rich in proteins will go bad quicker. This means seafood will spoil before fish which in turn will spoil before meat. While storing food in a 0°C compartment storage time for that kind of food can be increased by up to three times as well without loss on quality.
- All food stored in a 0°C compartment should be taken out of the drawers roughly 15-30 min before consumption, particularly fruit and vegetables to be consumed without any additional cooking process. Allowing fruit and vegetables to return to room temperature will improve the texture and flavour.
Drawer
The compartment has stops to prevent the drawers from falling out when fully extended.
To remove the drawers (e.g. for cleaning purposes), pull them out as far as the stops, lift and extract.
Important! This appliance is sold in France.
In accordance with regulations valid in this country it must be provided with a special device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.
HELPFUL HINTS AND TIPS
Hints for energy saving
- Do not open the door frequently or leave it open longer than absolutely necessary.
- If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
- do not store warm food or evaporating liquids in the refrigerator
- do cover or wrap the food, particularly if it has a strong flavour
- position foods so that air can circulate as much air as possible.
freely around it
an circulate as much air as possible.
Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
Fruits and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. When in contact, lemon juice can discolor the plastic parts of your fridge. It is therefore recommended to keep citruses in separate containers.
Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude
Bottles: these should have a cap and should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
CARE AND CLEANING
Caution! Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and re-charging must therefore only be carried out by authorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
- clean the inside and accessories with lukewarm water and some neutral soap.
- regularly check the door seals and wipe clean to ensure they are clean and free from debris.
- rinse and dry thoroughly.
Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odor.
Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.
The lowest shelf, dividing the cooler compartment from the 0^ C compartment can be removed only for cleaning. To remove pull out the shelf straight.
The cover plates above the drawers in the compartment can be taken out for cleaning.
Important!
To make sure fully functionality of the 0^ C compartment the lowest shelf and cover
WHAT TO DO IF...
Warning! Before troubleshooting, disconnect the mains plug from the mains socket.
plates must be put back in their original position after cleaning.
Important! Take care of not to damage the cooling system.
Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.
After cleaning, reconnect the equipment to the mains supply.
Defrosting of the refrigerator
Defrosting of the fridge compartment is automatic.
The water that forms flows into a recipient on the compressor and evaporates. This recipient cannot be removed.
Periods of non-operation
When the appliance is not in use for long periods, take the following precautions:
- disconnect the appliance from electricity supply
- remove all food
- defrost (if foreseen) and clean the appliance and all accessories
- leave the door/doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.
Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.
Important! There are some sounds during normal use (compressor, refrigerant circulation).
| Problem Possible cause Solution | ||
| The appliance does not operate. The lamp does not operate. | The appliance is switched off. Switch on the appliance. | |
| The mains plug is not connected to the mains socket correctly. | Connect the mains plug to the mains socket correctly. | |
| The appliance has no power. | There is no voltage in the mains socket. | Connect a different electrical appliance to the mains socket. Contact a qualified electrician. |
| The lamp does not work. | The lamp is in stand-by. | Close and open the door. |
| The lamp is defective. | Refer to "Replacing the lamp". | |
| The compressor operates continually. | The temperature is not set correctly. | Set a higher temperature. |
| The door is not closed correctly. | Refer to "Closing the door". | |
| The door has been opened too frequently. | Do not keep the door open longer than necessary. | |
| The product temperature is too high. | Let the product temperature decrease to room temperature before storage. | |
| The room temperature is too high. | Decrease the room temperature. | |
| Water flows on the rear plate of the refrigerator. | During the automatic defrosting process, frost defrosts on the rear plate. | This is correct. |
| Water flows into the refrigerator. | The water outlet is clogged. Clean the water outlet. | |
| Products prevent that water flows into the water collector. | Make sure that products do not touch the rear plate. | |
| Water flows on the ground. | The melting water outlet does not flow in the evaporative tray above the compressor. | Attach the melting water outlet to the evaporative tray. |
| The temperature in the appliance is too low. | The temperature regulator is not set correctly. | Set a higher temperature. |
| The temperature in the appliance is too high. | The temperature regulator is not set correctly. | Set a lower temperature. |
| The door is not closed correctly. | Refer to "Closing the door". | |
| The product temperature is too high. | Let the product temperature decrease to room temperature before storage. | |
| Many products are stored at the same time. | Store less products at the same time. | |
| There is no cold air circulation in the appliance. | Make sure that there is cold air circulation in the appliance. | |
| Problem Possible cause Solution | ||
| Upper or lower square is shown in the temperature display. | An error has occurred in measuring the temperature | Call your service representative (the cooling system will continue to keep food products cold, but temperature adjustment will not be possible). |
| dEMo appears on the Display. | The appliance is in demonstration mode (dEMo) | Keep pressed approximately 10 sec. the OK button since a long sound of buzzer is heard and the Display shut off for a short while: appliance start works regularly. |
Replacing the lamp
The appliance is equipped with a longlife LED interior light.
Only service is allowed to replace the lighting device. Contact your Service Center.
- If necessary, adjust the door. Refer to "Installation".
- If necessary, replace the defective door gaskets. Contact the Service Center.
Closing the door
- Clean the door gaskets.
TECHNICAL DATA
| Dimension of the recess | ||
| Height 1225 mm | ||
| Width 560 mm | ||
| Depth 550 mm | ||
| Voltage 230-240 V | ||
| Frequency 50 Hz |
The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.
INSTALLATION
Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:
| Climate class | Ambient temperature |
| SN +10°C to + 32°C | |
| N +16°C to + 32°C | |
| ST +16°C to + 38°C | |
| T | +16°C to + 43°C |
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power sup-
ply socket is not earthed, connect the appli- ance to a separate earth in compliance with current regulations, consulting a qualified electrician.
Ventilation requirements
This appliance complies with the E.E.C. Directives.
The airflow behind the appliance must be sufficient.
ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol ☒ Put the packaging in applicable containers to recycle it.
Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose
appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.
SISUKORD
Ohutusjuhised
Juhtpaneel
