1. BESCHRIJVING VAN UW WIJNKAST

Technical diagram of a multi-chamber industrial or storage unit with numbered components and flow arrows indicating material movement.

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a mechanical lever with numbered components and directional arrows indicating motion or assembly.

3D rendering of a mechanical device inside a yellow and cyan enclosure with a metallic component (no text or symbols visible)

3D rendering of a yellow industrial machine with a metallic component inside, no visible text or symbols

3D technical illustration of a green industrial enclosure with yellow top and mounting bracket (no text or symbols)

3.4 De deurgreep monteren

Technical diagram of a rectangular frame with labeled components and a small object inside, showing numbered parts 1, 2, and 3.

Technical line drawing of a vertical cabinet with an arrow indicating upward motion (no text or symbols)

Technical diagram showing labeled components and directional arrows, likely illustrating a process or flow with numbered annotations.

Technical diagram of a heating element with numbered components and labeled parts

Technical line drawing of a mechanical assembly with a grid-like structure and cylindrical components (no text or symbols)

Technical line drawing of a mechanical frame or enclosure with a downward arrow indicating direction (no text or symbols present)

Line drawing of a simple rectangular frame with a small clip and two small protrusions on top (no text or symbols)

Line drawing of a refrigerator with open door and side panel (no text or symbols)

Technical diagram of a mechanical assembly with a red curved arrow indicating motion or force direction (no text or symbols present)

Technical diagram of a multi-chamber industrial or storage unit with numbered components and flow arrows indicating material movement.

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a mechanical lever with numbered parts labeled 13 and 14

3D rendering of a yellow industrial machine with a metallic component inside, showing internal structure and no visible text or symbols.

3D rendering of a mechanical assembly with a gray component inside a yellow and cyan housing (no text or symbols visible)

3D rendering of a green industrial enclosure with yellow top and black panel, no visible text or symbols

Technical diagram of a rectangular frame with labeled components and directional arrows indicating movement or force.

Technical line drawing of a vertical cabinet with an arrow indicating upward motion (no text or symbols)

Technical diagram showing labeled components and directional arrows, likely from an engineering or physics context.

Technical diagram of a mechanical or electrical component with numbered parts labeled ② to ⑩

Technical line drawing of a roof structure with grid and roller assembly (no text or symbols)

Technical line drawing of a mechanical cabinet or enclosure with an arrow indicating direction (no text or symbols present)

Line drawing of a rectangular frame with a small object on top, no text or symbols present

Line drawing of a refrigerator with lid and side panel (no text or symbols)

Technical diagram of a mechanical assembly with a red curved arrow indicating rotation or force direction (no text or symbols present)

Green panel with a black ventilation grille and multiple square holes on the side (no text or symbols)

Sonde hygromètre

Technical diagram of a multi-layered storage or filtration unit with numbered components and directional arrows indicating flow or movement.

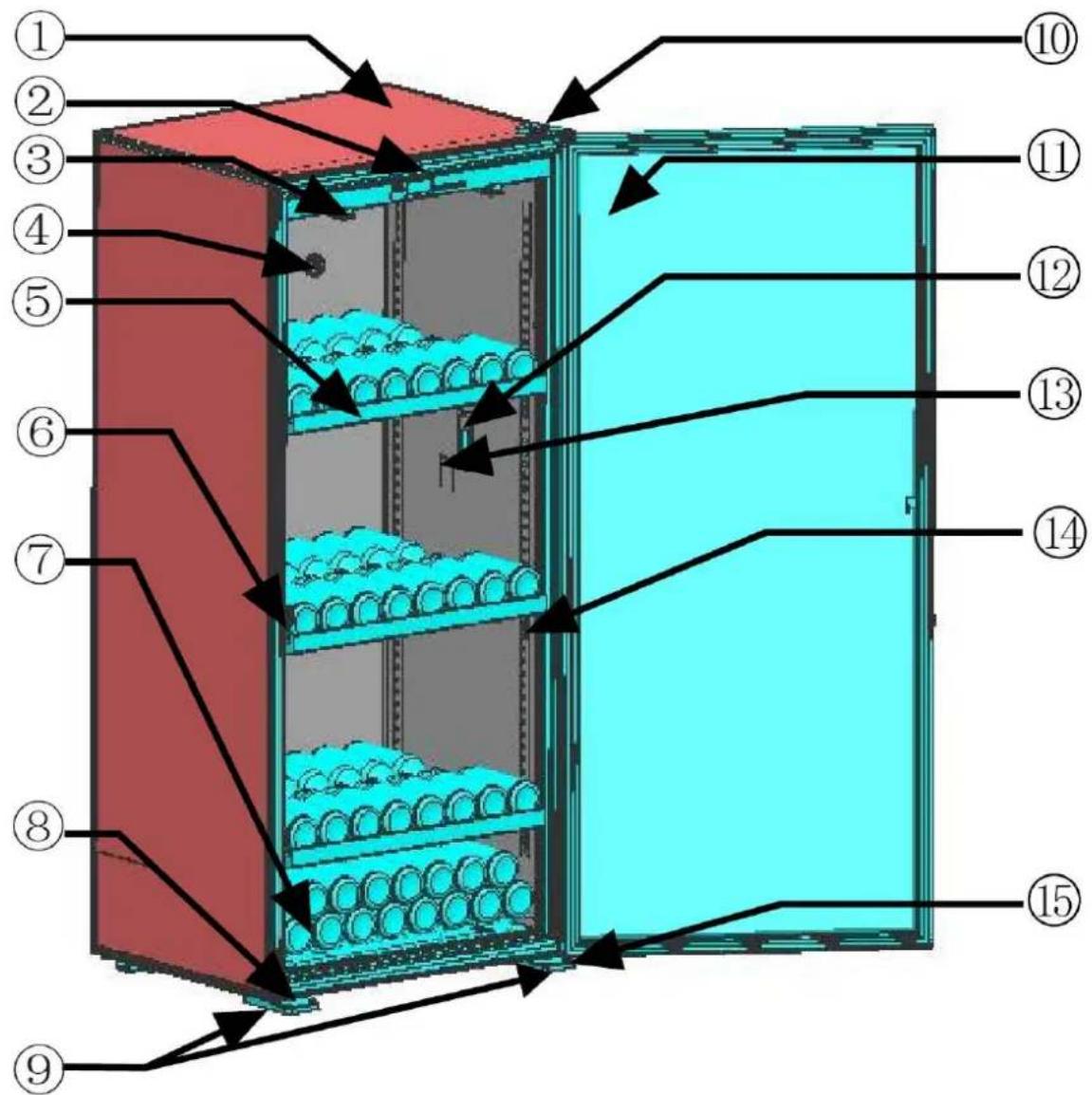

1. Cabinet case
2. Control and adjustment panel
3. LED lights
4. Carbon filter

5. Wooden shelf

6. Closing clip 7. Steel wire shelf 8. Cabinet bracing bar 9. Bottom grid & Adjustable leveling

feet 10. Hinge 11. Door 12. Humidity sensor 13. Temperature probes 14. Shelf bracing hook

1. Bottom pivot guide

Note: If your product is without lock, there is no closing clip (6)

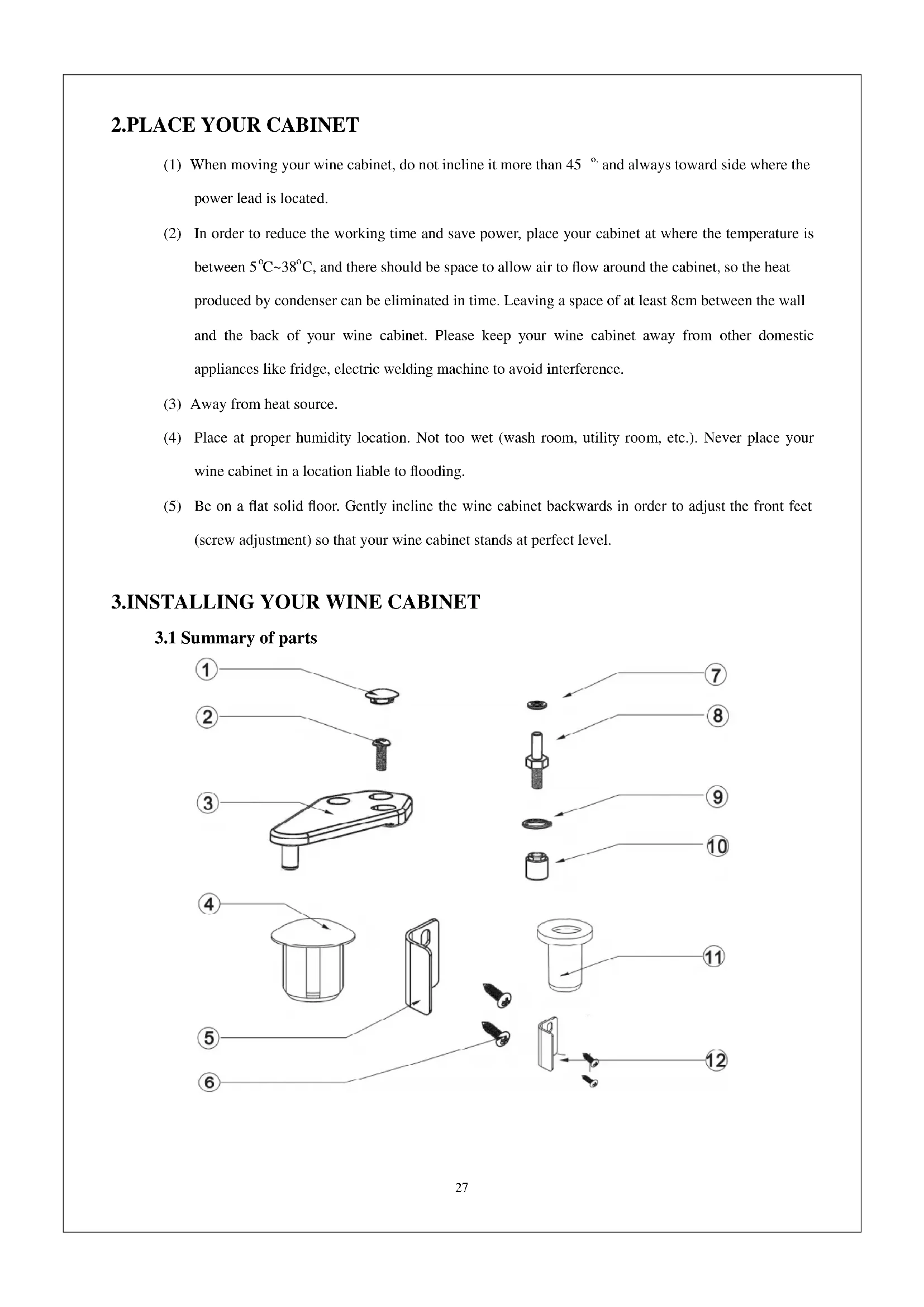

2.PLACE YOUR CABINET

(1) When moving your wine cabinet, do not incline it more than 45^ , and always toward side where the power lead is located.

(2) In order to reduce the working time and save power, place your cabinet at where the temperature is between 5^ 38^ , and there should be space to allow air to flow around the cabinet, so the heat produced by condenser can be eliminated in time. Leaving a space of at least 8cm between the wall and the back of your wine cabinet. Please keep your wine cabinet away from other domestic appliances like fridge, electric welding machine to avoid interference.

(3) Away from heat source.

(4) Place at proper humidity location. Not too wet (wash room, utility room, etc.). Never place your wine cabinet in a location liable to flooding.

(5) Be on a flat solid floor. Gently incline the wine cabinet backwards in order to adjust the front feet (screw adjustment) so that your wine cabinet stands at perfect level.

3.INSTALLING YOUR WINE CABINET

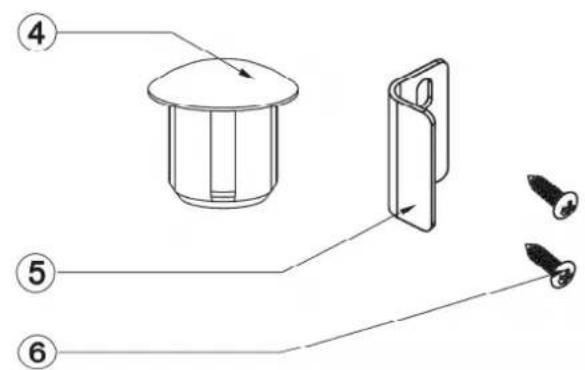

3.1 Summary of parts

Diagram showing two labeled components connected by a line, with component 1 above and component 2 below.

Diagram showing a mechanical component with numbered parts, likely for assembly or manufacturing instructions.

Technical line drawing of a mechanical component with a numbered label (3) pointing to a feature on the top surface.

Technical diagram showing two mechanical components with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a mechanical component with numbered parts and exploded view, including a cylindrical housing and two screws.

13 14

1. Grommet

2. Screw

3. Top hinge

4.Grommet

1. Closing clip

2. Phillips screw

3. Washer

4. Door pivot guide

5. Washer

6. Hinge nut

7. Pivot

8. Grommet

9. Handle of door

10. Chamfer head screw

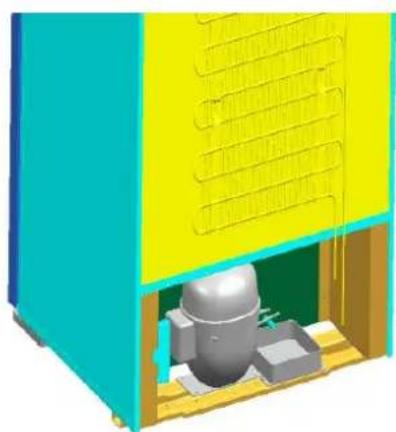

3.2 Installing the drip tray

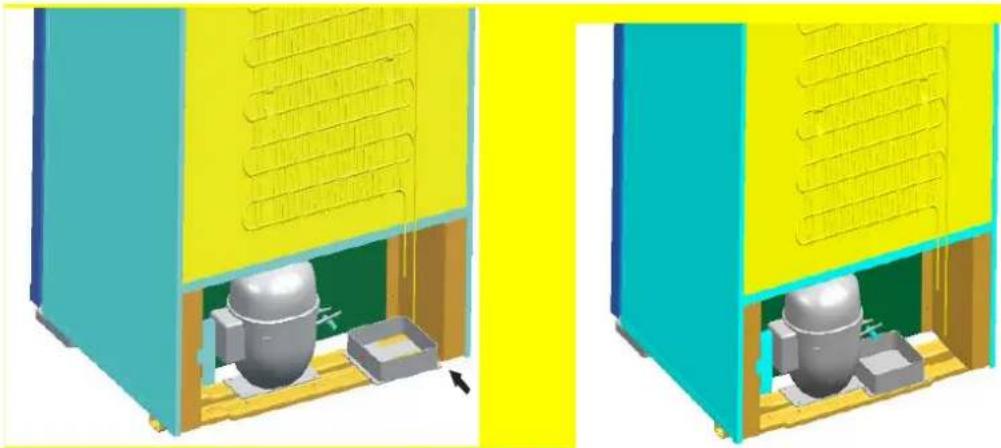

Install the drip tray on the compressor support at the back of the cabinet, locating it under the small pipe protruding from the housing, the lower part of the tank being placed under this pipe. See diagram below:

3D rendering of two industrial storage units with heat sinks and internal components, shown from different angles (no text or symbols visible)

Installing the drip tray

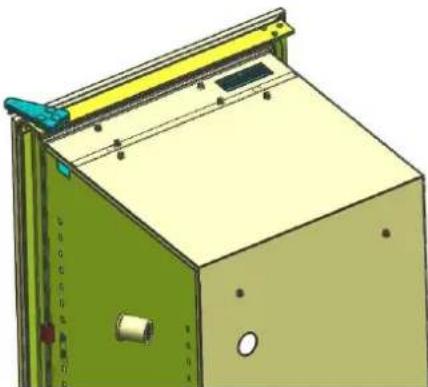

3.3 Installing the carbon filter

Install the carbon filter, which you will find inside your cabinets, by placing it in the air circulation hole located on the top inside the cabinet. The carbon filter can be used for one year, please change it thereafter. Contact your local distributor for new carbon filter. Please remove the used carbon filter before inserting the new one.

3D technical illustration of a green industrial enclosure with yellow frame and mounting bracket (no text or symbols)

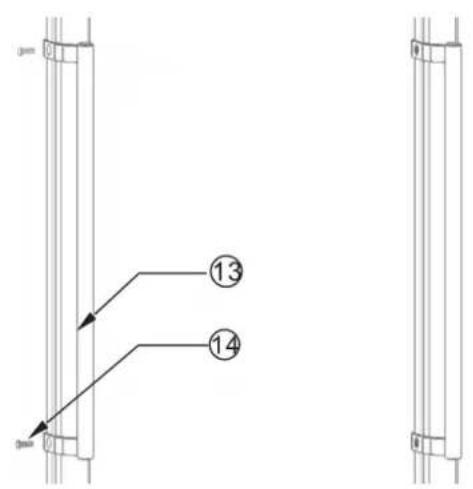

3.4 Installing the handle of door

You can find a handle and two chamfer head screws in your accessories box. Following a diagram below you can fix the handle on the door.

3mm ⑬ ⑭ ⑮

Installing the handle of door

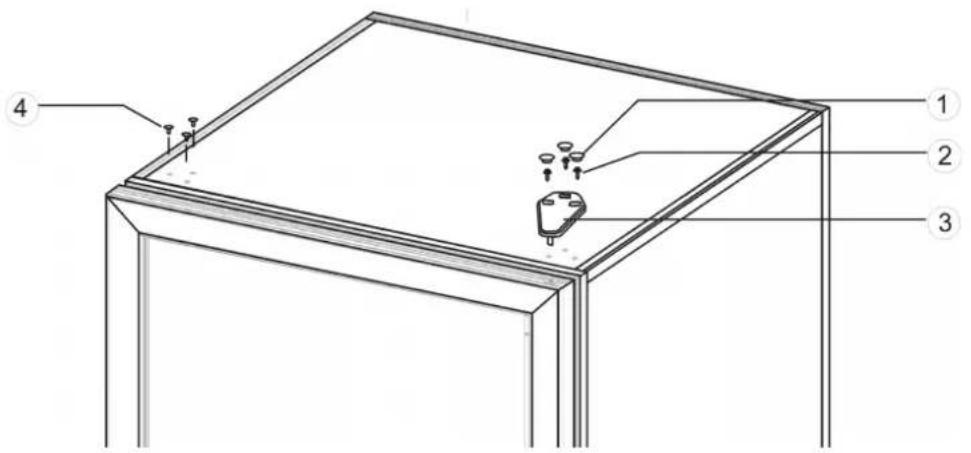

3.5 Alternative hanging of the door (excepted full door with lock)

The door is set to be hinged right at purchase; you can change it to left. To do this, proceed as follows:

(1) Close the door.
(2) Remove the grommets gently using a fine blade, loosen the screws and remove the upper hinge.

Technical diagram of a 3D panel assembly with numbered components and mounting features

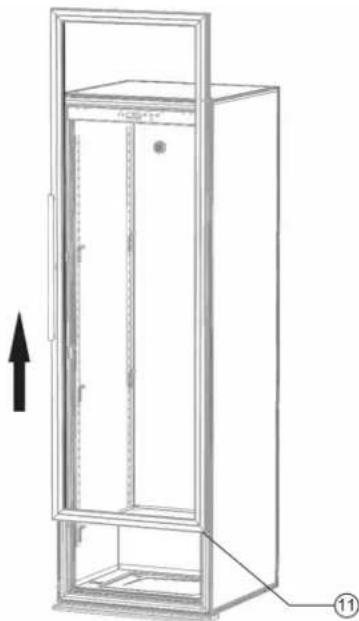

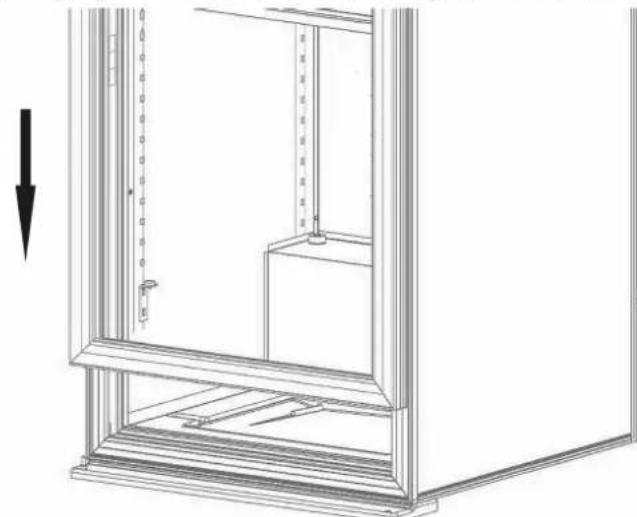

(3) Remove the door from the case by opening it slightly and then lifting.

Technical line drawing of a vertical cabinet with internal doors and mounting base, showing an upward arrow (no text or symbols)

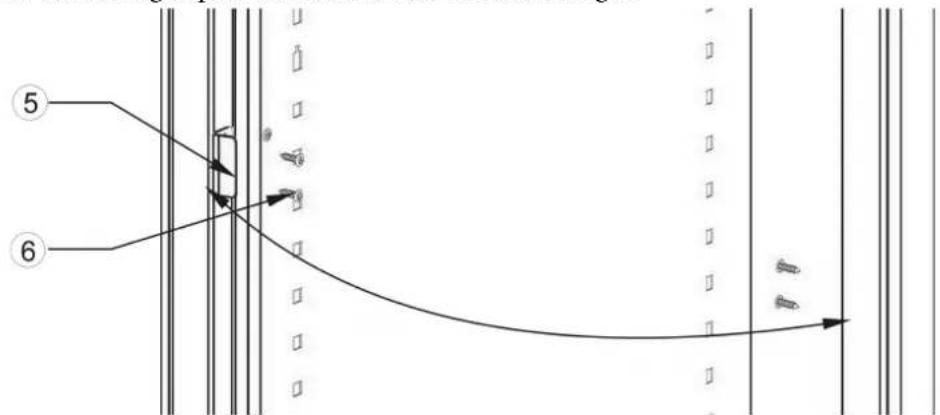

(4) Unscrew the closing clip on the left, and then fix it on the right.

Technical diagram showing labeled components and directional arrows, likely illustrating a mechanical or fluid system with numbered parts 5 and 6.

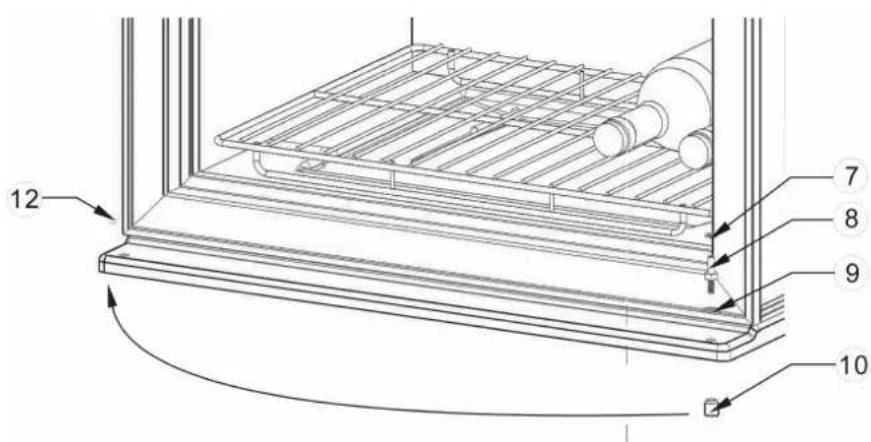

(5) Remove the grommet on the right, unscrew the door pivot guide with the washer, and then tighten nit onto the same part on the opposite side.

12 7 8 9 10

Technical line drawing of a mechanical assembly with grid and roller components (no text or symbols)

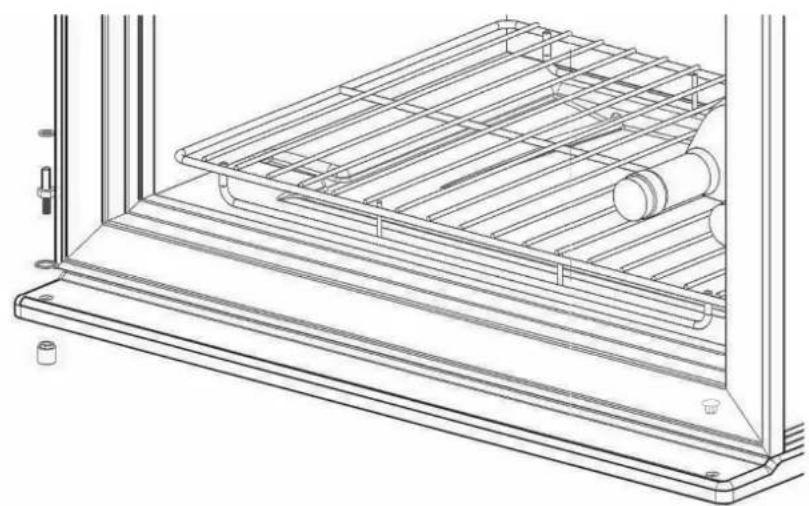

(6) Turn the door 180^ , slightly lift the door and move down, replace the door on its pivot guide.

Technical line drawing of a mechanical cabinet or enclosure with vertical supports and a downward arrow indicator (no text or symbols present)

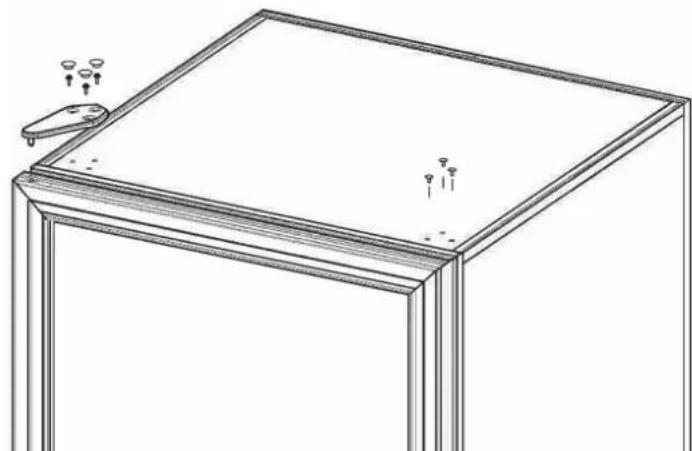

(7) Relocate the hinge, using the screws in such a way so that the door is parallel with the case. Replace the grommets.

Line drawing of a rectangular frame with a small inset showing three small items, no text or symbols present.

Important : Please note that models with full doors and lock are not reversible contrary to glass door models, with or without lock, and full door without lock.

3.6 Installing the shelves

3.6.1 Installing the shelf bracing

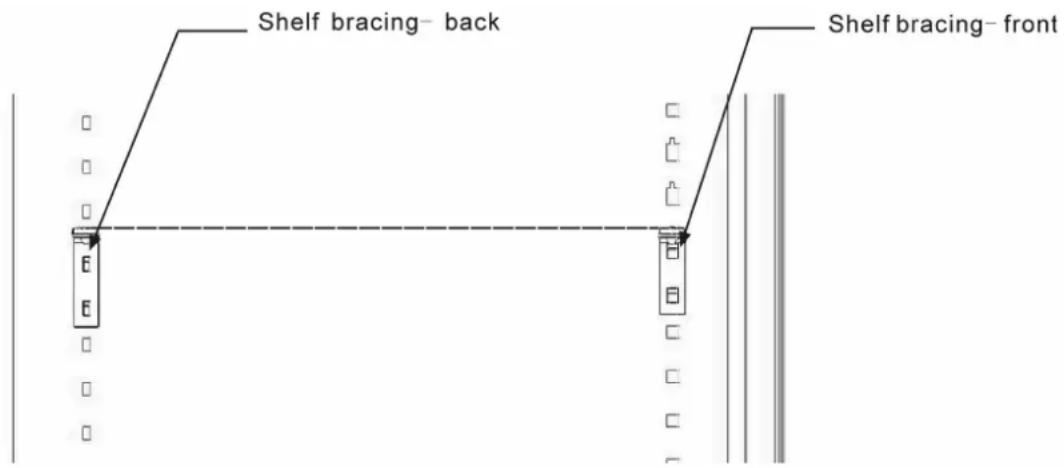

Shelf bracing should be installed before placing the shelves, the process see diagram below. Putting the shelf bracing hook in the hole inside the case and press down, this allows the shelf bracing to be hitched firmly inside the case. There are front and back shelf bracings, the longer one is back shelf bracing, should be fixed with the hook on the back inside the case; another type is front shelf bracing, should be fixed with the hook on the front inside the case. The two shelf bracings should be at the same level to keep the shelf stay at a perfect position.

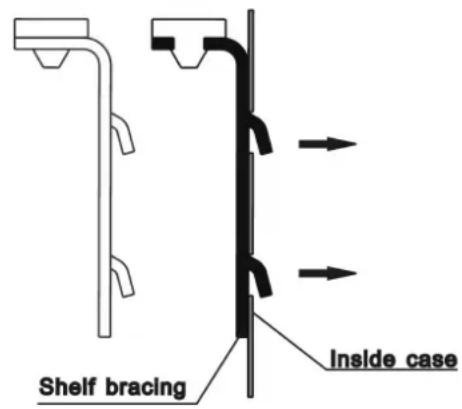

Shelf bracing Inside case

Diagram of a vertical pipe or channel with two downward arrows indicating flow or movement (no text or symbols)

Shelf bracing- back Shelf bracing- front

Two dumpy wires in front of the shelf should lock the shelf on the shelf bracing

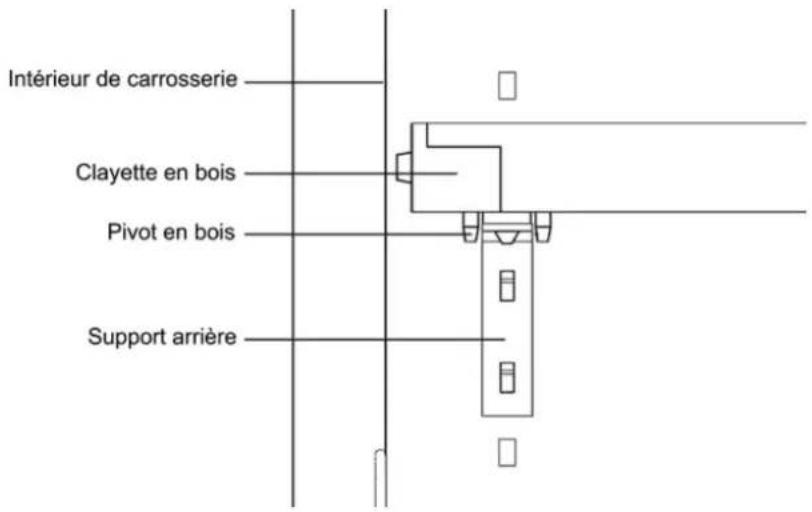

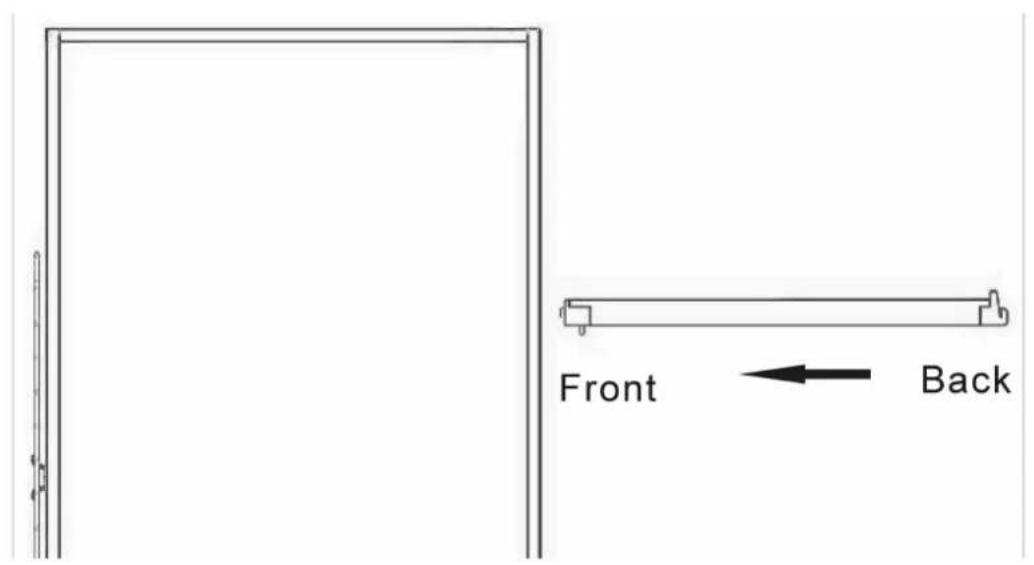

3.6.3 Installing the wooden shelf

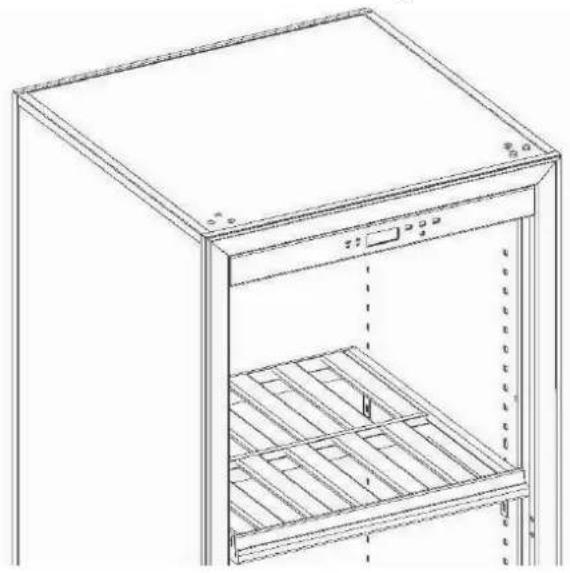

See diagram below to install your wooden shelf. Put the shelf on the shelf bracing with the front going first. Make sure the wooden pin should be after the back shelf bracing hook. See diagram below.

Front Back

Wooden shelf installing direction

Line drawing of a refrigerator cabinet with open door and side shelves (no text or symbols)

Wooden shelf installing layout

Position of wooden pin and back shelf bracing

3.7 The installation of door base support

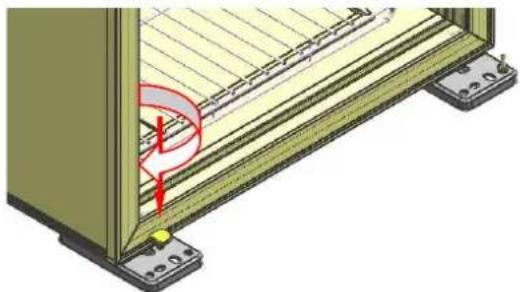

When replacing the reversible door, should change the installation direction of the base support; rotating pull up at the same time the base support can be removed; spin down at the same time the base support can be fixed.

3D diagram of a mechanical assembly with no visible text or symbols

3.8 The installation of the wall separate screws

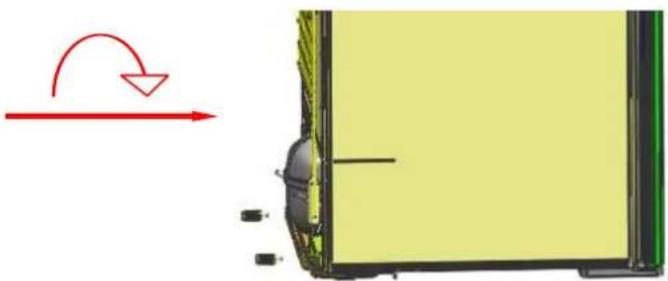

When the back side of wine cellar placed against the wall, should need to install the wall separate screws. As shown, the wall separate screws were installed in the flange on both sides of compressors pallet.

Diagram showing a vehicle's side profile with a red curved arrow indicating rotation or change direction (no text or symbols present)

4.1 Control and adjustment

4.1.1 Control panel description

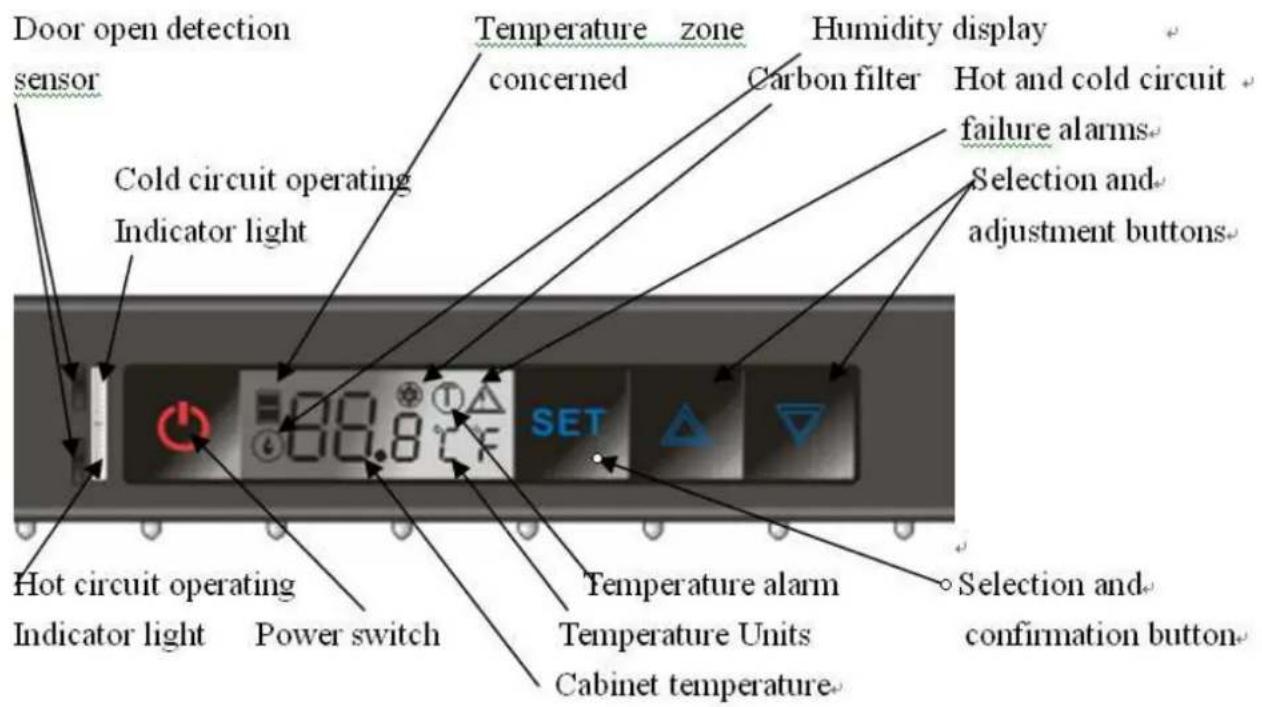

Door open detection sensor Cold circuit operating Indicator light Temperature zone concerned Humidity display Carbon filter Hot and cold circuit failure alarms Selection and adjustment buttons Hot circuit operating Indicator light Power switch SET Temperature alarm Temperature Units Cabinet temperature Selection and confirmation button

4.1.2 Temperature settings

(1)Press SET, the display start to flash, then press □ or ▼ to adjust temperature. Press SET again when finish setting.

(2)The button is disabled without pressing SET. Press and hold down for 5 seconds to display the life of carbon filter (unit: day). Otherwise the display automatically returns to the temperature display after 15 seconds.

Note: Don't press SE7 when displaying the life of carbon filter, or the number of life will be disordered.

(3)The button is disabled without pressing SET. Press and hold down for 5 seconds to display the two LED mode: Stay on mode, displaying symbol “Ec t”. When door opens, displaying symbol “Ec L”. Press to choose LED mode, then press SET when confirm. Otherwise the display automatically returns to the temperature display after 15 seconds.

(4) Press and hold ⏻ for 5 seconds, all output will be cut off including the display and LED. Gently press ⏻ to restore all output.

(5) press and together at sametime, humidity values will be displayed on the display panel, after 5 seconds, the display should be returned to the original layout automatically.

4.1.3 Alarm explanation

“Door open” alarm: will flash when door is open for more than 15 minutes and your will hear the buzzer ring three times every 30 seconds. Buzzer will stop automatically after 3 minutes.

“Invalidation of carbon filter” alarm: When the carbon filter is disabled, will flash and the buzzer will

ring. Change the carbon filter and press for 5 seconds, then the life of new carbon filter will display

when pressing SET

4.1.4 Humidity alarm display

When the relative humidity values less than 50% more than 72 hours, the display symbol “” will flashes. The symbol should lifting flash until the humidity is greater than 50%.

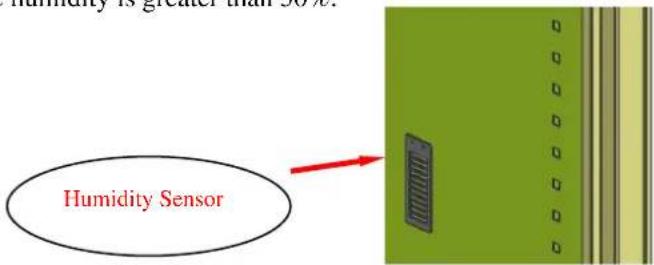

Humidity Sensor Humidity is greater than 50%

4.1.5 Operating faults

Temperature: ● will flash when the temperature excess the limit between -30^ and 60^ . Buzzer will ring every 10 seconds until pressing for

Hot and cold circuits: ⚠️ will flash when there is fault about hot and cold circuits, buzzer will ring every 10 seconds until pressing 📄 or.

4.1.6 Winter position: How does it work?

1. When the setting temperature is lower than the internal temperature of the cabinet, the machine will start to work and refrigeration. The cold circuit operating indicator light will be on (green color)
2. When the setting temperature is higher than the internal temperature of the cabinet, the machine will stop working and stop the cooling, heating wire will begin to work to maintain cabinet temperature equilibrium. Machines' work or stop without any environmental temperature. The hot circuit operating indicator light will be on (red color).

5. Attention

(1) After unpacking your cabinet, take the discarded packaging, the majority of which is recyclable, to a refuse collection point.
(2) Do not wipe the back of wine cabinet with wet cloth.
(3) Do not place electric appliance or food on top of the cabinet.
(4) Not for outdoor use.
(5) Clean the dust on the rear condenser at least twice a year.
(6) The compressor start working 3 minutes after switching on the power. If the compressor does not start immediately, it does not mean faulty.
(7) Switch off the power and take out the power lead before moving the wine cabinet. Take out all bottles before moving.
(8) Do not keep the door open any longer than necessary.
(9) Do not allow children to climb, sit on, stand on or hang from the shelves of the wine cabinet. They could damage the wine cabinet and cause themselves serious injury.
(10) Take care to keep keys out of reach of children in order to avoid them locking themselves in the cabinet.
(11) Do not try to repair any damaged wire or electric components. Contact your distributor or service agent.

6. Simple problem analyses

Problem Problem	analyses Resolve method
Compressor not working	Power not connected Check the power
	Power lead or wire damaged Contact distributor or service agent
	Fuse broken Change fuse
	Internal circuit fault Contact distributor or service agent
	Power supply off Check if power cut
	In heating process Common phenomena. When the temperature inside cabinet is lower than that you set, the cabinet will be heated automatically
Compressor noisy or frequently on or off	Power supply not stable Switch off the power, restart 3 minutes later
	Cabinet not on flat floor Adjust front feet until perfect level
Not cold enough Temperature	Temperature set too high Check temperature, reset it
	Door open too long or too often Only open when necessary
	Door seal damaged	Contact your distributor or service agent
LED do not light	Electric circuit problem	Contact your distributor or service agent
	LED damaged	Contact your distributor or service agent
Can not close door properly	Cabinet not on level	Adjust front feet until perfect level
	Door installation incorrect after change hanging side	See Alternative hanging of door and install it correctly
	Shelf extend out of the case	Put the shelf back to right position

Setting temperature and measured temperature may be different (2 or 3°C). This is normal, the reason can be temperature sensor position or external conditions
