USER MANUAL MDECT1 Marquant

• Only use the charger plug supplied. Do not use other chargers, as this may damage the battery cells.
• Only insert rechargeable batteries of the same type. Never use ordinary, non-rechargeable batteries. Insert rechargeable batteries so they connect to the right poles (indicated in the battery compartment of the handset).
• Do not touch the charger and plug contacts with sharp or metal objects.
• The operation of some medical devices may be affected.
• The handset may cause an unpleasant buzzing sound in hearing aids.
• Do not place the basic unit in a damp room or at a distance of less than 1.5m away from a water source. Keep water away from the handset.
• Do not use the telephone in environments where there is a risk of explosions.
• Dispose of the batteries and maintain the telephone in an environment-friendly manner.
• As this telephone cannot be used in case of a power cut, you should use a mains-independent telephone for emergency calls. e.g. a mobile phone.

Cleaning

Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents.

!! Important !!

To use 'Caller ID' (display caller), this service has to be activated on your phone line. Normally you need a separate subscription from your telephone company to activate this function. If you don't have the Caller ID function on your phone line, the incoming telephone numbers will NOT be shown on the display of your telephone.

MARQUANT MDECT-1

1 INSTALLATION 5
2 KEYS/LED 6
3 DISPLAY (LCD) 7
4 OPERATION 8

4.1 Setting the language 8
4.2 Making Calls 8

4.2.1 External Call 8
4.2.2 Number preparation 8
4.2.3 Redialling the last number dialled 8
4.2.4 Redial one of the last 5 numbers dialled 9
4.2.5 Calling a programmed number from the Phone Book 9
4.2.6 An internal call: calling another handset 9

4.3 Receiving a Call 9

4.3.1 Receiving an external call 9
4.3.2 Receiving an internal call 16
4.3.3 Receiving an external call during an internal call 16

4.4 Activate/deactivate handsfree function 16
4.5. Headset connection 10
4.6 Transferring a call to another handset 10
4.7 Out of Range Warning 11
4.8 Setting the speaker volume 11
4.9 Call Duration Indicator on the Display 11
4.10 Turning off the microphone (mute) 11
4.11 Pause key 11
4.12 Conference call (two internal DECT handsets and one external caller) 11
4.13 Locating a misplaced handset (paging) 12
4.14 Using the alphanumeric keypad 12
4.15 The Phone Book 12

4.15.1 Adding a number and a name to the Phone Book 12
4.15.2 Looking up a number in the Phone Book 13
4.15.3 Changing a name or number in the Phone Book 13
4.15.4 删除name and number from the Phone Book 13

4.16Turning the handset on/off 14

4.16.1Turning the handset off 14
4.16.2Turning the handset on 14

4.17 Setting the ring volume level on the handset 14

4.17.1 Setting the ring volume for external calls (0-9) 14
4.17.2 Setting the ringer volume for internal calls (1-9) 14

4.18 Setting the ringer melody on the handset 15

4.18.1 Setting a ringer melody for external calls (0-9) 15
4.18.2 Setting a ringer melody for internal calls (0-9) 15

4.19 Setting the ring volume level and melody of the base 15

4.19.1 Setting the base ring volume (0-9) 16
4.19.2 Setting a ringer melody for external calls (0-9) 16

4.20 Locking the key pad 16
4.21Turning key click on/off 16

MARQUANT MDECT-1

4.22 The R key (flash) 17
4.23 Changing the PIN code 17
4.24 Subscribing a handset to a base unit 18
4.25 Subscribing handset on another base (other brand/model) 18
4.26 Removing subscription of a handset to a base unit 19
4.27 Selecting a base unit 20

4.27.1 Automatic selection 20
4.27.2 Manual selection 20

4.28 Barring outgoing calls 20
4.29 Direct Call 21

4.29.1 To program the Direct Call number 21
4.29.2 Turn the Direct Call function ON/OFF 21

4.30 Default settings (reset) of the parameters 21
4.31 Complete Reinitialisation of the telephone 22

5 CALLER ID/CLIP 23

5.1.Setting the date and time 23
5.2 The Call List 23
5.3 Calling a number from the Call List 24
5.4 Storing a number from the Call List in the Phone Book 24
5.5 Deleting numbers from the Call List 24

5.5.1 删除one number 24
5.5.2 Delete all numbers 24

6 VOICE MAIL INDICATOR 25

7 TROUBLESHOOTING 25

8 TECHNICAL CHARACTERISTICS 26

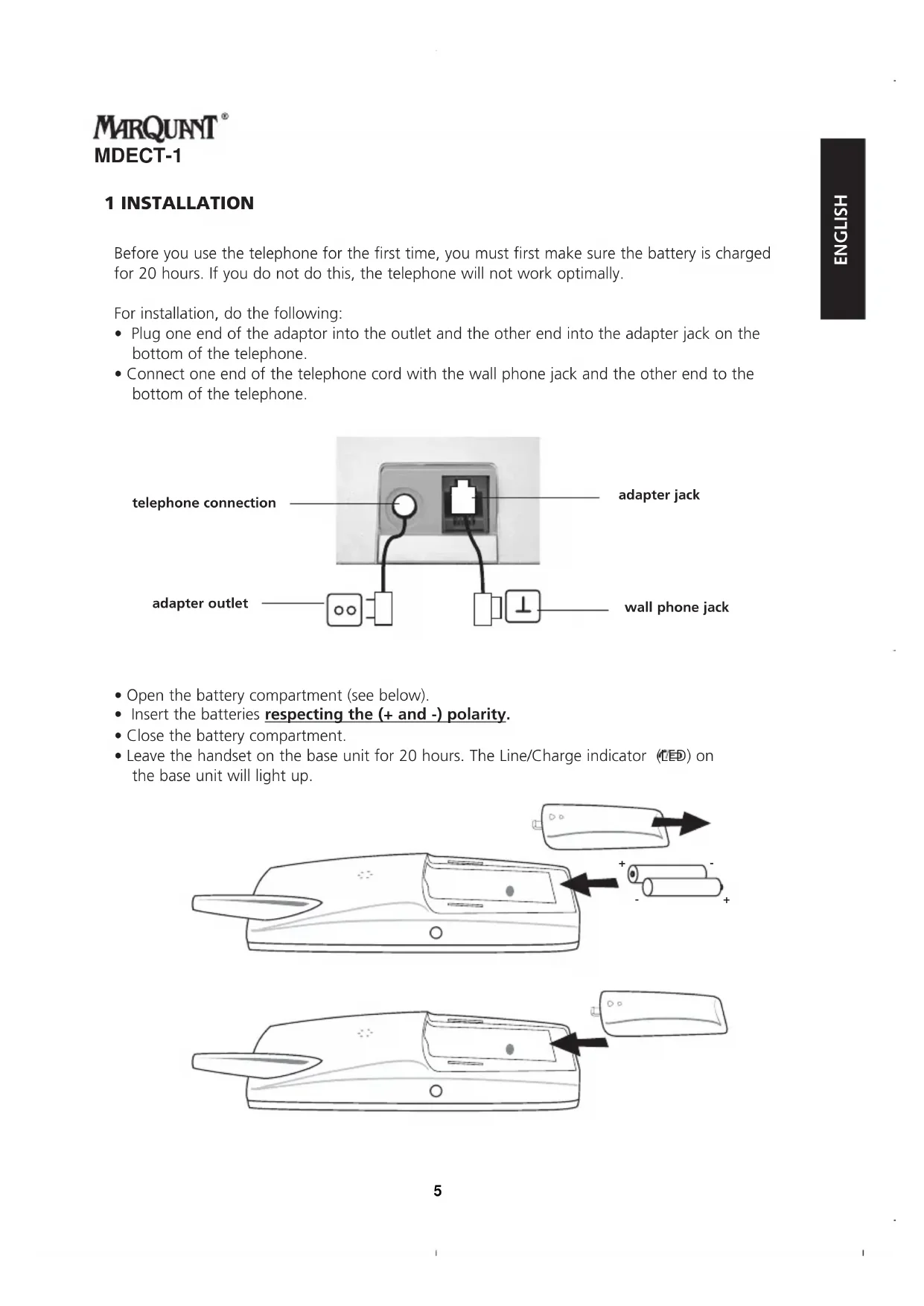

1 INSTALLATION

Before you use the telephone for the first time, you must first make sure the battery is charged for 20 hours. If you do not do this, the telephone will not work optimally.

For installation, do the following:

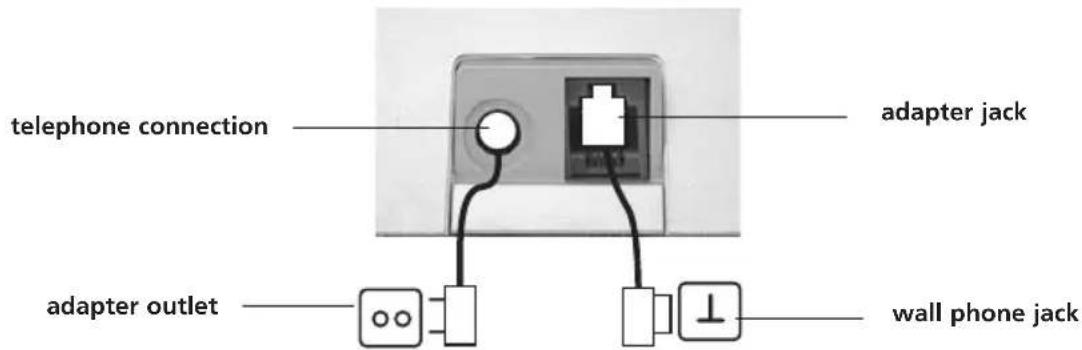

• Plug one end of the adaptor into the outlet and the other end into the adapter jack on the bottom of the telephone.
• Connect one end of the telephone cord with the wall phone jack and the other end to the bottom of the telephone.

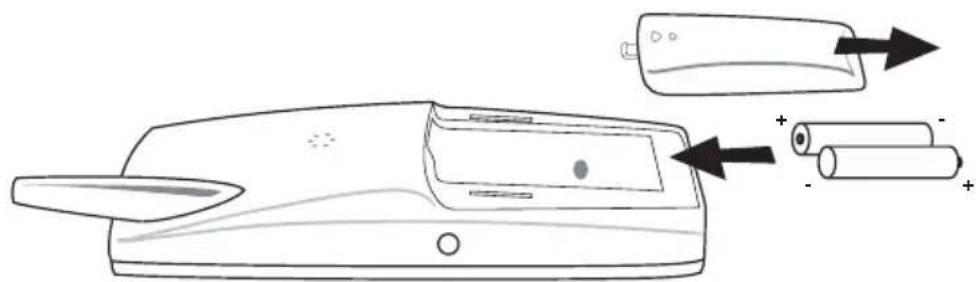

• Open the battery compartment (see below).
• Insert the batteries respecting the (+ and -) polarity.

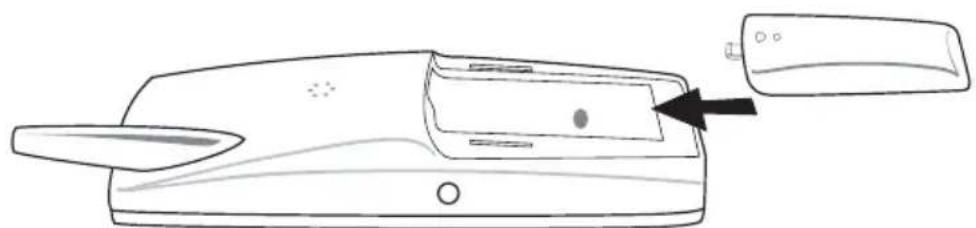

• Close the battery compartment.
• Leave the handset on the base unit for 20 hours. The Line/Charge indicator (LED) on the base unit will light up.

MARQUANT MDECT-1

Battery indicator:

• battery is fully charged.
  The battery is half drained (50%)
• The battery is low. When the battery is low, you will hear warning signals and the battery symbol on the display will blink.

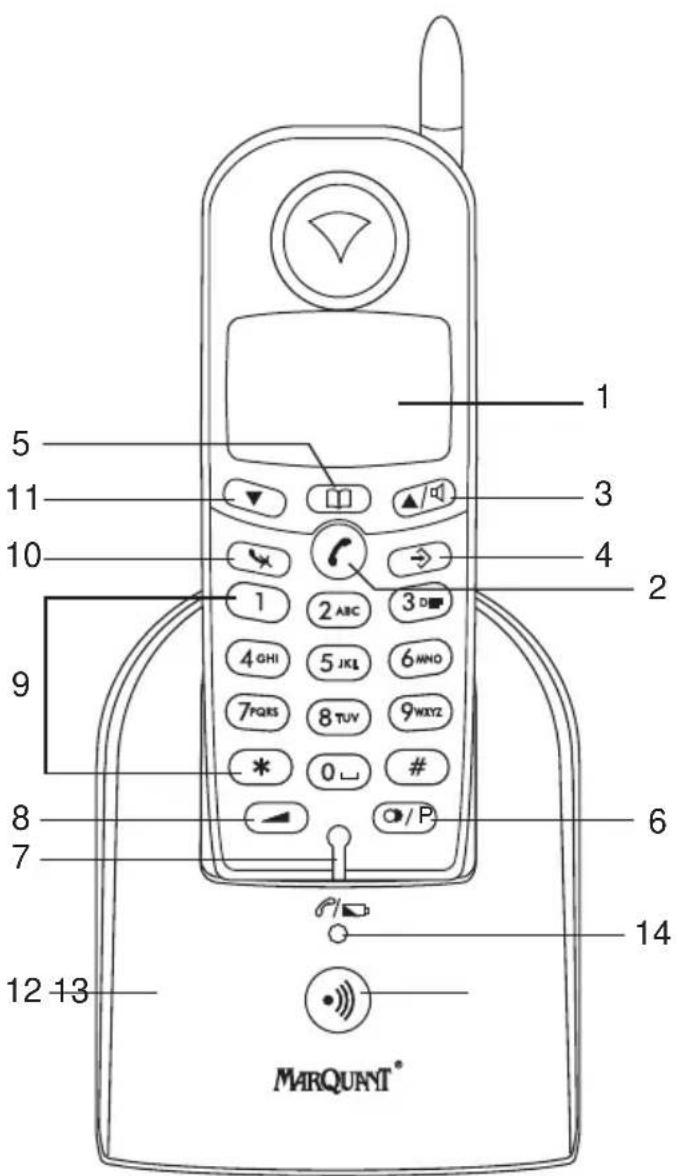

2 K EYS/LED

1 Display
2 Line key
3 Up/Handsfree key
4 Programming key
5 Phonebook key
6 Redial/Pause key /B
7 Microphone
8 Volume/Ringer key
9 Alphanumeric keys
10 Delete/Mute key
11 Down/Flash key
12 Base
13 Paging key
14 Line/Charge indicator (LED)

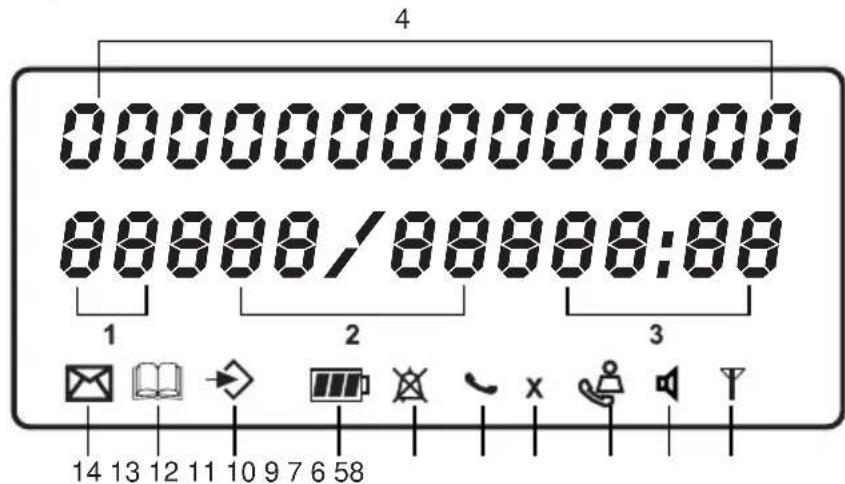

3 DISPLAY (LCD)

1 Number of calls received.
2 Date (day/month) of calls received.
3 Time (hour:minutes) of calls received.
4 Call information.
5 Symbol display ():T

• this symbol means that the handset is located within the range of the base unit.
• when this symbol starts blinking, this means you are beyond the range of the base unit. Move closer to the base unit so that the connection between the base unit and the handset can be restored.

6 Symbol display ():

• this symbol means that the telephone has received calls that are automatically stored in the Call List.

7 Symbol display ():X
- this symbol means that the mute function is activated, the microphone is turned off during a conversation.
8 Symbol display ( )
- this symbol appears on the display when one makes or receives a call.
9 Symbol display ():
- this symbol means that the ringer is turned off. When one receives a call, the telephone does not ring. The telephone will ring when one receives an internal call.
10 Symbol display ( )
- this symbol is the battery indicator.
11 Symbol display ():
- this symbol means you are in the menu.
12 Symbol display ( )
- this symbol appears when you browse the numbers in the Phone Book.
13 Symbol display ():
- this symbol appears when you have received a voice mail message (see chapter 6).
14 Symbol display ( ):
- this symbol means that the handsfree function is activated. You can now talk without having to pick up the handset.

4 OPERATION

4.1 Setting the language

The telephone has 5 display languages: see display languages table on packaging!!

To set the language, do the following:

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display
• Press the Programming key
• 'LANGUE' appears on the display.
• Press the Programming key
• The language set appears on the display.
• Press the Up or Down key repeatedly to select the language you would like to use.
• Once the desired language appears on the display, press the Programming key to confirm your selection or repeatedly press the Mute/Delete key to leave the menu.

4.2 Making Calls

4.2.1 External Call

• Press the Line key
• The Line/Charge indicator (LED) on the base unit will blink. 'EXT' and the Call symbol appear on the display.
• You will hear the dial tone. Dial the telephone number you wish to call.
• The number appears on the display and is dialled.
• After finishing your call, press the Line key to hang up or put the handset back on the base unit.

4.2.2 Number preparation

• Dial the telephone number you wish to call. You can correct the number by pressing the Delete/Mute key
• Press the Line key
• The Line/Charge indicator (CBD) on the base unit will blink. 'EXT' and the Call symbol appear on the display.
  The telephone number is dialled automatically.
• After finishing your call, press the Line key to hang up or put the handset back on the base unit.

4.2.3 Redialling the last number dialled

• Press the Line key
• The Line/Charge indicator (CD) on the base unit will blink. 'EXT' and the Call symbol appear on the display.
• You will hear the dial tone.
• Press the Redial key . The number you last called is dialled automatically without having to re-enter the number.

4.2.4 Redial one of the last 5 numbers dialled

• Press the Redial key . The number you last called appears on the display. If you would like to dial one of the last 5 numbers dialled, press the Redial key a few times until the desired number appears on the display.
• Press the Line key
• The number shown on the display is dialled automatically without you having to re-enter the number.
• After finishing your call, press the Line key to hang up or put the handset back on the base unit.

4.2.5 Calling a programmed number from the Phone Book

The telephone has a Phone Book in which you can program the telephone number of calls received by name. If you would like to call a number from the Phone Book, do the following:

• Press the Phone Book key The first number of the Phone Book appears on the display.
• Press the Up or Down key repeatedly to select the telephone number you wish to call.
• Press the Line key
• The number shown on the display, is dialled automatically without you having to re-enter the number.
• After finishing your call, press the Line key to hang up or put the handset back on the base unit.

4.2.6 An internal call: calling another handset

This function only works if multiple handsets are subscribed to the base unit!

• Press the Programming key.
• Press the Up or Down key repeatedly until 'INTERCOM' appears on the display.
• Press the Programming key
• 'INT' appears on the display
• Dial the number of the handset you would like to call.
• After finishing your call, press the Line key to hang up or put the handset back on the base unit.

4.3 Receiving a Call

4.3.1 Receiving an external call

• All subscribed handsets will ring when you receive a call.
• The Call symbol links on the display.

• The telephone number of the caller appears on the display if you have Caller ID service (CLIP). Consult your telephone company. The name of the caller also appears on the display if:

• the name is programmed into the Phone Book

• the network sends the name together with the telephone number (FSK CID system only).

• Press the Line key to accept the external call.

• During the call 'EXT' and the symbol appear on the display. The call timer starts running.
• After finishing your call, press the Line key to hang up or put the handset back on the base unit.

4.3.2 Receiving an internal call

This function only works if multiple handsets are subscribed to the base unit!

The handset rings.
- 'INT' and the number of the handset you are trying to reach, appear on the display. The Call symbol links on the display.
- Press the Line key to accept the internal call.
- During the call, 'INT', the handset number of the caller and the symbol appear on the display. The call timer starts running.
- After finishing your call, press the Line key to hang up or put the handset back on the base unit.

4.3.3 Receiving an external call during an internal call

If you receive an external call during an internal call, you will hear a call waiting tone (double beep) on both handsets being used for an internal call.

• Press the Line key twice to accept the external call.
• After finishing your call, press the Line key to hang up or put the handset back on the base unit.

4.4 Activate/deactivate handsfree function

This function allows you to communicate without having to pick up the handset. When you are on the phone, press the Up/Handsfree key to activate the handsfree function. Press the same button to deactivate the handsfree function.

Note: When you are calling in handsfree mode and you want to change the volume, press the Volume button.

Attention !! When you use the handsfree function for a long time, the batteries will be empty quickly !

4.5. Headset connection

You can connect a headset with a 3 pole jack plug of 2,5mm on the right side of the handset. When the headset is connected, you can only hear and talk through the headset. The headset microphone can still be muted by the Mute key. The handsfree speaker can still be activated by pressing the handsfree key

4.6 Transferring a call to another handset

• You have an external caller on the line.
• Press the Programming key
• 'INTERCOM' appears on the display.
• Press the Programming key
• The external call is now on hold.
• 'INT' appears on the display.
• Dial the number of the handset to which you would like to transfer the call.
• If the handset dialled is answered, you can have an internal conversation. Press the Line key and the external call is transferred.
• If the handset dialled is not answered, press the Down key to speak to the external caller again.

4.7 Out of Range Warning

If the handset is out of range of the base unit, a warning signal will sound.

• 'SEARCHING' appears on the display and the symbol links on the display.
• Move closer to the base unit.
• As soon as you are back within range of the base unit, a signal sounds and the symbol stops blinking.

4.8 Setting the speaker volume

Use the Volume/Ringer key to set the volume of the speaker (handset). You can choose from 5 levels. The telephone is set to level '3' by default. During a call, you can change the volume as follows:

Press the Volume/Ringer key.
- The volume level currently set appears on the display.
- Use the number keys to set the desired level (1-5).
- Press the Volume/Ringer key to confirm your selection.

Note: You have 8 seconds to set the desired volume; if you do not, the telephone returns to standby mode and the volume remains unchanged.

4.9 Call Duration Indicator on the Display

As soon as you press the Line key the call duration appears on the display (minutes-seconds).

E.g. " 01-20 " for 1 minute and 20 seconds.

The call duration remains visible on the display for 5 seconds after each call.

4.10 Turning off the microphone (mute)

It is possible to turn off the microphone during a call by pressing the Delete/Mute key. Now you can speak freely without the caller being able to hear you.

• You are on the phone. The Line/Charge indicator (LD) on the base unit will blink and the Call symbol appears on the display.
• Press the Delete/Mute key to turn off the microphone.
• The symbol 'X' appears on the display ( X).
• When you want to resume the conversation, press the Delete/Mute key again.
• The symbol 'X' disappears from the display ( ). The person on the other end of the line can hear you again.

4.11 Pause key

If you dial a telephone number and you would like to add a pause to this number, press the Pause key at the desired place in the number.

When you call this number, this pause (3 seconds) is automatically included.

4.12 Conference call (two internal DECT handsets and one external caller)

You can have a telephone conversation with one internal and one external caller at the same time.

While on the line with an external caller, press the Programming key
- 'INTERCOM' appears on the display.

MARQUANT MDECT-1

• Press the Programming key.
  The external call is now on hold.
• 'INT' appears on the display.
• Dial the number of the handset you would like to include in the call.
• Once the handset dialled is answered, keep the '#' key pressed for 3 seconds.
• 'CONFERENCE' appears on the display.
• Now you are connected to one external and one internal caller (conference call).

4.13 Locating a misplaced handset (paging)

If you cannot find the handset, briefly press the Paging key on the base unit. All handsets subscribed with the base unit will sound a signal so you can locate the misplaced handset. To stop the signal, briefly press the Line key on the handset.

4.14 Using the alphanumeric keypad

Use the alphanumeric keypad to type text. To select a letter, press the corresponding key. E.g. if you press the alphanumeric key '5', the first character (j) appears on the display. Press it repeatedly to select other characters from this key.

Press the '2' key twice to select the letter 'B'. If you would like to select both 'A' and 'B' after each other, first press the '2' key once to select 'A', wait 2 seconds until the cursor moves to the next position and then press the '2' key twice to select 'B'. You can delete characters mistakenly typed by using the Delete key The character in front of the cursor will be deleted. You can move the cursor by pressing the Up and Down keys

Available characters

Press the right keys to get the following characters:

Keys First Second Third Fourth Fifth

press press press press press
1	+	-	/	1
2	A	B	C	2
3	D	E	F	3
4	G	H	I	4
5	J	K	L	5
6	M	N	O	6
7	P	Q	R	S	7
8	T	U	V	8
9	W	X	Y	Z	9
0	SPACE	0

4.15 The Phone Book

4.15.1 Adding a number and a name to the Phone Book

• Press the Programming key
• Press the Up or Down key repeatedly until 'PHONE BOOK' appears on the display.
• Press the Programming key

MARQUANT MDECT-1

• 'SEARCH' appears on the display.
• Press the Up or Down key repeatedly until 'ADD NEW' appears on the display.
• Press the Programming key.
• 'NAME' appears on the display.
• Enter the name. Use the alphanumeric keys.
• Press the Programming key
• Enter the telephone number. Use the alphanumeric keys.
• Press the Programming key
• You will hear a long beep. The name and the number are stored in the Phone Book.

4.15.2 Looking up a number in the Phone Book

• Press the Programming key.
• Press the Up or Down key repeatedly until 'PHONE BOOK' appears on the display.
• Press the Programming key.
• 'SEARCH' appears on the display.
• Press the Programming key.
• Enter the first letters of the desired name.
• Press the Programming key.
• The first name, corresponding with these letters appears on the display.
• Press the Up or Down key to browse for other numbers in the Phone Book.
• Once the desired number appears on the display, the number will be automatically dialled once the Line key is pressed.

4.15.3 Changing a name or number in the Phone Book

• Press the Programming key
• Press the Up or Down key repeatedly until 'PHONE BOOK' appears on the display.
• Press the Programming key
• 'SEARCH' appears on the display.
• Press the Up or Down key repeatedly until 'EDIT' appears on the display.
• Press the Programming key.
• The first number in the Phone Book appears on the display.
• Press the Up or Down key until the desired number appears on the display.
• Press the Programming key to change the selected number programmed into the memory.
• Press the Delete key to delete each letter of the name and use the alphanumeric keypad to enter the correct name.
• Press the Programming key.
• Press the Delete key to delete each digit of the number and use the alphanumeric keypad to enter the correct number.
• Press the Programming key to save the changes made.

4.15.4 Deleting name and number from the Phone Book

• Press the Programming key
• Press the Up or Down key repeatedly until 'PHONE BOOK' appears on the display.
• Press the Programming key.
• 'SEARCH' appears on the display.
• Press the Up or Down key repeatedly until 'DELETE' appears on the display.

MARQUANT MDECT-1

• Press the Programming key.
• The first number in the Phone Book appears on the display.
• Press the Up or Down key until the number you want to delete appears on the display.
• Press the Delete key
• 'DELETE?' appears on the display.
• P ress the Programming key to confirm that you want to delete it.

4.16 Turning the handset on/off

4.16.1 Turning the handset off

The handset is turned on.

• Press the Programming key.
• Press the Up or Down key repeatedly until 'POWER OFF?' appears on the display.
• Press the Programming key. The telephone turns itself off. You cannot dial any more numbers, nor receive any calls.

Note: If you would like to leave the menu without turning off the handset, press the Delete/Mute key

4.16.2 Turning the handset on

The handset is turned off.

• Press the Programming key. The telephone turns itself on.

4.17 Setting the ring volume level on the handset

If you want, you can change the ring volume of an incoming call. You have 10 levels. You can set the ring volume of internal and external calls separately so you can hear a difference. If you select level '0', the symbol appears on the display and you no longer hear the phone ring when an external call is received (you still hear it ring for internal calls). Level '9' is the highest level. The telephone is set to level '5' by default.

4.17.1 Setting the ring volume for external calls (0-9)

• Press the Programming key
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key
• 'EXTERNAL' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'VOLUME' appears on the display.
• Press the Programming key
• The current volume level used appears on the display.
• Enter a number between 0 and 9 to select the desired ringer volume. Use the number keypad to do this.
• Press the Programming key to confirm your selection.

4.17.2 Setting the ringer volume for internal calls (1-9)

• Press the Programming key
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key

MARQUANT MDECT-1

• 'EXTERNAL' appears on the display.
• Press the Up or Down key repeatedly until 'INTERNAL' appears on the display.
• Press the Programming key.
• Press the Up or Down key repeatedly until 'VOLUME' appears on the display.
• Press the Programming key
• The current volume level appears on the display.
• Enter a number between 1 and 9 to select the desired ringer volume. Use the number keypad to do this.
• Press the Programming key to confirm your selection.

4.18 Setting the ringer melody on the handset

If you want, you can change the ringer melody for an incoming call. You have 9 ringer melodies to choose from (1-9). By default, the ringer melody is set to '5'.

4.18.1 Setting a ringer melody for external calls (1-9)

• Press the Programming key.
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key.
• 'EXTERNAL' appears on the display.
• Press the Programming key.
• 'MELODIES' appears on the display.
• Press the Programming key.
• The currently set ringer melody appears on the display.
• Enter a number between 1 and 9 to select he desired ringer melody. Use the number keypad to do this.
• Press the Programming key to confirm your selection.

4.18.2 Setting a ringer melody for internal calls (1-9)

• Press the Programming key.
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key.
• 'EXTERNAL' appears on the display.
• Press the Up or Down key repeatedly until 'INTERNAL' appears on the display.
• Press the Programming key.
• 'MELODIES' appears on the display.
• Press the Programming key.
• The currently set ringer melody appears on the display.
• Enter a number between 1 and 9 to select the desired ringer melody. Use the number keypad for this.
• Press the Programming key to confirm your selection.

4.19 Setting the ring volume level and melody of the base

If you want, you can change the ring volume and melody of the base.

4.19.1 Setting the base ring volume (0-9)

• Press the Programming key
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key
• 'EXTERNAL' appears on the display.
• Press the Up or Down key repeatedly until 'BASE' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'VOLUME' appears on the display.
• Press the Programming key
• The current volume level used appears on the display.
• Enter a number between 0 and 9 to select the desired ringer volume. Use the number keypad to do this.
• Press the Programming key to confirm your selection.

4.19.2 Setting a ringer melody

• Press the Programming key
• Press the Up or Down key repeatedly until 'RING SEL' appears on the display.
• Press the Programming key
• 'EXTERNAL' appears on the display.
• Press the Up or Down key repeatedly until 'BASE' appears on the display.
• Press the Programming key
• 'MELODIES' appears on the display.
• Press the Programming key
• The currently set ringer melody appears on the display.
• Enter a number between 1 and 9 to select he desired ringer melody. Use the number keypad to do this.
• Press the Programming key to confirm your selection.

4.20 Locking the key pad

If you lock the alphanumeric keypad, it is impossible to dial a telephone number.

Only the Programming key can still be used. 'KEY LOCKED' will be displayed on the display.

• Press the Programming key
• Press the Up or Down key repeatedly until 'KEY SETUP' appears on the display.
• Press the Programming key
• KEY LOCK' appears on the display.
• Press the Programming key

• The current status of the keypad appears on the display:

• 'LOCK': the keypad is locked

• 'UNLOCK': the keypad is not locked

• Press the Up or Down key to make your selection.

• Press the Programming key to confirm your selection.

4.21 Turning key click on/off

You can set the telephone to make a sound whenever you press a key.

• Press the Programming key
• Press the Up or Down key repeatedly until 'KEY SETUP' appears on the display.

MARQUANT MDECT-1

• Press the Programming key.
• Press the Up or Down key repeatedly until 'KEY CLICK' appears on the display.
• Press the Programming key.

• The current status appears on the display:

• 'CLICK ON': turn on key click

• 'CLICK OFF': turn off key click

• Press the Up or Down key to make your selection.

• Press the Programming key to confirm your selection.

4.22 The R key (flash)

Press the Flash key 'R' to use certain services such as "call waiting" (if your telephone company offers this feature); or to transfer calls if you use a telephone exchange (PABX). The Flash key 'R' is a brief interruption of the line. You can set the flash time to 100ms or 250ms. This is set to 100ms by default! However, if your system requires a longer flash time, do the following:

• Press the Programming key.
• Press the Up or Down key repeatedly until 'SETTING' appears on the display
• Press the Programming key.
• Press the Up or Down key repeatedly until 'RECALL' appears on the display.
• Press the Programming key.

• Press the Up or Down key repeatedly to select the flash time:

• SHORT = 100ms

• LONG = 250ms

• Press the Programming key to confirm your selection.

4.23 Changing the PIN code

Certain functions are only available if you know the PIN code of the telephone. Thanks to this secret code, settings are displayed that only you can change. The PIN code has 4 digits. The default PIN code setting is '0000'. If you would like to change the default PIN code and set your own secret code, do the following:

• Press the Programming key.
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key.
• Press the Up or Down key repeatedly until 'PIN CODE' appears on the display.
• Press the Programming key.
• 'OLD CODE' appears on the display.
• Enter the old PIN code. Use the number keys.
• Press the Programming key.
• 'NEW CODE' appears on the display.
• Enter the new PIN code in. Use the number keys.
• Press the Programming key.
• 'AGAIN' appears on the display.
• Enter the new PIN code again. Use the number keys.
• Press the Programming key.
• You hear a confirmation tone. The new PIN code has been set.

Caution: Do not forget your personal PIN code. If you do, you have to restore the default settings (reset - see section 4.31).

4.24 Subscribing a handset to a base unit

In order to be able to make and receive telephone calls, a new handset has to be subscribed to the base unit. You can subscribe 5 handsets to one base unit. By default, each handset is subscribed as handset 1 on the base unit upon delivery (base unit 1).

!!! You only need to subscribe the handset if: !!!

• the handset subscription has been removed from the base unit (e.g. for reinitialisation)

• you want to subscribe a different handset to this base unit.

The underlined procedure is only applicable to a handset and base unit!!

Keep the Paging key on the base unit pressed for 10 seconds until the Line/Charge indicator on the base unit begins to blink rapidly. The Line/Charge indicator will blink rapidly for one minute. During this minute, the base unit is in subscribing mode and you must do the following to subscribe the handset:

• Press the Programming key
• Press the Up or Down key repeatedly until 'BASE SUB' appears on the display.
• Press the Programming key.
• 'BASE' appears on the display.
• Enter a number of the base unit you would like to subscribe the handset to (1-4). Use the number keypad.

Note: Each handset can be subscribed to 4 different DECT base units. Each base unit is assigned a number from 1 to 4 in the handset. When you subscribe a new handset, you can assign a base unit number. It is best to use '1'.

• 'SEARCHING' and the symbol appears on the display.
• The RFPI code (each base unit has a unique RFPI code) appears on the display and a signal sounds when the handset has found the base unit.
• Press the Programming key
  PIN' appears on the display.
• Enter the 4-digit PIN code of the base unit in (default PIN code is '0000'). Use the number keypad.
• Press the Programming key
• The handset is subscribed to the base unit.

4.25 Subscribing handset on another base (other brand/model)

Put the base in subscription mode (see manual of the base). If the base is in subscribing mode, you have to do the following to subscribe the handset:

• Press the Programming key
• Press the Up or Down key repeatedly until 'BASE SUB' appears on the display.
• Press the Programming key
• 'BASE' appears on the display.
• Enter a number for the base unit to which you would like to subscribe the handset (1-4). Use the number keypad.

MARQUANT MDECT-1

• 'SEARCHING' and the symbol appear on the display.
• The RFPI code (each base unit has a unique RFPI code) appears on the display and a signal sounds once the base unit is found by the handset.
• Press the Programming key.
• 'PIN' appears on the display.
• Enter the 4-digit PIN code of the base unit (default PIN code is '1590'). Use the number keypad.
• Press the Programming key.
• The handset is subscribed to the base unit.

4.26 Removing subscription of a handset to a base unit

It is possible to cancel subscription of a handset to a base unit. You would do this if a handset is damaged and has to be replaced by a new one.

Caution: You can only cancel subscription of another handset, not the handset you are using to do the cancellation procedure.

• Press the Programming key.
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key.
• Press the Up or Down key repeatedly until 'REMOVE HS' appears on the display.
• Press the Programming key.
• 'PIN' appears on the display.
• Enter your 4-digit PIN code in (default PIN code is '0000'). Use the number keypad.
• Press the Programming key.
• 'REMOVE HS' appears on the display.
• Dial the number of the handset you want to remove (1 - 5). Use the number keypad.
• Press the Programming key.
• 'REMOVE HS' appears on the display and the handset is removed
• NOT SUB' appears on the handset removed.

4.27 Selecting a base unit

If your handset is subscribed to several base unit stations (max. 4), you must select a base unit because the handset can only communicate with one base unit at a time. There are two possibilities:

4.27.1 Automatic selection

If you set the handset to 'automatic selection', the handset will automatically choose the closest base unit in standby.

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'BASE SEL' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'AUTO' appears on the display.
• Press the Programming key
• 'SEARCHING' and the symbol appear on the display.
• A signal sounds once the handset has found a base unit.

4.27.2 Manual selection

If you set the handset to 'manual selection', the handset will only choose the base unit you have set.

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'BASE SEL' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'MANUAL' appears on the display.
• Press the Programming key
• 'BASE -' appears on the display.
• Enter the number of the base unit you want to select (1-4). Use the number keypad.
• Press the Programming key
• 'SEARCHING' and the symbol appear on the display.
• A signal sounds once the selected base unit has been found.

Notes :

• Before you can select a base unit, the base unit must be subscribed to the handset first.
• If 'NOT SUB' appears on the display, this means the selected base unit does not exist or the handset has not been subscribed.

4.28 Barring outgoing calls

You can program the handsets to bar calls to certain telephone numbers so that for instance '00' international numbers cannot be called. Up to 5 numbers (of max. 5 digits) can be barred.

To do this, do the following:

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.

MARQUANT MDECT-1

• Press the Programming key.
• Press the Up or Down key repeatedly until 'BARRING' appears on the display.
• Press the Programming key.
• PIN' appears on the display.
• Enter your PIN code
• Press the Programming key.
• 'BAR NUM' appears on the display. You are in memory "1. __".
• Press the Up or Down key to select one of the 5 memories.
• Enter the number (max. 5 digits) to be barred, e.g. 01486.
• Press the Programming key.
• 'HS' (= number on the handset (1-5)) '01486' (= the barred numbers) appear on the display.
• Enter the numbers of the handsets from which the barred numbers cannot be called.
• e.g. Press the number key 2, 3 and 5. On the display, this will appear: HS _2 3_5 01486 These handsets can no longer dial numbers beginning with '01486'.
• Press the Programming key to confirm your selection.

Repeat the same procedure described above if you would like to bar other numbers (max. 5)!

4.29 Direct Call

By setting a Direct Call number, the phone will automatically take the line and dial out this number. This function is useful to use the phone as a emergency phone.

4.29.1 To program the Direct Call number

• Press the Programming key
• Press the up or down key until 'DIRECT' appears on the display
• Press the Programming key
• If necessary, delete the existing number by pressing the Delete-key a few times
• Enter the direct number
• Press the Programming key

4.29.2 Turn the Direct Call function ON/OFF

To turn it ON:

• Press the Programming key
• Press the up or down key until 'DIRECT' appears on the display
• Press the mute-key for 2s
  DIRECT ON' appears on the display

To turn if OFF:

• Quick press the Programming key twice

4.30 Default settings (reset) of the parameters

You can reset the standard (default) settings in the telephone so that they are the same they were when you bought the telephone. You need the PIN code to do this.

MARQUANT MDECT-1

The default settings are:

Keypad: not locked

Key clicks: active

Speaker volume: level 3

Ringer melody: 1

Ringer volume : 5

Selection base unit: automatic

Flash time: 100ms

To restore the default settings, do the following:

• Press the Programming key
• Press the Up or Down key repeatedly until 'SETTING' appears on the display.
• Press the Programming key
• Press the Up or Down key repeatedly until 'RESET' appears on the display.
• Press the Programming key
• 'PIN' appears on the display.
• Enter your PIN code.
• Press the Programming key

4.31 Complete Reinitialisation of the telephone

This function allows you to completely reinitialise the telephone without requiring your PIN code. This will delete all Phone Book memory entries, all handsets will be removed, all default settings will be restored and the default PIN code will be restored to '0000'.

Do the following:

• Disconnect the battery in the telephone.
• Keep the ' key pressed and reconnect the battery until the handset rings continually and the display lights up. Release the ' button and press the Programming key.
• The handset finds the base unit and a signal sounds.
• Briefly press the key.
• 'RESET?' appears on the display.
• Press the Programming key to confirm your selection of disconnect the battery to discontinue the procedure.
• 'RESETTING' appears on the display and a long beep tone sounds.
• 'NOT SUB' appears on the display. The handset is completely reinitialised.

Afterwards, you must resubscribe all handsets as described in point 4.24! However you no longer need to set the base unit to subscription mode, because this now happens automatically!

5 CALLER ID/CLIP

(This service only works when you have a Caller ID/Clip subscription. Contact your telephone company).

When you receive a call, the telephone number of the caller, the date and time appears on the handset display. The telephone can receive calls in both FSK and DTMF. If the name is programmed in the Phone Book, the name in the Phone Book is displayed!

The telephone can store 30 calls in a Call List that can be reviewed later. The telephone never stores the same call twice. When the memory is full, the new calls automatically replace the oldest calls in the memory. The symbol on the display blinks if the call is not read or not answered. If the Call List is empty and you press the Up key three beep tones will sound.

You can view the information of an incoming call as follows:

• Press the Up key The name (if sent by the network or present in the Phone Book memory) of the caller, the sequence number of the call in the Call List, the date and time of the call appear on the display.
• Press the Down key. The telephone number of the caller appears on the display.

5.1. Setting the date and time

When you receive an incoming call and the date and time are not sent together with the telephone number, this means that the date and the time will not be shown on the display. By setting the date and time, they will be shown on the display, together with the telephone number, every time a call comes in!

• Press the Programming key.
• Press the Up or Down key few times until 'SETTING' appears on the display.
• Press the Programming key.
• 'DATE/TIME' appears on the display.
• Press the Programming key again.
• When 'YEAR' appears on the display, enter the 2 last numbers of the year (00=2000, 01=2001, ...) and press the Programming key to confirm.
• When 'MONTH' appears on the display, enter the month (01=January, 02=February, ...) and press the Programming key to confirm.
• When 'DAY' appears on the display, enter the day of the month and press the Programming key to confirm.
• When 'HOUR' appears on the display, enter the current hour (in 24h format) and press the Programming key to confirm.
• When 'MINUTES' appears on the display, enter the minutes and press the Programming key to confirm.

The date and time are now set!

5.2 The Call List

The calls received are stored in the Call List (max. 30 numbers).

• Briefly press the Up key to view the most recent call.
• The name of the most recent caller appears on the display. If no name is available, 'NO NAME' appears on the display.

MARQUANT MDECT-1

• If it is a private number, 'UNAVAL' appears on the display.
  The date and time the call was received are linked to each call.
• Briefly press the Down key to view the telephone number of the call.
• Briefly press the Down key to browse other numbers on the list.

Notes:

If neither the Up or Down key is pressed for 15 seconds, the telephone will return to standby mode.
After a call is received, the number of the caller remains on the display for 15 seconds after the last ring.
- Caller ID is not available while you are on the line.

5.3 Calling a number from the Call List

• Press the Up key to go to the Call List
• Press the Up key to look up the desired call. Press the Down key to view the telephone number.
• Once the number is on the display, press the Line key and the number is dialled automatically. (The symbols and 'EXT' appear on the display and the call timer starts.)

5.4 Storing a number from the Call List in the Phone Book

• Press the Up key to go to the Call List.
• Press the Up key to look up the desired number.
• Press the Phone Book key twice.
• 'STORE' appears on the display.
• The number is stored in the Phone Book. If the call was displayed without a name (NO NAME), you can add a name to this number in the Phone Book afterwards
• The telephone returns to standby-modus.

5.5 Deleting numbers from the Call List

5.5.1 Deleting one number

• Press the Up key to go to the Call List.
• Press the Up key to find the call you would like to delete.
• Once this call appears on the display, press the Delete key.
• 'DELETE?' appears on the display.
• Press the Programming key to confirm your selection or the Delete key to cancel.
• The call is deleted and the next call appears on the display.

5.5.2 Delete all numbers

• Press the Up key to go to the Call List.
• Keep the Delete key pressed until 'DELETE ALL' appears on the display.
• Press the Programming key to confirm your selection or the Delete key to cancel.
• All calls are deleted.

6 VOICE MAIL INDICATOR

This function only works if you have the voice mail or phone mail service and if the network sends this indication along with the caller ID (CLIP) information! When you receive a new message in your voice mail system, the 'icon will appear on the display. Once you have listened to your messages, the 'icon will disappear.

7 TROUBLE SHOOTING

Symptom Possible cause Solution

No display Batteries uncharged Check the position of the batteries Recharge the batteries
Handset turned OFF Turn ON the handset
No tone Telephone cord badly Check the telephone connected cord connection
The line is occupied Wait until the other handset by another handset hangs up
The icon Handset out of range Bring the handset closer to Y flashes the base
The base has no power Check the mains connection supply to the base
The handset is not registered to the base	Register the handset to the base
Base or handset do not ring zero or low	The ringing volume is Adjust the ringing volume
Tone is good, but there is no wrong communication	The dialling mode is (pulse/tone)	Adjust the dialling mode
Telephone does not react to pressing the keys	Manipulation error	Remove the batteries and but them back in place
Keypad lock ON	Turn OFF the Keypad Lock
Flash (R) Key does Wrong Flash time change the flash time not work

8 TECHNICAL CHARACTERISTICS

Standard:

DECT ( Digital Enhanced Cordless

Telecommunications)

GAP ( Generic Access Profile )

Frequency range: 1880 MHz to 1900 MHz
Number of channels: 120 duplex channels
Modulation: GFSK
- Speech coding: 32 kbit/s
- Emission power: 10mW (average power per channel)
- Range: 300 m in open space /50 m maximum inhouse
- Base power supply: 220 V/50 Hz for the base
- Handset Batteries: 2 rechargeable batteries AAA, NiMh 600mAh
- Handset autonomy: 100 hours in standby
- Talk time: 8 hours
- Charging time: 6-8 hours
Normal conditions of use: +5^ to +45^
Dialling mode: Pulse / Tone

DECT (Digital Enhanced Cordless

Telecommunications)

GAP (Generic Access Profile)

Frequentrieband: 1880 MHz tot 1900 MHz

1 INSTALLATION 59
2 TOUCHES/DEL 60
3 ECRAN (LCD) 61

4 FONCTIONNEMENT 62

1	+	-	/	1
2	A		B	C	2
3	D	E	F	3
4	G	H	I	4
5	J	K	L	5
6	M	N	O	6
7	P	Q	R	S	7
8	T	U	V	8
9	W	X	Y	Z	9
0	ESPACE	0

4.15 Le Répertoire

DECT (Digital Enhanced Cordless

GAP (Generic Access Profile)
