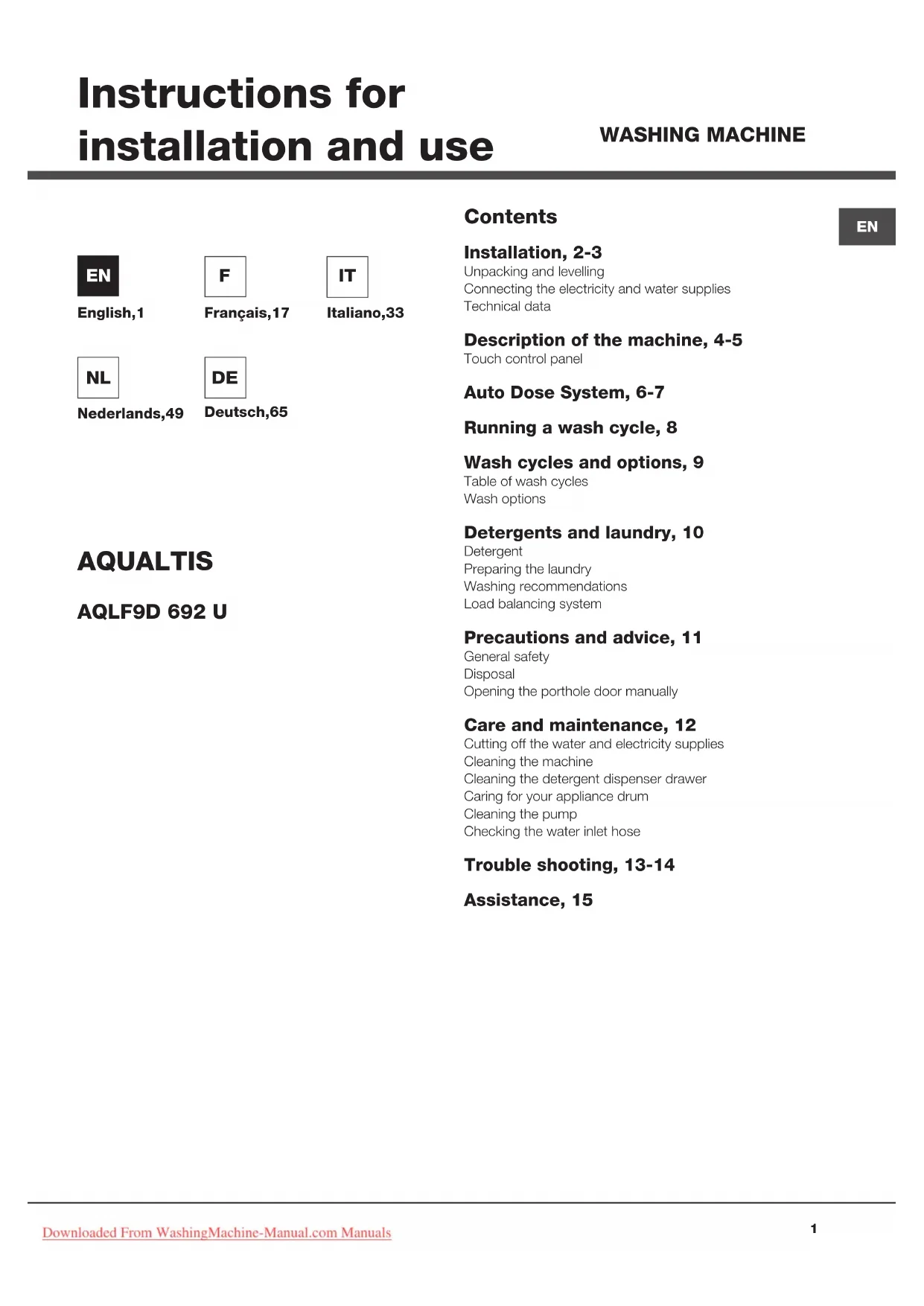

Instructions for installation and use

Installation ! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it. ! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance. ! Inside the pack containing this manual, you will also find the guarantee and all the details necessary for installation. Unpacking and levelling Unpacking

1. Once you have removed all the packaging from the

washing machine, make sure it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

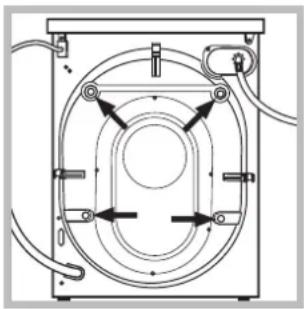

2. Remove the 4 protective

screws (used during transportation) and the corresponding spacer, located on the rear part of the appliance (see figure).

3. Close off the holes using the plastic plugs supplied in the pack.

4. Keep all the parts in a safe place; they will be needed

again if the washing machine is moved to another location, to prevent the inside of the appliance being damaged. ! Packaging materials should not be used as toys for children. Levelling

1. Place the washing machine on a flat sturdy floor, without

resting it up against walls or cabinets.

2. If the floor is uneven, the

front feet of the machine may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees). ! If the appliance is levelled correctly, it will be more stable and much less likely to cause vibrations and noise while it is operating, particularly during the spin cycle. ! If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine. Connecting the electricity and water supplies Connecting the water inlet hose ! Before connecting the inlet hose to the water supply, run the water until it is perfectly clear.

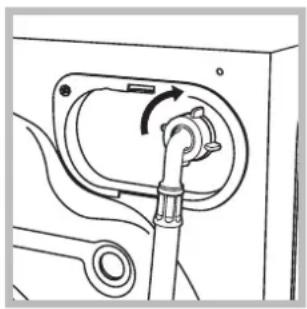

1. Connect the inlet hose

to the machine by screwing it onto the cold water inlet of the appliance, which is situated on the top right- hand side of the rear part of the appliance (see figure).

2. Connect the inlet hose by

screwing it to a cold water tab using a 3/4 gas threaded connection (see figure).

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values indicated in the Technical data table (see next page). ! If the inlet hose is not long enough, contact a specialised shop or an authorised technician. ! Never use second-hand or old inlet hoses; use the products supplied with the machine. Downloaded From WashingMachine-Manual.com ManualsEN

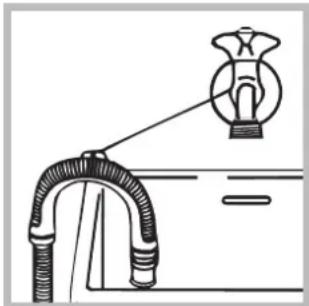

Connecting the drain hose Connect the drain hose to drain duct piping or a wall drain located between 65 and 100 cm above the floor, making sure it is not bent at all. Alternatively, rest the drain hose on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater. ! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Electrical connections Before plugging the appliance into the electricity socket, make sure that:

• thesocketisearthedandcomplieswithallapplicable laws;

• thesocketisabletowithstandthemaximumpowerload of the appliance as indicated in the Technical data table (see opposite);

• thepowersupplyvoltagefallswithinthevaluesindicated in the Technical data table (see opposite);

• thesocketiscompatiblewiththeplugoftheappliance. If this is not the case, have the socket or the plug replaced. ! The machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions. ! The mains socket must remain within easy reach after the washing machine has been installed. ! Do not use extension cords or multiple sockets. ! The cable should not be bent or compressed. ! The power supply cable and plug must only be replaced by authorised technicians. Warning! The company shall not be held responsible in the event that these regulations are not respected. Technical data ModelAQLF9D 692 UDimensionswidth 59.5 cmheight 85 cmdepth 64,5 cmCapacityfrom 1 to 9 kg Electrical connectionsplease refer to the technical data plate fixed to the machineWater connectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 62 litresSpin speedup to 1600 rotations per minuteEnergy rated programmes according to regulation EN 60456programme ; temperature 60°C;using a load of 9 kg.This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compa-tibility)- 2006/95/EC (Low Voltage)- 2002/96/EC Downloaded From WashingMachine-Manual.com ManualsEN

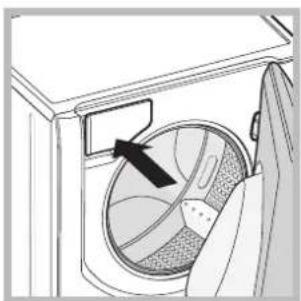

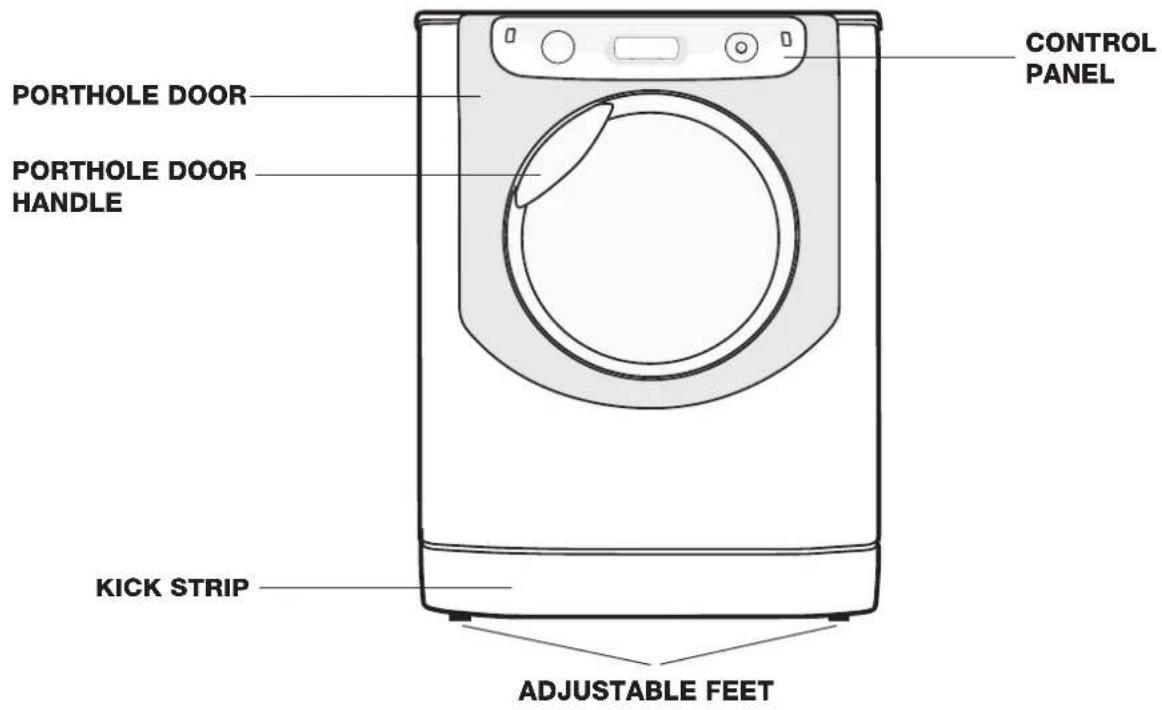

Description of the machine PORTHOLE DOOR Always use the handle to open the porthole door (see figure).

DETERGENT DISPENSER DRAWER

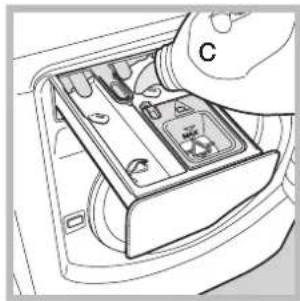

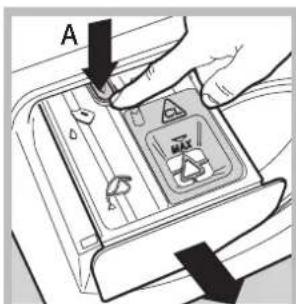

The detergent dispenser drawer is located inside the machine and can be accessed by opening the door. Refer to the chapter “Auto Dose System” for information on operation.

To adjust the settings, gently press the icon inside the sensitive (touch control) area as illustrated in the figure. Standby mode This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again. CONTROL PANEL PORTHOLE DOOR PORTHOLE DOOR HANDLE KICK STRIP ADJUSTABLE FEET Downloaded From WashingMachine-Manual.com ManualsEN

WASH CYCLE SELECTOR knob Button with ON/OFF indicator light Touch control panel TEMPERATURE button OPTION buttons DISPLAY ECO indicator light START/PAUSE button with indicator light DOOR LOCKED indicator light WASH CYCLE PHASE icons SPIN SPEED button DELAY TIMER button CHILD LOCK button with indicator light Button with ON/OFF indicator light: press this briefly to switch the machine on or off. The green indicator light indicates that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled. WASH CYCLE SELECTOR knob: may be turned in either direction. To select the most suitable wash cycle, please refer to the “Table of wash cycles”. The knob will not move during the wash cycle. TEMPERATURE button: press to modify or exclude the temperature setting; the value selected will appear on the display above (see “Running a wash cycle”).

button: press to modify or exclude the spin cycle; the value selected will appear on the display above (see “Running a wash cycle”). DELAY TIMER button: press to set a delayed start for the selected wash cycle; the set delay time will appear on the display above (see “Running a wash cycle”). OPTION buttons with indicator lights: press to select the available options. The indicator light corresponding to the selected option will remain lit (see “Running a wash cycle”). DETERGENT and SOFTENER buttons : refer to “Modifying pre-set parameters” in the chapter “Auto Dose System”. DETERGENT DILUTION button: refer to “Filling the tanks” in the chapter “Auto Dose System”. WASH CYCLE PHASE icons: these illuminate to indicate the progress of the wash cycle (Wash – Rinse – Spin – Drain ). The text lights up when the cycle is complete. START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the “Door locked” indicator light is switched off, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again. DOOR LOCKED indicator light: indicates that the porthole door is locked. To open the door, pause the wash cycle (see “Running a wash cycle”). CHILD LOCK button with indicator light: to activate or deactivate the control panel lock, press and hold the button for approximately 2 seconds. when the indicator light is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. ECO indicator light: the icon lights up when, after altering the washing parameters, an energy saving of at least 10% is made. Furthermore, before the machine enters “Standby” mode, the icon will light up for a few seconds; when the machine is switched off the estimated energy saving will be around the 80% mark. CHANGE LANGUAGE The first time the machine is switched on, the first language will flash on the display. The “ “, “OK” and “V” symbols will appear on the display, in line with the 3 buttons on the right-hand side. The languages change automatically every 3”; alternatively, they can be changed by pressing the buttons next to the “ “ and “V” symbols. Use the “OK” button to confirm the language, which will be set after 2”. If no buttons are pressed, the automatic language change will begin again after 30”. The language may only be changed while the machine is switched off. Press and hold the temperature +spin +delayed start buttons for 5’’; a short beep sounds and the set language flashes on the display. Press the buttons next to the “ “ and “V” symbols to change the language. Use the button next to the “OK” symbol to confirm the language, which will be set after 2”. If no buttons are pressed, the language set previously will be displayed after 30”. Switch on the machine. DETERGENT button SOFTENER button DETERGENT DILUTION button

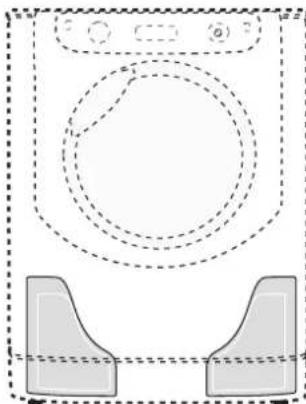

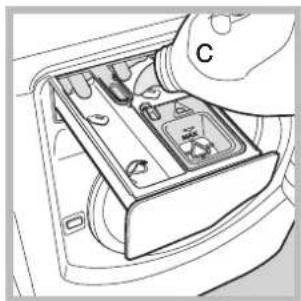

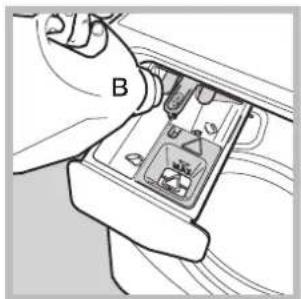

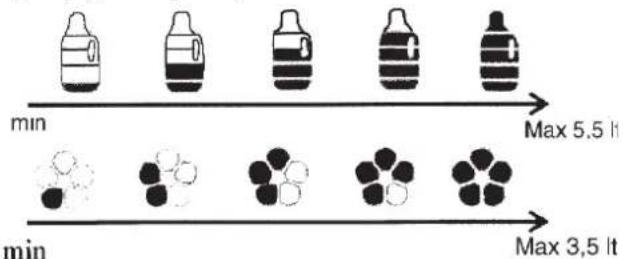

Auto Dose System Introduction This washing machine is equipped with two tanks: one for liquid detergent (either concentrated or diluted) with a capacity of approx. 5.5 l and another for liquid fabric softener (either concentrated or diluted) with a capacity of approx. 3.5 l (see picture). ! Check the detergent/fabric softener box to verify whether it is diluted or concentrated detergent. The automatic dosing system intakes the correct amount of detergent and fabric softener from the tanks for each type of load and at the right time, guaranteeing optimal washing results without wastage. The amount of detergent/fabric softener can be modified manually by pressing the DETERGENT and FABRIC SOFTENER buttons (refer to “Modifying pre-set parameters”). If you prefer, the washing machine can also be used in the “traditional” mode, i.e. by adding the detergent in the dispenser; the machine will automatically detect the detergent and will not use the tanks. Detergent dispenser “Traditional” mode. Pull out the detergent dispenser drawer up to the first stop point to add the detergent (either liquid or powder detergent), bleach or other additives (e.g. whiteners) and the pre-wash detergent for washing in the “traditional” mode (refer to “Traditional” mode). “Auto Dose System” mode. In order to fill the detergent and fabric softener tanks, the detergent dispenser drawer must be fully extracted: open the dispenser drawer up to the first stop point then press the lever (A) and open up to the second stop point, making sure that it is fully extracted. Avoid moving the dispenser drawer during filling operations. Once the tanks have been filled (refer to “Filling the tanks”), the machine can run up to 40 cycles before the detergent finishes (*). First-time use Turn the washing machine on by pressing the ON/OFF button. The first wash cycle must be carried out without laundry and by adding detergent in the detergent dispenser (refer to “Traditional” mode); set the programme “ “ (Cotton 90°) without pre-wash and without filling the tanks. Filling the tanks: Open the detergent dispenser drawer in the “Auto Dose System” mode (refer to “Detergent dispenser”). Slowly pour the detergent (B) and fabric softener (C) until the tanks are completely filled (see picture). To avoid exceeding the maximum capacity, a buzzer (beep) will sound with growing intensity to signal the level and 3 long beeps will sound once the tank is completely full. Start the wash cycle immediately after filling the tanks to ensure that the dispenser is properly cleaned.The respective icons (for the detergent) and (for the fabric softener) will light up gradually to signal the level. The filling time depends on the density of the product. Very dense products will take longer to fill. Close the detergent dispenser drawer only once the compartments are completely empty. Select the density of the detergent added (either concentrated or liquid) by pressing the appropriate button

Concentrated Diluted The machine will store the selection. If no option is selected, the detergent intake option will be pre-set to “diluted”. Use button to set the amount of fabric softener that will be automatically extracted by the machine:

1) If concentrated softener is used, we recommend selecting

the first level ( with one bar) and, if necessary, stepping up by a single position ( with 2 bars) to increase detergent intake.

2) If diluted softener is used, we recommend setting level

3 ( with 3 bars) and to then either increase/decrease the amount of fabric softener to be extracted.

3) To exclude the use of fabric softener, press

until the bars disappear (also refer to “Modifying pre-set parameters”). (*) with an average load of 4 kg, 40°C Cotton programme, “medium” water hardness level and dirt level set to 3.

Signals for successive refilling: Once, at the end of a cycle, the level of detergent/fabric softener falls below the level required for a successive wash cycle, the display will visualise the relative messages “At end of cycle refill detergent” or “At end of cycle refill softener” or “At end of cycle refill tanks”. If the tanks are not filled, the successive wash cycles in Auto Dose System will be carried out without any intake of detergent. ! We suggest adding detergent and fabric softener ONLY after the machine’s signal. ! NEVER mix two different detergents; always clean out the tank before adding a new type of detergent (refer to “Cleaning cycle set by the user”). Using the “Auto Dose System” If the compartments have been filled with detergent and fabric softener, you may start using the machine (refer to “Running a wash cycle”). Powder detergents for pre-washing and powder additives may only be used in the traditional mode or using the “Auto Dose System”, by placing the additives directly inside the drum, preferably in conjunction with the “laundry ball”. Whenever bleaching is required, pour the bleach in the relative compartment (refer to the option “Super Wash”). Modifying pre-set parameters: The machine automatically intakes detergent on the basis of the selected programme, wash load and water hardness. However, the amount of detergent/fabric softener used may be modified. button: press to increase, decrease and to exclude detergent intake. button: press to increase, decrease and to exclude fabric softener intake. The level of detergent/fabric softener suggested by the machine is indicated by 3 bars. Less than 3 bars indicates a lower level of detergent/ fabric softener compared to that suggested by the machine, while more than 3 bars indicates a higher level of detergent/fabric softener. Cleaning the tanks: Tank cleaning cycles can either be automatic or pre-set by the user. Automatic cleaning: The washing machine carries out an automatic cleaning cycle during the rinse cycle if the level of detergent that remains is insufficient for carrying out a successive wash cycle. Cleaning cycle set by the user: Run the cleaning cycle (with empty drum) if you require adding a different product to the previous one or if the tanks have been incorrectly filled (e.g. fabric softener has been erroneously poured into the detergent tank or vice-versa). Press button and hold for 5 sec. to activate cleaning of the detergent tank, button for cleaning the fabric softener tank or button for cleaning both tanks. Keep pressing for a further 3 sec. (the countdown “4-3-2-1” will appear in the top right corner) until “CLEAN-GO” pops up. The cleaning cycle lasts about 40’ if the tanks are initially empty; if not, the cycle will last longer. The icons indicating that the tanks are empty will appear on the display. “Traditional” mode Pull out the detergent dispenser drawer up to the first stop point (see picture) then pour the amount of detergent and other additives (e.g. bleach) required for a single wash cycle directly into the dispenser.

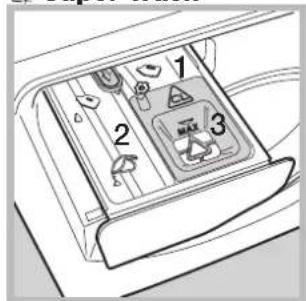

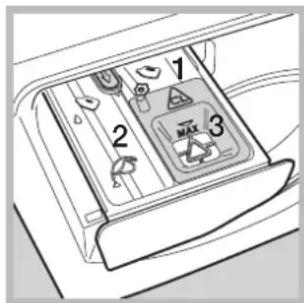

1. pre-wash compartment: use

powder detergent only.

2. main wash compartment:

use powder or liquid detergent. If the latter is used, we recommend pouring it into the dispenser immediately before starting the washing machine and without running a pre- wash cycle.

3. bleach compartment: to be used whenever bleaching is

required (refer to “Super Wash” option). Tablet detergent or the relative “laundry ball” must be added directly inside the drum. In this event, deactivate the “Auto Dose System” (by pressing the button until the relative vertical bars disappear from the display). Do not pour any fabric softener as the appropriate quantity required for each wash cycle will be automatically extracted. To deactivate fabric softener intake, press the button until the vertical bars disappear from the display. For wool and silk garments, we recommend using a special detergent which must be poured directly into the detergent dispenser (compartment 2). Running the wash cycle: Select the programme and the compatible options on the basis of the required need and type of load.

Running a wash cycle

WARNING: before you use the washing machine for the first

time, run a wash cycle with detergent and no laundry, using the 90° cottons cycle without pre-wash.

1. SWITCH THE MACHINE ON. Press the

button. All the indicator lights will illuminate for 1 second and the text AQUALTIS will appear on the display; the indicator light corresponding to the button will then remain lit in a constant manner and the START/PAUSE indicator light will flash.

2. SELECT THE PROGRAMME. Turn the PROGRAMME

KNOB left or right, until the required programme has been selected; the name of the programme will appear on the display. A temperature and spin speed is set for each programme; these may be adjusted. The cycle duration will also appear on the display.

3. LOAD THE LAUNDRY. Open the porthole door. Load the

laundry, making sure you do not exceed the maximum load value indicated in the table of wash cycles on the following page.

4. MEASURE OUT THE DETERGENT. There is no need

to add detergent when the “Auto Dose System” mode is used, as the machine automatically intakes detergent on the basis of the selected programme, type of load and water hardness. Refer to the paragraph “Traditional” mode for implementing the traditional operation mode.

buttons on the control panel: Modify the temperature and/or spin speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the button, until the cold wash “OFF” setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded “OFF”. If these buttons are pressed again, the maximum values are restored. ! Exception: if the “Cottons” programme is selected, the temperature can be increased up to a value of 90°C. Set a DELAY TIMER. To set a delayed start for the selected cycle, press the corresponding button repeatedly until the required delay period has been reached. During the setting procedure, the delay period and the text “Starts in:” will be displayed, along with the flashing symbol. After the delayed start has been set, the symbol will remain fixed on the display, which will also indicate the duration of the selected cycle with the text “Ends in:” and the cycle duration. Press the DELAY TIMER button just once to display the delay time set previously. After the countdown has begun, the display will show the text “Starts in:” and the delay period. Once the set delay time has elapsed, the machine will begin its cycle and the display will show “Ends in:” and the time remaining until the end of the cycle. To remove the delayed start option, press the button until the display shows the text OFF; the symbol will disappear. Modify the cycle settings.

• Press the button to activate the option; the name of the option will then appear on the display and the corresponding indicator light will illuminate.

• Press the button again to deactivate the option; the name of the option will then appear on the display followed by the text OFF, and the corresponding indicator light will switch off. ! If the selected option is not compatible with the selected wash cycle, this incompatibility will be signalled by the flashing of the indicator light and a sound alert (3 beeps); the option will not be activated. ! If the selected option is not compatible with another option that has been selected previously, the indicator light corresponding to the first option selected will flash and only the second option will be activated; the indicator light corresponding to the button will remain lit in a constant manner. ! The options may affect the recommended load value and/or the duration of the cycle.

7. START THE PROGRAMME. Press the START/PAUSE

button. The corresponding indicator light remains lit in a fixed manner and the porthole door locks (the DOOR LOCKED indicator light illuminates). The icons corresponding to the wash cycle phases will light up during the cycle to indicate which phase is currently in progress. To change a wash cycle once it has already started, pause the washing machine by pressing the START/PAUSE button; then select the desired cycle and press the START/ PAUSE button again. To open the door during a wash cycle, press the START/PAUSE button; if the DOOR LOCKED indicator light is switched off you may open the door. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This is indicated by

the illuminated text END. The porthole door may be opened immediately. If the START/PAUSE indicator light is flashing, press the button to end the cycle. Open the door, unload the laundry and switch off the machine. ! If you wish to cancel a cycle which has already begun, press and hold the button until the cycle stops and the machine switches off. Bag for quilts, curtains and delicate garments The Aqualtis washing machine makes it easier for you to wash even the most valuable and delicate garments in complete confidence thanks to the special bag which protects the laundry (this is supplied with the machine). We recommend that the bag is used every time you wash quilts and padded items with an outer layer made using synthetic material. Downloaded From WashingMachine-Manual.com ManualsEN

Wash cycles and options Wash options Super Wash This option offers a high- performance wash due to the greater quantity of water used in the initial phase of the cycle, and due to the increased wash cycle duration, is particularly useful for the removal of stubborn stains. It can be used with or without bleach. If you desire bleaching, use the compartment 3. When dosing the bleach, be careful not to exceed the “max” level (see figure). To bleach laundry without carrying out a full wash cycle, pour the bleach into the compartment 3, select the “Rinse” cycle and activate the “Super Wash” option . ! It cannot be used in conjunction with , , , , , , , . Easy Iron By selecting this option, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine drum will rotate slowly; the “Easy Iron” and START/PAUSE indicator lights will flash. To end the cycle press the START/PAUSE button or the “Easy Iron” button. For the Silk wash cycle, the machine will end the cycle while the laundry is soaking and the “Easy Iron” indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the “Easy Iron” button. ! It cannot be used in conjunction with Time Saver If you select this option, the wash cycle duration will be reduced by 30%-50%, depending on the selected cycle, thereby guaranteeing simultaneous water and energy saving. Use this cycle for lightly soiled garments. ! It cannot be used in conjunction with , , , , ,, , , . Extra rinse By selecting this option, the efficiency of the rinse is increased and optimal residual detergent removal is guaranteed. It is particularly useful for skin which is sensitive to detergents. We recommend this option is used with a full load of washing, or when a large amount of detergent is required. ! It cannot be used in conjunction with Table of wash cycles

(*) Note: 10 minutes after the START, the machine will recalculate the time remaining until the end of the wash cycle on the basis of the load inside it; this value will then be shown on the display.For all Test Institutes: 1) Test wash cycle in compliance with regulation EN 60456: set wash cycle with a temperature of 60°C.2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.3) Short wash cycle for cottons: set wash cycle with a temperature of 40°C. The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.Icon Description of the wash cycleMax. temp. (°C) Max. speed (rpm)Detergent and additivesMax. load (kg) Cycle durationDeter-gent for wash Fabric softenerBleachCottons wash cyclesCottons with pre-wash(Add detergent to the relevant compartment).90° 1600 - 9Cottons (1): heavily soiled whites and resistant colours. 60° (Max. 90°C)

Cottons (2): heavily soiled whites and delicate colours. 40° 1600

Coloured Cottons (3)40° 1600 Shirts40° 600 Jeans40° 800 - 4Special programmes Baby: heavily soiled delicate colours 40° 800

Durable Synthetics60° 800 Delicate Synthetics40° 800

""Bed & Bath"" for bedlinen and towels. 60° 1600

Duvets: for down-stuffed garments. 30° 1200 - 3,5 Silk: for garments in silk and viscose, lingerie. 30° 0 - 2Wool: for wool, cashmere, etc. 40° 600 - 2Mix 30': to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand)30° 800 - 3,5 Partials wash cyclesRinse - 1600 -

Spin - 1600 - - - 9 Drain - 0 - - - 9 (*) The duration of the wash cycles can be checked on the display.

Detergents and laundry Detergent The type and quantity of detergent required depend on the type of fabric you are washing (cotton, wool, silk, etc.), as well as its colour, the washing temperature, the level of soiling and the hardness of the water in the area. Whenever the detergent and fabric softener “Auto Dose System” is activated, this washing machine helps to prevent wastage and to protect the environment, besides guaranteeing optimal washing performance. We recommend the following:

• Usegentleliquiddetergentsforwoolandsilkgarments and pour in the “traditional” mode. ! Never mix two different detergents; always clean out the tank before adding a new type of detergent. The detergent should be poured into the relevant compartment - or the dispenser placed directly inside the drum - before the wash cycle begins. In the latter case, it will not be possible to select the Cottons with pre-wash cycle. ! Do not use hand washing detergents because these create too much foam. Preparing the laundry

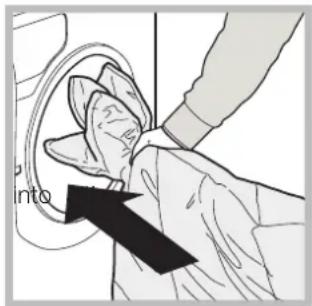

• Shake out the garments before loading them into the machine.

• Dividethelaundryaccordingfabrictype(symbolonthe washing instruction label) and colour, making sure you separate the coloured garments from the white ones;

• Emptyallpocketsandcheckthebuttons;

• Do not exceed thevalues listed in the “Table of wash cycles”, which refer to the weight of the laundry when dry. How much does your laundry weigh? 1 sheet 400-500 g 1 pillowcase 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g 1 pair of jeans 400-500 g 1 shirt 150-200 g Washing recommendations Shirts: use the special “Shirts” wash cycle to wash shirts in different fabrics and colours to guarantee they receive the best possible care. Jeans: use the special “Jeans” wash cycle for all denim garments; turn inside out before washing and use a liquid detergent. Baby: use the special “Baby” wash cycle to remove the remove the soiling typically caused by babies, while removing all traces of detergent from nappies in order to prevent the delicate skin of babies from suffering allergic reactions. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent. At the end of the wash cycle, the machine will slowly rotate the drum; to end the cycle press the START/PAUSE button. Silk: use the special “Silk” wash cycle to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes. Curtains: use the “Silk” wash cycle. These should be folded and placed inside the bag provided. Wool: is the only washing machine brand to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine, even those which state “hand wash only” on the label. The “Wool” wash cycle can be used to wash all woollen garments in the washing machine while guaranteeing optimum performance. Duvets: to wash double or single duvets (the weight of which should not exceed 3,5 kg), cushions or clothes padded with goose down such as puffa jackets, use the special “Duvets” wash cycle. We recommend that duvets are placed in the drum with their edges folded inwards (see figure) and that no more than ¾ of the total volume of the drum is used. Quilts: to wash quilts with a synthetic outer layer, use the bag provided and set the wash cycle to “Duvets”

Bedlinen and towels: use the “Bed & Bath” cycle to wash laundry from all over the house; this optimises fabric softener performance and helps you save time and energy. We recommend the use of powder detergent. Stubborn stains: it is wise to treat stubborn stains with solid soap before washing, and to use the Cottons with pre- wash cycle. Load balancing system Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load. Downloaded From WashingMachine-Manual.com ManualsEN

Precautions and tips ! The machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully. General safety

• Thisapplianceisnotintendedforusebypersons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Donotpullonthepowersupplycablewhenunplugging the appliance from the electricity socket. Hold the plug and pull.

• Donottouchthedrainedwaterasitmayreachextremely high temperatures.

• Never force the portholedoor. This could damagethe safety lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.

• Alwayskeepchildrenwellawayfromtheappliancewhile it is operating.

• Ifitmustbemoved,proceedwiththehelpoftwoorthree people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Beforeloadinglaundryintothewashingmachine,make sure the drum is empty. Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.

• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For more information relating to the correct disposal of household appliances, owners should contact their local authorities or appliance dealer. Opening the porthole door manually In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. remove the plug from the

2. make sure the water level

inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

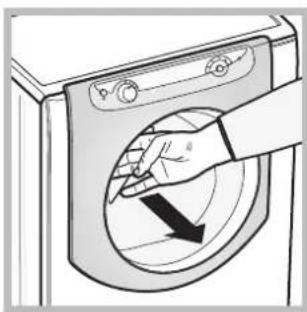

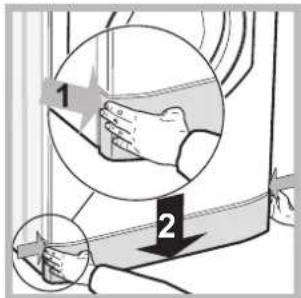

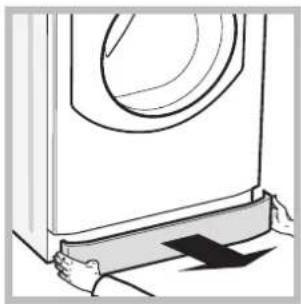

3. remove the cover panel on the lower front part of the

washing machine (see overleaf).

4. pull outwards using the

tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards until you hear a “click”, which indicates that the door is now unlocked.

5. open the door; if this is

still not possible repeat the procedure.

6. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance. Downloaded From WashingMachine-Manual.com ManualsEN

Cutting off the water and electricity supplies

• Turnoffthewatertapaftereverywashcycle.Thiswilllimit wear on the hydraulic system in the machine and help to prevent leaks.• Unplugtheappliancewhencleaningitandduringallmaintenance work. Cleaning the machine The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser drawer To pull out the dispenser drawer, open until the first stop point then press lever A to open completely; finally, press one of the levers D and pull the drawer outwards (see picture).Wash it under running water; this procedure should be effected regularly. Be careful to remove any detergent residues from the dispenser drawer socket on the machine.Keep the drawer to the left hand side when replacing it to ensure that it centres the guides and to prevent it from jamming. Caring for your appliance drum

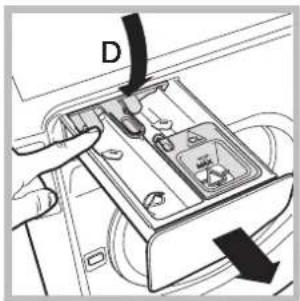

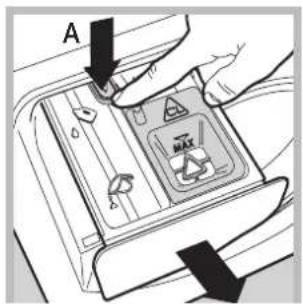

• Alwaysleavethedoorajartopreventunpleasantodoursfrom forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump.! Make sure the wash cycle has finished and unplug the appliance.To access the pre-chamber:1. take off the cover panel on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures);2. position a container so that it will collect the water which flows out (approximately 1.5 l) (see figure);3. unscrew the lid by rotating it in an anti-clockwise direction (see figure);4. clean the inside thoroughly;5. screw the lid back on;6. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance. Checking the water inlet hose Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

Care and maintenance

Trouble shooting Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be not solved easily using the following list. Problem: The washing machine does not switch on. The wash cycle does not start. The washing machine does not fill with water. The washing machine door remains locked. The machine continuously fills with water and drains. The washing machine does not drain or spin. The machine vibrates a lot during the spin cycle. The washing machine leaks. The icons corresponding to the “Phase in progress” flash rapidly at the same time as the ON/OFF indicator light. There is too much foam. The washing machine door remains locked. Possible causes / Solutions:

• Thedoorisnotclosedproperly.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Thewatertaphasnotbeenopened.

• Thewatertaphasnotbeenopened.

• TheSTART/PAUSEbuttonhasnotbeenpressed.

• Ifyouhaveselectedthe“Baby ” cycle or the “Easy iron ” option, when the wash cycle has finished the machine will slowly rotate the drum; to end the cycle press the START/PAUSE button or the “Easy iron ” button. If you have selected the “Silk ” wash cycle, the machine will end the cycle while the laundry is soaking; to drain the water so that the laundry may be removed, press the START/PAUSE button or the “Easy iron ” button.

• Thedrainhoseisnotfittedataheightbetween65and100cmfromthefloor (see “Installation”).

• Thefreeendofthehoseisunderwater(see “Installation”).

• Ifthedwellingisononeoftheupperfloorsofabuilding,theremaybe problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to prevent this inconvenience.

• Thewalldrainagesystemisnotfittedwithabreatherpipe.

• Thewashcycledoesnotincludedraining:Somewashcyclesrequirethedrain phase to be started manually (see “Wash cycles and options”).

• Thedrainageductisclogged.

• Theloadisunbalanced(see “Detergents and laundry”).

• Switchoffthemachineandunplugit,waitforapproximately1minuteand then switch it back on again. If the problem persists, contact the Technical Assistance Service.

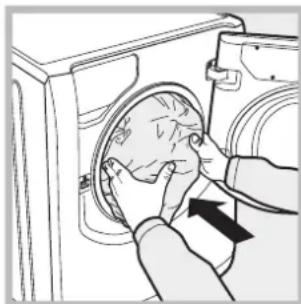

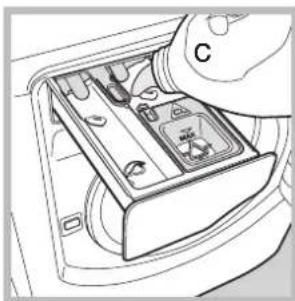

Troubleshooting: The machine’s washing performance is unsatisfactory. What happens if the tanks are loaded even if they are already full? What happens if the dispenser is used in the traditional mode while the tanks are still full? Can the tanks also be used for powder detergent? Can powder detergent fall into the tanks? What happens if the dispenser is not opened properly when filling the tanks? What happens if detergent and fabric softener are erroneously inverted? What happens if different detergents are mixed before the tanks are empty? Possible causes / Solutions:

• Thetankshavenotbeenloadedcorrectly(e.g.fabricsoftenerhasbeen added instead of detergent or vice-versa)

• Twodifferenttypesofdetergent/fabricsoftenerhavemixed. ! NEVER mix two different detergents; always clean out the tanks before adding a new type of detergent.

• The“Auto Dose System” is blocked due to prolonged lack of use: carry out a tank cleaning cycle (refer to “Cleaning cycle set by the user”).

• Buzzers(Beep)andvisualsignals(iconsappearingonthedisplay)indicate that the tank is full. If further detergent/fabric softener is added, the excess quantity will fall into the drum and will be washed away with the next cycle.

• Themachinewillautomaticallytrackwhetherpowderorliquiddetergent has been loaded in the traditional mode and will not intake any amount of detergent from the tank. Fabric softener can only be used in the “Auto Dose System” mode.

• Ifthedispenserisnotcompletelyopen,thedetergentorfabricsoftenerthat has been added will fall into the drum and will be washed away with the next cycle.

• Thewashingmachinewillwashwithunsatisfactoryresults,thetankswill have to be emptied and subjected to a manual cleaning cycle.

• Themachinewillwashnormallyalthoughwerecommendonlyrefilling the tanks after the signal emitted by the machine; do not mix different detergents/fabric softeners.

Note: To exit “Demo mode”, press and hold the two “ON/OFF” and “START/PAUSE” buttons simultaneously for 3 seconds. Downloaded From WashingMachine-Manual.com ManualsEN
