USER MANUAL AVTL83 Ariston Thermo

Unpacking and levelling, 2

Electric and water connections, 2-3

The first wash cycle, 3

Technical details, 3

Washing machine description, 4-5

Control panel, 4

How to open and shut the drum, 5

Leds, 5

Starting and Programmes, 6

Briefly: how to start a programme, 6

Programme table, 6

Personalisations, 7

Setting the temperature, 7

Setting the spin cycle, 7

Functions, 7

Detergents and laundry, 8

Detergent dispenser, 8

Bleach cycle, 8

Preparing your laundry, 8

Special items, 8

Woolmark Platinum Care, 8

Precautions and advice, 9

General safety, 9

Disposal, 9

Saving energy and respecting the environment, 9

Care and maintenance, 10

Cutting off the water or electricity supply, 10

Cleaning your appliance, 10

Caring for your appliance door and drum, 10

Cleaning the pump, 10

Checking the water inlet hose, 10

Cleaning the detergent dispenser, 10

Troubleshooting, 11

Service, 12

Before calling for Assistance, 12

ARISTON

GB

GB

!Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

!Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

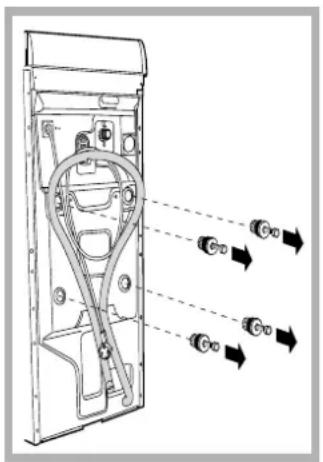

3. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten the shorter ones at the top.

!Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.
2. If the floor is not perfectly level, compensate for any unevenness by tightening or

loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure).
   Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the hose.

The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).
If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

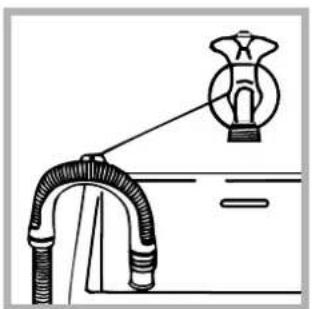

Connecting the drain hose

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100cm from the floor;

underwater.

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be

We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

• the socket is earthed and in compliance with the applicable law;
• the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);
  the supply voltage is included within the values indicated on the Technical details table (on the right);
• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

The washing machine should not be installed in an

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

When the washing machine is installed, the main socket must be within easy reach.
! Do not use extensions or multiple sockets.
The power supply cable must never be bent or dangerously compressed.
The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ programme without a pre-wash cycle.

Technical details
Model	AVTL 83
Dimensions	40 cm wide 85 cm high 60 cm deep
Capacity	from 1 to 5 kg
Electric connections	voltage 220/230 Volts 50 Hz maximum absorbed power 1850 W
Water connections	maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 42 litres
Spin speed	up to 800 rpm
Control programmes according to IEC456 directive	programme 3; temperature 60°C; run with a load of 5 kg.
CE	This appliance is compliant with the following European Community Directives: - 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments - 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments - 2002/96/CE

GB

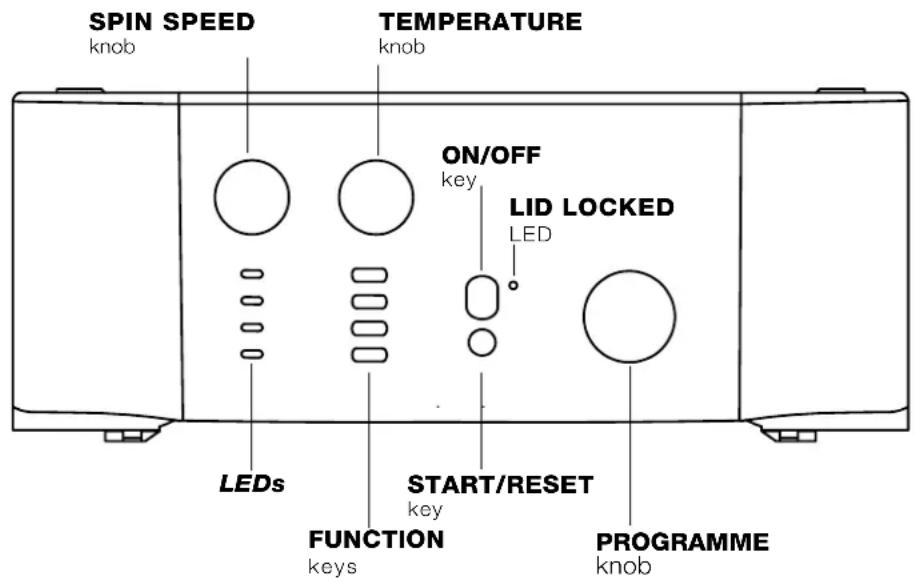

Control panel

Detergent dispenser to add detergent and fabric softener (see page 8).

LEDs to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 5).

SPIN SPEED knob to set the spin speed or exclude the spin cycle completely (see page 7).

FUNCTION keys to select the functions available. The button corresponding to the function selected will remain on.

TEMPERATURE knob to set the temperature or the cold wash cycle (see page 7).

ON/OFF key to turn the washing machine on and off.

START/RESET key to start the programmes or cancel incorrect settings.

ON-OFF/LID LOCK led, to find out whether the washing machine is on (flashing) and if the lid may be opened (see page 5).

PROGRAMME knob to set the programmes (see page 6).

The knob stays still during the cycle.

ON-OFF/LID LOCK led:

If this LED is on, the appliance Lid is locked to prevent it from being opened accidentally; to avoid any damages, you must wait for the lamp to flash before you open the Lid.

The rapid flashing of the ON-OFF/LID LOCK Led together with the flashing of at least one other LED indicates there is an abnormality. Call for Technical Assistance.

How to open and to close the drum

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Leds

The LEDs provide important information.

This is what they can tell you:

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Pewash

Wash

Binse

Spin cycle

Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

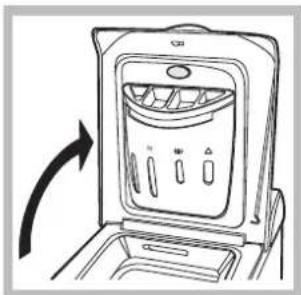

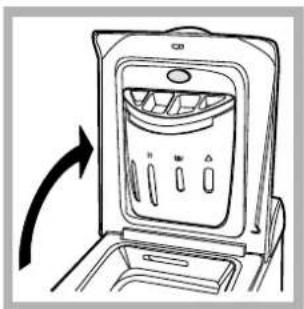

A) Opening (Fig.1).

Lift the external lid and open it completely.

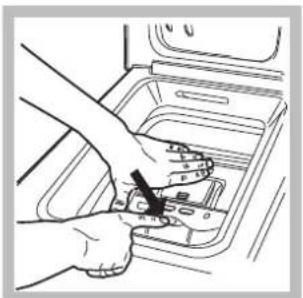

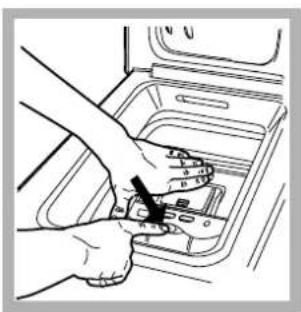

B) Then open the drum using both hands as shown in Fig. 2:

• press the button indicated by the arrow in Fig. 2 lightly downwards, with one hand firmly resting on the doors to prevent them from suddenly opening and hurting your fingers;
• therefore follow the appliance doors along as these unhook and open easily.

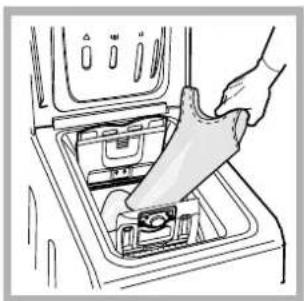

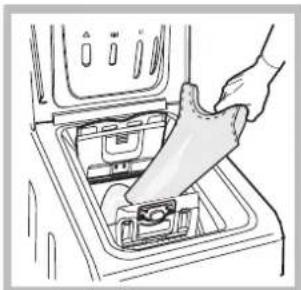

C) Loading the washing machine. (Fig. 3).

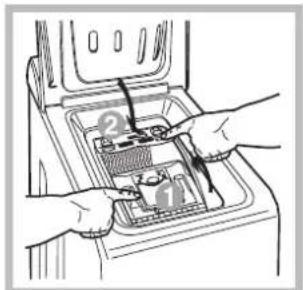

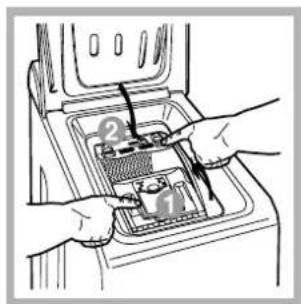

• close the drum fully by first shutting the front door followed by the rear one;
• then ensure the hooks on the front door are perfectly housed within the seat of the rear door;
• after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;
• finally shut the external lid.

Function keys

The FUNCTION KEYS also act like LEDs.

When a function is selected, the corresponding button is illuminated.

If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled.

If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

Starting and Programmes

GB

Briefly: starting a programme

1. Switch the washing machine on by pressing button . All the LEDs will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.
2. Load your laundry into the washing machine, add the detergent and any fabric softener (see page 8) and shut the appliance door.
3. Set the PROGRAMME knob to the programme required.

4. Set the wash temperature (see page 7).

5. Set the spin speed (see page 7).

6. Start the programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.
7. When the programme is finished, the ON-OFF/DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button

Programme table

Type of fabric and degree of soil	Program-mes	Wash temper- at.	Detergent		Fabric softener	Bleaching /option Bleach	Cycle length (minutes)	Description of wash cycle
			Pre-wash	Wash

Cotton

Extremely soiled whites (sheets, tablecloths, etc.)	1	\( {90}^{ \circ }\mathrm{C} \bullet \)	... 137				Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Extremely soiled whites (sheets, tablecloths, etc.)	2	\( {90}^{ \circ }\mathrm{C} \)		...		Delicate/ Traditional	129 Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	3	\( {60}^{ \circ }\mathrm{C} \)		...		Delicate/ Traditional	144 Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	4	\( {40}^{ \circ }\mathrm{C} \)		...		Delicate/ Traditional	78 Wash cycle, rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	5	\( {30}^{ \circ }\mathrm{C} \)		...		Delicate/ Traditional	70 Wash cycle, rinse cycles, intermediate and final spin cycles

Synthetics

Heavily soiled fast colours (baby linen, etc.)	6	\( {60}^{ \circ }\mathrm{C} \)		-		Delicate	79	Wash cycle, rinse cycles, anti- crease or delicate spin cycle
Heavily soiled fast colours (baby linen, etc.)	7	\( {50}^{ \circ }\mathrm{C} \)		-		Delicate	75	Wash cycle, rinse cycles, anti- crease or delicate spin cycle
Delicate colours (all types of slightly soiled garments)	8	\( {40}^{ \circ }\mathrm{C} \)		-		Delicate	65	Wash cycle, rinse cycles, anti- crease or delicate spin cycle
Delicate colours (all types of slightly soiled garments)	9	\( {30}^{ \circ }\mathrm{C} \)		-		32		Wash cycle, rinse cycles and delicate spin cycl

Delicate

Wool	10	40°C		• •		Delicate	45	Wash cycle, rinse cycles and delicate spin cycle
Very delicate fabrics (curtains, silk, viscose, etc.)	11	30°C		• •			52	Wash cycle, rinse cycles, anti-crease or draining cycle

PARTIAL PROGRAMMES

Rinse					·			Rinse cycles and spin cycle
Delicate rinse cycle					·			Rinse cycles, anti-crease or draining
Spin cycle								Draining and heavy duty spin cycle
Delicate spin cycle								Draining and delicate spin cycle
Draining								Draining

Notes

For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily 30^ (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30^ ), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

(6) Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6).

The temperature can be lowered, or even set to a cold wash ( ).

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:

Programmes Maximum spin speed

Cottone 800 rpm

Synthetics 800 rpm

Wool 600 rpm

Silk no

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;
2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Function	Effect Comments	Enabled with	programmes:
Super Wash	Allows for an impeccable wash, visibly whiter than a standard Class A wash.	This function is incompatible with the RAPID function.	1, 2, 3, 4, 5, 6, 7, 8
Easy iron This option reduces the amount of creasing on fabrics, making them easier to iron.		When this function is set, programmes 6, 7, 8, 11 and Delicate rinse will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED will flash. - to conclude the cycle, press the START/RESET button; - to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button.	All programmes except for 1, 2, 9, 10 and Draining.
Rapid Cuts	the duration of the wash cycle by 30%.	This function is incompatible with the SUPER WASH function.	1, 2, 3, 4, 5, 6, 7, 8 Rinses
Extra Rinse	Increases the efficiency of the rinse.	Recommended when the appliance has a full load or with large quantities of detergent.	1, 2, 3, 4, 5, 6, 7, 8, and Rinse cycles.

Detergents and laundry

GB

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may

in fact cause build up on the interior of your appliance and even pollute the environment.

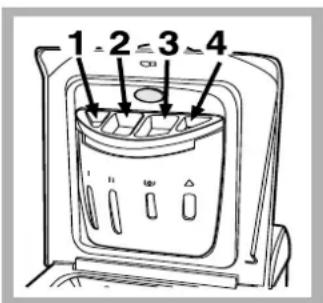

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash

compartment 2: Detergent for the wash cycle (powder or liquid)

It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup.

compartment 3: Additives (softener, etc.)

When pouring the softener in compartment 3, avoid exceeding the "max" level indicated. The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see page 10.

compartment 4: Bleach

! Do not use hand wash detergent because it may form too much foam.

Bleach cycle

Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool.

When pouring in the bleach, be careful not to exceed the "max" level indicated on compartment 4.

To run the bleach cycle alone, pour the bleach into compartment 4 and set the Extra Rinse option

Preparing your laundry

• Divide your laundry according to:

• the type of fabric/the symbol on the label.

• the colours: separate coloured garments from whites.

• Empty all pockets and check for loose buttons.

• Do not exceed the weight limits stated below, which refer to the weight when dry:

Sturdy fabrics: max 5 kg

Synthetic fabrics: max 2.5 kg

Delicate fabrics: max 2 kg

Wool: max 1 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1,200 g
1 towel 150-250 g

Special items

Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically.

Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2 - 3kg repeating the rinse cycle once or twice and using the delicate spin cycle.

Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites.

Wool: for best results, use a specific detergent, taking care not to exceed a load of 1kg

Woolmark Platinum Care

As gentle as a hand wash.

WOOLMARK PLATINUM CARE

Ariston sets a new standard of superior performance that has been endorsed by

The Woolmark Company with the

prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash"

(M.0303):

Set programme 10 for all "Hand wash" garments, using the appropriate detergent.

(max load 1 kg.)

The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for non-professional, household use and its functions must not be changed.
• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not open the detergent dispenser while the appliance is in operation.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
• Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on

human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

• Disposing of an old washing machine: before scrapping your appliance, cut the power supply cable and remove the appliance door.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60^ instead of 90^ or one at 40^ instead of 60^ will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

GB

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser by raising it and pulling it out (see figure).

Wash it under running water; this operation should be repeated

frequently.

Caring for your appliance door and drum

Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance.

Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

Make sure the wash cycle has ended and unplug the appliance.

To recover any objects that have fallen into the pre-chamber:

1. remove the plinth at the bottom on the front side of the washing machine by pulling from the side with your hands (see diagram); (see figure);

2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

How to clean the detergent dispenser

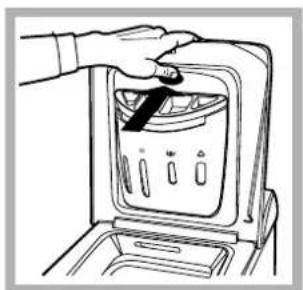

Disassembly:

Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1).

Cleaning:

Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them.

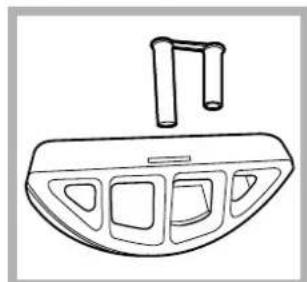

Reassembly:

Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Fig.1 Fig.2

Fig. 3

Fig. 4

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Problem

The washing machine won't start.

The wash cycle won't start.

The washing machine fails to load water.

The washing machine continuously loads and unloads water.

The washing machine does not drain or spin.

The washing machine vibrates too much during the spin cycle.

The washing machine leaks.

The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED.

There is too much foam.

Possible causes/Solution:

• The appliance is not plugged into the socket, or not enough to make contact.

• There has been a power failure.

• The appliance Lid is not shut properly. The Lid locked Led flashes.

• The button has not been pressed.
• The START/RESET button has not been pressed.

• The water tap is not turned on.

• The water inlet hose is not connected to the tap.

The hose is bent.
The water tap is not turned on.
- There is a water shortage.
- The water pressure is insufficient.
- The START/RESET button has not been pressed.

• The drain hose is not fitted between 65 and 100cm from the floor (see page 3).
  The free end of the hose is underwater (see page 3).

• The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

• The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6).

• The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 7).
  The drain hose is bent (see page 3).

• The drain duct is clogged.

• When the machine is installed, the locking screws for the oscillating assembly are still in place. Remove the screws (see page 2).

The washing machine is not level (see page 2).
- The washing machine is closed in between furniture cabinets and the wall (see page 2).

The water inlet hose is not screwed on correctly (see page 2).
- The detergent dispenser is obstructed (to clean it, see page 10).
- The drain hose is not secured properly (see page 3).

• Call for Assistance because this means there is an abnormality.

• The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like).

GB

Before calling for Assistance:

• Check whether you can solve the problem on your own (see page 11);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

If the machine has been installed or used incorrectly, you may be charged for the maintenance callout service.

!Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem;
  the appliance model (Mod.);
  the serial number (S/N);

This information can be found on the data plate situated on the rear of the washing machine.

Français

Sommaire

Installation, 14-15

Raccordements hydrauliques

pression maximale 1 MPa (10 bar)
pression minimale 0,05 MPa (0,5 bar)
capacité du tambour 42 litres

Vitesse d'essorage

Causes / Solutions possibles:

INHnKaTOp BKJIIOUcEHNE/JIOK 3A6JIOKpOBAH MInaET, KOrJa CTnpaJIbHa MaunHa BkJIIOueHa, I rOpNT, He MInaR, ecnn JIOK He 3a6JIOKpOBaH (cmompeMb cmp.29).

PykoTka Bb6opa PPOPAMM cnjxnt dna Bb6opa nporpamm (cmompemb cmp. 30).
B npoecce BblonHeHn nporpammby pykoTka octaetc HenoDbNkHOH.

-0 INHdkaTop BKJIIOUeHNE/JIOK 3ABJIOKINPOBAH:

TopuHn HndkaTOp 03Haayet,TO NOK 3a6NknpoBaH BO n36eKaHne erO cnuyauHOro OTkpBbAHn. BO n36eKaHne NOBpExHeH nepeTe KAKOTKpbITb NOK, HeoXoIMOn DOxKaTbC, KOrda 3amrAet INHdkaTOp.

！Uactoe MuraHne HndkaTopa BKIOUeyHNE/IIOK 3A5IOKIOBOAH OHOBpeMeHc CIO6bIM dpyHm HndkaTopoM O3Naayet HeNCnpabHocTB. ObpaNTeCB B LcHTp TexHueckoro ObcnyxBaHHa.

Kak OTkpblb n 3aKpbItb 6apa6aH

Fig.1

Fig.2

Fig.3 Fig.4

INHdkaTopbI

HnKaToPb Co6aOT noB3OBaTeIO BaxHbIe CBeHeH.

3NaueHnHnKaTopoB:

Tekyuaa pa3a uknla:

B npoecce zukna ctnpkn nHdkatopbl 6ydyT 3aropatbcr OINH 3a dpYHM, NOKa3bIBa y a3y BbINOJIHeHH nporpaMMbl:

BepauptehnaCTnpka

Gnnpka

BolnockaHne

OTKMM

Pnmueyane: B npouecce cInBa 3aropntc HnDKaTOp, COOTBetCTByuOuN uKny OTXnMa.

A)OTKpbIBAHNE(pnc.1).

IOnHHIMNTe BHeUHIO KpbUkY I NOJIHOCTbIO ee OTKPOITe.

6) 3aTeM, nCnoJIb3yI o6e pyKn, OTKpOte 6apa6aH, KAK noka 3aHO Ha pnc.2:

-HaXMMTe KhoNky, 6o3HaueHHyIO cTpeKoH Ha pnc. 2, cner Ka BHN3,

Dpyro pykoi npndepkmba DBepu (Tak Bbl n36eknte BHe3anHOrO OTKpbBaHn DBepOK n 3auemneHn paIbueB); DBepu pacenrTa N JERKO OTKPOIOTCra.

B) 3AΓPy3KA CTnPAJIbHOJ MAUINHbl (pnc. 3).

T)3AKPbIBAHNE(pnc.4).

-3akpoTe nonHocb6apabah, onycka chayana nepeHHIO DBepy, a 3aTEM 3aHIO;
-3aTeM ydoCTOBepbTecb, YTO KpOKnpePeHnei DBepcI TOHO BOUIN B npEHa3HaueHHbe MeCtHa 3aHHei DBepCe;
- nocne TORO, kak KpIOK3aUeIKNHynCb, hXKMITE o6e DBePcbl CJIERKa BHN3, yTO6bI y6eIITbcra OHN 3aKpbITb IIOHTHO;
-Ⅰ, HakoHeL, 3aKpOte BHeUHIO KpbIiKy.

KhONKn Bb6opa yHKcun

KHONKNBbIbOPAΦYHKUNNAKKe RnTcN HdkaTopamn.

Pn BbIope yHKuun 3aropaetcra COOTBETCTBYUcaa KHONka.

Ecnn BbipanHna yHKnra YBnreTc HecOBMeCTmOc 3aHaHHo nporpAMMo, KHOka 6yDet MrraTb, n TaKa aYHKnra He 6yDet AKTNBnPOBaHa.

Ecni 6ydt BbIbpaHa fynKu, HecOBmecTIma C pyro, paHee BblbpaHHo fynKUne, octaHETcBKnIOueHHO ToJbKO nocJeDnra BblbpaHHa fynKu.

3anyck maunhbl. Iporpammbi

CIS

KpaTKe HnCtpyKcH: POpAOK 3aynycka nporpaMMbl

1.BKIOHHTe CTnpaIbHyIO MaunHy, HAKAB Ha KhoNky .Bce INDnKaTOPbI 3aToprTcRA Ha HECKoJIbKO CeKYHd, 3aTeM nOrachyT, INHDAkTOp BKJIOUeyEHE/NIOK 3A5JOKIPOBAH NaHET MraTb.
2.3arpy3nte 6eJIbe B 6apabah, 3acbIbTe CTnpaJIbHOE BeueCTBO I Do6AbKn (CMOTpnte Ctp. 32), 3akpoTe KpbIuKn 6apabaaH N BHeuHn JIOK.
3. Bb6paTb npn nOmoU pyKoTKn BB6opa IPOrPAMM

HyKHyI npOrpaMMy.

1. Bb6paTb TemnepaTy p CTnPK (CM. cmp. 31).
2. Bb6paTb ckopocTb OTKIMa (CM. cmp. 31).
3. 3anyctnte nporpammy, Haxab KhoNky NYCK/CBPOC (Start/Reset).
   IgnoTMeHbI 3anycka depKte HaXaToi KhoNky NYCK/ CBPOC (Start/Reset) B TeueHne 2-x cekyHd.
4. No 3aBepueHn nporpaMMb iHdkaTOp BKIOUcEHNE/ IIOK 3A6IOKPOBAH 3amraet, cHrHaUN3npy, yTO MOxHO OTKpbITb IIOK. BbHyTB 6eJIbe n OCTaBNTb IIOK NOlyOTKpbITbIM dJRA cyuKn 6apabHa. BblKnOuyntb CTpAlbHyO MaunHy, Haxab KHOkY

Ta6JIuca nporpaMM

YACTUHbIE IPOPTPAMMbI

JyueKa 3: OoabKn (ononacknBaTeJIb n T.d.)

Korda Bbl HauBaTe OonoackBateB B yeyKy 3, o6paaute BHNMaHne, YTO6bI He npeBbICntb MaKcMaJIbHbI ypoBeHb, yKa3aHHbI OTMeTKoJ «max».

OnonacknBaTeJIb abTomatNueckn noJaetcB 6apabah B npouecce nocJeHero ononacknBaHn.
No 3aBepweHnn nporpaMMbl cTnpKn B yaeKe 3 0ctaetc BOda. OHa Heo6xOdIma dIy nOdaun B 6apabah ouehb ryctbix ononacknBaTeNei, T.e. Ipa36abJHHeN KOHcHTpOpOBaHHbIX ononacknBaTeNei.
Ecnn B yaeKe 3 ocTaHETc BOdbI 6OJbWe HopMaJIbHOro, 3TO 3NaHT, YTO KaHaI CnIBa ONonacknBaTeJIb B 6apabah 3acOpInC. CMotpnte OncanHe qNCTKn yeeK Ha cTp.34.

Jyeyka 4: Lnk ot6enBaHn

06bHbI OTBeNBaTeB NcNoB3yETcI DnI npOuHbIX 6eBix TkaHe, DeNkathbI - DnI UBETbIX, CHTeTnuecknx TkaHe n dIe WepCTn. He 3aINBaIte OTBeNBaTeB B ayeKy-Do3aTop 4 Bblwe OTMeTKI «MaKc.» (CMompune pucyHok). DnI ocUeCTBneHn ToIbKO OTBeNBaHn Haene IeOTBeNBaTeB B ayeKy 4 n BBi6epnte PhyHKunn DononHInTeBHOe noJocKaHne

！He nCnoJb3yIte MOUuue CpeDCTBa, npEpaHa3NaeH HbIe IpyHOcTnPK - 06pa3yUouaeroc 6unbHa na neHa yxuJaet pe3yIbTaT CTnPK mOKeT BbIEcTu n3 CTPOr CTnpaJIbHyIO MaunHy.

Iodrotobka 6eJbA

• Pa36epnte 6eJIbe:

-B COOTBETCTBUN C TINOM TKAHN / 0603Hauhen Ha 3TNKETKe
- no ΒBETy: OTdEnIte ΒBETHoe 6eIbe O T 6enoro.

• BbIbTe n3 KapMaHOB BCE npEmdetbl npOBepbTe XopoWo nn DePkataCyryoBuCi.

• He npeBbIaIe MaKcMaIbHoe HopMbI 3arpy3Kn 6apa6aHa, yKa3aHHbIe InCyXOrO 6enb:

IpoUHbIe TkaHN: MaKc. 5 Kr

CHTeTnueckne TkaHn:MaKc.2,5Kr

Дeинкathье TkaHn:MaKc.2Kr Wepctb:MaKc.1Kr

Bec 6eIb8

1npoctbH400-500r
1 Habolouka 150-200 r
1 cKaTeptb 400-500 r
1 xanat 900-1,200r
1 noJIoTeHue 150-250 r

Oco6eHHoCTn CTnPKOTdEhbIX N3deJIn

3aHaBeckn: CBepHNTe IN NOJIOKHTe B HABONOChy INN B ceTtABy MeIooKe. CtnpaIte OTdJIbHO, He npeBbIsha IIOBnHb 3arpy3Kn 6apabHa. Bbl6epTe nporpamMy 11, ABtOMATInCeCKIIIOUaIOuYIO OTKIM.

CteraHbIe KpyTkn nnyxOBKn: ecn nyxOBnK Ha yTuHOM INI rCyHOM NPyXy, eO MOxHO CTnpaTb B CTnpaJIbHo MaunHe. BbIbepHnTe KpyTK Hau3HaHKy, 3arpy3nteB 6apabah He 6oJee 2-3 Kr n3denn. NobTopnte noNocKaHne 1-2 pa3a, nCNoB3yInTe DeNkKaTHbI OTKIM.

NapycnHObIe Tyfnn: NapcynHObIe tyfnn npedBapntelbHO OuHCTnTe OT rpa3n n CTnpaHTe C npOHybIMTKaHMy ININ DxHcAMn,ecnno3BOJAreT CBET. He CTnpaHTe C 6BeMbIM BeUaMn.

Wepctb:ДЯdoCTnkeHnHaNJyUxnxpe3yNbTaTOB CTnPKI 3aRpyKaIte He 6Oonee 1 Kr 6eJIbI n IcNoJIb- 3yIte CneuaJIbHbIe JxIDKne cpeCTBa, npEJa3Ha- YeHHbIe DJIa CTnPKI WepCTraHHbIX N3dJIIn.

Woolmark Platinum Care (Платновый кашемр - DeикathocTB pyHoi CTnRPKn)

WOOLMARK PLATINUM CARE

Ariston yCTaHOBn HOBb CTaHdapt BBiCOKo3Φ-ΦeKTHBaHOI CTnPK, npu3HaHHbIK KomNaHnei Woolmark c npeTnxHoI MapKoi Woolmark Platinum Care. Ecn Ha BaWeI CTnpalbHOI Ma

HHe MeTcNorOTn Woolmark Platinum Care, B He MoXHO CTnPaTb C OTINuHbIM pe3yNbTaTOM UepCTraHbIe N3deJInHa 3TnKeTke KOTOpbIX HAnuCaHo «TOIbKO pyHNa CTnpKa» (M.0303).

Bb6epntpeporpamMy 10 nIe BceX n3deJn C 3TNKeTkoi «PyHna CTnpKa»（） nncnoJIb3yInTe CneuaNbHbIe cpeCTBa dIa CTnpKu WepcTn (1 kr).

！CTnpaIbHaMaHnHa CnpoeKtnpObaHa nI3roTOBHeHa B COOTBeTCTBm C MekdyHapOdHbIMn HOpMaMn 6e30NaCHOCTN. BHIMATEJIbHO npouHTaIte HactoUne npedynpeXeHHn, coCTaJIeHHbIe B cIeJx BaWei 6e30NaCHOCTN.

Obune npabnla 6e3onacnoctn

Для Домашero Испобзовая. Данhoe ИзденияВляетсбытOBьIM Экгюрпборom，He npedha3нayehнblmДлЯnpофессноаньHoro Испобзовая.Запewsaelсу мдифицрobatb erо Функци.
- CtnpaIbHa MaunHa DoJnxHa nCnoJb3ObaTbc TaIbKO B3pocblIM NncaMn, Co6JIIOdaIoUHMN HhCTpyKcHn, npuBeDeHHBie B DaHHOM pyKOBODCTBE.
- He kacaTeEc ba6oTaHoueMaunHb, ecn Baun pykn nn HOrn cbiphe; He noJb3yTeEc obopydoBaHneM 6ocnKoM.
- He TAHNTe 3a NHTaIOUcN KAbEJIb, YTO6bl BbIHyTb BNJKy H3 po3ETKn: BepuTEcb 3a BNJKy.
He OTKpbBaIte paCnpedeNITeB MOIOxuX CpeDCTB BO Bpempa60TbMaunHbl.
He kacaTecb cNbaem BoDbl, ee TemnepaTypa MoKet 6bIb OueHbICOKoI.
- PnOcTaHOBKe MaunHb pa36JIOKupOBKa 3aMka DBepcIb cpaBaIBaet C TpexMNHyTHo3aepKko. He NtAEteb OTKpbITb DBepuy B 3TOM npomExkyTke BpeMeHN (a TEM 60onee BO BpeMa pa60tbl 6OppyDoBaHn!): 3TO MOKe IOBpeDntb MEXAHN3M 6NoKIpOBKn.
B cnyuae HencnpaBHOCTn npn IIO6bIX 06CTOReNbCTbax He KacaTeCb BHyTpEHHX YAcTeu MaunHbl, NbitAocb NOUYHHTbe.
Cneinte, T06bI Detn He npnbJnxKaIncb Ka paboTaIOuE CTnpaBHO MaunHe.
B npocece ctnpkn DBepua ctnpaHbHm MaunHbMoKet HarpeBaTcra.
- Ecn Heo6xOUMO nepemecntb CTnpaIbHyIO MaunHy, BblONHnTe 3Ty OepauuB DBOeM NIN BTPOEM C npedeIbHOO OCTopoxHocTbHO. HNKOrda He nbItaIteCb NOHNrMaUNHy B OOnHouKy -obopydOBaHne Ype3BbUaHNo TjXKeJe.
-ПердnomeшнemВ CTupaIbHyO MaunHy 6elby y6eintecb,yTO6bl 6apabH 6bl npct.

ytnnn3aun

• YHNUTOXKeHne yNaKOBOUHO MaTePnAna: co6JIOnaIte DeNCTByUOuNE Tpe6OBaHnRA NO yTININ3aCnnyNaKOBOuHbIX MaTePnAnOB.

• YtunnaucnA CTAPoN CTnpaJIbHOm MaUNHbI: nepeD cdaeM MaUNHb I yTINb OBpeKbTe NITaIOuN Ka6 BeNb n CHIMnTE DBepuy.

3KoHOMn 3Heprnn n OxpaHa OkpyXaHoueI cpebl

3KoJorUHnayTexHOJOrn

C HOBO TexHONorne Ariston Bbl 3aTpaTnte BoDbl B Dba pa3a MehBwe, a 3ΦΦeK T OT CTnPK 6yDet B DBA pa3a Bblwe! Bot noey My Bbl He MoKeTe BNDetb Body uepe3 DBepuy: ee oeyb Mano. 3To 3abota 06 OkpyXaHoue CpeDe 6e3 OTKa3a OT MaKcImaJIbHOu YNcTOTbl. IN Bdo6abok KO BCemy, Bbl 3KOHOmITE 3JNEKTpuYecCTBO.

3KoHOMn MOOx CpeDcTB, BObl, 3NeKtpo-3Heprnn n BpeMeHN

-ДяЗКОHOMп pecypcoB CneIyEeMaKcIMaJIbHo 3arpyKaTb CTnpaJIbHyIO MaUINHy. OdNH UKNCTnPKN PnINNoHOn 3aIpy3Ke BMECTO DByx UKNIOB C HANOIOBNHy 3aIpyXeHHbIM 6apabahOM N03BOJAreT C3KOHOMNTb Do 50% 3NeKtpo3Heprnn.
LpndBapnteHOBCTnPKHeo6xOIMTObKO DnOyeHb rpa3HOrO 6en. PnpuKne npedBapnteHOB CTnPK paXoDyETc8 60nbwe CtnpaIbHoro nopoWka, BpeMeHN, BObl Ha 5-15% 60nbwe 3neKTpoaHeprnn.
Ecnn Bbl o6pa6oTaTe nTnHa nTTHOBbIOBnTeJIeM nn 3amOHTe 6BeIbe nepeC TnPKo, 3TO nOMoxET n3-6EkaTb CTnPKn npn BbcOKnx TemnepaTypax. NcnoJb30BaHne nporpaMMbl CTnPKn npn 60^ BmecTo 90^ nIN 40^ BmecTo 60^ nO3BOJraT cKOHOMtB do 50% 3JIeKtpo3Heprnn.
-Правиьная дзировka CTиральноюшkaВЗИСИМОCTN OT JECTKOCTN BOДы,CTeNEH3aRpy3HeHnI O6bema 3aRpyKaemOro 6eJbYnomoraet n36ExKaTb HepaunHOHaBHorO paXoJaMOUSeRo CpeDcTBa N 3aRpy3HeHnI OKpyKaHouSeI cpeDbI: XOTa CTnpalbHbIe NOPOuKIN I RBNrHTc6NoPaJIraEmbIMN, OHI COdEpKAT BeueCTBa, OTPucaTeJbHo BnIryHUsne Ha 3KoJIOnH. KpOME TOrO, NO Bo3-MoxHocTN N36eAte ICNOJIb3OBaTb ONIOJACKIBATEJI.
- IcnoIb3ObaHne CTnpaIbHO MaunHbI yTpom nn BeuepOM yMeHbIHT NIKOByH Harpy3ky Ha 3NeKtpoc CeTb.
- Ecnn 6eIbe DoJNHO cyuTbcB aBTOMaTHuecko cyuKe, Heo6xoJIMo Bbl6paTb 60JIbUyIO CKOpOCTb OTKIma. INHTeHCnBbIOTKIM C3KOHOMIT BpeMn 3JIeKtpo3HeprnIO npn ABTOMATuecko cyuKe.

CIS

OTKJIIOUeHHe BOdBi N 3JNEKTPnueCTBa

• IpeekpbIbaiTe BODonpoBOHbI KpaH nocJe KaJdoi CTnPK. TaKIM o6pa3OM cokpaUaEcTcN 3HOC BOOnpoBOHO CnCTeMbI CTnpaJIbHO MaunHbI N yctpaHaeTcBepoTHOCTb IpoteueK.
  Bcerda BbHMaIte BNkY n3 po3ETN nepei MoKoI n 06cnyXnBaHnem MaunHbl.

YxOa3a CTnpaIbHO MaunHO

BHeHnne n pe3nHOBBie qactn MaunHBi OUnuaTe MraKoTKaHbIO C TeNIOMbIbHO BDOJ.He NcNoIb3yIte pactBOpNTENnn a6pa3nBhble qHCTaune cpeDCTBa.

YxOa 3a DBepue MaunHbI n6apa6aHOM

• Nocne kaxdoi cTnpkn octabJyTe IBepy MaunHbI nonyOTkpBToI BO n36eXaHne 06pa3OBaHn B 6apabaHe HnpeYTHbIX 3anaxOB nnnecHn.

UHCTka Haocca

CTnpaIbHaMaunHaIMeetCnBHOHAcOCcamOOnuOeOraTnna,KOTOpbIHe Tpe6yET OuncKnIInoco6oro 06cnxKbAHn.ODnako MeKne npedMetbl(MoHT,nyroBnUbiN dp.)MOrTy CnyauHo nonactb Hacoc.Inx n3BneHnHaCoc o6opydoBaH《yIOBnteJeM》一ΦnIbTpOM，DOCTyn K KOtOpomy 3akpbIT HxKHe IpeDHe NaHeNbIO.

！y6eINTEcB，YTOUKNCTnPK3aKOHnJscn，NOTKHOHTeObOpyIOBaHHeOTceTn.

KakdoctaTb npedMeTb,ynabWne B npoctpaHCTBO Mekdy 6apa6ahom N KOKyXOM MaunHbI:

1. CHIMITE HIXHNI
   PNNHTYC B nepeDHei
   YACTN CTIPAHBHO
   MaUNHBI, NOTAHyB
   OBeMN pykAMn 3a ero
   Kpar (CMompume
   puCyHOK);
2. BbBepHnTe KpbIuKy
   fNtpa, Bpauae ee
   npOTNB YacBOB CTpeJIK (cm. puc.): n3
   HACOCA MOKeT BblNTbCRA HEMHOro BObl - 3TO HopMaJIbHOE ABJeHne.
3. TuaTeIbHo npounctnte HnBtp N3HyTpN;
4. 3aBepHnTe KpbIuKy o6paTHO;
   5.yctaHOBnTe Ha MeTo NpeDnHIO NaHeJIb, PneBvapnteJIbHo y6eINBwncb, YTO KpIKN BOUJN B COOTBETCTByUoJNe neTJN.

O6hapyKeHHa HeCnpaBHOCTb:

CTnpaJIbHaMaWHaHe BKNIOyaeTc.

Lukn CTnpKn He 3anyckaetc.

Bo3MOxHbIe npuHHb / MeToDbI ycTpaHeHn:

BvIka He BCTaBHeHa B pO3eTKy IITN BCTaBHeHa PINOxo, He OBeCeHbBa KOHTaKTA.
B DOME OTKJIIOUeHO 3JIeKTPnueCTBO.

• JIIOK IIIOXO 3aKpbit (MIRaet INHdNkaTOp BIOKINPOBKN IIOKA).
  -He6binaHaxataKhONka
• He 6bɪna hʌkɑtə Kɔnɒkɪ pɪyCK/CBPOC (Start/Reset).
  -3akpbIT KpaH NOdaH BObl.

CTnpaIbHa MaunHa He 3aJIbAeT BODy.
CTnpaIbHaMaunHa HenpepbIBHO 3aINBaET CnNBaeT Body.
CTnpaJIbHaMaUHHe npOn3BO-NT CInB N OTKIM.
CunbHaB Bn6paun npnoTKeMe.
PpoTeuKn BODbl n3 CTnpaIbHOn MaunHbl.
INHdkaTop BKIOUOYEHEIIOK 3A6JIOKNOPOBAH qacto Mraet OndHOBpeMeHHO CJIIO6bIM dpyrIM INHdkaTopOM.
N36bToHoe neHoo6pa3ObaHne.

3aJIbHNoI WnHaHr He NoDCoeDInHeK KpaHy.
- UlnaHr nepexat.
- 3aKpbIT KpaH NOdaHy BObl.
B Dome HET BOJI.
- HeioctaToUHoe BOIOnpOBoIDHOe daBJIeHne.
- He 6bɪna hʌkɑtə kɒnɪka ΠYCK/CБΡΟC (Start/Reset).

CINBHOI WJHr pacnoJIOXeH Hxke 65 nn BbIe 100 cm. OT noJa (CM. c. 27).
Koheu cInBHorO uHaRa norpkyeH B Body (cM. c. 27).
- HacteHHbI CNIB He IMeET CInBHOI Tpy6bl.

Ecni CInBHOI WnAH BCTpoEH B KaHAn3aLIO, IMeTe BBNDy, YTO Ha BepxHIX 3TaKAX MOKeT CO3DaBaTbCRA «CnOHHbI 3oΦeKT» — MaUNHa OJHOBpeMeHHO CInBAET N3aINBaET BOy. IINPEoTbPaUeHnIO NOoBHOrO 3oΦeKTA yCTaHABNI- BAETCR CNeuNaHBi KNaPAnH (aHTNCFOH).

BbIbpaHnA nporpamHe npeDycmATPnBaET CnIB BOdbI -nHa HEKOToPbIX nporpAMM Heo6xOIMBOKNIOHTb CnIB BpyHyIO (CMc.30).
- Aktubnupobaha dononHnteBna hyKunja Ierka rnaKka: nra 3a-BepweHn nporpaMMb HaxMnte KhoNky NYCK/C6POC (Start/Reset) (cm. c. 31).
CnBHOI uHaH nepeXaT (CM. c. 27) nn 3acopen.
- 3acop B kaHann3aun.

-Пиустановке CTирально Maшинь 6apabH 6bln pa36NkoPobH He npaBnIbHo (cM. c. 26).
- CtrpapbHaMaunHa nnoxo BbipOBHeHa (cm. c. 26).
- 3a3op MEXky MaunHOH N CTeho/Me6beNbI HeIOCTaTOueH (cm. c. 26).

-ПлохоЗakpenlen3aINBHOJшаHR（raKaHa KOHcшlaHra HENIOTHO 3atryaиненравиьHo yctahOBNeHa npoknaKa (cm. c. 26).
- PacnpedeIeIeJIb MOIOUx CpeICTB 3a6NT OCTaTKAMN MOIOUX CpeICTB (O uIcTKe pacnpedeIeIeTIe r CM. c. 34).
-ПлoxoЗakpenнeн сивьоншанг (cM. c. 27).

• 06paTntecb B ABTOPn3OBAHHb CepBnCHb LcHTp, TAK KAK 3TO O3Haayet HeNCnpaBHOCTb.

• IcnoIb3yETcra MOUuue CpeCTBO, HEnoXOJaUe DnA ABTOMaTNUeCKNX CTnpaHbIX MaUHH C ppoHTaJIbHOJ 3aRpy3KoI.
  -Переторовka moюцero cpeCTBa.

Ecni nocne npoeepku MauuHa npodjkaem paobamb He doJXhbIM o6pa3OM, 6pbamumecb e Aemopuzo8aHbI CpeuchbI ueHmp 3a nOouIO. (cM. c. 36)

CIS

IpeTeK kak o6paTntbcB ABTopn3OBAHHbI CepBnchbI cHTp:

• Y6eIntecb, yTO Bbl He MoXKeTe yCTpaHHTb HEnCnpaBHOcTb CaMOCTOReTbHo (CM. c. 35).
• 3anyctnte nporpaMMy NOBTOPOH DnI npOBepKn IcnpaBHOCTMaunHbI.
  B npotnbHOM cnyae o6paTntecb B ABtOpn3oBaHHb CepBnchb IeHTp no TeNefoHy, yka3aHHomy B rapaHTnHOM DOKymeHTe.

He nolbyumecb ycnyamau nu, He ynonHomoyeHHbIX Ipou3eodumem. Ppu pemohme mpe6yume uconlbo3oeaHua opuzuHaHbHex 3anaChbix qacmei.

Pn o6paueHn B ABTopn3OBaHHbI CepBnchbI ueHTp coo6uNTe:

TNHEnCnpaBHOCTN;
HOMep rapaHTnHOro DOkymeHTa (cepBnCHOH KHNKKN, cepBnCHORO cepTnΦnkata N T.IN);
- MoJIb MaINHb (MoI.) n cepuHb Homep (S/N), yka3aHHbE B INΦopMaunHOHn Ta6JnUKe, paCIOJNOXeHHo Ha 3aDHe N aHEIn CTnpaJIbHO MauINHbI.

ES

Espanol

Sumario

Instalación, 38-39
