USER MANUAL IKM614 Pelgrim

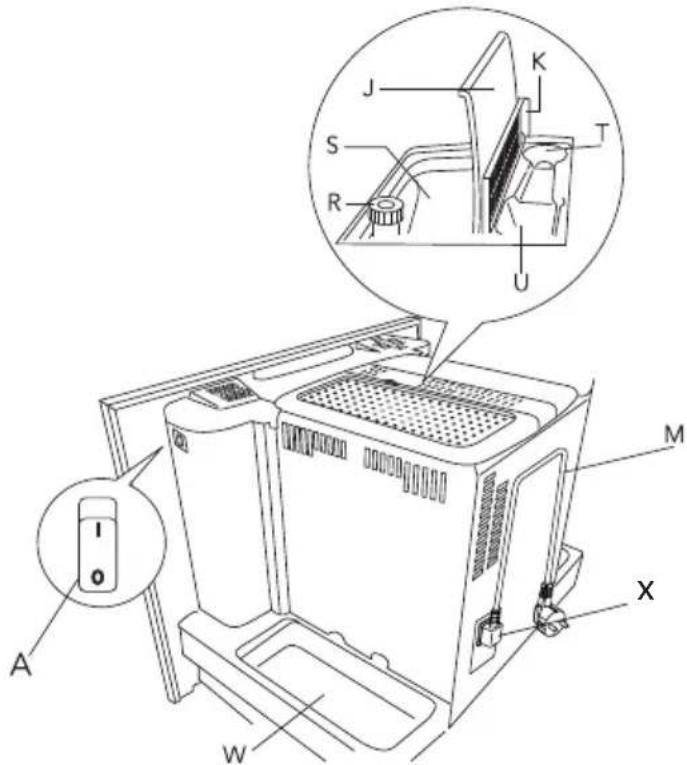

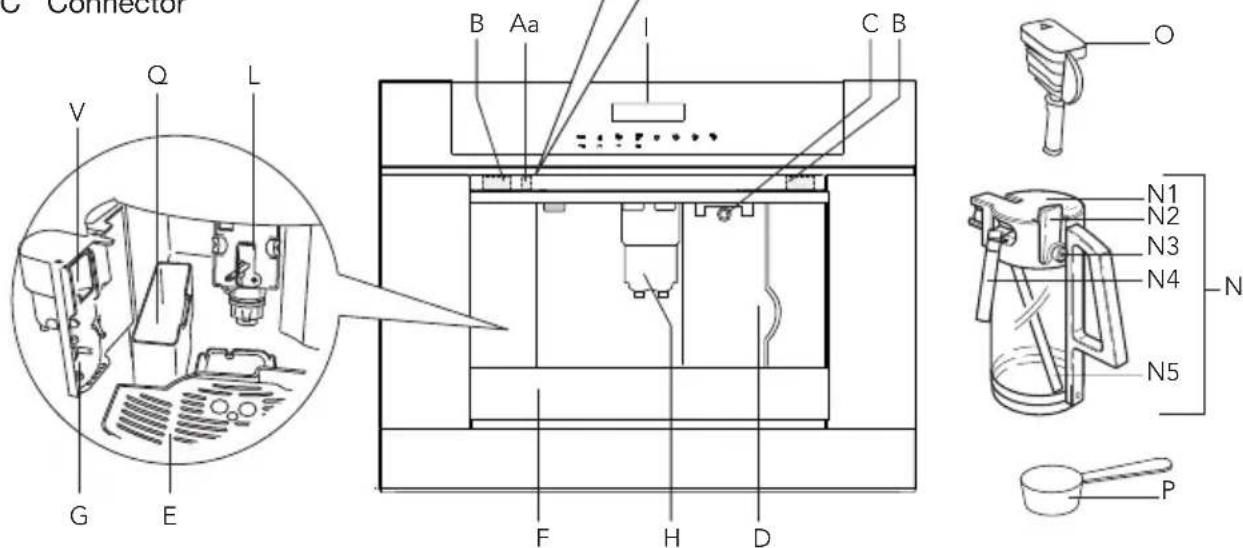

J. Coffee bean holder cover K. Ground coffee chute cover L. Brewing unit M. Power cable N. Milk container: N1. Cover (removable) N2. Slider CAFFELATTE/CAPPUCCINO (removable) N3. CLEAN button N4. Milk dispenser pipe (removable) N5. Suction pipe (removable) O. Hot water nozzle (removable) P. Measuring spoon for preground coffee Q. Waste coffee container (can be taken out) R. Knob for setting the grind level S. Coffee bean container T. Place for the measuring spoon U. Filling chute for preground coffee

W. Place for accessories (left and right)

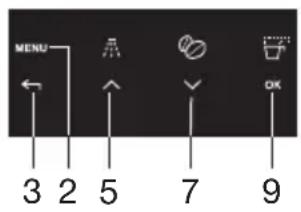

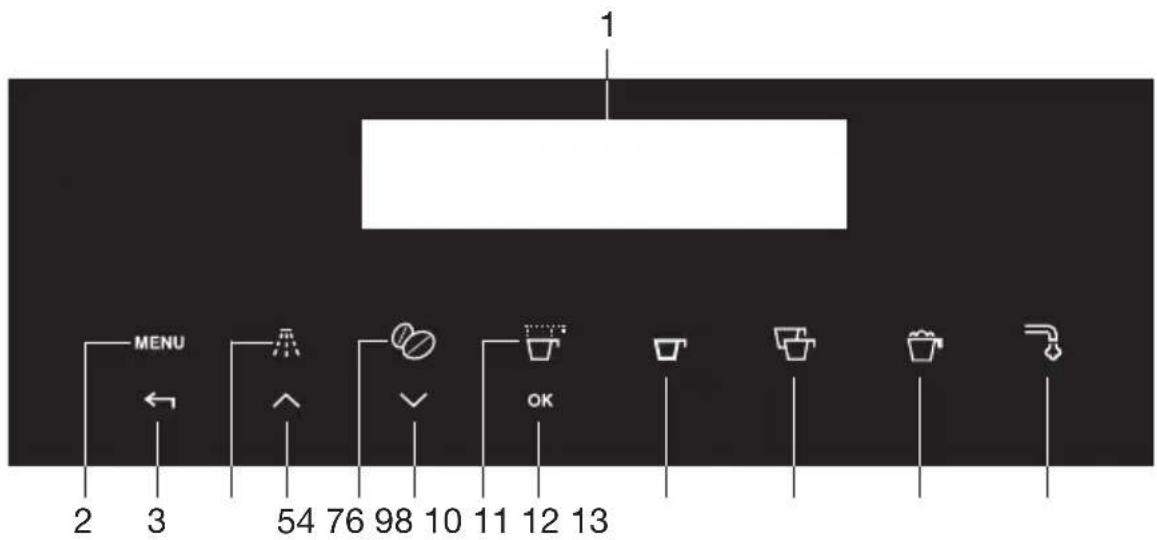

3. Touch key ‘RETURN’ to exit the selected mode

4. Touch key ‘Rinse’

5. Touch key ‘SCROLL’ to scroll forwards through the menu

6. Touch key ‘Coffee strength’ to select strength or preground

7. Touch key ‘SCROLL’ to scroll backwards through the menu

8. Touch key to select the type/quantity of coffee (espresso, small

cup, medium cup, large cup, mug)

9. Touch key ‘OK’ to confi rm the selected function

10. Touch key ‘One cup of coffee deliver’

11. Touch key ‘Two cups of coffee deliver’

12. Touch key ‘Cappuccino deliver’

13. Touch key ‘Hot water deliver’

1EN 7 SAFETY INSTRUCTIONS What you should pay attention to

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Never immerse the appliance in water.

• This is an household appliance only. It is not intended to be used in: staff kitchen areas in shops, offi ces and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

• If the plug or power cable is damaged, it must be replaced by customer services only to avoid all risk.

• This appliance is intended for domestic use only (around 3000 cups a year). Any other use is considered improper and in that case no guarantee will be given.

• This appliance is designed to “make espresso coffee” and “heat drinks”. Use it with care to avoid scalds from the water and steam jets or through incorrect use.

• Do not lean or hang on the machine when it has come out of the cabinet and do not place heavy or unstable objects on the machine.

• This appliance can be installed over a built-in oven if the latter is fi tted with a cooling fan at the rear (maximum microwave power: 3 kW).EN 8

• The manufacturer is not liable for damage caused by improper, incorrect or unreasonable use of the appliance.

• When using the appliance, do not touch the hot surfaces. Use the knobs or handles.

• In case of failures, make sure the appliance is not connected to the mains power supply. Turn the main power switch on the right side (behind the front panel) to 0. Refer to our service department for repairs.

• Only ask for original spare parts to be used. Failure to respect the above could reduce the safety of the appliance.

• Do not put objects containing liquids, infl ammable or corrosive materials on the machine.

• Use the accessories holder to contain coffee accessories (for example coffee beans).

• Never touch the appliance with damp hands.

• Unplug directly from the plug only.

• Never pull the power cable as you could damage it.

• To disconnect the appliance completely, place the main switch on the side of the appliance in the 0 (off) position. SAFETY INSTRUCTIONSEN 9 For european markets only:

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• When not in use and before cleaning, always unplug the appliance.

• Surfaces marked with this symbol become hot during use (the symbol is present in certain models only). SAFETY INSTRUCTIONSEN 10 USE Preparation The fi rst time you switch on the appliance with the main switch (see ‘A’ page 5) and every time that it is plugged in, the appliance executes a “SELF-DIAGNOSIS” action. Then the appliance switches off. To turn it on, press the On/stand by button (Aa/see fi g. 1) on the left site underneath the control panel.

• Coffee has been used to factory test the appliance and it is therefore completely normal for there to be traces of coffee in the mill.

• Customise water hardness as soon as possible following the instructions in the “Setting water hardness” section.

1. Connect the appliance to the mains supply.

2. Switch on the appliance with the main switch (see ‘A’ page 5).

3. Start the appliance with the on/stand by button (see ‘Aa’).

4. Set the required language.

• Choose the required language using the ‘scroll’ touch keys (5 and 7). When the message “PRESS OK TO CHOOSE ENGLISH” is displayed, press and hold the touch key ‘Ok’ (9). If you set the wrong language, follow the instructions in the “Setting the language” section. If your language is not available, select one from those displayed. The instructions refer to the English version. Then follow the instructions displayed:

5. After 5 seconds, the appliance displays “ENGLISH INSTALLED”.

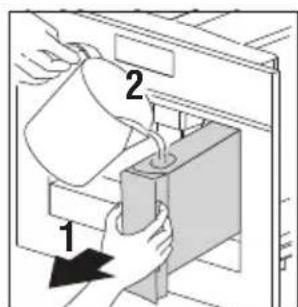

• Extract the water tank, rinse and fi ll with fresh water without exceeding the MAX line.

• Replace and push as far as it will go.

6. Place a cup under the hot water spout (If the hot water spout is not

inserted, the appliance displays “INSERT WATER SPOUT”. The appliance displays: “HOT WATER PRESS OK”. Press the touch key ‘OK’ (9) and after a few seconds a little water comes out of the spout.

7. The machine now displays “TURNING OFF...PLEASE WAIT” and

8. Extract the appliance by pulling it out using the handles.

Open the lid and fi ll the container with coffee beans, then close the lid and push the appliance in. The coffee maker is now ready for normal use. Only fi ll the water tank with cold water. Never use other liquids such as mineral water or milk.

9EN 11 To prevent malfunctions, never fi ll with ground coffee, frozen or caramelised coffee beans or anything else that could damage the appliance.

• When using the appliance for the fi rst time, you need to make 4-5 cups of coffee and 4-5 cappuccinos before the appliance gives satisfactory results.

• Each time you turn the coffee maker on by the main switch (A), it performs a “SELF-DIAGNOSIS” cycle and then goes off. To turn it on again, press the On/stand by button (Aa). Operation Preparing coffee (using coffeebeans)

• The appliance is preset to make coffee with a normal taste. You can also choose coffee with an extra mild, mild, standard, strong or extra-strong taste. There is also a pre-ground coffee option.

• To choose the required taste, press more times the touch key ‘Coffee strength’ (6). The required coffee taste is displayed.

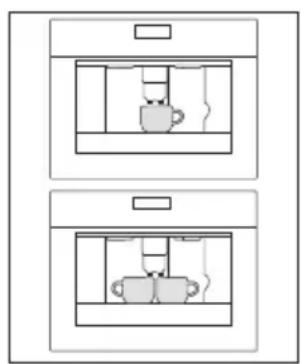

1. Place 1 cup under the spouts to make 1 coffee or 2 cups for

2. Lower the spouts as near as possible to the cup for a creamier

3. Press the ‘type of coffee’ touch key (8) to select the type of coffee:

4. Press the ‘one cup of coffee deliver’ touch key (10) if you want to

make one coffee and the ‘two cup of coffee deliver’ touch key (11) if you want to make two coffees.

• The appliance now grinds the beans and starts delivering the coffee into the cup.

• Once the set amount of coffee has been delivered, the machine stops delivery automatically and expels the exhausted waste coffee into the waste coffee container. USE

• After a few seconds, the appliance is ready for use again.

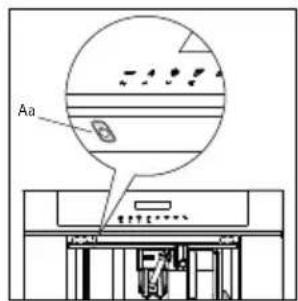

• To turn the appliance off, press the ‘On-off’ button (Aa / see page 5). Before going off, the appliance performs an automatic rinse cycle. Take care to avoid scalds.

• If the coffee only comes out in drips or not at all, the knob for setting the grind level must be turned by one position clockwise (see “Setting the grind level” ). Turn one click at a time until the coffee is delivered satisfactorily.

• If the coffee comes out too fast and the cream does not meet your taste, turn the knob by one position anti-clockwise). Make sure that you do not turn the knob for setting the grind level too far, as coffee may come out in drips when dispensing 2 cups. Tips to make hotter coffee

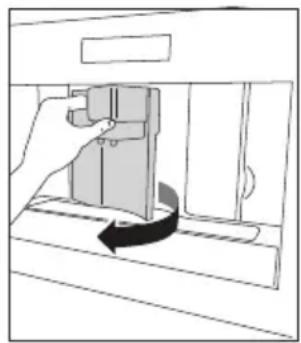

• After 3 minutes since you last made coffee, you can preheat the brewing unit by using the menu setting “RINSING (see Rinsing). Run off the water into the underlying drip tray or alternatively use this water to fi ll (and then empty) the cup to be used for the coffee.

• Do not use cups that are too thick, as they will absorb too much heat.

• You can stop the coffee from dispensing by pressing the ‘One cup of coffee deliver’ touch key 910) or ‘Two cup of coffee deliver’ touch key (11) again, or by selecting “ESPRESSO CUP” with the ‘Type/ quantity of coffee’ touch key (8).

• After the coffee has fi nished dispensing (the progress bar reaches 100%), you can increase the amount of coffee by pressing and holding the ‘One cup of coffee’ touch key until the desired amount of coffee is reached.

• When the display shows the message “FILL TANK!”, you must fi ll the tank, otherwise the appliance cannot make any coffee. It is normal that there is some water left in the water tank when the message is displayed.

• Every 14 single coffees (or 7 doubles) the appliance displays “EMPTY WASTE COFFEE CONTAINER”. This means that the waste coffee container is full and must be emptied and cleaned.EN 13 USE

• The appliance counts the number of coffees made. As long as the waste coffee container is not cleaned, this message remains in place and the coffee machine cannot make any coffee. To clean, open the service door at the front by pulling the coffee spout, remove the drip tray, empty it and clean it. Important! Always completely extract the drip tray, to avoid that it falls when removing the grounds container. Empty the grounds container and clean thoroughly, making sure all residues deposited on the bottom are removed. Every time you pull the drip tray out, the waste coffee container must also be emptied, even if it is not completely full. If this process is not carried out, the waste coffee container may overfi ll when coffee is made and the machine may get blocked. Never remove the water tank when the appliance is dispensing coffee. Otherwise, the appliance will not be able to make the coffee. If the appliance malfunctions, do not contact the service centre straight away, but fi rst look at the troubleshooting guide. If this does not help, contact the customer service. Changing the quantity of coffee The appliance is factory preset to automatically deliver the following quantities of coffee:

• MUG. To change these quantities, proceed as follows:

1. Press the touch key ‘MENU‘ (2) and press the ‘Scroll’ touch keys

(5 and 7) until the menu option “PROGRAM COFFEE” appears. Confi rm the menu option with the touch key ‘OK’ (9).EN 14 USE

2. Select the cup size you want to change with the scrolling touch keys

(5 and 7). When the desired cup size is displayed, confi rm it with the touch key ‘OK’ (9).

3. A bar appears on the display, which can be made bigger or smaller;

this represents the cup fi lling quantity. A different quantity can be selected using the scrolling touch keys (5 and 7) in 10 steps. A full bar indicates that the maximum cup fi lling quantity of 220 ml is selected.

4. Select the desired cup fi lling quantity and confi rm it with the touch

key ‘OK’ (9) to program this setting. If you don’t press the touch key ‘OK’ 9), the appliance automatically returns to the coffee mode after 120 seconds without saving. After programming the display automatically jumps back to the menu option for setting the fi lling quantity. To go back to the coffee mode immediately, press the touch key ‘MENU’ (2) twice or wait about 120 seconds until the appliance automatically returns to the coffee mode. Setting the grind level If coffee is dispensed too quickly or too slowly (in drips), you can change the grind level. Only change the grind level during the milling process. Otherwise, the coffee machine may be damaged.

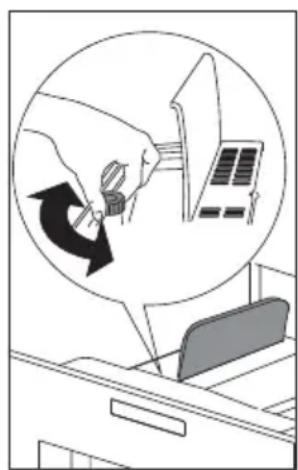

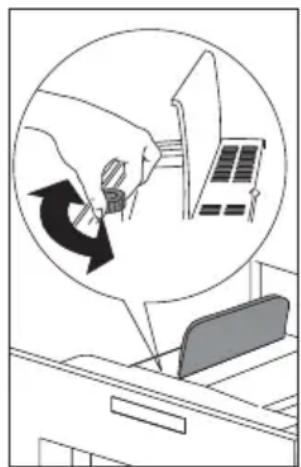

1. Turn anti-clockwise to obtain fi ner ground coffee, slower delivery

and a creamier appearance.

2. Turn clockwise for coarser ground coffee and faster delivery (not a

drop at a time). The adjustment will be evident after at least 2 cups of coffee are made. Preparing espresso coffee using ground coffee

1. Press the ‘Coffee strength’ touch key (6) and select

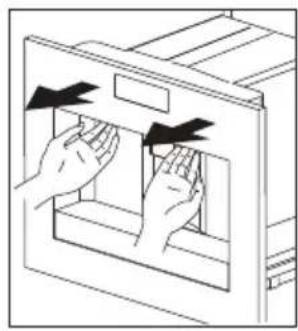

2. Extract the machine by pulling it outwards using the handles.EN 15

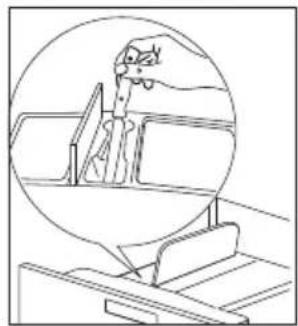

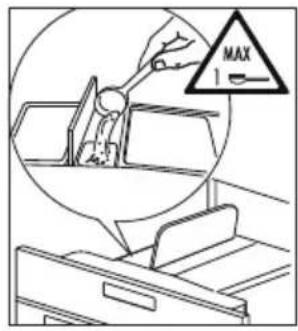

3. Lift the central lid, place one measure of preground coffee in the

funnel push the appliance back and proceed as described in the section “Making coffee using coffee beans”. You can make just one coffee at a time by pressing the ‘One cup deliver’ touch key (10).

4. After using the machine with pre-ground coffee, to go back to

making coffee using beans, deactivate the pre-ground coffee function by pressing the ‘Coffee strength’ touch key (6). Notes

• Never introduce pre-ground coffee when the machine is off or it could spread through the inside of the appliance.

• Never add more than 1 measure, otherwise the appliance will not make the coffee.

• Use the measure provided only.

• Introduce only pre-ground coffee for espresso coffee machines into the funnel.

• If more than one measure of pre-ground coffee is used and the funnel clogs, push the coffee down with a knife then remove and clean the brewing unit and machine as described in the “Cleaning the brewing unit” section. Preparing hot water Hot water can be used to warm up cups and to make hot drinks, such as tea or packet soups. Warning! Escaping hot water can lead to scalds! Only activate the hot water nozzle when there is a receptacle underneath it.

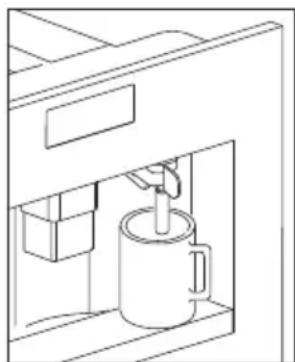

1. Put the hot water nozzle in place.

The display shows “HOT WATER PRESS OK”.

4. Press the touch key ‘OK’ (9).

Hot water is dispensed; the display shows “HOT WATER”. Once the programmed amount of hot water is dispensed, dispensing stops automatically. For a few seconds the display shows “PLEASE WAIT”. After that the appliance is ready to make coffee again and the last selected coffee setting appears on the display.EN 16 USE Changing the quantity of hot water The machine is set by default to automatically delivery 150 ml of hot water. To change these quantities, proceed as follows:

1. Place a container underneath the water spout.

2. Press the touch key ‘MENU’(2) to enter the menu

3. Press the Scroll touch keys (5 and 7) until “PROGRAM HOT WATER”

4. Press the touch key ‘OK’ (9) to confi rm.

5. Select the required quantity of water by pressing scroll touch keys (5

and 7). The progress bar shows the quantity of water selected.

6. Press the touch key ‘OK’ (9) to confi rm (or the ‘Return’ touch key (3)

to cancel the operation.

7. Press the ‘Return’ touch key (3) to exit the menu.

8. The appliance is now reprogrammed with the new settings

and is ready. Making cappuccino The machine is set by default to automatically delivery a standard cappuccino.

1. Select the taste of the coffee you want to use to make the

cappuccino by pressing the ‘Coffee strength’ touch key (6).

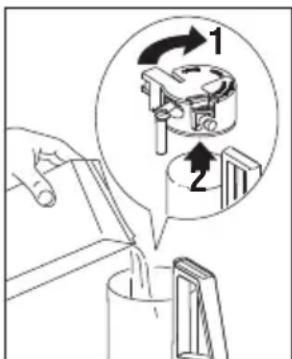

2. Remove the lid of the milk container.

3. Fill the container with about 100 grams of milk for each cappuccino

to be prepared. Never exceed the MAX level (corresponding to about 750 ml) marked on the container. You should ideally use skimmed or semi skimmed milk at refrigerator temperature (about 5°C).

4. Make sure the intake tube is correctly inserted in the rubber washer.

Then replace the milk container lid.

5. Position the frothed milk regulator (N2) between the words

CAPPUCCINO and CAFFELATTE printed on the milk container lid.

6. The quantity of froth can be adjusted by moving the regulator

towards the word CAFFELATTE for a denser froth. Moving it towards the word CAPPUCCINO obtains a less dense froth.

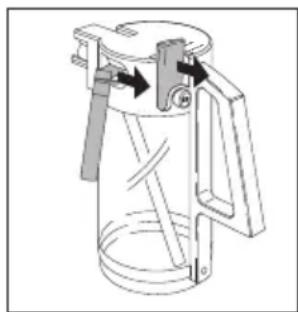

7. Remove the hot water spout and attach the milk container to the

8. Position the milk spout and then place a suffi ciently large cup under

the coffee and milk spouts.

9. Press the ‘Cappuccino deliver’ touch key (12). “CAPPUCCINO” is

displayed and after a few seconds, frothed milk fl ows out of the milk spout into the cup below (delivery stops automatically).

10. The appliance delivers coffee.

11. The cappuccino is now ready. Sweeten to taste and, if desired,

sprinkle the froth with a little cocoa powder. Notes

• While making cappuccino, the fl ow of frothed milk or coffee can be interrupted by pressing the ‘Cappuccino deliver’ touch key (12).

• If the milk in the container fi nishes while delivering frothed milk, remove the container and add milk. Then re-attach it and press the ‘Cappuccino deliver’ touch key (12) to request cappuccino again.

• To ensure the complete cleanliness and hygiene of the milk frother, always clean the circuits in the milk container lid after making cappuccino. “PRESS CLEAN!” fl ashes on the display.

• Place a recipient under the milk spout.

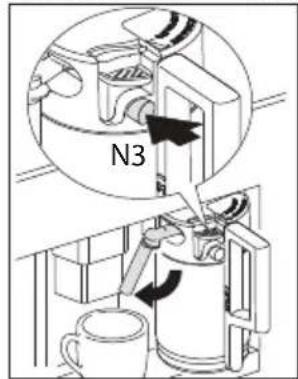

• Press the CLEAN button on the lid (N3) and hold down for at least 5 seconds to start the cleaning function. The appliance displays the message “CLEANING” above a progressive bar. You should not release the CLEAN button until the bar is complete indicating that cleaning is concluded. When the CLEAN button is released, the function stops. After cleaning, remove the milk container and place in the refrigerator. The milk should not be left out of the refrigerator for more than 15 minutes.

• To change the quantity of coffee or frothed milk the appliance delivers automatically into the cup, proceed as described in the section “Changing the quantity of coffee and milk for cappuccino”. "Less dense" froth NO froth "Denser" froth frothed milk regulator N3EN 18 USE Changing the quantity of milk and coffee for cappuccino The appliance is set by default to automatically deliver a standard cappuccino. To change these quantities, proceed as follows: Changing the quantity of milk

1. Fill the container with milk up to the maximum level indicated on the

3. Press the ‘Scroll’ touch keys (5 and 7) until “PROGRAM

CAPPUCCINO” is displayed.

4. Press the touch key ‘OK’ (9) to confi rm. “PROGRAM MILK” is

5. Press the touch key ‘OK’ (9) again.

6. Select the quantity of milk required by pressing the ‘Scroll’ touch

keys (5 and 7). The progress bar shows the quantity of milk selected.

7. Press the touch key ‘OK’ (9) to confi rm or the ‘Return’ touch key (3)

to cancel the operation).

8. Press the ‘Return’ touch key (3) twice to exit the menu.

Changing the quantity of coffee

1. Press the touch key ‘MENU’ (2) to enter the menu.

2. Press the ‘Scroll’ touch keys (5 and 7) until “PROGRAM

CAPPUCCINO” is displayed.

3. Press the touch key ‘OK’ (9) to confi rm.

4. Press the ‘Scroll’ touch keys (5 and 7) until “COFFEE FOR

CAPPUCC.” is displayed.

5. Press the touch key ‘OK’ (9) again.

6. Select the quantity of coffee required by pressing the

Scroll touch keys (5 and 7) . The progress bar shows the quantity of coffee selected.

7. Press the touch key ‘OK’ (9) to confi rm or the ‘Return’ touch key (3)

to cancel the operation.

8. Press the ‘Return’ touch key (3) twice to exit the menu.EN 19

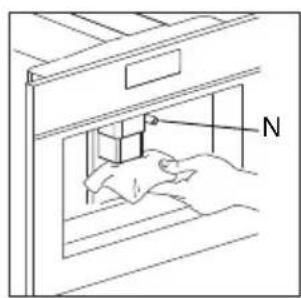

Cleaning the nozzles Clean the nozzles on the milk container every time after heating milk or making cappuccino. Otherwise, remains of milk may set hard.

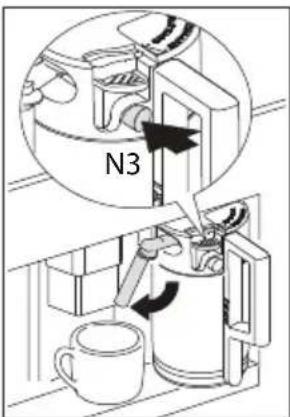

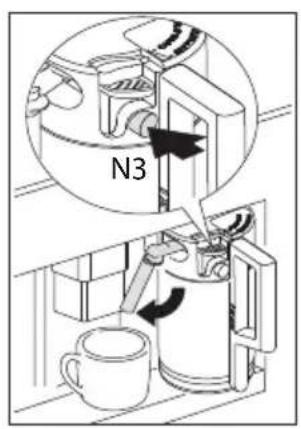

1. Place a container under the milk dispenser pipe and press on the

CLEAN button (N3) on the milk container for at least 5 seconds. The display shows “CLEANING”! Warning! Risk of scalding from steam and hot water escaping from the milk dispenser pipe.

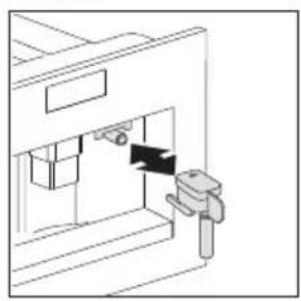

2. Remove the milk container and clean the nozzles on the appliance

3. Put the hot water nozzle back in.

After you fi nished cleaning, remove the milk container and place it in the fridge, as the milk should not stay out of the fridge for longer than 15 minutes. See “Cleaning the nozzles and the milk container” for information on cleaning the milk container. USE

NEN 20 SETTINGS Using menu options The menu options are used to change and save the appliance’s factory settings, start programs and look up information. They are:

• Language (see “Setting the language” on page 19)

• Auto shut off time (see “Setting the switch-off time” on page 21)

• Temperature (see “Setting the coffee temperature” on page 21)

• Water hardness (see “Water hardness” on page 20)

• Coffee program (see “Changing the quantity of coffee” on page 17)

• Cappuccino program (see “Setting the cappuccino program” on page 15)

• Hot water (see “Preparing hot water” on page 14)

• Descale (see “Carrying out the descaling program” on page 21)

• Reset to default (see “Resetting the appliance to factory settings” on page 24)

• Statistics (see “Statistics” on page 23)

• Contrast If you don’t press OK after you change a setting, the appliance automatically returns to the coffee mode after 120 seconds without saving the entries. To go back to the coffee mode, press the ‘Return’ touch key (3). Setting the language You can choose between several languages. A different language can be selected as follows:

1. Press the touch key ‘MENU’ and press the scroll touch keys (5 and

7) until the menu option “CHOOSE LANGUAGE” appears. Confi rm

the menu option with the touch keys ‘OK’ (9).

2. The language set appears on the display. Press the scroll touch

keys (5 and 7) until the desired language appears. When the desired language is displayed, confi rm with the touch keys ‘OK’ (9).

9EN 21 SETTINGS Water hardness A “PLEASE DESCALE!” message is displayed after the appliance has been operated for a factory set period of time, calculated on the basis of the maximum quantity of lime scale which may be contained in the water used. If necessary, this period of operation can be extended, making descaling less frequent, by programming the appliance based on the actual lime content in the water used. Proceed as follows:

1. Remove the “Total Hardness Test” strip (in front of your manual).

Dip it fully in the water for a few seconds. Remove it and wait 30 seconds until its colour changes and a number of red dots are formed. For example, if there are 3 red dots on the test strip, you must set the water hardness level to 3. If you no longer have a water hardness test, you can fi nd the data in the table below.

2. Press the touch key ‘MENU’ (2) and press the scroll touch keys (5

and 7) until the menu option “WATER HARDNESS” appears. Confi rm the menu option with the touch key ‘OK’ (9).

3. The display shows the current setting. Press the scroll touch keys

(5 and 7) until the established hardness level is displayed. Confi rm the selection with the touch key ‘OK’. The appliance is now programmed to provide the descaling warning when necessary, based on the actual hardness of the water. Information on the hardness of the water in your area can be obtained from the local water board. The table below shows the water hardness setting your machine requires. German hardness French hardness Water hardness machine

9EN 22 SETTINGS Setting the coffee temperature You can choose between three temperature levels. The coffee temperature levels are defi ned as follows:

• TEMPERATURE HIGH The factory setting is TEMPERATURE HIGH. You can change this as follows:

1. Press the touch key ‘MENU’ (2) and press the scroll touch keys (5

and 7) until the menu option “TEMPERATURE” appears. Confi rm the menu option with the touch key ‘OK’ (9).

2. The display shows the current setting. Select another temperature

with the scroll touch keys (5 and 7). When the desired temperature is displayed, confi rm it with the touch key ‘OK’ (9). Setting the switch-off time The appliance is set by default to go off automatically 30 minutes after the last coffee has been made. To change this interval (max. 120 min), proceed as follows:

• AUTO SHUTOFF TIME 2 hour You can change this as follows:

1. Press the touch key ‘MENU’ (2) and press the scroll touch keys

(5 and 7) until the menu option “AUTO SHUTOFF TIME” appears. Confi rm the menu option with the touch key ‘OK’ (9).

2. Select another switch-off time with the scroll touch keys (5 and 7).

When the desired switch-off time is displayed, confi rm it with the touch key ‘OK’ (9). Carrying out the descaling program When the display shows “PLEASE DESCALE!”, the appliance must be descaled.

and 7) until the menu option “DESCALE” appears. Confi rm the menu option with the touch key ‘OK’ (9).

3. The display shows ”PLEASE CONFIRM”. Confi rm with the touch key

‘OK’ (9). The descaling program starts. The top line of the display alternates between “ADD DESCALER” and “PLEASE CONFIRM”.

into the tank respecting the instructions given on the descaler pack, then add water. For subsequent descaling operations, descaling solu tion can be purchased from authorised technical service centres. Make sure that any splashes from the descaling product do not come into contact with surfaces that are sensitive to acids, such as marble, limestone and ceramic.

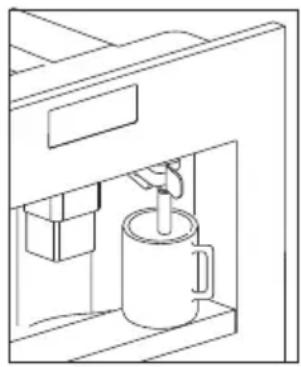

5. Put a container with a capacity of at least 2 litres underneath the hot

descaling liquid runs out of the hot water nozzle. The descaling program automatically goes through a serie of rinses and pauses to remove limescale deposits from the inside of the coffee machine. After about 30 minutes the water tank is empty and the top line of the display alternates between “DESCALE COMPLETE” and “PLEASE CONFIRM”.

7. Press the touch key ‘OK’ (9). The display shows “RINSING, FILL

TANK”. The appliance is now ready for a rinsing process with clean water.

8. Empty the container under the hot water nozzle and put it back

under the hot water nozzle.

9. Take out the water tank and fi ll it with clean water.

10. Put the water tank back in place. The display shows: “PLEASE

11. Press the touch key ‘OK’ (9). A rinsing process takes place with

clean water and the rinsing water runs out of the hot water nozzle. After a few minutes the water tank is empty and the display shows “PLEASE CONFIRM”.

14. Take out the water tank, fi ll it with clean water and put it back in

place. The appliance is now ready for use again and is back to the last coffee mode selected.

9EN 24 SETTINGS If the descaling cycle is interrupted before completion, the appliance continues to display the descale message and the program must be started again from the beginning. Failure to descale the appliance invalidates the guarantee. Rinsing If 2/3 minutes have passed, since you last made coffee, you should fi rst rinse the system to preheat the brewing unit. Select the rinsing function from the appropriate menu. Let the water run into the drip tray underneath. You can also use this water to warm up the cup that you are using for the coffee. In this case simply let the hot water run into the cup (and then empty it).

1. Press the touch key ‘RINSE’ (4).

2. The appliance performs an automatic rinse cycle (a little hot water

runs out of the spouts and is collected in the drip tray beneath). Statistics You can look up the following information values:

• total number of coffees made with the appliance up to that point;

• number of descaling procedures carried out;

• number of cappuccinos made.

• Numbers of liters of water. 2 cups of coffee dispensed at the same time are counted as 2 cups. Proceed as follows to look up the values:

1. Press the touch key ‘MENU’ (2) and press the scroll touch keys (5

and 7) until the menu option “STATISTICS” appears. Confi rm the menu option with the touch key ‘OK’ (9).

2. The number of cups dispensed so far appears on the display, e.g.

3. Repeatedly press the scroll touch key (7) to show the number

of descaling procedures carried out, e.g. “TOT. DESCALES 5”, “TOTAL WATER” and then number of cappuccino’s, e.g. “TOT. CAPPUCCINO 135”. 4EN 25 SETTINGS Resetting the appliance to factory settings This function resets previously changed values to the factory settings. The following settings or saved data are affected:

• coffee, water and cappuccino quantity

(5 and 7) until the menu option “RESET TO DEFAULT” appears. Confi rm the menu option with the touch key ‘OK’ (9).

2. The display shows “PLEASE CONFIRM”.

3. Confi rm the menu option with the

touch key ‘OK’ (9). Setting the clock

1. Press the touch key ‘MENU’ (2) to enter the menu and then the

scroll touch keys (5 and 7) until “SET CLOCK” is displayed.

2. Press the touch key ‘OK’ (9).

3. Use the icons (B7) and (B8) to set the hour, then press the OK icon

4. Use the scroll touch keys (5 and 7) to set the minutes, then press the

touch key ‘OK’ (9) to confi rm.

5. Press the touch key ‘RETURN’ (3) to exit the menu.

Setting auto-start time This function programmes the time the machine will come on automatically.

1. Make sure the clock on the appliance has been set.

2. Press the touch key ‘MENU’ (2) to enter the menu and then the

scroll touch keys (5 and 7) until “START TIME” is displayed.

3. Press the touch key ‘OK’ (9).

4. Use the scroll touch keys (5 and 7) to set the auto-start time, then

press the touch key ‘OK’ (9) to confi rm.

5. Use the scroll touch keys (5 and 7) to set the minutes, then press the

touch key ‘OK’ (9) to confi rm.

1. Press the scroll touch keys (5 and 7) to activate the auto-start

function until “AUTO START” is displayed.

2. Press the touch key ‘OK’ (9) to confi rm. The ‘clock’ symbol appears

key ‘MENU’ (2), then press the scroll touch keys (5 and 7) until the appliance displays the message “AUTO START”. Press the touch key ‘OK’ (9). “CONFIRM” will appear on the display. Press the touch key ‘RETURN’ (3) to deactivate and the ‘clock’ symbol will disappear. Buzzer This activates or deactivates the buzzer emitted by the machine each time an icon is pressed or an accessory is inserted/removed. N.B.! The buzzer is active by default.

1. Press the touch key ‘MENU’ (2) to enter the menu and then the

scroll touch keys (5 and 7) until “BUZZER” is displayed.

3. Press the touch key ‘RETURN’ (3) to disable or the touch key ‘OK’

(9) to enable the buzzer.

4. Press the touch key ‘RETURN’ (3) to exit the menu.

Adjusting contrast To increase or reduce the contrast of the display, proceed as follows:

1. Press the touch key ‘MENU’ (2) to enter the menu and then the

scroll touch keys (5 and 7) until “CONTRAST” is displayed.

2. Press the touch key touch key ‘OK’ (9).

3. Press the scroll touch keys (5 and 7) until the required display

contrast is reached. The progressive bar indicates the level of contrast selected.

4. Press the touch key ‘OK’ (9) to confi rm.

5. Press the touch key ‘RETURN’ (3) once to exit the function or twice

9EN 27 MAINTENANCE Cleaning Before performing any cleaning operations, the machine must be turned off by pressing the main switch (A) and unplugged from the mains power supply. Never immerse the coffee maker in water. Cleaning the coffee machine Do not use solvents or abrasive detergents to clean the coffee maker. A soft damp cloth will suffi ce. Never wash any of the components of the coffee maker in the dishwasher. The following parts of the machine must be cleaned regularly:

• Pre-ground coffee funnel (U).

• Inside of the machine, accessible after opening the service door (G).

• Brewing unit (L). Cleaning the waste coffee container (Q) When “EMPTY WASTE COFFEE CONTAINER” is displayed, the waste coffee container must be emptied and cleaned. To clean:

• Open the service door on the front of the appliance, extract the drip tray and clean.

• Clean the waste coffee container thoroughly. Important! When extracting the drip tray, the waste coffee container must always be emptied. Cleaning the drip tray (F) Important! If the drip tray is not emptied the water might overfl ow. This could damage the machine. The drip tray is fi tted with a level indicator (red) showing the level of water it contains. Before the indicator protrudes from the cup tray, the drip tray must be emptied and cleaned. AaEN 28 MAINTENANCE To remove the drip tray (F):

1. Open the service door.

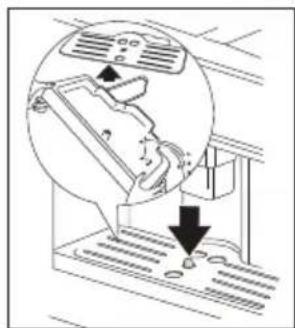

2. Remove the drip tray and the waste coffee container.

3. Clean the drip tray and waste coffee container.

4. Replace the drip tray and waste coffee container.

5. Close the service door.

Cleaning the water tank (D)

1. Clean the water tank regularly (about once a month) with a damp

cloth and a little mild washing up liquid.

2. Remove all traces of washing up liquid.

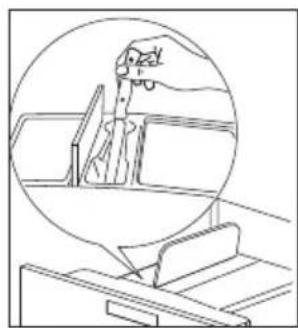

2. Check regularly that the holes in the coffee spout are not blocked.

If necessary, remove coffee deposits with a toothpick. Milk residues left on the nozzle (N) and in the container may jeapardise correct operation of the appliance. Each time you use the coffee maker, they must therefore be removed by cleaning the nozzle with a sponge. Cleaning the pre-ground coffee funnel

• Check regularly (about once a month) that the pre-ground coffee funnel is not blocked. NEN 29 MAINTENANCE Cleaning the inside of the coffee maker

• Check regularly (about once a week) that the inside of the appliance is not dirty. If necessary, remove coffee deposits with a sponge.

• Remove the residues with a vacuum cleaner. Cleaning the brewing unit The brewing unit must be cleaned regularly to avoid the build-up of coffee encrustations which could cause malfunction. The brewing unit can only be taken out when the appliance is switched off by pressing the on/stand by button (Aa). Otherwise, the coffee machine may be seriously damaged. Proceed as follows:

1. Turn the appliance off by pressing the on/stand by button (Aa) (do

not switch off the main switch or unplug) and wait for the display to go off.

2. Open the service door.

3. Remove the drip tray and the waste coffee container.

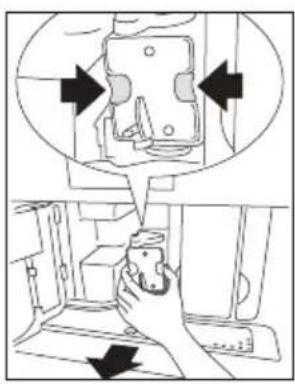

4. Press the two red release buttons inwards and at the same time pull

the brewing unit outwards Clean the brewing unit under running tap water without using detergent. Never clean the brewing unit in the dishwasher. Do not use washing up liquid to clean the brewing unit. It would remove the lubricant applied to the inside of the piston.

5. Soak the brewing unit in water for about 5 minutes, then rinse.

6. After cleaning, replace the brewing unit (L) by sliding it onto the

internal support (S) and pin (P) at the bottom, then push the PUSH symbol fully in until it clicks into place. N.B.! If the brewing unit is diffi cult to insert, you must fi rst adapt it to the right dimensions by pressing it forcefully from the bottom and top.

7. Once inserted, make sure the two red buttons have snapped back

out, otherwise the service door cannot be closed.

• The two red buttons are correctly snapped out (A).

• The two red buttons are not snapped out (B).

8. Replace the drip tray and waste coffee container.

9. Close the service door.

• If the brewing unit is not put in place correctly, the service door cannot be closed.

• If it is diffi cult to insert the brewing unit, it must be made into the right height (before inserting) by pressing the brewing unit fi rmly together from top and bottom.

• If it is still diffi cult to insert the brewing unit:

• Leave it out of the appliance, place the drip tray, close the service door, switch the main switch on the back of the appliance to ‘off’ and then to ‘on’ again.

• Wait for all the lights to go off, then open the door, remove the drip tray and replace the brewing unit.

• Replace the drip tray, together with the grounds container.

• Close the service door. Cleaning the milk container (N) Always clean the tubes inside the milk container when you prepare milk. If there is still milk in the container, do not leave it out of the refrigerator for longer than strictly necessary. Clean the container each time you prepare milk as described in the section “Making cappuccino”. All components can be washed in a dishwasher, placing them in the top basket of the dishwasher.

1. Turn the milk container lid clockwise then remove it.

2. Remove the milk spout (S) and intake tube (M).

3. Remove the frothed milk regulator (F) by pulling it outwards.

4. Wash all the components thoroughly with hot water and mild

washing-up liquid. Make sure there are no milk residues left inside the holes (H) and the groove (G) on the fi ne end of the frothed milk regulator (F).

5. Check that the intake tube and spout are not clogged with milk

6. Replace the frothed milk regulator, milk spout and intake tube.

7. Replace the milk container lid.

Cleaning the nozzles Clean the nozzles on the milk container every time after heating milk or making cappuccino. Otherwise, remains of milk may set hard.

• Place a container under the milk dispenser pipe and press on the CLEAN button (N3) on the milk container for at least 5 seconds. The display shows “CLEANING”! Warning! Risk of scalding from steam and hot water escaping from the milk dispenser pipe. MAINTENANCE

MESSAGE MEANING WHAT TO DO

FILL TANK! The water tank is empty or not properly in place. The water tank is dirty or limescale deposits have built up inside it. Fill the water tank and insert it according to the instructions. Rinse out or descale the water tank.

Coffee comes out too slowly. The coffee machine cannot make any coffee. Turn the knob for the grind level setting clockwise by one position (see “Setting the grind level”). Place a container underneath the hot water nozzle and press the ‘hot water’ touch key (13) .

CONTAINER The waste coffee container is full. Empty, clean and replace the waste coffee container.

CONTAINER The waste coffee container was not replaced after cleaning. Open the service door and insert the waste coffee container. ADD PRE-GROUND COFFEE No ground coffee was put into the fi lling chute after selecting the preground coffee function. Add ground coffee as described in “Preparing espresso coffee using ground coffee”. FILL BEAN CONTAINER There are no more coffee beans in the coffee bean container. If the mill mechanism starts sounding very loud, this can mean that a small stone from the coffee beans has blocked the mill mechanism. Fill the coffee bean container,. Consult customer services.EN 33 MESSAGES

MESSAGE MEANING WHAT TO DO

PLEASE DESCALE! Shows that the coffee machine is encrusted with limescale. The descaling program must be carried out as soon as possible (see “Carrying out the descaling program”. CLOSE DOOR! The service door is open. Close the service door. If the service door cannot be closed, make sure that the brewing unit is correctly inserted (see “Cleaning the brewing unit”. INSERT BREWING UNIT! Someone probably forgot to put the brewing unit back in the coffee machine after cleaning it. Insert the brewing unit, (see “Cleaning the brewing unit”. GENERAL ALARM! The inside of the machine is very dirty. Carefully clean the inside of the machine (see “Cleaning the coffee machine”. If the coffee machine still shows this message once it has been cleaned, please consult customer services.EN 34 TROUBLESHOOTING Faults table If the appliance does not work properly, this does not always mean that it is defective. If the coffee machine does not work and a message is displayed, refer to the problem solving information of chapter 7. If no message is displayed, try to fi nd a solution fi rst by checking the points mentioned in the table below, or contact the service department. (See the guarantee certifi cate for details.)

FAULT CAUSE SOLUTION

Coffee is not hot. The cups were not preheated. The brewing unit is too cold. Preheat the cups by rinsing them out with warm water (see “Tips to make hotter coffee”). Warm up the brewing unit with the rinsing program before making coffee (see “Rinsing”). The coffee does not have enough crema. The coffee is too coarsely ground. The coffee blend is not suitable. Turn the knob for the grind level setting one position anti- clockwise (see “Setting the grind level”). Use a coffee blend suited to fully automated coffee machines. Coffee comes out too slowly. The coffee is ground too fi ne. Turn the knob for the grind level setting one position clockwise (see “Setting the grind level”). Coffee comes out too quickly. The coffee is too coarsely ground. Turn the knob for the grind level setting one position anti- clockwise (see “Setting the grind level”). Coffee only comes out of one of the spouts on the coffee dispenser. The holes on the spouts are blocked. Remove the dry coffee residues with a needle (see “Cleaning the coffee machine”).EN 35 TROUBLESHOOTING

FAULT CAUSE SOLUTION

The machine does not switch on when the on/stand by button is pressed The main switch on the right side of the appliance is not switched on or the mains plug is not plugged in. Check that the main switch is in the ‘ON’ position and that the power lead is plugged in the socket properly. The brewing unit cannot be taken out for cleaning. The coffee machine is switched on. The brewing unit can only be removed when the machine is switched off. Switch the appliance off and remove the brewing unit (see “Cleaning the brewing unit”). IMPORTANT: The brewing unit can only be taken out when the appliance is switched off. If you try to take out the brewing unit whilst the coffee machine is switched on, this could be seriously damaged. Water comes out of the spouts instead of coffee. Too much preground coffee was inserted. Remove the brewing unit and carefully clean the insided of the machine (see “Cleaning the coffee machine” and “Cleaning the brewing unit”). Repeat the process using a maximum of 2 level measuring spoons of ground coffee. Ground coffee was used (instead of coffee beans) and the machine will not dispense any coffee. Preground coffee was inserted whilst the machine was switched off. Remove the brewing unit and carefully clean the insided of the machine (see “Cleaning the coffee machine” and “Cleaning the brewing unit”). Repeat the process with the machine switched on.EN 36 TROUBLESHOOTING

FAULT CAUSE SOLUTION

Coffee does not come out of the spouts on the coffee dispenser but out of the service door at the side. The holes on the coffee dispenser are blocked with dried on coffee. The swing drawer on the inside of the service hatch is blocked and will not move. Remove the dried on coffee with a needle (see “Cleaning the coffee machine”). Carefully clean the swing drawer, particulary in the area around the hinges so that these continue to move. Milk is frothed up too much or too little. Wrong setting of the slider on the lid of the milk container. If the milk is not frothy enough, the milk container may not be correctly in place. You can set the amount of froth on the milk to any level using the slider on the lid: ‘CAPPUCCINO’ (very frothy milk) or ‘CAFFELATTE’ (not so frothy milk). Put the milk container correctly in place.EN 37 INSTALLATION INSTRUCTIONS What you should pay attention to

• After removing the packaging, make sure the product is complete and undamaged. If in doubt, do not use the appliance and contact a qualifi ed professional.

• Installation must be carried out by a qualifi ed techncian and in compliance with current regulations.

• Packing elements (plastic bags, polystyrene etc.) must not be left within reach of children as they may represent a hazard.

• Never install the appliance in environments where the temperature may reach 0 °C or lower (the appliance may be damaged if the water freezes).

• Make sure the mains voltage corresponds to the voltage indicated on the appliance rating plate. Connect the appliance to an effi ciently earthed socket with a minimum current rating of 10A only. The manufacturer may not be considered liable for possible incidents caused by the failure to adequately earth the mains.

• Make sure the socket used is freely accessible at all times, enabling the appliance to be unplugged when necessary.

• Never touch the plug with damp hands.

• Never pull the power cable as you could damage it.

• This appliance can be installed over a built-in oven it he latter is fi tted with a cooling fan at the rear (maximum power: 3KW).

• Do not use multiple plug adapters or extension leads.

• The power cable on this appliance must not be replaced by the user as this operation requires the use of special tools. If the cable is damaged or requires replacing, contact an authorised service centre only to avoid all risks.

• You should personalise water hardness as soon as possible following the instructions.EN 38 INSTALLATION INSTRUCTIONS Building in Please check the minimum measures necessary to the proper installation of the appliance. The coffee maker must be installed in a column unit, which must in turn be fi xed to the wall. 850 mm min. 560 mm80 mm min. 550 mm min. 50 mm min. 80 mm min. 450 mm560 mm

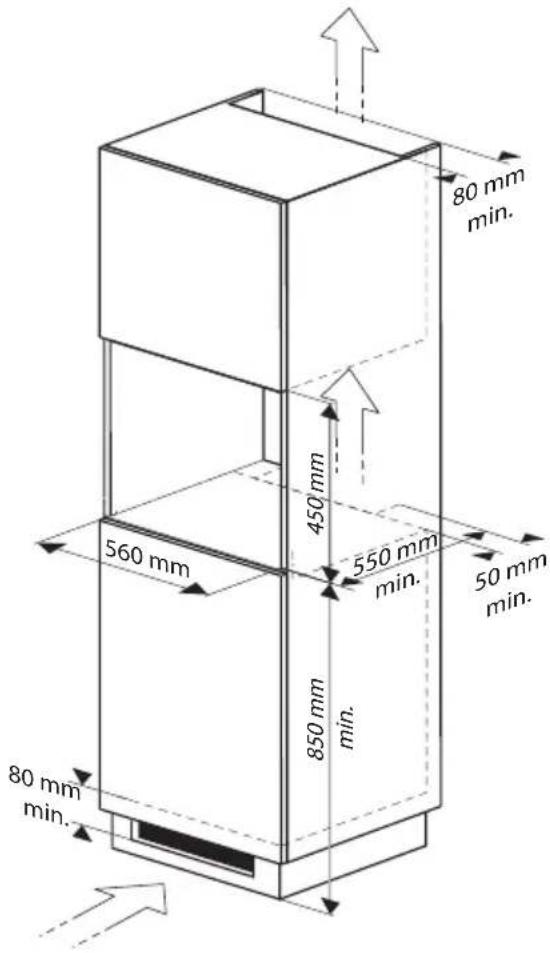

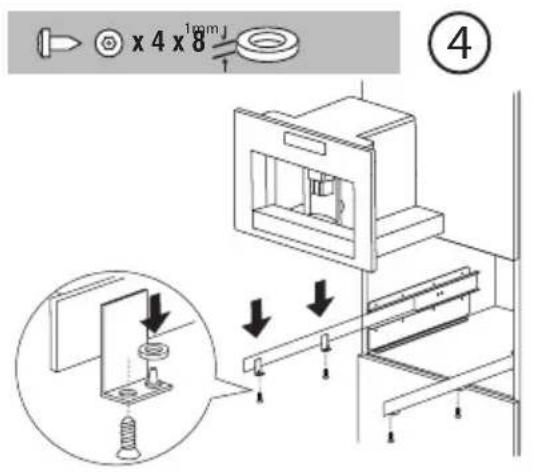

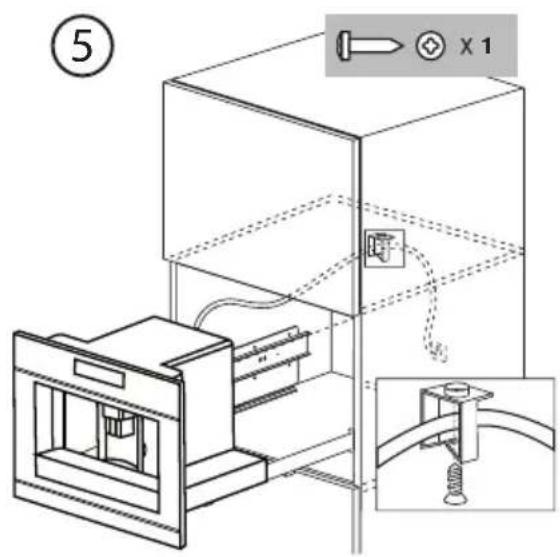

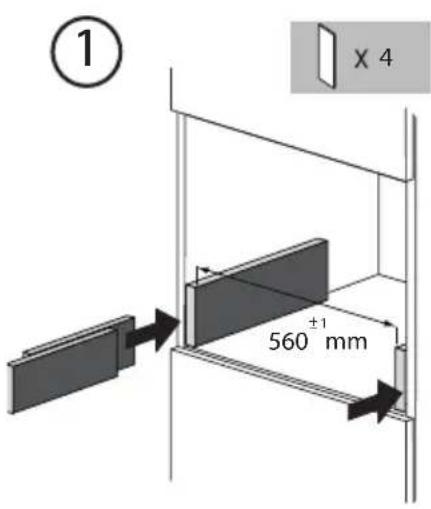

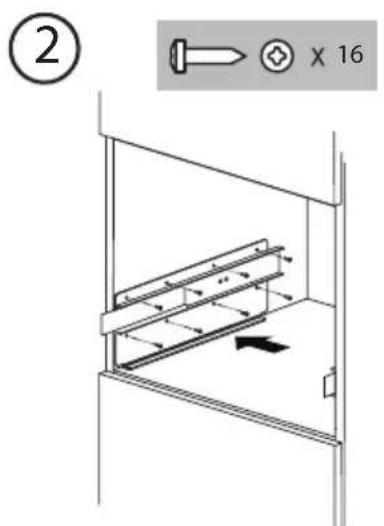

• Position the appliance on the rail, making sure the pins are correctly inserted in the housing, then fi x it with the screws supplied.

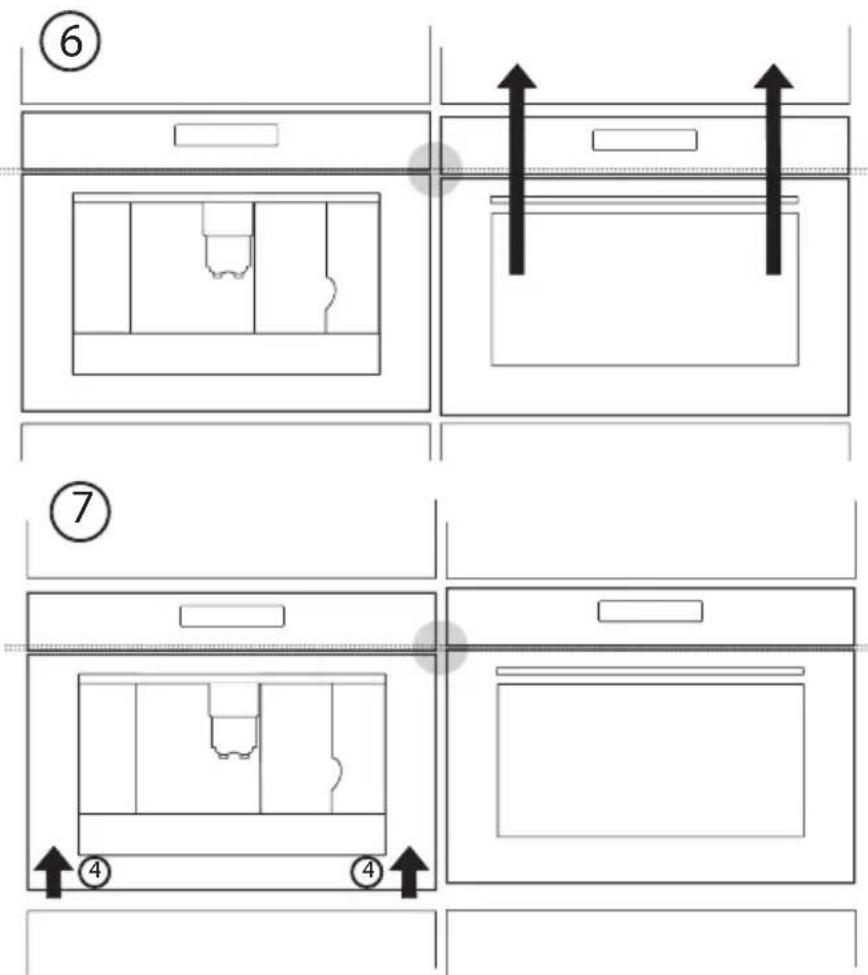

• If the height of the appliance requires adjusting, use the spacer disks provided.

7EN 40 APPENDICES Disposal of appliance and packaging The packaging of this appliance is recyclable and may have been made of:

• polypropylene tape (PP). Dispose of these materials in a responsible manner and in accordance with government regulations. The appliance carries the symbol of a crossed-out dustbin to state that segregated processing is compulsory to avoid any negative effects on the environment and public health. This means that at the end of its working life, you must hand it in at a special refuse collection centre run by your local authority or dealer. Segregated processing enables the recovery of the materials used in the production of this appliance, thus saving considerably in terms of raw materials and energy. Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. EC Regulation 1275/2008 for standby Technical data The data plate on the side of the appliance states the total load when connected, the required voltage and frequency.
