USER MANUAL DS 145100 BEKO

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use ....4

For products with a water dispenser; .6

Child safety 6

HCA Warning ......6

Things to be done for energy saving ..7

3 Installation 8

Points to be considered when re-transporting your refrigerator .....8

Before operating your refrigerator .....8

Electric connection 8

Disposing of the packaging .....9

Disposing of your old refrigerator .....9

Placing and Installation 9

Adjusting the feet 10

Replacing the interior light bulb .....10

Reversing the doors .....11

Reversing the doors .....12

4 Preparation 13

5 Using your refrigerator 14

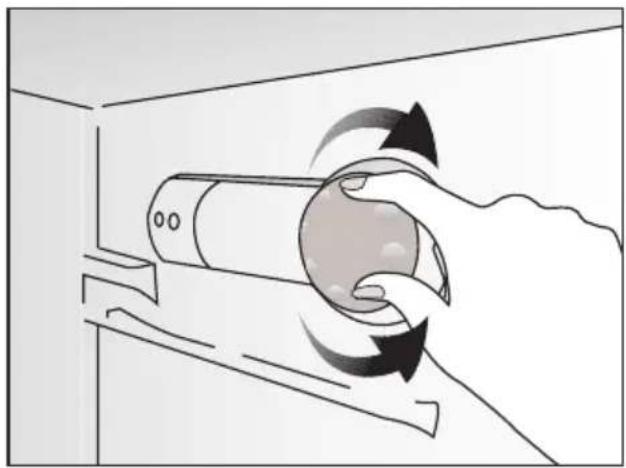

Thermostat setting button......14

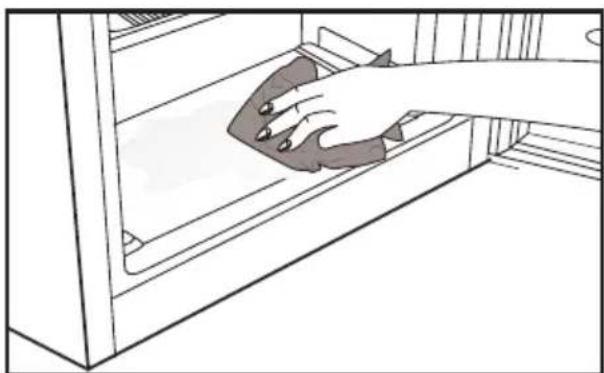

Defrost 14

Using the rotary crisper (in some models) ....15

Making ice 15

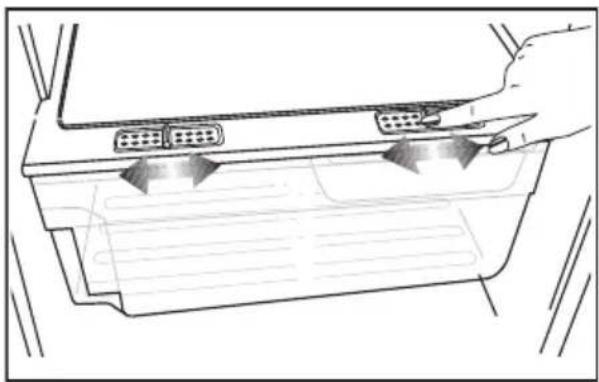

Crisper humidity control sliders .....16

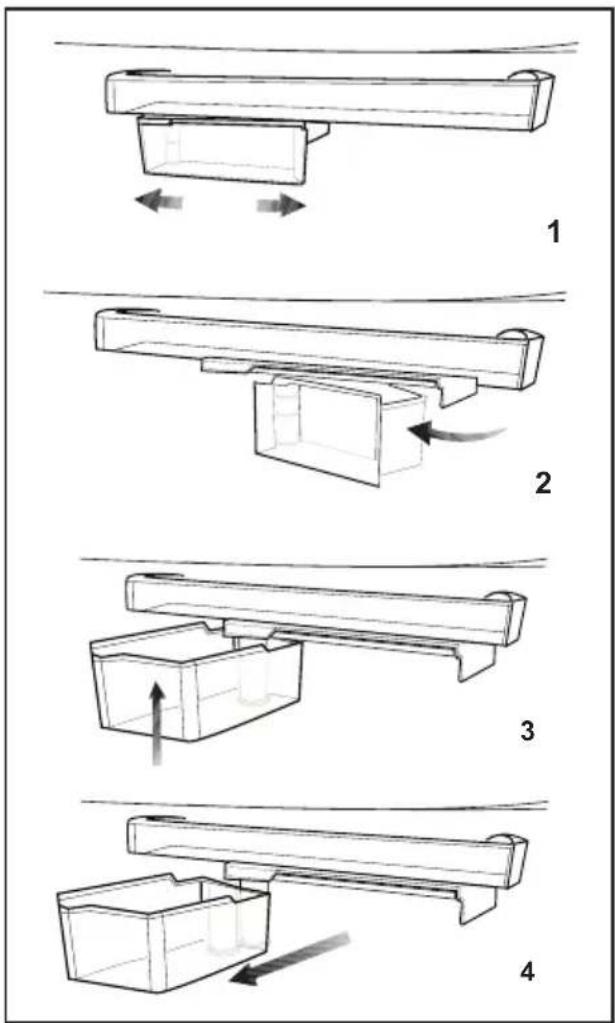

Rotary storage container .....16

6 Maintenance and cleaning 17

Protection of plastic surfaces .....17

7 Recommended solutions for the problems 18

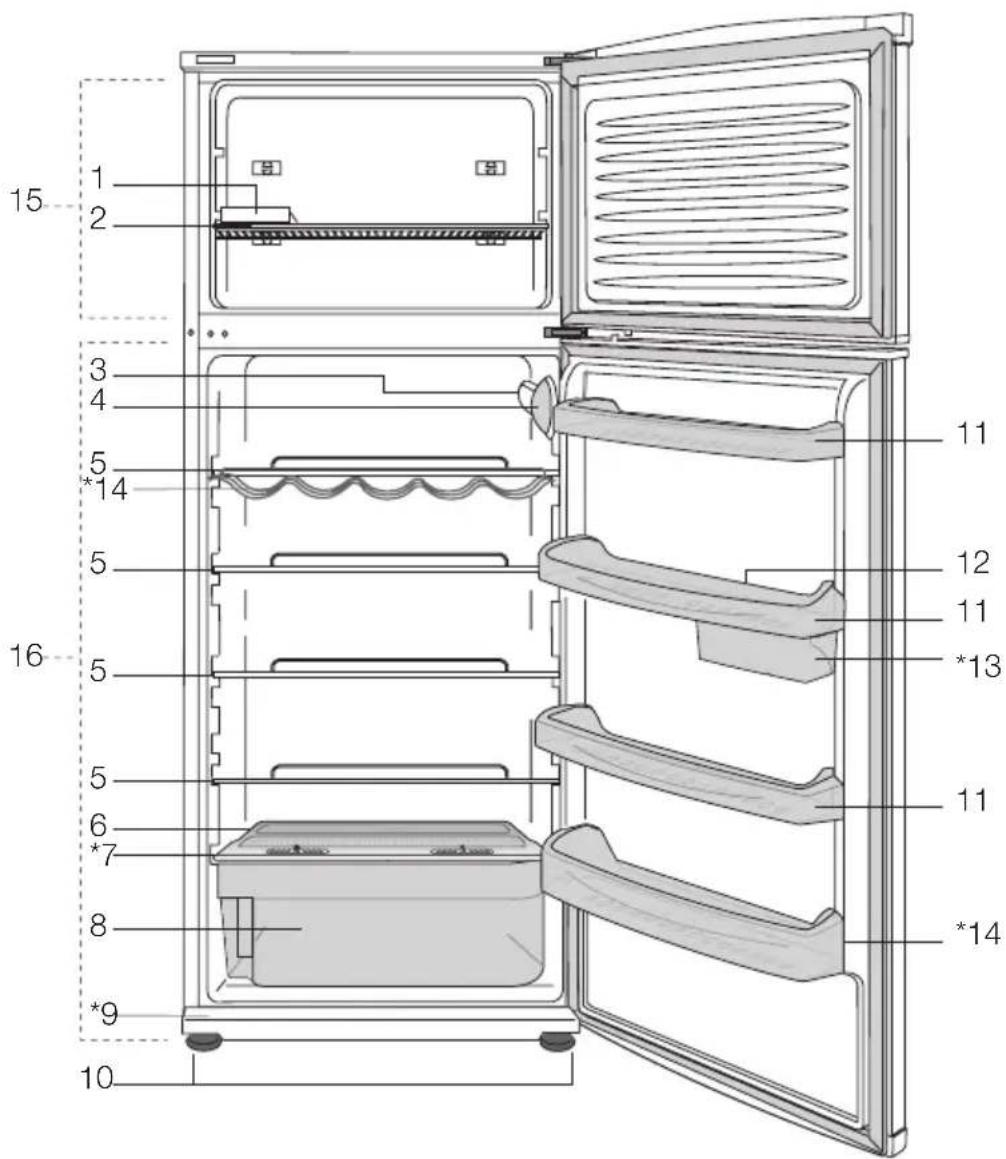

1 Your refrigerator

15 1 2 3 4 5 *14 5 16 5 5 6 *7 8 *9 10 11 12 11 *13 11 *14

1. Ice cube tray
2. Freezer shelf
3. Interior light
4. Thermostat knob
5. Fridge compartment shelves
6. Crisper humidity controls
7. Crisper cover
8. Salad crisper
9. Front air grille

10. Adjustable front feet

11. Door shelf

12. Egg tray
13. Sliding storage boxes
14. Bottle shelf
15. Freezer compartment
16. Fridge compartment

* OPTIONAL

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

- indoors and in closed areas such as homes;

– in closed working environments such as stores and offices;

– in closed accommodation areas such as farm houses, hotels, pensions.

- This product should not be used outdoors.

General safety

- When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

- Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

- For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

- For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

- Do not touch frozen food by hand; they may stick to your hand.

- Unplug your refrigerator before cleaning or defrosting.

- Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

- Never use the parts on your refrigerator such as the door as a means of support or step.

- Do not use electrical devices inside the refrigerator.

- Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

- Do not cover or block the ventilation holes on your refrigerator with any material.

- Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

- In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.
• Place the beverage with higher proofs tightly closed and vertically.
• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product
• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact authorized service when there is a power cable damage to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended for only storing food items. It must not be used for any other purpose.

• Label of technical specifications is located on the left wall inside the refrigerator.

• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
• This operation manual should be handed in to the new owner of the product when it is given to others.

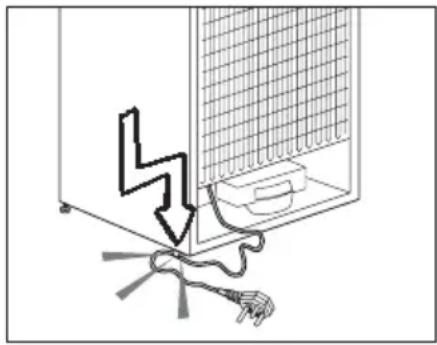

• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

• Do not plug the refrigerator if the wall outlet is loose.
• Water should not be sprayed directly on inner or outer parts of the product for safety purposes.
• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
• Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.
• Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door.

Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
• The plug's tip should be regularly cleaned; otherwise, it may cause fire.
• The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.
• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3

Installation

⚠️Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.

2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

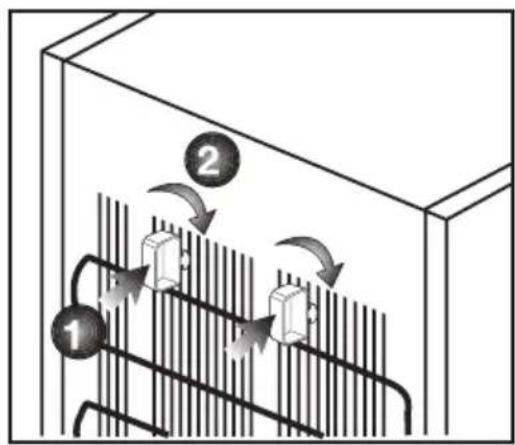

2. Please install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (Th illustrated figure is only an example and does not match exactly with your product.)

Diagram showing two labeled components (1 and 2) with curved arrows indicating flow or movement between them within a container-like structure.

1. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.

2. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

3. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

- The connection must be in compliance with national regulations.

- The power cable plug must be easily accessible after installation.

- The specified voltage must be equal to your mains voltage.

- Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

△Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorised dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.

3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor surface to prevent jolts.

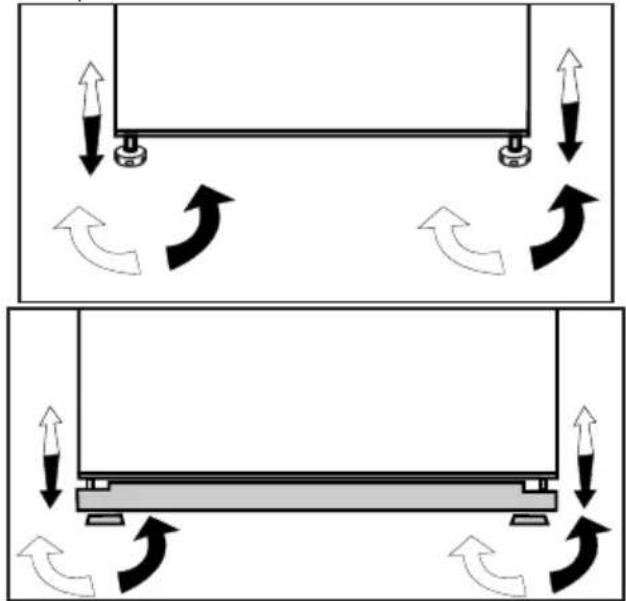

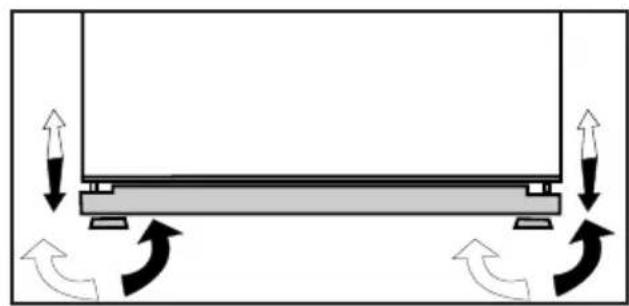

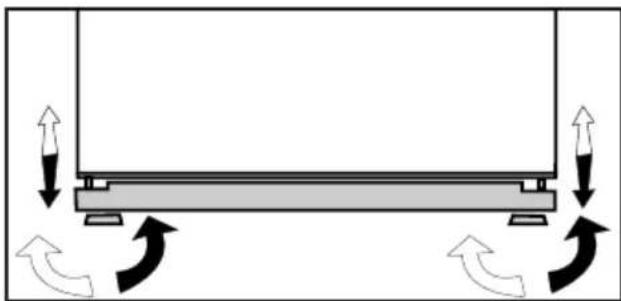

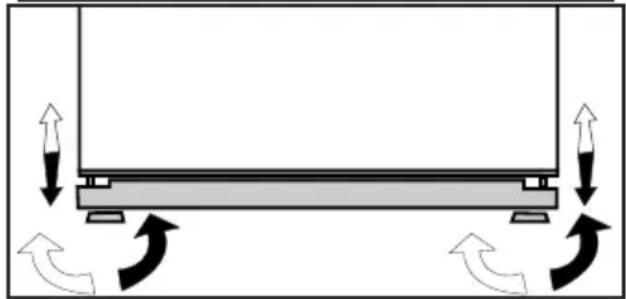

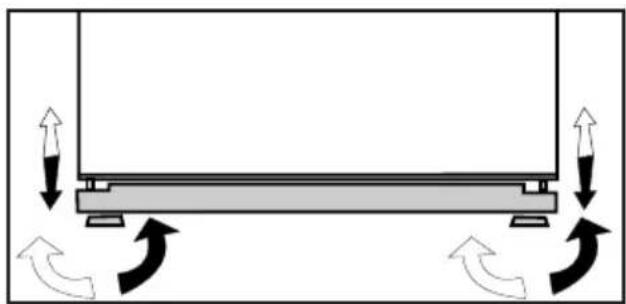

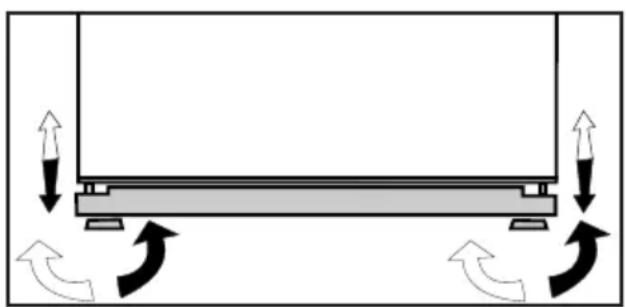

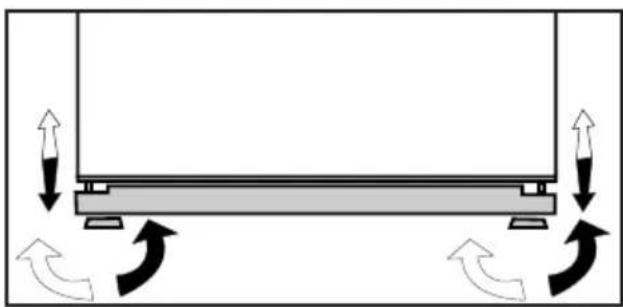

Adjusting the feet

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs as shown in the illustration below. The corner where the leg exists is lowered when you turn it in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing two mechanical setups with directional arrows indicating motion or force (no text or symbols)

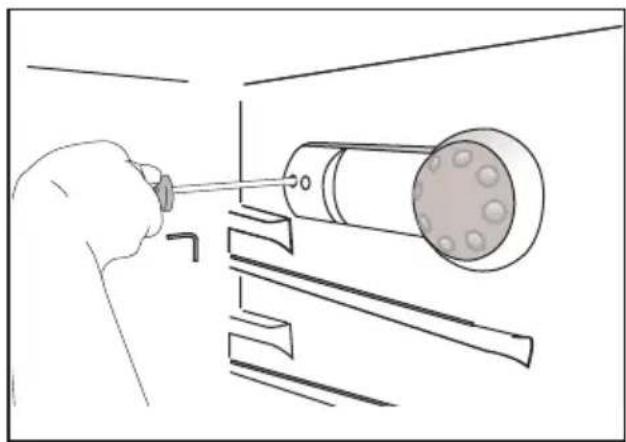

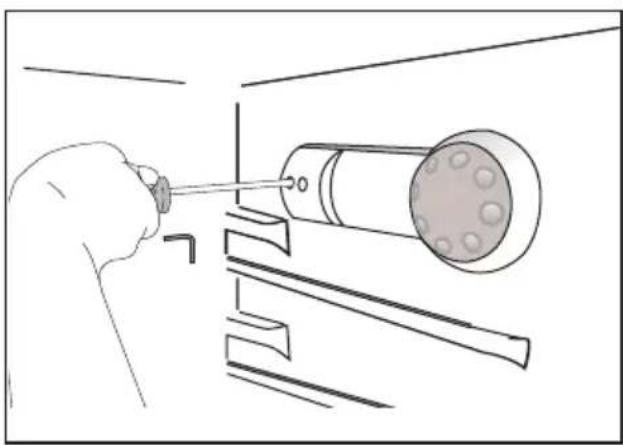

Replacing the interior light bulb

Should the light fail to work, proceed as follows.

1- Switch off at the socket outlet and pull out the mains plug.
You may find it useful to remove shelves for easy access.
2- Use a flat tipped screwdriver to remove the light diffuser cover.
3- First check that the bulb hasn't worked loose by ensuring it is screwed securely in the holder. Replace the plug and switch on.

If the bulb works, replace the light cover by inserting the rear lug and pushing up to locate the front two lugs.

4- If the light still fails to work, switch off at the socket outlet and pull out the mains plug. Replace the bulb with a new 15 watt (max) screw cap (SES) bulb.
5- Carefully dispose of the burnt-out light bulb immediately.

Replacement light bulb can easily be obtained from a good local electrical or DIY store.

Line drawing of a hand using a tool to measure a cylindrical object with circular holes, mounted on a metal frame (no text or symbols)

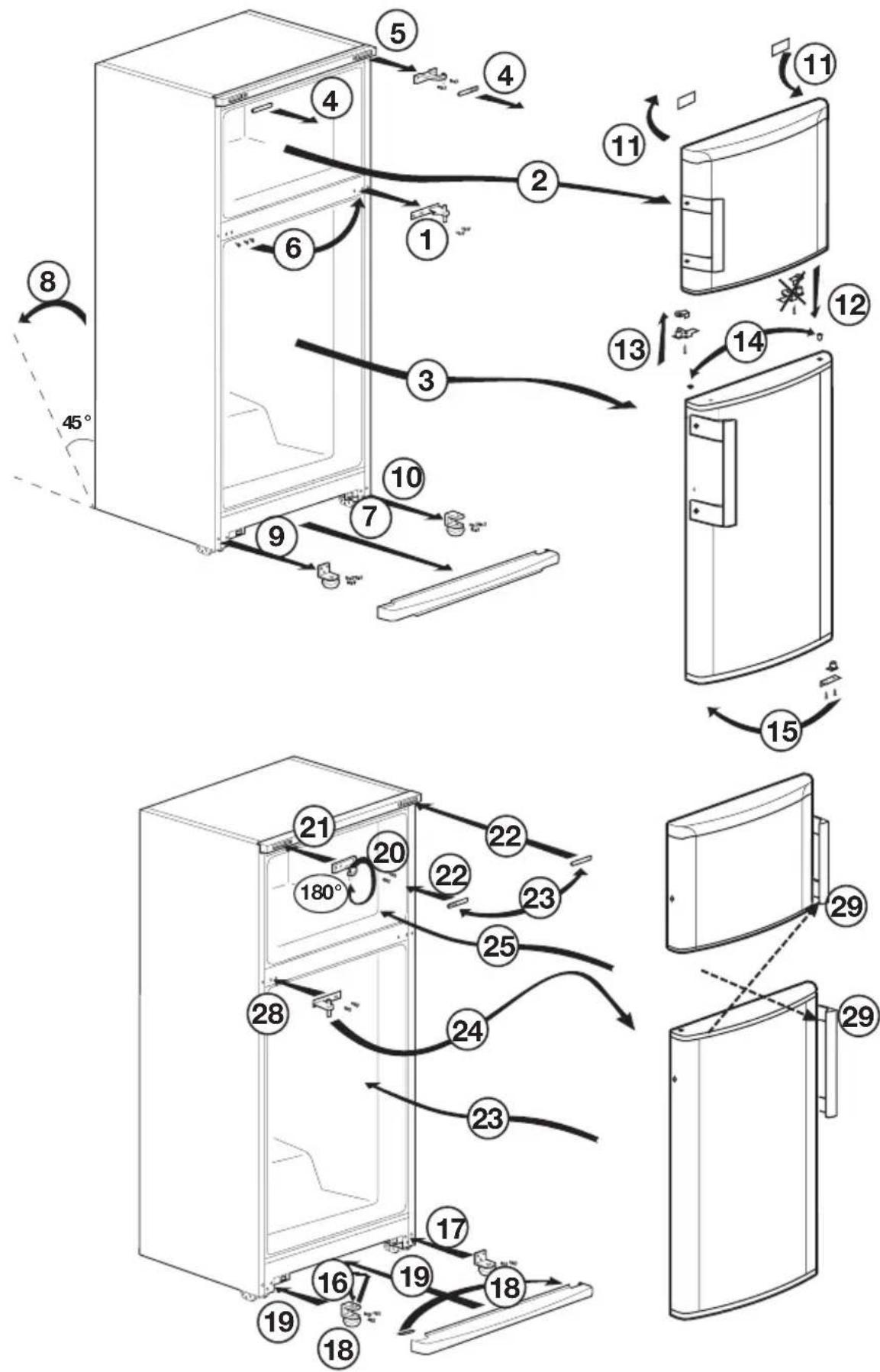

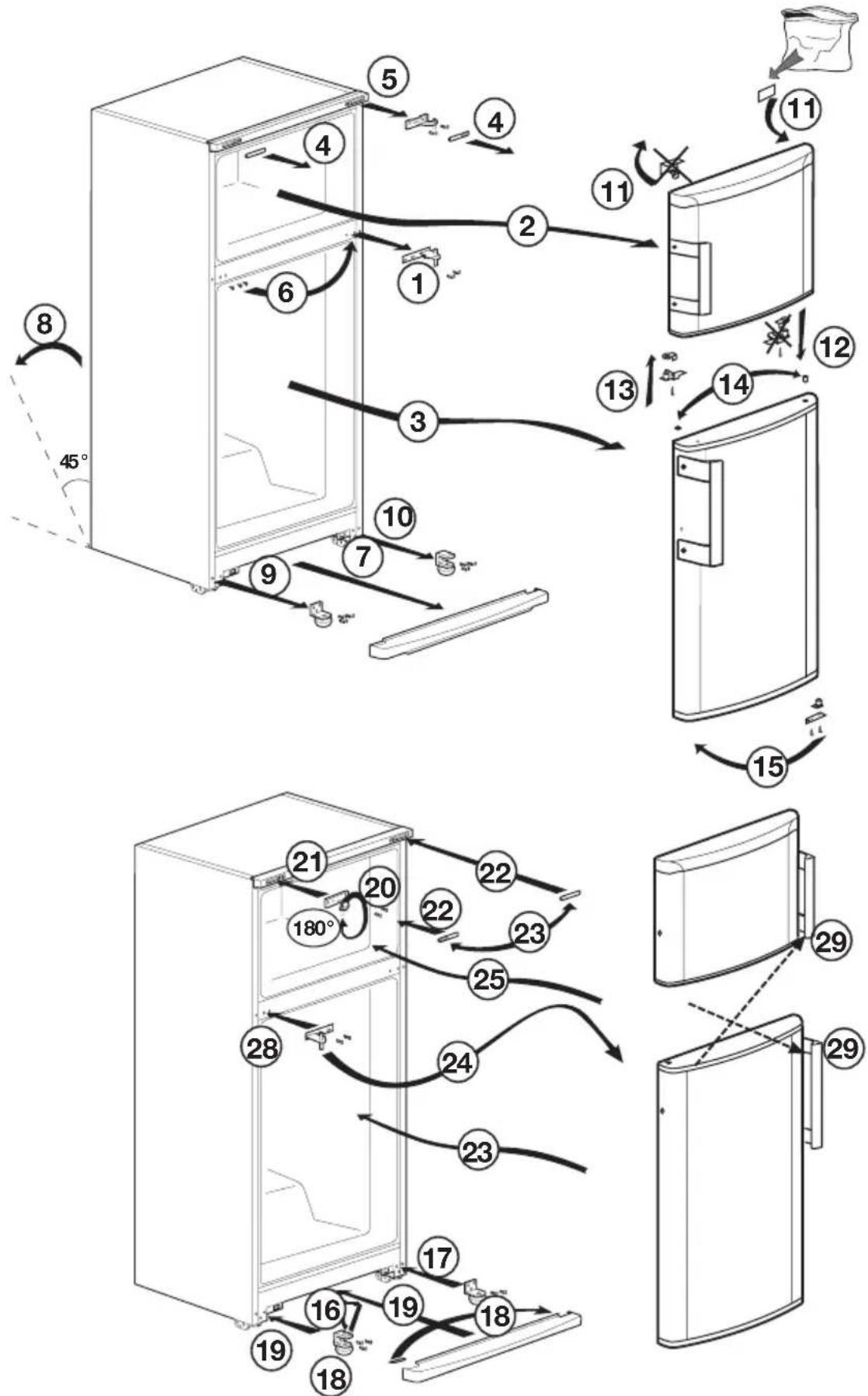

Reversing the doors

Proceed in numerical order.

Reversing the doors

Proceed in numerical order.

4 Preparation

i Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator

Thermostat setting button

Illustration of a hand holding a cylindrical device with rotating arrows indicating motion (no text or symbols)

The interior temperature of your refrigerator changes for the following reasons;

- Seasonal temperatures, - Frequent opening of the door and leaving the door open for long periods,

- Food put into the refrigerator without cooling down to the room temperature,

- The location of the refrigerator in the room (e.g. exposing to sunlight).

- You may adjust the varying interior temperature due to such reasons by using the thermostat. Numbers around the thermostat button indicates the cooling degrees.

- If the ambient temperature is higher than 32^ C, turn the thermostat button to maximum position.

- If the ambient temperature is lower than 25^ C, turn the thermostat button to minimum position.

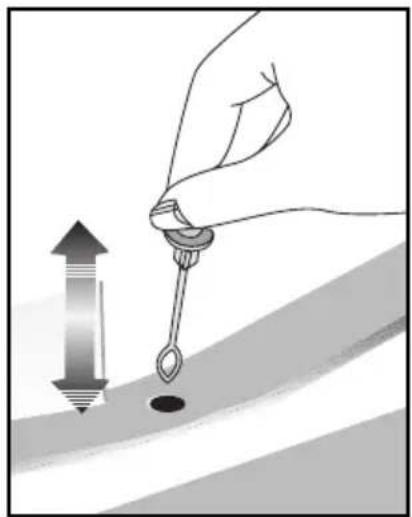

Defrost

Fridge compartment performs full-automatic defrosting. Water resulting from the defrosting passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself.

Illustration of a hand using a spoon to measure a dot on a surface with an upward arrow (no text or symbols)

- Check regularly to see if the drain pipe is clogged or not and clear it with the stick in the hole when necessary.

- Deep freezer compartment does not perform automatic defrosting in order to prevent decaying of the frozen food.

- Frost formation in the freezer compartment must be defrosted every 6 months. It is recommended to defrost the ice when the deep freezer compartment is not filled too much or is empty.

- To do this, wrap the frozen food by paper and keep them in the coolest place possible or in another refrigerator if available.

• Stop your refrigerator by means of the temperature setting button or unplug the power cord from the outlet. You can place a container filled with hot water into the freezer compartment or leave the door of the freezer compartment open in order to hasten the defrosting.
• Remove the water that accumulates in the lower container of the freezer compartment with an absorbent cloth or sponge.
• Dry the freezer compartment completely and return the temperature setting button to its previous position.
• Operate your refrigerator for 2 hours while it is empty and its doors are closed before replacing your food into the deep freezer.

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Stopping your product

If your thermostat is equipped with "0" position:

- Your product will stop operating when you turn the thermostat button to "0" (zero) position. Your product will not start unless to you turn the thermostat button to position "1" or one of the other positions again. If your thermostat is equipped with "min" position:

- Unplug your product to stop it.

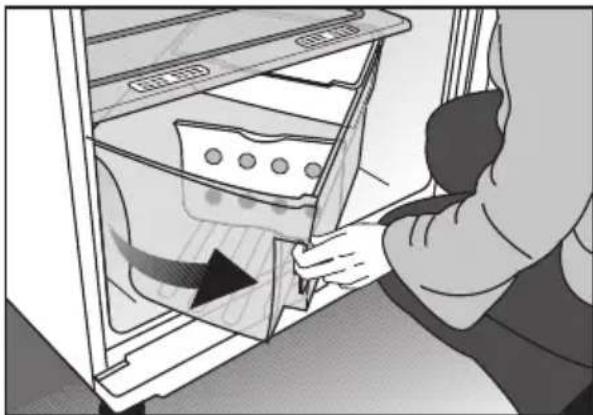

Using the rotary crisper (in some models)

The crisper of your refrigerator which opens with a rotating movement is designed specially to provide ease of usage and allow you to store more vegetables and fruits (large volume) you buy during large shopping.

When you grab and pull the handle on the lower left hand side of the crisper, it will rotate from left to right and open easily. The separator in the crisper will allow you to separate the vegetables and fruits according to their types and prevent them from crushing.

Person opening a refrigerator with a hand inserting a tray into the drawer (no visible text or symbols)

Making ice

Fill the ice container with water and place it into its seat. Your ice will be ready approximately in two hours. You can easily remove your ice by slightly twisting the ice container.

Crisper humidity control sliders

Using the crisper humidity control sliders

Crisper of your refrigerator is designed specially to keep your vegetables fresh without loosing their humidity. Cold air circulates basically around the crisper and the amount of the cold air passing through the crisper is controlled by the sliders on the front side of the crisper cover.

You can adjust the humidity control sliders to a suitable position according to the humidity and cooling condition of your food in the crisper.

If you want your food in the crisper to cool more, open the holes of the humidity control sliders and if you want them to cool less and keep their humidity for a longer time, close the holes.

Diagram of a vehicle front panel with two connectors and airflow arrows indicating movement (no text or symbols)

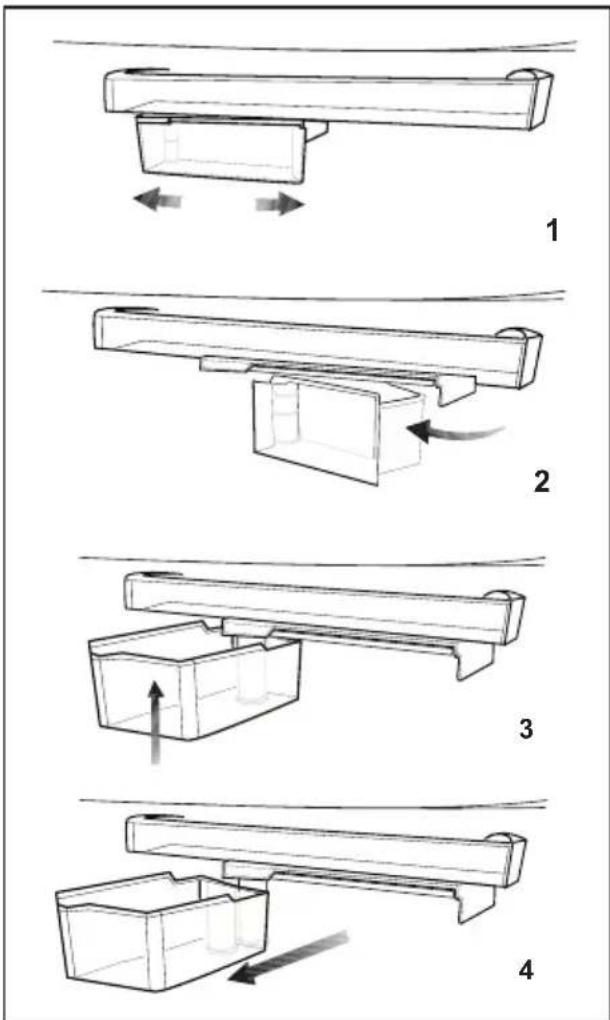

Rotary storage container

Sliding body shelf can be moved to left or right in order to allow you place long bottles, jars or boxes to a lower shelf (Fig. 1)

You can reach the food that you have placed into the shelf by grabbing and turning it from its right edge (Fig.2).

When you want to load or remove it to clean, turn it by 90 degrees, raise it up and pull towards yourself (Fig. 3-4).

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
⚠️ Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠️ Make sure that no water enters the lamp housing and other electrical items.
⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.• Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers.Leaving the door ajar. Switching the thermostat to a colder degree.• Decreasing the time the door left open or using it less frequently.• Covering the food stored in open containers with a suitable material.• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.• The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.• Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.• Are the temperature adjustments correctly made?• Power might be cut off.

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time.
• The ambient room temperature may be high. This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

- The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

- The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

- The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

- The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.

- Doors might have been opened frequently or left ajar for a long time; open them less frequently.

- Door might have been left ajar; close the door completely.

- Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.

- The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

- The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

The floor is not even or it is weak. The refrigerator rocks when moved slowly.Make sure that the floor is strong enough to carry the refrigerator, and level.The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

Hot and humid weather increases icing and condensation. It is normal and not a fault.Doors might have been left ajar; make sure that the doors are closed fully.Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

Food packages may prevent the door's closing. Replace the packages that are obstructing the door.The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram illustrating fluid flow through a container with labeled components and directional arrows

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Line drawing of a hand using a tool to measure a cylindrical object with a circular base (no text or symbols)

Illustration of a hand holding a cylindrical device with rotating arrows, no text or symbols present

Illustration of a hand holding a spoon above a surface with a vertical double-headed arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Gerät stoppen

Person opening a refrigerator with a bag, showing internal compartments and a hand inserting a bag (no text or symbols visible)

Diagram of a device's internal structure showing ventilation or airflow direction (no text or symbols)

Drehbarer Behälter

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

Diagram illustrating fluid flow through a container with labeled components and directional arrows

et nettoyage ».

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Line drawing of a hand using a tool to measure a cylindrical object with a circular component, mounted on a bracket (no text or symbols)

Illustration of a hand holding a cylindrical object with rotating arrows, mounted on a shelf (no text or symbols)

Illustration of a hand using a tool to apply a droplet onto a surface, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Person opening a refrigerator with a knife inserted, showing interior compartments and a downward arrow (no text or symbols)

Diagram of a car interior showing a hand pressing down on the back panel with two switches and arrows indicating airflow or movement (no text or symbols present)

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram illustrating fluid flow through a cooling unit with labeled components and directional arrows

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion or force (no text or symbols)

Line drawing of a hand using a tool to adjust a cylindrical component (no text or symbols present)

De deuren omkeren

Illustration of a hand holding a cylindrical device with rotating arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to apply liquid pressure on a surface, with a pencil and droplet symbol nearby (no text or labels)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Person opening a refrigerator with a bag being inserted (no visible text or symbols)

IJs maken

Diagram of a car interior showing a hand pressing down on a vehicle's side panel with two connected ports (no text or symbols present)

Roterend vak

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Line drawing of a hand using a tool to measure a cylindrical object with circular holes, mounted on a bracket (no text or symbols)

Vende dørene

Hand holding a cylindrical device with rotating arrows indicating motion (no text or symbols)

Illustration of a hand using a spoon to measure a droplet on a surface, with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Person opening a refrigerator with a hand inserting a tray into the drawer (no visible text or symbols)

Isfremstilling

Diagram of a device's internal structure with arrows indicating airflow or movement, no text or symbols present

Drejende opbevaringsbeholder

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

- Chladničku nezapájajte, ak je elektrická zásuvka uvoľnená.

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Line drawing of a hand using a tool to measure a cylindrical object with circular holes, mounted on a workbench (no text or symbols)

Obrátenie dverí

Illustration of a hand holding a cylindrical device with rotating arrows indicating motion (no text or symbols)

Illustration of a hand holding a tool over a surface with a downward arrow and a dot, no text or symbols present.

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Zastavenie vášho produktu

Person opening a refrigerator with a bag being inserted, showing a black arrow indicating direction (no text or symbols)

Tvorba l'adu

Zásobník na l'ad naplňte vodou a dajte ho na miesto. l'ad bude pripravený približne behom dvoch hodín.

Diagram of a vehicle's rear air vent system showing airflow direction (no text or labels)

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating movement.

6 Údržba a čistenie

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram illustrating heat transfer or cooling process with labeled components and directional arrows

Diagram showing two vertical supports with upward and downward arrows indicating rotational motion (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Смяна на лампата

Line drawing of a hand using a tool to measure a cylindrical object with circular holes, mounted on a metal frame (no text or symbols)

Обръщане на вратите

Illustration of a hand holding a cylindrical object with rotating arrows, inside a cabinet (no text or symbols)

Illustration of a hand holding a tool near a droplet on a surface, with a vertical arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Person inserting a device into a refrigerator (no visible text or symbols)

Ледогенериране

Diagram of a hand pressing down on a device panel with two connectors (no text or symbols visible)

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

Diagram showing a mechanical or electrical component inside a container with a lightning bolt and wiring (no text or symbols)

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Line drawing of a hand using a tool to measure a cylindrical object with circular holes, mounted on a metal frame (no text or symbols)

Illustration of a hand holding a cylindrical object with rotating arrows, inside a cabinet (no text or symbols)

θερμοστάτη

Illustration of a hand holding a tool over a surface with a downward arrow indicating direction (no text or symbols)

Απόψυξη

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Person opening a refrigerator with a door panel, showing a black arrow indicating airflow direction (no text or symbols)

Diagram of a device's internal structure showing ports and airflow direction (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

- Ne uključujte hladnjak ako je električna utičnica labava.

Diagram showing two labeled components (1 and 2) with directional arrows indicating flow or movement between them in a container-like structure.

Illustration of a hand using a tool to measure a cylindrical object with a circular feature, mounted on a metal frame (no text or symbols)

Illustration of a hand holding a cylindrical device with rotating arrows, no text or symbols present

Unutarnja temperatura vašeg hladnjaka se mijenja zbog sljedećih razloga:

• Temperatura godišnjih doba,

Illustration of a hand using a spoon to measure a droplet on a surface, with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Person opening a refrigerator with a bag being inserted (no visible text or symbols)

Pravljenje Ieda

Diagram of a device's internal structure showing ports and airflow direction (no text or symbols)

Rotirajuæi spremnik

Klizna polica kuæišta se mo e pomicati lijevo ili desno da bi sen a donju policu mogle staviti duge boce, staklenke ili kutije (Slika 1).

Moete dosegnuti hranu koju ste stavili na policu tako da je okreæete s desnog ruba (Slika 2). Kad je elite napuniti ili izvaditi zbog èišæenja, okrenite je za 90 stupnjeva, podignite i povucite prema sebi (Slike 3-4).

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Diagram showing a device with a lightning bolt and plug, no text or symbols present

Diagram showing airflow or heat transfer between two containers with labeled components 1 and 2, indicating fluid or material movement.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Line drawing of a hand using a tool to measure a cylindrical object with circular holes, mounted on a metal frame (no text or symbols)

Illustration of a hand holding a cylindrical device with rotating arrows indicating motion (no text or symbols)

Illustration of a hand holding a spoon above a surface with a vertical double-headed arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning a wall with a cloth (no text or symbols)

Person opening a refrigerator with a knife inserted, showing internal compartments and a curved arrow indicating motion (no text or symbols)

Diagram of a device's internal structure showing two ports with arrows indicating flow or movement (no text or symbols present)

Приготовление льда

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram showing airflow or heat transfer between two containers with labeled components 1 and 2, indicating fluid flow direction.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

Diagram of a mechanical or electrical setup with directional arrows indicating motion or force (no text or symbols)

Line drawing of a hand using a tool to measure a cylindrical object with a circular end, mounted on a bracket (no text or symbols)

Illustration of a hand using a tool to interact with a sphere, showing rotational motion (no text or symbols)

Illustration of a hand holding a spoon above a surface with a downward arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Person opening a refrigerator with a knife inserted, showing a black arrow indicating direction (no text or symbols)

Diagram of a device's internal structure showing ports and airflow direction (no text or symbols)

Приготування льоду

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

6 Догляд і чищення
