USER MANUAL PRC 331I A PRIVILEG

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

Close-up of wooden clothespins and clips, no text or symbols visible

Brugsanvisning

Bruksanvisning

Käyttöohje

Black and white photo of multiple glass bottles with black caps, arranged in a row (no visible text or symbols)

Black and white close-up of multiple glasses with blurred background (no text or symbols)

Οδηγίες χρήσης

Close-up of a metallic kitchen appliance with perforated door and mounting bracket (no visible text or symbols)

Návod k použití

Návod na použitie

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

Diagram of a refrigerator interior with labeled parts including refrigerator, oven, and food items

Illustration of a refrigerator with an open door and connected electrical cable, showing internal components (no text or symbols)

MONATE LEBENSMITTEL

1-3
4-7
8-12		[H0Y6]	[Y2X8]

Illustration of a refrigerator with an open door and a hand inserting a hose to the front door (no text or symbols)

Simple line drawing of a hand pressing down on a rectangular box (no text or symbols)

Illustration of a hand inserting a plug into a server rack with a magnified inset showing internal components (no text or symbols)

PRECAUTIONS AND GENERAL

RECOMMENDATIONS

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT

HOW TO OPERATE THE LOW TEMPERATURE

COMPARTMENT

HOW TO DEFROST AND CLEAN THE

REFRIGERATOR

CARE AND MAINTENANCE

TROUBLESHOOTING GUIDE

AFTER-SALES SERVICE

INSTALLATION

ELECTRICAL CONNECTION

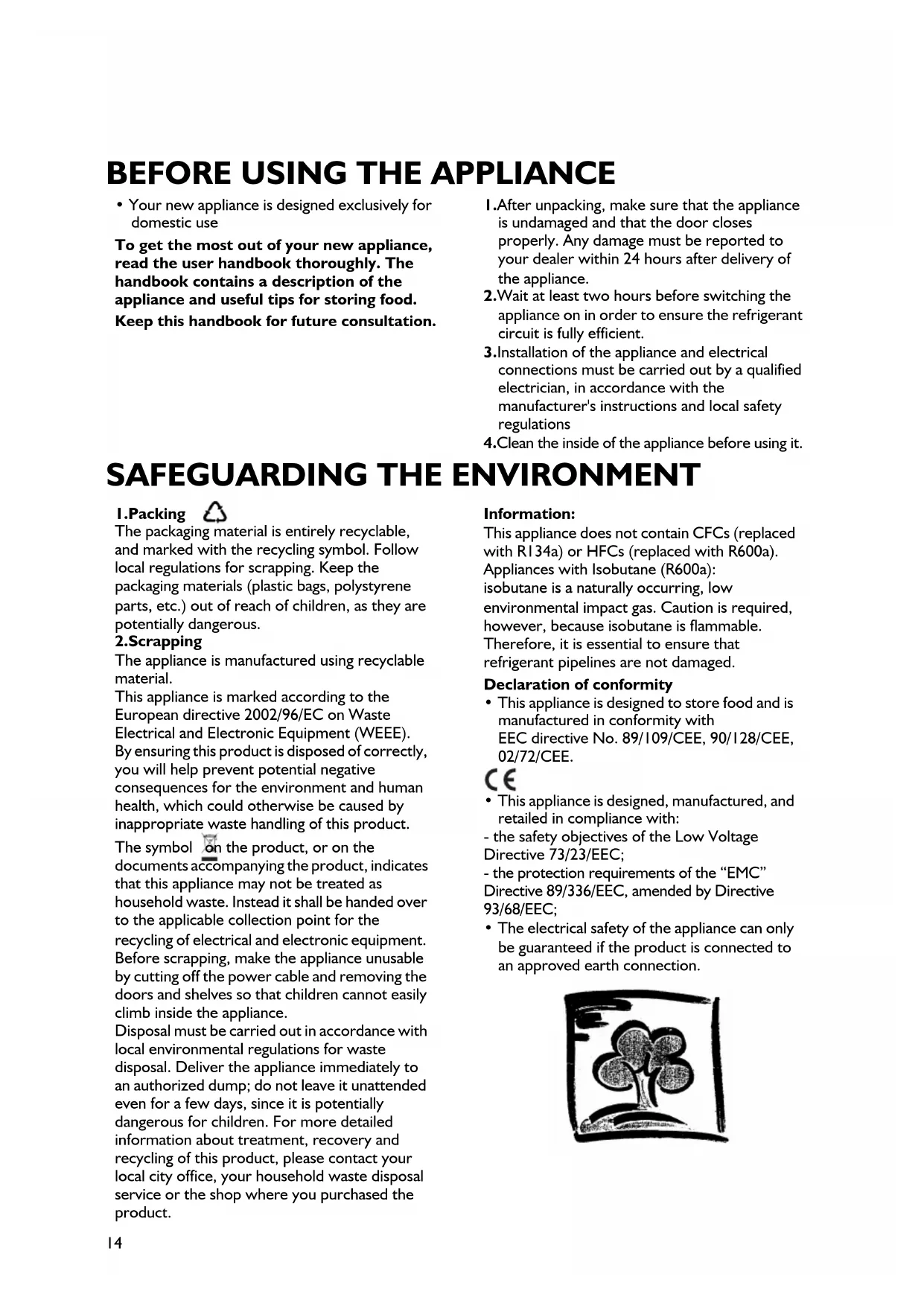

BEFORE USING THE APPLIANCE

- Your new appliance is designed exclusively for domestic use

To get the most out of your new appliance, read the user handbook thoroughly. The handbook contains a description of the appliance and useful tips for storing food. Keep this handbook for future consultation.

I. After unpacking, make sure that the appliance is undamaged and that the door closes properly. Any damage must be reported to your dealer within 24 hours after delivery of the appliance.
2. Wait at least two hours before switching the appliance on in order to ensure the refrigerant circuit is fully efficient.
3. Installation of the appliance and electrical connections must be carried out by a qualified electrician, in accordance with the manufacturer's instructions and local safety regulations
4. Clean the inside of the appliance before using it.

SAFEGUARDING THE ENVIRONMENT

I.Packing

The packaging material is entirely recyclable, and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.

2.Scrapping

The appliance is manufactured using recyclable material.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Before scrapping, make the appliance unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside the appliance.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. Deliver the appliance immediately to an authorized dump; do not leave it unattended even for a few days, since it is potentially dangerous for children. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Information:

This appliance does not contain CFCs (replaced with R134a) or HFCs (replaced with R600a). Appliances with Isobutane (R600a): isobutane is a naturally occurring, low environmental impact gas. Caution is required, however, because isobutane is flammable. Therefore, it is essential to ensure that refrigerant pipelines are not damaged.

Declaration of conformity

- This appliance is designed to store food and is manufactured in conformity with EEC directive No. 89/109/CEE, 90/128/CEE, 02/72/CEE.

CE

• This appliance is designed, manufactured, and retailed in compliance with:
• the safety objectives of the Low Voltage Directive 73/23/EEC;
• the protection requirements of the "EMC" Directive 89/336/EEC, amended by Directive 93/68/EEC;
• The electrical safety of the appliance can only be guaranteed if the product is connected to an approved earth connection.

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

PRECAUTIONS AND GENERAL RECOMMENDATIONS

• Use the refrigerator compartment only for storing fresh food and beverages and use the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
  • After installation, make sure that the appliance is not standing on the power supply cable.
• Do not store glass containers with liquids in the freezer since they may burst.
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.
• Before carrying out any maintenance or cleaning, always unplug the appliance or disconnect the power supply.
• Make sure that your appliance is not near a heat source.
• Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• To ensure proper ventilation leave a 1 cm space on both sides and above the appliance.
• Ensure that the vent outlets on the appliance casing or housing unit are unobstructed in order to allow correct air circulation.
• All appliances equipped with an ice maker or water dispenser must be connected to a mains water supply that delivers potable water only (with water pressure between 1.7 and 8.1 bar (25 and 117 PSI)). Ice makers and/or water dispensers not directly connected to a mains water supply must be filled with potable water only.
  • Install and level the appliance on a floor strong enough to take its weight and in an area suitable for its size and use.

• Install the appliance in a dry and well-ventilated place The appliance is set for operation at specific ambient temperature ranges, according to the climatic class indicated on the data plate: The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

Climatic class Amb. T. (°C) Amb. T. (°F)

SN From 10 to 32 From 50 to 90

N From 16 to 32 From 61 to 90

ST From 18 to 38 From 64 to 100

T From 18 to 43 From 64 to 10

• Be careful not to damage the floors when you move the appliance (e.g. parquet flooring).
• Do not use mechanical devices or any means other than those recommended by the manufacturer to speed up the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the freezer compartments, unless such appliances are specifically recommended by the manufacturer.
• This appliance is not designed for use by young children or the infirm.
• To avoid the risk of children being trapped and therefore suffocating, do not allow them to play or hide inside the appliance.
• The power cable may only be replaced by an authorized person.
• Do not use extension leads or adapters.
• It must be possible to disconnect the appliance from the mains by unplugging it or by means of a two-pole switch fitted upline of the socket.
• Ensure that the voltage indicated on the appliance data plate corresponds to the domestic supply voltage
• Do not ingest the contents (non-toxic) of the ice packs (if provided).

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

Switching on the appliance

Starting up the appliance

Depending on the model, the appliance is equipped with external controls or internal controls.

Plug in the appliance.

For appliances featuring external controls:

• The light, positioned either below the control panel or inside the appliance (depending on model) switches on each time the door is opened.
• The green LED lights up, indicating the appliance is operating.

For appliances featuring internal controls, when the appliance is connected to the mains the inside light switches on each time the door is opened (provided the thermostat is not turned to ●).

The thermostat, located inside the refrigerator compartment or on the front panel, is used to adjust the temperature of both the refrigerator compartment and low temperature compartment (if fitted).

Adjusting the temperature

I. For correct operation and optimum storage of food, follow instructions given in the enclosed product sheet for thermostat adjustment.
2. To adjust the temperature in the compartment, turn the thermostat control knob:

• lowest numbers 1-2/MIN for the LEAST COLD internal temperatures;
• numbers 3-4/MED for a MEDIUM internal temperature;
• highest numbers 5-7/MAX for the COLDEST internal temperatures.

Thermostat set to ●: all functions, including the inside light, are switched off.

Note:

The ambient air temperature, frequency of door opening and the position of the appliance can affect internal temperatures. These factors must be taken into account when setting the thermostat.

How to use the refrigerator compartment

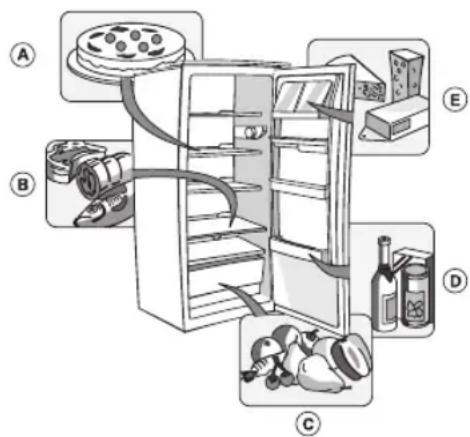

Position the food as shown in the figure.

A Cooked food

B Fish, meat
C Fruit and vegetables
D Bottles
E Cheese

Notes:

• The space between the shelves and the rear wall of the refrigerator compartment must be unobstructed to allow circulation of air.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
• Do not place hot food in the refrigerator.
• Store liquids in closed containers.

Important

Storing vegetables with high water content can cause condensation to form on the glass shelf of the crisper drawer: this will not affect the correct operation of the appliance.

Diagram of a refrigerator interior with labeled parts including a cake, refrigerator, oven, and food items

HOW TO OPERATE THE LOW TEMPERATURE COMPARTMENT

The low temperature compartment is ____ or ____

Compartments marked or can be used to store frozen foods for the period of time indicated on packaging. If the low temperature compartment is marked, can also be used to freeze fresh food.

The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate.

Note:

In the event of a power cut, the low temperature compartment will maintain a sufficiently low temperature for food storage. However, it is advisable to avoid opening the compartment door during such periods.

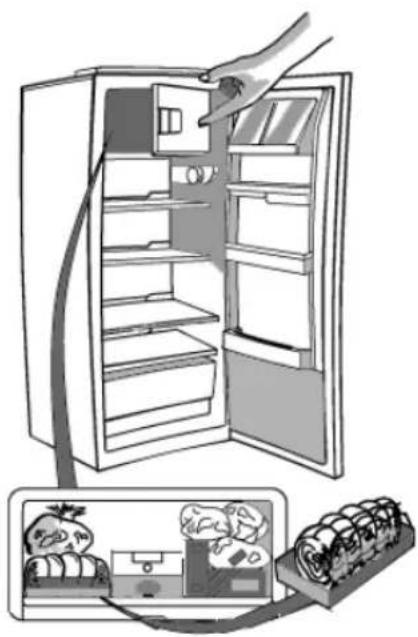

Freezing fresh food (only in compartments marked 📄++)

Important

• Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
• Arrange the fresh food in the top compartment, leaving sufficient space around each pack for the air to circulate.
• For optimum freezing, turn the thermostat down by half a point when placing fresh foods in the freezer compartment.
  • The food will be completely frozen in 24 hours.

For appliances with compartments marked

The table alongside shows the recommended maximum storage time for frozen fresh foods.

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Place the items in the low temperature compartment as soon as you get home.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
  • Always observe the storage information on the package.

Illustration of a refrigerator with an open door and cable, showing internal components (no text or symbols)

MONTHS FOOD

1-3
4-7
8-12

Making ice cubes

• Fill the ice cube tray 2/3 full and place it in the low temperature compartment.
• Do not use sharp or pointed instruments to detach the tray if it is stuck to the low temperature compartment bottom.
• Bend the ice tray slightly to remove the cubes.

HOW TO DEFROST AND CLEAN THE REFRIGERATOR

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Defrosting of the refrigerator compartment is completely automatic.

Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress.

The defrost water is automatically routed to a drain outlet and into a container from which it evaporates.

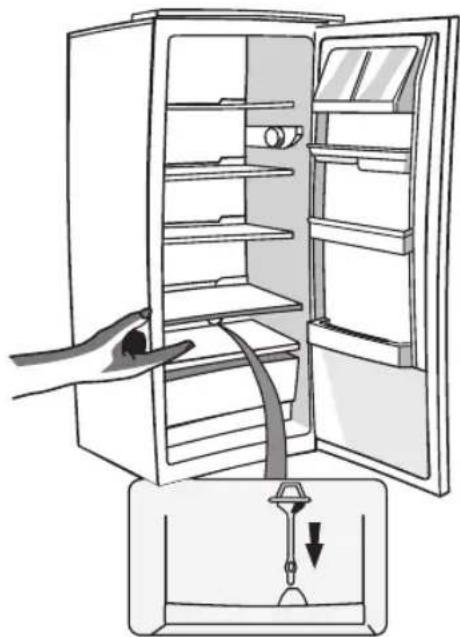

Clean the defrost water drain outlet regularly using the tool supplied with the appliance in order to ensure defrost water is removed correctly.

Defrosting the low temperature compartment

Defrost the low temperature compartment once or twice a year or when the ice formation is excessive.

It is perfectly normal for ice to form. The amount of ice which forms and the rate at which it accumulates will depends on room temperature and humidity, and on the frequency with which the door is opened.

Ice formation is concentrated at the top of the compartment and does not affect the efficiency of the appliance.

If possible, carry out defrosting when the compartment is nearly empty.

• Remove the food from the low temperature compartment, wrap in a newspaper and group together in a cool place or in a portable cooler.
• Leave the door open to allow the frost to melt.
• Clean the interior with a sponge soaked in warm water and/or neutral detergent. Do not use abrasive substances.
• Rinse the interior and dry thoroughly.
• Put the food back into the compartment.
• Close the door.
• Plug in the appliance once again.
• Switch the appliance on.

Illustration of a hand opening the refrigerator with a piping bag inserted, showing liquid level (no text or symbols)

CARE AND MAINTENANCE

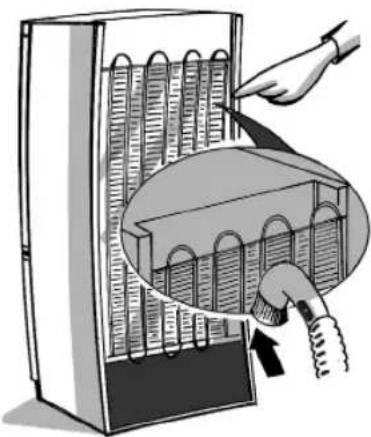

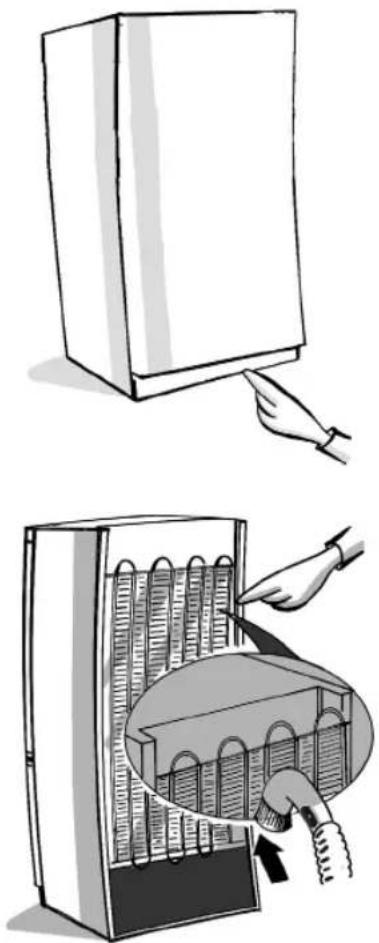

• Periodically clean air vents and the condenser at the rear of the appliance with a vacuum cleaner or a brush.
• Clean the outside using a soft cloth.

Prolonged disuse

I. Empty the refrigerator.
2. Disconnect the appliance from the power supply.
3. Defrost and clean the interior.
4. In the event of prolonged disuse, leave the door open to prevent the formation of mould, odours and oxidation.

1. Clean the appliance.

2. Clean the inside of the low temperature compartment (where fitted) when defrosting.

3. Periodically clean the inside of the refrigerator compartment with a sponge dampened in warm water and/or neutral detergent. Rinse the interior and dry with a soft cloth. Do not use abrasive products.
4. Clean the outside with a damp cloth. Do not use abrasive products, scourers, stain-removers (e.g. acetone, trichloroethylene) or vinegar.

Illustration showing a hand inserting a device into a rack with a magnified inset of the rack (no text or symbols present)

TROUBLESHOOTING GUIDE

I. The appliance is not working.

• Is there a power failure?
• Is the plug properly inserted in the socket?
• Is the double-pole switch on?
- Has the fuse blown?
• Is the power cord in perfect condition?
• Is the thermostat set to ● (Stop)?

2. Temperature inside the compartments is not low enough.

• Is the door shut properly?
• Is food obstructing proper door closure?
- Is the appliance installed near a heat source?
• Is the thermostat setting correct?
- Are the air circulation vents blocked?

3. Temperature inside the refrigerator compartment is too low.

• Is the thermostat setting correct?

4. The appliance is excessively noisy.

• Has the appliance been installed correctly?
• Are the pipes at the back touching or vibrating?

5. Water collects at the bottom of the refrigerator compartment.

• Is the defrost water drain blocked?

6. Excessive frost build-up in the low temperature compartment.

• Is the door shut properly?
• Is food obstructing proper door closure?

Notes:

Gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

I. See if you can solve the problem yourself with the help of the "Troubleshooting guide".
2. Switch the appliance on again to see if the problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.
3. If the problem persists after this course of action, contact After-sales Service.

Specify:

• the nature of the problem
• the model
• the Service number (the number after the word SERVICE on the data plate on the inside of the appliance)
- your full address
- your telephone number and area code.

SERVICE

0000 000 00000

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

INSTALLATION

• Install the appliance away from heat sources. Installation in a hot place, near heat sources (radiators, cookers) or direct exposure to the sun will increase energy consumption and should be avoided.
• If this is not possible, respect these minimum distances:
- 30 cm from coal or oil stoves;
- 3 cm from electric and/or gas cookers.
• For optimum operation, ensure:
- a space of at least 5 cm above the appliance;
- a distance of at least 4 cm from the rear wall;
- place other cabinets at a suitable distance from the appliance to allow at least some air circulation
- a space of at least 5 cm above the appliance; - a distance of at least 4 cm from the rear wall; - place other cabinets at a suitable distance from the appliance to allow at least some air circulation
• Install the appliance level (adjust the front feet if necessary) in a dry and well-aired place.
- Clean the inside.
- Insert the accessories supplied.

Electrical connection

• The electrical connections must comply with the local regulations.
• Voltage and power input are specified on the rating plate inside the appliance.
- Regulations require the appliance to be earthed. The manufacturer declines any liability for injury or damage resulting from failure to observe the above rules.
- If the plug and socket are not of the same type, have the socket replaced by a qualified technician.
- Do not use extension leads or multi-adapters.

Electrical disconnection

It must be possible to electrically disconnect the appliance by unplugging it or by means of a double-pole switch installed ahead of the socket.

ELECTRICAL CONNECTION

For Great Britain only

Warning - this appliance must be earthed

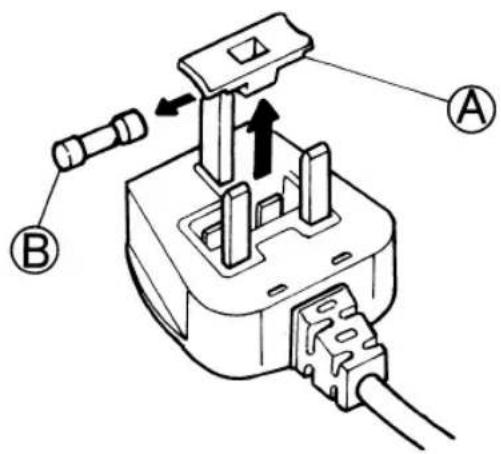

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

I. Remove the fuse cover (A) and fuse (B).
2. Fit replacement I3A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, Please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.

Technical diagram of a mechanical switch or plug assembly with labeled parts A and B, showing internal components and directional arrows.

MODE D'EMPLOI

AVANT D'UTILISER L'APPAREIL

CONSEILS POUR LA PROTECTION DE L'ENVIRONNEMENT

PRÉCAUTIONS EN CAS D'ABSENCE OU DE DÉMÉNAGEMENT

COMMENT FAIRE FONCTIONNER LE COMPARTIMENT RÉFRIGÉRATEUR

COMMENT FAIRE FONCTIONNER LE COMPARTIMENT BASSE TEMPÉRATURE

COMMENT DÉGIVRER ET NETTOYER LE RÉFRIGÉRATEUR

NETTOYAGE ET ENTRETIEN

DIAGNOSTIC RAPIDE

SERVICE APRÈS-VENTE

INSTALLATION

AVANT D'UTILISER L'APPAREIL

Simple black-and-white sketch of a three-leaf clover tree on a hill (no text or symbols)

PRÉCAUTIONS EN CAS D'ABSENCE OU DE DÉMÉNAGEMENT

Diagram of a refrigerator with labeled parts including a cheese roll, refrigerator, oven, and food items

COMMENT FAIRE FONCTIONNER LE COMPARTIMENT BASSE TEMPÉRATURE

Illustration of a hand inserting a refrigerator into an open refrigerator, with a close-up of the interior showing household appliances (no text or symbols present)

MOIS ALIMENTS

1-3
4-7
8-12			[ZX6K]

Production de glaçons

Illustration of a refrigerator with an open door and a hand inserting a piping bag into the drawer (no text or symbols)

NETTOYAGE ET ENTRETIEN

Simple line drawing of a hand pressing down on a rectangular box (no text or symbols)

Illustration of a hand inserting a plug into a server rack with a magnified inset showing internal components (no text or symbols)

DIAGNOSTIC RAPIDE

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

ALGEMENE VOORZORGSMAATREGELEN EN ADVIEZEN

Diagram of a refrigerator interior with labeled parts including a plate, refrigerator, oven, and food items

Illustration of a refrigerator with an open door and cable, showing internal components (no text or symbols)

MAANDEN VOEDSEL

1-3
4-7
8-12

Ijsblokjes maken

Illustration of a hand opening the refrigerator with a piping bag inserted, showing liquid level (no text or symbols)

REINIGING EN ONDERHOUD

Illustration showing a hand inserting a device into a rack with a magnified inset of the rack (no text or symbols present)

STORINGEN OPSPOREN

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

PRECAUCIONES Y SUGERENCIAS GENERALES

Diagram of a refrigerator with labeled parts including a plate, refrigerator, oven, and food items

PUESTA EN MARCHA DEL COMPARTIMENTO DE BAJA TEMPERATURA

Illustration of a refrigerator with an open door and cable, showing internal compartments and a close-up of a battery pack (no text or symbols)

MESES ALIMENTOS

1-3
4-7
8-12

Line drawing of a refrigerator with an open door and a hand inserting a piping bag into the drawer (no text or symbols)

LIMPIEZA Y MANTENIMIENTO

Simple line drawing of a hand pressing down on a rectangular object (no text or symbols)

Illustration of a hand inserting a plug into a server rack with a magnified inset showing internal components (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree on a curved base (no text or symbols)

PRECAUÇÕES E SUGESTÕES GERAIS

Diagram of a refrigerator interior with labeled parts including a plate, refrigerator, oven, and food items

Illustration of a refrigerator with an open door and cable, showing internal components (no text or symbols)

MESES ALIMENTOS

1-3
4-7
8-12

Cubos de gelo

Illustration of a refrigerator with an open door and a hand inserting a piping bag into the sink (no text or symbols)

Illustration showing a hand inserting a device into a rack with a magnified inset of the rack (no text or symbols present)

GUIDA RICERCA GUASTI

SERVIZIO ASSISTENZA TECNICA

INSTALLAZIONE

PRIMA DI USARE IL PRODOTTO

Simple black-and-white sketch of a four-leaf clover tree on a hill, enclosed in a square frame (no text or symbols)

Diagram of a refrigerator interior with labeled parts including a plate, drawer, and food items

COME FAR FUNZIONARE IL COMPARTO A BASSA TEMPERATURA

Illustration of a refrigerator with an open door and cable, showing internal components (no text or symbols)

MESI CIBI

1-3
4-7
8-12

Line drawing of a refrigerator with an open door and a hand inserting a piping bag into the drawer (no text or symbols)

Illustration showing a hand inserting a device into a rack with a magnified inset (no text or symbols)

GUIDA RICERCA GUASTI

Simple black-and-white sketch of a four-leaf clover with a curved trunk (no text or symbols)

Diagram of a refrigerator interior with labeled parts including a plate, refrigerator, oven, and food items

Illustration of a hand inserting a refrigerator into an open refrigerator, with an inset showing a close-up of the appliance (no text or symbols present)

MHNEΣ	TPOΦIMA
1-3
4-7
8-12

Παραγωγή παγοκύβων

Illustration of a hand opening the refrigerator with a water tap and outlet pipe (no text or symbols)

Illustration showing a hand inserting a device into a rack with a magnified inset of the rack (no text or symbols)

INNAN APPARATEN ANVÄNDS

MILJÖRÅD

FÖRSIKTIGHETSÅTGÄRDER OCH ALLMÄNNA FÖRSLAG

ANVÄNDNING AV KYLDELEN OCH DESS FUNKTIONER

ANVÄNDNING AV FRYSFACKET OCH DESS FUNKTIONER

AVFROSTNING OCH RENGÖRING AV KYLSKÅPET RENGÖRING OCH UNDERHÅLL

FELSÖKNING

KUNDTJÄNST

INSTALLATION

INNAN APPARATEN ANVÄNDS

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

FÖRSIKTIGHETSÅTGÄRDER OCH ALLMÄNNA FÖRSLAG

Diagram of a refrigerator with labeled parts including a plate, refrigerator, oven, and food items

ANVÄNDNING AV FRYSFACKET OCH DESS FUNKTIONER

Frysfacket är

Illustration of a refrigerator with an open door connected to a battery, showing internal components and wiring (no text or symbols)

MÅNADER LIVSMEDEL

1-3
4-7
8-12

Line drawing of a refrigerator with an open door and a hand inserting a plug into the drawer (no text or symbols)

RENGÖRING OCH UNDERHÅLL

Simple line drawing of a hand pressing down on a rectangular box (no text or symbols)

Illustration of a hand inserting a plug into a server rack with a magnified inset showing internal components (no text or symbols)

FELSÖKNING

F∅R APPARATET TAS I BRUK

MILJ∅VENNLIG BRUK

GENERELLE RÅD

BRUK AV KJ∅LESEKSJONEN

BRUK AV LAVTEMPERATURSEKSJONEN

AVRIMING OG RENGJ∅RING AV KJ∅LESKAPET

RENGJ∅RING OG VEDLIKEHOLD

FEILS∅KINGSLISTE

SERVICE

INSTALLASJON

F∅R APPARATET TAS I BRUK

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

GENERELLE RÅD

Diagram of a refrigerator interior with labeled parts including a plate, refrigerator, oven, and food items

BRUK AV LAVTEMPERATURSEKSJONEN

Illustration of a hand inserting a plastic into an open refrigerator with cable, alongside a close-up of a household appliance inside a rack (no text or symbols)

MÅNEDER MATVARER

1-3
4-7
8-12

Illustration of a refrigerator with an open door and a hand inserting a piping bag into the sink (no text or symbols)

RENGJ∅RING OG VEDLIKEHOLD

Illustration showing a hand inserting a device into a rack with a magnified inset of the rack (no text or symbols present)

FEILS∅KINGSLISTE

OPLYSNINGER OM MILJ∅HENSYN

ADVARSLER OG GENERELLE RÅD

BRUG AF K∅LESKABET

BRUG AF FROSTBOKSEN

AFRIMNING OG RENG∅RING AF K∅LESKABET

RENG∅RING OG VEDLIGEHOLDELSE

FEJLFINDINGSOVERSIGT

SERVICEASSISTANCE

OPSTILLING

F∅R K∅LESKABET TAGES I BRUG

OPLYSNINGER OM MILJ∅HENSYN

I.Emballage

Simple black-and-white sketch of a three-leaf clover tree on a hill (no text or symbols)

ADVARSLER OG GENERELLE RÅD

Diagram of a refrigerator interior with labeled parts including a cake, cheese, milk, and various food items.

BRUG AF FROSTBOKSEN

Illustration of a refrigerator with an open door and cable, showing internal components connected to an electronic device (no text or symbols present)

MÅNEDER MADVARER

1-3
4-7
8-12		[kTC8]

Illustration of a refrigerator with an open door and a hand inserting a plug into the drawer (no text or symbols)

RENG∅RING OG VEDLIGEHOLDELSE

Simple line drawing of a hand pressing down on a rectangular object (no text or symbols)

Illustration of a hand inserting a plug into a server rack with a magnified inset showing internal components (no text or symbols)

FEJLFINDINGSOVERSIGT

Simple black-and-white sketch of a four-leaf clover tree on a curved ground (no text or symbols)

VAROTOIMIA JA YLEISIÄ SUOSITUKSIA

Diagram of a refrigerator interior with labeled parts including a plate, refrigerator, oven, and food items

Illustration of a refrigerator with an open door and cable, showing internal components (no text or symbols)

KK ELINTARVIKKEET

1-3
4-7
8-12

Illustration of a hand opening the refrigerator with a piping bag and faucet (no text or symbols)

HUOLTO JA PUHDISTUS

Illustration showing a hand inserting a device into a rack with a magnified inset of the rack (no text or symbols present)

VIANETSINTÄ

I. Laite ei toimi.
