VIBRA Trainer Elite / VIBRA Trainer Elite Pro Model: SE212 / SE233

User Manual

VIBRA Trainer Elite / VIBRA Trainer Elite Pro Model: SE212 / SE233 USER MANUAL

TABLE OF CONTENTS

Introduction 3

Key Features......4

Watch 4

LCD Display 5

Getting Started 8

Unpacking the Watch 8

Turning On the Watch (First-Time Use Only) 8

Batteries 8

Wearing the Chest Belt and Watch 11

Transmission Signal 12

Signal Search 14

Setting the Keypad Tone / Light Mode 14

Activating the Backlight.... 15

Activating the Keypad Lock 15

Switching Between Operation Modes 15

Using the Clock 16

Using the Alarm(s) 17

Setting the Alarm(s) 17

Turning the Alarm Sound Off 17

Activating / Deactivating the Alarm 18

Exercise Profile 18

Target Activity 20

Maximum / Lower / Upper Heart Rate Limit 20

Heart Rate Alert 21

User Profile 21

Activity Level 23

About the Fitness / Body Mass Index 23

Fitness Index 23

Body Mass Index (VIBRA Trainer Elite Pro Only) 24

View Fitness / Body Mass Index 25

About the SMART TRAINING PROGRAM 25

Using the SMART TRAINING PROGRAM 26

View Data while SMART TRAINING PROGRAM is Running .. 27

View SMART TRAINING PROGRAM Memory Records ... 28

Recovery Heart Rate (VIBRA Trainer Elite Pro Only) ...... 28

Stopwatch 29

View Data while Stopwatch / Lap is Running 29

View Stopwatch or Lap Memory Records 30

Training Information 31

How the Heart Rate Monitor Helps You 31

Training Tips 32

Care Instructions 32

Aquatic and Outdoor Activities.... 33

Tips for Keeping Your Watch Fit 33

Specifications 33

Warnings 35

About Oregon Scientific .... 35

EU-Declaration of Conformity 36

INTRODUCTION

Thank you for selecting the Oregon Scientific™ VIBRA Trainer Elite (SE212) / VIBRA Trainer Elite Pro (SE233) watch as your sports fitness product of choice. This precision device includes the following features:

• Heart rate monitor with cordless transmission between watch and chest belt.
• Digital coding system to reduce environmental interference.
• Heart rate monitoring system when you go above or below your upper and lower heart rate limit.
• Vibration, visual or sound alert for heart rate thresholds during training.
  • Memory stores heart rate figures during exercise.
• SMART TRAINING PROGRAM enables you to complete exercise cycles effectively.
• Calorie consumption and percent fat burn display during and after exercise.
• Exercise profile - to calculate your personal heart rate limit for training.
• User profile - to calculate your fitness index and body mass index (BMI - VIBRA Trainer Elite Pro only).
• Stopwatch.
• 99 lap memory storage showing average heart rate and maximum heart rate. (VIBRA Trainer Elite Pro only.)
• Dual alarms with a choice of daily, weekday or weekend settings.
• Mounting bracket, chest belt and carrying case included.
• Watch - up to 50 metres water resistant.
• Chest belt - splash proof.

IMPORTANT The use of the SE212 or SE233 watch is for sport purposes only and it is not meant to replace any medical advice.

This manual contains important safety and care information, and provides step-by-step instructions for using this product. Read the manual thoroughly, and keep it in a safe place in case you need to later refer to it.

WATCH

SE212 - VIBRA Trainer Elite

SE233 - VIBRA Trainer Elite Pro

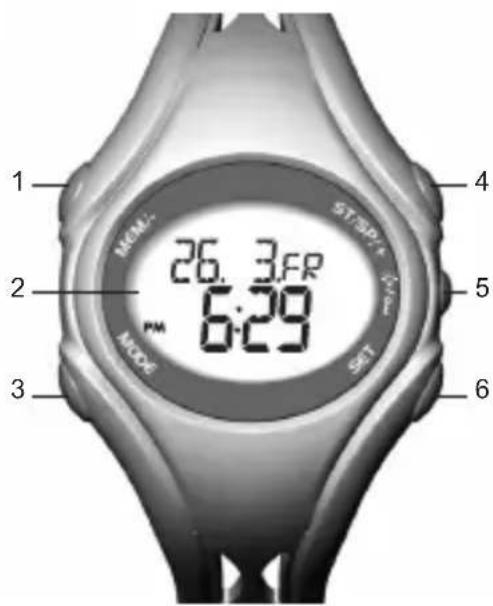

1 MEM: 26.3 FR 6:29 STOP: NOCK SET 4 5 6 3

1 UMEN- 26.3 FR 6:29 ST/SP/ MAX SET

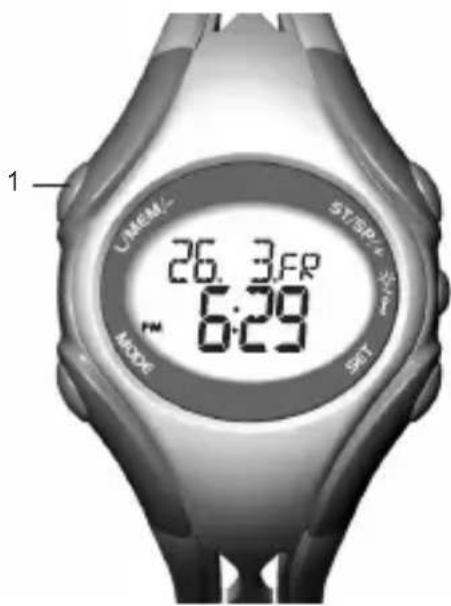

1. • VIBRA Trainer Elite only - MEM / -: Display training records; decrease setting value.

- VIBRA Trainer Elite Pro only - L / MEM / -: Display training records; decrease setting value; mark a lap.

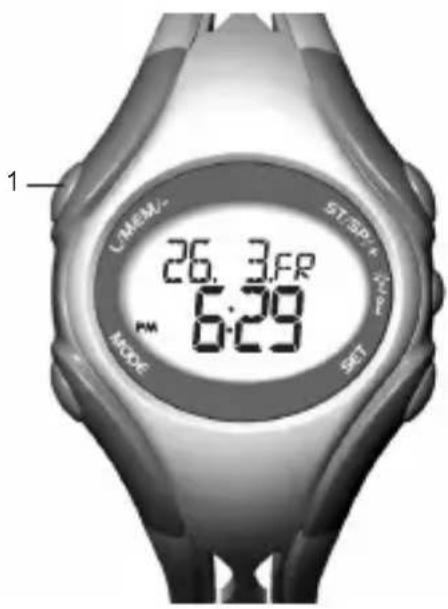

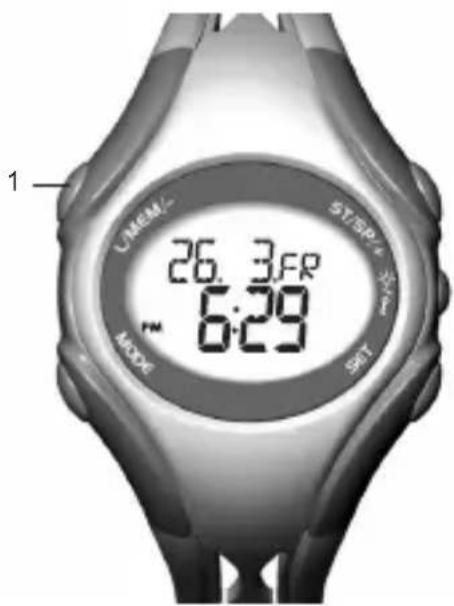

1. LCD display.
2. MODE: Switch to another display.
3. ST / SP / +: Start / stop timer; increase setting value.
4. ⚙ / —: Turn on backlight for 3 seconds; lock / unlock the keypad.
5. SET: Enter Setting Mode; select another setting option; display different information during training; reset timer / stopwatch.

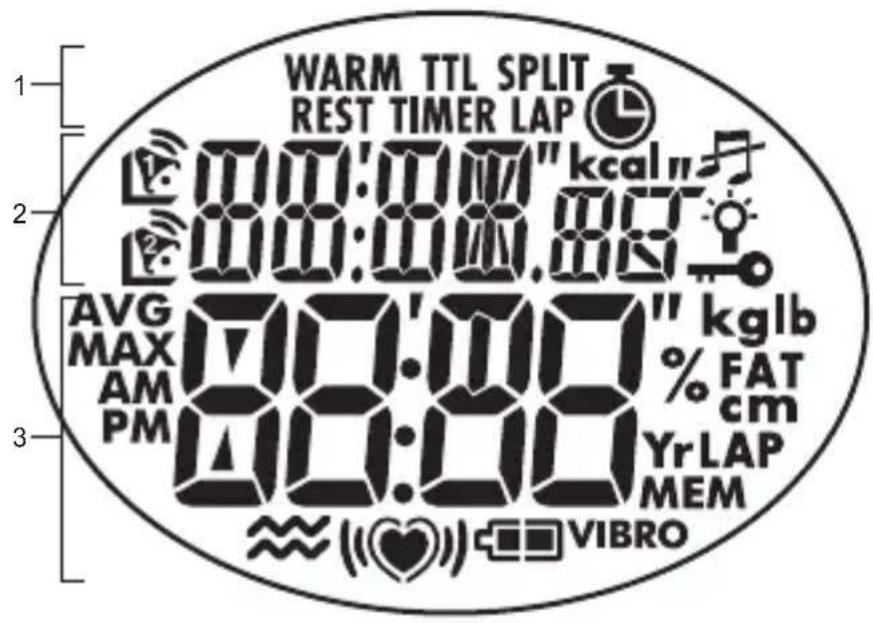

WARM TTL SPLIT REST TIMER LAP 1 2 3 AVG MAX AM PM 80:00 80:00 80:00 kcal kglb % FAT cm YrLAP MEM VIBRO

1. Area 1
2. Area 2
3. Area 3

Area 1

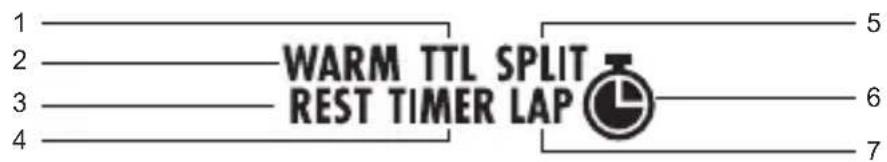

1 2 3 4 WARM TTL SPLIT REST TIMER LAP 5 6 7

1. TTL: Total exercise time is displayed.
2. WARM: Warm-up timer is shown or running.
3. RESET: Recovery timer is shown or running.
4. TIMER: SMART TRAINING PROGRAM is shown or running.

5. SPLIT: Shows and calculates split time (VIBRA Trainer Elite Pro only).

6. ☑: Stopwatch is shown or running.

7. LAP: Shows current lap time or memory lap time (VIBRA Trainer Elite Pro only).

Area 2

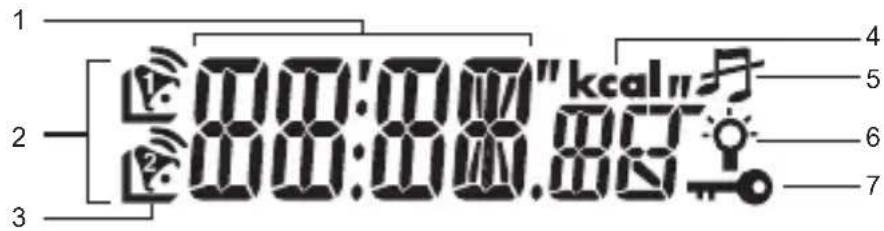

1 2 3 8:00:00"kcal" 8:00:00.86" 4 5 6 7

1. Date: MM:DD or DD:MM and day of the week; stopwatch time.
2. / : Alarm 1 and 2 time; waves show when alarm is activated.
3. L: Cursor highlights the selected alarm in Alarm Mode.
4. kcal: Calorie unit.
5. 归: Keypad tone is disabled.
6. 🔗: Light Mode is enabled.
7. →: Keypad lock is enabled.

Area 3

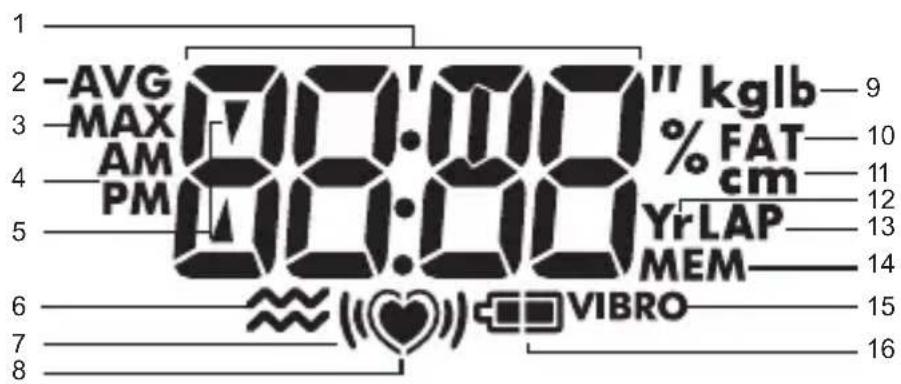

1 2 -AVG MAX 80:00" kglb—9 3 AM % FAT cm—10 4 PM YrLAP—11 5 MEM—12 6 VIBRO—13 7 ———— 14 8 ———— 15 16

1. Time: HH:MM.
2. AVG: Average heart rate is displayed.
3. MAX: Maximum heart rate is displayed (VIBRA Trainer Elite Pro only).
4. AM / PM: Appears when the 12-hour clock / alarm is being used.
5. ▲/▼: Flash in Timer / Stopwatch Mode when the heart rate is above or below the upper and lower zone.
6. ≈: Heart rate alert is set to vibrate.
7. “”: Heart rate is above or below limit; sound alert is activated.
8. ♥: Flashes when receiving heart rate signal.

9. kg / lb: Body weight unit.

10. % FAT: Percentage of fat burn.

11. cm: Height unit.
12. Yr: Year of user's birth.
13. LAP: Take lap; lap number (VIBRA Trainer Elite Pro only).
14. MEM: Stopwatch or timer memory is shown.
15. VIBRO: Battery is too low for vibrate function.
16. : Battery status.

UNPACKING THE WATCH

When you unpack your VIBRA Trainer Elite / VIBRA Trainer Elite Pro watch, make sure to keep all the packing materials in a safe place, in case you need to later transport or return the product for servicing.

In this box, you will find:

• Watch
  • Heart rate chest belt
• Mounting bracket
• Carry case
• 2 x CR2032 lithium batteries - already installed

TURNING ON THE WATCH (FIRST-TIME USE ONLY)

Press any key for 2 seconds to activate the LCD display.

BATTERIES

The VIBRA Trainer Elite / VIBRA Trainer Elite Pro uses two CR2032 lithium batteries, one for the watch and another for the heart rate chest belt. Both are already installed. See the table below for battery warnings.

LOW BATTERY ICON DESCRIPTION
	The battery is too low to run the backlight
VIBRO	The battery is too low to run the vibration alert
	The watch battery is low; the vibration alert and backlight cannot be used
	The chest belt battery is nearly too low to send a signal to the watch

The batteries typically last one year. We highly recommend that you contact the retailer or our customer service department if you need to replace them.

To replace the watch battery:

Close-up of a mechanical component with an arrow indicating direction and a small circular symbol at the base (no visible text or symbols)

SOUTH MACHIN SOUTH MACHIN 1.5 mm x 0.5 mm 2.5 mm x 0.5 mm

Abstract 3D geometric shape with arrow and circular center (no text or symbols)

Medical diagram showing a surgical procedure with an arrow indicating direction and a plus symbol (no text or labels)

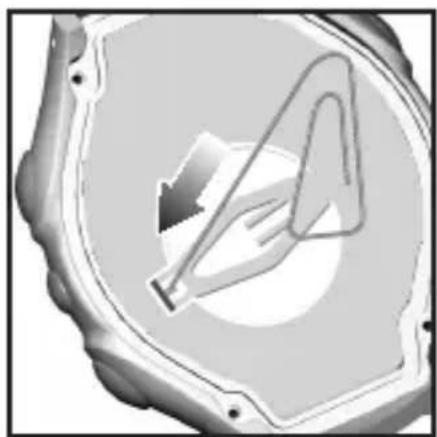

1. Turn the watch over so that you are looking at the back plate.

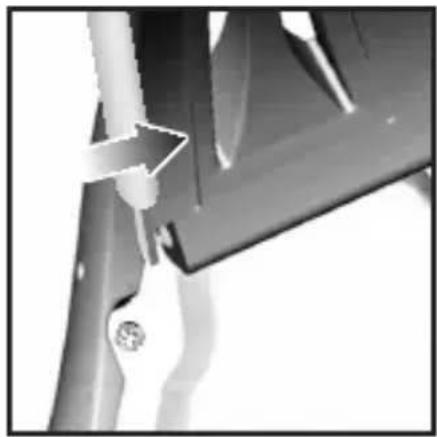

2. Disconnect the watchstrap as shown above.

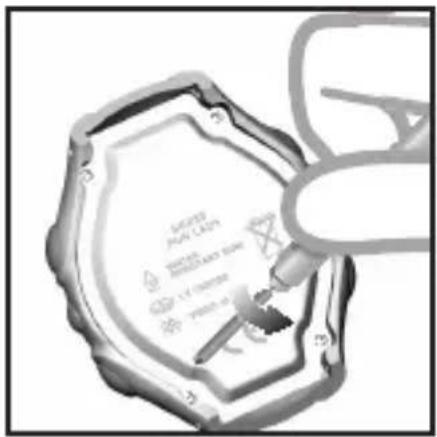

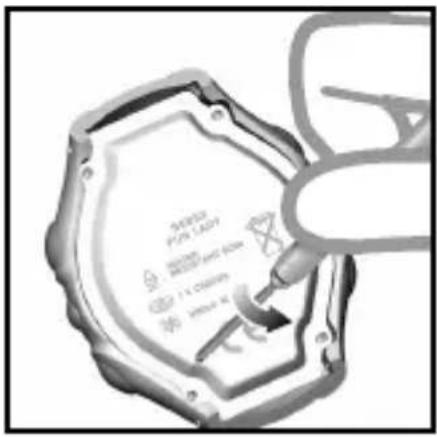

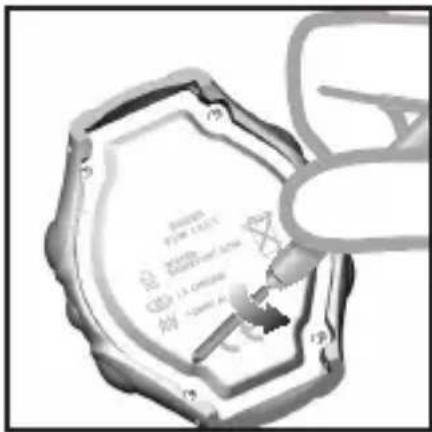

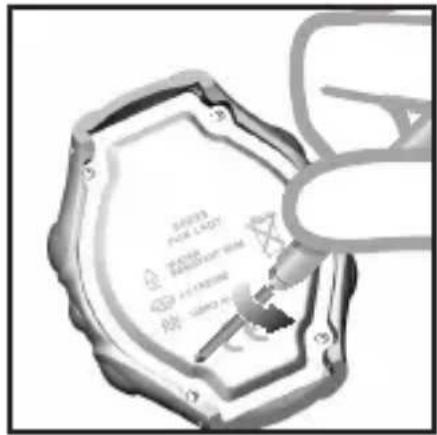

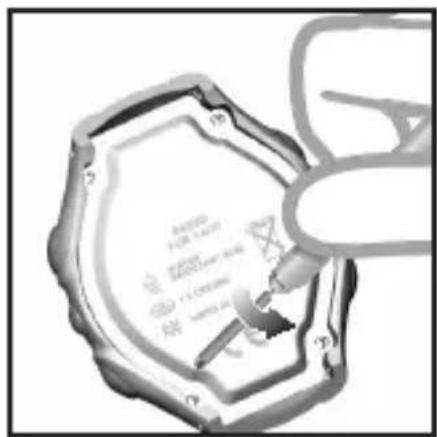

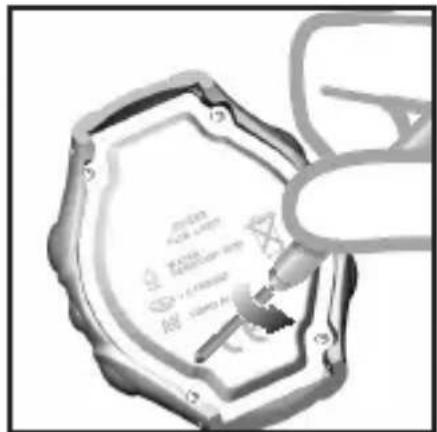

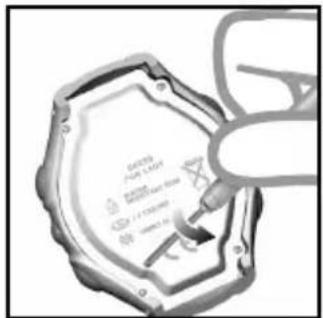

3. Using a small screwdriver, remove the four screws that hold the back plate into position.
4. Remove the back plate and set it aside.

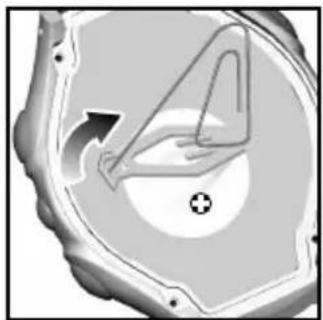

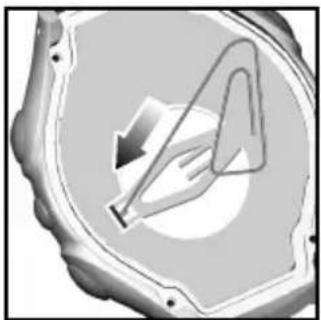

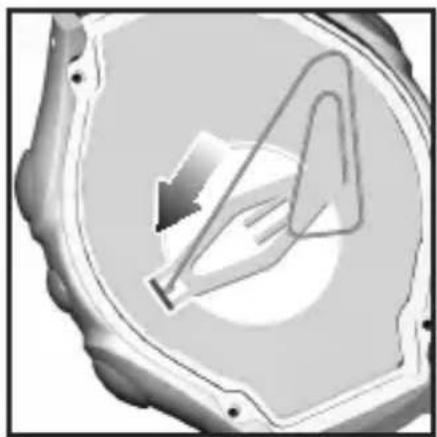

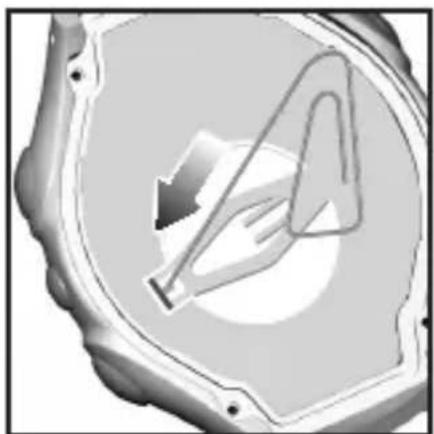

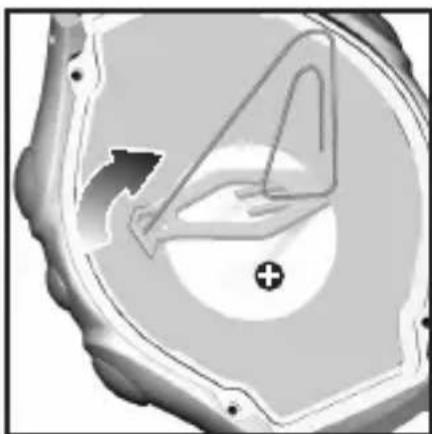

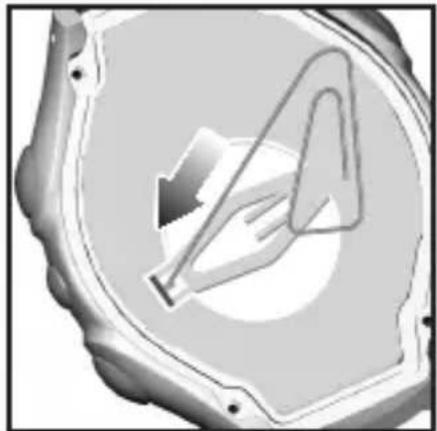

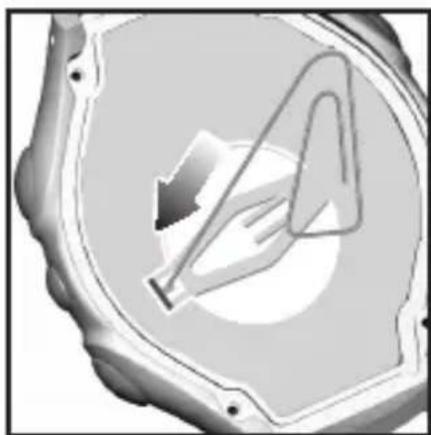

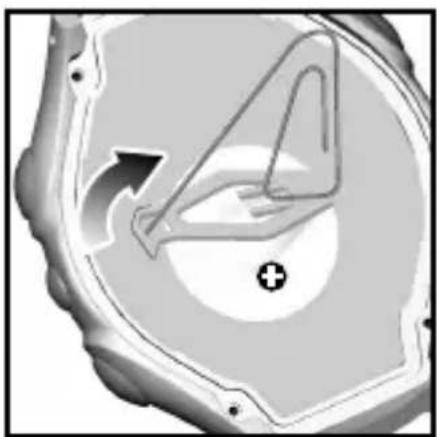

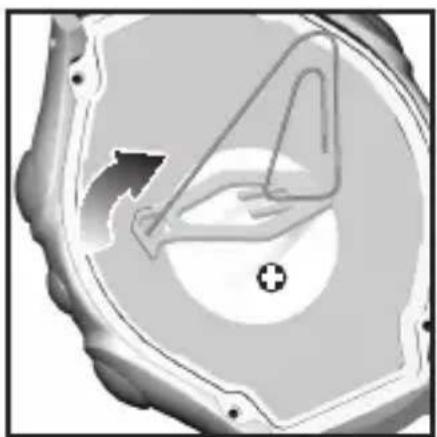

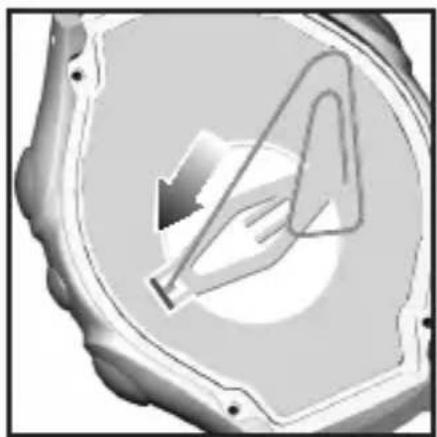

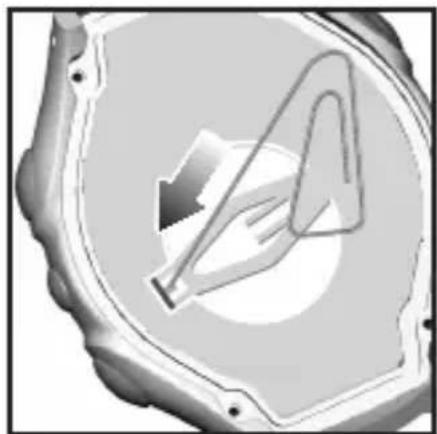

5. Using a thin blunt instrument, hook the release catch and lift the clip.
6. With your finger, remove the old battery and set it aside.

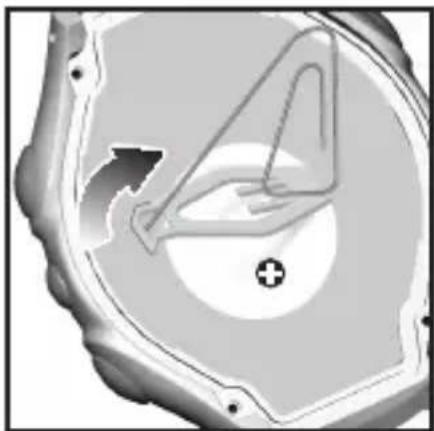

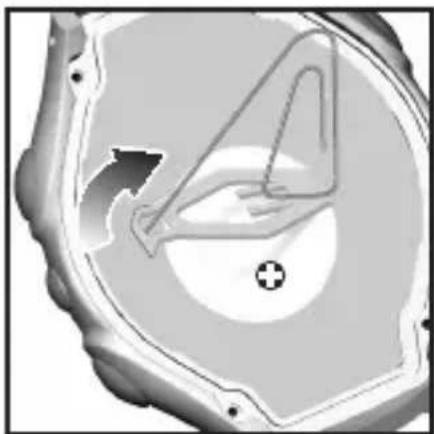

7. Slide the new battery into the battery compartment with the + side upwards.
8. Replace the battery clip.
9. Replace the back plate and screws.

To replace the chest belt battery:

Two grayscale images showing a circular component being turned into a ring, with one view showing a plus symbol (no text or symbols present)

1. Locate the battery compartment on the back of the chest belt.

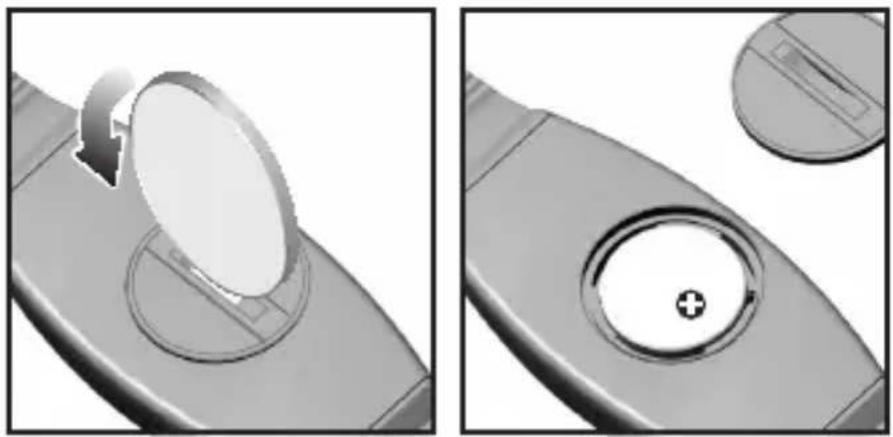

2. Using a coin, as shown above, twist the compartment lid counter-clockwise until it clicks out of place.
3. Set the battery compartment lid aside.
4. With your finger, remove the old battery and set it aside.

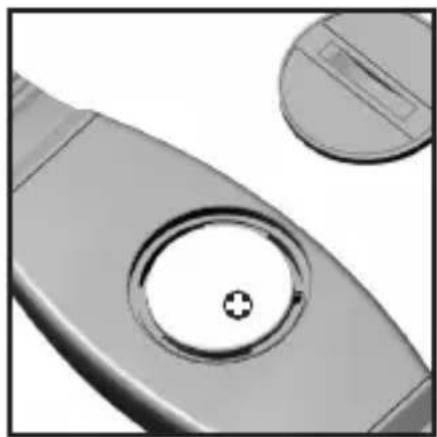

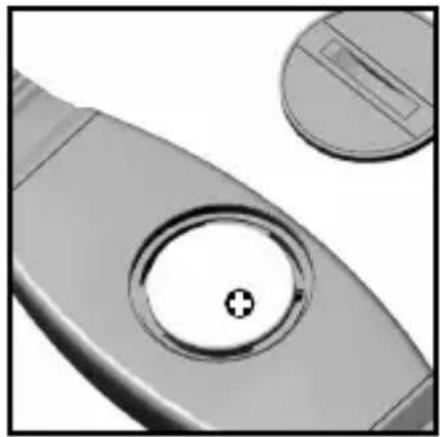

5. Insert the new battery with the + side upwards.
6. Replace the battery compartment lid by twisting it clockwise until it is firmly in place.

IMPORTANT

• Non-rechargeable and rechargeable batteries must be disposed of properly. For this purpose, special containers are provided for non-rechargeable and rechargeable battery disposal at communal collection centres.
- Batteries are extremely dangerous when swallowed! Therefore, keep batteries and the article away from infants. If a battery has been swallowed seek immediate medical advice.
- The batteries supplied must not be recharged, reactivated by any other means, dismantled, put into fire or short-circuited.

CHEST BELT

The heart rate chest belt is used to count your heartbeat and transmit the data to the watch. To wear the chest belt:

1. Wet the conductive pads on the underside of the chest belt with a few drops of water or a conductive gel to ensure solid contact.
2. Strap the heart rate chest belt across your chest. To ensure an accurate heart rate signal, adjust the strap until the belt sits snugly below your pectoral muscles.

Side profile illustration of a human torso with a bandage on the chest (no text or symbols)

TIPS

• The position of the chest belt affects its performance. Move the chest belt along the strap so that it falls above your heart.
- Avoid areas with dense chest hair.
- In dry, cold climates, it may take several minutes for the chest belt to function steadily. This is normal and should improve with several minutes of exercise.

NOTE If the watch is kept idle without receiving a heart rate signal for 5 minutes, the Heart Rate Mode will quit and return to Clock Mode.

WATCH

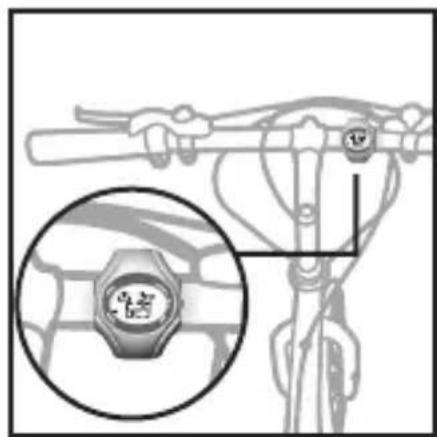

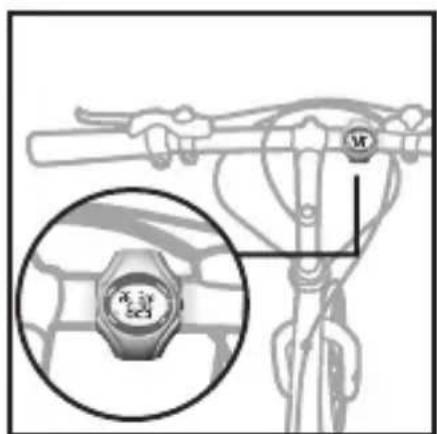

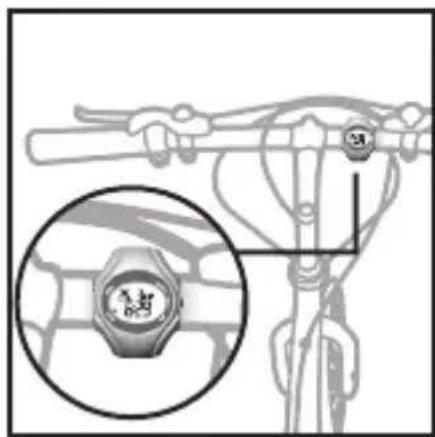

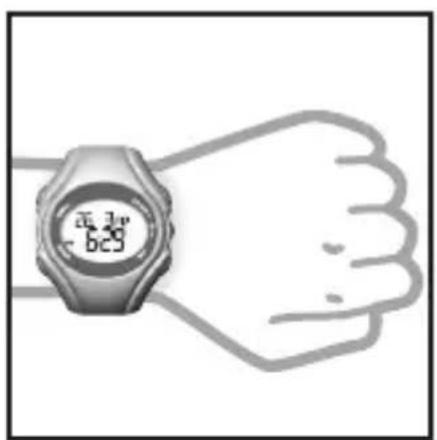

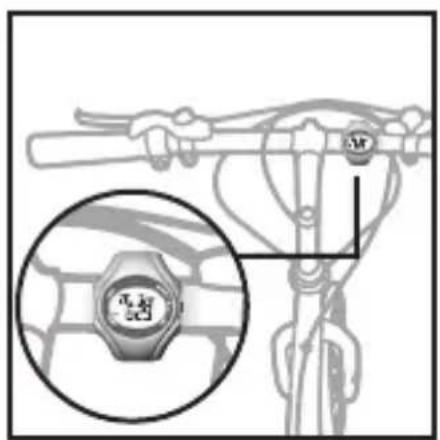

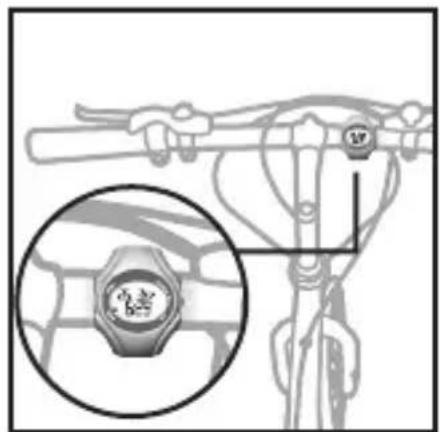

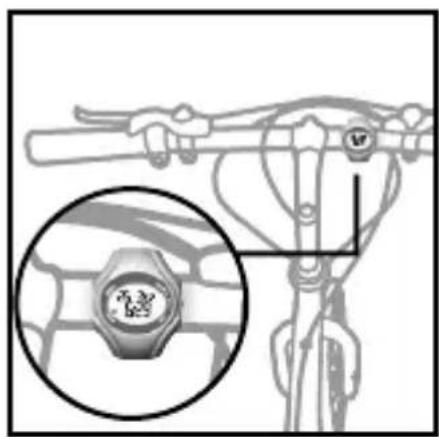

You can wear the receiver watch on your wrist or strap it to a bike or exercise machine, as shown below.

Illustration of a wristwatch with a hand gesture, no text or symbols present

Diagram of a bicycle's front view with a magnified inset showing the wheel (no text or symbols)

TRANSMISSION SIGNAL

The heart rate chest belt and watch have a maximum transmission range of about 62.5 centimetres (25 inches). They are equipped with the latest digital coding system to reduce signal interference from the environment, as well as analog technology. For more accurate readings use the digital transmission signal. You should only switch to the analog transmission signal if the situation in point 2 occurs (see below). Your watch will advise you which system it is using and the signal status by displaying the following icons:

NOTE Whenever the watch is searching for the chest belt signal (manual or automatic search), make sure that the chest belt is no further than 10 cm (4 inches) from the watch.

ICON DESCRIPTION
Outside heart is flashing	Searching for a signal
Inside heart is flashing A	signal has been found and the digital system is being used
Heart is flashing A signal	has been found and the analog system is being used
	No signal has been found
	No signal has been found

NOTE To switch from digital to analog or analog to digital system, press the chest belt button for more than 4 seconds and then force a signal search.

IMPORTANT If the heart icon does not appear on the display or is not flashing because no signal has been found, force a signal search. See "Signal Search" section for how to do this.

In the event that you experience a weak signal or your signal is disrupted by interference in the environment, follow the instructions below to identify and resolve the situation.

1. The signal is weak - the watch heart rate monitor will only show "0":

2. Shorten the distance between the heart rate chest belt and watch.
   • Re-adjust the position of the heart rate chest belt.

3. Check the conductive pads are moist enough to ensure solid contact.
4. Check the batteries. If they are low or exhausted, the range may be less.

5. Force a signal search (see "Signal Search" section).

6. The gym equipment does not seem to work with your chest belt and the digital icon 😊 is displayed:

- Most gym equipment is compatible with the analog system ♥. Press and hold the chest belt button for more than 4 seconds to change from digital to analog. Then force a signal search (see “Signal Search” section)

Close-up of a handheld device with a finger pointing at the screen (no visible text or symbols)

1. Interference from another person's heart rate monitor - their heart rate readings appear on your watch, or the heart rate monitor shows "0":

2. Press the chest belt button to get the watch to receive your chest belt signal. Do not press and hold the chest belt button, as it will change the transmission signal from digital to analog.
   • Take the chest belt off for 12 seconds to automatically change your User ID. (The watch has 4 User ID's. When the watch receives the chest belt signal it will tell you which User ID it has selected. Only products with a digital coding system have User ID capability.)

3. The signal is jammed - the heart rate reading on your watch is flashing:

- There is too much interference in the environment for your heart rate monitor to function. Move to an area where the heart rate reading stops flashing.

WARNING Signal interference in the environment can be due to electromagnetic disturbances. These may occur near high voltage power lines, traffic lights, overhead lines of electric railways, electric bus lines or trams, televisions, car motors, bike computers, some motor driven exercise equipment, cellular phones or when you walk through electric security gates. Under interference, the heart rate reading may become unstable and inaccurate.

To force a signal search:

1. Press MODE to navigate to the SMART TRAINING PROGRAM or Stopwatch Mode.
2. Press and hold MODE for 2 seconds. The signal-searching icon with the outside flashing will appear to confirm a signal search is taking place. Whenever the watch is searching for the chest belt signal make sure that the chest belt is no further than 10 ~cm (4 inches) from the watch.

The signal search will take approximately 10 seconds. If after 10 seconds the heart icon is not flashing, then your signal search has been unsuccessful and you need to force another signal search.

See the table in the "Transmission Signal" section for more signal status information.

SETTING THE KEYPAD TONE / LIGHT MODE

You can set the watch to have the:

- Keypad "Beep" tone ON or OFF.

BEEP On

• Light Mode ON or OFF - see "Activating the Backlight" section.

LIGHT OFF

To set these features:

1. Press MODE to navigate to the Real-Time Clock Mode.

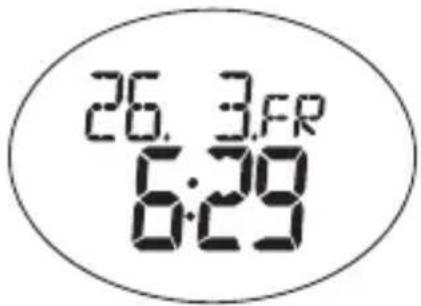

26.3:00 6:29

1. Press SET until you reach the feature you wish to change.
2. Press ST / SP / + or MEM / - to change the setting.
3. Press SET to confirm the setting and move on to the next one.

ACTIVATING THE BACKLIGHT

When the Light Mode is set to OFF:

- Press 🎨 to turn on the backlight for 3 seconds. Press any other key whilst the light is on and it will extend the light time by another 3 seconds.

When the Light Mode is set to ON:

- Press any key to turn ON or extend the backlight for 3 seconds.

To help conserve power the Light Mode ON setting will automatically switch to OFF after 2 hours.

NOTE The backlight does not work when the low battery icon is shown and will return to normal once the batteries are replaced.

ACTIVATING THE KEYPAD LOCK

To turn the keypad lock ON or OFF:

- Press and hold 📄 for 2 seconds. will appear on the display when the keypad lock is on.

Press MODE to switch between the 5 operation modes:

• Real-Time Clock
- Alarm Clock
- User Profile / Exercise Profile
- Timer - SMART TRAINING PROGRAM
- Stopwatch

The modes are described in the sections that follow.

NOTE You can run the SMART TRAINING PROGRAM or stopwatch in the background as you access other modes. The icon for the mode that is running will flash until you switch back to that mode.

The real-time clock is the default display for the VIBRA Trainer Elite / VIBRA Trainer Elite Pro watch.

To set the real-time clock:

1. Press MODE to switch to Real-Time Clock Mode.

26.3FR 6:29

1. Press and hold SET until the first setting flashes.

24Hr 6:29

1. Press ST / SP / + or MEM / - to change the setting. Hold to speed through the options. Press SET to confirm the setting and move on to the next one.

2. Repeat step 3 to change other settings for this mode.

The order of the real-time clock settings is:

• 12 / 24 hour clock format
• Hour
- Minute
- Year
• DD:MM or MM:DD date format
- Month
• Day

NOTE The clock is programmed with a 50-year auto-calendar, which means you do not need to reset the days of the week and dates each month.

SETTING THE ALARM(S)

Your watch has 2 alarms that can be set to activate daily (Mon-Sun), on a weekday (Mon-Fri), or on a weekend (Sat / Sun).

To set alarm 1 or alarm 2:

1. Press MODE to navigate to Alarm Clock Mode.

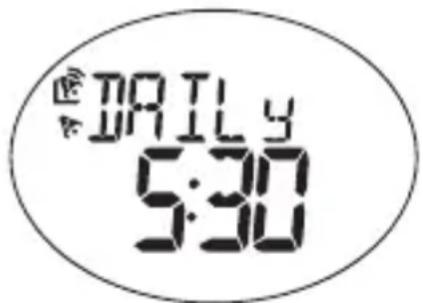

© DAILY 5:30

1. Press SET to move the cursor to select alarm 1 or alarm 2 and ST / SP / + to activate or deactivate the alarm.
2. Press and hold SET to enter the setting mode for the chosen alarm.

DAILY 5:30

1. Press ST / SP / + or MEM / - to change the setting. Hold to speed through the options. Press SET to confirm the setting and move on to the next one.
2. Repeat step 4 to change other settings for this mode.
3. The alarm will automatically be activated once you have finished setting the alarm time.

The order of the alarm clock settings is:

• Select daily, weekday or weekend alarm
  • Hour
• Minute

TURNING THE ALARM SOUND OFF

Press any key to turn the alarm sound off. The alarm will automatically reset itself unless you deactivate it.

ACTIVATING / DEACTIVATING THE ALARM

1. Press MODE to navigate to Alarm Clock Mode.
2. Press SET to move to the cursor to select alarm 1 or 2.
3. Press ST / SP / + or MEM / - to activate or deactivate the alarm.

EXERCISE PROFILE

To calculate your minimum and maximum heart rate you need to set the exercise profile.

The VIBRA Trainer Elite watch supports 1 exercise profile, whereas the VIBRA Trainer Elite Pro watch supports 3 different exercise profiles.

Different activities exercise the body in different ways and help you to achieve a variety of fitness goals. To accommodate this the exercise profile can be set to suit different exercise activities. For example, if you are running, your exercise profile settings are likely to differ from those you would use when undertaking a weight training activity.

Also, the time you require to warm-up and complete an exercise will vary. That is why you can change the warm-up and exercise countdown time to suit you.

To set the exercise profile:

1. Press MODE to navigate to Exercise Profile Mode.

Ex.1 PF

1. If this screen appears, press SET to navigate to the Exercise Profile Mode.

USER PF

1. VIBRA Trainer Elite Pro only - press SET to navigate to 1 of the 3 exercise profiles.
2. Press and hold SET until the first setting flashes.

T. ACT 2

1. Press ST / SP / + or MEM / - to change the setting. Hold to speed through the options. Press SET to confirm the setting and move on to the next one.
2. Repeat step 5 to change other settings for this mode.

The order of the user profile settings is:

• Target activity - 0 to 2
• Lower limit heart rate
  • Upper limit heart rate
• Resume vibration mode (only appears when the battery is low, this warning enables you to resume vibration mode or turn it OFF to save power)
• Heart rate alert
  • Exercise timer - hour
  • Exercise timer - minute
• Warm-up timer - set to 5, 10, 15 to activate or 0 mins to deactivate timer
• Rest timer - ON / OFF (VIBRA Trainer Elite Pro only)

NOTE Once you have set your exercise profile your lower and upper heart rate limit will be set automatically. However, you can manually change your upper and lower heart rate limit if the automatic setting does not suit you. If you change the target activity level, your upper / lower and maximum heart rate will automatically be updated.

There are 3 target activity levels:

TARGET ACTIVITY		MHR%	DESCRIPTION
0	Health Maintenance	65-78%	This is the lowest training intensity level. It is good for beginners and those who want to strengthen their cardiovascular systems.
1	Aerobic Exercise	65-85%	Increases strength and endurance. It works within the body's oxygen intake capability, burns more calories, and can be maintained for a long period of time.
2	Anaerobic Exercise	78-90%	Generates speed and power. It works at or above the body's oxygen intake capability, builds muscle, and cannot be maintained for a long period of time.

Before you begin any exercise program and to achieve maximum health benefits from your workout, it is important to know your:

• Maximum heart rate (MHR)
- Lower heart rate limit
• Upper heart rate limit

To manually calculate your own heart rate limits, follow the instructions below:

MHR LOWER LIMIT		UPPER LIMIT
MHR = 220 - age	MHR x lower target activity %.E.g. Target activity is 0Lower Limit = MHR x 65%	MHR x upper target activity %.E.g. Target activity is 0Upper Limit = MHR x 78%

You can set the heart rate alert in the exercise profile to the following settings:

ICON DESCRIPTION
	Heart rate sound and vibration alert are OFF
	Heart rate sound alert is ON• 1 beep means you have gone below your lower zone limit• 2 beeps means you have gone above your upper zone limit
	Heart rate vibration alert is ON
	Heart rate sound and vibration alert are ON

When the heart rate alert is activated, a flashing down or up arrow will appear on the display to show which heart rate limit you have surpassed

NOTE Using the vibration feature consumes battery life at a faster rate than the sound alarm.

NOTE If the watch is kept idle without receiving a heart rate signal for 5 minutes, the Heart Rate Mode will quit and return to Clock Mode.

USER PROFILE

To access the full benefits of the VIBRA Trainer Elite / VIBRA Trainer Elite Pro watch, set up your user profile before you exercise. This will automatically generate a fitness index and body mass index (BMI - VIBRA Trainer Elite Pro only). These calculations along with the calorie and fat % burned will help you track your progress over time.

To set the user profile:

1. Press MODE to navigate to User Profile Mode.

USER PF

1. If this screen appears, press SET to navigate to the User Profile Mode.

Ex.1 PF

1. Press and hold SET until the first setting flashes.

SEX F

1. Press ST / SP / + or MEM / - to change the setting. Hold to speed through the options. Press SET to confirm the setting and move on to the next one.

2. Repeat step 4 to change other settings for this mode.

The order of the user profile settings is:

• Sex
• Year of birth
• Month of birth
  • Day of birth
  • Weight unit - lbs or kg
• Weight
  • Height unit - feet or metres
• Height
• Activity level - 0-2

Once you complete your user profile, a fitness index and body mass index is automatically calculated and displayed for you. Refer to the "About the Fitness / Body Mass Index" section for further information.

NOTE You can display and adjust your user profile at any time.

NOTE You must set up your user profile to use the calorie count and fat burn features.

ACTIVITY LEVEL

The activity level is based on your own self-assessment of the amount of exercise you regularly perform.

ACTIVITY LEVEL	DESCRIPTION
0	Low - You do not usually participate in programmed recreation sports or exercise.
1	Medium - You are engaged in modest physical activity (such as golfing, horseback riding, table tennis, callisthenics, bowling, weight lifting or gymnastics) 2-3 times a week, totalling 1 hour per week.
2	High - You actively and regularly participate in heavy physical exercise (such as running, jogging, swimming, cycling, or skipping rope) or engage in vigorous aerobic exercise (such as tennis, basketball or handball).

ABOUT THE FITNESS / BODY MASS INDEX

FITNESS INDEX

Your VIBRA Trainer Elite and VIBRA Trainer Elite Pro watch will generate a fitness index based on your aerobic fitness. This index is dependent and limited by the body's ability to deliver oxygen to the working muscles in training. It is often measured by maximum oxygen uptake (VO2 Max), which is defined as the highest amount of oxygen that can be utilized when exercising at an increasingly demanding level. The lungs, heart, blood, circulatory system, and working muscles are all factors in determined VO2 Max. The unit of VO2 Max is ml/kg min.

The higher the index, the fitter you are. See the tables below for a rough guide to what your fitness index means:

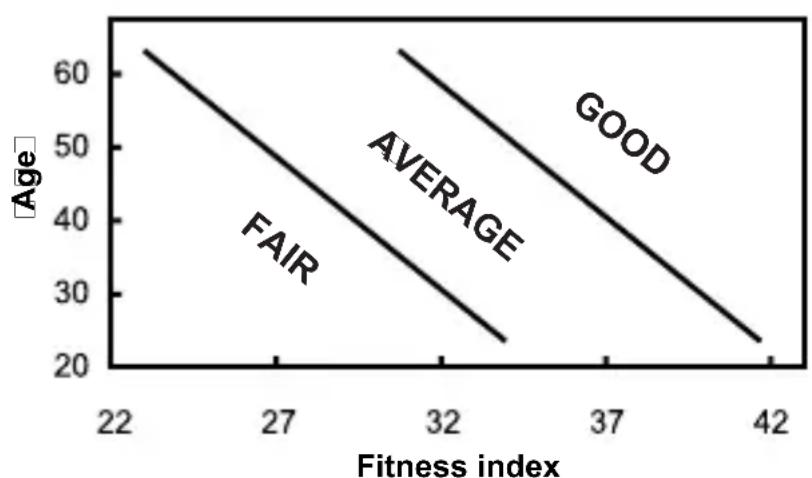

FITNESS INDEX FOR MAN □ □

Your body mass index is a measurement of the relative percentages of fat and muscle mass in the human body.

HEALTH INDICATION	BMI RANGE	DESCRIPTION
Underweight	Less than 20.0	Your body weight is currently lower than average. Work toward healthy, regular food intake and exercise routine to build up your health to recommended levels.
Recommended	20.0 to 25.0	Your health is at the recommended level. Maintain a balanced diet and exercise to keep your current level of health.
Overweight	25.1 to 29.9	Your body weight may be above normal. Increase your exercise and work out a diet plan to lower your risk for serious illness.
Obese	30.0 or greater	At this level, you may be at risk for heart disease, high blood pressure, and other illnesses. Consult with your doctor to develop a proper health and fitness plan.

NOTE BMI should not be used as a guideline for health risks for the following groups:

GROUP REASON
Children and teenagers BMI	ranges are only based on adult heights.
Athletes and body builders	BMI does not differentiate between fat and muscle, thus making it inaccurate for persons with high muscle volumes.
Pregnant or nursing women	This group generates naturally high fat reserves as part of the pregnancy.
People over the age of 65 F	fat reserves naturally tend to be higher with older persons.

NOTE The above BMI information is based on an average Caucasian physique.

VIEW FITNESS / BODY MASS INDEX

Press MODE to navigate to the User Profile Mode. Then, press MEM / - to display your fitness and body mass index.

FIT. 32

BMI 22.5

NOTE If you have not completed your user profile, these will not display and "-" will show on the display. Only VIBRA Trainer Elite Pro users will be given a BMI reading.

ABOUT THE SMART TRAINING PROGRAM

The SMART TRAINING PROGRAM enables you to complete exercise cycles effectively. It will guide you through from a 5-minute warm up (default setting), to the end of your exercise program. In addition to monitoring your heart rate and alerting you whenever you fall out of the range for the selected training zone, the Program allows you to check the calories consumed and the percentage of fat burned.

The SMART TRAINING PROGRAM monitors your exercise performance once you have entered your user profile and exercise profile.

NOTE You cannot use the SMART TRAINING PROGRAM if you are running the stopwatch.

To enter the SMART TRAINING PROGRAM:

1. Press MODE to navigate to Timer Mode.

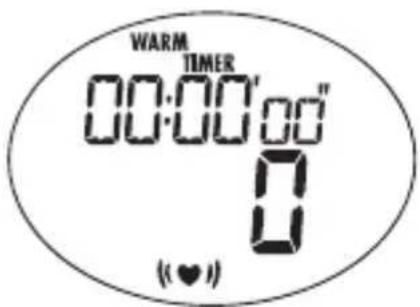

WARM TIMER 00:00'00" 0 ((♥))

1. VIBRA Trainer Elite Pro only - press and hold SET. Press ST / SP / + or MEM / - to select 1 of the 3 exercise profiles. Press SET to confirm and enter the SMART TRAINING PROGRAM.

TIMER EX.1 PF

1. To start or stop the warm-up, exercise or recovery countdown timer, press ST / SP / + . Once you stop any countdown timer you cannot resume the timer unless you press and hold ST / SP / + . (Please see point 4 below). At the end of each countdown period you will hear a beep.

2. 3 beeps = warm-up time completed.

3. 1 long beep = exercise time completed.
4. 3 beeps in 2 cycles = rest time completed (VIBRA Trainer Elite Pro only).
5. To bypass a timer setting and move onto the next one, press and hold ST / SP / + .
6. To reset the timer, press and hold SET.

WATCH INSTRUCTION
VIBRA Trainer Elite Press and hold ST / SP / + when the exercise timer has stopped.
VIBRA Trainer Elite Pro; rest timer not activated
VIBRA Trainer Elite Pro; rest timer activated	Press and hold ST / SP / + when the rest timer has stopped.

The order of the Timer Mode setting is:

• Warm-up time
• The warm-up will not display if it has been set to "0", in the exercise profile.

- Exercise time

- The exercise time is set in the exercise profile.

- Rest time

- VIBRA Trainer Elite Pro only - The rest time is automatically set to 3 mins and cannot be changed. When the timer reaches "0", the recovery heart rate will appear.

VIEW DATA WHILE SMART TRAINING PROGRAM IS RUNNING

During warm-up, exercise or rest time countdown, press SET to view and toggle between the following screen displays:

- Remaining warm-up / exercise / rest time with current heart rate

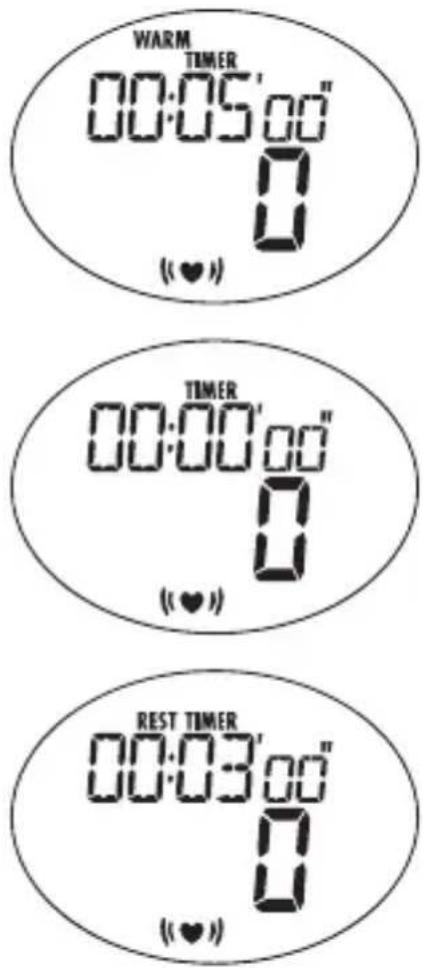

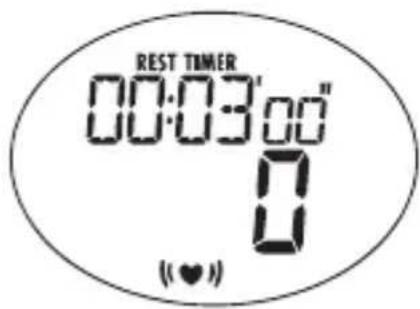

WARM TIMER 00:05'oo" 0 ((♥)) TIMER 00:00'oo" 0 ((♥)) REST TIMER 00:03'oo" 0 ((♥))

- Current calorie and fat burn level

WARM TIMER kcal 0% FAT ((♥))

- Clock with current heart rate

WARM TIMER 6:29:04 PM 0 ((♥)

VIEW SMART TRAINING PROGRAM MEMORY RECORDS

When the SMART TRAINING PROGRAM has been completed, press MEM / - to view the following records:

• Total time / maximum heart rate (max. heart rate shows only on VIBRA Trainer Elite Pro)
• Recovery heart rate / average heart rate
• Total calorie and fat burn level
• In zone time: Time spent without exceeding your upper or lower heart rate limit
- Above zone time: Time spent exceeding your upper heart rate limit
• Below zone time: Time spent exceeding your lower heart rate limit

NOTE You cannot use the stopwatch if you are running the SMART TRAINING PROGRAM.

RECOVERY HEART RATE (VIBRA TRAINER ELITE PRO ONL

Your recovery heart is a good indication of cardiovascular fitness. The faster your heart rate recovers after exercise, the better shape you are in. The watch uses a time-based recovery method, which checks your recovery heart rate 3 minutes after exercise.

Compare your recovery heart rate between exercise sessions to track the effect your exercise is having.

STOPWATCH

The stopwatch watch function is particularly beneficial to use when you are unsure how long your activity will take, or when you want to measure the time it takes to complete a task and your performance over that time. VIBRA Trainer Elite Pro users can also take lap and split time readings when using the stopwatch function.

To get the most out of your stopwatch function complete your user and exercise profile. If you have not completed the user profile you will be unable to use the calorie and fat burn function.

Press MODE to navigate to Stopwatch Mode. You can now perform the following functions:

TASK INSTRUCTION
Start stopwatch Press ST /	SP / +
Pause / resume stopwatch	Press ST / SP / +
Reset Press and hold SET
Save lap (VIBRA Trainer Elite Pro only)	Press L / MEM / - while the stopwatch is runningNOTE Up to 99 laps / 99 hrs,59 mins total can be stored in the memory
Select exercise profile for stopwatch (VIBRA Trainer Elite Pro only)	Reset the stopwatch. Press and hold SET

NOTE The stopwatch begins measurement in min:sec:1/100 sec. After 59 minutes pass, the display will change to hrs:min:sec.

VIEW DATA WHILE STOPWATCH / LAP IS RUNNING

While the stopwatch or lap functions are being used, press SET to view and toggle between the following screen displays:

• Total time / split time and current heart rate
- Lap time and current heart rate (if enabled)
• Current calorie and fat burn level
- Clock with current heart rate

NOTE Split time and lap time readings only appear on VIBRA Trainer Elite Pro watches.

If the battery is low when taking a lap, this screen will appear and no more laps will be saved.

BATT. Lo

VIEW STOPWATCH OR LAP MEMORY RECORDS

To view stopwatch records:

1. The stopwatch must be stopped (press ST / SP / +).

2. Press MEM / - to view memory records.

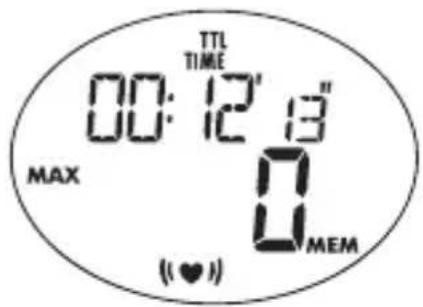

TTL TIME 00:12'13" MAX 0 MEM ((♥)

1. Press SET to view each record.

The stopwatch records will appear in the following order:

• Total time / maximum heart rate (max. heart rate shows only on VIBRA Trainer Elite Pro)
• Total time / average heart rate
• Calories / fat burn total
• In zone time: Time spent without exceeding your upper or lower heart rate limit
- Above zone time: Time spent exceeding your upper heart rate limit
• Below zone time: Time spent exceeding your lower heart rate limit

To view lap records (VIBRA Trainer Elite Pro only):

1. The stopwatch must be stopped (press ST / SP / +).

2. Press L / MEM / - to view memory records.

TTL SPLIT TIME 00'55"22 ALL

1. Press + or - to select lap.
2. Press SET to view each lap record.

The lap records will appear in the following order:

• Lap time / lap number
  • Lap time / maximum heart rate
• Split time / average heart rate
  • Calorie and fat burn total - per lap
  • In zone time - per lap: Time spent without exceeding your upper or lower heart rate limit
• Above zone time - per lap: Time spent exceeding your upper heart rate limit
• Below zone time - per lap: Time spent exceeding your lower heart rate limit

TRAINING INFORMATION

A heart rate monitor is the most important tool in cardiovascular health and an ideal training partner. It enables you to see and monitor results. This helps you assess your past performance, maximise your work out and adapt your future exercise program to achieve your desired goals in a safer and more effective way.

When you exercise, the chest belt picks up your heartbeat and sends it to the watch. Now you can view your heart rate and start monitoring your performance based on your heart rate readings. As you get fitter, your heart will need to do less work and the speed of your heart rate will decrease. The reason for this is as follows:

- Your heart pumps blood to your lungs to obtain oxygen. Then, the oxygen rich blood will travel to your muscles. The oxygen is used as fuel and the blood leaves the muscles and returns to the lungs to begin the process again. As you get fit, your heart is able to pump more blood with every beat. As a result, your heart doesn't have to beat as often to get the necessary oxygen to your muscles.

To gain the maximum benefit from your training program, and to ensure that you exercise safely, please observe the following guidelines:

• Start with a well-defined training goal, such as to lose weight, keep fit, improve health or compete in a sporting event.
• Select a training activity you enjoy, and vary your training activities to exercise different muscle groups.
• Start slowly, and then gradually step up your work out as you become fitter. Exercise regularly. To maintain a healthy cardio-vascular system, 20-30 minutes three times a week is recommended.
• Always allow at least five minutes before and after exercising for warm-up and cool-down.
  • Measure your pulse after training. Then repeat the procedure again after three minutes. If it does not return to its normal resting rate, you may have trained too hard.
  • Always check with your doctor before starting a vigorous training program.

CARE INSTRUCTIONS

To ensure you receive the maximum benefit from using this product, please observe the following guidelines:

• Clean the watch and chest belt thoroughly after each training session. Never store the products when wet.
• Use a soft, slightly moistened cloth. Do not use abrasive or corrosive cleaning agents, as these may cause damage.
• Avoid pressing the keys with wet fingers, under water, or in heavy rain, as this may allow water to gain entry into the electrical circuitry.
• Do not bend or stretch the transmitter part of the chest belt.
• Do not subject the product to excessive force, shock, dust, temperature changes, or humidity. Never expose the product to direct sunlight for extended periods. Such treatment may result in malfunction.
• Do not tamper with the internal components. Doing so will terminate the product warranty and may cause damage. The main unit contains no user-serviceable parts.

• Do not scratch hard objects against the LCD display as this may cause damage.

• Remove the batteries whenever you are planning to store the product for a long period of time.

• When replacing batteries, use new batteries as specified in this user manual.

AQUATIC AND OUTDOOR ACTIVITIES

The watch is water-resistant up to 50 metres. The chest belt is water-resistant up to 10 metres, but should not be worn for underwater activities, as the heart rate transmission cannot occur under water. Refer to the table for proper use guidelines.

	RAIN SPLASHES, ETC	SHOWERING (WARM / COOL WATER ONLY)	LIGHT SWIMMING / SHALLOW WATER	SHALLOW DIVING / SURFING / WATER SPORTS	SNORKELING / DEEP WATER DIVING
50m / 165ft OK	OK OK NO				NO

When using the watch for aquatic or outdoor sports activities, observe the following guidelines:

• Do not press the keys under water or with wet fingers.
• Rinse with water and mild soap after use.
• Do not use in hot water.

TIPS FOR KEEPING YOUR WATCH FIT

Keep your watch water resistant! Avoid chemicals (gasoline, chlorine, perfumes, alcohol, hair sprays, etc.). Rinse after use. Reduce exposure to heat. Have your watch serviced by an approved service centre annually.

SPECIFICATIONS

TYPE DESCRIPTION
CLOCK
Time format 12 hr / 24 hr
Date format DD / MM or MM / DD
Year format	2001-2050 (auto-calendar)
Alarms	Alarms 1 and 2 with daily, weekday or weekend settings
STOPWATCH
Stopwatch	99:59:59 (HH:MM:SS)
Resolution	1/100sec
Lap counter	99 laps share 99:59:59 (HH:MM:SS) (VIBRA Trainer Elite Pro only)
SMART TRAINING PROGRAM
Warm-up timer Set to 5, 10	15, or 0 mins
Exercise timer 99:59:00 (HH:MM:SS)
Rest timer 3 mins fixed time (VIBRA Trainer Elite Pro only)
PERFORMANCE TRACKING
Heart rate (HR) alarm Vibrate / sound / visual
HR measuring range 30-240 bpm (beats per minute)
Lower HR settable range 30-220 bpm (beats per minute)
Upper HR settable range 80-240 bpm (beats per minute)
Calories calculation 0-9,999 kcal
% fat burning calculation 0-99%
TRANSMISSION
Range 62.5 cm (25 inches)	- may decrease with low battery
WATER RESISTANT
Watch 50 metres (not actuating keys)
Chest belt Splash proof
POWER
Watch 1 x CR2032 3V lithium battery
Chest belt 1 x CR2032 3V lithium battery
OPERATING ENVIRONMENT
Operation temperature	5°C-40°C (41°F-104°F)
Storage temperature	-20°C-70°C (-4°F-158°F)

WARNINGS

To ensure you use your product correctly and safely, read these warnings and the entire user manual before using the product. The warnings given here provide important safety information and should be observed at all times.

• The product is a precision instrument. Never attempt to take this device apart. Contact the retailer or our customer service department if the product requires servicing.
• Do not touch the exposed electronic circuitry, as there is a danger of electric shock.
  • Take precautions when handling all battery types.
• Remove the batteries before storing the product for a long period of time.
• Do not use the chest belt in aircrafts or hospitals. The use of radio frequency products can cause malfunctions in the control devices of other equipment.
• Do not subject the product to impact or shock.
• Check all major functions if the device has not been used for a long time. Maintain regular internal testing and cleaning of your device.
• When disposing of this product, do so in accordance with your local waste disposal regulations.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products.

If you're in the US and would like to contact our Customer Care department directly, please visit: www2.oregonscientific.com/service/support.asp

OR

Call 1-800-853-8883.

For international inquiries, please visit: www2.oregonscientific.com/about/international.asp.

Hereby, Oregon Scientific, declares that this VIBRA Trainer Elite / VIBRA Trainer Elite Pro model SE212 / SE233 is in compliance with EMC directive 89/336/CE. A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service.

CE

VIBRA Trainer Elite / VIBRA Trainer Elite Pro

Model: SE212 / SE233

MANUALE D'USO

INDICE

Introduzione .... 3

1 2 3 8:00:00"kcal" 8:00:00.80" 4 5 6 7

Close-up of a mechanical component with an arrow indicating direction (no visible text or symbols)

BASF 10000 10000 10000 10000

Abstract 3D geometric shape with arrow and triangle elements inside a circular frame (no text or symbols)

Diagram of a mechanical or electrical component with an arrow indicating rotation, no visible text or symbols

Close-up of a metallic object with a circular component and a curved arrow indicating rotation (no text or symbols)

Close-up of a metallic mechanical component with a circular hole and a cross symbol, no visible text or symbols.

Side profile line drawing of a human torso and arm (no text or symbols)

CONSIGLI

Illustration of a wristwatch with a digital display showing 3w, 29, and 23 (no text or symbols on the watch face)

Diagram of a bicycle's front wheel and side arm, showing a magnified inset of the wheel (no text or symbols present)

SEGNALE DI TRASMISSIONE

Illustration of a hand pressing down on a curved object (no text or symbols)

26.3FR 6:29

24 Hr 6:20 8:29

WARM TIMER 00:05'oo" 0 ((♥)) TIMER 00:00'oo" 0 ((♥))

REST TIMER 00:03'00" 0 ((♥))

TTL TIME 00:12'13" MAX 0 MEM ((♥)

1 2 3 8:00:00"kcal" 8:00:00.8G 4 5 6 7

Close-up of a mechanical component with an arrow indicating direction (no visible text or symbols)

DIN FOR LUTY FOR LUTY FOR LUTY

Abstract 3D geometric shape with curved lines and a central arrow, no text or symbols present

Diagram of a car interior showing a seatbelt and directional arrow (no text or labels)

Two grayscale images showing a circular component being turned into a ring, with no visible text or symbols.

Side profile line drawing of a human torso with a bandage (no text or symbols)

CONSEILS

Illustration of a wristwatch with a digital display showing approximately 6:23 (no text or symbols on the watch face)

Diagram of a bicycle's front wheel and side wheel, showing a close-up of the wheel (no text or symbols present)

SIGNAL DE TRANSMISSION

Close-up of a handheld device with a finger pointing to the screen (no visible text or symbols)

26.3FR 6:29

26.3FR 6:29

TTL TIME 00:12'13" MAX 0 MEM ((♥))

EUROPE - DÉCLARATION DE CONFORMITÉ

1 U-MW- 26.3.FR 6:29 ST/SYK S M MAX SET

Close-up of a mechanical component with an arrow indicating direction, no visible text or symbols

Diagram of a device with labeled components and a hand holding a pen, showing technical specifications.

Abstract 3D diagram with curved lines and a central arrow, enclosed in a hexagonal frame (no text or symbols)

Medical diagram showing a catheter inside a bone structure with an arrow indicating force direction (no text or labels)

Two grayscale images showing a circular component being turned with an arrow, and a circular dial with a plus symbol (no text or symbols present)

Side profile illustration of a human torso with a bandage on the chest (no text or symbols)

TIPPS

Illustration of a wristwatch with a digital display showing time, resting on a clenched fist (no text or symbols present)

Diagram of a bicycle's wheel assembly with an inset close-up showing the wheel (no text or symbols)

ÜBERTRAGUNGSSIGNAL

Illustration of a finger pressing down on a curved object (no text or symbols)

26.3FR 6:29

REST TIMER 00:03'00' 0 (♥)

WARM TIMER 6:29:04 PM 0 (♥)

TTL TIME 00:12'13" MAX 0 MEM ((♥))

1 MEM: 26.3:FR 6:29 3 MEM: 4 STOP: 5 SET 6

1 UMEM- 26.3 FR 6:29 MODE SET ST/SP+ 光

1 2 3 8:00:00"kcal" 8:00:00.87 4 5 6 7

Close-up of a mechanical component with an arrow indicating direction, no visible text or symbols

3.0V ALAW LIME 1.5V 2.0V 3.0V

Abstract 3D diagram with curved lines and a central arrow, no text or symbols present

Diagram of a mechanical or electrical component with an arrow indicating rotation, no visible text or symbols

Two grayscale images showing a circular component being turned with an arrow, and a circular dial with a plus symbol (no text or symbols present)

Side profile illustration of a human torso and arm (no text or symbols)

CONSEJOS

Diagram showing a wristwatch with digital display and a close-up of the watch's dial, illustrating the use of a bicycle.

Illustration of a finger pressing a button on a curved object (no text or symbols)

26.3FR 6:29

REST TIMER 00:03'00' 0 ((♥)

WARM TIMER 6:29:04 PM 0 ((♥))

VISUALIZAR EL REGISTRO DE MEMORIA DEL PROGRAMA INTELIGENTE DE ENTRENAMIENTO

TTL TIME 00:12'13" MAX 0 MEM (♥)

1 26.3.FR 6:29 3 4 5 6 NOT SET NOT ST:SRTA

1 UREM- 26.3.FR 6:29 MODE ST.SR. SET 1

1 2 3 8:00:88.86 4 5 6 7

Close-up of a mechanical component with a tool and arrow indicating motion (no visible text or symbols)

5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Abstract 3D geometric shape with curved lines and a central arrow, no text or symbols present

Diagram of a hand operating a device inside a circular frame, with an arrow indicating motion (no text or symbols)

Two grayscale images showing a circular component being turned, with one view showing a plus sign and the other showing a plus sign (no text or symbols present)

Side profile illustration of a human torso with a bandage on the chest (no text or symbols)

DICAS

Illustration of a wristwatch with a digital display showing 6:29, resting on a hand (no text or symbols present)

Diagram of a bicycle's front wheel and side seat, showing the wheel and handle (no text or symbols)

Close-up of a handheld electronic device with a finger pointing at the screen (no visible text or symbols)

26.3FR 6:29

26.3FR 6:29

TTL TIME 00:12'13" MAX 0 MEM (♥)

1 26.3.FR 6:29 3 4 5 6 NOT SET NOT ST:SRTA

1 U-REM- 26.3.FR 6:29 MODE ST.SR. SET 1

1 2 3 8:00:00"kcal" 8:00:00.89 4 5 6 7

Close-up of a mechanical component with directional arrows and a small circular symbol (no readable text or symbols)

Diagram showing a hand holding a device with labeled components and text, possibly indicating a device or component.

Abstract 3D diagram with curved lines and a triangular shape inside a circular frame (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Two grayscale images showing a circular device with a plus symbol on its surface, one open and one closed, both without any text or symbols.

Side profile illustration of a human torso with a belt (no text or symbols)

TIPS

Diagram showing a wristwatch with display and close-up of the hand holding a bicycle, highlighting the front view with a magnified inset.

TRANSMISSIESIGNAAL

Close-up of a handheld device with a finger pointing at the tip of a curved surface (no text or symbols visible)

26.3FR 6:29

OVERSCHAKELEN NAAR ANDERE WERKINGSMODI

WARM TIMER 6:29:04 PM 0 (♥)

NAKIJKEN VAN DE GEGEVENS IN HET GEHEUGEN VAN HET SMART TRAINING PROGRAMMA

TTL TIME 00:12'13" MAX 0 MEM ((♥)

INNEHÅLLSFÖRTECKNING

Introduktion 3

Huvudfunktioner 4

Klocka 4

LCD Display 5

Att Komma Igång 8

1 UMEM. 26.3 FR 6:29 MODE ST SP 1 SET 1

1 2 3 8:00:00" kcal" 4 5 6 7

Close-up of a mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram showing a hand holding a device with visible text labels and a pen tip, likely illustrating a technical or mechanical concept.

Abstract diagram with curved lines and a central arrow, no readable text or symbols

Diagram of a medical procedure with an arrow indicating direction and a plus symbol at the center (no text or labels)

Two grayscale images showing a circular component being turned with an arrow, and a circular dial with a plus symbol inside (no text or symbols)

Side profile illustration of a human torso and arm (no text or symbols)

TIPS

Illustration of a wristwatch with a digital display showing time (no text or symbols on the watch face)

Diagram of a bicycle's front wheel and side seat assembly, showing a close-up inset of the wheel (no text or labels)

Illustration of a handheld device with a finger pointing at the tip (no text or symbols)

ATT STÄNGA AV ALARMLJUDET

WARM TIMER 6:29:04 PM 0 (♥)

VISA SPARADE VÄRDEN FÖR SMART TRAINING PROGRAM

TTL TIME 00:12'13" MAX 0 MEM ((♥))

1 2 3 8:00:00"kcal" 8:00:00.86 4 5 6 7

Close-up of a mechanical component with an arrow indicating direction, no visible text or symbols

STEDD PLOR LED 1.5 CMOSY 1000 x 1000

Abstract diagram with curved line and arrow inside a hexagonal frame (no text or symbols)

Diagram of a hand holding a device inside a circular frame, with an arrow indicating rotation and a plus symbol at the bottom (no text or labels)

Close-up of a metallic mechanical component with a circular feature and a curved arrow indicating rotation (no text or symbols)

Close-up of a metallic mechanical component with a circular hole and a plus symbol, alongside a separate circular component (no text or symbols visible)

Side profile line drawing of a human torso with a bandage on the chest (no text or symbols)

提示

Illustration of a wristwatch with a digital display showing 6.29 seconds, resting on a clenched fist (no text or symbols present)

Diagram of a bicycle's front view with a magnified inset showing the wheel (no text or symbols)

发射信号

Close-up of a handheld electronic device with a finger pointing at the screen (no visible text or symbols)

26.3FR 6:29

26.3FR 6:29

Two horizontal grayscale color swatches with no text or symbols

中文 (繁)

Vertical grayscale gradient bar with no text or symbols

7

啟動

開啟腕錶包裝盒

Gray gradient bar transitioning from black to white (no text or symbols)

如需更換腕錶電池

Close-up of a mechanical component with a metallic bracket and mounting base (no visible text or symbols)

Diagram showing a hand holding a device with labeled components and a magnified view of the device's internal structure.

Abstract 3D diagram with curved lines and a central arrow, no text or symbols present

Diagram of a mechanical component with an arrow indicating rotation, no visible text or symbols

Close-up of a metallic object with a circular component and a curved arrow, no visible text or symbols.

Close-up of a metallic mechanical component with a circular hole and a plus symbol, no visible text or symbols.

Side profile illustration of a human torso and arm (no text or symbols)

提示

Illustration of a wristwatch with hand gesture (no text or symbols)

Diagram showing bicycle wheel assembly with labeled components and a magnified inset highlighting the component 'x', including a circular inset detail.

傳送訊號

Close-up of a finger pressing down on a curved surface (no text or symbols visible)

REST TIMER 00:03'00' 0 (♥)

27

Vertical grayscale gradient bar with alternating light and dark shades (no text or symbols)

中文(繁)

- 即時的卡路里和脂肪燃燒百份比

WARM TIMER kcal 0% FAT ((♥))

- 即時心率及時鐘

WARM TIMER 6:29:04 PM (@♥)

查看智能訓練程式的記憶記錄

00:12' 8" MAX 0 MEM (♥)

1. 按下 SET，便可查看每一項記錄。

秒錶記錄將按照以下順序顯示：

Two horizontal grayscale color swatches with no text or symbols

© 2004 Oregon Scientific. All rights reserved.

086-003560-024

警告
