USER MANUAL KH 2284 E-BENCH

• Operate the device at the correct mains voltage only (220 / 230 Volt ~ 50 Hz).

• Exposing this type of electrical equipment to high temperatures or moisture could lead to fires or electric shock. To prolong the service life of your radio do not position it near water or heating radiators. Always find a place with good air circulation.

• Never use damaged electrical equipment (the device itself or its mains lead).

• Do not try to reach the appliance if it falls into water. Pull out the plug from the mains socket immediately.

• The electrical components in this device are at high voltage. Never remove any parts of the housing.

• If repairs are required please take or send the device to our customer services centre (See the guarantee card for the address and telephone number).

• When required, the housing can be cleaned with a soft cleaning cloth (after ensuring that the plug is out of the mains

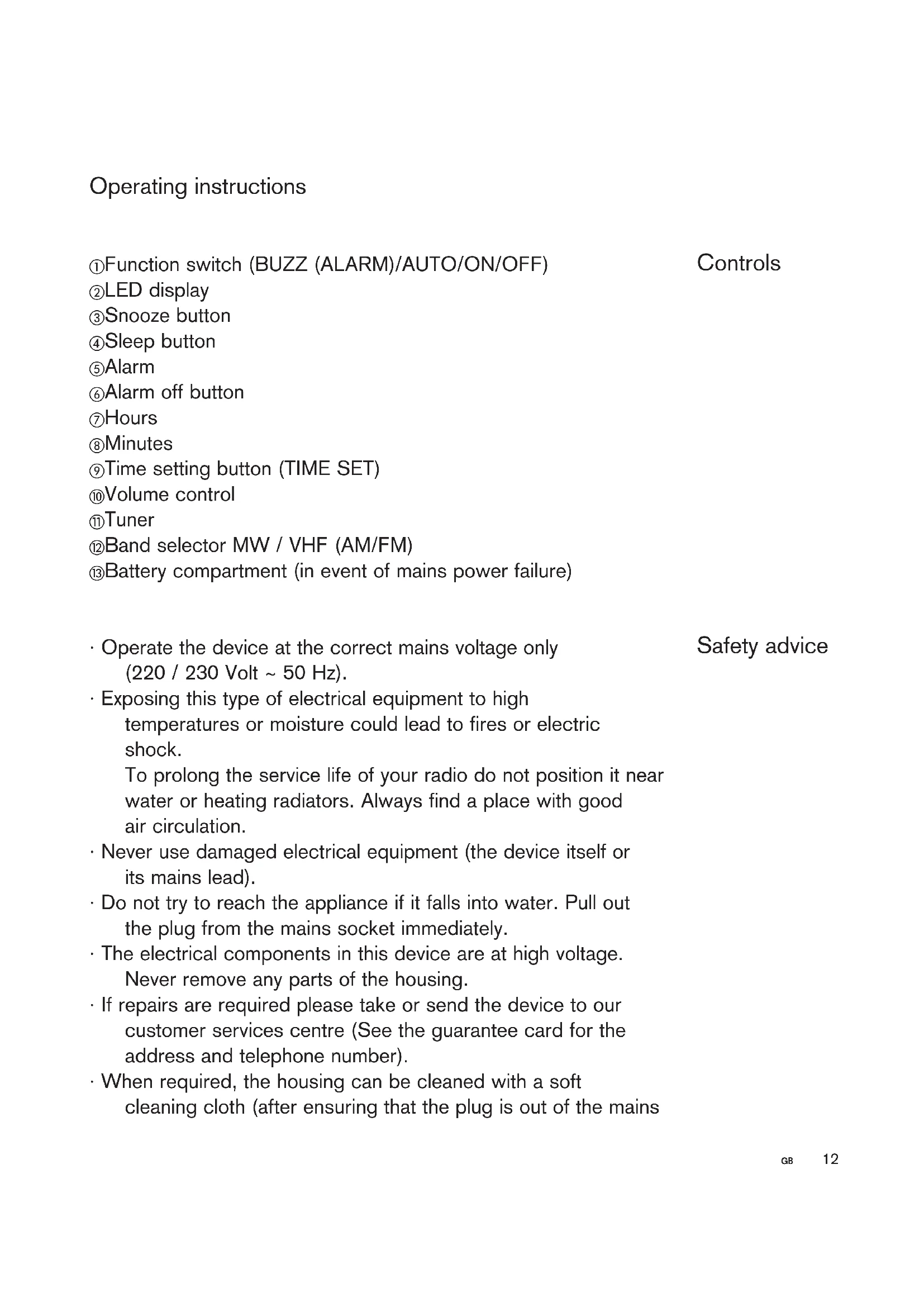

Operating instructions Controls Safety advice

Manual_alle Sprachen 20.10.2003 15:01 Uhr Seite 12Setting the alarm mode socket). Never use cleaning agents as they could damage the housing. Insert the plug into a mains socket (make sure the mains voltage matches that of the device). Switch on the radio by moving the function switch into the ON position. Set the band selector switch to the required position (VHF or MW) . Set the volume using the volume control . Set the radio to the VHF or medium wave frequency of your choice using the tuner . FM (VHF): Unwind and position the wire aerial for best reception of VHF. AM /MW: The radio has a sensitive ferrite aerial. Press and hold down the TIME button (TIME / TIME-SET) whilst pressing the HOURS or MINUTES button until you see the correct time in the display. Press the ALARM and HOURS or MINUTES button until the required alarm time appears in the display. 1 First set the required alarm time as explained above. 2 If you wish to be woken by the buzzer set the FUNCTION SWITCH to BUZZ (ALARM). The activated alarm mode is then shown in the display.

• If you wish to be woken by the radio, set the FUNCTION

Connecting to mains Radio reception Aerials Setting the time Setting the alarm time

Manual_alle Sprachen 20.10.2003 15:01 Uhr Seite 13SWITCH to ON and select the desired station/frequency and the volume . 3 Then set the FUNCTION SWITCH to AUTO. The activated alarm mode is then shown in the display. 4 Then set the FUNCTION SWITCH to RADIO. The activated alarm mode is then shown in the display. The appropriate alarm sounds when the alarm time is reached. The alarm sound switches off automatically after 1 hour 59 minutes. The alarm sound can be temporarily interrupted by pressing the SNOOZE button . After approximately 9 minutes the alarm sound automatically switches itself on again. This process can be repeated for a maximum of 1 hour 59 minutes. You can cut short the alarm period by setting the FUNCTION SWITCH to OFF. After the alarm is switched off, if you set the FUNCTION SWITCH to AUTO again the alarm will sound on the next day at the same time. This setting allows you to go to sleep whilst listening to the radio. With the FUNCTION SWITCH in the AUTO or OFF position the radio plays for a maximum of 1 hour 59 minutes. 1 Press the Sleep button to set the time for which the radio will play. The display shows . 2 If you wish the radio to stop playing earlier just press and hold down the Sleep button whilst pressing the MINUTES button until the desired playing time is displayed. 0:59

Automatic 24 hour alarm Going to sleep with the sleep function

Manual_alle Sprachen 20.10.2003 15:01 Uhr Seite 143 If you wish the playing time to be extended to 1:59, press and hold down the Sleep button whilst pressing the HOURS button. 4 To switch off the Sleep function or to set the sleep time to press the SNOOZE button . NOTE: Pressing the Sleep button again after setting the sleep time will automatically reset the sleep time to . Press the SNOOZE button to switch off the Sleep function. To guard against losing your settings in the event of a mains power failure insert a 9-volt battery into the battery compartment. The battery ensures that the radio alarm clock will function in emergency mode even during a mains power failure. In these cir- cumstances the LED display will not be illuminated. Once mains power is restored the correct time will be automatically displayed again. Note: The alarm, radio and LED display do not function during battery operation. – Insert the battery into the battery compartment (see Fig. ). – Replace the battery annually. 0:59 0:00

Statement of conformity
